Description

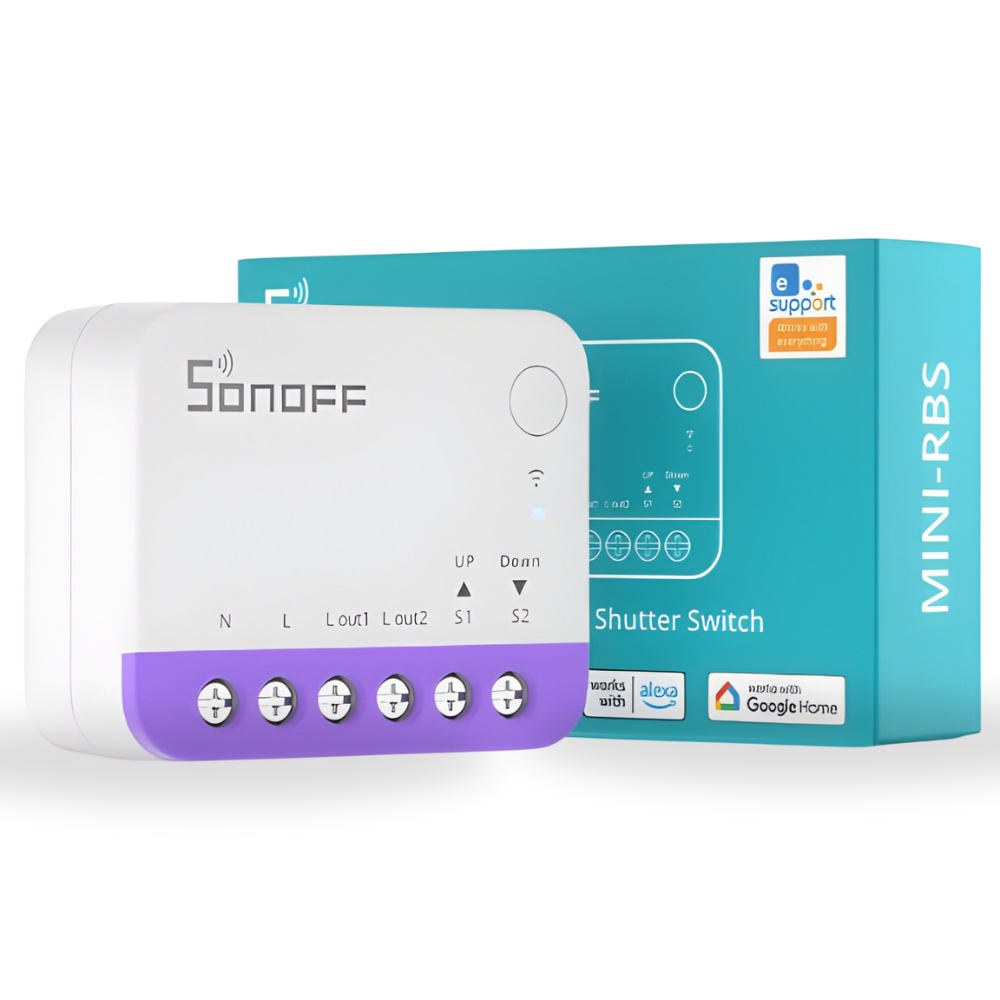

The SONOFF MINI-RBS is a compact smart roller shutter switch designed for precise control of curtains, blinds, roller shutters, awnings, and tubular motors. It allows accurate percentage-based positioning (e.g., 25%, 50%, 100%) to create the perfect lighting and privacy settings. The switch supports smart scheduling, scene creation, and remote control through the eWeLink app, while also offering compatibility with voice assistants like Alexa and Google Home for hands-free operation. Its mini size makes it easy to install inside standard wall boxes or behind existing switches, delivering a clean and discreet solution for smart home automation. With reliable performance, flexible control options, and intelligent automation, the MINI-RBS enhances comfort, convenience, and energy efficiency in any smart living environment.

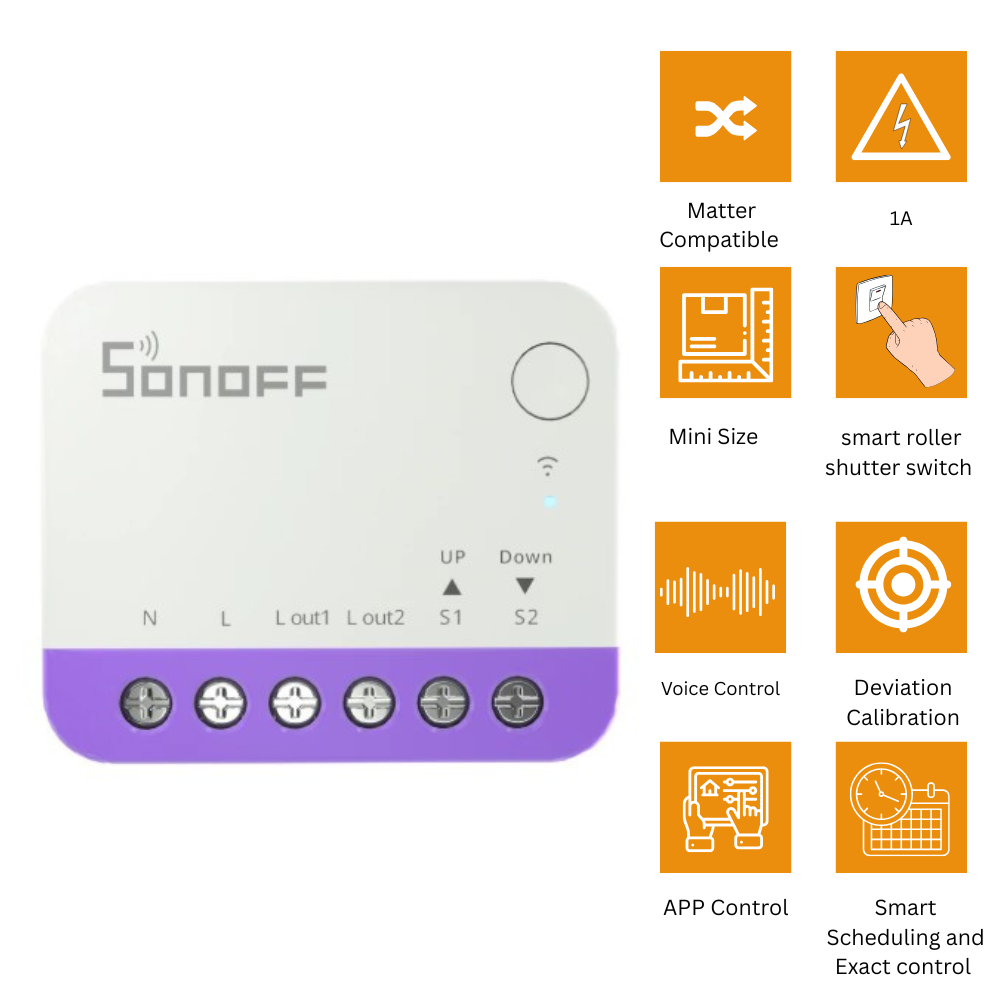

Key Features
-
Smart Roller Shutter/Blind Control
Open, close, or stop your shutters and curtains — with precise 0–100% position control.
-
App & Voice Control
Control via eWeLink App, or hands-free using Amazon Alexa and Google Assistant (e.g., “Hey Google, close the blinds to 50%”).
-
Scene & Schedule Automation
Set timers, sunrise/sunset actions, or create scenes like “Movie Mode” to lower blinds automatically.
-
Motor Compatibility
Works with most AC tubular motors, curtain motors, and roller shutter systems.
-
Compact Design
Size fits inside EU standard wall boxes or behind switches – only 39.5 × 33 × 16.8 mm.
-
Supports Physical Wall Switches
Allows manual control with momentary or rocker switches.
-
Wi-Fi Connection (No Hub Needed)
Connects directly to 2.4 GHz Wi-Fi, no need for a separate gateway.
-
Safe & Reliable
Fire-resistant housing, motor protection, and stable operation.
Technical Specifications
| Specification |
Details |
| Model |
SONOFF MINI-RBS |
| Application |
Roller shutters, blinds, curtains, awnings |
| Input Voltage |
100–240 V AC, 50/60 Hz |
| Motor Load (Max) |
1 A / 240 W motor |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n (2.4 GHz) |
| Control Method |
eWeLink App, Alexa, Google Assistant |
| Position Control |
Yes (0–100% percentage adjustment) |
| Switch Support |
Momentary / rocker wall switches |
| Dimensions |
39.5 × 33 × 16.8 mm |
| Material |
PC V0 fire-resistant |
| Operating Temperature |
-10 °C to +40 °C |
| Certifications |
CE / FCC / RoHS |
Why Choose SONOFF MINI-RBS?
If you want to automate curtains or roller shutters, create sunlight schedules, or control blinds with your voice or phone, the SONOFF MINI-RBS is the perfect solution. It’s small, powerful, easy to install, and built specifically for smart shading systems.
