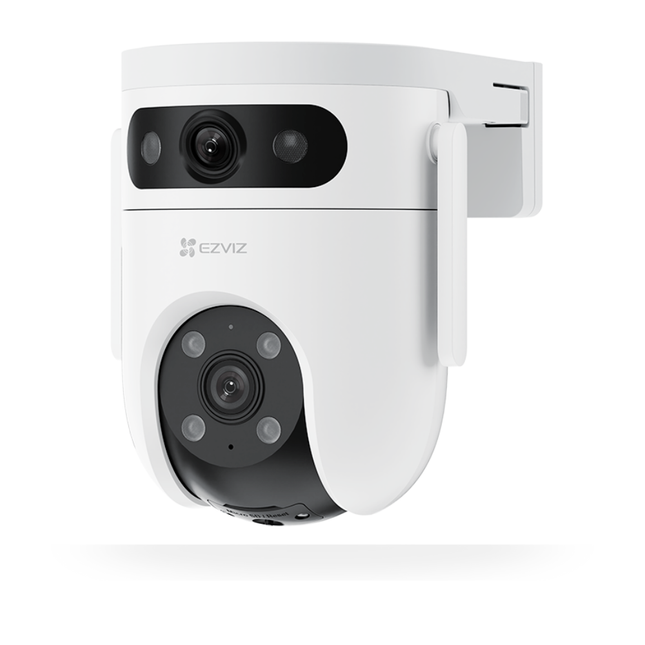

The EZVIZ H9C Dual‑Lens is a 2K outdoor Wi-Fi pan-and-tilt camera designed for comprehensive coverage and automated security. With dual lenses — a wide-angle lens for broad-area monitoring and a telephoto lens for detailed close-up viewing — it provides versatile and high-resolution imaging for complete property protection. The camera features AI-powered human and vehicle detection, enabling intelligent alerts while minimizing false alarms. Pan-and-tilt functionality allows 360° horizontal rotation and 90° vertical movement, ensuring no blind spots. Two-way audio enables real-time communication with visitors or intruders, while color night vision ensures clear monitoring even in low-light conditions. Weather-resistant and easy to install, the H9C Dual-Lens camera connects seamlessly to the EZVIZ app, allowing remote viewing, real-time alerts, and automated security management from anywhere.
Key Features
Dual 2K LensesWide-angle lens (2.8 mm) for broad coverage, telephoto lens (6 mm) for close-up detail.
Full Pan & TiltMotorized pivot on the telephoto lens for 360° coverage; manual rotation on the wide lens for flexible viewing angles.
Smart Human & Vehicle DetectionAI-powered detection differentiates people and vehicles to reduce false alarms.
Auto Tracking & Patrol ModesAutomatically tracks moving objects or patrols preset positions for continuous monitoring.
Three Night Vision ModesColor Mode — full-color night videoSmart Mode — adaptive lighting on motionBlack & White Mode — traditional IR vision
Active DefenseBuilt-in LED lights and siren to deter intruders.
Two-Way AudioCommunicate in real-time via built-in microphone and speaker.
Local & Cloud StorageSupports microSD cards up to 512 GB and EZVIZ CloudPlay for secure cloud backup.
Weatherproof DesignDurable outdoor housing, operating from –30°C to +50°C.
Power Supply12 V DC, maximum consumption ~12 W.
Technical Specifications
Specification
Details
Model
EZVIZ H9C Dual-Lens (2K)
Wide Lens
2.8 mm @ F1.6, 130° diagonal view
Telephoto Lens
6 mm @ F1.6, motorized pan & tilt
Pan / Tilt Range
Pan: ~350°, Tilt: ~80°
Max Resolution
2304 × 1296 (2K)
Video Compression
H.264 / H.265
Wi-Fi
IEEE 802.11 b/g/n (2.4 GHz)
Minimum Illumination
0.5 Lux (color), 0 Lux with IR
Night Vision Distance
Up to 30 m (B/W), 40 m if both lenses face the same direction (color)
Storage
microSD (max 512 GB) / EZVIZ CloudPlay
Operating Conditions
–30°C to +50°C, ≤95% humidity
Power
12 V DC, 1.5 A
Why Choose the EZVIZ H9C Dual‑Lens?
Wide and detailed monitoring with dual lensesPan-and-tilt coverage reduces the number of cameras neededIntelligent AI detection lowers false alarmsAutomated patrols and tracking for smarter securityStrong night vision in color or black & whiteDurable outdoor design with weatherproof housingFlexible storage: local microSD or secure cloud

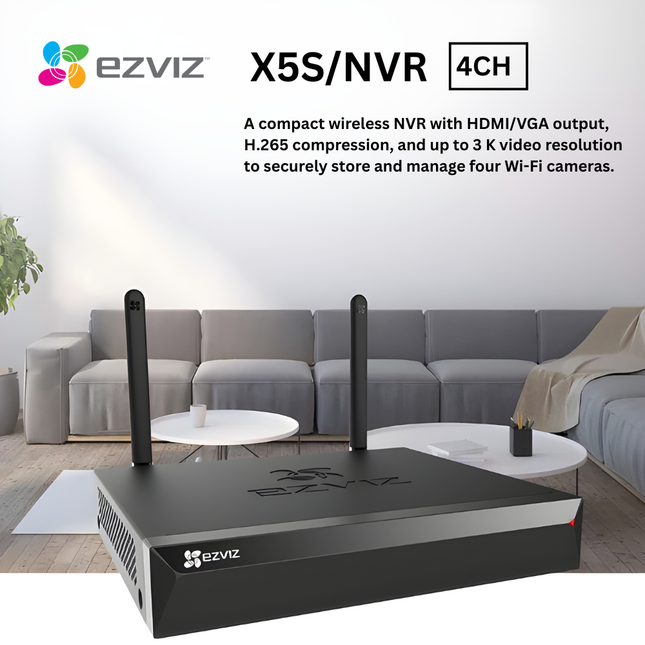

The EZVIZ X5S Wireless NVR is a robust network video recorder designed to serve as the central storage and management hub for your home or business surveillance system. It supports both wired and wireless camera connections, enabling flexible installation without the complexity of extensive cabling. Built for continuous 24/7 recording in high quality, it ensures reliable storage and playback of security footage from multiple cameras simultaneously. Its compatibility with high‑resolution cameras and efficient video compression technology makes it suitable for both residential and commercial monitoring needs.
Key Features
Supports connection of multiple Wi‑Fi or wired cameras (configurations for 4 or 8 cameras).
High‑resolution video support up to 3K for detailed surveillance footage.
Uses advanced H.265 video compression for efficient storage usage.
Expandable storage up to 8 TB via built‑in SATA HDD interface.
HDMI and VGA outputs for direct connection to monitors.
Extended Wi‑Fi range up to 100 m for flexible camera placement.
Supports ONVIF protocol for integration with third‑party cameras.
Multiple recording and playback modes including motion‑triggered and scheduled recording.
Technical Specifications
Specification
Details
Model Variants
X5S‑4W / X5S‑8W
Device Type
Wireless Network Video Recorder (NVR)
Camera Support (Wireless/Wired)
Up to 4 cameras (X5S‑4W) / Up to 8 cameras (X5S‑8W)
Maximum Supported Resolution
Up to 3K
Video Compression
H.265 / H.264
Recording Modes
Manual, Motion Detection, Scheduled, Event Triggered
Playback Modes
Instant, Normal, Event, Tag, Log Event
Wi‑Fi Range
Up to 100 m
Radio Frequency
2.4 GHz
Network Interface
One adaptive 10/100 Mbps Ethernet port
Video Outputs
HDMI (up to ~2592×1944 @ 30 Hz), VGA (up to ~1920×1080 @ 60 Hz)
Storage Interface
One built‑in SATA port for 1 TB–8 TB HDD
Antenna Count
2
Open Protocol Support
ONVIF V2.5 / HIKVISION protocol
USB Ports
1–2 USB 2.0 interfaces
Hardware Reset Support
Yes
Dimensions
~235 × 270 × 44.5 mm
Certifications
CE / UL / RoHS / WEEE / REACH
Power Supply
DC 12 V / 1.5 A
Net Weight
~932 g
Why Choose the EZVIZ X5S?
The EZVIZ X5S Wireless NVR offers a complete solution for multi‑camera security systems with strong storage capacity and support for high‑resolution video. Its flexible wireless camera support and extended Wi‑Fi range make it ideal for both indoor and outdoor deployments without complicated wiring. Advanced video compression technology optimizes storage and bandwidth utilization, while HDMI and VGA outputs allow convenient direct monitoring. Compatibility with ONVIF and widely used camera protocols ensures interoperability with a range of IP cameras, making the X5S a versatile and reliable choice for comprehensive surveillance needs.

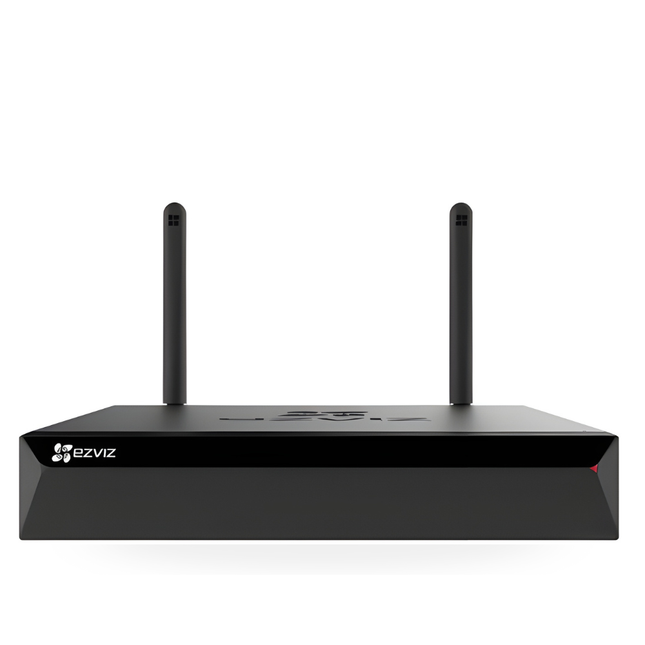

The EZVIZ X5S is a versatile wireless NVR designed to serve as the central storage hub for multi-camera security systems. It offers robust capacity, efficient storage, and high-resolution support, making it suitable for homes, offices, or small business setups.
Key Features
8-Channel Wireless Video Recording – Connects up to 8 EZVIZ Wi-Fi cameras simultaneously.
High-Resolution Support – Handles cameras up to 5MP (some versions support up to 3K).
Motion Detection & Smart Playback – Quickly review events with intelligent alerts.
HDMI/VGA Output – View multiple camera feeds on a single screen.
H.265 Video Compression – Reduces file size and bandwidth usage by up to 50% without quality loss.
Long-Range Wi-Fi – Stable connectivity up to 100 m (300 ft).
Expandable Storage – Supports HDD storage up to 8TB (HDD sold separately).
Technical Specifications
Specification
Details
Channels
4CH / 8CH (depending on model)
Camera Support
Up to 5MP / 3K resolution
Storage
HDD (up to 8TB, not included)
Connectivity
Wi-Fi / LAN
Output
HDMI / VGA
Video Compression
H.265
App
EZVIZ App
Smart Features
Motion Alerts, Smart Playback
Why Choose the X5S?
Centralized storage for multiple cameras High-quality 5MP/3K recording for detailed monitoring Efficient H.265 compression saves storage and bandwidth HDMI/VGA outputs for direct viewing Supports up to 8 Wi-Fi cameras Easy remote monitoring via EZVIZ app Reliable long-range wireless connection

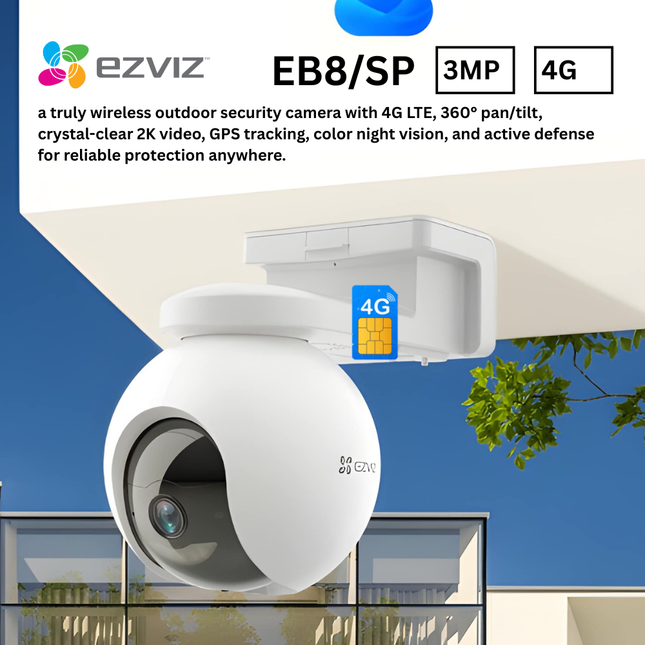

The EB8 4G is a fully wireless outdoor camera designed to deliver complete 360° protection anywhere—without the need for Wi-Fi or external power.It operates entirely on 4G LTE networks, runs on a large built-in battery, and offers flexible installation for farms, open fields, construction sites, or any remote location.
With 2K clarity, smart human detection, GPS tracking, and color night vision, the EB8 4G provides reliable and intelligent security day and night.
KEY FEATURES
4G LTE Connectivity – Works anywhere with cellular coverage, no Wi-Fi needed.
Built-in GPS Location – Track the camera’s location if it’s moved or lost.
2K Resolution – Sharp, clear video with enhanced details.
Pan & Tilt 360° View – 340° horizontal + 80° vertical rotation.
10,400 mAh Battery – Long-lasting operation³.
Smart Human Motion Detection – Detects and auto-tracks people.
Two-Way Talk – Communicate remotely via the EZVIZ app.
Color Night Vision – Full-color images at night using built-in spotlight.
Active Defense – Siren + strobe light for intruder deterrence⁶.
Weatherproof Design – Built for harsh outdoor conditions.
Solar Panel Support – Works with EZVIZ Type-C solar panels⁴.
Flexible Storage – Supports microSD (up to 512GB) + EZVIZ CloudPlay⁵.
TECHNICAL SPECIFICATIONS
Specification
Details
Model
EB8 4G
Resolution
2K
Connectivity
4G LTE (Micro SIM)
Pan & Tilt
340° Horizontal, 80° Vertical
Battery
10,400 mAh Rechargeable
Night Vision
Color Night Vision + IR
Detection
Smart Human Detection + Auto-Tracking
Audio
Two-Way Talk + Voice Messages
Storage
MicroSD up to 512GB + CloudPlay
Weather Rating
Outdoor Weatherproof
Charging Options
USB-C + Solar Panel Support
WHY CHOOSE THE EB8 4G?
Works in places with no Wi-Fi or electricity
Large battery + optional solar panel for continuous outdoor operation
360° pan & tilt view with 2K clarity
Smart motion detection with auto-tracking
GPS tracking for added security
Color night vision + active defense siren
Flexible placement—install it anywhere with 4G signal

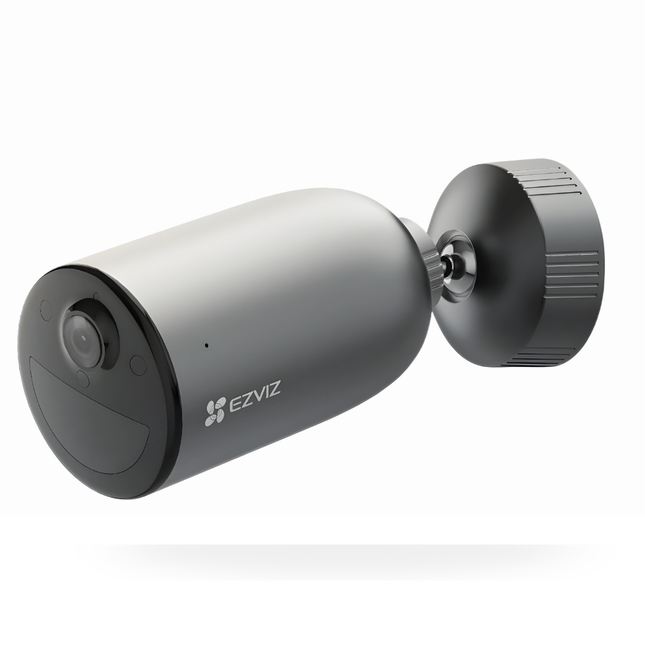

The EZVIZ EB3 is a standalone smart outdoor battery‑powered security camera designed to provide flexible and reliable home protection without the need for wiring or a base station. It delivers up to 2K resolution video, long battery life, advanced detection features, and a rugged weather‑resistant build, making it ideal for outdoor areas like yards, driveways, and entrances. Equipped with intelligent human motion detection, color night vision, and two‑way audio, it allows you to see, hear, and speak to visitors or intruders in real time. Its active defense system with siren and spotlight adds an extra layer of security, while support for microSD storage and optional cloud backup ensures that all critical footage is safely recorded. Lightweight and easy to install, the EB3 offers seamless connectivity through the EZVIZ app, allowing you to monitor your property from anywhere at any time.
Key Features
High‑quality 2K resolution for clear and detailed video.
Long battery life that can last up to 120 days on a single charge.
Smart human motion detection to reduce false alerts.
Color night vision with infrared support for low‑light conditions.
Active defense system with siren and spotlight.
Two‑way talk for real‑time communication.
Customizable voice alerts for personalized messages.
Works with solar panel charging for continuous operation.
Supports local microSD storage and optional cloud storage.
Weatherproof design suitable for outdoor use.
Technical Specifications
Specification
Details
Model
EZVIZ EB3
Image Sensor
1/2.8″ 3‑Megapixel Progressive Scan CMOS
Maximum Resolution
2K (2304 × 1296)
Minimum Illumination
0.01 Lux (Color), 0 Lux with IR
Lens
2.8 mm, F2.0; Diagonal ~131°, Horizontal ~110°, Vertical ~58°
Video Compression
H.265 / H.264
Frame Rate
Up to 15 fps (adaptive)
Night Vision
Color night vision and IR up to ~15 m
Digital Noise Reduction
3D DNR
Motion Detection
Smart human motion detection
Two‑Way Audio
Yes (microphone + speaker)
Active Defense
Siren and spotlight
Local Storage
microSD card support (up to 256 GB)
Cloud Storage
Optional cloud storage
Wi‑Fi Standard
IEEE 802.11b/g/n (2.4 GHz)
Frequency Range
2.4 – 2.4835 GHz
Security Protocols
WPA / WPA2 / WPA‑PSK / WPA2‑PSK
Battery Capacity
5200 mAh rechargeable battery
Operating Temperature
‑20 °C to 50 °C
Humidity
Up to 95 % non‑condensing
Weather Resistance
Outdoor weatherproof design
Dimensions
Approx. 105.9 × 62.8 × 62.8 mm
Power Supply
DC 5 V / 2 A (adapter sold separately)
Weight
Approx. 222‑245 g
Why Choose the EZVIZ EB3?
The EZVIZ EB3 offers a blend of high‑resolution imaging, intelligent detection, and robust outdoor performance without the need for complicated wiring. Its long battery life, color night vision, and active defense functions provide dependable monitoring day and night. The flexibility of local storage plus optional cloud backup gives you peace of mind and control over your security footage. EZVIZ app connectivity and compatibility with smart ecosystems make it easy to manage and view live feeds or receive alerts from anywhere.

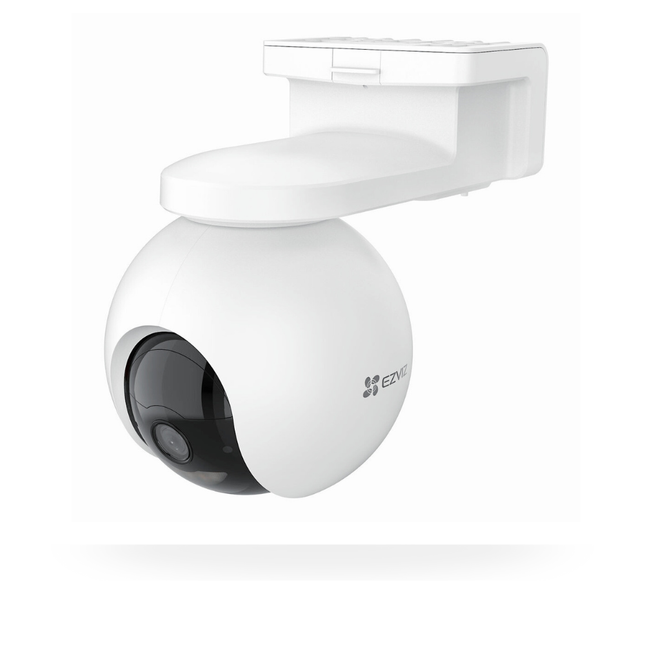

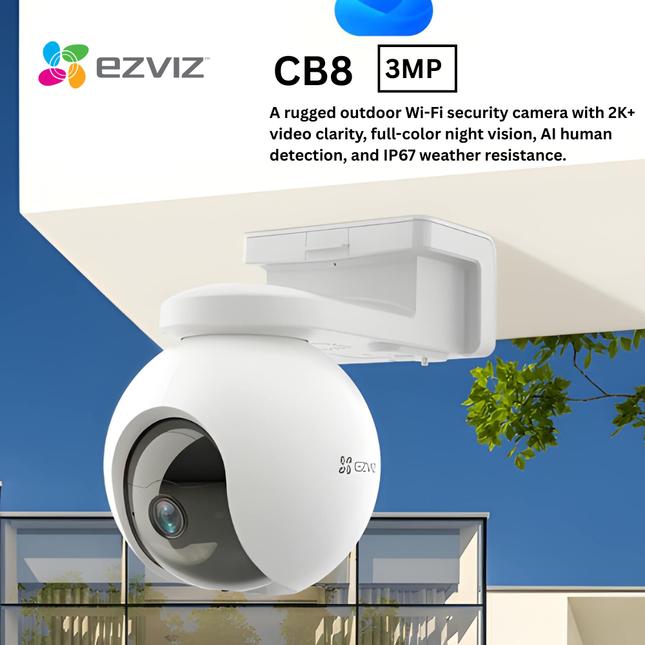

The EZVIZ CB8 is a battery-powered 2K pan & tilt Wi-Fi camera designed for simple, flexible, and wire-free outdoor monitoring. With its large battery capacity and optional solar panel support, it delivers long-lasting protection with smart motion detection, night vision, and two-way communication. The camera’s pan and tilt functionality allows full 360° horizontal rotation and 90° vertical coverage, ensuring no blind spots around your property. Equipped with advanced AI-powered human and vehicle detection, it can differentiate between people, pets, and other moving objects, reducing false alerts. Color night vision and infrared capability provide clear images even in low-light conditions, while the built-in microphone and speaker enable real-time communication with visitors or intruders. Lightweight, weather-resistant, and easy to install, the CB8 connects seamlessly to the EZVIZ app, allowing you to monitor your home from anywhere and receive instant alerts when activity is detected.
Key Features
2K High-Resolution VideoCapture clear and detailed footage across your property.
Pan & Tilt Control360° horizontal and 65° vertical rotation for full-area coverage.
Long-Lasting BatteryUp to 210 days of battery life¹ with 10,400 mAh capacity. Solar panel support available³.
Color Night VisionSee clearly at night with smart illumination; infrared mode is also available.
Smart Motion Detection & Auto-TrackingDetects humans and tracks movement automatically, reducing false alerts.
Two-Way Audio & Custom Voice AlertsCommunicate instantly with visitors or pre-record messages.
Solar Panel CompatibleAn optional solar panel allows continuous power without manual recharging.
Weatherproof DesignBuilt to withstand rain, dust, and snow for reliable outdoor use.
Technical Specifications
Specification
Details
Model
EZVIZ CB8
Resolution
2K (3MP)
Connectivity
Wi-Fi 2.4GHz
Power Source
Battery (10,400 mAh) + Optional Solar Panel
Features
Pan/Tilt, Color Night Vision, Auto-Tracking, Active Defense
Audio
Two-Way Audio
Storage
MicroSD up to 256GB / EZVIZ Cloud Storage
Weatherproof
Yes, outdoor
Why Choose The CB8 2K?
Full-area pan & tilt coverage Clear 2K resolution day and night Long battery life with optional solar power Smart human detection with auto-tracking Durable, weatherproof outdoor design

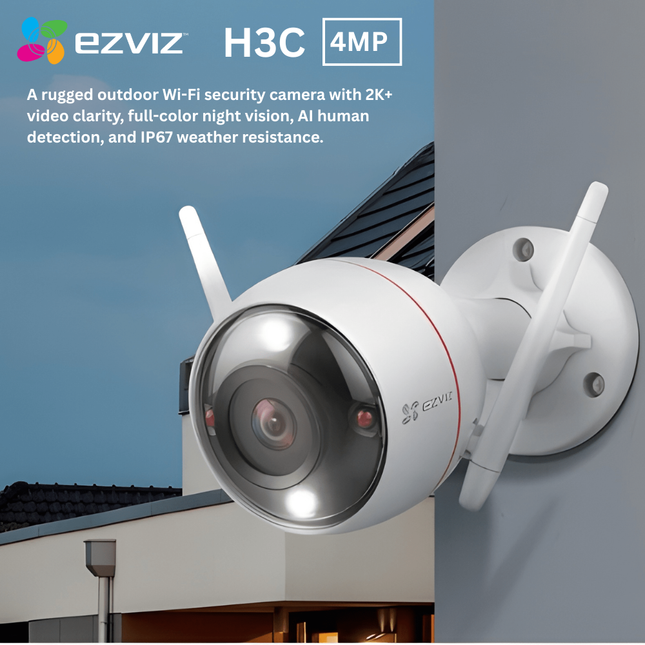

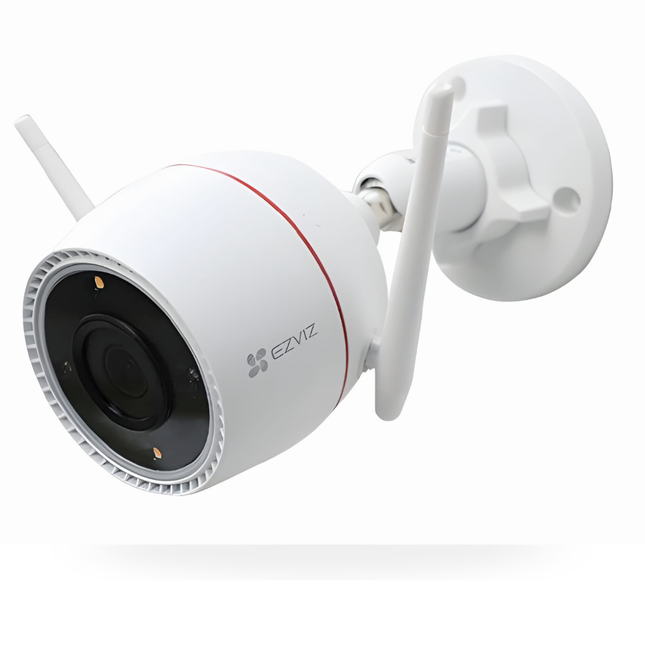

The EZVIZ H3C 2K⁺ is a standalone 4MP outdoor security camera designed for smart and reliable home protection. It delivers crisp 2K⁺ video quality, color night vision, advanced AI human detection, and two-way communication—without complicated wiring. The camera is powered by a high-capacity battery with optional solar panel support, allowing for long-term, uninterrupted monitoring. Its intelligent detection system can distinguish between humans, pets, and other objects, reducing false alarms while sending instant alerts to your smartphone. Equipped with a built-in microphone and speaker, the H3C 2K⁺ enables real-time interaction with visitors or intruders. Its weather-resistant design ensures reliable performance in all outdoor conditions, and lightweight construction allows for easy installation anywhere around your property. With seamless connectivity to the EZVIZ app, you can monitor your home remotely and manage settings effortlessly for continuous peace of mind.
Key Features
4MP 2K⁺ Super HD VideoSharp and detailed imaging for clear monitoring.
Color Night VisionSee important details even in low-light conditions with built-in spotlights and IR lights.
Two-Way AudioCommunicate instantly with visitors or family members.
AI-Powered Human DetectionReduces false alerts with intelligent human shape recognition.
Waving-Hand RecognitionTrigger a video call by simply waving your hand in front of the camera.
Customizable Detection ZoneSelect specific areas for motion detection to focus alerts where you need them.
Active DefenseBuilt-in siren and spotlights provide instant deterrence against intruders.
Weatherproof IP67 DesignReliable outdoor performance in all weather conditions.
Flexible Storage OptionsSupports MicroSD card up to 512 GB and EZVIZ CloudPlay for secure storage.
Smart IntegrationWorks with Google Assistant, Amazon Alexa, and IFTTT for voice and automation control.
H.265 Video TechnologyEfficient compression reduces storage and bandwidth by up to 50%.
Technical Specifications
Specification
Details
Model
EZVIZ H3C
Resolution
4MP 2K⁺
Connectivity
Wi-Fi 2.4GHz
Audio
Two-Way Audio
Detection
AI Human Detection
Night Vision
Color Night Vision & IR Vision
Usage
Outdoor
Weatherproof
IP67
Storage
MicroSD up to 512 GB / EZVIZ CloudPlay
Smart Features
Waving-Hand Recognition, Customizable Detection Zone, Active Defense, H.265 Compression
Smart Integration
Google Assistant, Amazon Alexa, IFTTT
Why Choose the H3C 2K⁺?
High-resolution 4MP 2K⁺ video for clear detail Color night vision with built-in spotlights Advanced AI human detection and waving-hand recognition Flexible and secure storage options Two-way audio for easy communication Weatherproof design for reliable outdoor use Integration with smart home platforms and voice assistants
The EZVIZ EL3 is a 2K smart security wall-light camera designed to illuminate your outdoor areas while providing advanced monitoring. It combines an adjustable wall light with AI-powered detection, license plate recognition, and two-way communication for enhanced home protection. The camera delivers sharp 2K video quality, capturing clear details of people, vehicles, and surroundings, day or night. Its intelligent detection system minimizes false alerts by distinguishing between humans, vehicles, and other objects. The built-in speaker and microphone enable real-time communication, allowing you to interact with visitors or respond to potential intruders instantly. With integrated lighting, the EL3 enhances visibility while acting as a deterrent against unwanted activity. Weather-resistant and easy to install, it offers flexible placement and continuous outdoor protection, all controllable via the EZVIZ app for remote monitoring and alerts.
Key Features
2K HD Video – Clear and detailed video for day and night monitoring.
Adjustable Wall Light – 780-lumen brightness with customizable color temperature (3000K–5700K) for ambiance and security.
Horizontal Camera Rotation – Adjust the camera angle to cover wider areas and reduce blind spots.
AI-Powered Human & Vehicle Detection – Smart alerts for people and vehicles within customizable detection zones.
License Plate Recognition – Identifies and tracks vehicles, sending instant notifications.
Auto-Tracking – The camera follows detected humans or vehicles to maintain coverage.
Color Night Vision – Up to 15 meters of visibility with spotlights for vivid night-time imaging.
Dual-Band Wi-Fi 6 – Supports 2.4 GHz / 5 GHz for stable and fast connectivity.
Two-Way Audio – Communicate with visitors or intruders directly through the camera.
Active Defense – Built-in siren and strobe light to deter unwanted guests.
Weatherproof Design – Reliable performance in rain, snow, and dust.
Flexible Storage – Supports microSD cards up to 512 GB and EZVIZ CloudPlay for secure storage.
H.265 Video Compression – Reduces storage and bandwidth usage by up to 50%.
Technical Specifications
Specification
Details
Model
EZVIZ EL3
Resolution
2K (3MP)
Connectivity
Dual-Band Wi-Fi 6 (2.4/5 GHz)
Audio
Two-Way Audio
Detection
AI Human & Vehicle Detection
Night Vision
Color Night Vision with Spotlights
Lighting
780-Lumen Adjustable Wall Light, 3000K–5700K
Active Defense
Siren & Strobe Light
Weatherproof
Yes, outdoor use
Storage
MicroSD up to 512 GB / EZVIZ CloudPlay
Smart Features
Auto-Tracking, License Plate Recognition, Customizable Detection Zones, H.265 Compression
Why Choose the EL3 2K?
Combined security camera and adjustable wall light
Advanced AI detection for humans and vehicles
Color night vision for clear nighttime imaging
License plate recognition for vehicle monitoring
Dual-band Wi-Fi 6 for fast and stable connection
Two-way audio for easy communication
Durable and weatherproof outdoor design
Flexible and secure storage options

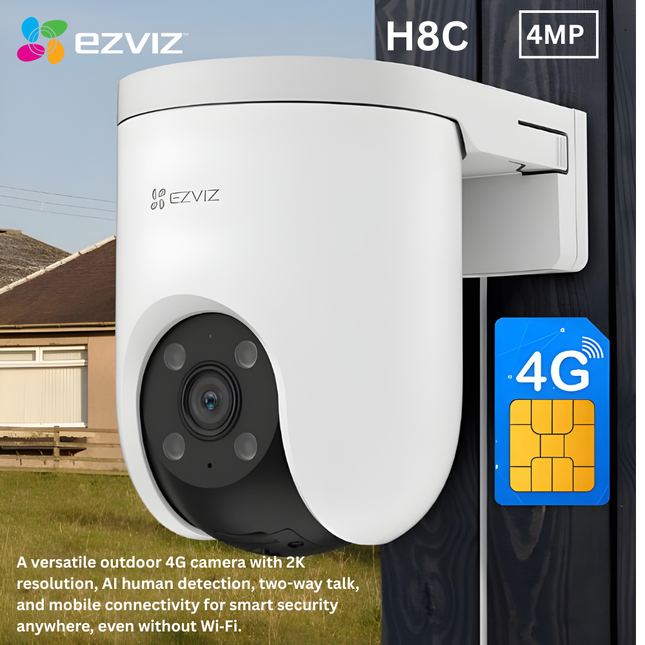

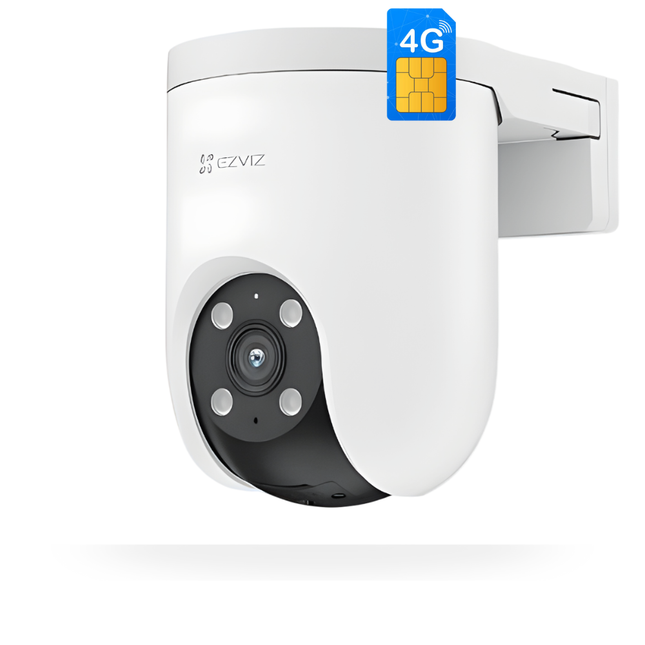

The EZVIZ H8c 4G is a powerful pan & tilt outdoor security camera built for places where Wi-Fi is unavailable or unreliable.
With 4G connectivity, AI-powered detection, 360° panoramic rotation, and advanced night vision, it delivers reliable protection for farms, vacation homes, construction sites, warehouses, and large backyards.
It offers dual connectivity (4G SIM or wired Ethernet), two-way talk, customizable alarms, real-time app control, and safe local/cloud storage options.
KEY FEATURES
4G LTE Connectivity – Works anywhere without Wi-Fi.Dual Connection Options – 4G SIM + RJ45 Ethernet port.2K Resolution – Clear and sharp video imaging.Pan & Tilt 360° Coverage – 350° horizontal + 80° vertical.AI Human & Vehicle Detection – Reduces false alerts.Auto-Tracking – Tracks human movement intelligently.Three Night Vision Modes – Color, black & white, smart.Active Defense Mode – Siren + strobe lights.Two-Way Talk – Communicate through the EZVIZ app.Weatherproof Design – Made for tough outdoor conditions.Custom Detection Zones – Control monitoring spaces.Voice Assistant Support – Works with Alexa & Google Assistant³.Local & Cloud Storage – microSD up to 512GB + CloudPlay.H.265 Compression – Better quality, smaller file sizes.
TECHNICAL SPECIFICATIONS
Specification
Details
Model
H8c 4G
Resolution
2K
Connectivity
4G Nano SIM + RJ45 Ethernet
Pan & Tilt
350° Horizontal / 80° Vertical
Detection
AI Human & Vehicle Detection
Auto-Tracking
Yes (Human)
Night Vision
Color / IR / Smart Mode
Audio
Two-Way Talk + Voice Messages
Alarm System
Siren + Dual Spotlights
Video Tech
H.265 Compression
Storage
microSD up to 512GB + CloudPlay
Weatherproof
Yes (Outdoor-Ready)
Integration
Alexa, Google Assistant
Installation
Detachable Mount Plate
WHY CHOOSE THE H8c 4G?
Works in farms, warehouses, and remote areas with no Wi-Fi AI detection for humans and vehicles Excellent night vision options (color, IR, smart) Powerful active defense (siren + lights) Smart auto-tracking for human movement Dual connectivity for reliable performance Weatherproof and compact design Easy installation with detachable mount Large storage support up to 512GB Efficient H.265 video compression

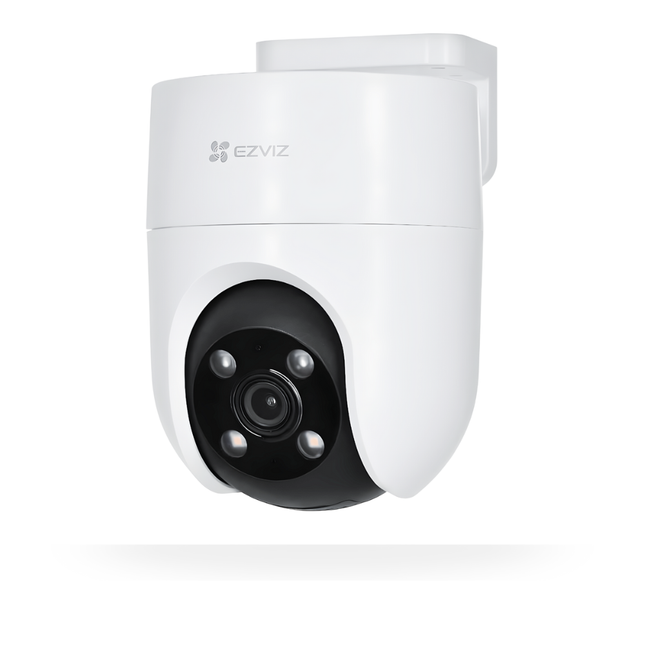

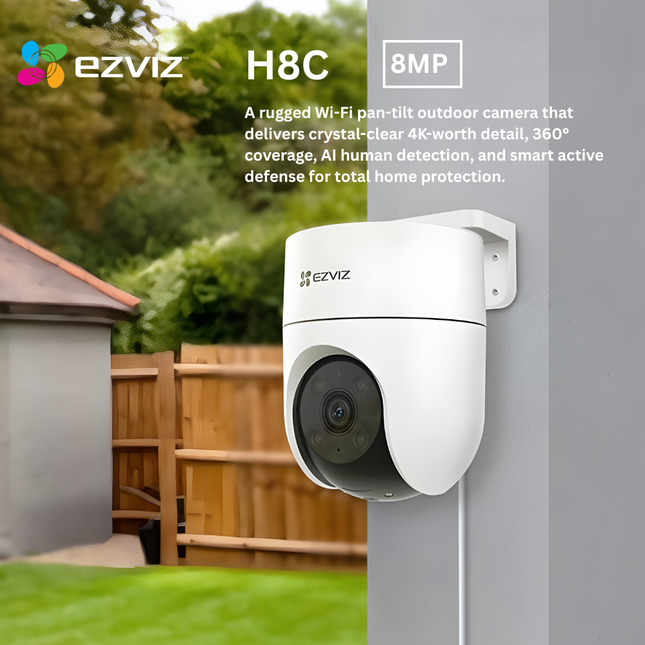

The EZVIZ H8C series offers a range of powerful outdoor Pan-&-Tilt Wi-Fi cameras available in 3MP, 4MP, 5MP, and 8MP/4K versions, designed to provide comprehensive home security. These cameras combine wide-angle coverage, smart tracking, and AI-powered motion detection to ensure that every movement around your property is accurately monitored. Weatherproof construction allows reliable operation in all outdoor conditions, while two-way audio enables real-time communication with visitors or intruders. High-resolution imaging delivers clear, detailed video both day and night, supported by color night vision and infrared capabilities. The pan-and-tilt functionality provides full 360° horizontal and 90° vertical rotation, eliminating blind spots. Easy installation and seamless connectivity through the EZVIZ app allow remote monitoring, instant alerts, and automated security management for complete peace of mind.
Key Features
High-Resolution OptionsChoose from 3MP, 4MP, 5MP, or 8MP (4K) models to meet your clarity and detail needs.
360° Pan & Tilt CoverageFull horizontal and vertical motion allows you to cover an entire area with a single camera — eliminating blind spots.
Smart AI Human DetectionBuilt-in AI identifies human shapes to reduce false alerts, notifying you only when it matters.
Color Night Vision & Active DefenseEquipped with spotlights and infrared to offer color night vision. When motion is detected, it can trigger alarms or flash lights to deter intruders.
Weather-Resistant BuildDesigned for outdoor use with a rugged, weatherproof housing.
Flexible ConnectivityMost models support Wi-Fi. For remote areas, the 3MP version also supports 4G connectivity.
Two-Way AudioUse your phone to listen in or talk through the camera — ideal for greeting visitors or warning off strangers.
Smart Tracking & Preset PatrolThe camera can follow moving people and return to preset positions at the touch of a button.
Storage OptionsSave video to a microSD card (up to 512 GB) or leverage encrypted cloud storage with EZVIZ CloudPlay.
Technical Specifications
Specification
Details
Model
EZVIZ H8C (various resolutions)
Max Resolution
Up to 8MP / 4K (3840 × 2160)
Pan / Tilt Range
~350° pan, ~80° tilt
Night Vision
Color + IR + Smart Mode
Storage
microSD up to 512 GB or EZVIZ CloudPlay
Video Compression
H.265 / H.264
Connectivity
2.4G Wi-Fi , Ethernet
Power
DC (depends on model)
Why Choose the EZVIZ H8C Series?
Flexible resolution options to match your needs
Wide-area coverage with pan & tilt
Accurate AI alerts, not just motion
Strong night-time visibility
Built for outdoor durability
Multiple storage options for saving video
Smart automation with patrol and tracking
