Description

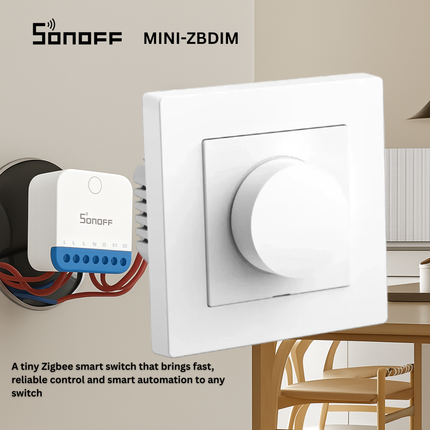

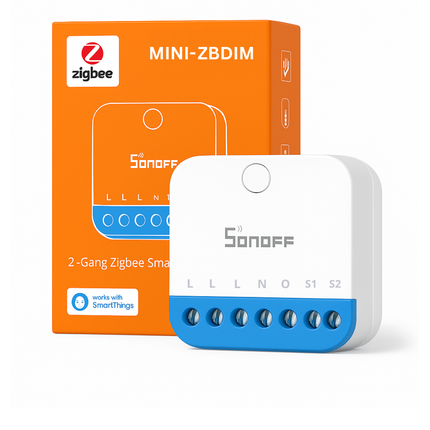

The SONOFF MINI-ZBDIM Zigbee Dimmer Switch provides precise, smooth brightness control for your smart lighting system, powered by the reliable Zigbee 3.0 protocol. Designed for seamless integration with Zigbee hubs, it provides fast response, stable performance, and energy-efficient operation.
With its compact mini design, MINI-ZBDIM fits easily behind wall switches, making it ideal for both new installations and retrofits. Support for external physical switches ensures manual control remains available, while smart dimming enables you to create perfect lighting scenes for comfort, productivity, or ambiance.

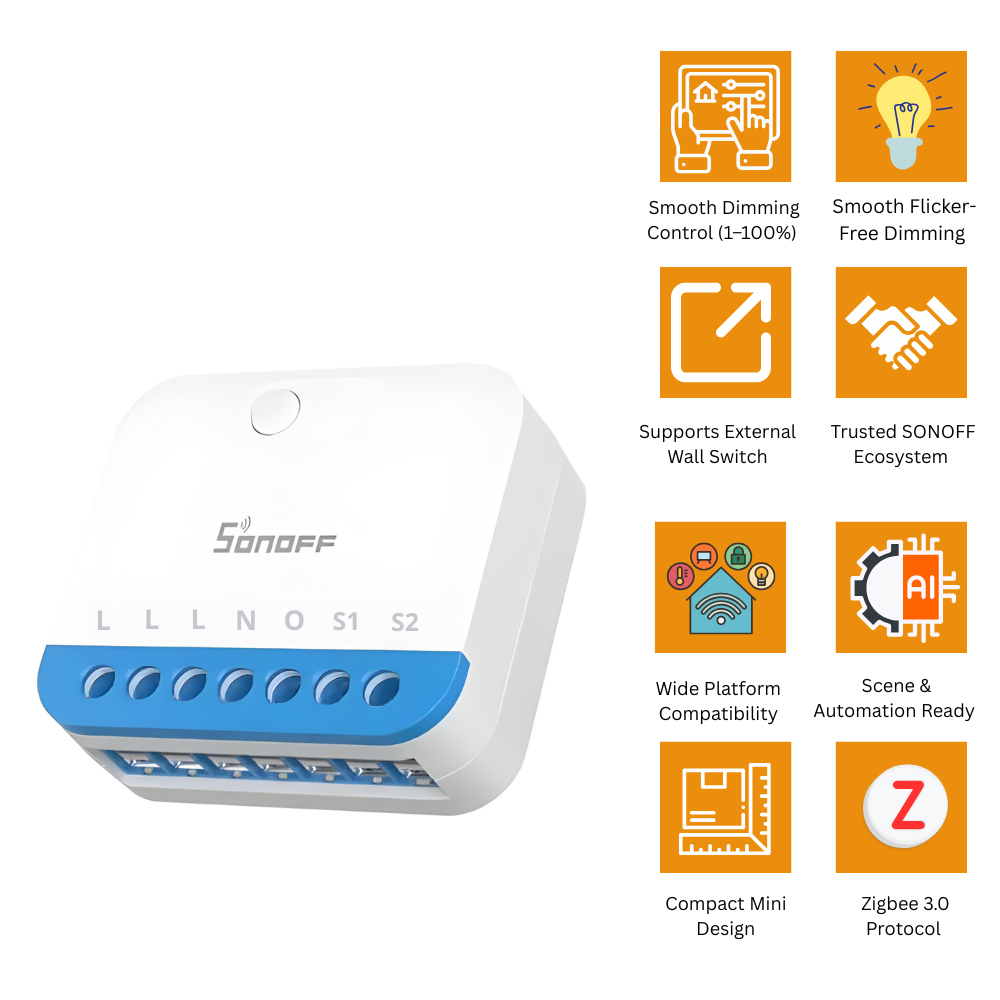

Key Features
-
Smooth Dimming Control (1–100%) – Precise brightness adjustment
-
Zigbee 3.0 Protocol – Fast, stable & low-power communication
-
Supports External Wall Switch – Manual and smart control combined
-
Compact Mini Design – Easy hidden installation
-
Scene & Automation Ready – Create lighting moods & schedules
-
Wide Compatibility – Works with major Zigbee platforms
Technical Specifications
| Specification |
Details |
| Model |
MINI-ZBDIM |
| Product Type |
Zigbee Smart Dimmer Switch |
| Protocol |
Zigbee 3.0 (IEEE 802.15.4) |
| Operating Frequency |
2.4 GHz |
| Input Voltage |
100–240V AC, 50/60Hz |
| Dimming Range |
1% – 100% |
| Load Type |
Dimmable LED / Incandescent Bulbs* |
| External Switch Support |
Yes |
| Installation |
Behind Wall Switch |
| Operating Temperature |
-10°C to 40°C |
| Operating Humidity |
5% – 95% RH (Non-condensing) |
| Indoor Use |
Yes |
| Hub Requirement |
Yes (Zigbee Hub Required) |
| Compatible Platforms |
SONOFF Zigbee Bridge, Home Assistant, Zigbee2MQTT, SmartThings |
| Certifications |
CE / FCC / RoHS |
*Use dimmable bulbs only for correct operation.
Why Choose SONOFF MINI-ZBDIM?
Stable Zigbee Performance – Faster & more reliable than Wi-Fi dimmers
Smooth Flicker-Free Dimming – Professional lighting control
Ideal for Smart Scenes – Movie, night, relax & work modes
Compact & Installer-Friendly – Fits behind standard switches
Manual + Smart Control – External switch supported
Trusted SONOFF Ecosystem – Proven reliability worldwide
