Description

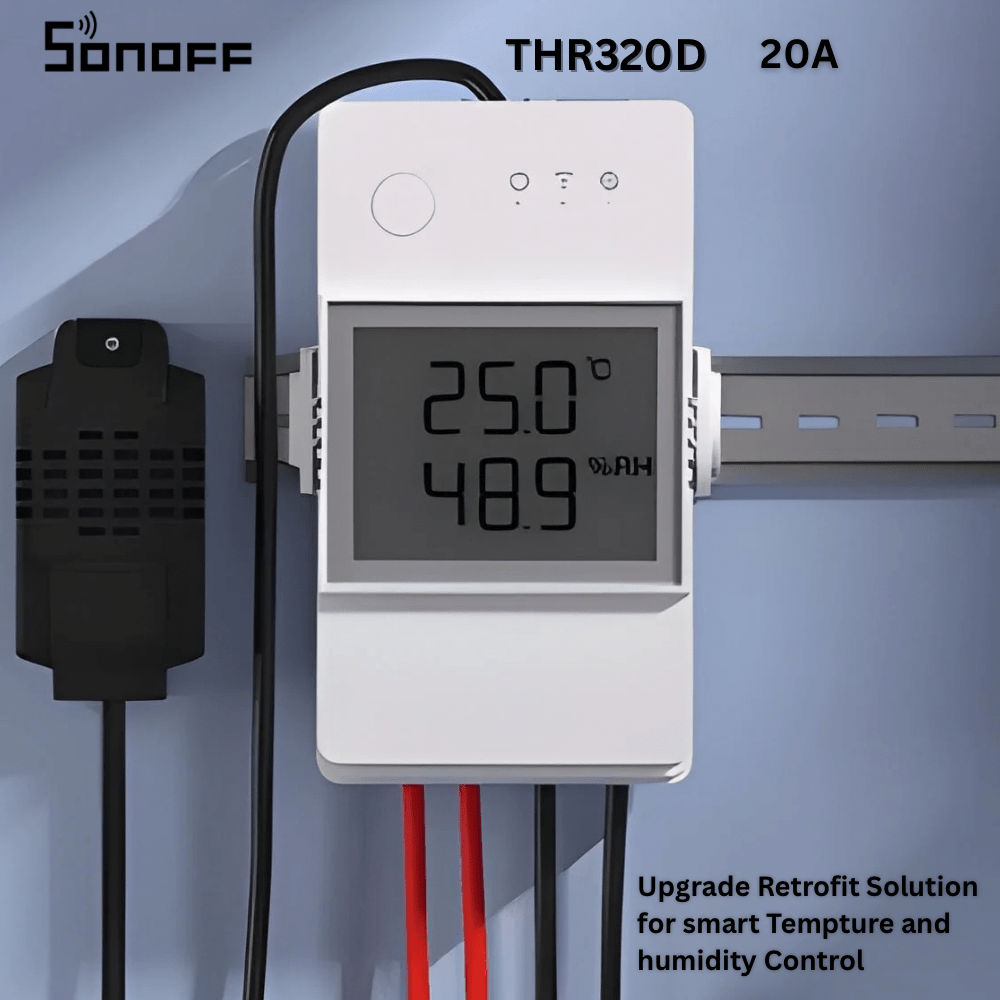

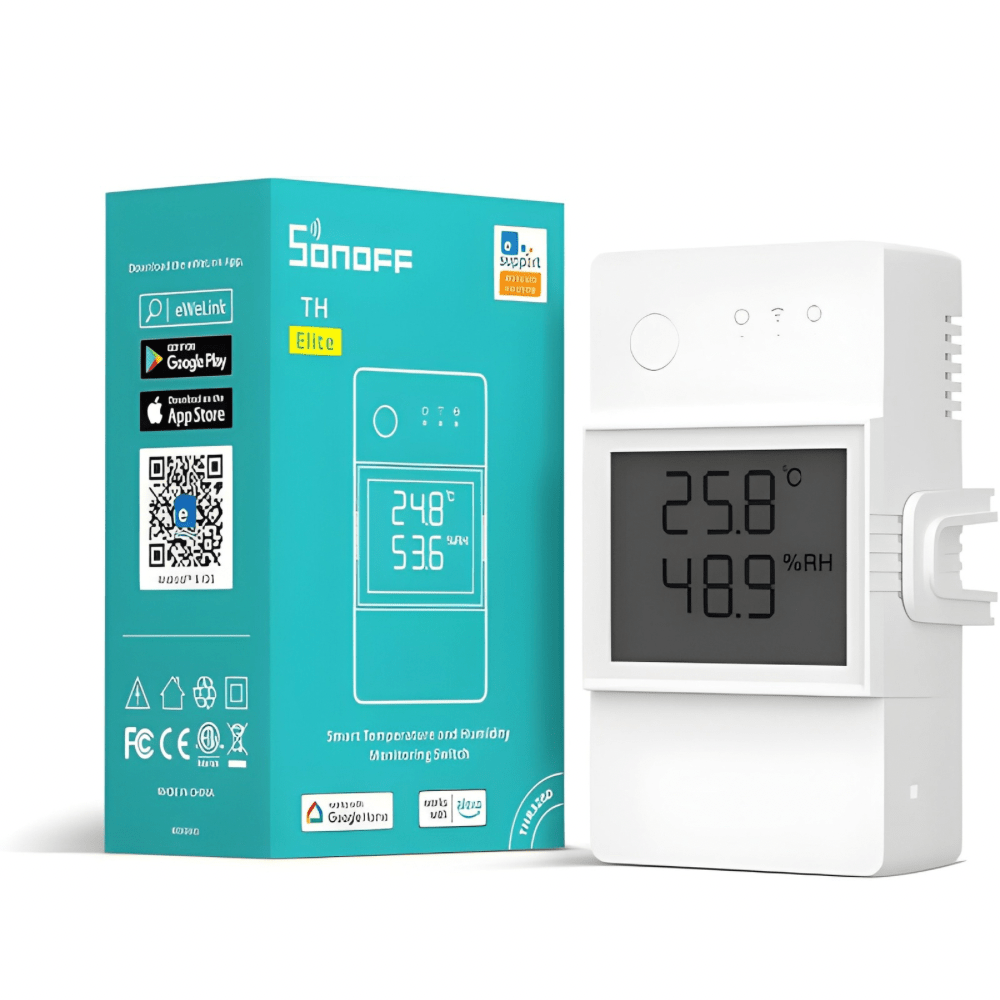

The SONOFF TH Elite THR320D is a Wi-Fi smart switch that monitors temperature and humidity and switches loads of up to 20A. A built-in LCD screen shows real-time readings that update every 5 seconds, and an extra dry contact output lets it control boilers, HVAC systems, industrial relays and other non-voltage input equipment.
Create up to 8 smart programs based on temperature, humidity and time, keep 6 months of exportable history in the eWeLink app, and control connected appliances by voice with Amazon Alexa or Google Assistant. It suits heaters, exhaust fans, humidifiers, greenhouses, aquariums and HVAC equipment.
Note: readings come from a SONOFF RJ9 sensor (THS01, WTS01 or MS01) plugged into the switch. You can order the THR320D alone or bundled with one of these sensors.

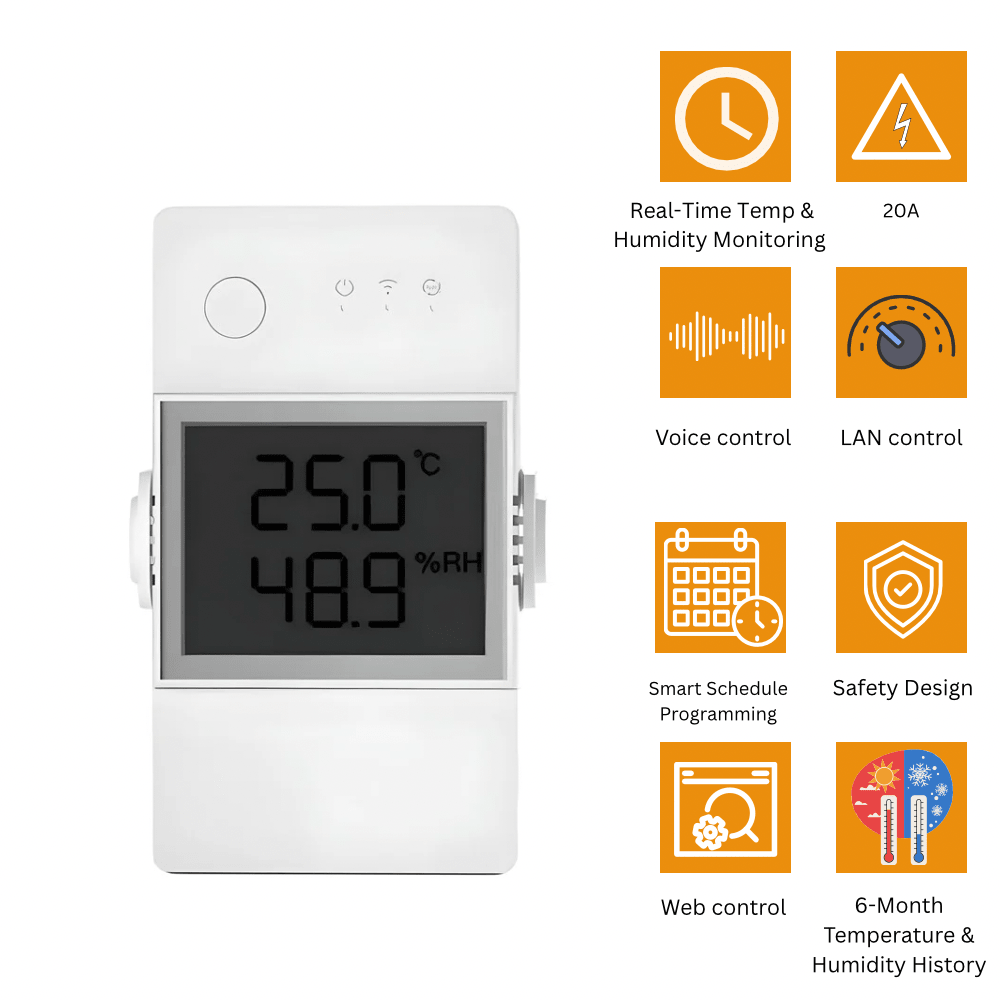

Key Features
- 20A max load at 100-240V~ 50/60Hz for high-power appliances
- Dry contact output (5-30V, 1A max) for boilers, HVAC systems, industrial relays and non-voltage input equipment
- Built-in LCD screen with real-time temperature and humidity, updated every 5 seconds
- 6 months of temperature and humidity history, viewable by hour, day or month and exportable as .xlsx
- Up to 8 smart programs based on temperature, humidity and time to save energy
- Plug-and-play RJ9 sensors: THS01, WTS01 and MS01
- RL560 extension cable: WTS01 and THS01 up to 60 m, MS01 up to 10 m
- Voice control and real-time queries with Amazon Alexa and Google Assistant
- Remote control, schedules and timers in the eWeLink app
Works With
-

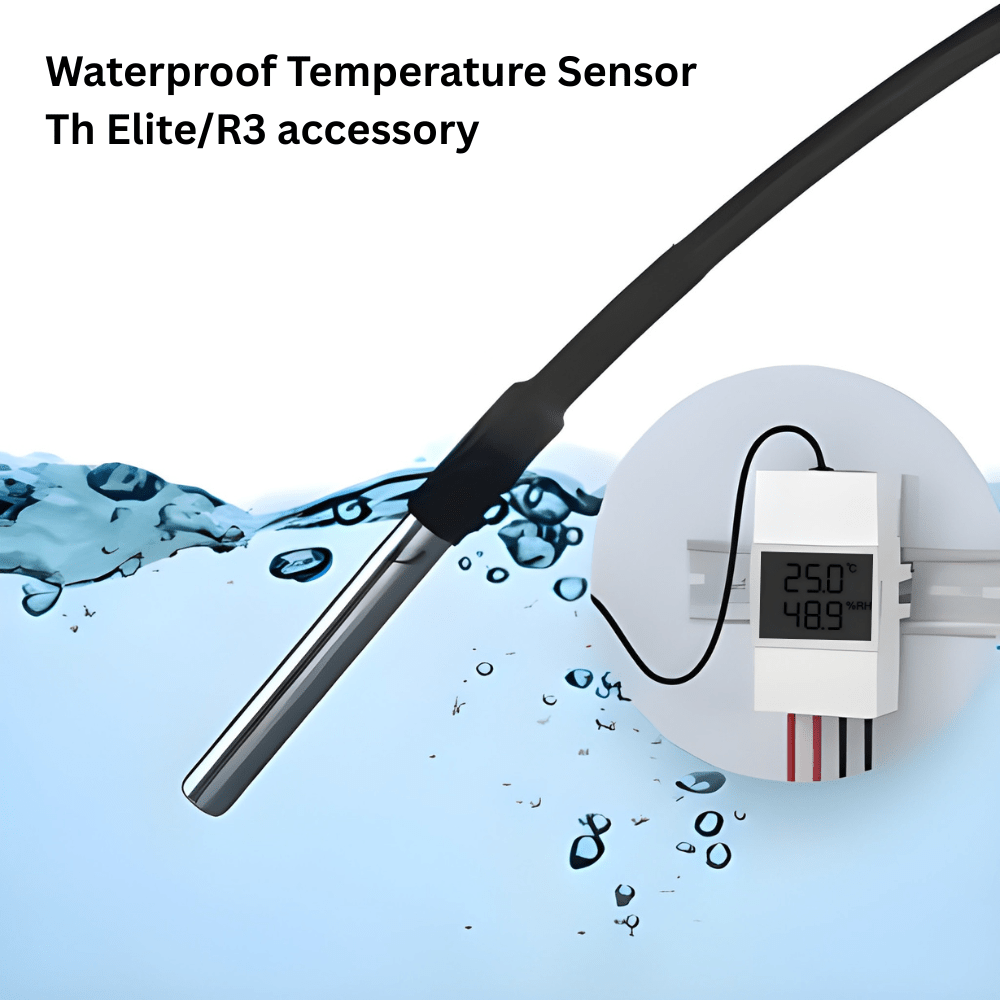

Temperature & humidity sensors: THS01 (temperature and humidity), WTS01 (waterproof temperature probe) and MS01 (soil moisture; per SONOFF, it comes with a free RJ9 adapter for TH Elite)
-
Sensor extension: RL560 RJ9 extension cable
-
Voice assistants: Amazon Alexa and Google Assistant
Technical Specifications
| Specification |
Details |
| Model |
THR320D |
| Product Name |
TH Elite Smart Temperature and Humidity Monitoring Switch (20A) |
| Input/Output |
100-240V~ 50/60Hz, 20A max |
| Max Load |
4800W |
| Dry Contact |
5-30V, 1A max |
| MCU |
ESP32 |
| Wi-Fi |
IEEE 802.11 b/g/n 2.4GHz |
| Security Mode |
WPA/WPA2 |
| Display |
LCD (updates every 5 seconds) |
| Supported Sensors |
THS01, WTS01 (DS18B20), MS01 (RJ9 jack) |
| App |
eWeLink (Android & iOS) |
| Voice Assistants |
Amazon Alexa, Google Assistant |
| Working Temperature |
-10°C ~ 40°C (14°F ~ 104°F) |
| Working Humidity |
5% ~ 95% RH, non-condensing |
| Casing Material |
PC V0 |
| Color |
White |
| Dimensions |
98 × 54 × 31 mm |
| Certifications |
TUV, CE, UKCA, WWA, FCC, RoHS, SRRC |
| Options |
THR320D only; with WTS01; with THS01; with MS01 |
Why Choose the SONOFF THR320D?
- 20A switching plus a dry contact output in one device, ready for boilers and HVAC equipment
- Readings visible on the device itself, without opening the app
- 6 months of exportable history for analysing home comfort
- Flexible sensor options with long extension distances for greenhouses, aquariums and plant rooms
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
