Description

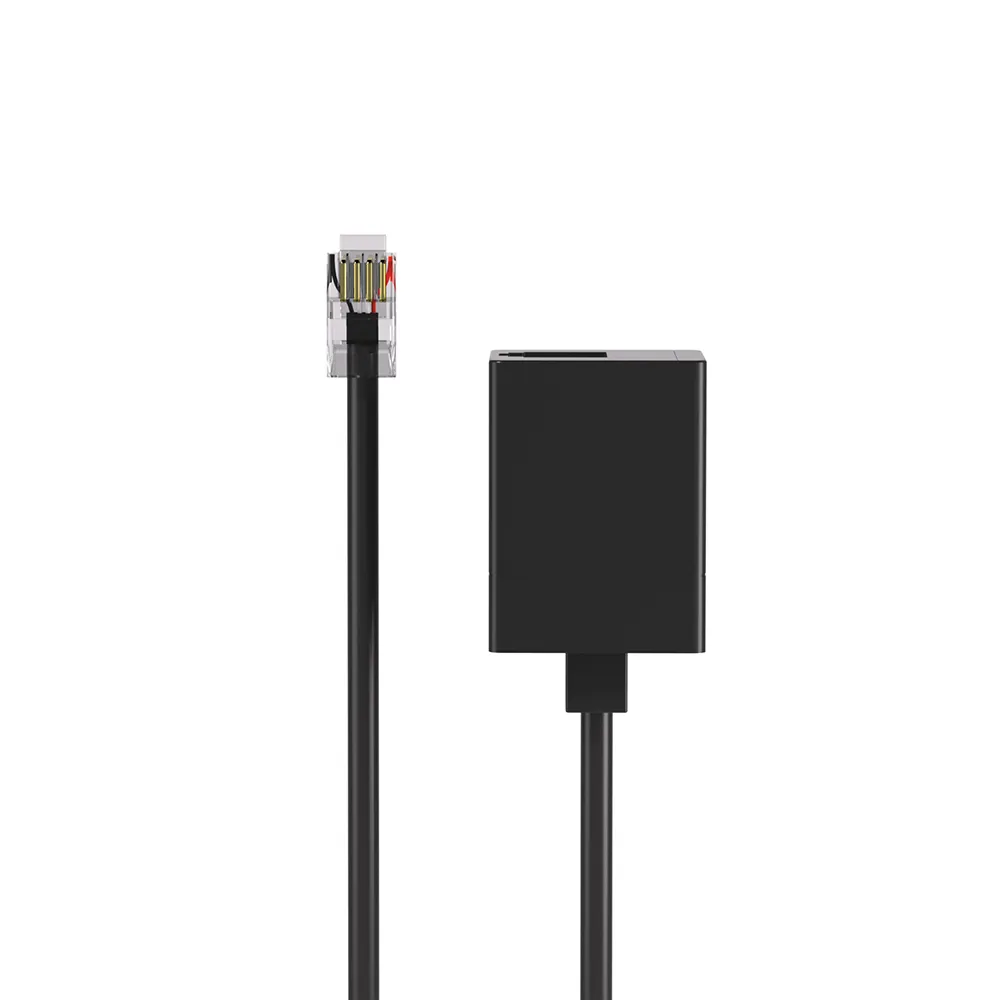

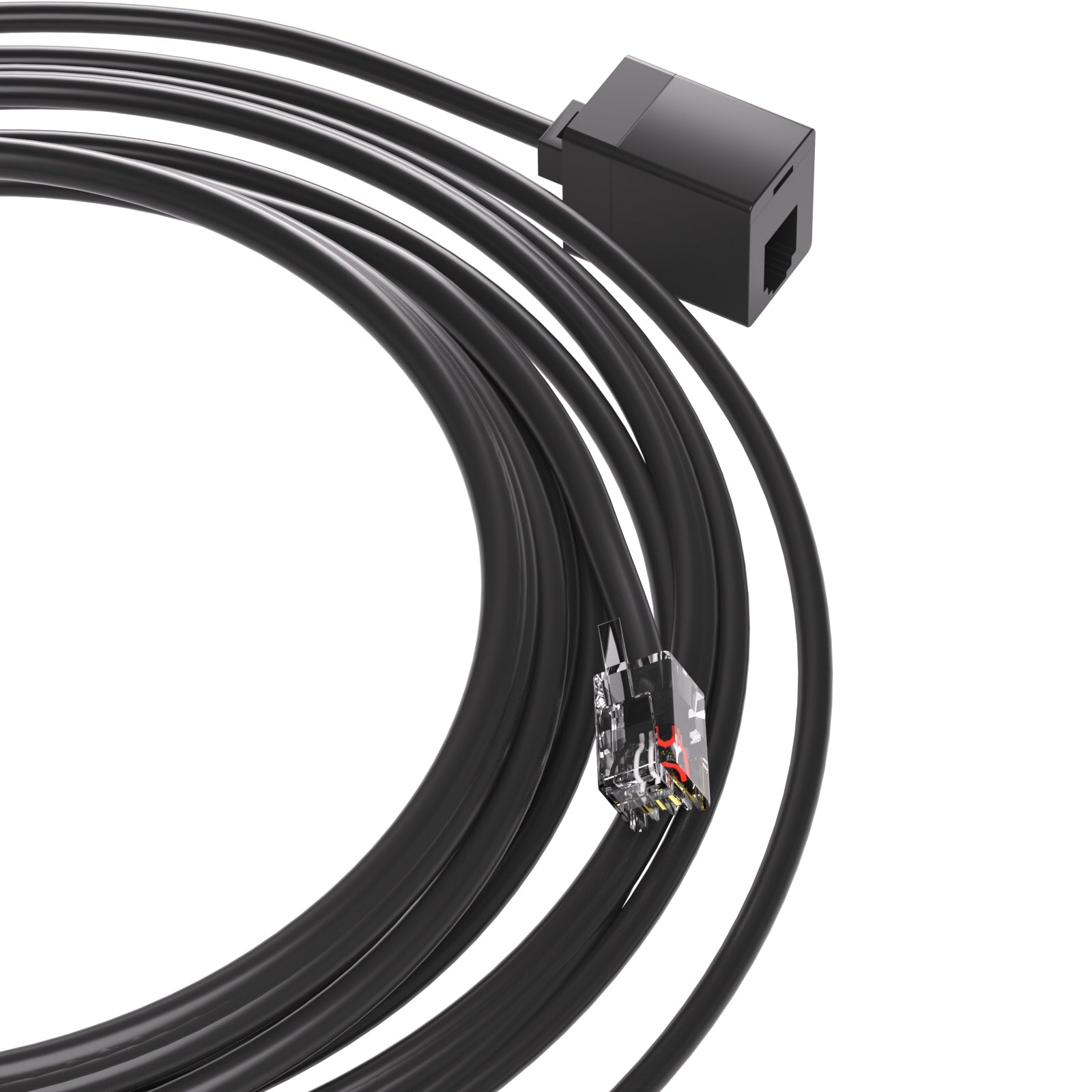

The SONOFF RL560 is a 5 m extension cable for SONOFF sensors with an RJ9 (4P4C) connector. Plug it in between the sensor and your SONOFF device to place the sensor further away, wherever you need the reading.

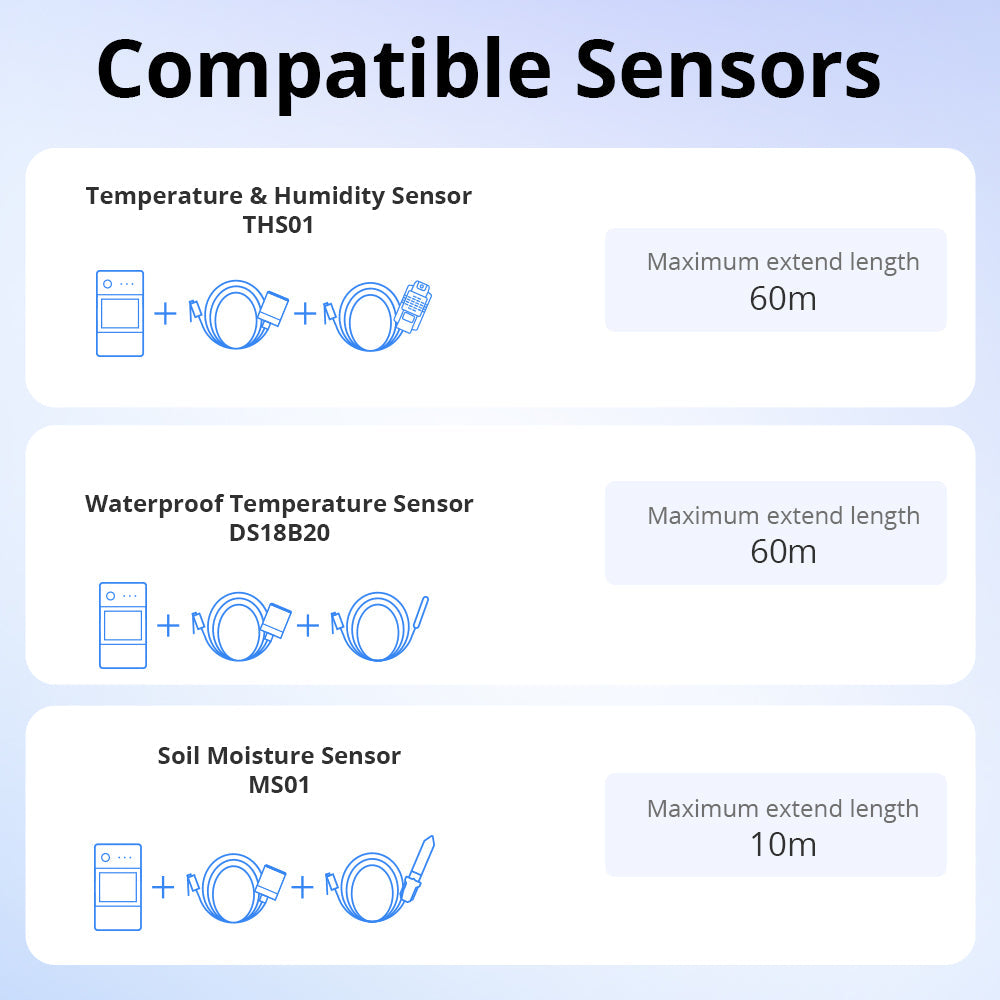

It works with the SONOFF THS01 temperature and humidity sensor, the WTS01 waterproof temperature sensor and the MS01 soil moisture sensor. THS01 and WTS01 can be extended up to 60 m, and the MS01 up to 10 m. The RJ9 connector supports hot-plugging, making the connection more stable and reliable.
Key Features
- 5 m extension cable with RJ9 (4P4C) connectors
- Works with SONOFF THS01, WTS01 and MS01 RJ9 sensors
- Extend THS01 and WTS01 sensors up to 60 m
- Extend the MS01 soil moisture sensor up to 10 m
- Hot-pluggable RJ9 connector for a stable, reliable connection
- Conductor resistance max. 10 Ω, insulation resistance min. 5 MΩ
Works With
-
SONOFF RJ9 sensors: THS01 temperature & humidity sensor, WTS01 waterproof temperature sensor and MS01 soil moisture sensor

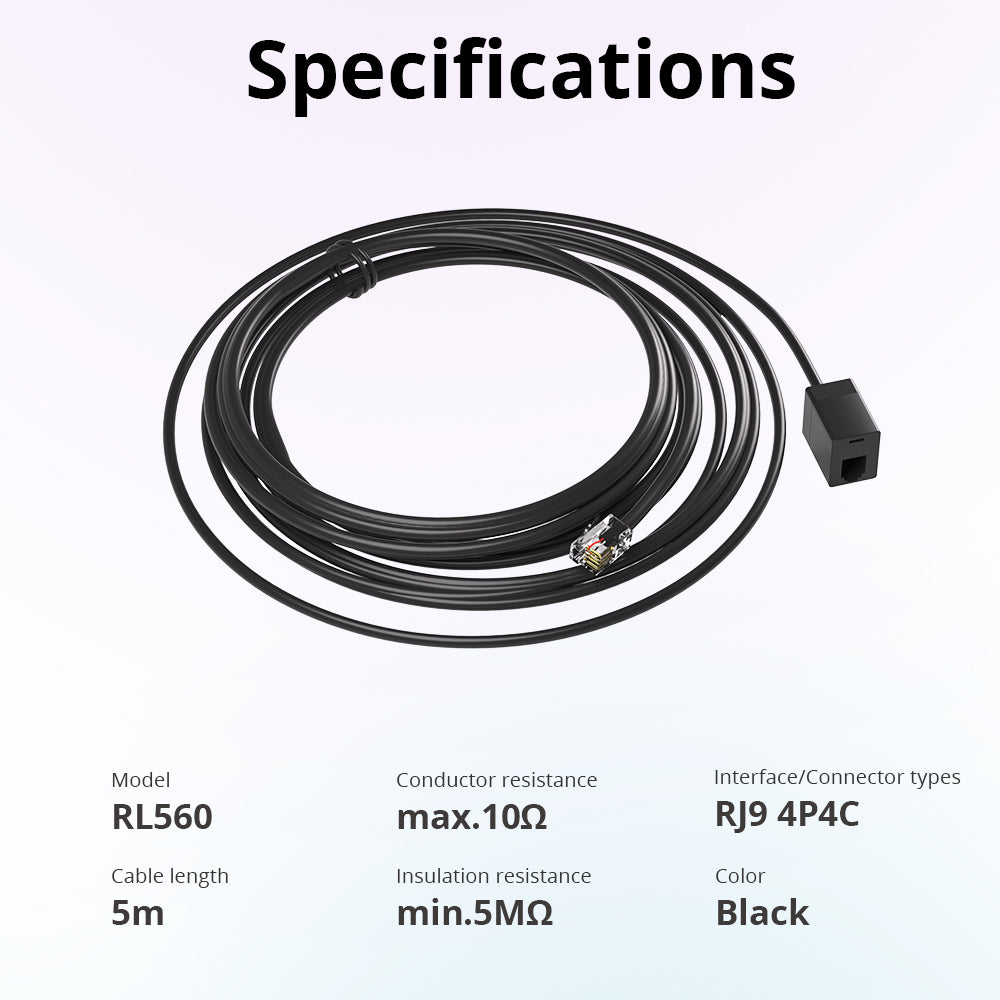

Technical Specifications
| Specification |
Details |
| Model |
RL560 |
| Cable Length |
5 m |
| Connector |
RJ9 (4P4C), hot-pluggable |
| Conductor Resistance |
Max. 10 Ω |
| Insulation Resistance |
Min. 5 MΩ |
| Compatible Sensors |
THS01, WTS01, MS01 |
| Maximum Extension |
THS01 / WTS01: up to 60 m; MS01: up to 10 m |
| Color |
Black |
Why Choose the SONOFF RL560?
- Place your sensor where you need the reading, not next to the device
- SONOFF cable made for SONOFF RJ9 sensors
- Hot-plug RJ9 connection for quick, reliable installation
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
