Description

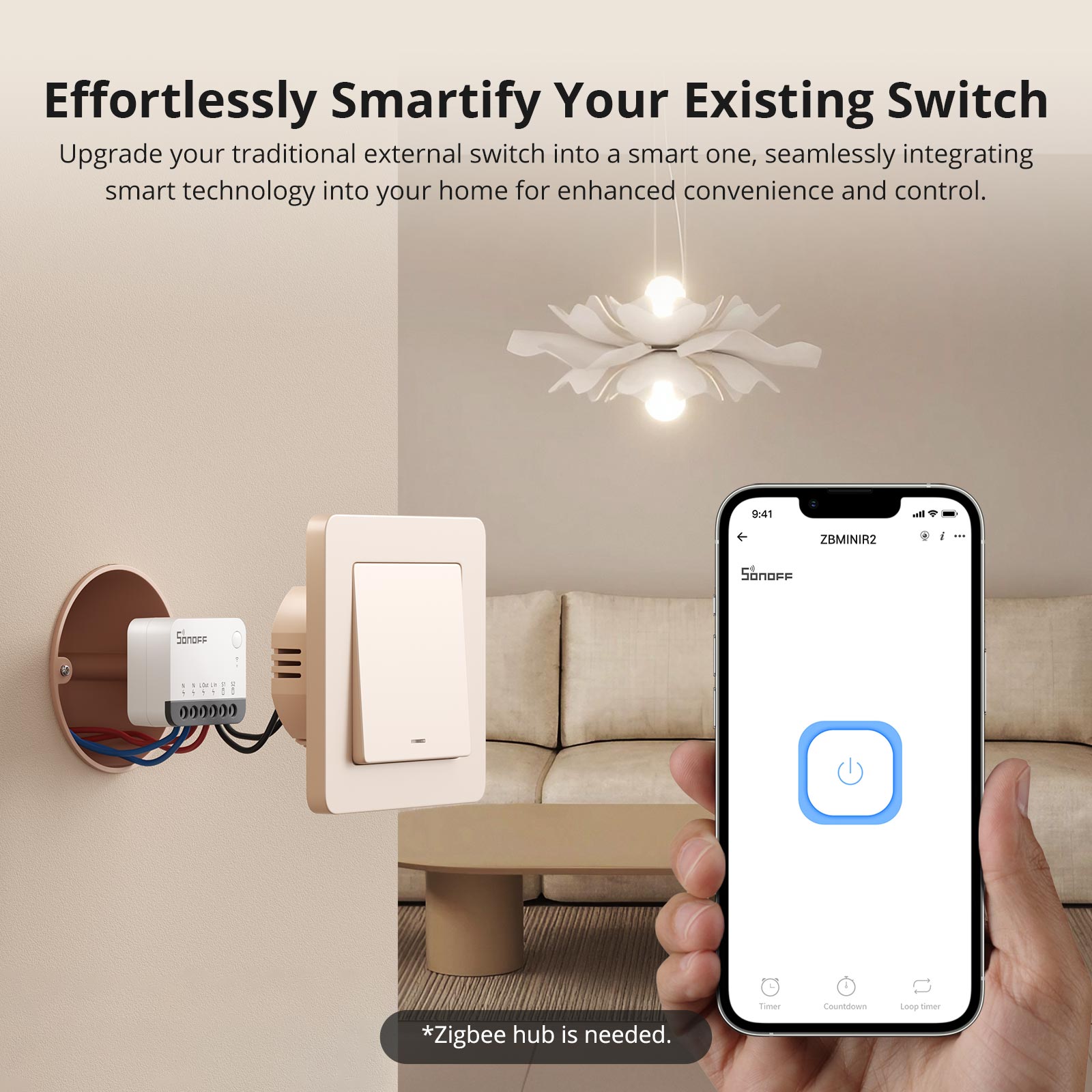

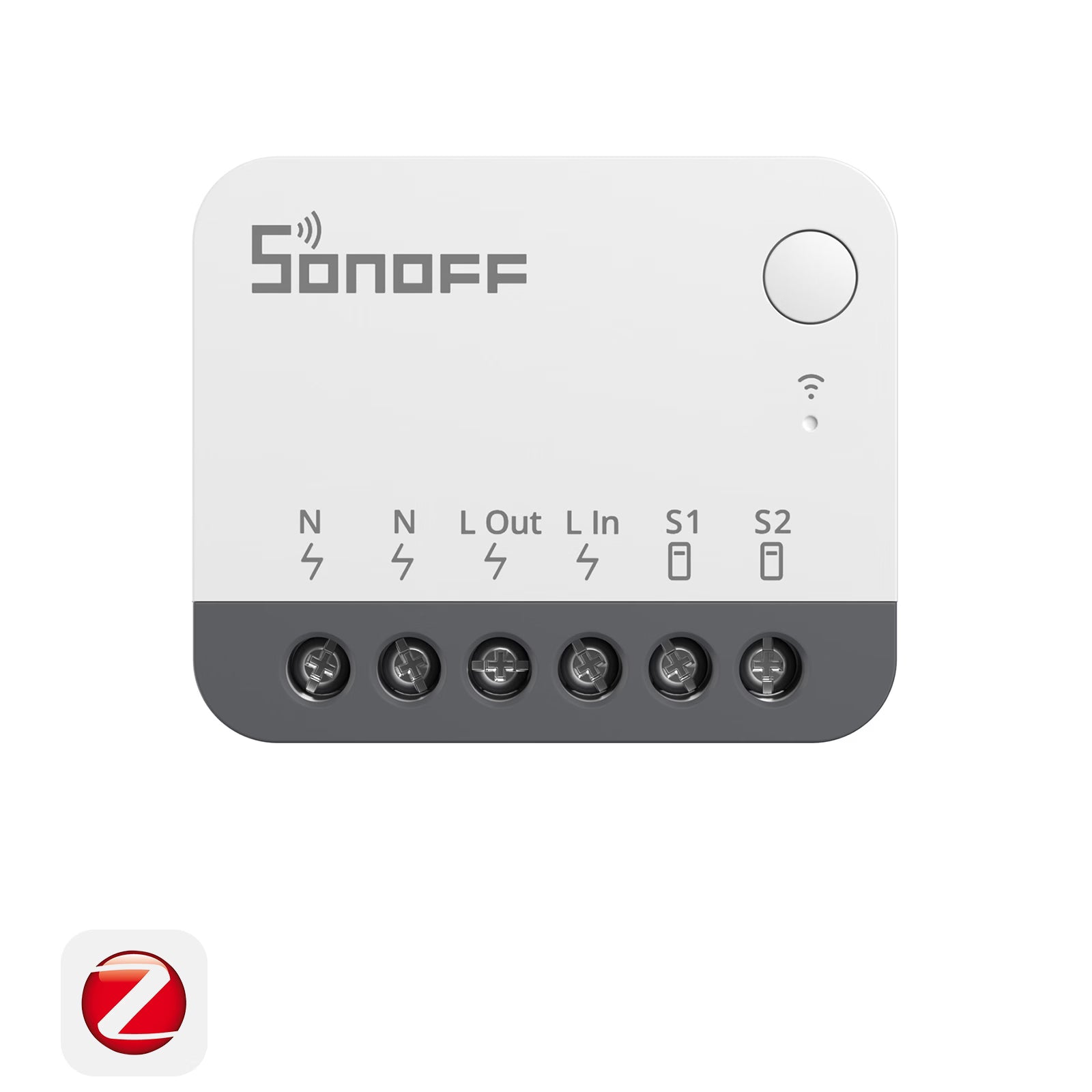

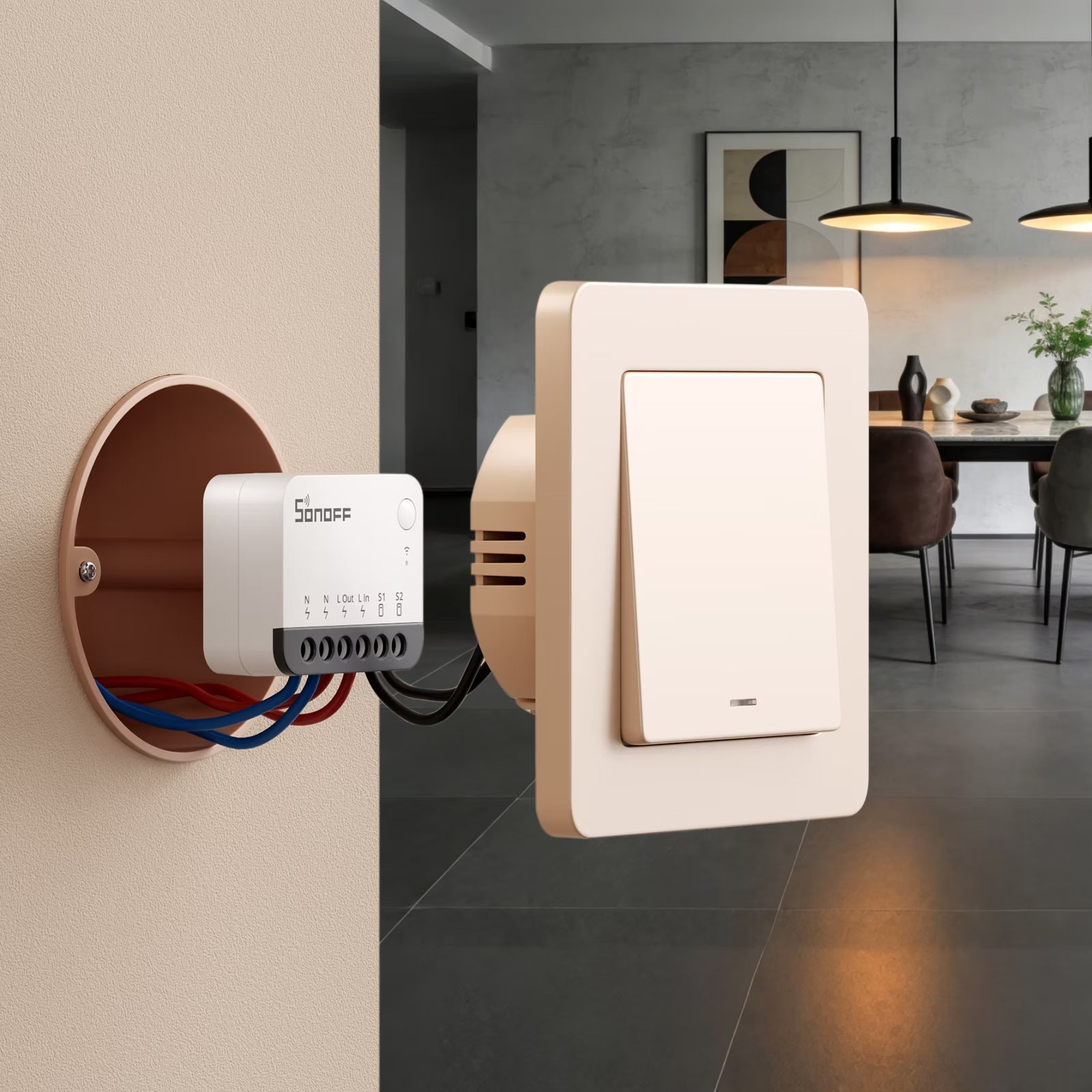

The SONOFF ZBMINI Extreme Zigbee Smart Switch (ZBMINIR2) is an ultra-compact Zigbee 3.0 smart switch that fits inside EU-type, 86-type and 120-type electrical boxes. It switches lights and appliances up to 10A (2400W at 240V) while keeping your existing wall switch for manual control.

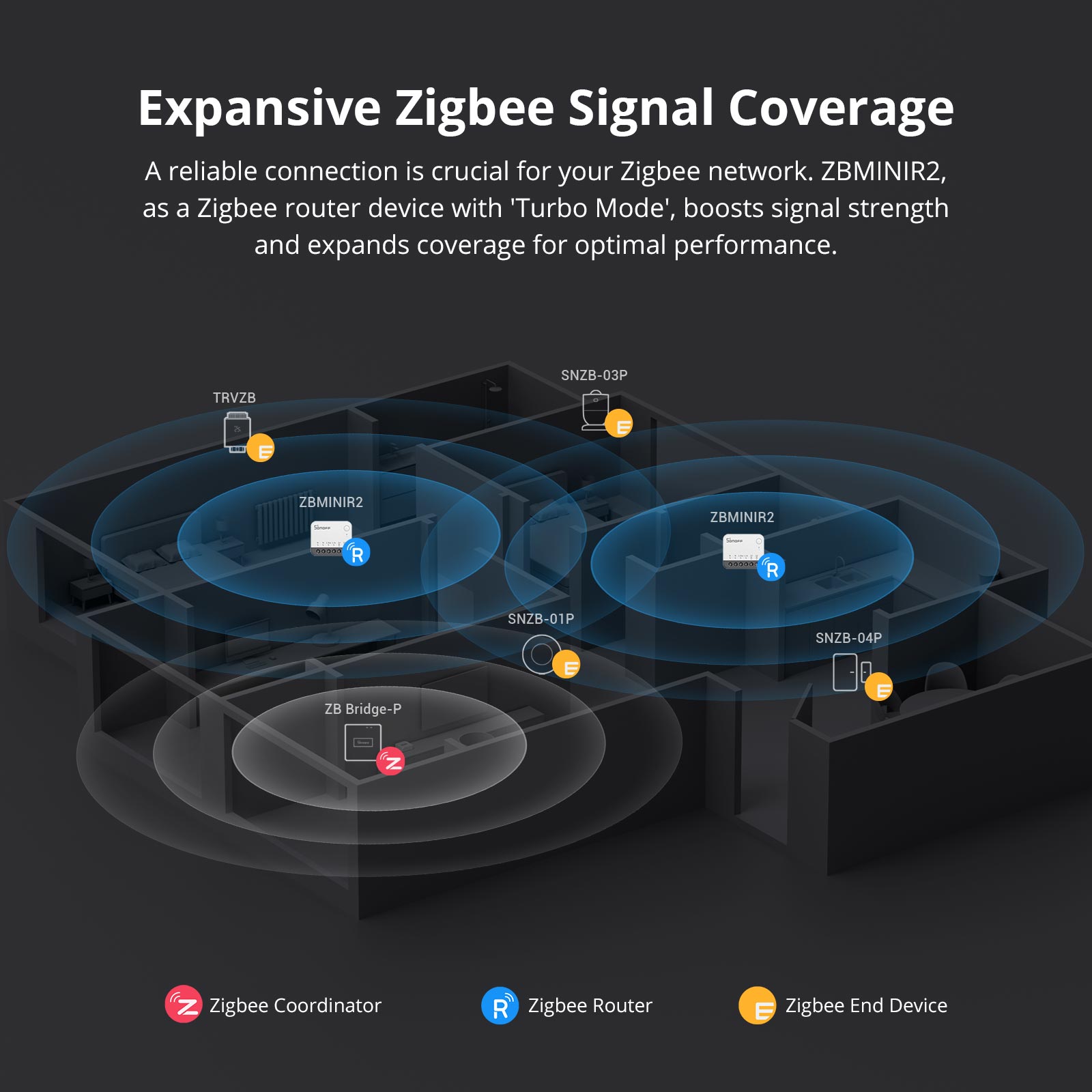

As a Zigbee router, the ZBMINIR2 also extends your Zigbee network and supports up to 64 Zigbee end devices. Control it from the eWeLink app or by voice, and build scene automations based on time, motion or other connected devices.
Note: a Zigbee gateway is required (see "Works With" below), and both a neutral wire and a live wire are needed for installation.
Key Features

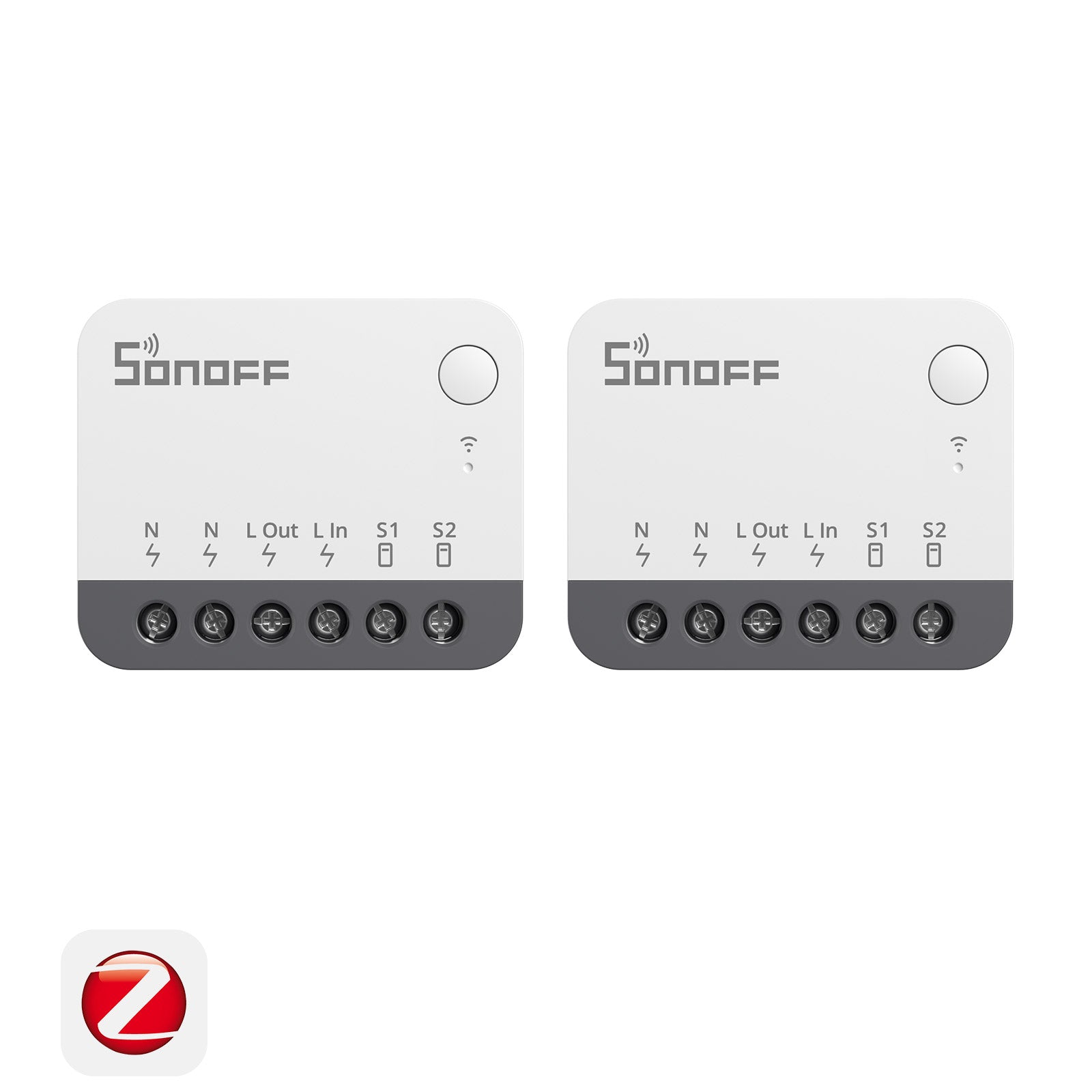

- Ultra-compact 39.5 × 33 × 16.8 mm body for EU, 86-type and 120-type boxes
- Switches up to 10A resistive load (2400W at 240V)

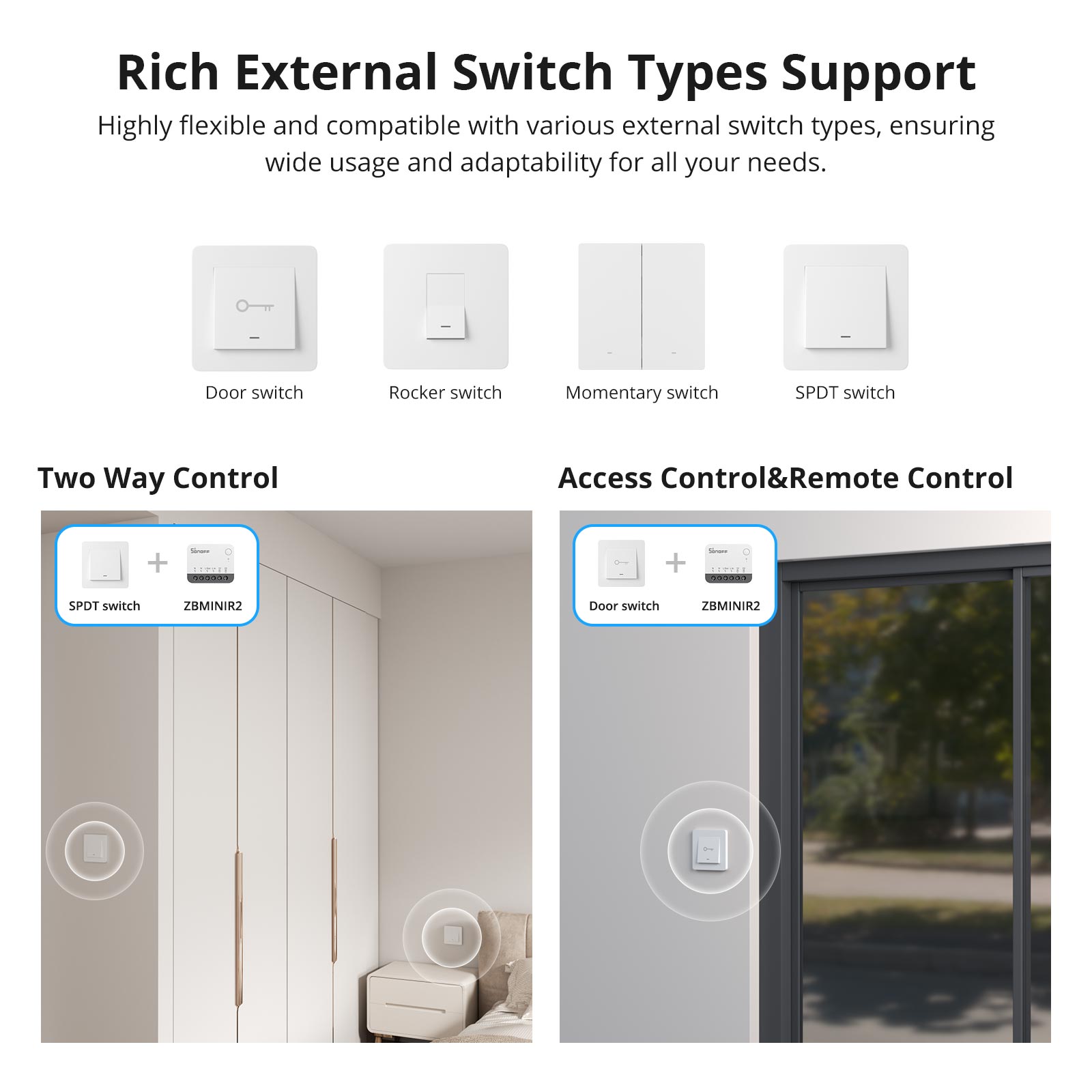

- Works with momentary, door contact, SPDT and rocker external switches
- Zigbee router that extends coverage and supports up to 64 end devices
- Remote on/off control of lights with scene automation by time, motion or other devices
- Timers and schedules in the eWeLink app
- Voice control with Amazon Alexa and Google Assistant
- Works with Home Assistant (ZHA or Zigbee2MQTT) and other open-source platforms
- EFR32MG21 Zigbee chip
Works With
Technical Specifications
| Specification |
Details |
| Model |
ZBMINIR2 |
| Product Name |
ZBMINI Extreme Zigbee Smart Switch |
| Wireless Protocol |
Zigbee 3.0 |
| Zigbee Device Type |
Router (up to 64 end devices) |
| MCU |
EFR32MG21 |
| Rating |
100–240V~ 50/60Hz, 10A max (resistive load) |
| Max Load |
2400W @ 240V |
| Neutral Wire |
Required |
| Hub Requirement |
Zigbee gateway required |
| App |
eWeLink |

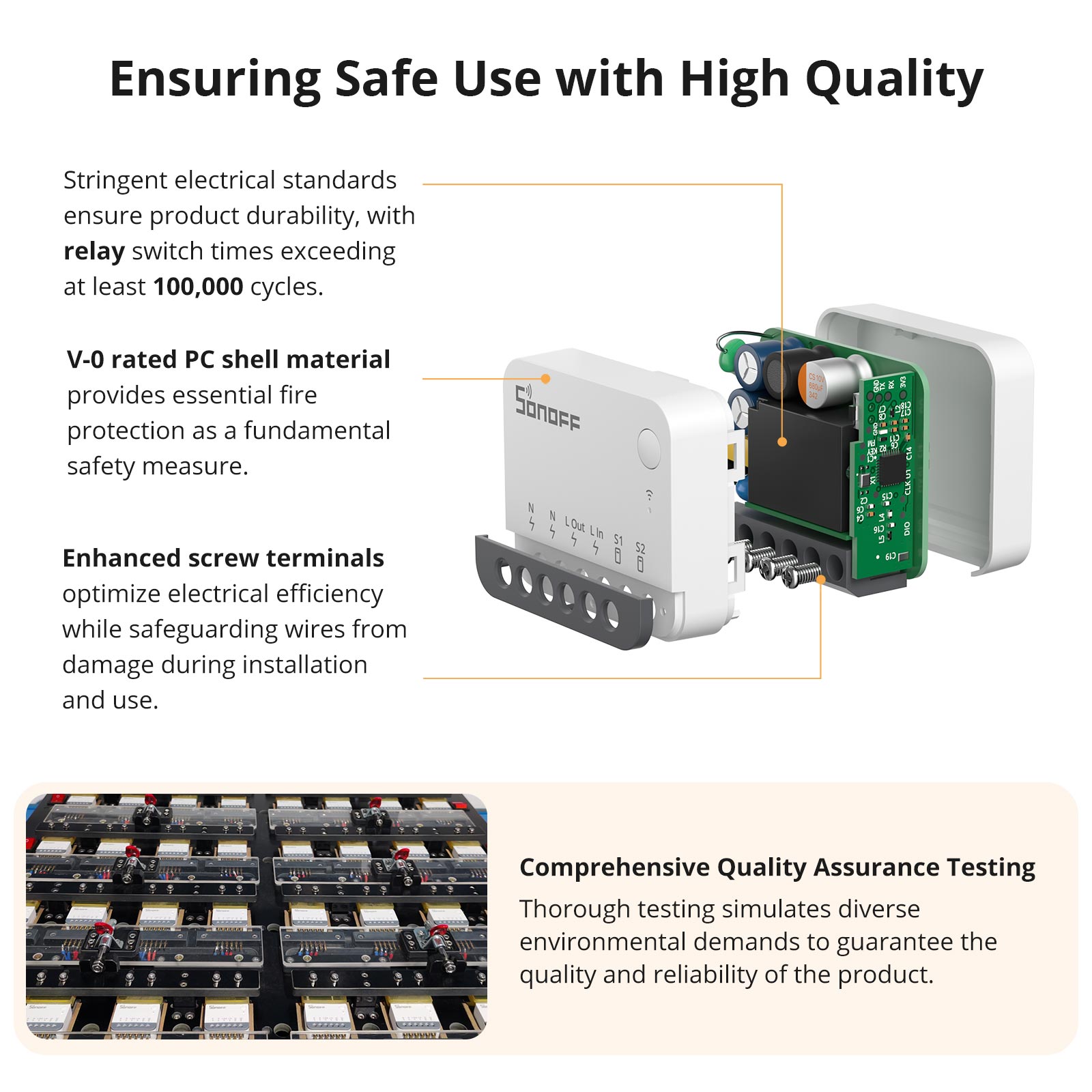

| Casing Material |
PC V0 |
| Color |
White |
| Dimensions |
39.5 × 33 × 16.8 mm |
| Net Weight |
26.7 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| Certifications |
CE, FCC, ISED, RoHS |
Why Choose the SONOFF ZBMINIR2?
- Fits discreetly into tight boxes without changing your wall switch layout
- Strengthens your Zigbee network as a router
- Works with the external switch you already have
- Open-source friendly for DIY and advanced users
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
