Description

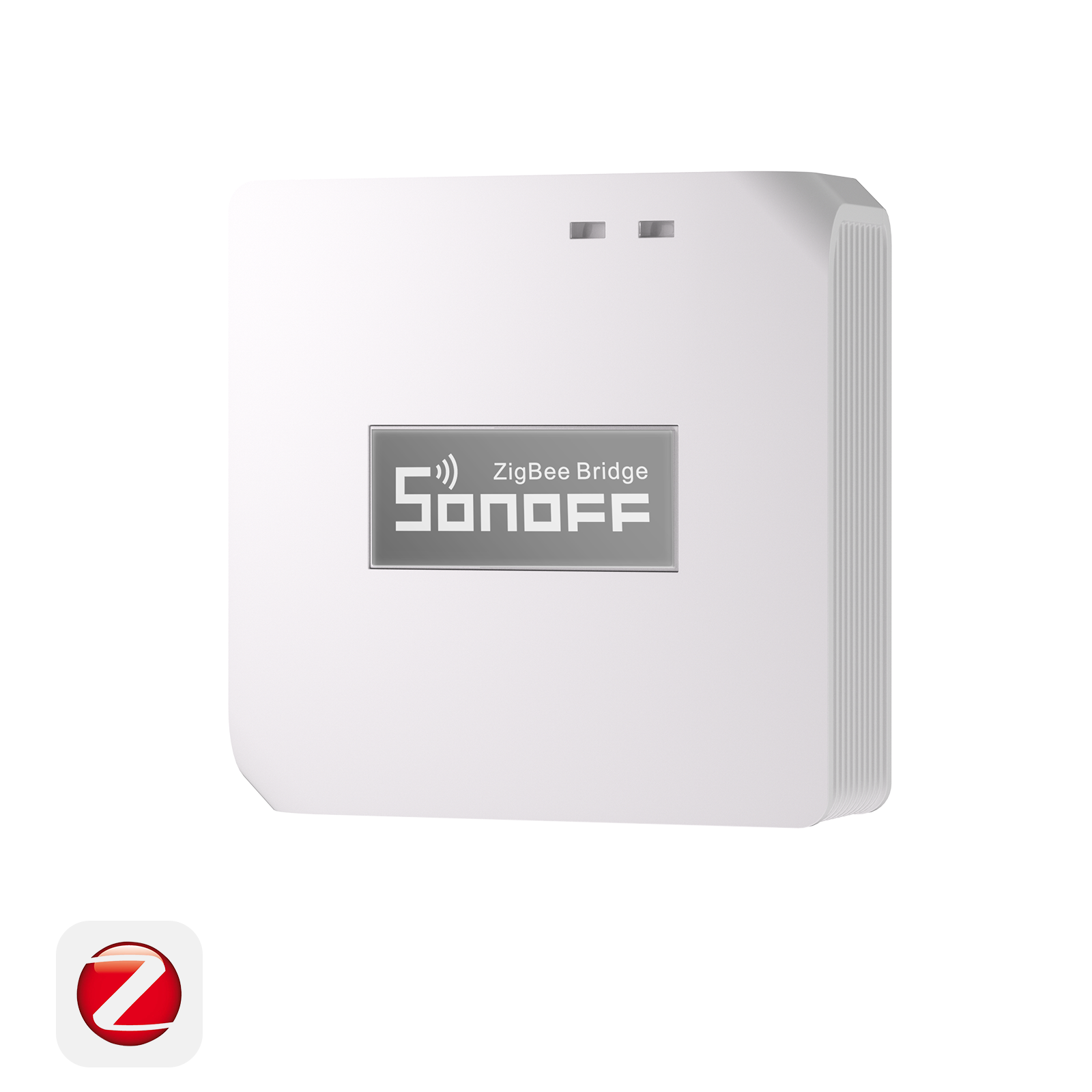

The SONOFF Zigbee Bridge Pro (ZBBridge-P) is a Zigbee 3.0 gateway that links SONOFF Zigbee devices to your Wi-Fi network and the eWeLink app. It supports up to 128 Zigbee sub-devices, up from the previous limit of 32, so you can control sensors, switches and plugs from anywhere.
Schedules and Zigbee device linkages run locally, even without an internet connection. You can also create Home, Away and Sleep security modes and use the bridge as a local alarm hub, and voice control works with Amazon Alexa and Google Assistant through eWeLink.

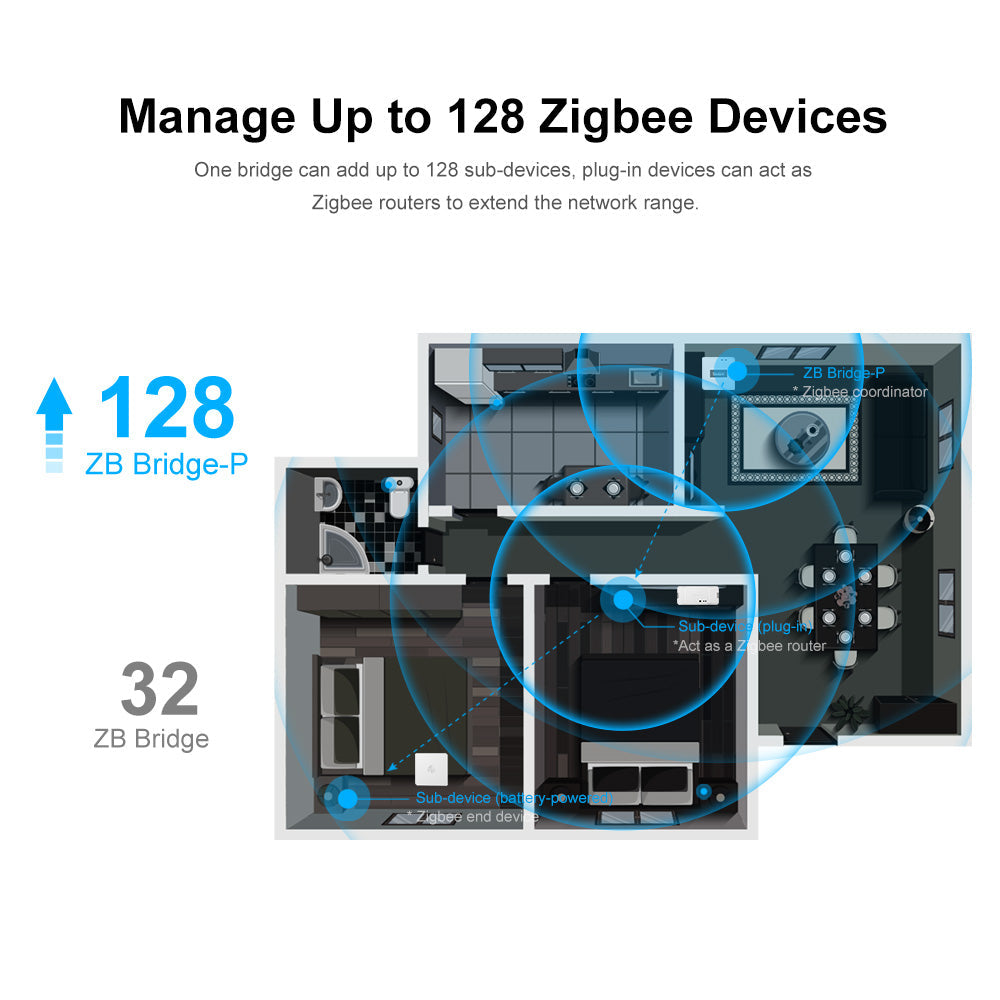

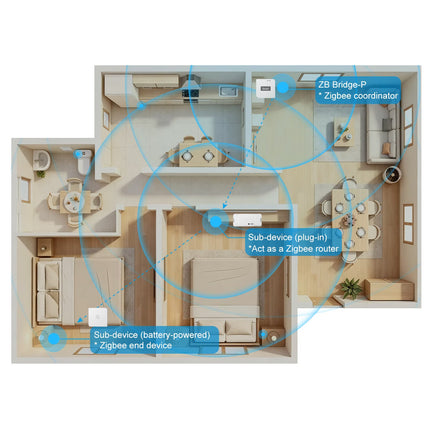

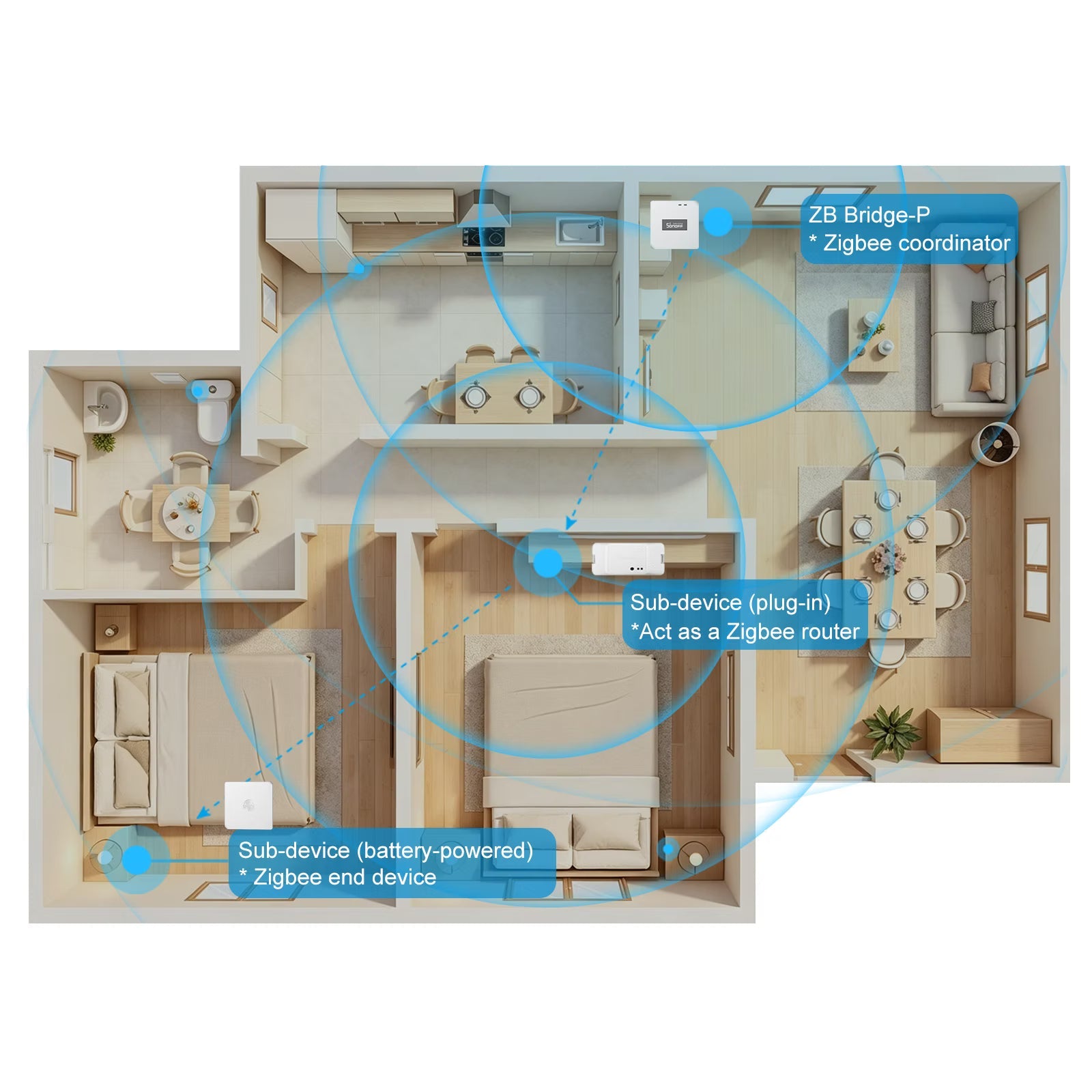

Note: ZBBridge-P connects 26 sub-devices directly (10 end devices + 16 routers, or 26 routers). To reach 128 sub-devices you need Zigbee router devices; each router can connect 20–32 more sub-devices.
Key Features
- Up to 128 Zigbee sub-devices (with Zigbee routers), up from 32 on the previous bridge

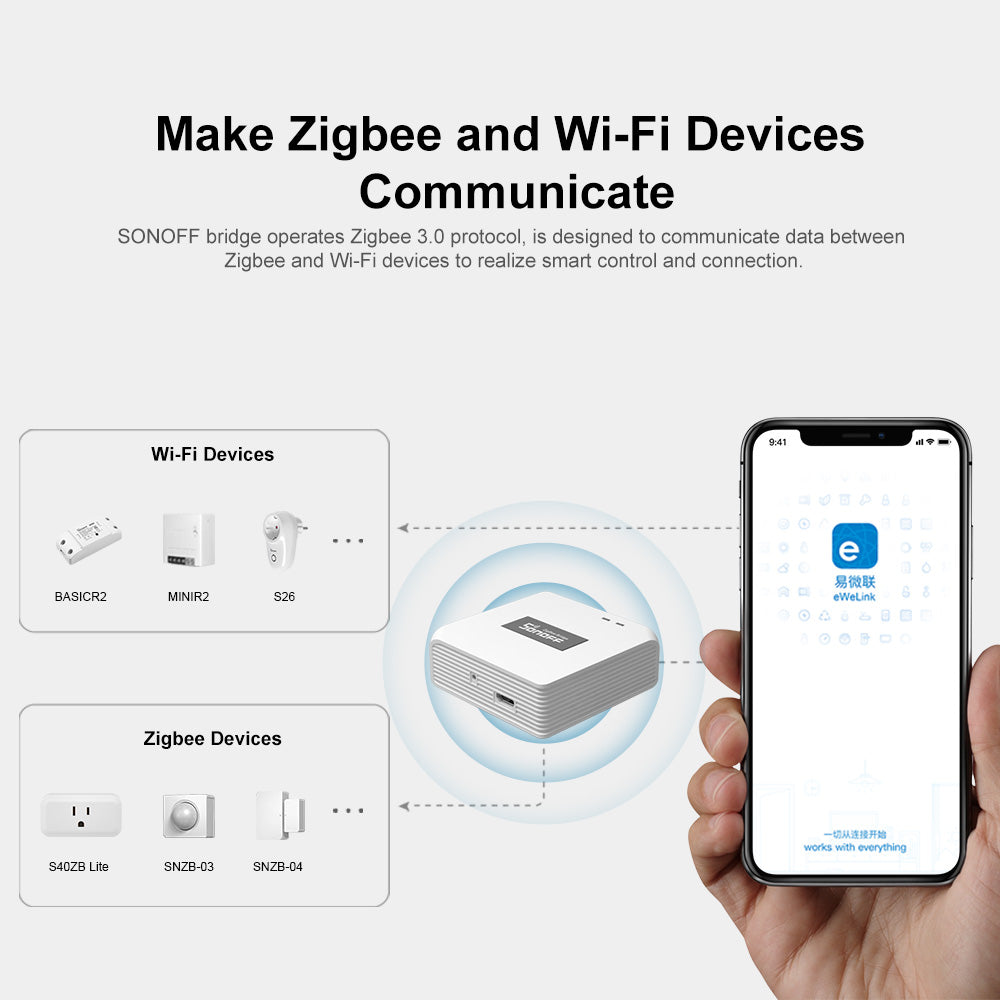

- Dual-protocol bridge: Zigbee 3.0 and Wi-Fi 2.4GHz devices work together in one system

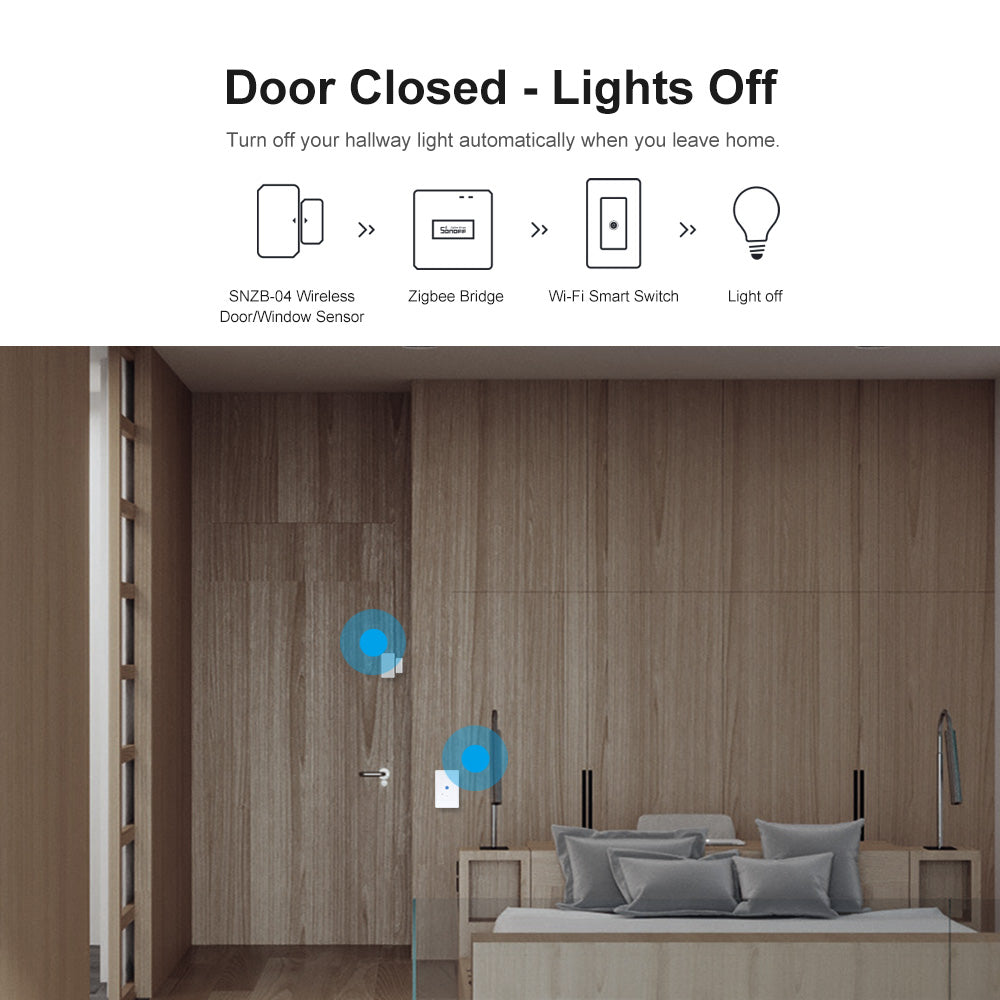

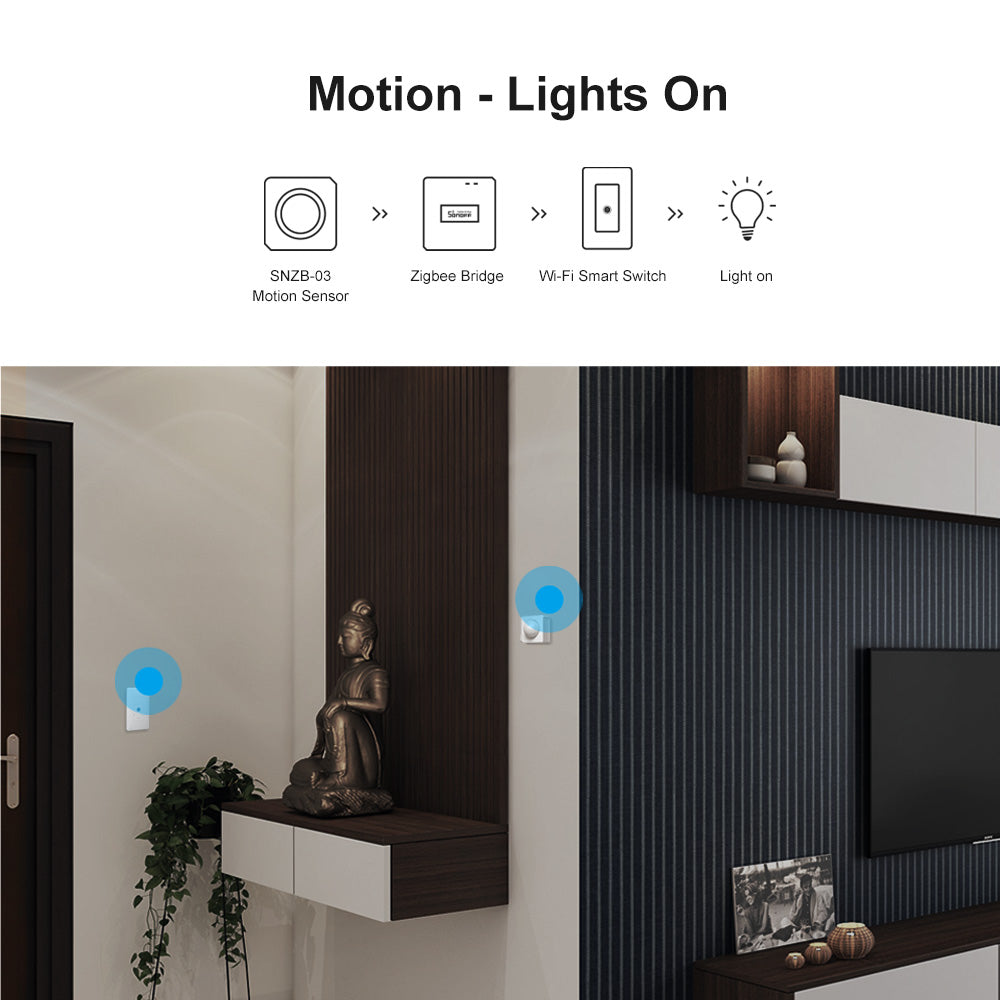

- Local scene execution: schedules and Zigbee linkages keep working without internet
- Home, Away and Sleep security modes; works as a local alarm hub

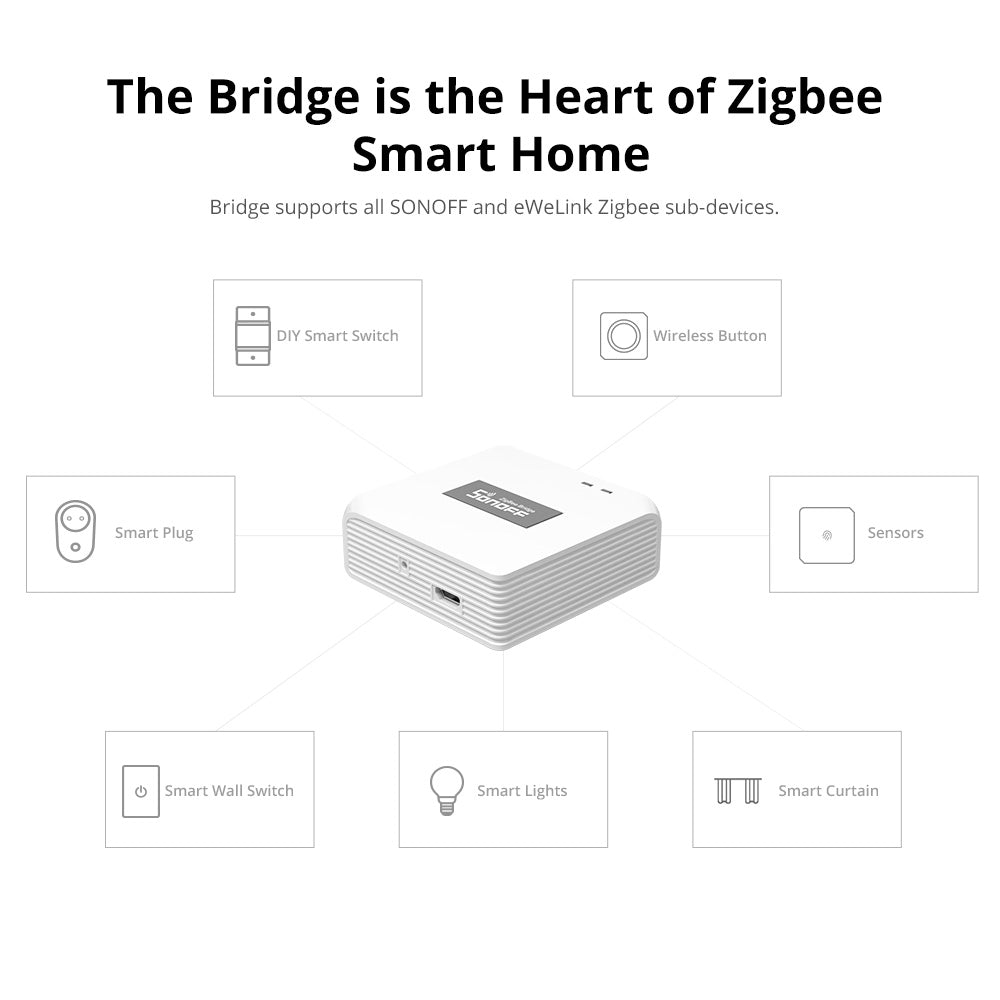

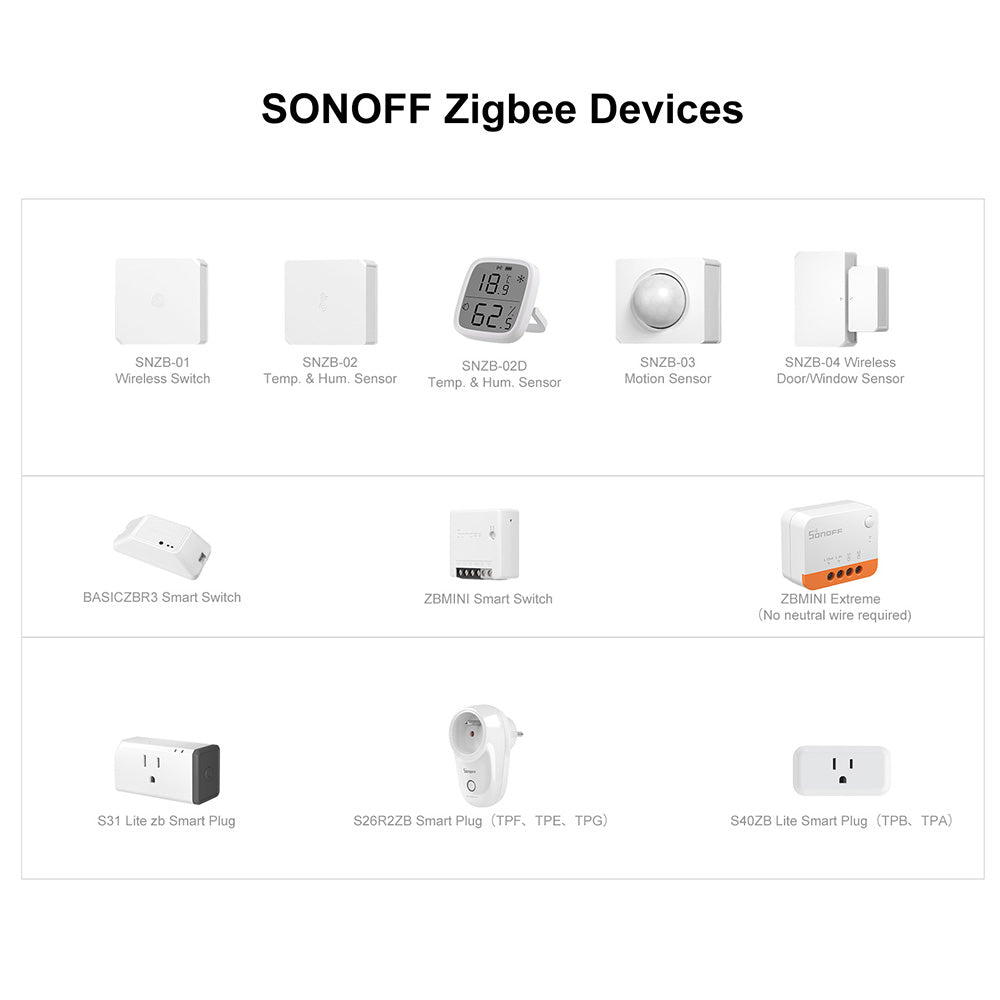

- Compatible with a wide range of SONOFF Zigbee devices, such as the ZBMINIR2 switch and S60ZB smart plugs
- Remote control, scenes and notifications in the eWeLink app
- Voice control with Amazon Alexa and Google Assistant through eWeLink
- Compact 62 × 62 × 20 mm, 35 g; USB Type-C 5V ⎓ 1A power
Works With

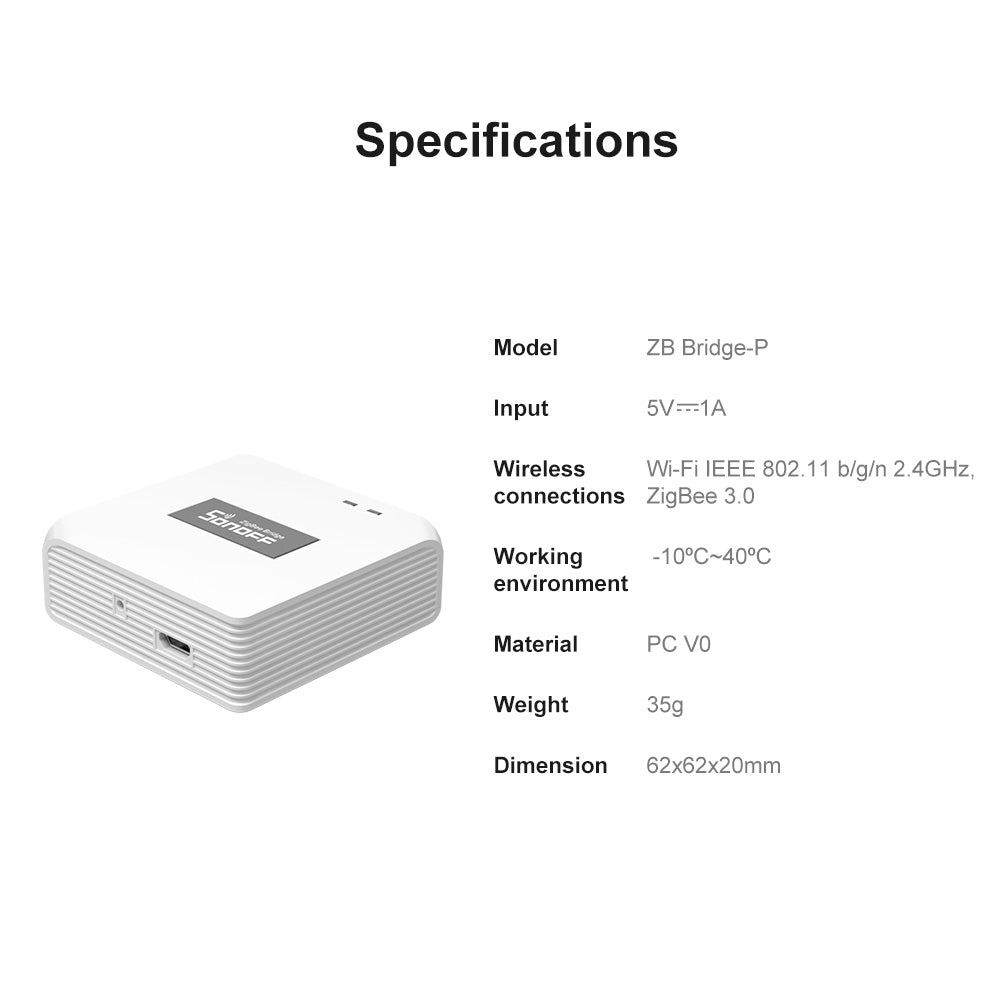

Technical Specifications
| Specification |
Details |
| Model |
ZBBridge-P (ZB Bridge-P) |
| Product Name |
Zigbee Bridge Pro |
| Input |
5V ⎓ 1A (USB Type-C) |
| Wireless Connectivity |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0 |
| Max. Sub-devices |
128 (26 directly; more through Zigbee routers) |
| App |
eWeLink |
| Voice Assistants |
Amazon Alexa, Google Assistant |
| Color |
White |
| Casing Material |
PC V0 |
| Working Temperature |
-10°C ~ 40°C |
| Dimensions |
62 × 62 × 20 mm |
| Weight |
35 g |
Why Choose the SONOFF ZBBridge-P?
- 4× the device capacity of the previous Zigbee Bridge
- Local automations that keep working when the internet is down
- Built-in security modes for a simple home alarm system
- Wide compatibility with the SONOFF Zigbee range
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
