Description

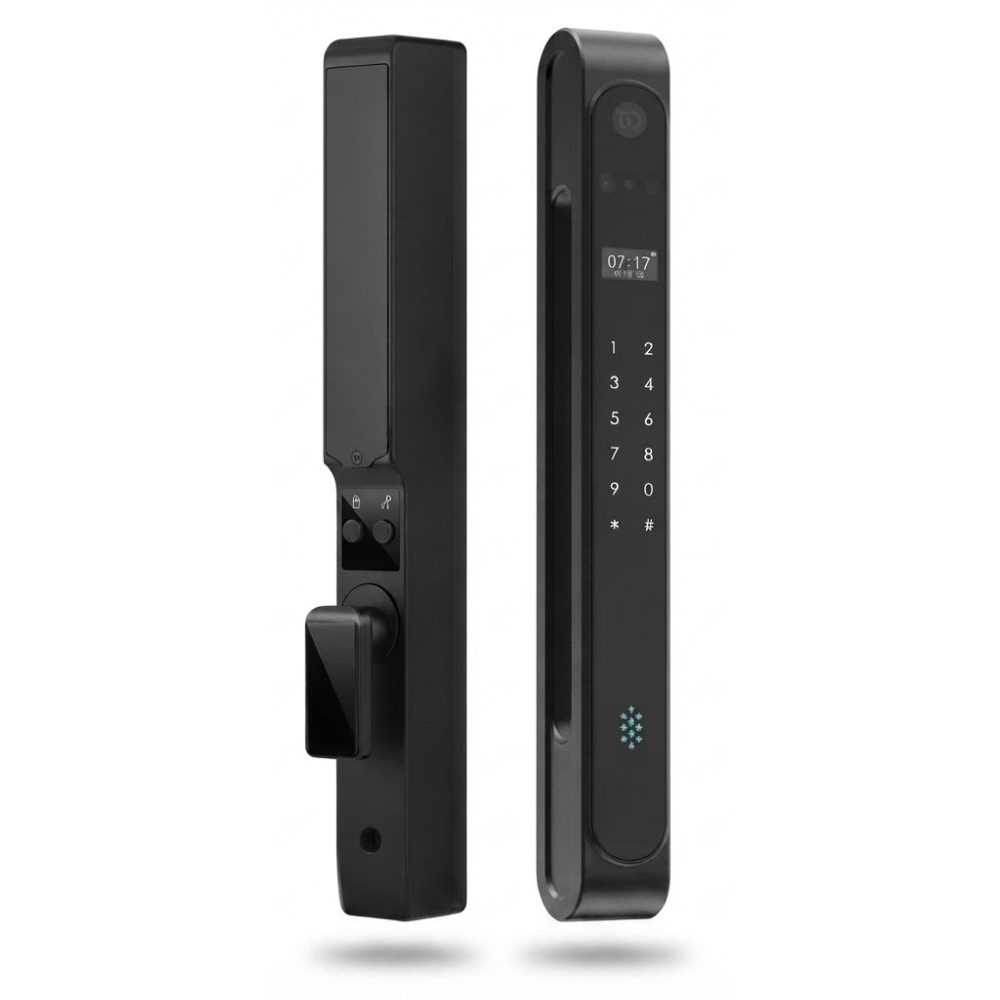

The Spark TL-230 is a fully automatic smart lock for 85-series doors with three locking points. Open your door with face recognition, a fingerprint, a password, a card and the mobile app, and keep a mechanical key as backup. The built-in camera lets you see who is at the door and answer video calls from your phone. It is fully automatic: once you are recognised, the lock opens by itself. It connects to the Tuya Smart app over Wi-Fi, so you can control and monitor your door from anywhere.

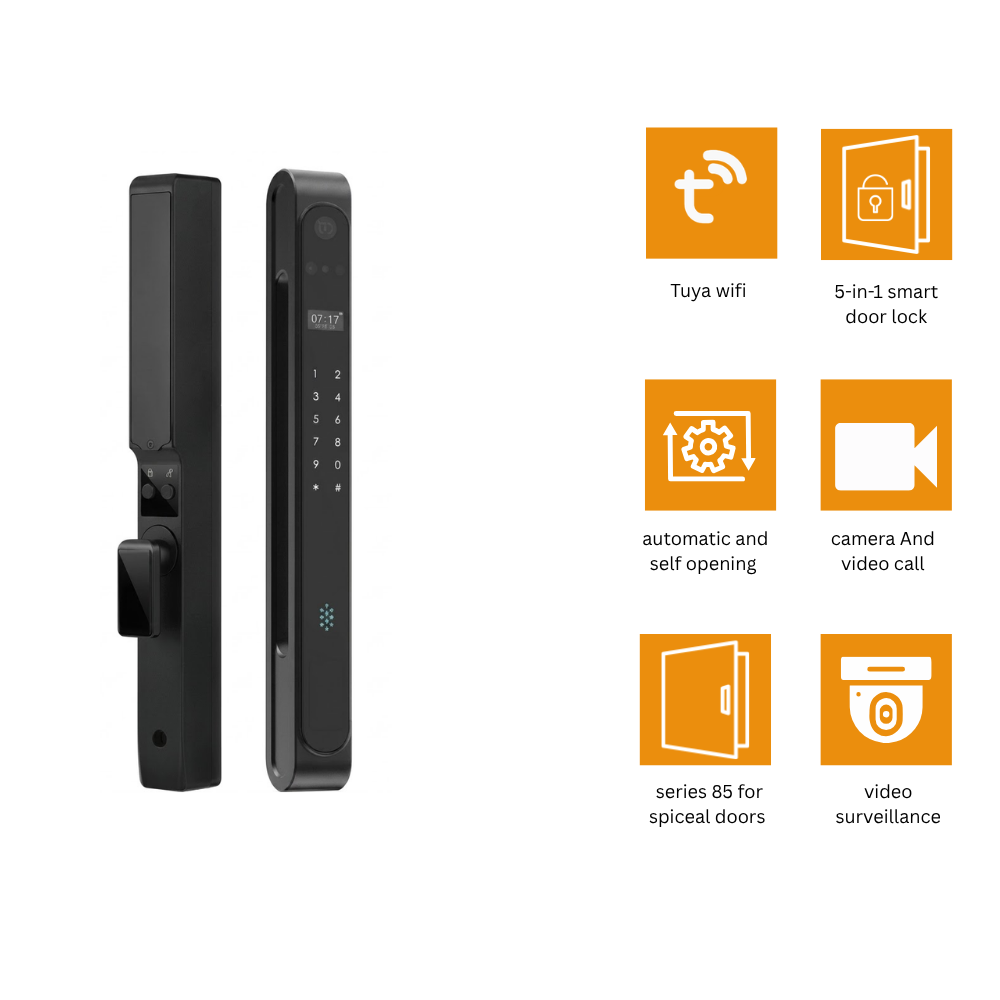

Key Features
-
5 ways to unlock: face recognition, fingerprint, password, card and the mobile app
-
Built-in camera: see who is at the door, take video calls and check the video from your phone
-
Fully automatic: the lock opens and locks by itself (self-opening)
-
Tuya Wi-Fi: control and monitor the lock from the Tuya app, anywhere
-
IP67 waterproof: rain and splashing water won't stop it
-
5000 mAh lithium battery, with Type-C emergency power if it runs out
-
Mechanical key backup for full peace of mind
-
Three locking points (top, middle and bottom) that work together, on a 3585 lock body
One Lock for the Whole Family
Everyone uses the way that suits them: face recognition for you, a fingerprint for the family, a code for guests, a card for the cleaner and remote unlocking from your phone. Every entry is logged in the app, so you always know who came in and when.
See Who's at the Door
The built-in camera lets you check the live view, answer the door with a video call and review recordings from your phone — whether you are inside the house or away from home.

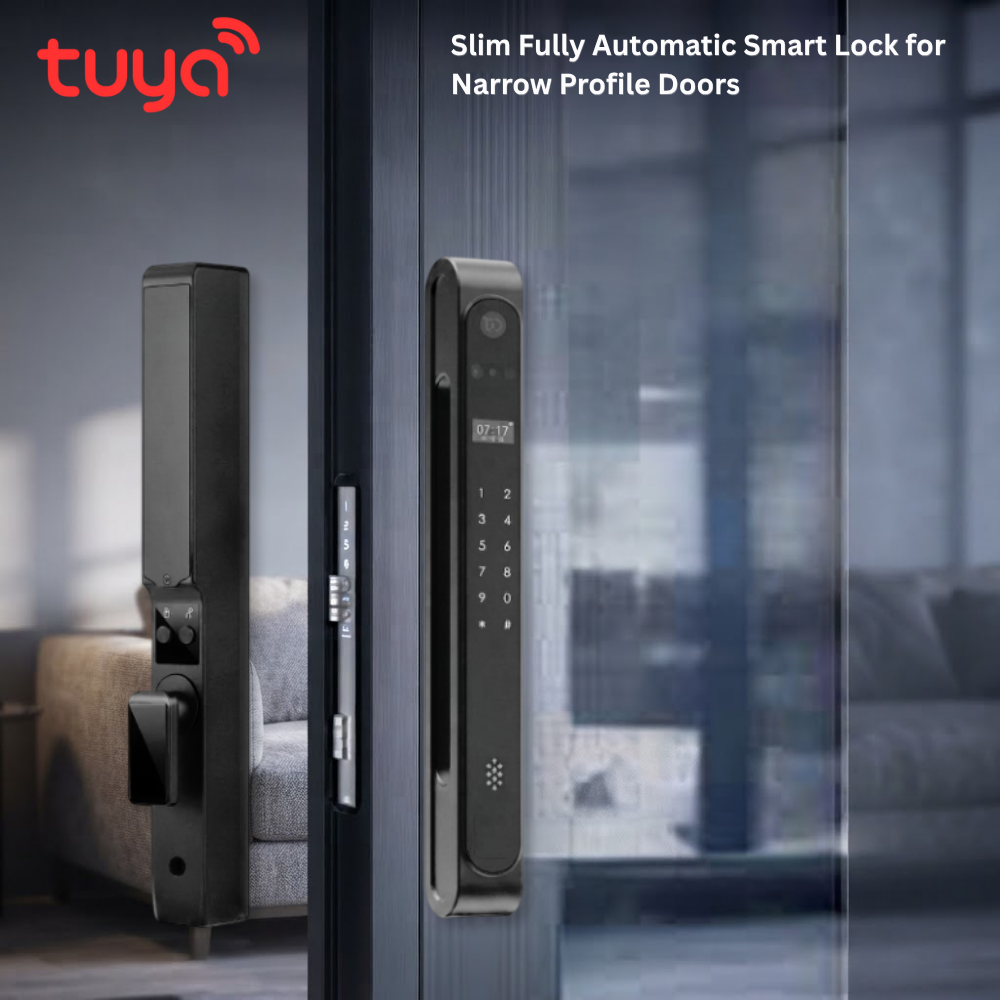

Three Locking Points for 85-Series Doors
The TL-230 is a tri-lock: three bolts at the top, middle and bottom of the door lock together for extra security. It is built for 85-series (special) doors and uses a 3585 lock body (3585 · 35 × 85 mm). Not sure which lock body your door has? Send Bestways a photo and we will confirm the fit.
📄 Download the TL-230 Brochure (PDF)
Specifications
| Model |
Spark TL-230 |
| Brand |
Spark |
| App |
Tuya Wi-Fi |
| Unlocking |
Face · fingerprint · password · card · app |
| Camera |
Built in |
| Video |
Video call · video surveillance |
| Operation |
Fully automatic · self-opening |
| Battery |
5000 mAh lithium |
| Material |
Aluminium alloy |
| Front panel |
407 × 35 × 45 mm |
| Rear panel |
398 × 34 × 57 mm |
| Waterproof |
IP67 |
| Series |
85 series · 3 locking points |
| Lock body |
3585 · 35 × 85 mm |
| Backup |
Mechanical key |
| Emergency power |
Type-C port for a power bank |
| Door |
85-series doors |
FAQ
Does the TL-230 work with the Tuya app?
Yes. It connects to the Tuya Smart app over Wi-Fi, so you can unlock remotely, add users and see the entry log from anywhere.
What happens if the battery runs out?
Connect a power bank to the Type-C port on the outside panel to power the lock and open the door, or use the mechanical key.
Is installation included?
Yes. The price includes professional installation by the Bestways team.
Will it fit my door?
The TL-230 is designed for 85-series (special) doors. Send us a photo of your door and current lock and we will confirm before you order.
Buy the Spark TL-230 smart door lock in Jordan from Bestways Smart-home Solutions.
