Description

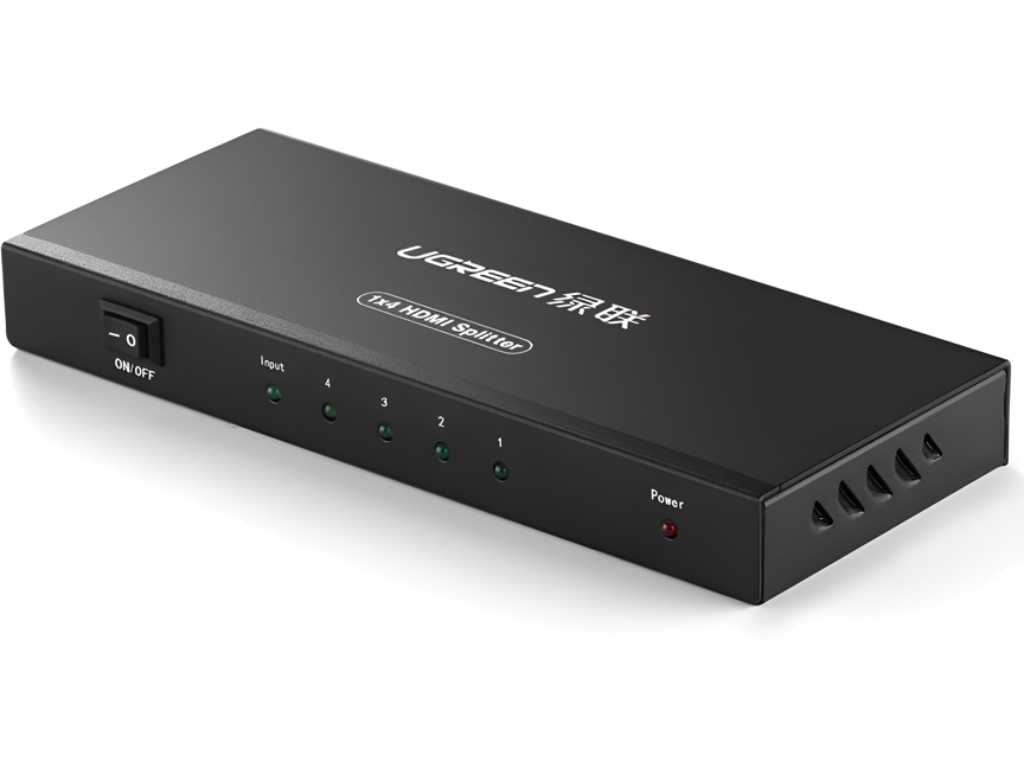

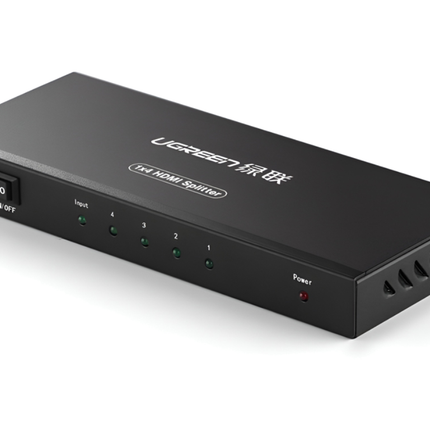

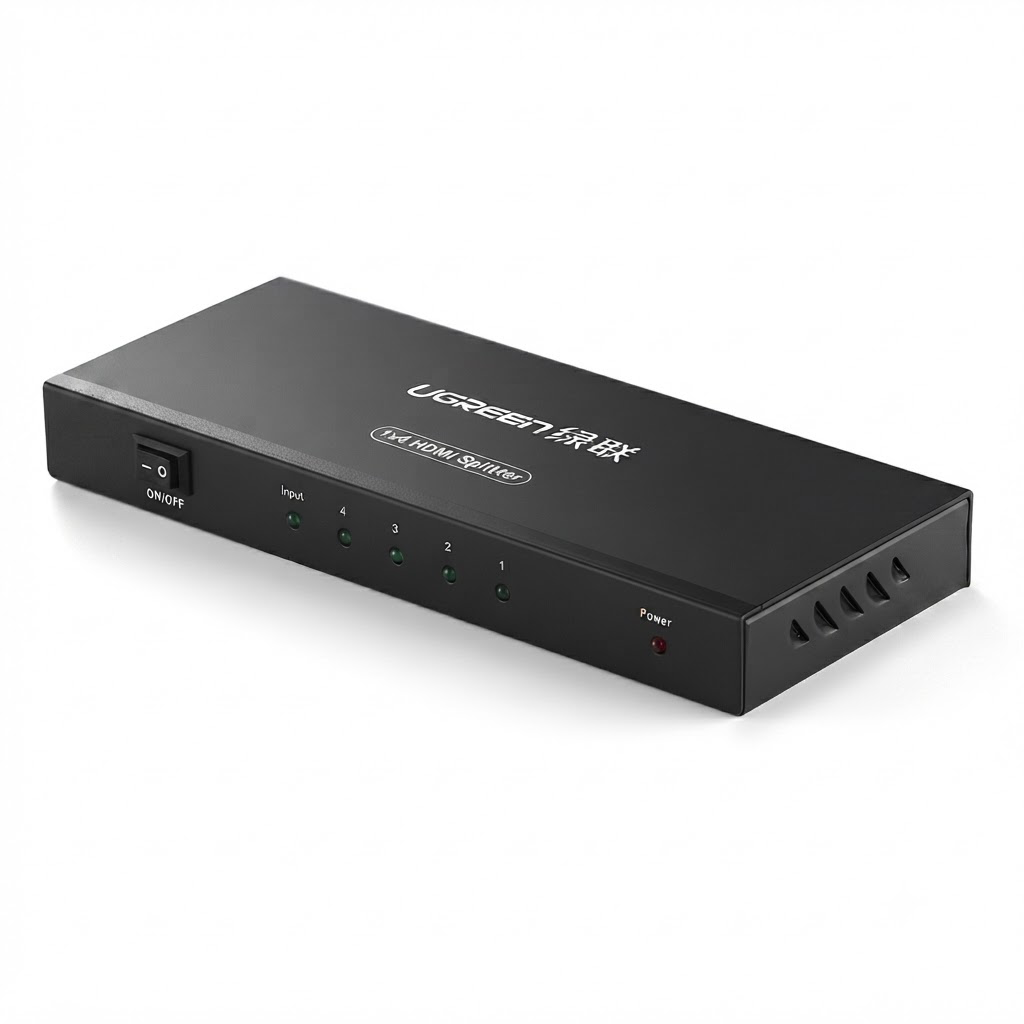

The UGREEN HDMI Splitter CM620 (40202EU) is a professional 1-to-4 HDMI splitter designed to distribute a single HDMI source to four displays simultaneously while maintaining excellent video and audio quality. Supporting HDMI 1.4, 4K@30Hz, 3D, HDCP, and 1080P Full HD, it is ideal for conference rooms, digital signage, retail displays, classrooms, exhibitions, home entertainment, and commercial AV installations. Built with a durable aluminum alloy housing and powered by the included 5V/1A power adapter, the splitter ensures reliable long-distance signal transmission and stable performance.
Key Features
-

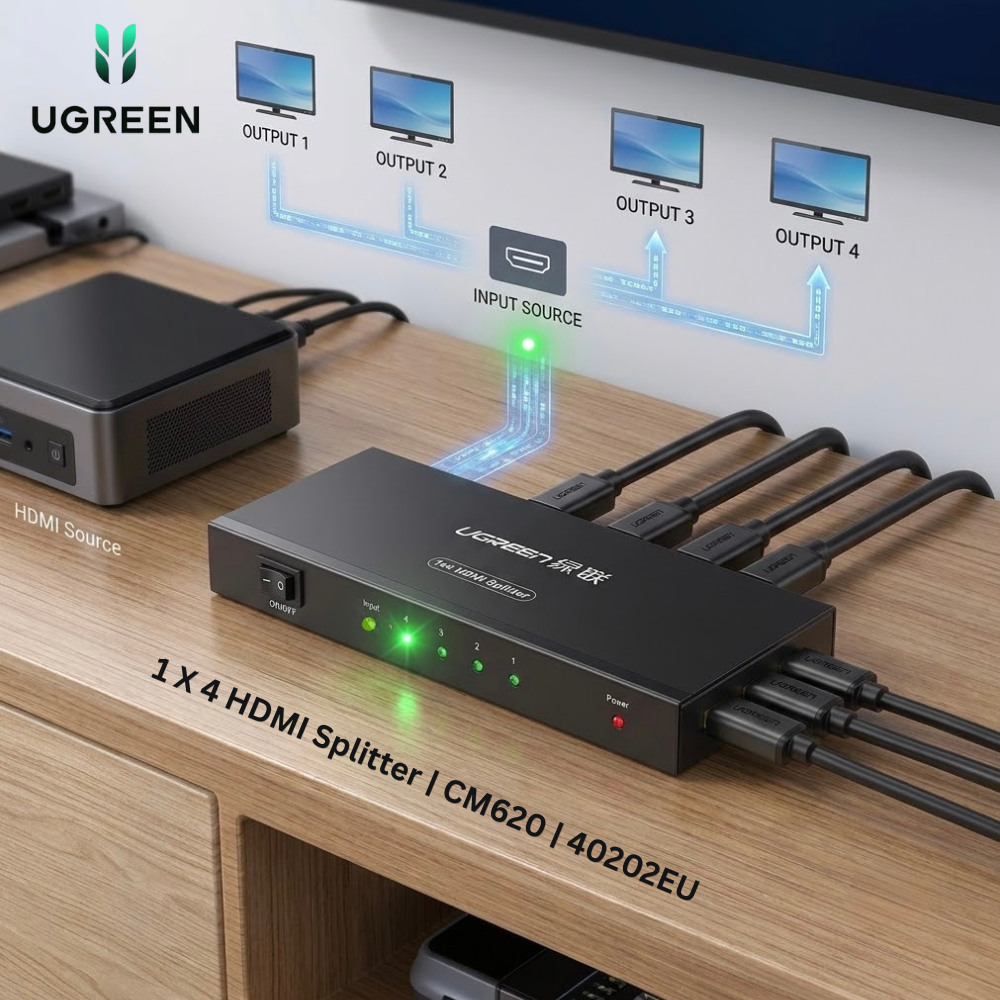

Splits one HDMI input into four HDMI outputs simultaneously.
- Supports HDMI 1.4 specification.
- Supports 4K Ultra HD at 30Hz, 1080P@60Hz, 3D, and HDCP.
- Delivers synchronized video and audio to all connected displays.
- Supports long-distance HDMI transmission:
- Up to 12m input + 12m output using 26AWG HDMI cables at 4K@30Hz.
- Up to 20m input + 20m output using 24AWG HDMI cables at 1080P@60Hz.
- Compatible with Android TV Boxes, PCs, laptops, PS3, Blu-ray players, media players, TV boxes, and other HDMI source devices.
- Durable aluminum alloy enclosure for improved heat dissipation and long-term reliability.
- Powered by the included DC 5V/1A external power adapter for stable operation.
- Plug-and-play installation with no drivers or software required.
- Ideal for conference rooms, classrooms, retail stores, exhibitions, digital signage, and home entertainment.
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM620 |
| Product Code |
40202EU |
| Product Type |
HDMI Splitter |
| HDMI Version |
HDMI 1.4 |
| HDMI Input |
1 × HDMI |
| HDMI Outputs |
4 × HDMI |
| Maximum Resolution |
4K UHD @ 30Hz |
| Supported Formats |
4K@30Hz, 1080P@60Hz, 3D, HDCP |
| Transmission Distance (4K) |
12m input + 12m output (26AWG HDMI cable) |
| Transmission Distance (1080P) |
20m input + 20m output (24AWG HDMI cable) |
| Power Input |
DC 5V / 1A (3.5 × 1.35 mm) |
| Power Adapter |
Included |
| Housing Material |
Aluminum Alloy |
| Compatibility |
Android TV Box, PC, Laptop, PS3, Blu-ray Player, TV Box, Media Player, and other HDMI devices |
| Color |
Black |
| Dimensions |
32 × 26 × 6 cm |
| Weight |
998 g |
