Description

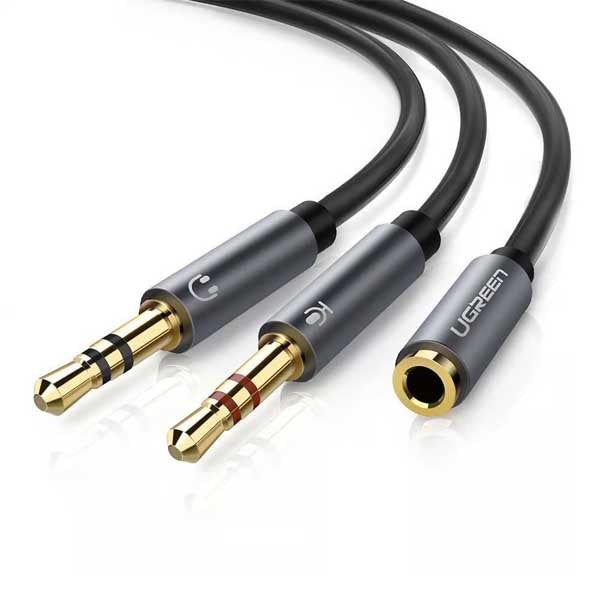

The UGREEN AV140 3.5mm Female to 2 Male Audio Mic Splitter Cable lets you use a phone-style headset with a single 4-pole (TRRS) 3.5mm plug on a PC or laptop that has separate headphone and microphone jacks. The headset plugs into the 3.5mm female socket, and the two 3.5mm 3-pole (TRS) male plugs go into the computer's headphone and mic ports. It is available in white ABS, black ABS and black aluminum versions with gold-plated connectors.
Key Features
-
3.5mm 4-pole female to 2 x 3.5mm 3-pole male (headphone + microphone).
- Designed for CTIA-standard headsets and earphones with mic.
-

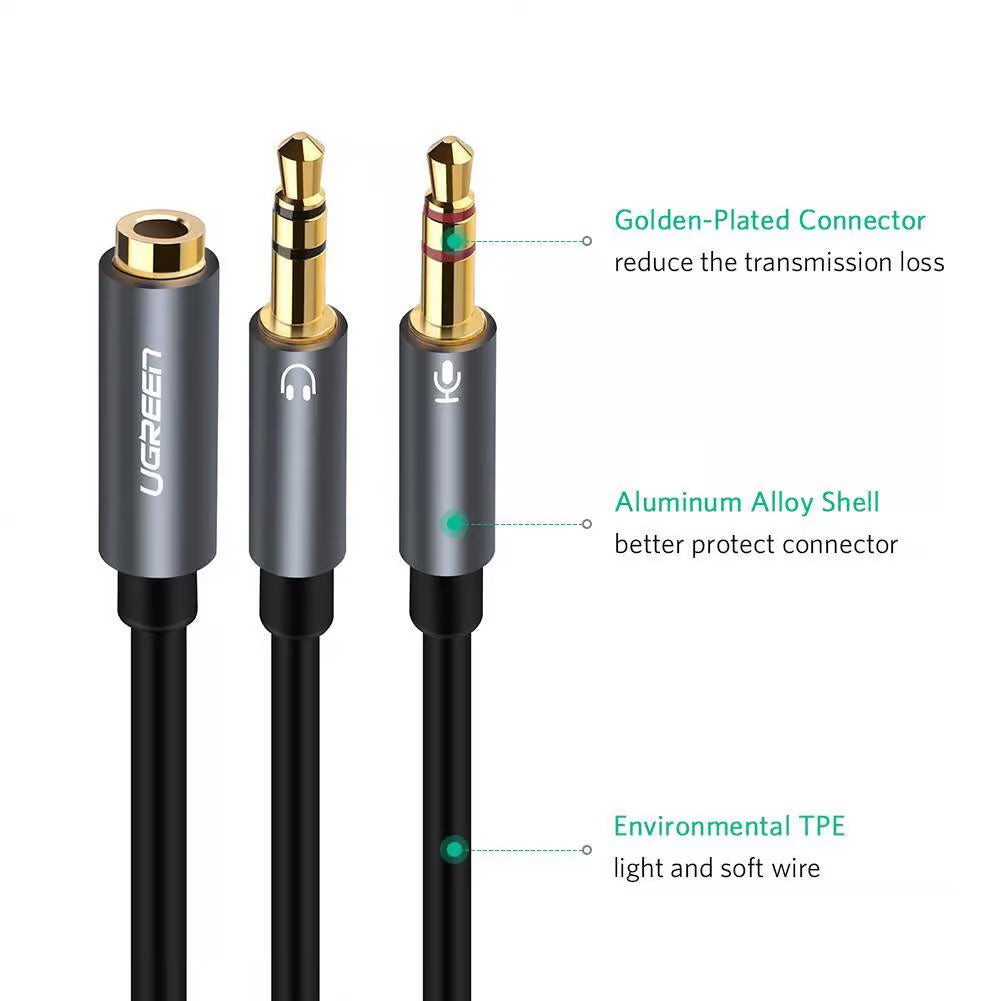

Gold-plated connectors for stable contact.

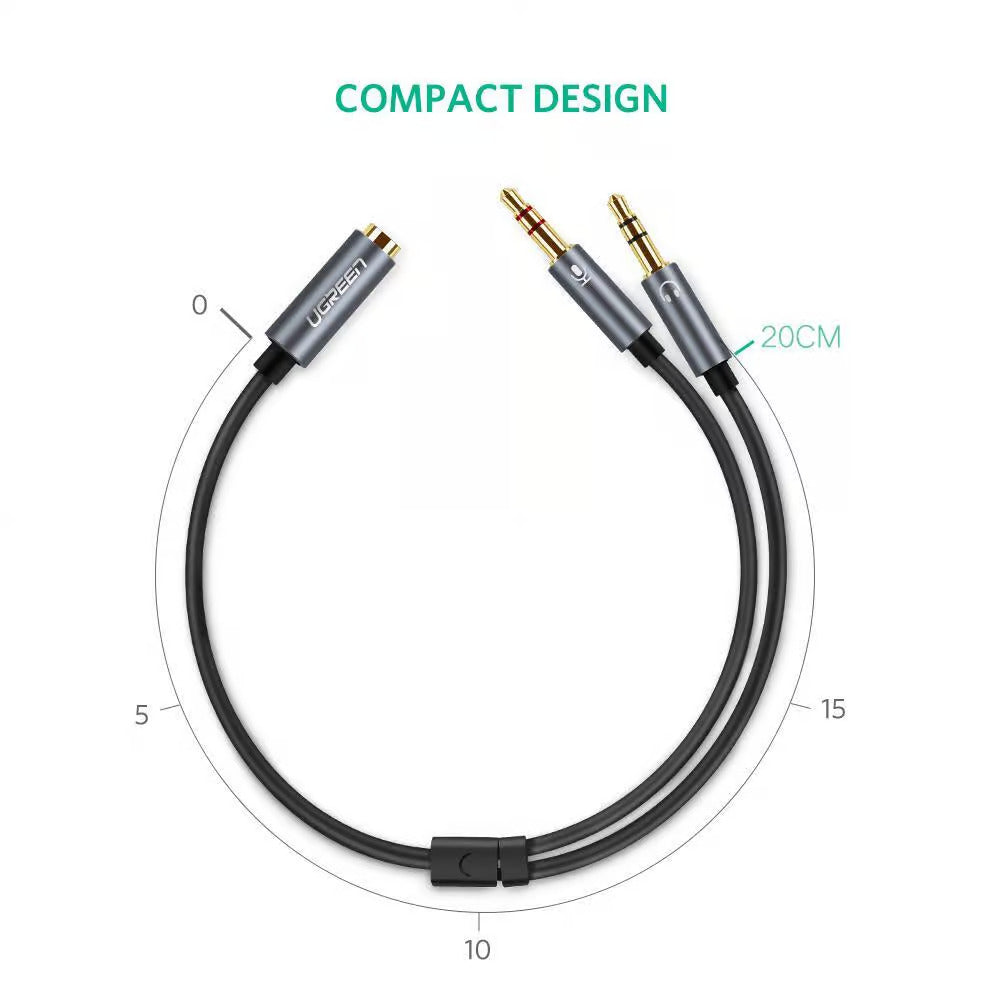

- Short approx. 20cm cable on the ABS versions.
- Choice of White ABS (20897), Black ABS (20898) or Aluminum Black (20899).
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
AV140 |
| Item No. / SKU |
20897 (White, ABS), 20898 (Black, ABS), 20899 (Black, aluminum) |
| Product Type |
3.5mm headset audio and mic splitter cable |
| Input |
3.5mm 4-pole (TRRS) female, CTIA |
| Outputs |
2 x 3.5mm 3-pole (TRS) male: headphone + microphone |
| Connector Plating |
Gold-plated |
| Housing |
ABS (20897, 20898) / aluminum (20899) |
| Cable Length |
Approx. 20 cm (ABS versions) |
| Color |
White / Black / Black (aluminum) |
Common Applications
- Using a phone headset with mic on a desktop PC with separate audio jacks.
- Online meetings, calls and classes on a laptop or PC.
- Gaming headsets with a single 3.5mm plug on older PCs.
- Voice recording with a headset microphone.
