Description

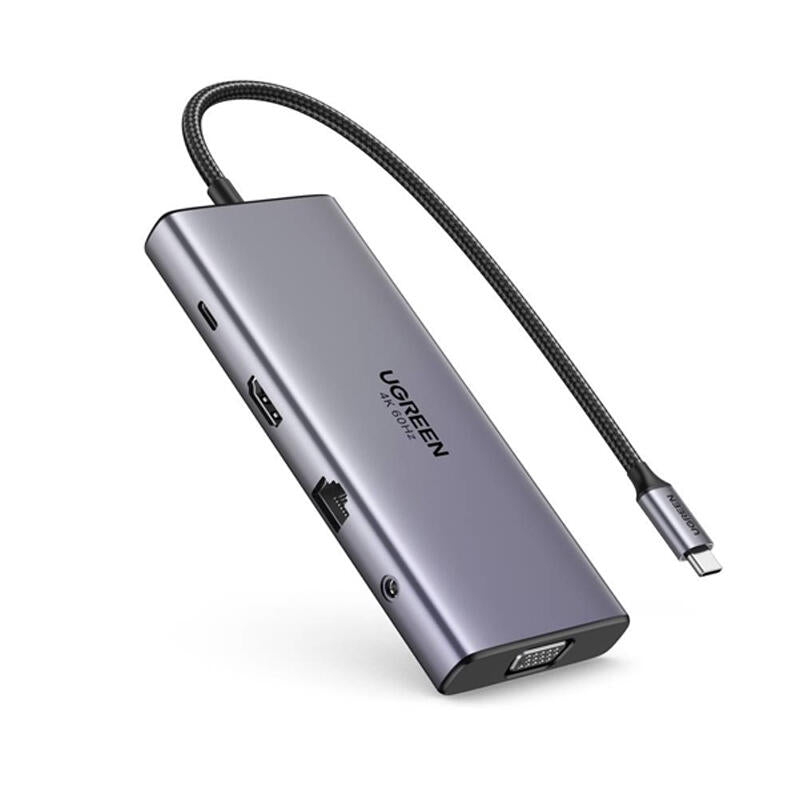

The UGREEN Revodok 11-in-1 USB-C Hub (model CM639, item 45520) turns one USB-C port into a complete workstation: HDMI up to 4K@60Hz, VGA up to 1080P@60Hz, gigabit Ethernet, 2 USB-C and 2 USB-A ports, SD/TF card slots, a 3.5mm audio jack and 100W PD charging. HDMI and VGA can be used at the same time, in mirror or extended mode, and the aluminium case keeps it durable.
Key Features
-
HDMI up to 4K@60Hz with HDMI 2.0, HDCP 2.2, HDR10 and 3D support.
-
VGA up to 1080P@60Hz, usable together with HDMI.
-
2 USB-C ports and 1 USB-A port up to 10Gbps, plus 1 USB-A port up to 5Gbps.
-
Gigabit RJ45 Ethernet (10/100/1000Mbps auto-negotiation).
-
SD/TF card slots, SD 3.0 up to 170MB/s.
-
3.5mm audio output and 100W PD 3.0 charging.
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM639 (Revodok) |
| Item No. |
45520 |
| Input |
USB-C male |
| HDMI |
Up to 4K@60Hz |
| VGA |
Up to 1080P@60Hz |
| USB-C |
2x, up to 10Gbps |
| USB-A |
1x up to 10Gbps, 1x up to 5Gbps |
| Ethernet |
RJ45, 10/100/1000Mbps |
| Card Reader |
SD/TF, SD 3.0 up to 170MB/s |
| Audio |
3.5mm output |
| Charging |
USB-C PD 3.0, up to 100W |
| Compatible Systems |
Windows, macOS, Linux |
| Material / Color |
Aluminium case / Gray |
Common Applications
- Turning a USB-C laptop into a full desk workstation.
- Connecting two displays (HDMI and VGA) for presentations or office work.
- Stable wired internet in offices and hotels.
- Reading memory cards and connecting headphones or speakers.
