Description

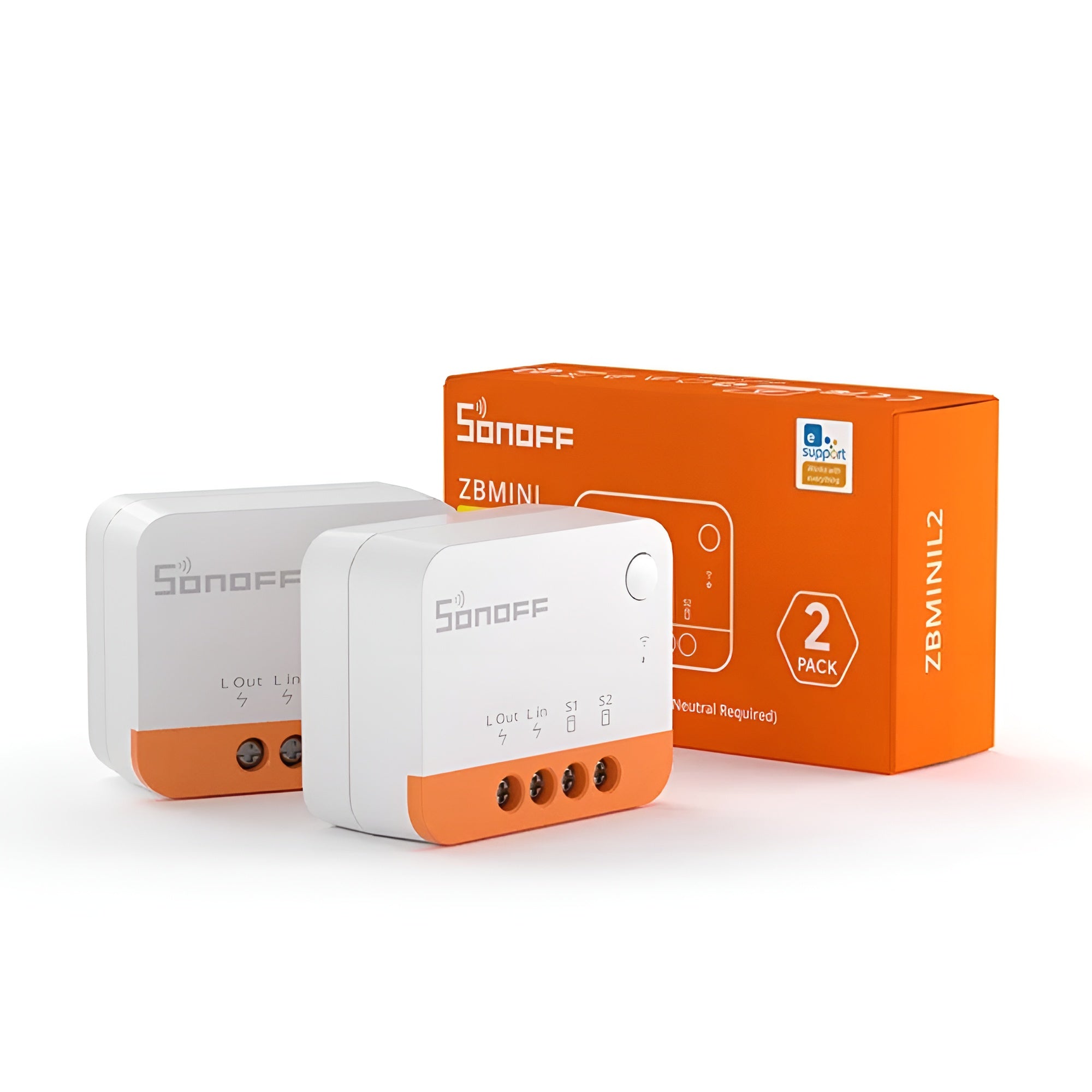

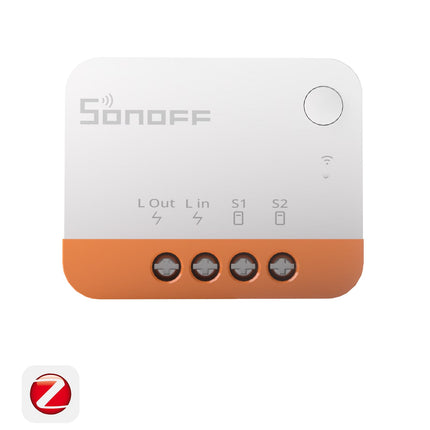

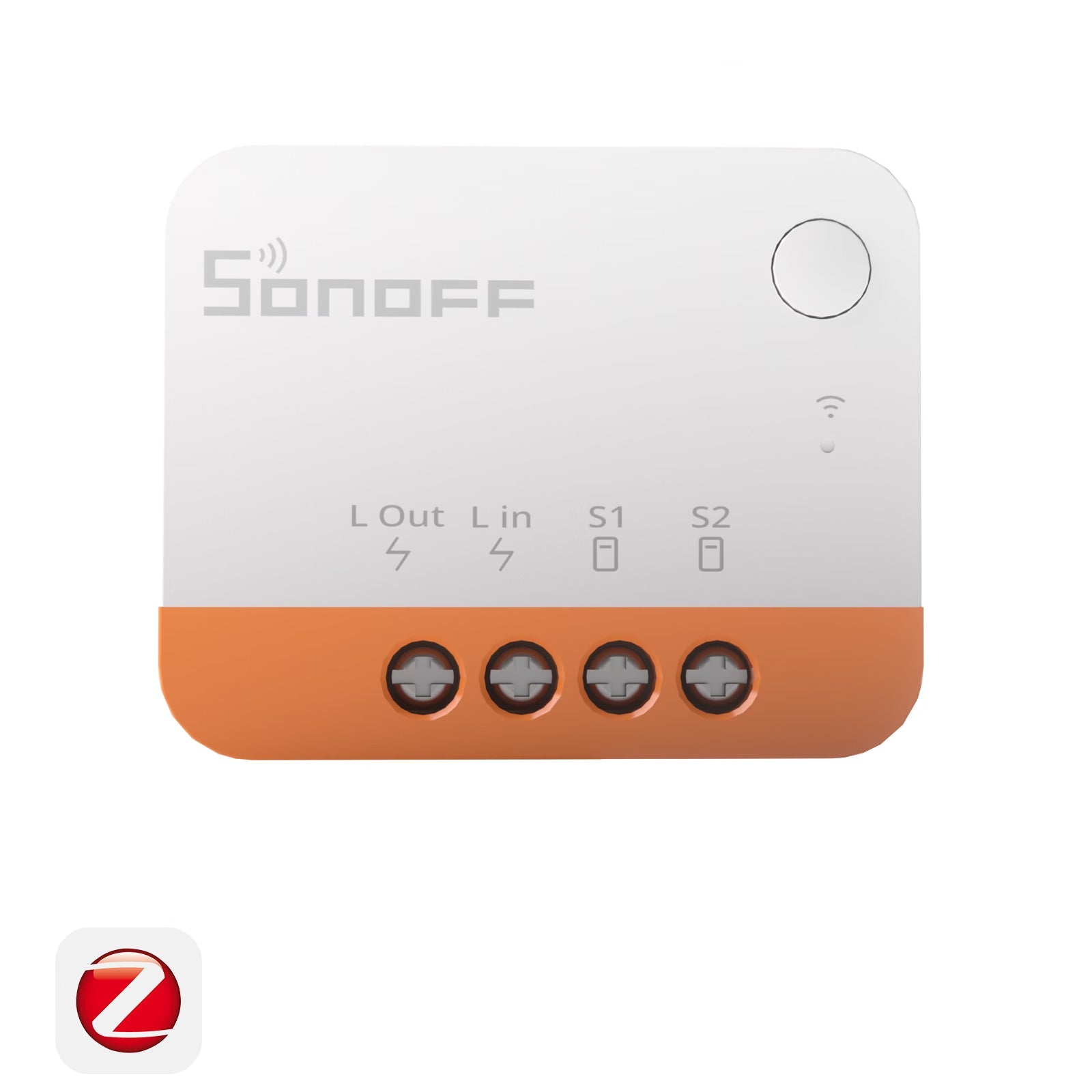

This pack contains 2 × SONOFF ZBMINI Extreme Zigbee Smart Switch (ZBMINIL2), SONOFF's tiniest Zigbee 3.0 smart switch, designed to fit small EU, 86-type and 120-type mounting boxes. It needs no neutral wire, which makes it ideal for older homes and retrofits, and switches lighting loads up to 6A at 100–240V AC.
It works with your existing rocker switches and push buttons, handles low-power bulbs from 3W without an anti-flicker module, and supports two-way control, timers, voice control and Zigbee automations.
Note: a Zigbee gateway is required (see "Works With" below). The ZBMINIL2 is a Zigbee end device, so it does not act as a Zigbee router.
Key Features

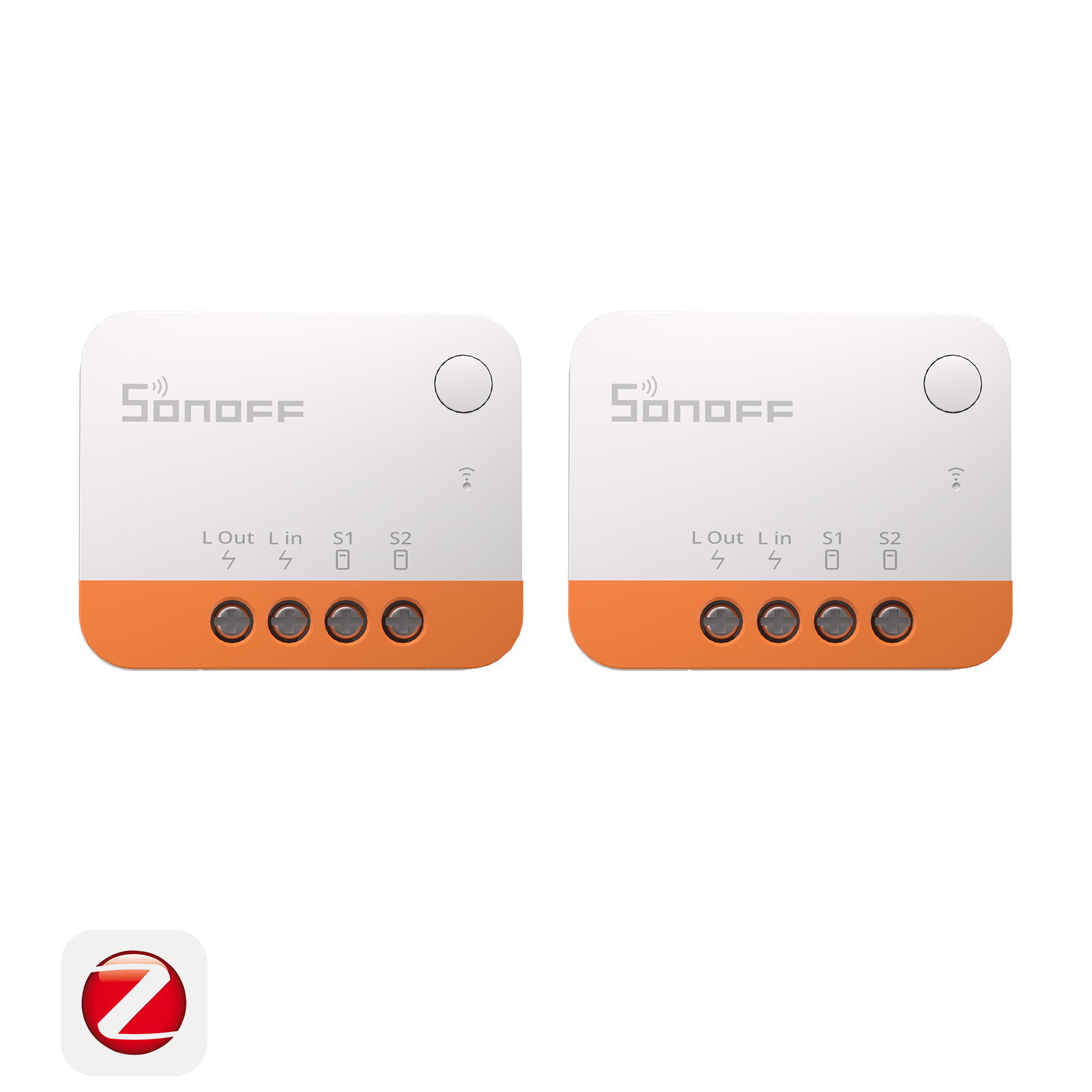

- Pack of 2 × ZBMINIL2 for upgrading two switches or rooms
- No neutral wire required, perfect for older homes and quick installations
- Ultra-compact 39.5 × 32 × 18.4 mm body for EU, 86-type and 120-type mounting boxes

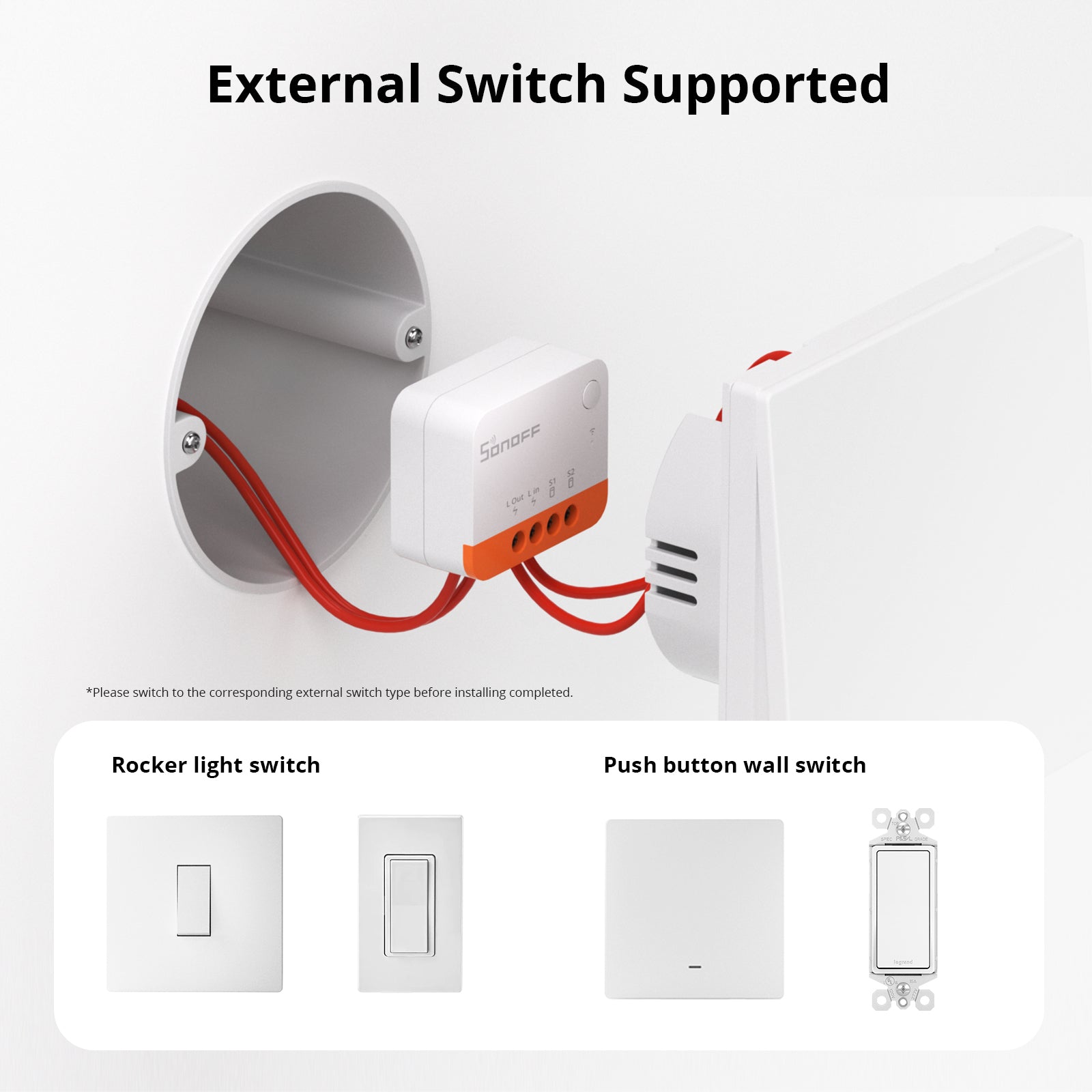

- Works with rocker switches and push buttons
- Handles low-power light loads from 3W without an anti-flicker module
- Two-way control for staircases and other dual-switch setups
- Countdown, schedule and loop timers
- Voice control with Amazon Alexa and Google Assistant
- Triggers other Zigbee devices based on the switch state
- Works with Home Assistant (ZHA and Zigbee2MQTT) through the SONOFF ZBDongle series
Works With

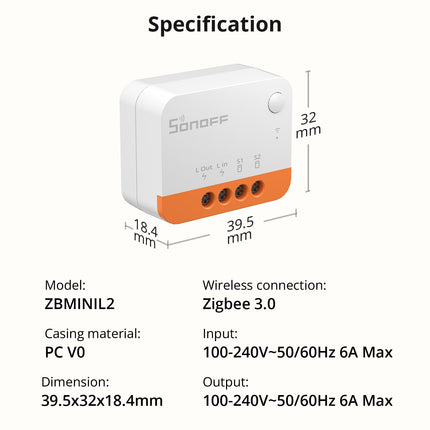

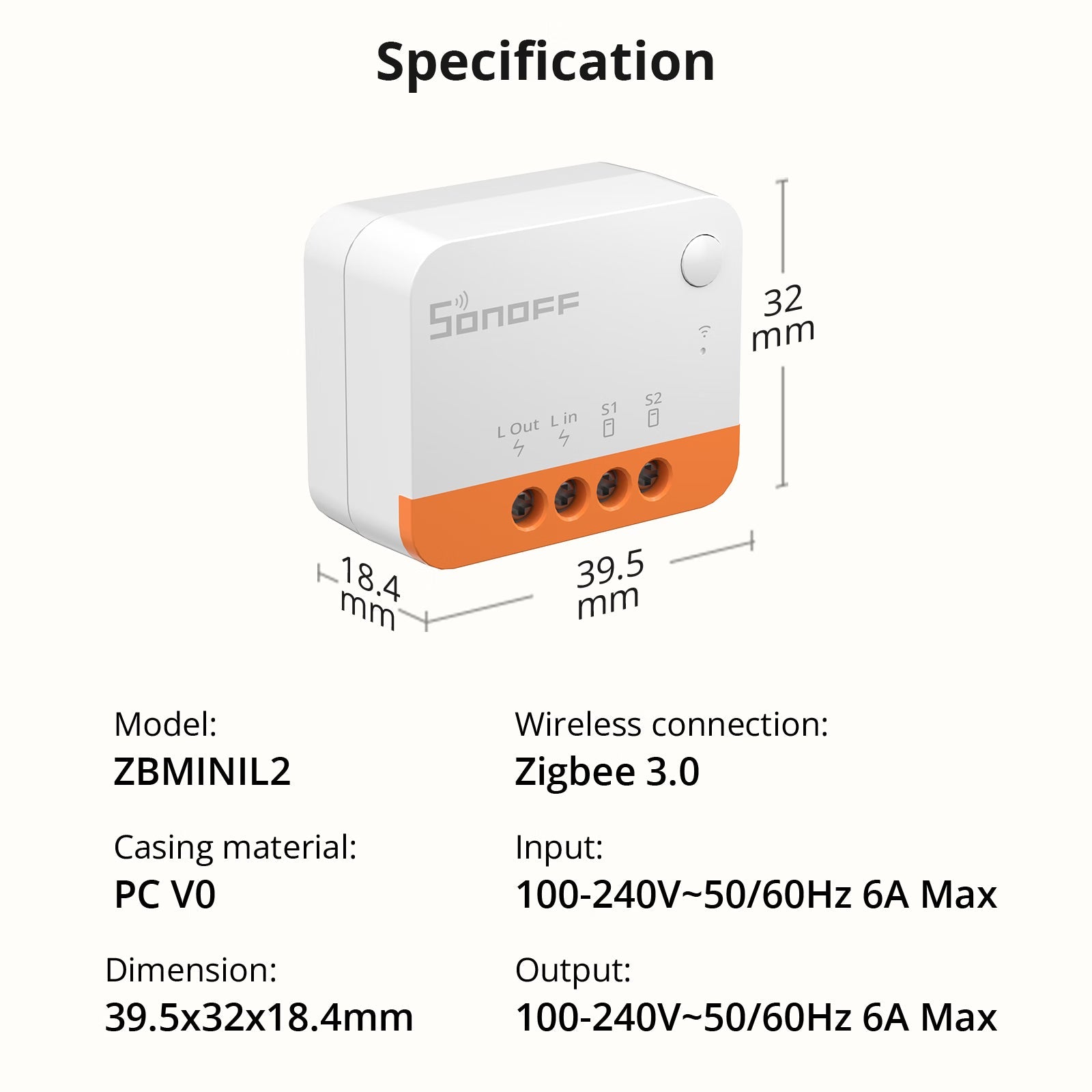

Technical Specifications
| Specification |
Details |
| Model |
ZBMINIL2 |
| Product Name |
ZBMINI Extreme Zigbee Smart Switch |
| Wireless Protocol |
Zigbee 3.0 |
| Zigbee Device Type |
End device |
| Input |
100–240V~ 50/60Hz, 6A max |
| Output |
100–240V~ 50/60Hz, 6A max |
| Neutral Wire |
Not required |
| Minimum Light Load |
3W (no anti-flicker module needed) |
| Hub Requirement |
Zigbee gateway required |
| App |
eWeLink |
| Casing Material |
PC V0 |
| Color |
White |
| Dimensions |
39.5 × 32 × 18.4 mm |
| Pack Quantity |
2 units |
What's in the Box
- 2 × ZBMINIL2 smart switch
Why Choose the SONOFF ZBMINIL2?
- Smart lighting without rewiring: no neutral wire needed
- Small enough for tight mounting boxes behind existing switches
- Works with low-wattage LED bulbs from 3W
- Open Zigbee 3.0 platform support, including Home Assistant
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
