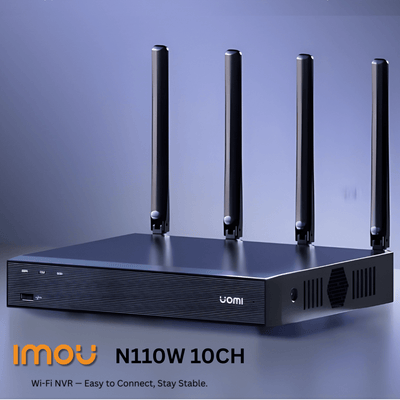

The IMOU N110W/N118W NVR is a versatile, wireless-ready network video recorder designed for smooth camera integration, reliable recording, and efficient playback. Perfect for homes, small businesses, and multi-camera setups, these NVRs support high-definition video streaming and extended storage, ensuring professional-grade monitoring and peace of mind. Compatible with multiple IMOU and ONVIF-compliant cameras, they allow flexible camera management, remote access, and real-time playback through the IMOU app. With robust performance, easy installation, and scalable functionality, the N110W/N118W NVRs provide a complete solution for comprehensive and intelligent video surveillance.
Key Features
Channel Support — N110W supports up to 10 cameras; N118W supports up to 18 cameras. Flexible setup accommodates varying surveillance scales.
Dual-Band Wi-Fi 6 — 2.4 GHz + 5 GHz connectivity with high-gain antennas ensures stable, wide-range wireless connections.
High-Definition Outputs — HDMI (up to 4K) and VGA ports for full-HD and ultra-clear video playback on external monitors.
Smart Playback — View 4 channels simultaneously at 8 MP @ 15 fps or 5 MP @ 30 fps; fast-forward options (2×, 4×, 8×, 16×) simplify review.
Large Storage Capacity — One SATA port supports HDDs up to 16 TB for extended retention (HDD not included).
Two-Way Audio — Integrated microphone and speaker allow real-time communication via connected cameras.
ONVIF & IMOU Compatibility — Supports auto-pairing with IMOU cameras and third-party ONVIF-compliant devices.
Compact & Quiet Design — Low-profile, efficient cooling design suitable for homes or small-to-medium businesses.
Technical Specifications
Feature
Specification
Channel Capacity
N110W: up to 10 channels; N118W: up to 18 channels
Wi-Fi Connectivity
Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz), multiple high-gain antennas
Video Outputs
1 × HDMI (supports 4K), 1 × VGA
Maximum Decoding Capacity
4 ch at 8 MP @ 15 fps or 4 ch at 5 MP @ 30 fps
Video Compression
H.265 / H.264
Storage Support
1 × SATA HDD port, up to 16 TB (not included)
Network Bandwidth
Approx. 90 Mbps
Audio Features
Built-in microphone + speaker (two-way)
Backup Interfaces
2 × USB ports, network backup supported
Protocols
ONVIF-compliant, auto-pairing with IMOU cameras
Power Supply
DC 12 V / 2 A
Power Consumption
< 9 W (without HDD)
Operating Temperature
–10 °C to +45 °C
Dimensions
241.5 × 260 × 60.2 mm
Weight
Approx. 890 g (without HDD)
Why Choose IMOU N110W/N118W NVR
Reliable support for multiple wireless cameras with Wi-Fi 6 connectivity.
Large storage and high-definition outputs enable long-term recording and detailed playback.
Two-way audio facilitates communication with visitors or monitored areas.
ONVIF and IMOU auto-pairing allow easy integration with existing systems.
Compact and quiet design fits seamlessly in homes, offices, or small businesses.
