Description

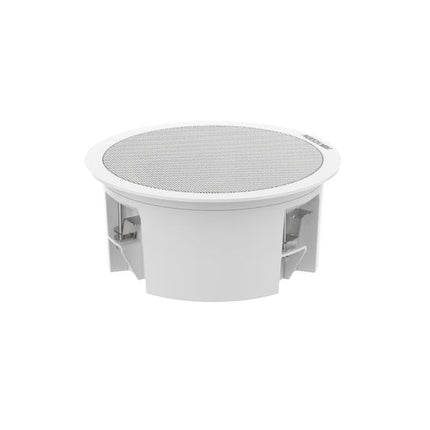

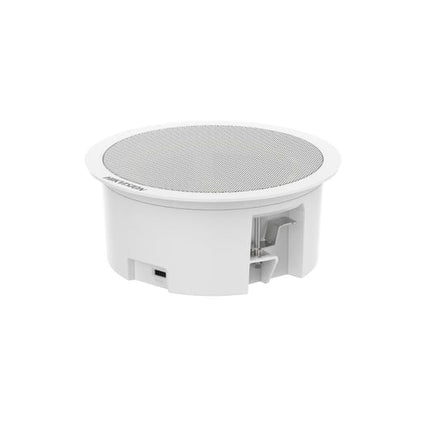

The Hikvision DS-QAZ0203G1-S is a 3 W, 8 Ω secondary ceiling speaker that extends a Hikvision network ceiling speaker system. It connects to the 8 Ω output of the matching primary speaker, the DS-QAZ1203G1-BE, and plays the same scheduled, live and emergency broadcasts, alarm-linked messages and text-to-speech announcements.
It needs no network cable, PoE port or IP address of its own, so you can cover more rooms at a lower cost: one DS-QAZ1203G1-BE can drive up to 3 of these speakers. The 5″ full-range driver reaches 97 dB SPL with a 300 Hz – 15 kHz response and 130° conical coverage.
Note: this is a passive secondary speaker. It must be connected to the 8 Ω audio output of a Hikvision DS-QAZ1203G1-BE primary network speaker.
Key Features
- 3 W, 8 Ω secondary (sub) speaker for the DS-QAZ1203G1-BE primary network speaker
- Full-range 5″ driver: 97 dB max. SPL, 93 dB sensitivity (1 W / 1 m)
- 300 Hz – 15 kHz frequency response and 82 dB SNR
- 130° conical coverage, sound in all directions
- Plays the primary speaker's scheduled, live and emergency broadcasts, alarm linkage and text-to-speech

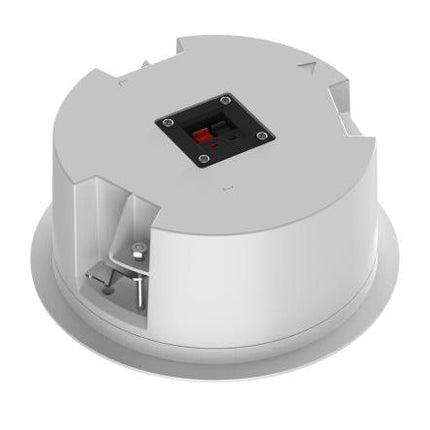

- Fixed-resistance 8 Ω input – no network or PoE connection needed
- Plastic body with metal mesh cover, white finish
- Ceiling mount in a Ø160 mm cut-out, 91 mm mounting depth
Works With
-
Primary network speaker: DS-QAZ1203G1-BE – one DS-QAZ1203G1-BE can drive up to 3 of these speakers
Technical Specifications
| Specification |
Details |
| Model |
DS-QAZ0203G1-S |
| Product Name |
Ceiling Secondary Speaker 3W |
| Rated Power |
3 W |
| Impedance |
8 Ω |
| Speaker Unit |
Full-range 5″ × 1 |
| Sensitivity (1 m, 1 W) |
93 dB |
| Max. Sound Pressure |
97 dB SPL |
| Frequency Response |
300 Hz – 15 kHz |
| SNR |
82 dB |
| Coverage Angle |
Conical, 130° |
| Direction |
All directions |
| Audio Input |
Fixed-resistance input × 1, 8 Ω |
| Compatible Primary Speaker |
DS-QAZ1203G1-BE (3 W, 8 Ω) – max. 3 secondary speakers |
| Material |
Plastic body, metal mesh cover |
| Color |
White |
| Dimensions |
Ø179 × 77.5 mm |
| Mounting Hole |
Ø160 mm |
| Mounting Depth |
91 mm |
| Weight |
Approx. 0.3 kg (0.45 kg with package) |
| Operating Humidity |
< 90% (non-condensing) |
What's in the Box
- 1 × DS-QAZ0203G1-S secondary ceiling speaker
- 1 × Mesh cover
- 1 × Regulatory compliance and safety information
Why Choose the Hikvision DS-QAZ0203G1-S?
- Adds coverage without extra network cabling, PoE ports or IP addresses
- Matched to the DS-QAZ1203G1-BE: same driver, same 3 W rating and the same 130° coverage
- Every broadcast from the primary speaker plays here too
- Clean, white ceiling design for offices, shops, schools and corridors
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
