Description

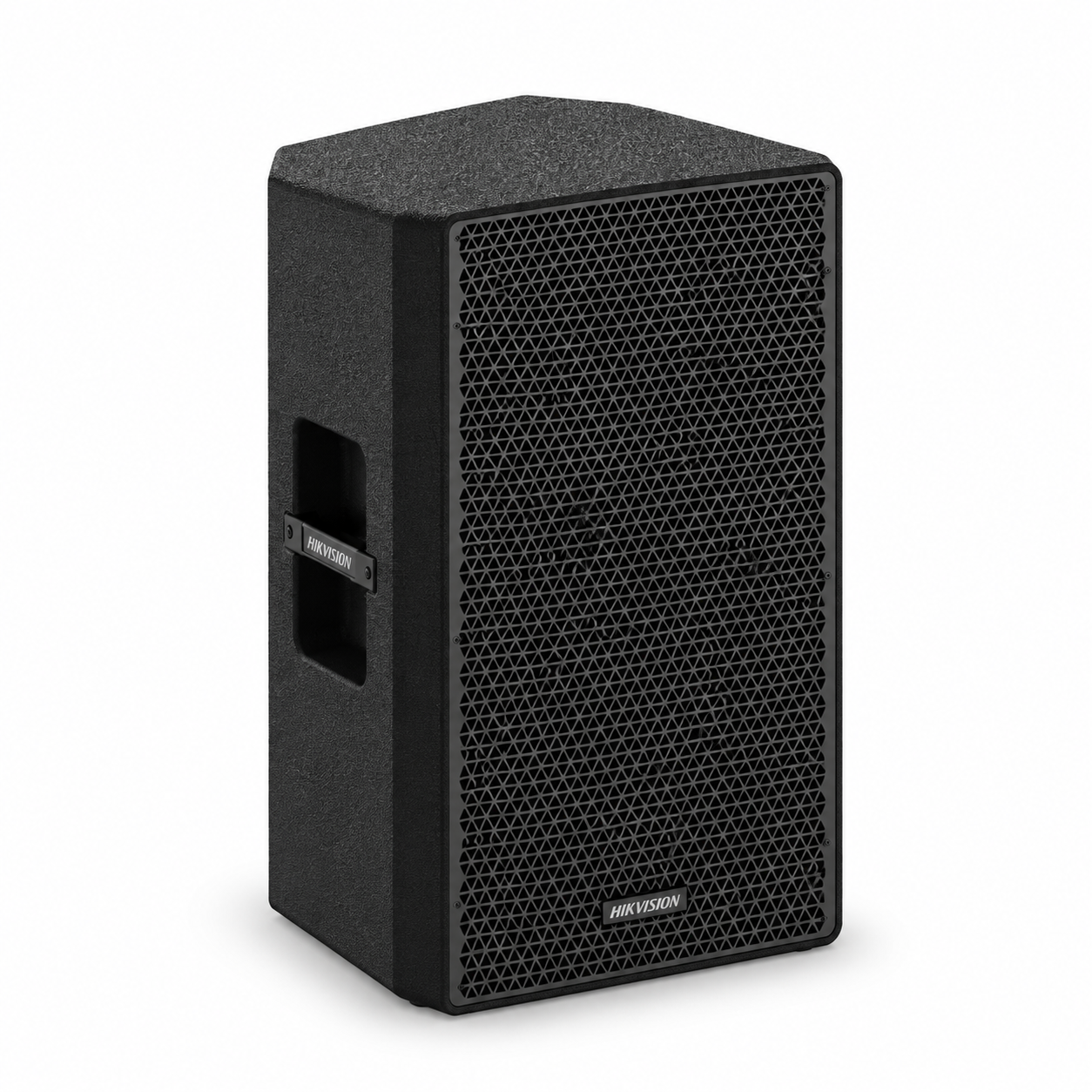

The Hikvision DS-QAPS1R50-15 is a professional 500W 15-Inch Full-Range Speaker designed to deliver powerful, clear, and balanced sound for commercial audio systems, live events, auditoriums, conference halls, and professional sound reinforcement applications.
Featuring a large 15-inch Woofer and a 1.4-inch Tweeter, the speaker delivers a balanced combination of deep bass, detailed midrange, and clear high-frequency reproduction, making it suitable for both music playback and voice announcements.
With 500W rated power, 8Ω nominal impedance, and 96.5dB sensitivity, the speaker provides strong acoustic performance for demanding professional installations.
It delivers a maximum sound pressure level of 123dB, reaching 130dB at peak, with a wide frequency response of 53Hz–20kHz (-10dB) for powerful music reproduction and clear speech.
The speaker features an 80° horizontal × 50° vertical coverage pattern, helping direct sound toward the intended audience while maintaining controlled acoustic distribution.
Constructed from durable multi-layer solid wood plywood with a matte-black textured finish, the DS-QAPS1R50-15 combines robust construction with professional acoustic performance.
Its flexible mounting options, including vertical suspension, horizontal suspension, and bottom-supported installation, make it suitable for a variety of professional audio environments.
Key Features
-
Professional 15-Inch Full-Range Speaker
-
Powerful 500W rated output
-
Large 15-inch Woofer
-
1.4-inch Tweeter for detailed high frequencies
-
Two-way full-range acoustic configuration
-
8Ω nominal impedance
-
High sensitivity: 96.5dB
-
Maximum sound pressure level: 123dB
-
Peak sound pressure level: 130dB
-
Wide frequency response: 53Hz–20kHz
-
Horizontal coverage angle: 80°
-
Vertical coverage angle: 50°
-
Strong bass and clear high-frequency reproduction
-
Suitable for professional music playback and speech reinforcement
-
Durable multi-layer solid wood plywood enclosure
-
Matte-black textured exterior finish
-
Supports vertical hanging installation
-
Supports horizontal hanging installation
-
Supports bottom-supported placement
-
Compatible with appropriately rated professional amplifiers
-
Suitable for auditoriums, hotels, conference halls, and event venues
Technical Specifications
| Specification |
Details |
| Product Type |
Professional Full-Range Speaker |
| Speaker Configuration |
Woofer + Tweeter |
| Rated Power |
500W |
| Woofer |
1 × 15-inch |
| Tweeter |
1 × 1.4-inch |
| Nominal Impedance |
8Ω |
| Sensitivity |
96.5dB @ 2.83V/1m |
| Maximum SPL |
123dB |
| Peak SPL |
130dB |
| Frequency Response (-10dB) |
53Hz–20kHz |
| Horizontal Coverage |
80° |
| Vertical Coverage |
50° |
| Enclosure Material |
Multi-Layer Solid Wood Plywood |
| Exterior Finish |
Matte Black Textured Paint |
| Dimensions (H × W × D) |
595 × 432 × 306mm |
| Weight |
Approx. 27kg
|
| Installation |
Vertical Hanging / Horizontal Hanging / Bottom Support |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
Up to 95%, Non-Condensing
|
| Package Contents |
Speaker × 1, Product Manual × 1, Certificate × 1, Warranty Card × 1 |
| Speaker Type |
Passive Analog |
| Model |
DS-QAPS1R50-15 |
Why Choose Hikvision DS-QAPS1R50-15?
The DS-QAPS1R50-15 combines powerful sound output with professional acoustic performance, making it an excellent choice for medium and large commercial audio installations.
Its 500W rated power, 15-inch woofer, and 1.4-inch tweeter deliver strong low-frequency reproduction alongside clear midrange and high-frequency details.
With a maximum output of 123dB SPL and 130dB peak, the speaker provides the sound pressure required for demanding professional audio environments.
The 80° × 50° coverage pattern helps focus sound toward the listening area, while its durable wooden enclosure and flexible installation options make it suitable for long-term professional use.
