Description
The Hikvision DS-QAPAR50-4 is a powerful 4-channel Class D professional power amplifier designed to deliver clear, high-performance audio amplification for professional sound reinforcement systems, theaters, auditoriums, event venues, hotels, and commercial audio installations.
Featuring four independently controlled channels, the amplifier delivers 4 × 500W at 8Ω, providing a combined rated output of 2000W in this configuration.
The DS-QAPAR50-4 uses advanced Class D digital amplification technology, delivering high energy efficiency of up to 90%, low distortion, and reliable operation in demanding professional environments.
It supports multiple operating modes, including Stereo, Bridge, and Connect, allowing installers to configure the amplifier for different speaker arrangements and audio system requirements.
In Stereo mode, the amplifier delivers 4 × 765W at 4Ω and 4 × 1301W at 2Ω. In Bridge mode, it provides up to 2 × 1530W at 8Ω or 2 × 2601W at 4Ω for compatible high-power loudspeaker systems.
With a wide 20Hz–20kHz frequency response, typical total harmonic distortion of 0.01%, and a signal-to-noise ratio of ≥105dB, the amplifier delivers clean, detailed audio reproduction with minimal noise.

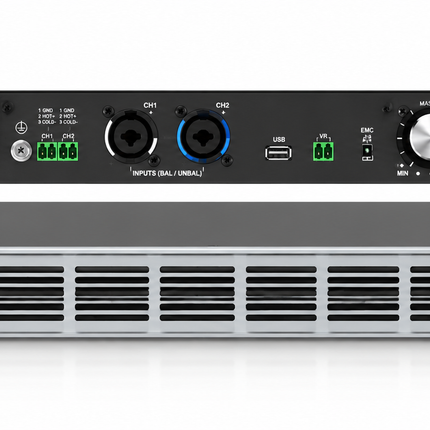

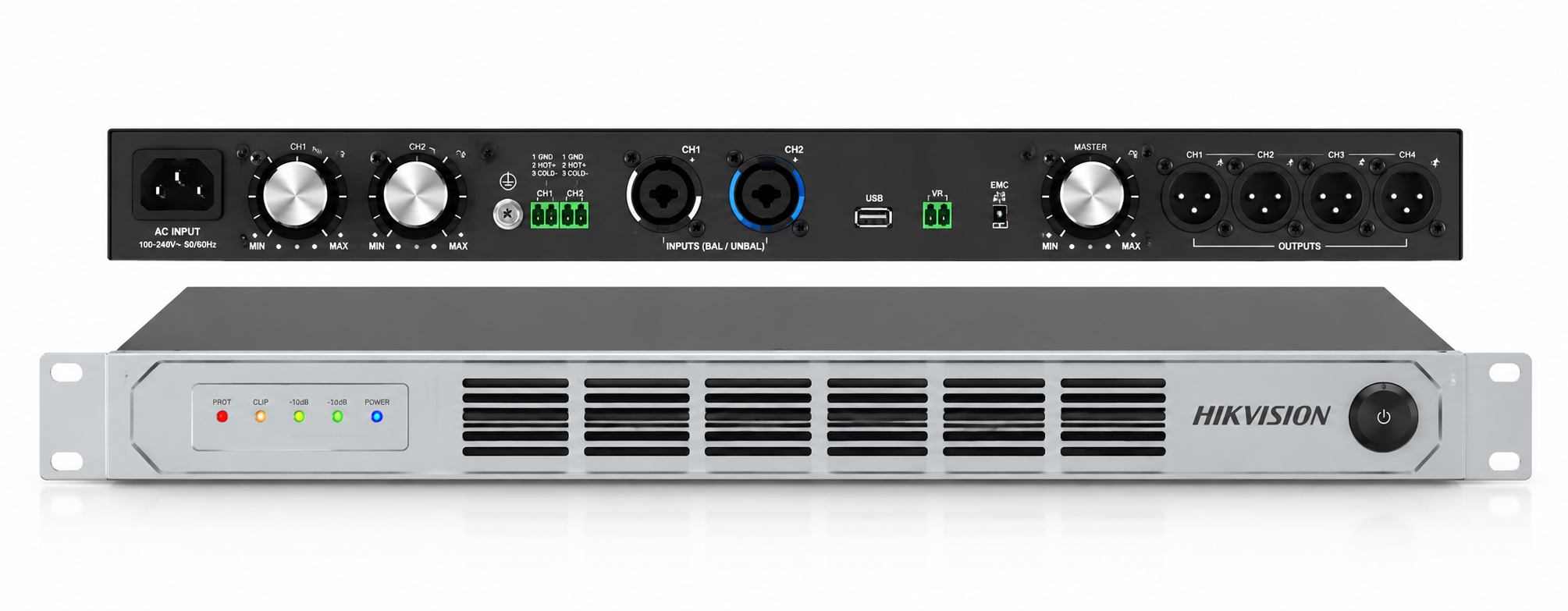

The amplifier includes four professional XLR audio inputs and four SPEAKON speaker outputs, offering reliable connectivity with compatible professional audio equipment.
Its integrated protection systems help safeguard against overheating, short circuits, DC faults, signal overload, and power supply overcurrent.
The compact 1U rack-mountable design, variable-speed cooling fan, and wide-range 90–260V AC power supply make the DS-QAPAR50-4 suitable for demanding professional audio applications.
Key Features
-
Professional 4-Channel Class D Power Amplifier
-
Four independently controlled audio channels
-
4 × 500W output at 8Ω
-
4 × 765W output at 4Ω
-
4 × 1301W output at 2Ω
-
Supports Stereo / Bridge / Connect modes
-
Bridge output: 2 × 900W at 16Ω
-
Bridge output: 2 × 1530W at 8Ω
-
Bridge output: 2 × 2601W at 4Ω
-
High-efficiency Class D amplification, up to 90%
-
Frequency response: 20Hz–20kHz
-
Low total harmonic distortion: 0.01% typical
-
Signal-to-noise ratio: ≥105dB
-
4 × XLR professional audio inputs
-
4 × SPEAKON speaker outputs
-
Selectable gain settings
-
Built-in limiter function
-
Low-noise variable-speed cooling fan
-
Over-temperature protection
-
DC protection
-
Short-circuit protection
-
Signal overload protection
-
Soft-start protection
-
Power supply overcurrent protection
-
Compact 1U rack-mountable chassis
-
Wide-range 90–260V AC power supply
-
Suitable for professional low-impedance loudspeakers
-
Ideal for theaters, auditoriums, performance venues, and commercial sound systems
Technical Specifications
| Specification |
Details |
| Product Type |
Professional Power Amplifier |
| Amplifier Technology |
Class D |
| Number of Channels |
4 |
| Rated Output @ 8Ω Stereo |
4 × 500W |
| Rated Output @ 4Ω Stereo |
4 × 765W |
| Rated Output @ 2Ω Stereo |
4 × 1301W |
| Rated Output @ 16Ω Bridge |
2 × 900W |
| Rated Output @ 8Ω Bridge |
2 × 1530W |
| Rated Output @ 4Ω Bridge |
2 × 2601W |
| Frequency Response |
20Hz–20kHz (+0/-0.5dB typical) |
| Total Harmonic Distortion |
0.01% typical |
| Signal-to-Noise Ratio |
≥105dB (A-weighted) |
| Balanced Input Impedance |
20kΩ |
| Unbalanced Input Impedance |
10kΩ |
| Maximum Input Level |
14V |
| Audio Inputs |
4 × XLR |
| Speaker Outputs |
4 × SPEAKON |
| Operating Modes |
Stereo / Bridge / Connect |
| Gain Selection |
Supported |
| Limiter |
Selectable |
| Power Efficiency |
Up to 90%
|
| Cooling System |
Variable-Speed Fan |
| Protection |
Over-Temperature / DC / Short-Circuit / Signal Overload / Soft Start / Overcurrent |
| Power Supply |
90–260V AC, 50/60Hz |
| Dimensions (W × H × D) |
483 × 44 × 370mm |
| Rack Height |
1U |
| Weight |
Approx. 9kg
|
| Installation |
19-Inch Rack Mount |
| Model |
DS-QAPAR50-4 |
Why Choose Hikvision DS-QAPAR50-4?
The Hikvision DS-QAPAR50-4 combines high output power, four-channel flexibility, and efficient Class D amplification to deliver professional sound performance for demanding installations.
Its 4 × 500W output at 8Ω allows multiple compatible loudspeakers or audio channels to be powered from a single amplifier, while Bridge mode offers additional power for high-demand speaker applications.
With ≥105dB signal-to-noise ratio, low distortion, professional XLR/SPEAKON connections, and multiple protection mechanisms, the amplifier provides reliable performance for commercial and professional audio systems.
The compact 1U rack design and efficient cooling system make it suitable for installation in theaters, conference halls, hotels, auditoriums, and entertainment venues throughout Jordan.
