Description

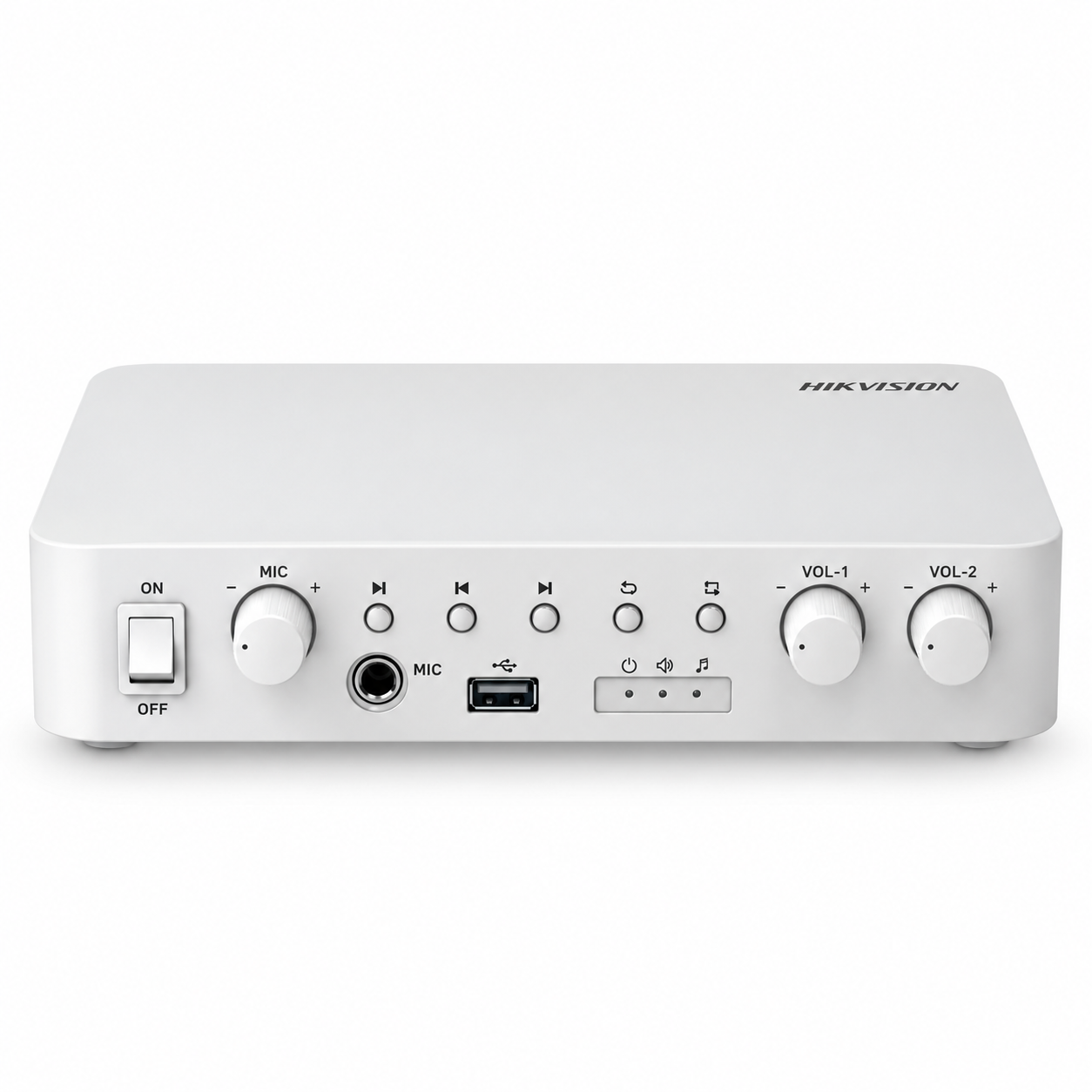

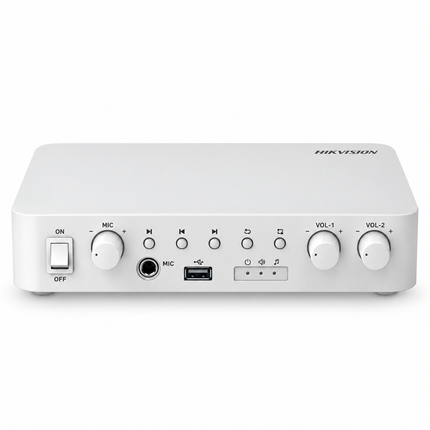

The Hikvision DS-QAE0A60G1-VB 60W Analog Amplifier is a professional audio solution designed to deliver reliable sound distribution for public address (PA) systems in commercial, educational, and industrial environments.
Featuring Bluetooth 5.3 connectivity, USB playback, microphone and RCA inputs, and independent volume control for two audio zones, this amplifier provides flexible audio management for offices, schools, restaurants, retail stores, and other facilities.
With support for 100V constant-voltage speaker systems and 4–8Ω speakers, the amplifier offers versatile installation options for professional audio applications in Jordan.
Key Features
-
60W Rated Output Power: Reliable audio amplification for public address systems.
-
Bluetooth 5.3 Connectivity: Wireless audio streaming with an operating range of up to 10 meters.
-
USB Audio Playback: Play audio files directly from compatible USB flash drives.
-
Multiple Audio Inputs: Supports Bluetooth, USB, microphone, and RCA connections.
-
Two-Zone Volume Control: Independent volume adjustment for two speaker zones.
-
Dedicated Microphone Control: Adjust microphone volume separately from speaker zones.
-
100V Speaker Output: Compatible with constant-voltage PA speaker installations.
-
4–8Ω Speaker Compatibility: Two 30W constant-resistance output channels.
-
RCA Amplifier Cascading: Connect up to three amplifiers in a cascading configuration.
-
Advanced Electrical Protection: Protection against short circuits, overcurrent, overheating, static electricity, and voltage surges.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Hikvision
|
|
Model
|
DS-QAE0A60G1-VB
|
|
Product Type
|
Analog PA Amplifier
|
|
Rated Power
|
60W
|
|
Power Supply
|
24V DC
|
|
Bluetooth Version
|
5.3
|
|
Bluetooth Range
|
Up to 10 meters
|
|
Audio Inputs
|
Bluetooth, USB, MIC, RCA
|
|
Microphone Input
|
1 × 6.35 mm
|
|
RCA Input
|
1
|
|
USB Interface
|
USB 2.0
|
|
Constant Voltage Output
|
2 × 100V / COM
|
|
Constant Resistance Output
|
2 × 30W, 4–8Ω
|
|
RCA Output
|
1
|
|
Speaker Zones
|
2
|
|
Amplifier Cascading
|
Up to 3 amplifiers
|
|
Frequency Response (USB/Bluetooth)
|
20Hz–20kHz
|
|
Frequency Response (MIC/RCA)
|
20Hz–8kHz
|
|
Signal-to-Noise Ratio
|
≥100dB
|
|
Total Harmonic Distortion
|
≤1%
|
|
Housing Material
|
Engineering Plastic
|
|
Dimensions
|
190.8 × 230.8 × 51.2 mm
|
|
Weight
|
Approx. 1.45 kg
|
|
Operating Temperature
|
-10°C to +55°C
|
|
Color
|
White
|
Why Choose Hikvision DS-QAE0A60G1-VB?
The Hikvision DS-QAE0A60G1-VB combines professional audio amplification with convenient connectivity and flexible speaker management.
Its 60W output, Bluetooth and USB playback, independent two-zone volume control, and compatibility with different speaker configurations make it an excellent choice for small and medium-sized public address installations.
Whether you're installing background music in a retail store, making announcements in a school, or managing audio across office spaces, this amplifier delivers practical and dependable performance.
Order the Hikvision DS-QAE0A60G1-VB in Jordan from Bestways.com for professional public address and commercial audio installations.
