Description
Featuring a 6.5-inch Woofer and a 1.2-inch Tweeter, the speaker provides detailed sound reproduction across low, mid, and high frequencies, making it suitable for both voice announcements and music playback.
With 60W rated power, 91.5dB sensitivity, and a maximum sound pressure level of 109dB, the speaker delivers reliable audio performance for a wide range of indoor environments.
Its frequency response of 85Hz to 20kHz (-10dB) provides a broad audio range suitable for professional background music and public address systems.
The speaker supports 8Ω constant-impedance operation as well as 70V/100V constant-voltage audio systems, providing flexibility for integration into compatible professional amplifier installations.

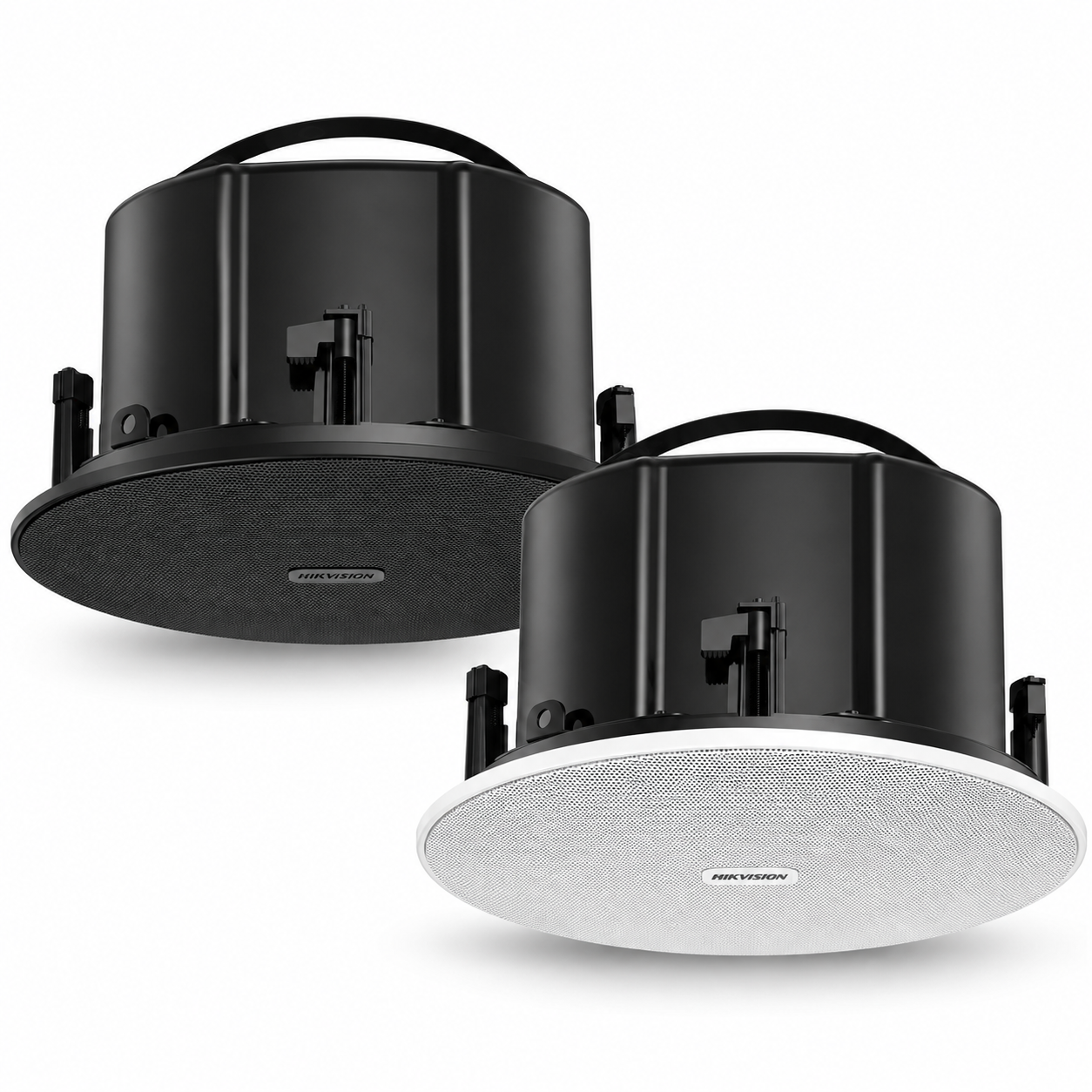

Designed with an elegant frameless ceiling appearance, the speaker blends discreetly into modern interiors while maintaining professional audio performance.
Its durable SPCC metal body and ABS+PC base make it suitable for offices, hotels, shopping centers, restaurants, educational institutions, conference facilities, and commercial buildings.
Key Features
-
Professional 60W Frameless Ceiling Speaker
-
Modern, elegant frameless design
-
6.5-inch Woofer for low- and mid-frequency reproduction
-
1.2-inch Tweeter for clear high frequencies
-
Two-driver speaker configuration
-
60W rated power
-
8Ω nominal impedance
-
Supports 70V/100V constant-voltage audio systems
-
Sensitivity: 91.5dB @ 1W/1m
-
Maximum sound pressure level: 109dB
-
Frequency response: 85Hz–20kHz (-10dB)
-
Total Harmonic Distortion: Less than 1%
-
Suitable for background music and voice announcements
-
Durable SPCC metal construction
-
ABS+PC base
-
Available in white and black
-
Designed for professional ceiling installation
-
Suitable for hotels, offices, retail stores, and commercial facilities
Technical Specifications
| Specification |
Details |
| Product Type |
Professional Frameless Ceiling Speaker |
| Rated Power |
60W |
| Woofer |
1 × 6.5-inch |
| Tweeter |
1 × 1.2-inch |
| Nominal Impedance |
8Ω |
| Constant-Voltage Operation |
70V / 100V |
| Sensitivity |
91.5dB @ 1W/1m |
| Maximum Sound Pressure Level |
109dB |
| Frequency Response (-10dB) |
85Hz–20kHz |
| Total Harmonic Distortion |
Less than 1% |
| Main Body Material |
SPCC |
| Base Material |
ABS + PC |
| Dimensions |
Ø327.49 × 179.69mm |
| Mounting Hole Diameter |
Ø300mm |
| Mounting Depth |
174mm |
| Weight |
Approx. 3.9kg
|
| Package Dimensions |
425 × 425 × 310mm |
| Package Weight |
Approx. 6.4kg
|
| Operating Temperature |
-10°C to +45°C |
| Available Colors |
White / Black |
| Installation |
Ceiling Mounting |
| Speaker Type |
Passive Analog |
| Model |
DS-QAPS6R6-6 |
Why Choose Hikvision DS-QAPS6R6-6?
The DS-QAPS6R6-6 combines professional sound performance with a discreet frameless ceiling design, making it an excellent choice for commercial installations where audio quality and interior aesthetics are equally important.
Its 6.5-inch Woofer and 1.2-inch Tweeter provide balanced sound reproduction, delivering clear voice announcements and enjoyable background music.
With 60W rated power, 109dB maximum SPL, and support for both 8Ω and 70V/100V audio systems, the speaker offers flexibility for a variety of professional sound installations.
Its durable construction, ceiling-mounted design, and availability in white or black make it suitable for offices, hotels, restaurants, shopping centers, and commercial buildings.
