Description

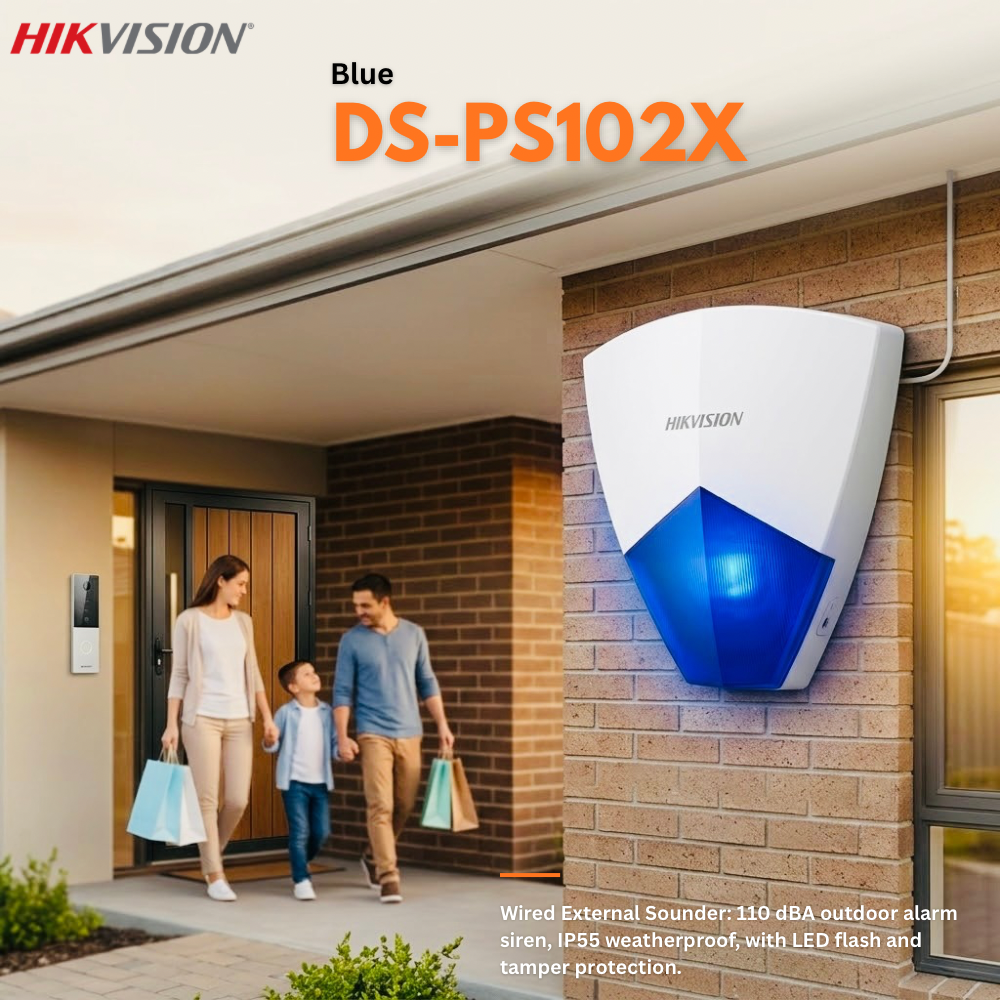

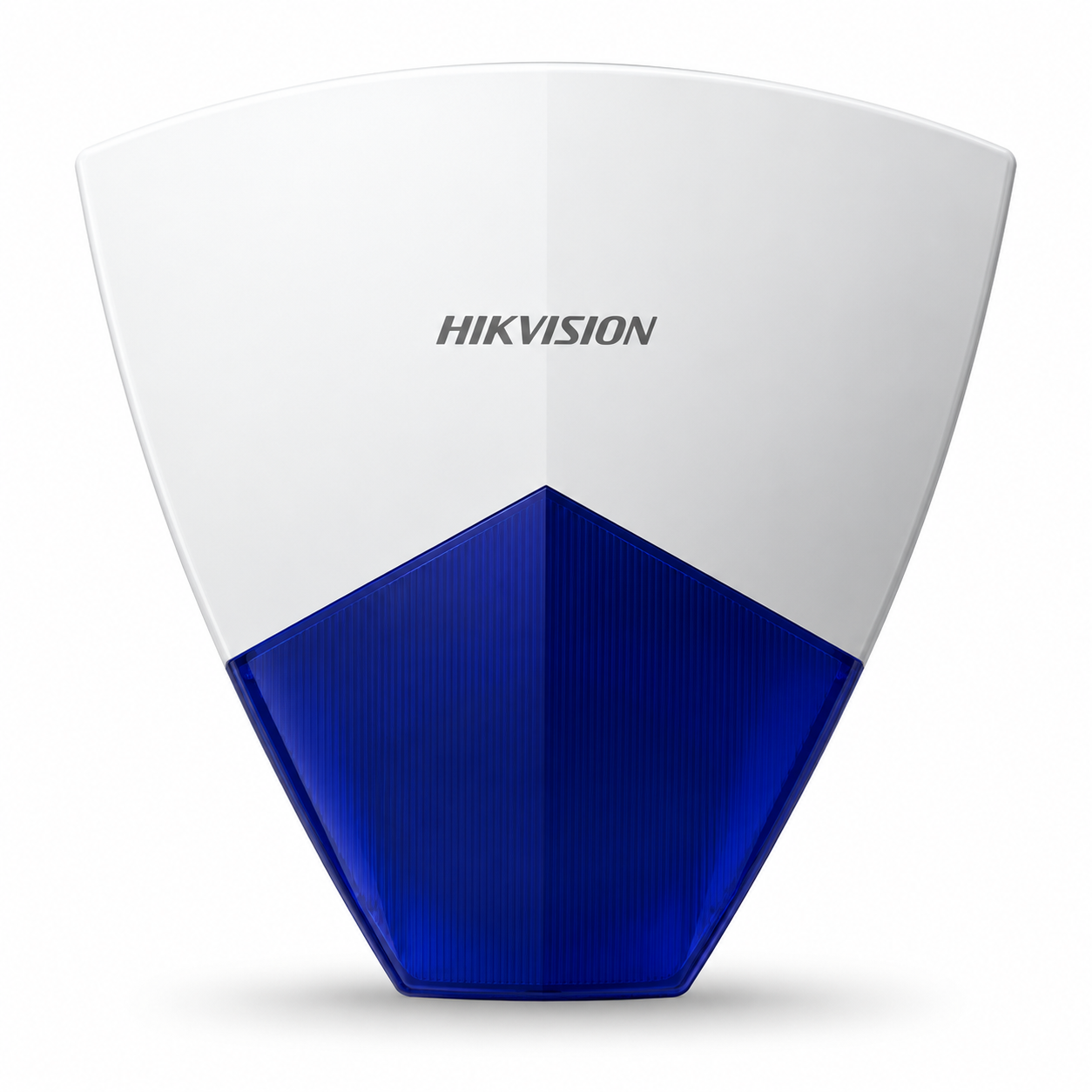

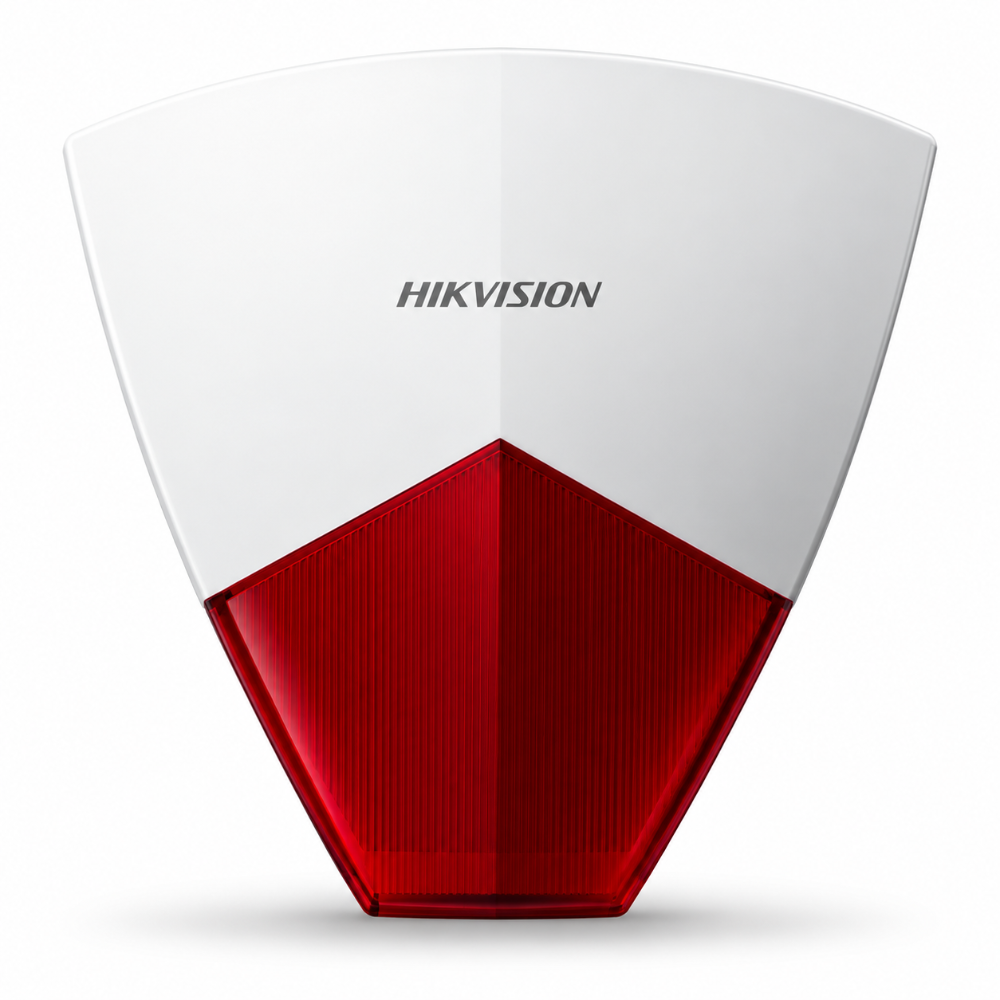

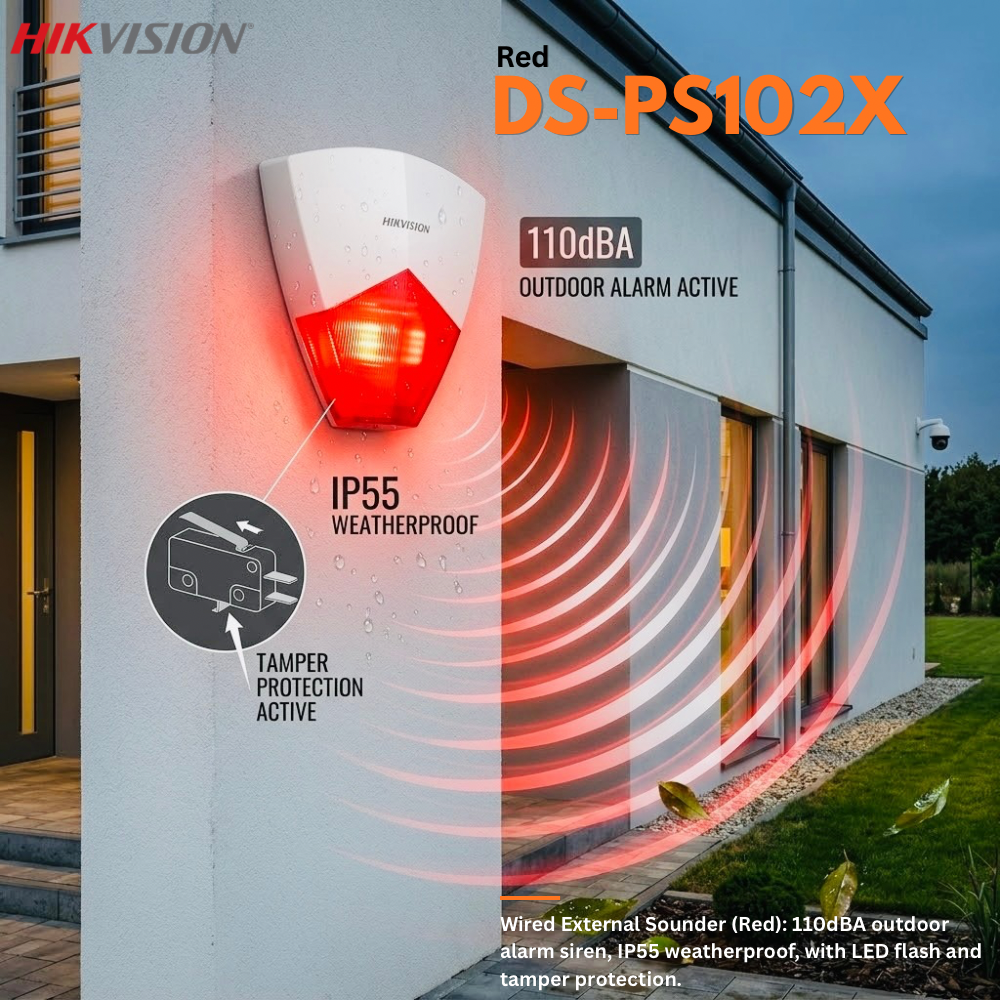

The Hikvision DS-PS102X is a wired external sounder available with a red or blue LED strobe (DS-PS102X/RED and DS-PS102X/BLUE; choose the colour above). It combines a siren of up to 110 dB at 1 m (106 dBA average) with the LED strobe, and the sound and LED flash indications can be used separately.
It is controlled by the PGM/BELL port of a wired alarm panel, supports positive or negative triggering and offers three alarm sounds: fire, panic and intrusion. Front-cover and wall tamper switches, tamper and cut-wire alarms and an IP55 housing protect it on exterior walls.

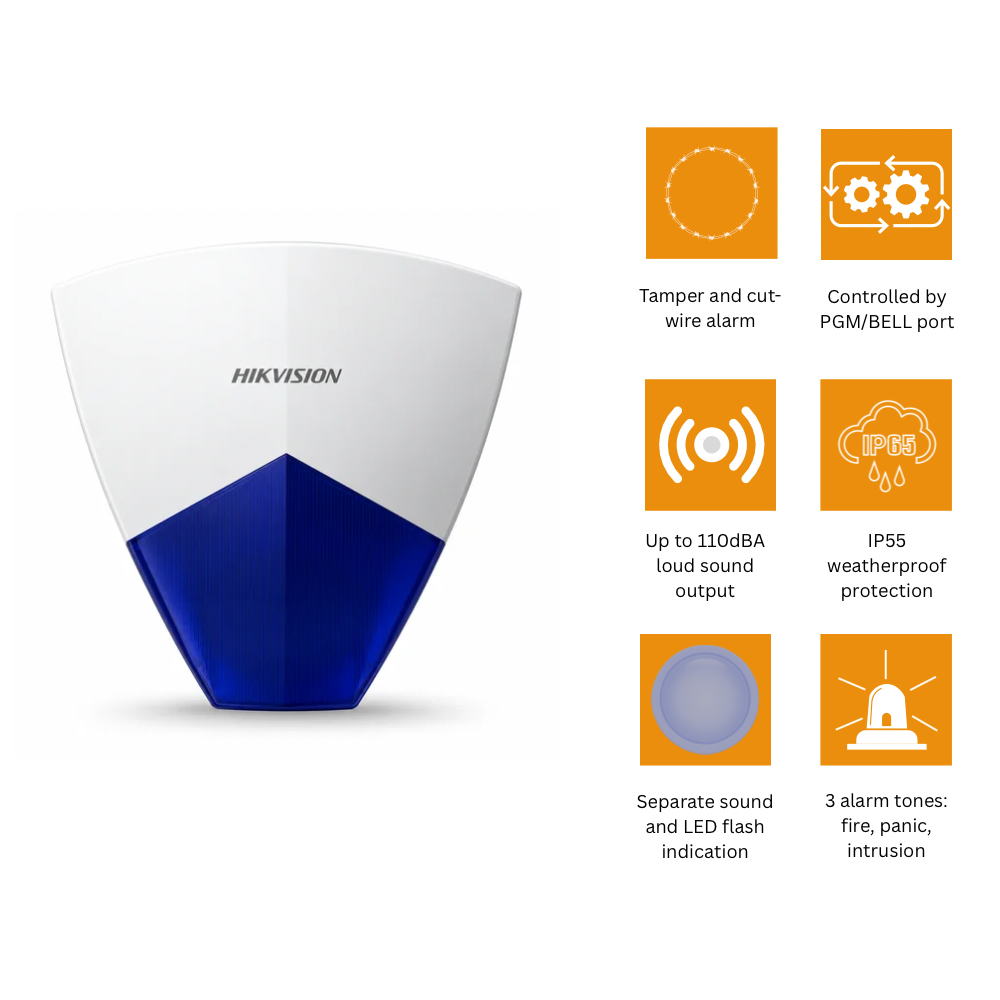

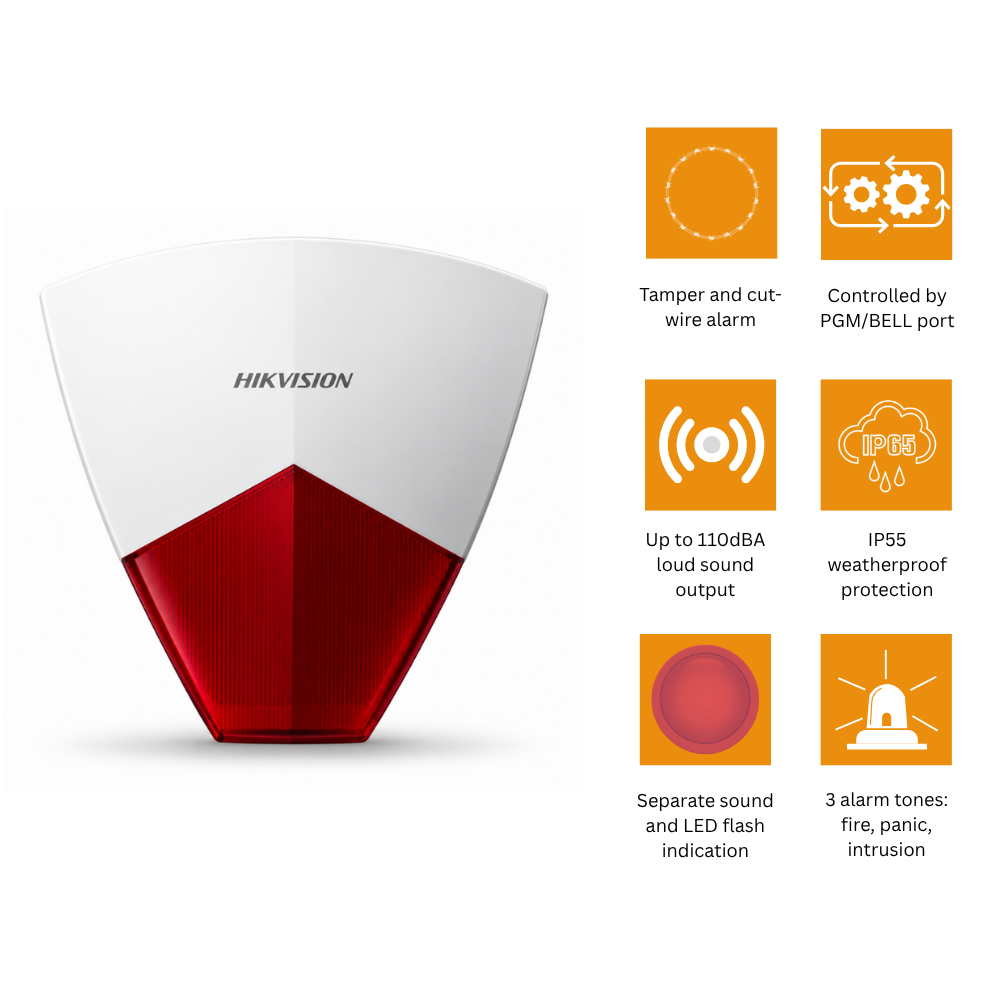

Key Features
- Sound pressure up to 110 dBA at 1 m (106 dBA average)
- Red or blue LED strobe light
- Sound and LED flash indication separately
- 3 alarm sounds: fire, panic and intrusion
- Controlled by the PGM/BELL port of the alarm panel
- Positive or negative triggering
- Tamper alarm and cut-wire alarm
- Front cover and wall tamper protection
- IP55 protection
- 9–16 VDC power input, max. 180 mA @ 12 VDC
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-PS102X (DS-PS102X/RED, DS-PS102X/BLUE) |
| Product Name |
Wired External Sounder |
| Colour |
Red or blue strobe |
| Sound Pressure |
110 dBA max. / 106 dBA average at 1 m |
| Alarm Sounds |
Fire, panic, intrusion |
| Control |
PGM/BELL port |
| Trigger |
Positive / negative |
| Tamper Protection |
Front cover and wall; tamper and cut-wire alarm |
| Power Supply |
9–16 VDC (typical 12 VDC) |
| Power Consumption |
Max. 180 mA @ 12 VDC |
| Ingress Protection |
IP55 |
| Operating Temperature |
-20°C to +60°C |
| Operating Humidity |
10% to 90% |
| Housing Material |
PC + ABS |
| Dimensions (W × H × D) |
221 × 215 × 51 mm |
| Weight |
475 g |
Why Choose the Hikvision DS-PS102X?
- Loud 110 dB siren plus a red or blue strobe, so an alarm is both heard and seen
- Separate tones for fire, panic and intrusion events
- Tamper and cut-wire alarms help detect sabotage
- IP55 housing for exterior walls
Warranty: 12-month warranty from the Official Distributor.
