Description

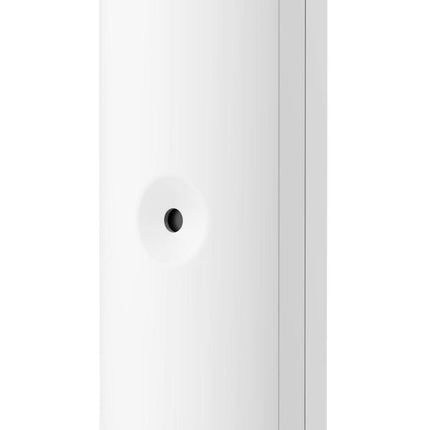

The Hikvision DS-PDBG8-EG2 is an indoor wired glass break detector that uses a high-quality omni-directional microphone to listen for the sound of breaking glass. It covers up to 8 m with a 120° angle and mounts on a wall or ceiling.
It detects float, plate, tempered, wired, laminated and double-glazed glass from 2.4 to 6.4 mm thick, with sensitivity adjustable by a potentiometer. It runs on 9–16 VDC, provides a normally closed (NC) alarm output and has selectable EOL resistors and front tamper protection.
Note: this is a wired detector. It connects by cable to a wired zone of an alarm control panel or input expander (see "Works With" below).
Key Features
- Acoustic sensor with a high-quality omni-directional microphone
- Up to 8 m / 120° detection coverage
- Detects float, plate, tempered, wired, laminated and double-glazed glass
- Glass break sensitivity adjustable by potentiometer
- Selectable EOL resistors (1K, 2K2, 4K7, 5K6, 6K8)
- Digital processing
- Front tamper protection
- 9–16 VDC wide voltage range with reverse polarity protection
- Wall or ceiling mounting
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-PDBG8-EG2 |
| Product Name |
Wired Glass Break Detector |
| Detection Method |
Acoustic sensor |
| Detection Range |
8 m |
| Detection Angle |
120° |
| Glass Break Sensitivity |
Adjustable by potentiometer |
| Glass Types |
Float, plate, tempered, wired, laminated, double glazing |
| Glass Thickness |
2.4–6.4 mm |
| Glass Size |
0.3 × 0.3 m to 3 × 3 m |
| Digital Processing |
Supported |
| Tamper Protection |
Front |
| Alarm Output |
Normally Closed (NC) |
| Alarm EOL Resistors |
1K, 2K2, 4K7, 5K6, 6K8 (selectable) |
| LED Indicator |
Red (high-frequency trigger), green (low-frequency trigger), blue (alarm) |
| Transmission Method |
Wired |
| Power Supply |
9–16 VDC (12 VDC typical) |
| Current Consumption |
25 mA @ 12 VDC |
| Mounting Method |
Wall or ceiling |
| Application |
Indoor |
| Operating Temperature |
-10 °C to 55 °C |
| Operating Humidity |
10% to 90% |
| Dimensions (W × H × D) |
38.8 × 107 × 22.5 mm |
| Weight |
49.5 g |
Why Choose the Hikvision DS-PDBG8-EG2?
- Protects windows and glass doors before an intruder gets in
- One detector covers several windows in an 8 m / 120° area
- Works with most common glass types
- Simple wiring with selectable EOL resistors
Downloads
⬇ Download Datasheet (PDF)
Warranty: 12-month warranty from the Official Distributor.
