Description

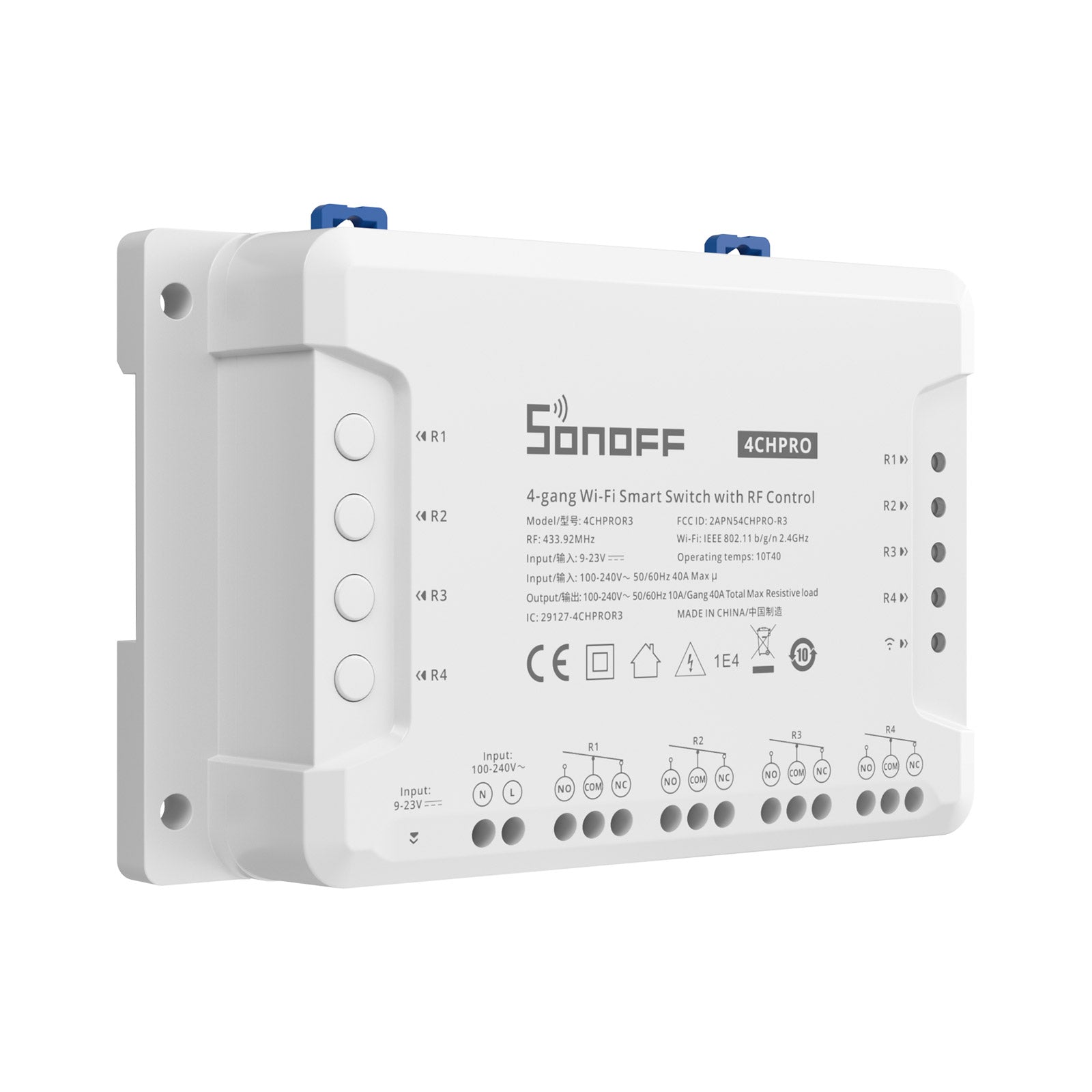

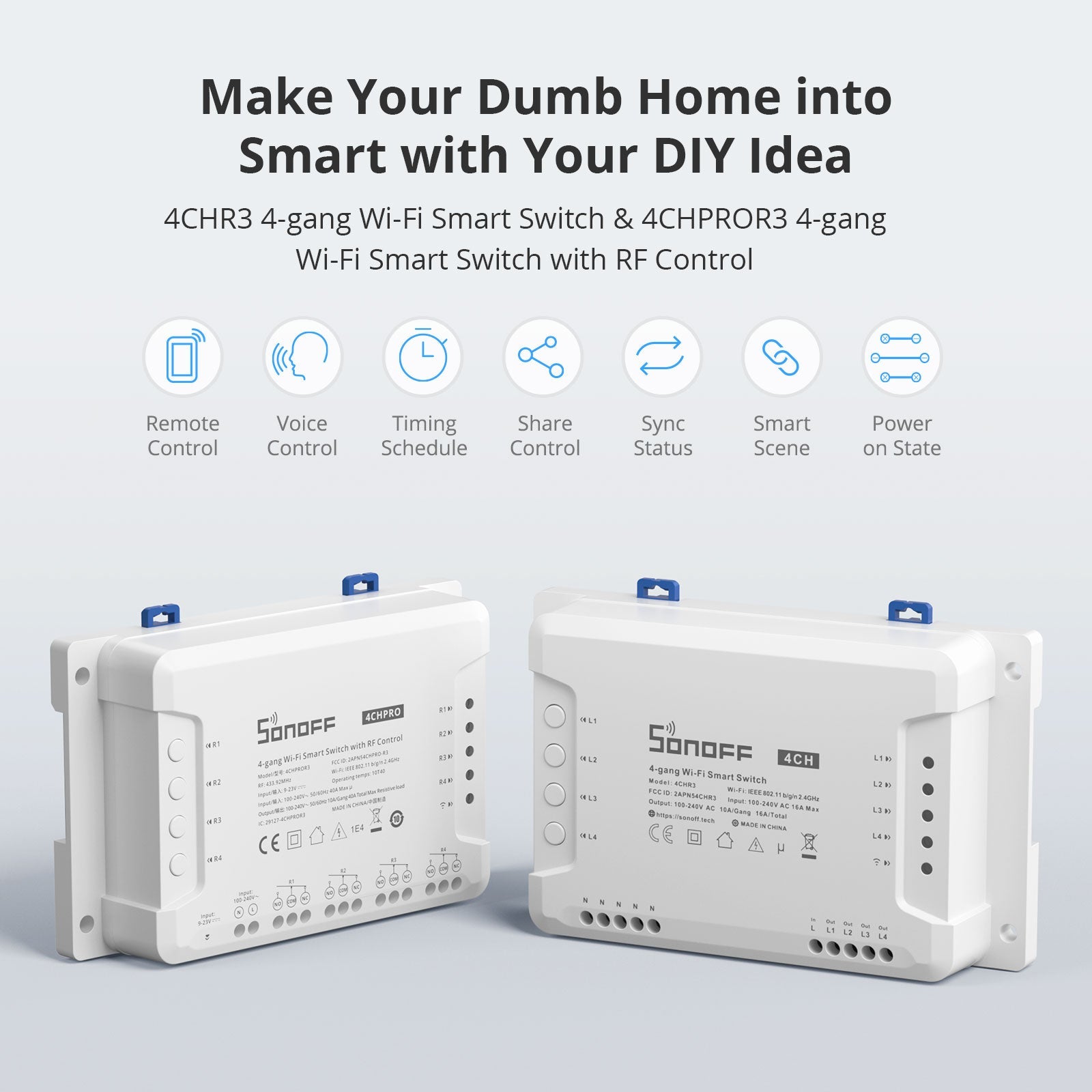

The SONOFF 4CHPROR3 is a 4-gang Wi-Fi smart switch with 433 MHz RF control, designed for DIN rail installation. It switches four independent channels at up to 10A / 2200W each (40A / 8800W in total), so you can control lights, pumps, motors, water heaters and HVAC equipment from the eWeLink app, by voice or with an RF remote.
It connects directly to your 2.4 GHz Wi-Fi network with no hub required and accepts 100–240V AC or 9–23V DC input. Self-locking, interlock and inching modes plus dry contact operation make it a fit for garage doors, motorized curtains, gates and other automation projects inside electrical panels.
Note: requires a 2.4 GHz Wi-Fi network and the eWeLink app.
Key Features
- 4 independent relay channels: 10A / 2200W per channel, 40A / 8800W in total
- Built-in 433 MHz RF receiver for control with SONOFF RF remotes

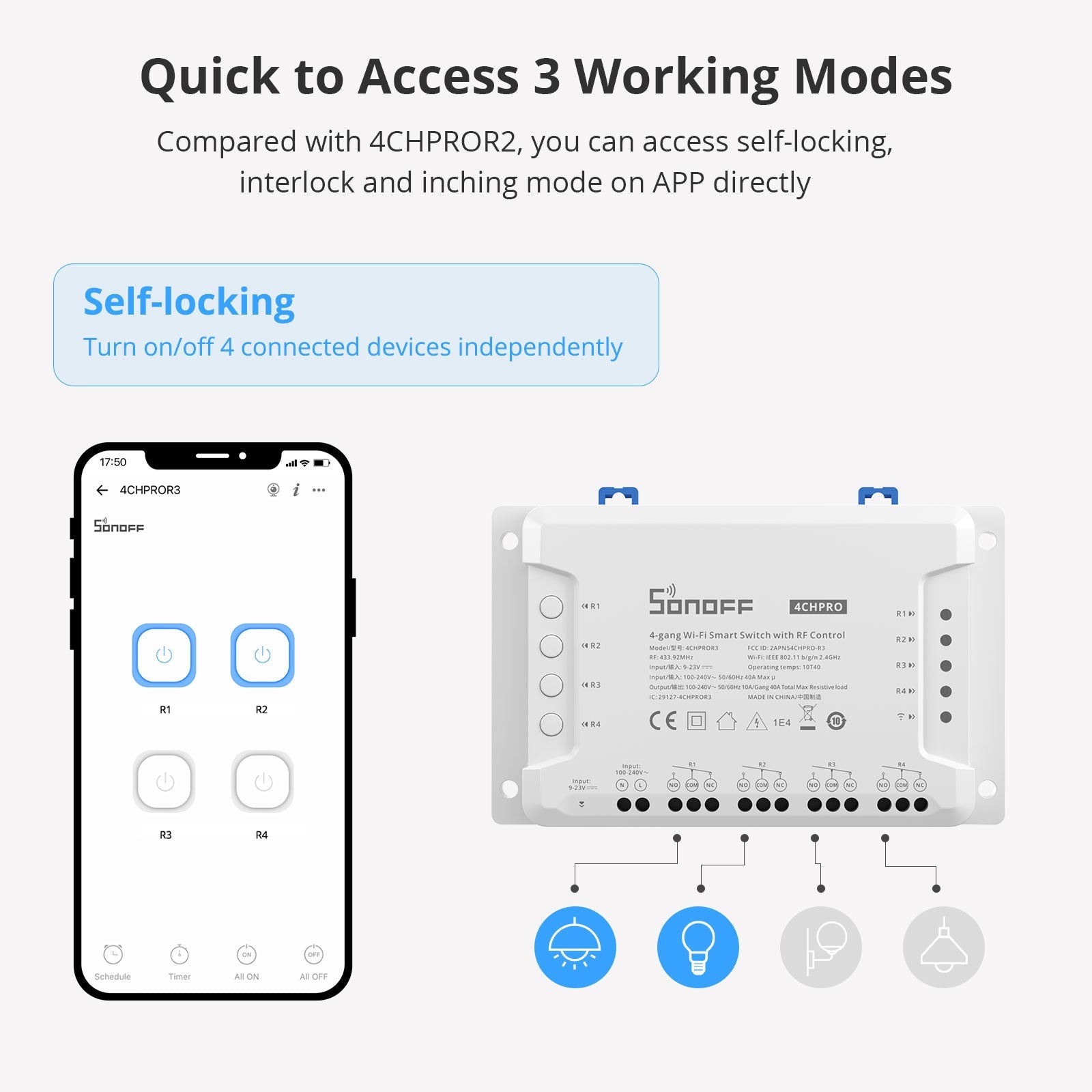

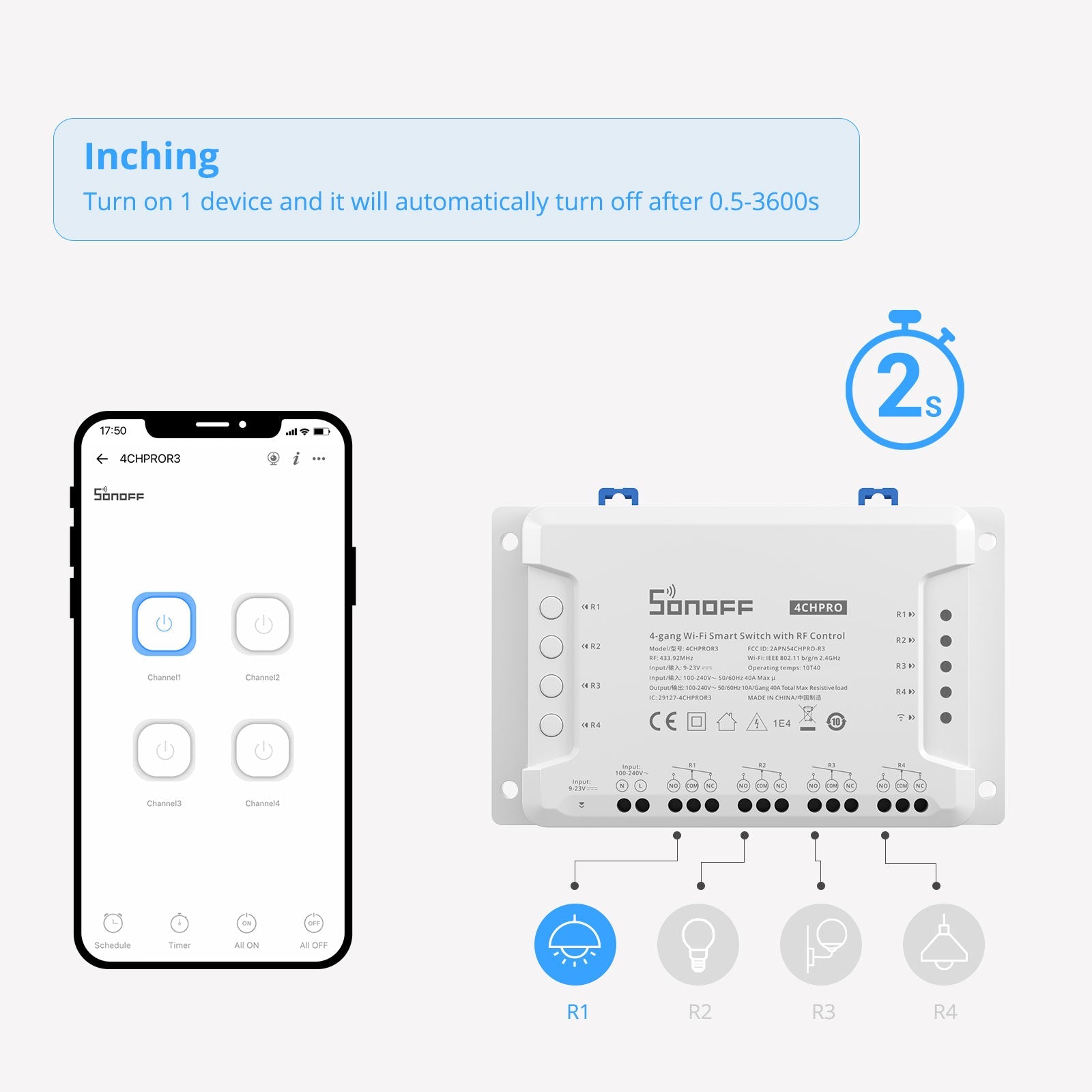

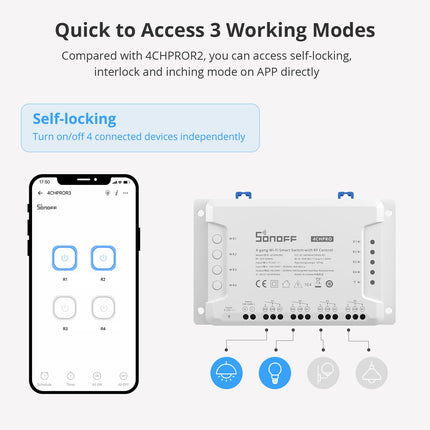

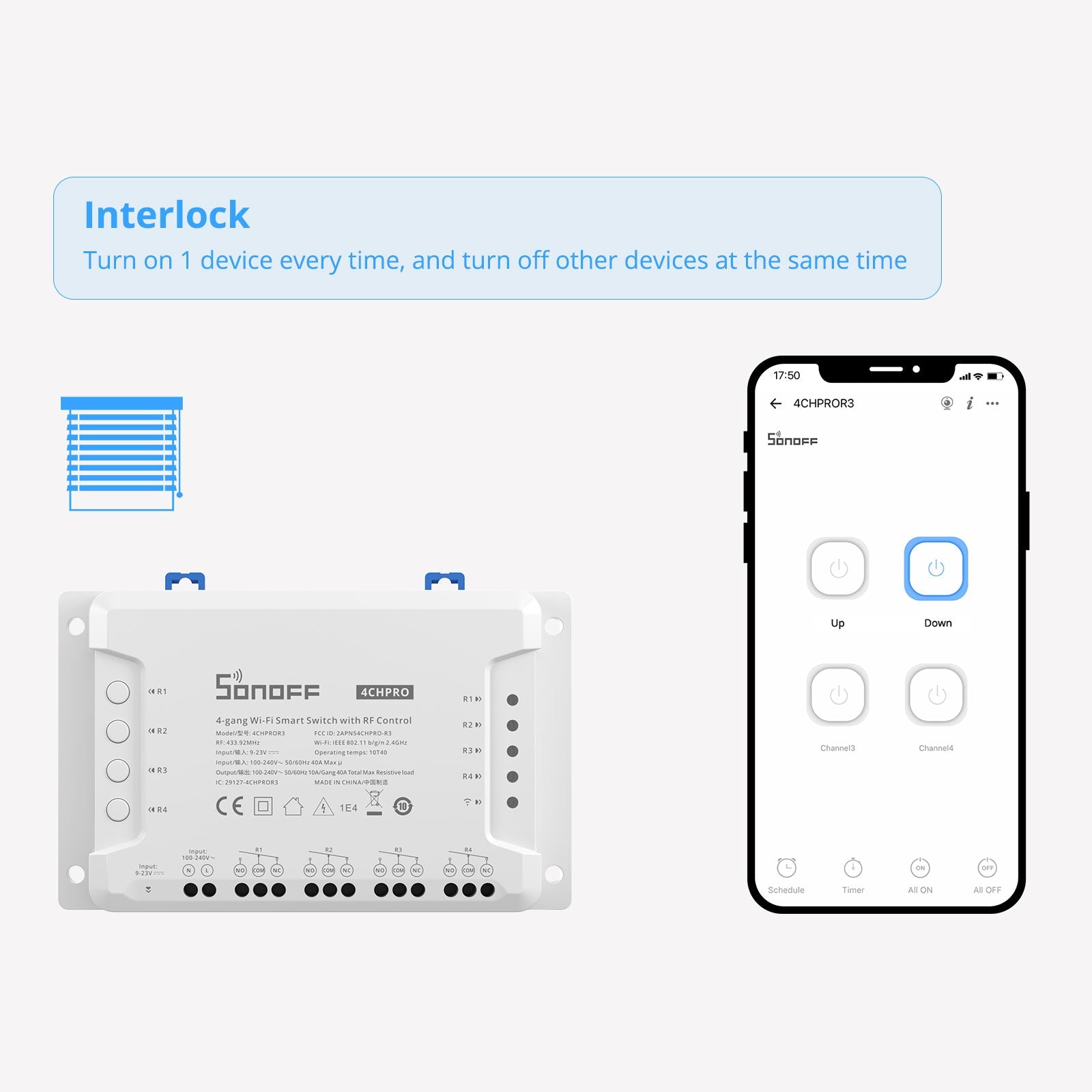

- Self-locking, interlock and inching working modes
- Dry contact operation for retrofitting garage doors, motorized curtains and gates
- Wide power input: 100–240V AC 50/60Hz or 9–23V DC
- Direct 2.4 GHz Wi-Fi connection, no hub required
- Remote control, schedules, timers and smart scenes in the eWeLink app
- Voice control with Amazon Alexa and Google Assistant
- DIN rail mounting for a clean, professional panel installation
Works With
-
433 MHz RF remotes: RM433R2 and 4KEY
-
Voice assistants: Amazon Alexa and Google Assistant through the eWeLink app
Technical Specifications
| Specification |
Details |
| Model |
4CHPROR3 |
| Product Name |
4-Gang Wi-Fi Smart Switch with RF Control |
| Channels |
4 |
| Power Input |
100–240V AC 50/60Hz; 9–23V DC |
| Max. Load |
10A / 2200W per gang; 40A / 8800W total |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| RF Frequency |
433.92 MHz |
| Security Mechanism |
WPA/WPA2 |
| Working Modes |
Self-locking / Interlock / Inching |
| Installation |
DIN rail |
| Enclosure Material |
PC V0 |
| Color |
White |
| Dimensions |
145 × 90 × 34 mm |
| Operating Temperature |
-10°C ~ 40°C (14°F ~ 104°F) |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| Certifications |
CE, FCC |
Why Choose the SONOFF 4CHPROR3?
- Four high-load channels in one DIN rail unit, up to 40A in total
- Control by app, voice or 433 MHz RF remote, even without your phone
- Flexible working modes and dry contact operation for gates, garage doors, curtains and motors
- AC or DC power input for more installation options
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
