Description

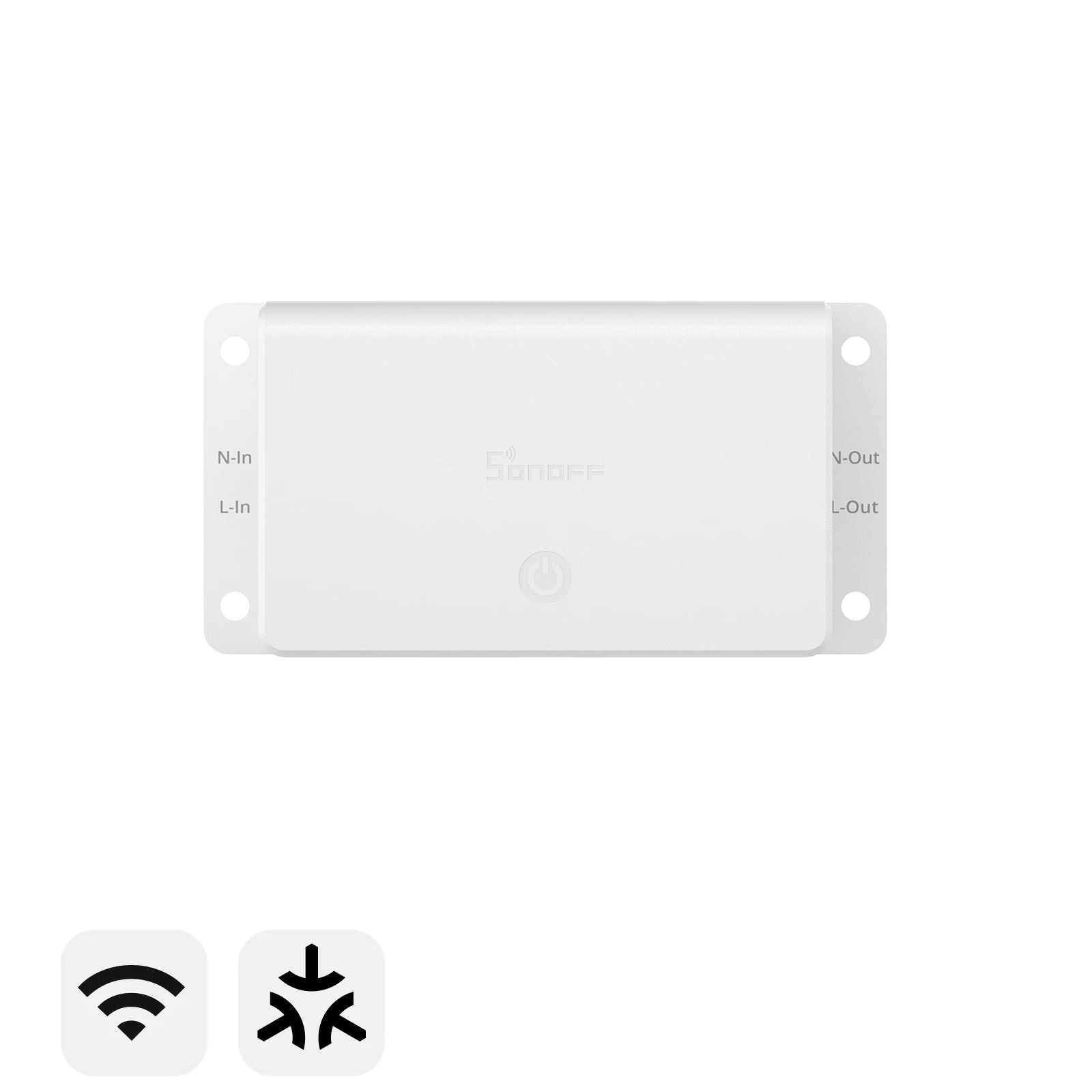

The SONOFF Basic Gen5 (BASIC-1GS) is a Matter-certified Wi-Fi smart switch from the SONOFF Basic Series. Rated at 10A resistive load, it is wired inline with a light or appliance so you can control it from the eWeLink app, by voice, with schedules and with smart scenes.
Thanks to Matter, it works with Apple Home, Google Home, Amazon Alexa, SmartThings and Home Assistant, and it keeps working locally even when the internet is down. Magic Switch Mode lets you keep controlling the light from the app even after the traditional wall switch has been turned off.
Note: designed for resistive loads up to 10A such as lights, kettles and heaters; avoid connecting inductive loads (e.g. motors) that exceed the rated power. Installation must be done by a qualified electrician.
Key Features
- Matter certified: works with Apple Home, Google Home, Amazon Alexa, SmartThings and Home Assistant
- 10A max resistive load for lights, kettles, heaters and other appliances

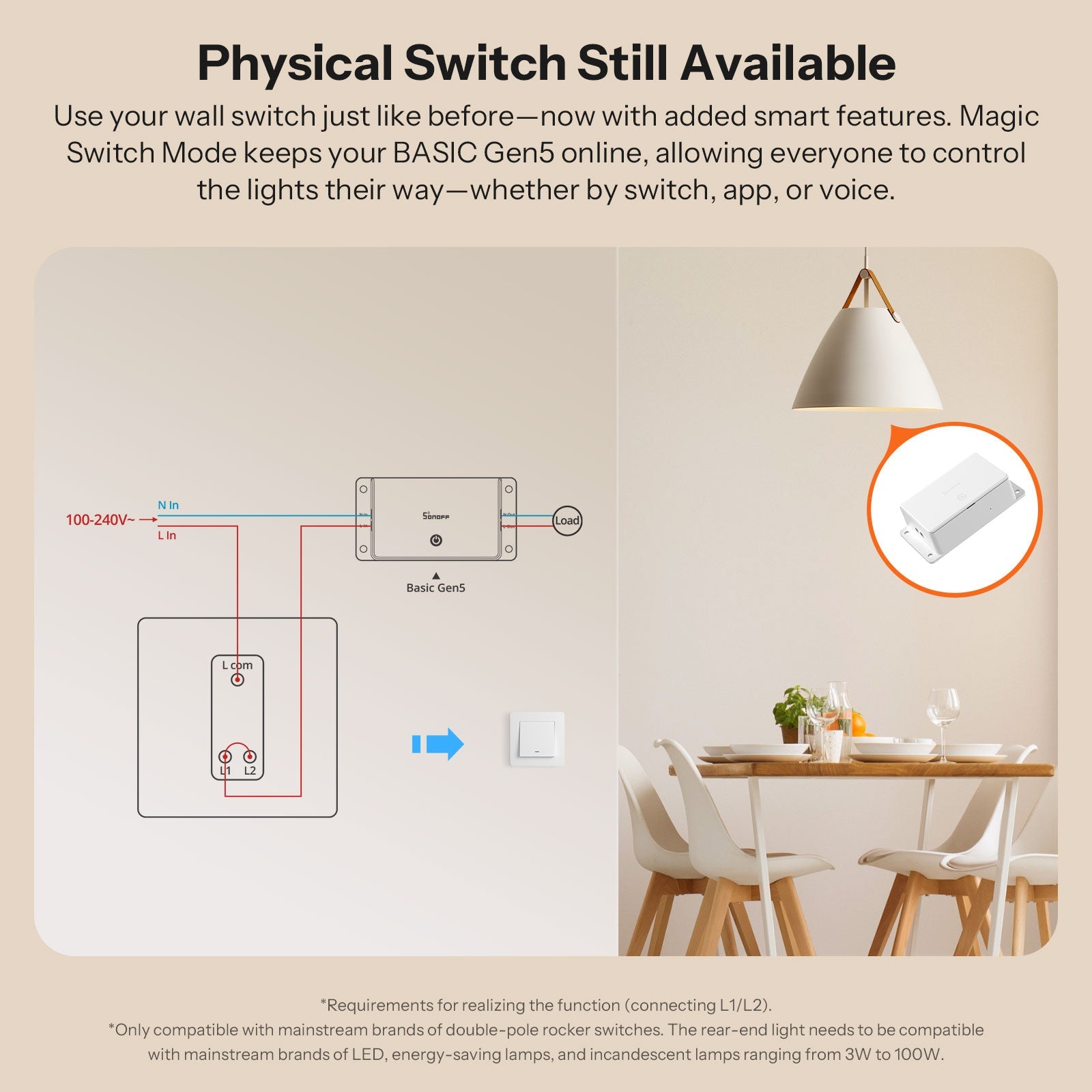

- Magic Switch Mode: app control even when the wall switch is off

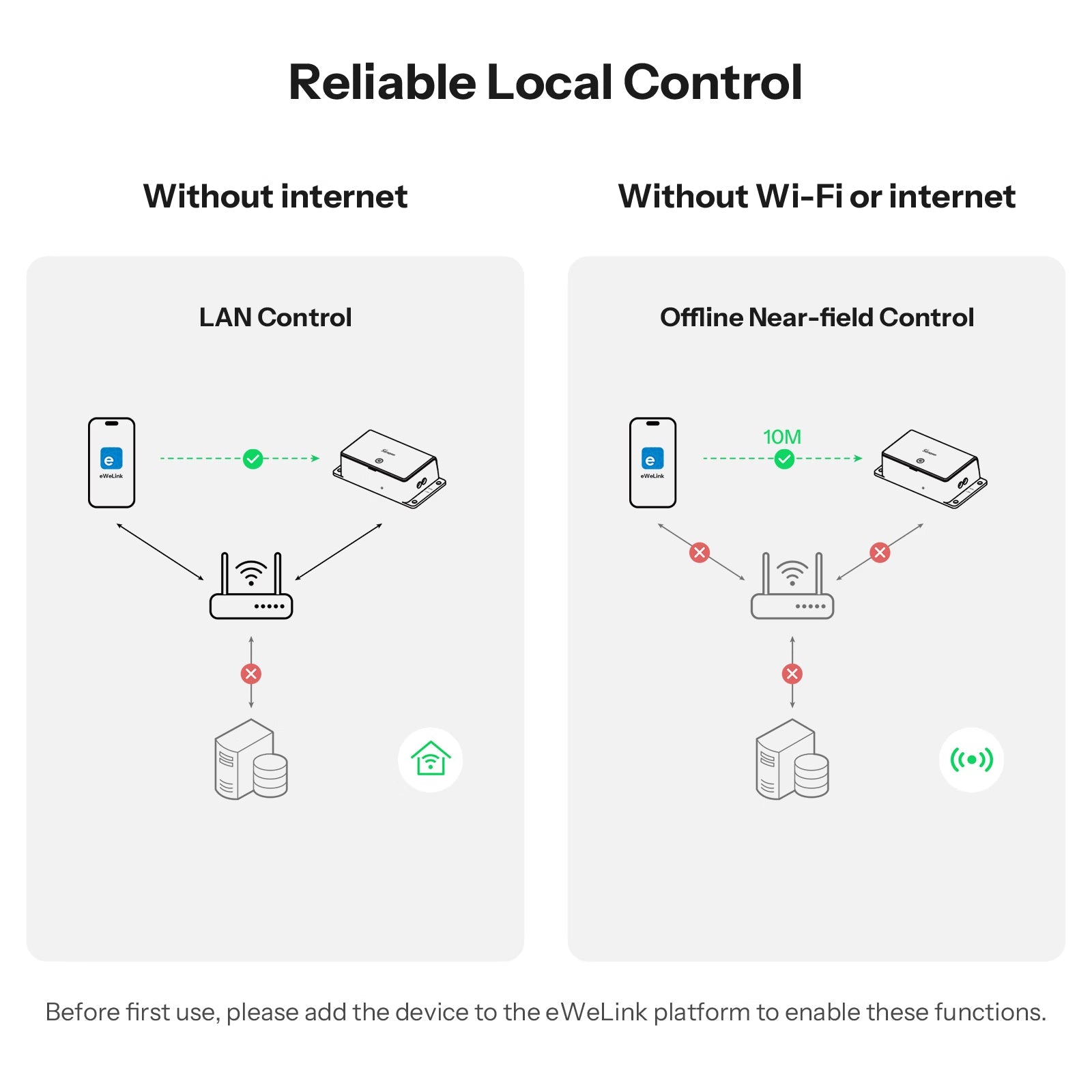

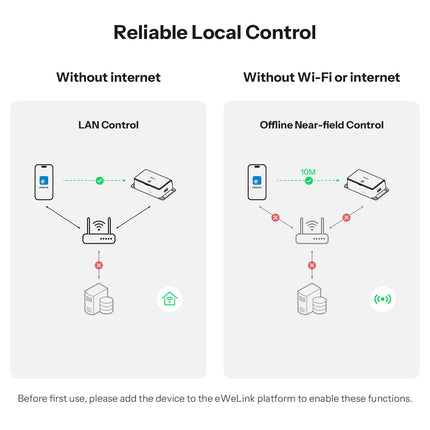

- Reliable local control that keeps working without the internet

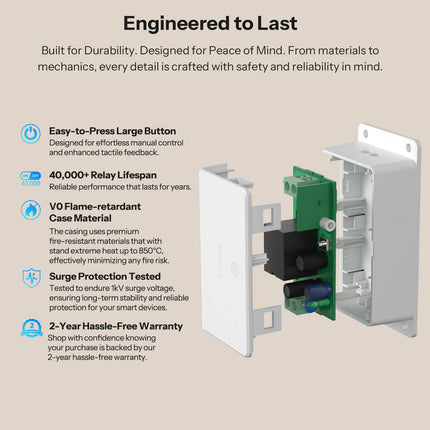

- Large touch surface on the device for easy manual operation
- Remote app control, voice control, timers, countdowns and loop schedules
- Smart scenes with other SONOFF and compatible devices
- Device sharing with family members in the eWeLink app
Works With
-
Matter ecosystems: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings and Home Assistant
-
eWeLink app: direct 2.4 GHz Wi-Fi connection – no gateway needed
-
Outdoor use: can be protected with the SONOFF IP66 Waterproof Case
Technical Specifications
| Specification |
Details |
| Model |
BASIC-1GS |
| Product Name |
Basic Gen5 |
| Product Series |
Basic Series |
| Product Type |
Matter Over WiFi Smart Switch |
| MCU |
BK7238 |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter |
| Rating |
100–240V~ 50/60Hz 10A max resistive load |
| Wiring |
16–14 AWG, solid or stranded copper conductor only (T40) |
| Casing Material |
PC |
| Color |
White |
| Dimensions |
80.5 × 41.5 × 23.6 mm |
| Net Weight |
44.8 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
Why Choose the SONOFF BASIC-1GS?
- The simplest way to make any light or appliance smart
- Matter support for cross-platform control in Apple Home, Google Home and Alexa
- Local control that keeps working even if the internet goes down
- Magic Switch Mode keeps smart control available with the wall switch off
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
