Description

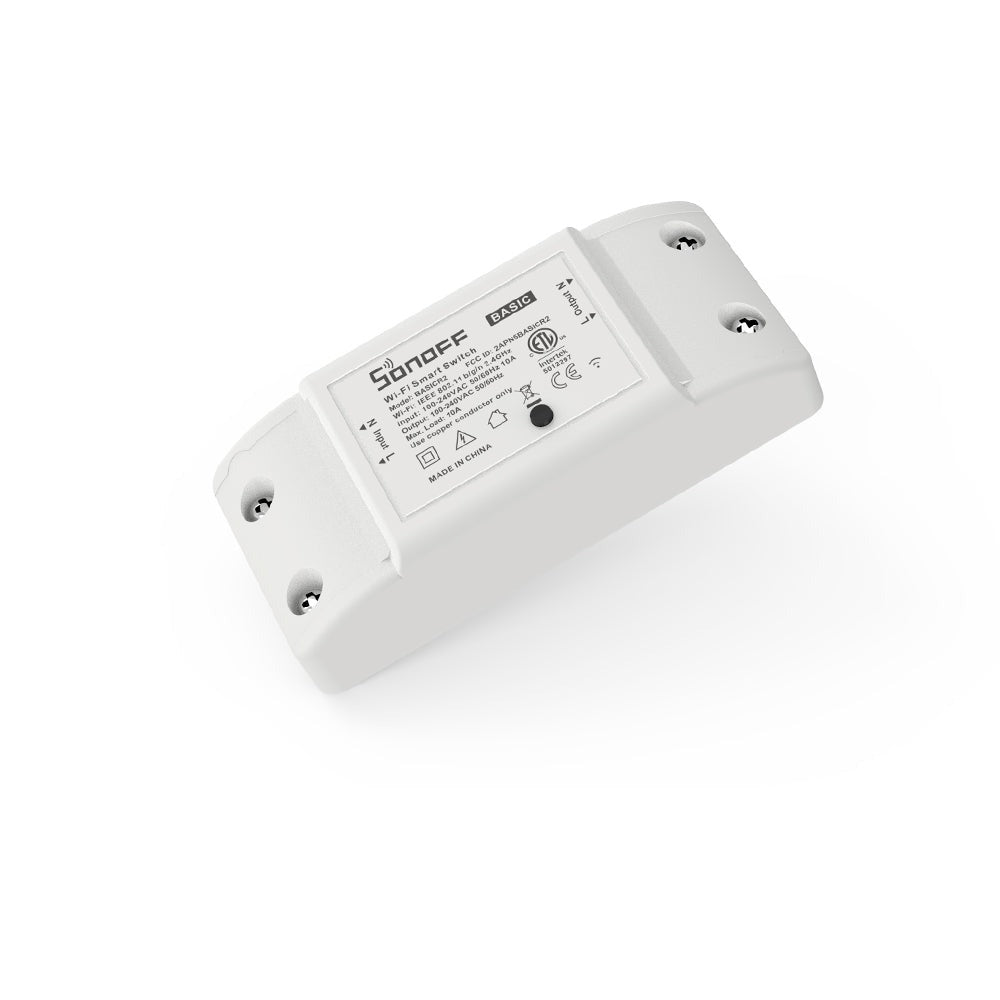

The SONOFF BASICR2 is a Wi-Fi smart switch for DIY projects. Installed in-line between the power supply and a light or appliance, it switches one circuit up to 10A from the eWeLink app, by voice or on a schedule.
It connects directly to your 2.4 GHz Wi-Fi network, so no hub is required. Use timers, schedules and smart scenes to automate everyday devices, and control them by voice with Amazon Alexa, Google Assistant or SmartThings.
Note: a neutral wire is required, and the switch works on 2.4 GHz Wi-Fi with the eWeLink app.
Key Features
- Single-channel relay for one light or appliance up to 10A

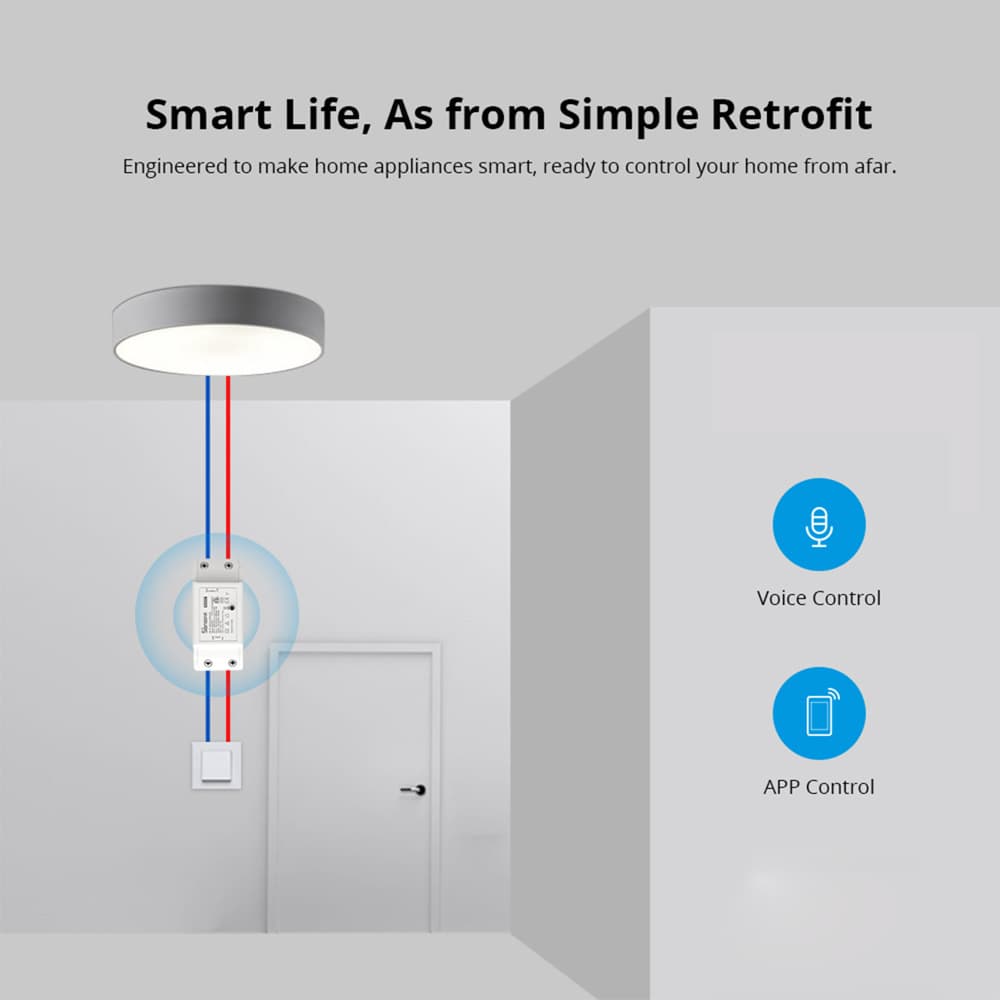

- In-line installation between the power supply and the load
- Remote control from anywhere with the eWeLink app (iOS / Android)
- Voice control with Amazon Alexa, Google Assistant and SmartThings
- Countdown timers, schedules and smart scenes
- Direct 2.4 GHz Wi-Fi connection, no hub required
- Wide 100–240V AC 50/60Hz input
- Flame-retardant PC V0 housing
Works With
-
eWeLink app: direct 2.4 GHz Wi-Fi connection, no hub needed
-
Voice assistants: Amazon Alexa, Google Assistant and SmartThings
-
Loads/Devices: one light or appliance up to 10A at 100–240V AC
Technical Specifications
| Specification |
Details |
| Model |
BASICR2 |
| Product Name |
Wi-Fi Smart Switch (DIY relay module) |
| Power Input |
100–240V AC, 50/60Hz |
| Output |
100–240V AC, 50/60Hz, 10A max (single channel) |
| Channels |
1 |
| Neutral Wire |
Required |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| App |
eWeLink (iOS / Android) |
| Voice Control |
Amazon Alexa, Google Assistant, SmartThings |
| Operating Temperature |
-10°C ~ 40°C |
| Casing Material |
PC V0 (flame-retardant) |
| Certifications |
CE, FCC, RoHS |
Why Choose the SONOFF BASICR2?
- Simple in-line installation for DIY smart home projects
- App, voice and schedule control for any light or appliance up to 10A
- Reliable Wi-Fi with no hub required
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
