Description

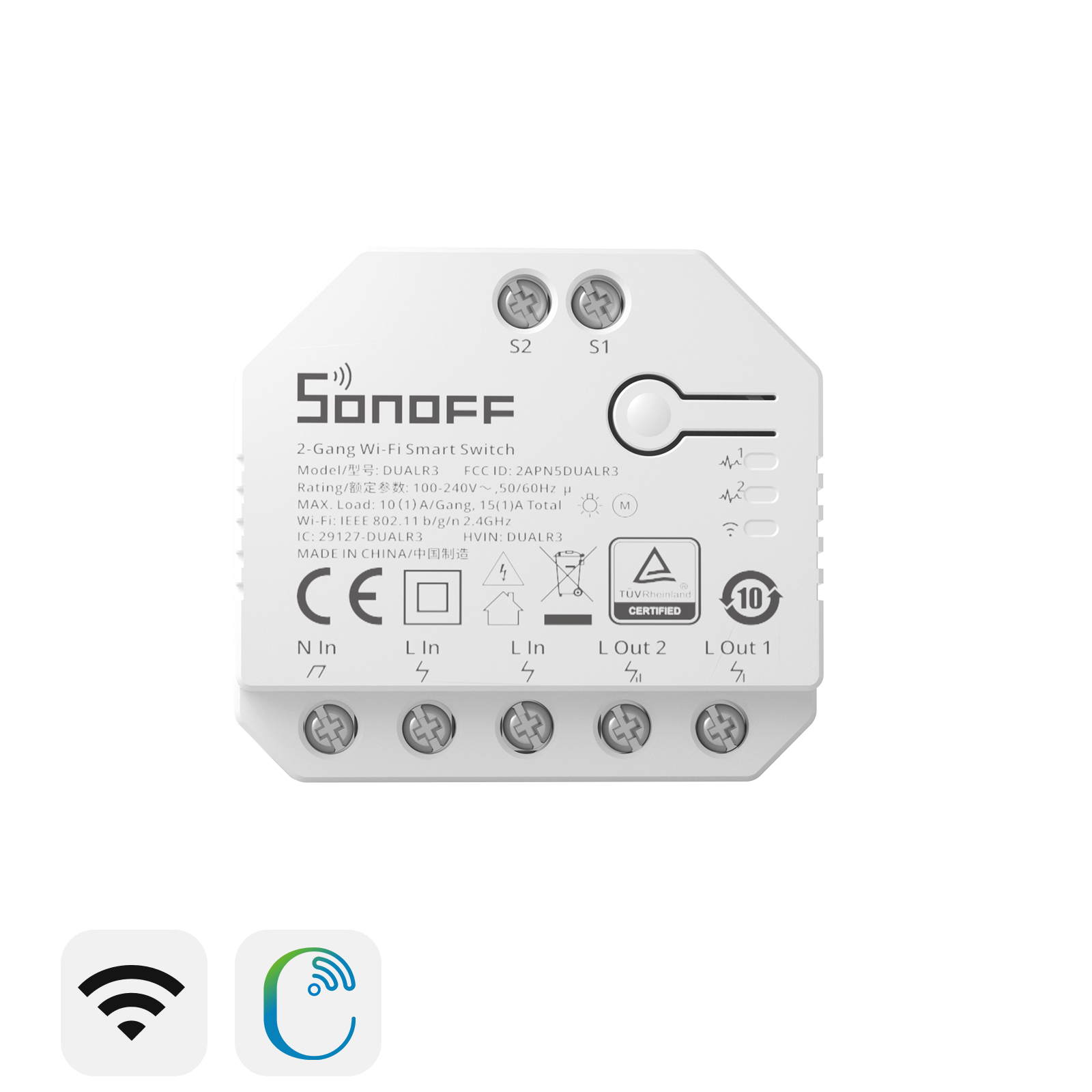

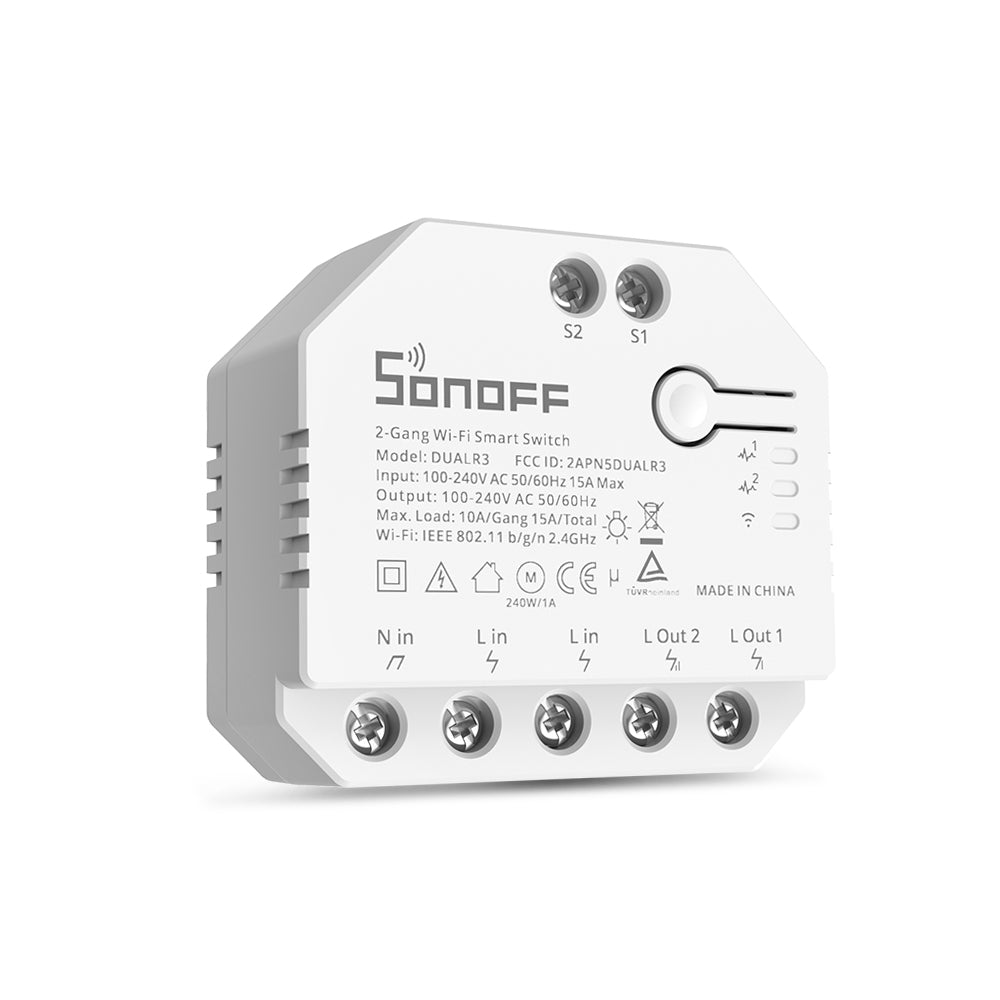

The SONOFF DUALR3 / DUALR3 Lite is a dual-channel Wi-Fi smart switch module for flexible home automation. In Switch Mode it controls two appliances independently – lights, ceiling fans, coffee makers and more – and in Motor Mode it turns motorized curtains, blinds and roller shades into smart devices you can control by app, voice or automation.

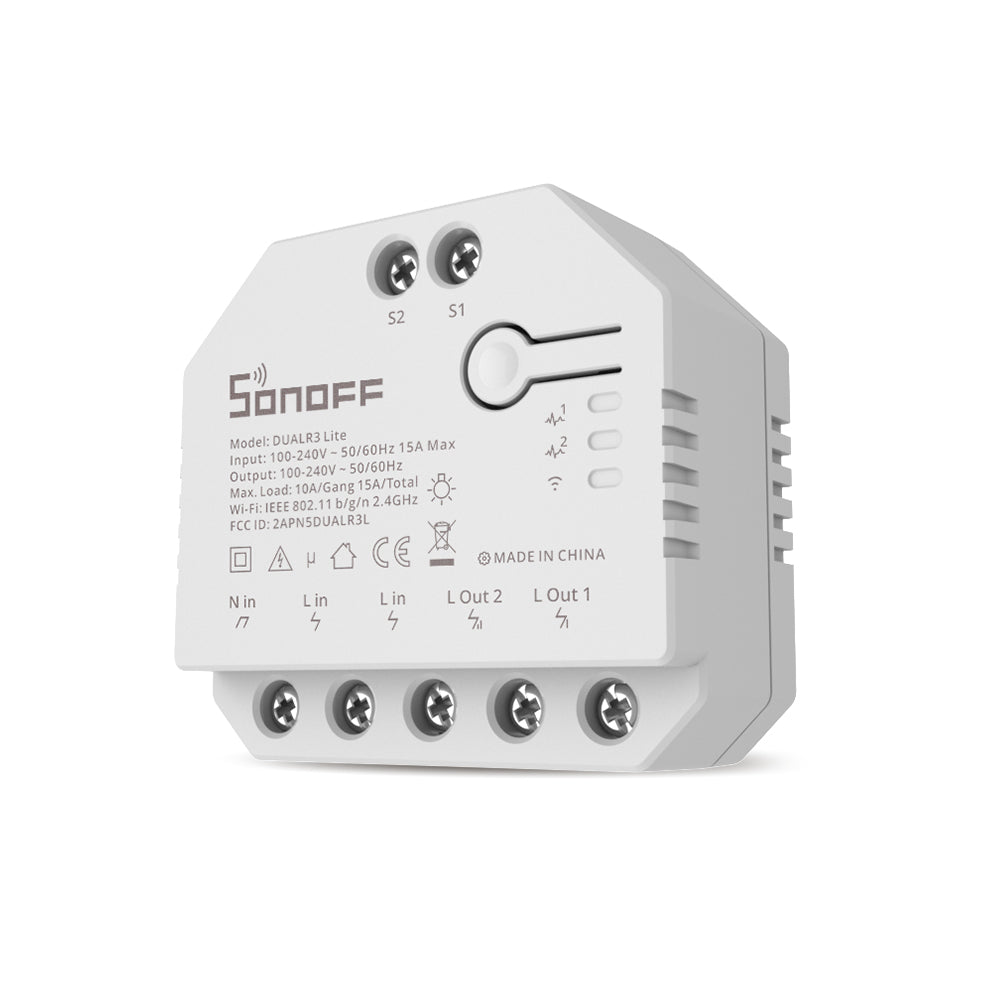

The DUALR3 also measures voltage, current and power on each channel to help you track and optimize energy use, while the DUALR3 Lite offers the same switching and motor control without power metering. Both support 6 types of external wall switches (rocker, momentary, SPDT and more), so you keep manual control from your existing switches.
Note: choose DUALR3 or DUALR3 Lite from the options. Maximum load 15A total (10A per channel); motor load 10–240W / 1A max. Installation must be done by a qualified electrician.
Key Features

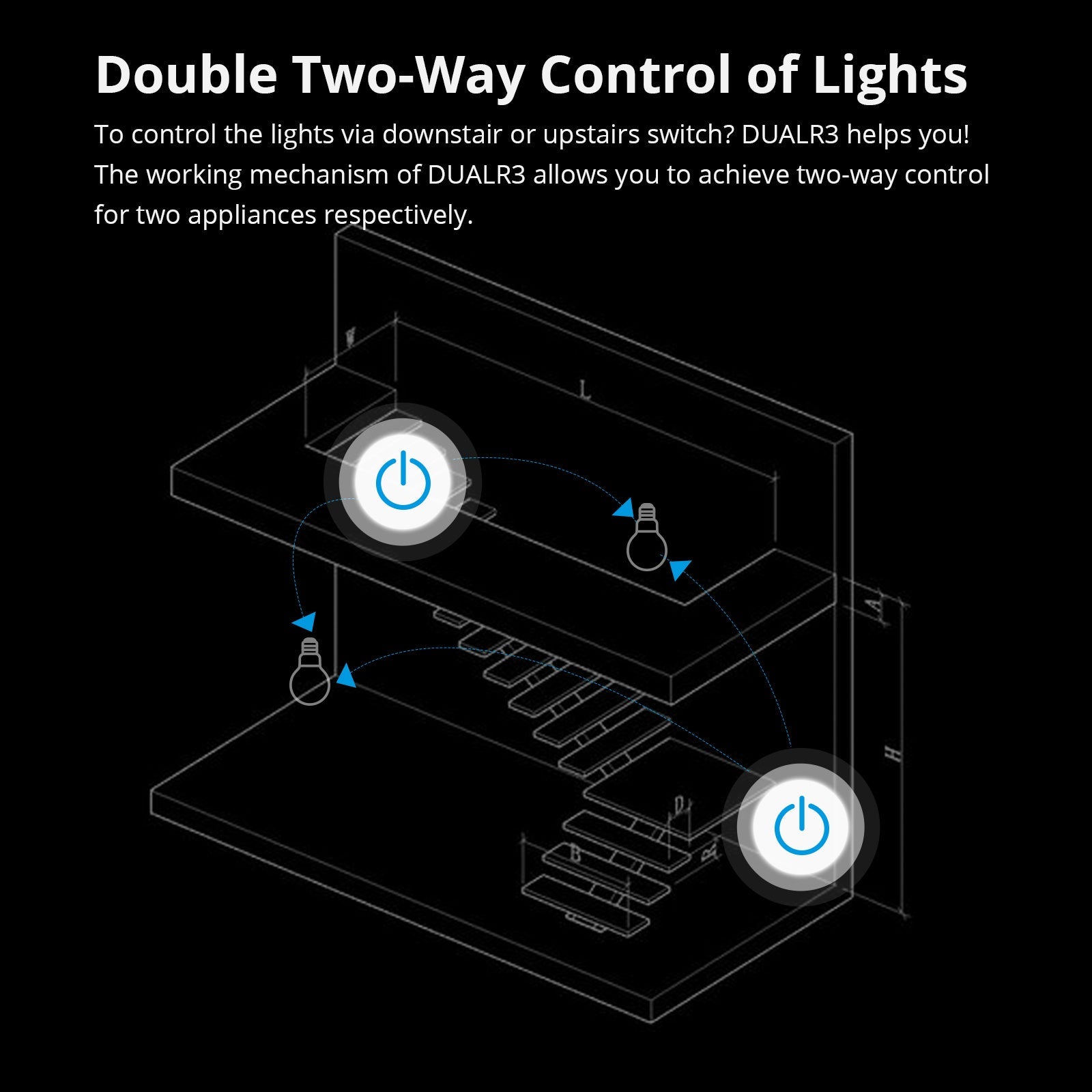

- Switch Mode: two independent channels for two appliances
- Motor Mode: smart control for electric curtains, blinds and roller shades
- Per-channel voltage, current and power metering (DUALR3 only)
- Supports 6 types of external switches, including rocker, momentary and SPDT
- App, voice and automation control with schedules and scenes
- 3300W / 15A total, 2200W / 10A per channel
- Fire-retardant PC V0 enclosure
- Certified by TÜV, CE and FCC
Works With
-
eWeLink app: direct 2.4 GHz Wi-Fi connection – no gateway needed
-
Loads: lights, fans and appliances (Switch Mode), or motorized curtains, blinds and roller shades (Motor Mode)
Technical Specifications
| Specification |
Details |
| Model |
DUALR3 / DUALR3 Lite |
| Switch Channels |
Dual |
| Resistive Load |
3300W / 15A total, 2200W / 10A per gang |
| Motor Load |
10–240W / 1A max |
| Power Metering |
DUALR3: yes, per channel / DUALR3 Lite: no |
| Wireless Protocol |
Wi-Fi 802.11 b/g/n |
| Security Mechanism |
WPA-PSK / WPA2-PSK |
| Enclosure Material |
Fire-retardant PC V0 |
| Color |
White |
| Dimensions |
54 × 49 × 24 mm |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| Certifications |
TÜV, CE, FCC |
Why Choose the SONOFF DUALR3 / DUALR3 Lite?
- One compact module for two circuits or one curtain motor
- Keeps your existing wall switches working
- Energy monitoring on each channel with the DUALR3
- A budget-friendly Lite version when you don't need metering
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
