Description

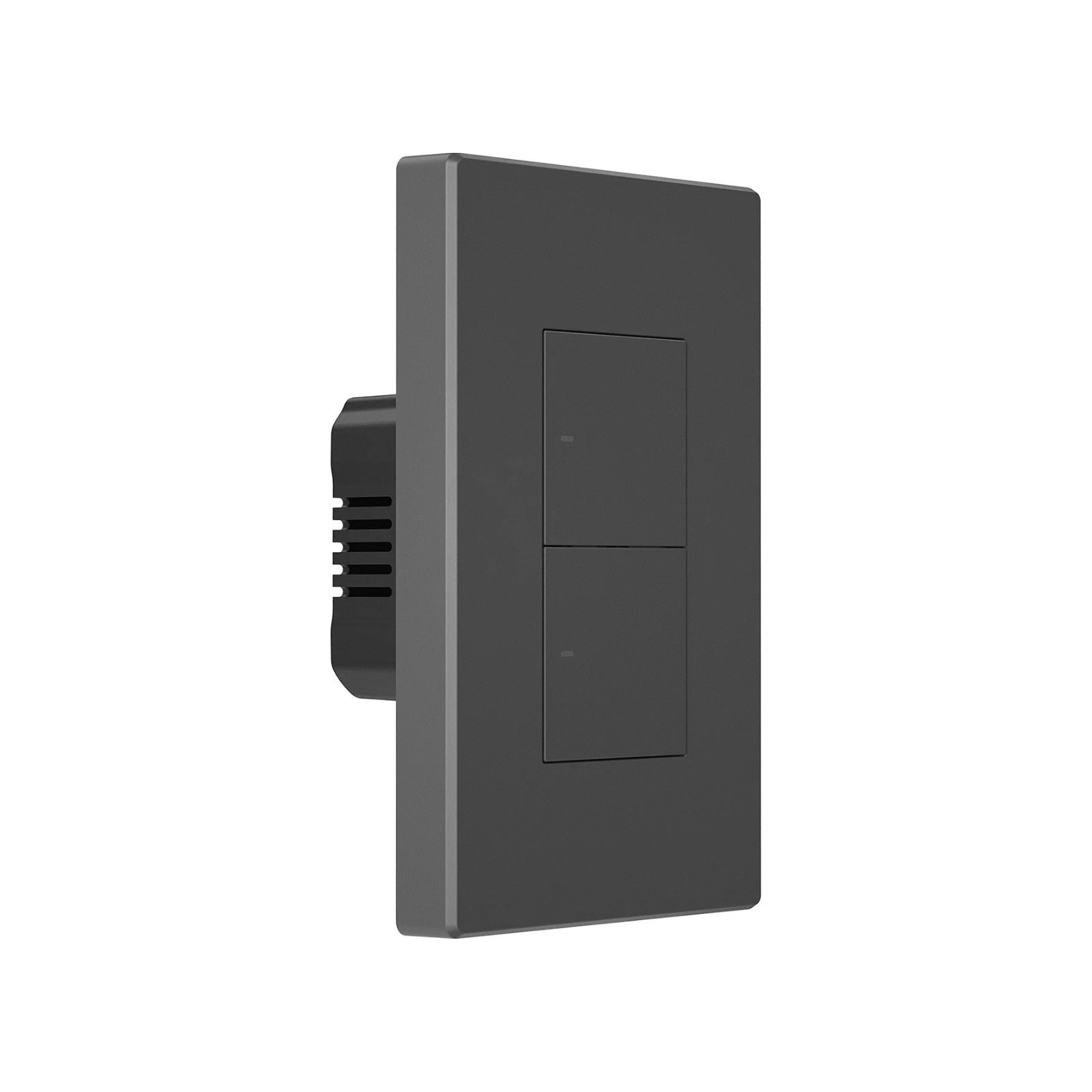

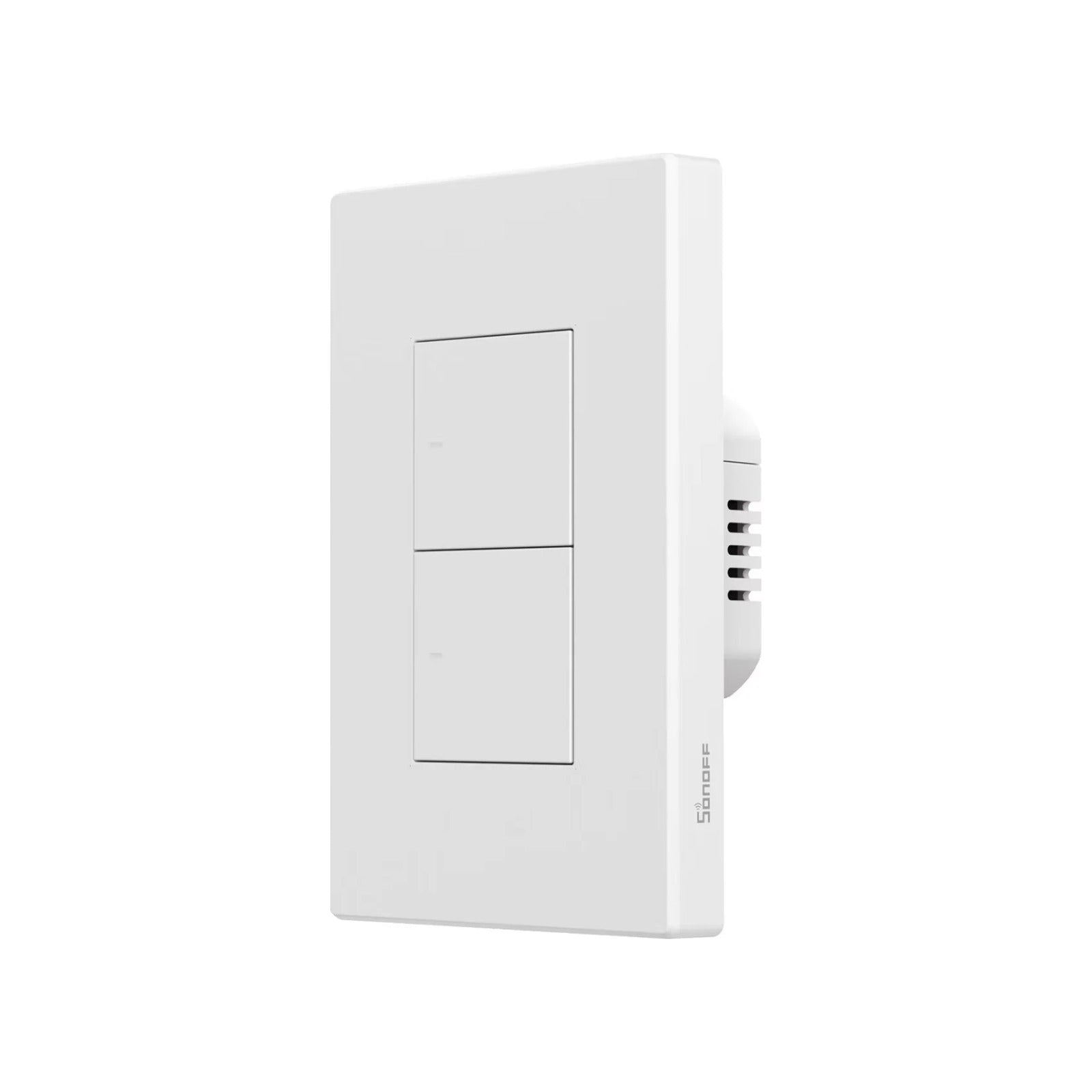

The SONOFF SwitchMan M5 Smart Wall Switch 2 Gang (120 Type) is a Wi-Fi wall switch with 2 physical push buttons for 120-type wall boxes. Choose your colour: White (M5-2C-120W) is the M5 Matter edition that also works with Apple Home, Google Home and Amazon Alexa, and Black (M5-2C-120) is the original M5 for the eWeLink app.

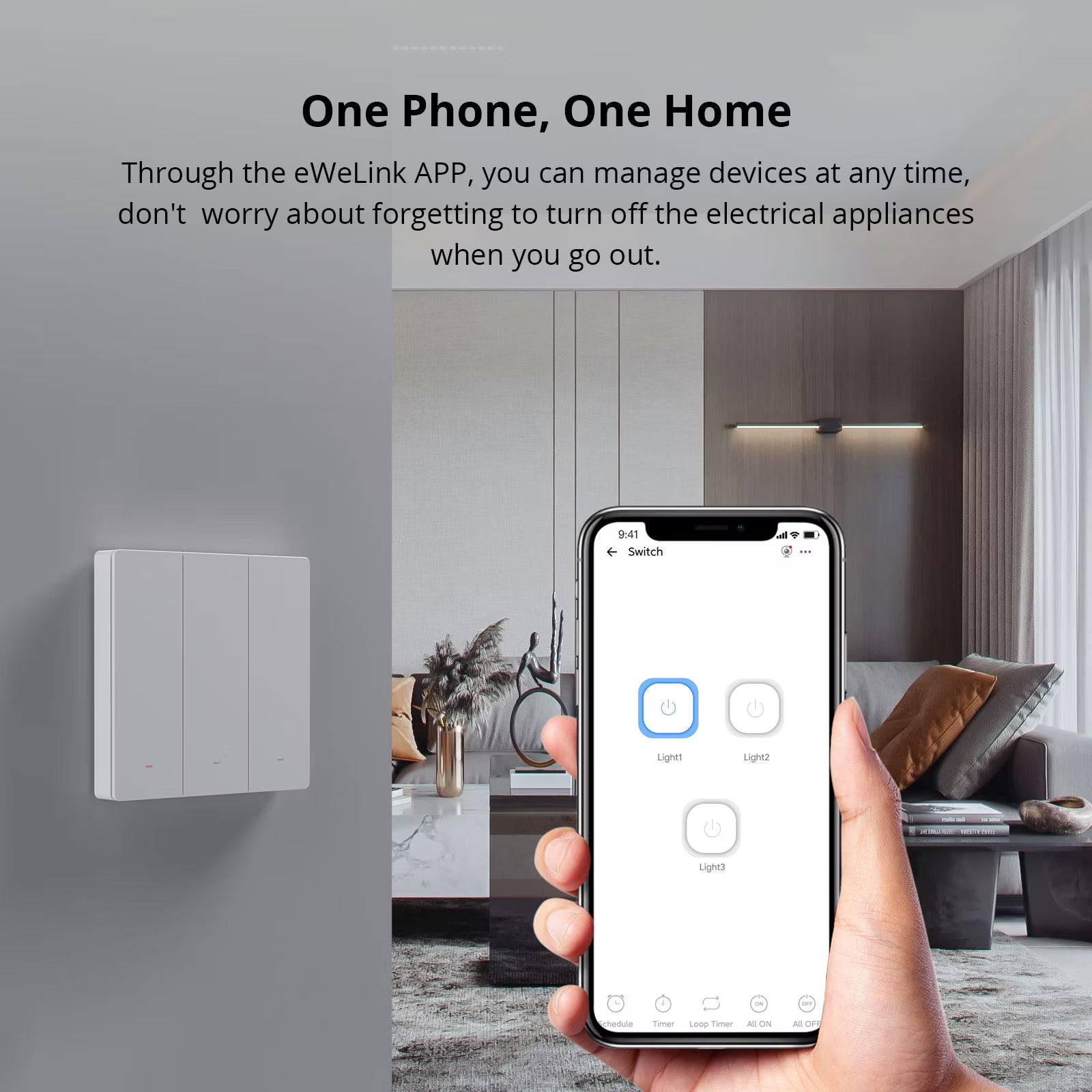

Control your lights from anywhere in the eWeLink app, set timers and schedules, group lights in different rooms and run smart scenes with one tap. It handles up to 5A per gang, 10A total (2200W (1100W per gang)).

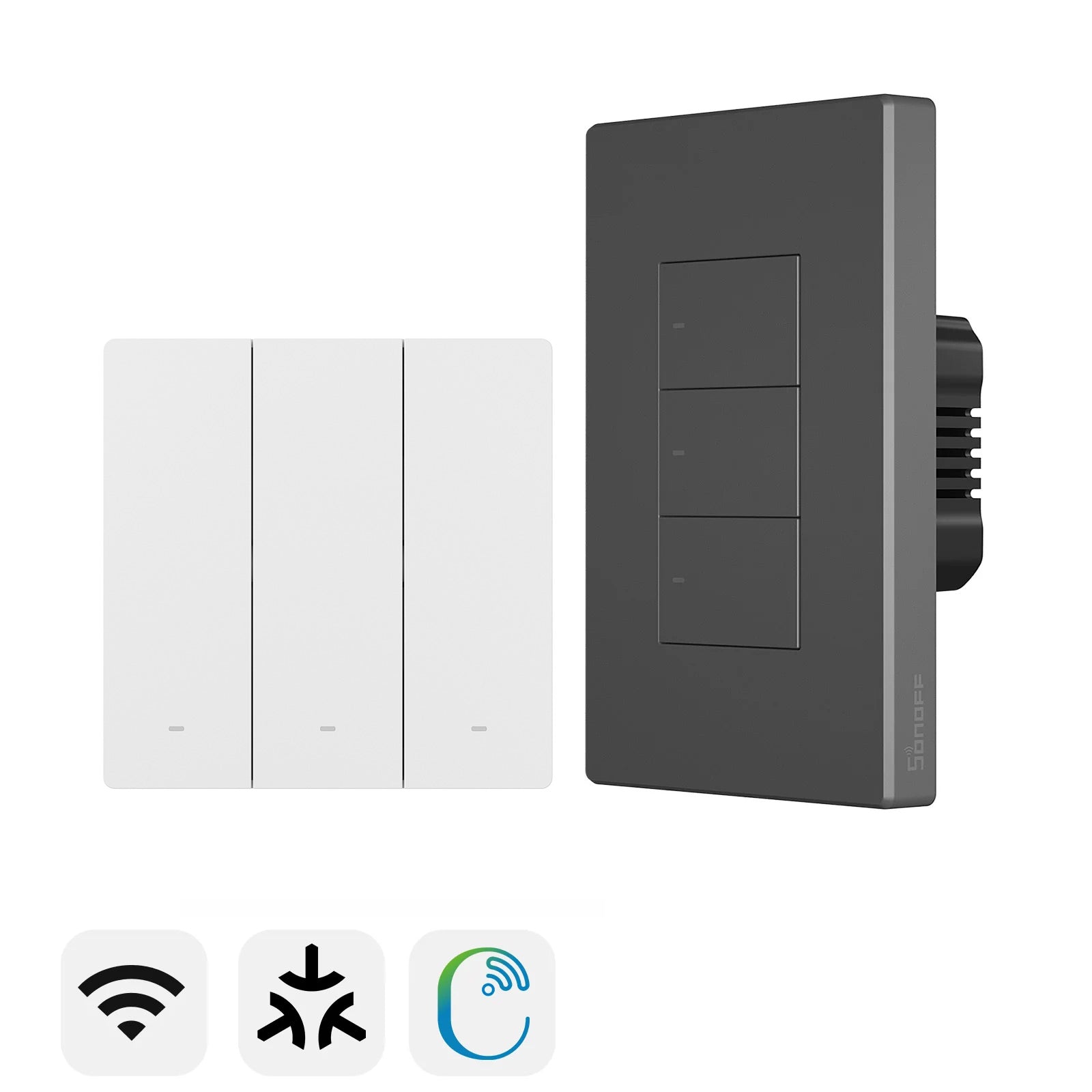

Note: a 2.4GHz Wi-Fi network is required, and Matter is supported by the White (M5 Matter) model only. Also available in 1 Gang and 3 Gang versions.
Installation requirement: a neutral wire (N) is required. This switch needs both live (L) and neutral (N) wires in the wall box; please check your wiring or ask an electrician before ordering.
Key Features
- 2 physical push buttons with LED indicators, in White or Black
- Direct 2.4GHz Wi-Fi connection, no hub required for eWeLink control

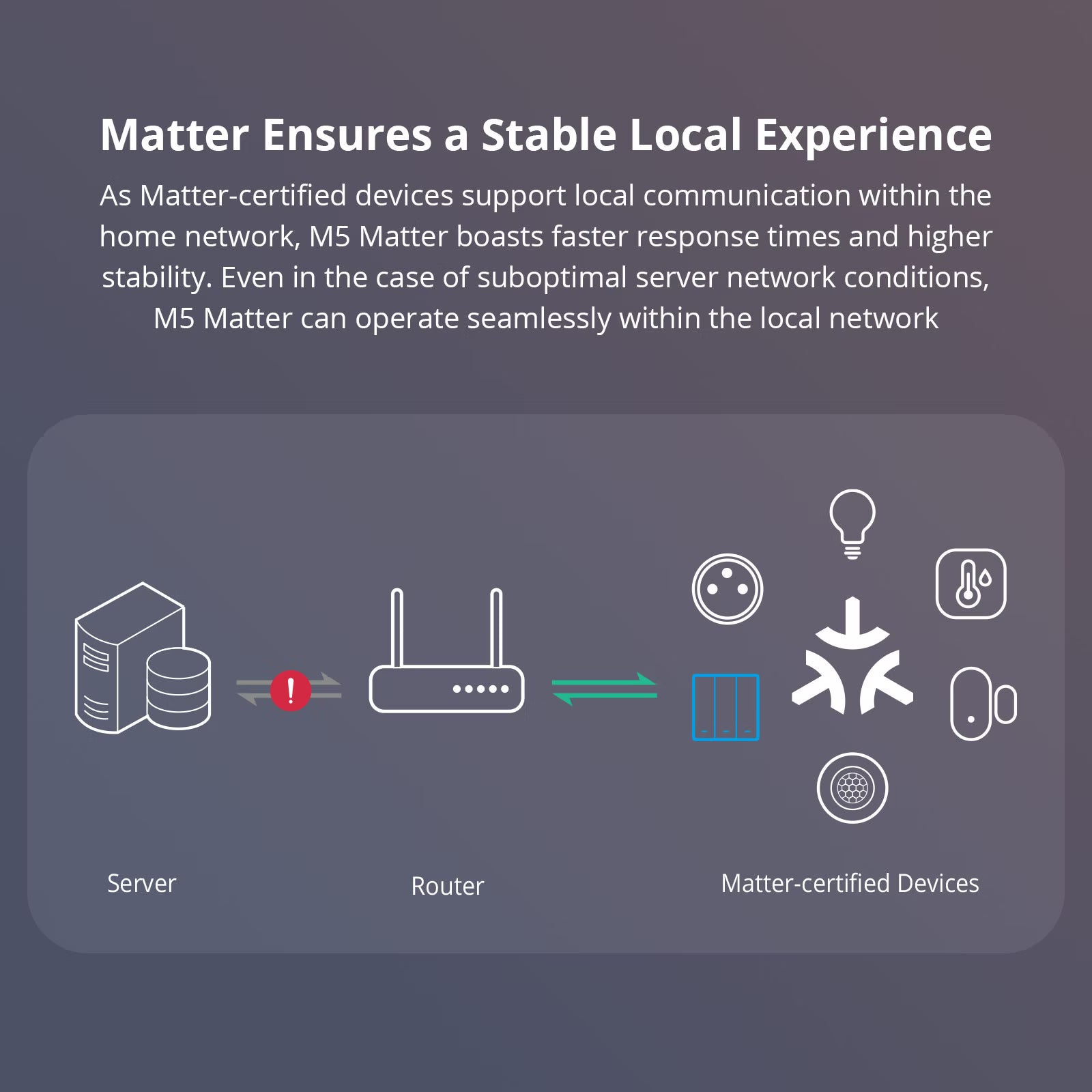

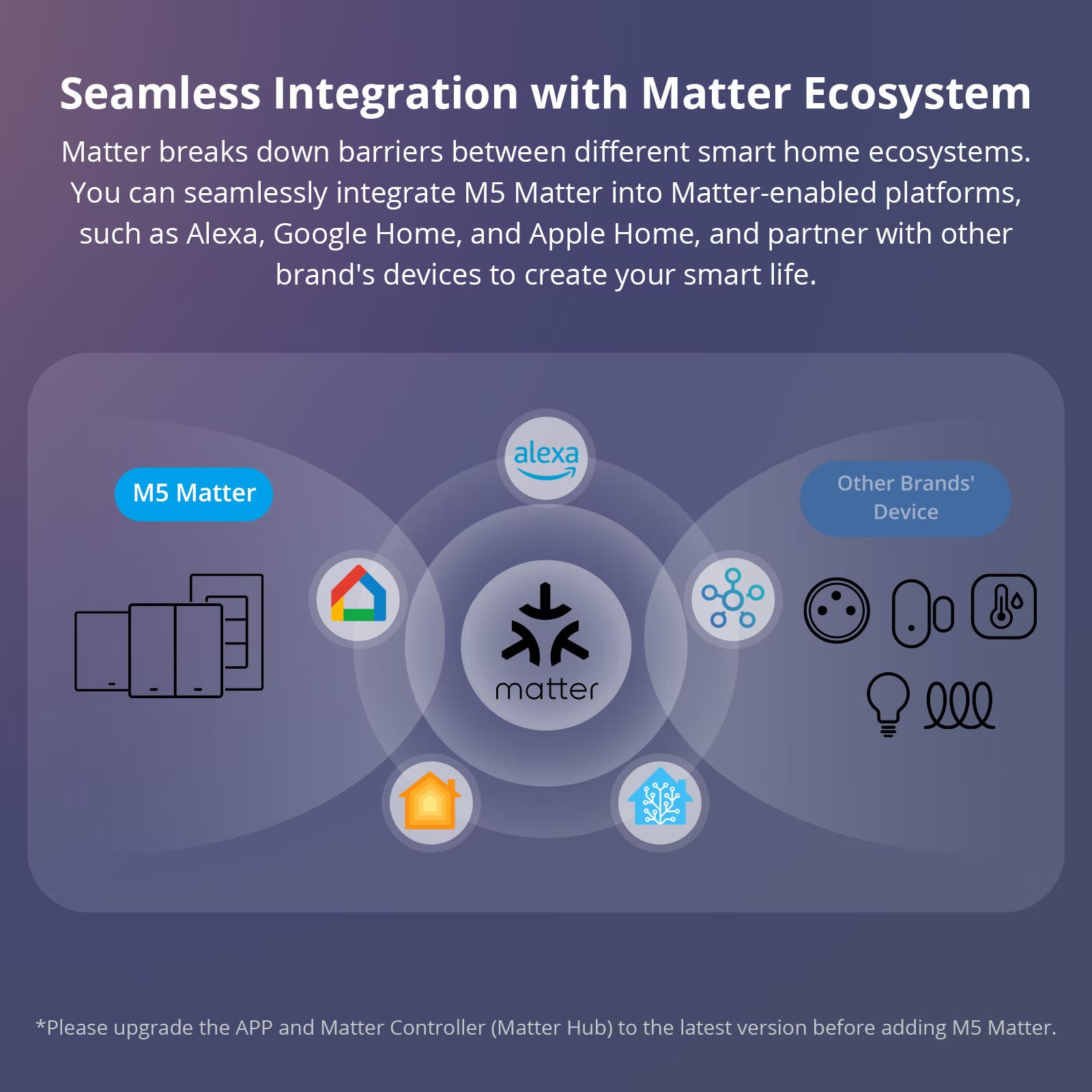

- Matter on the White model: Apple Home, Google Home and Amazon Alexa
- Timer and schedule: set daily routines or countdowns
- Multi-device group control: switch the lights of several rooms with one tap
- Smart scenes and cross-device automation in the SONOFF eWeLink ecosystem
- Share control with family or friends without reconfiguring the device
- Inching setting on the Black (M5) model: turns off or on automatically after a set time
- Voice control with Amazon Alexa and Google Assistant

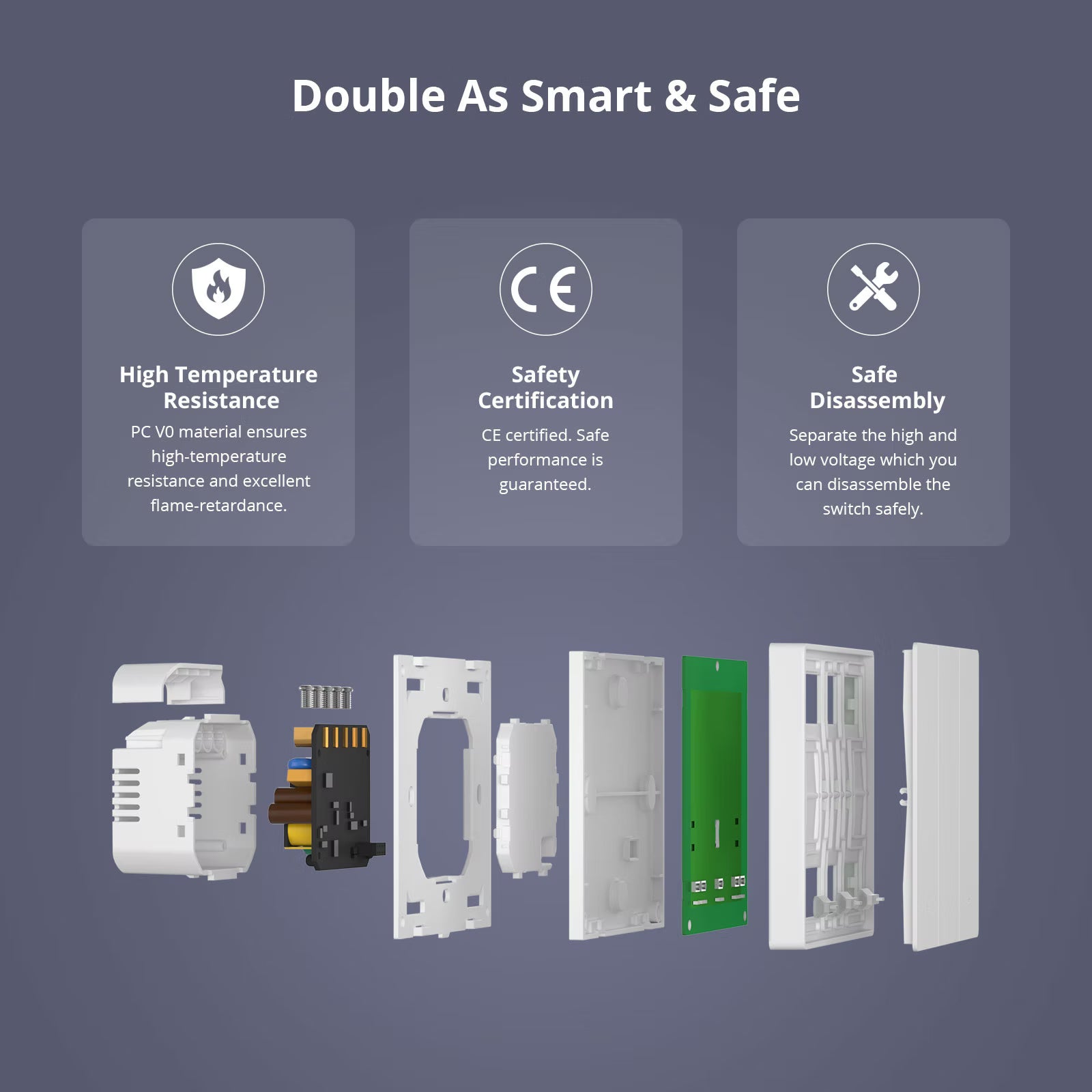

- Flame-retardant PC V0 casing
Technical Specifications
| Specification |
Details |
| Model |
M5-2C-120W (White, M5 Matter), M5-2C-120 (Black, M5) |
| Product Name |
SwitchMan Smart Wall Switch M5 / M5 Matter |
| Gangs |
2 |
| Wall Box Type |
120 Type |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz (Matter over Wi-Fi on the White model) |
| MCU |
ESP32 |
| Power Input |
100-240V ~ 50/60Hz |
| Max. Current |
5A per gang, 10A total |
| Max. Load |
2200W (1100W per gang) |
| Casing Material |
White: PC V0 + CRS; Black: PC V0 |
| Color |
White, Black |
| Operating Temperature |
-10°C ~ 40°C |
| Certifications |
White (M5 Matter): CE, FCC, ISED; Black (M5): CE, FCC |
| Wiring |
Live (L) + Neutral (N) required |
Why Choose the SONOFF M5?
- The feel of real push buttons with full app, voice and scene control
- Choose Matter (White) for Apple Home, Google Home and Alexa, or the classic M5 (Black) for eWeLink
- Same price for both colours
- Works directly over Wi-Fi without a hub
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
