Description

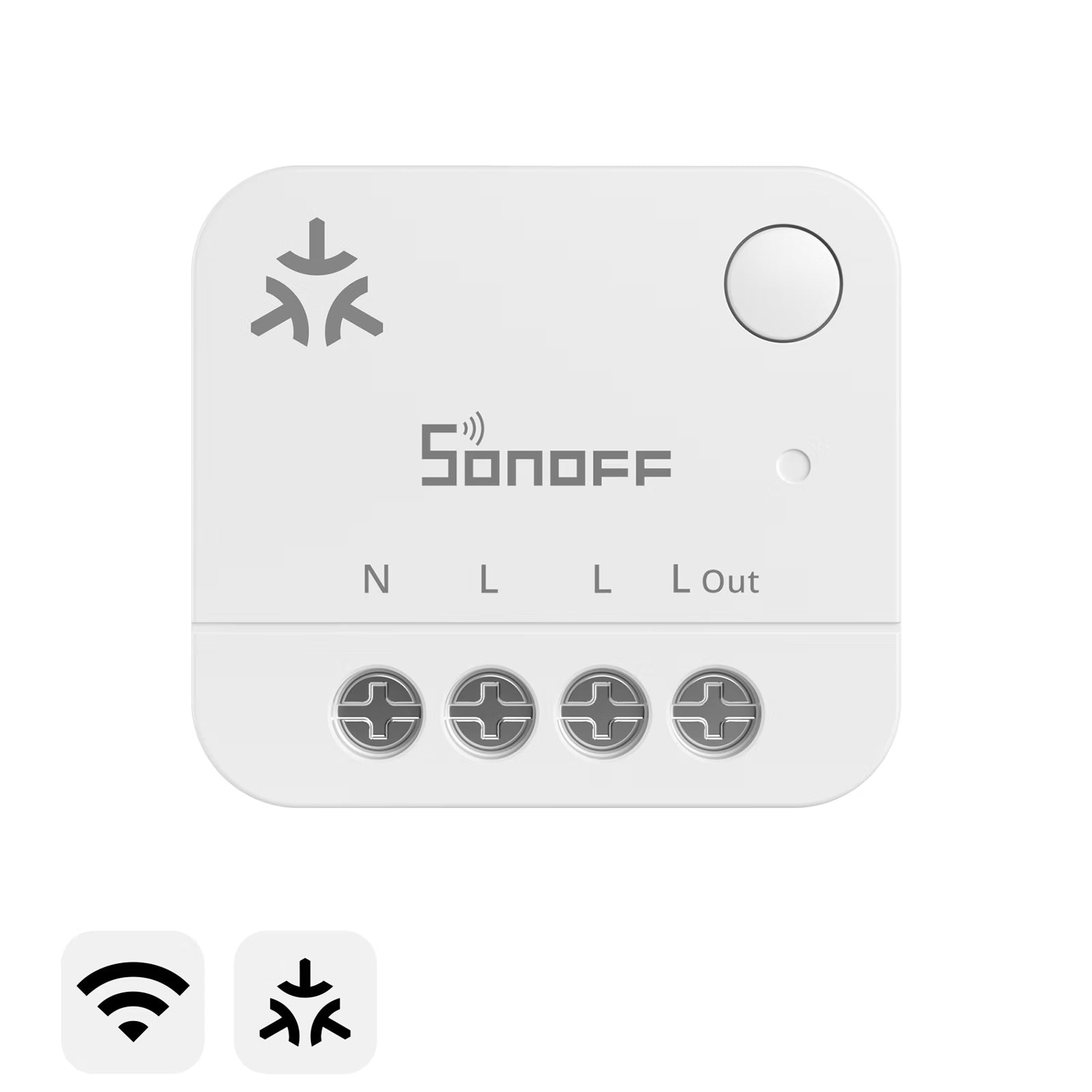

The SONOFF MINI PM (MINI-1GP) is a compact Matter over Wi-Fi power meter from the SONOFF MINI Extreme Series Gen5. It tracks energy in both directions – what your appliances consume and what your solar panels generate – on loads up to 16A, and keeps up to one year of energy data stored locally for easy analysis in the app.
With a simple retrofit it turns an ordinary load or wall socket into an energy monitor. You can follow it in the eWeLink app, from a local web console in your browser with no app or cloud connection, or integrate it with Home Assistant, openHAB, ioBroker and Node-RED through its open API over HTTP, WebSocket and MQTT.
Note: this is a non-switch product – it measures energy only and cannot turn devices on or off. A neutral wire is required, and a wall box depth of 60 mm or more is recommended. Due to current Matter platform limitations on energy meters, Apple Home, Google Home, Amazon Alexa and SmartThings do not yet support adding the MINI-1GP through Matter.

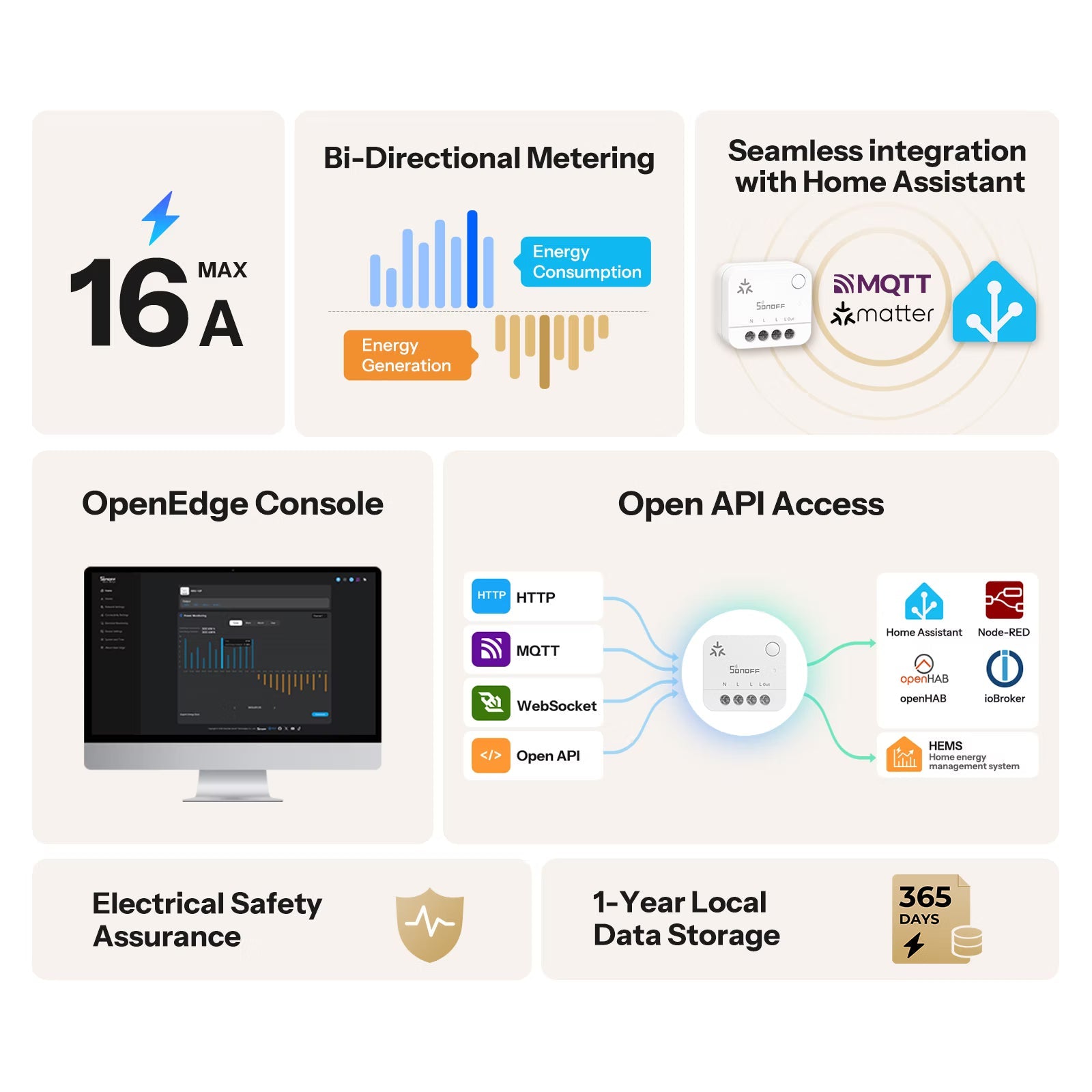

Key Features

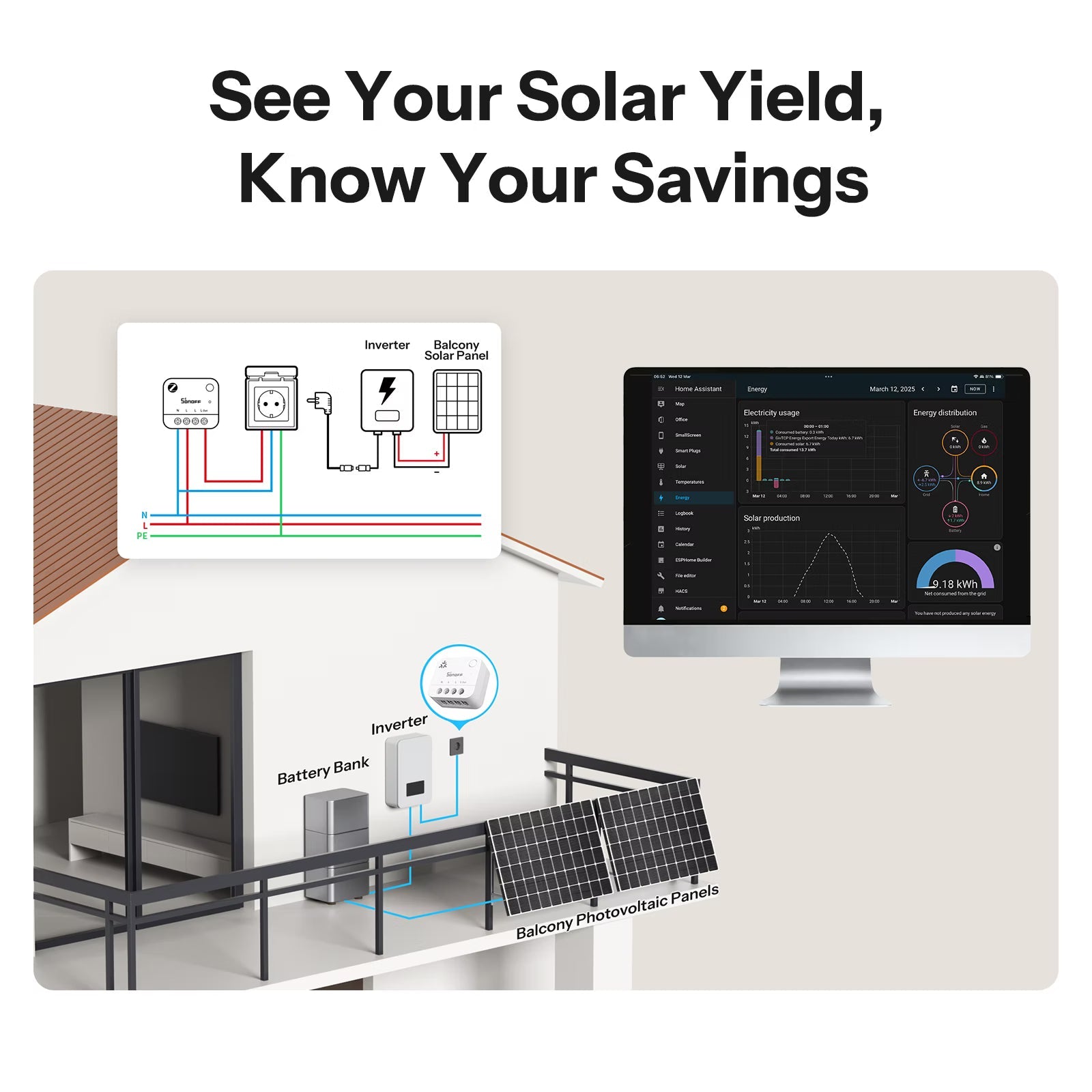

- Bidirectional energy metering: appliance consumption and solar power generation

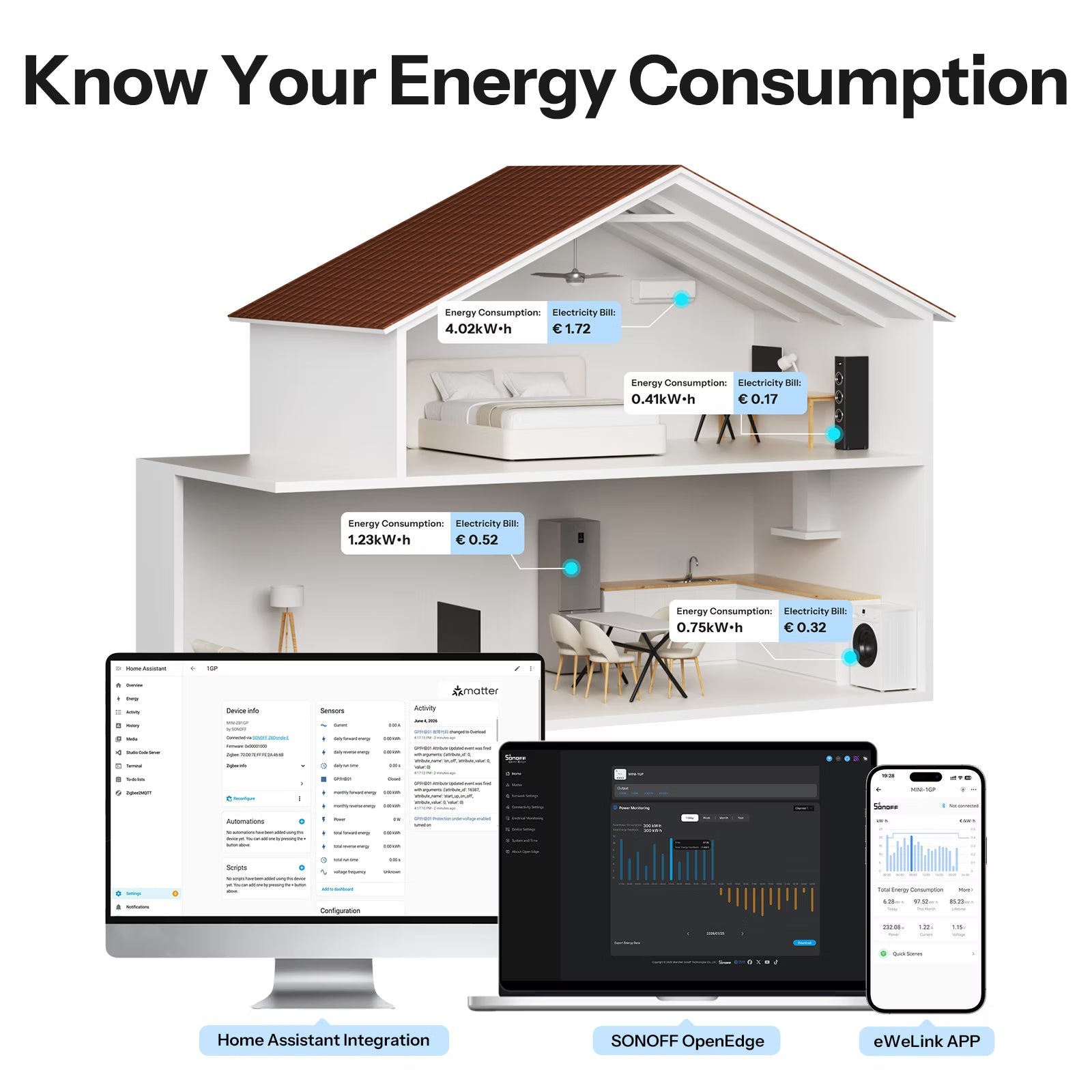

- Up to one year of energy data stored locally, with clear charts in the app
- Energy cost tracking with your own currency and fixed or time-of-use electricity rates
- Appliance completion alerts when power stays below your threshold, with a delay to avoid false alerts during washing-machine fill and drain cycles

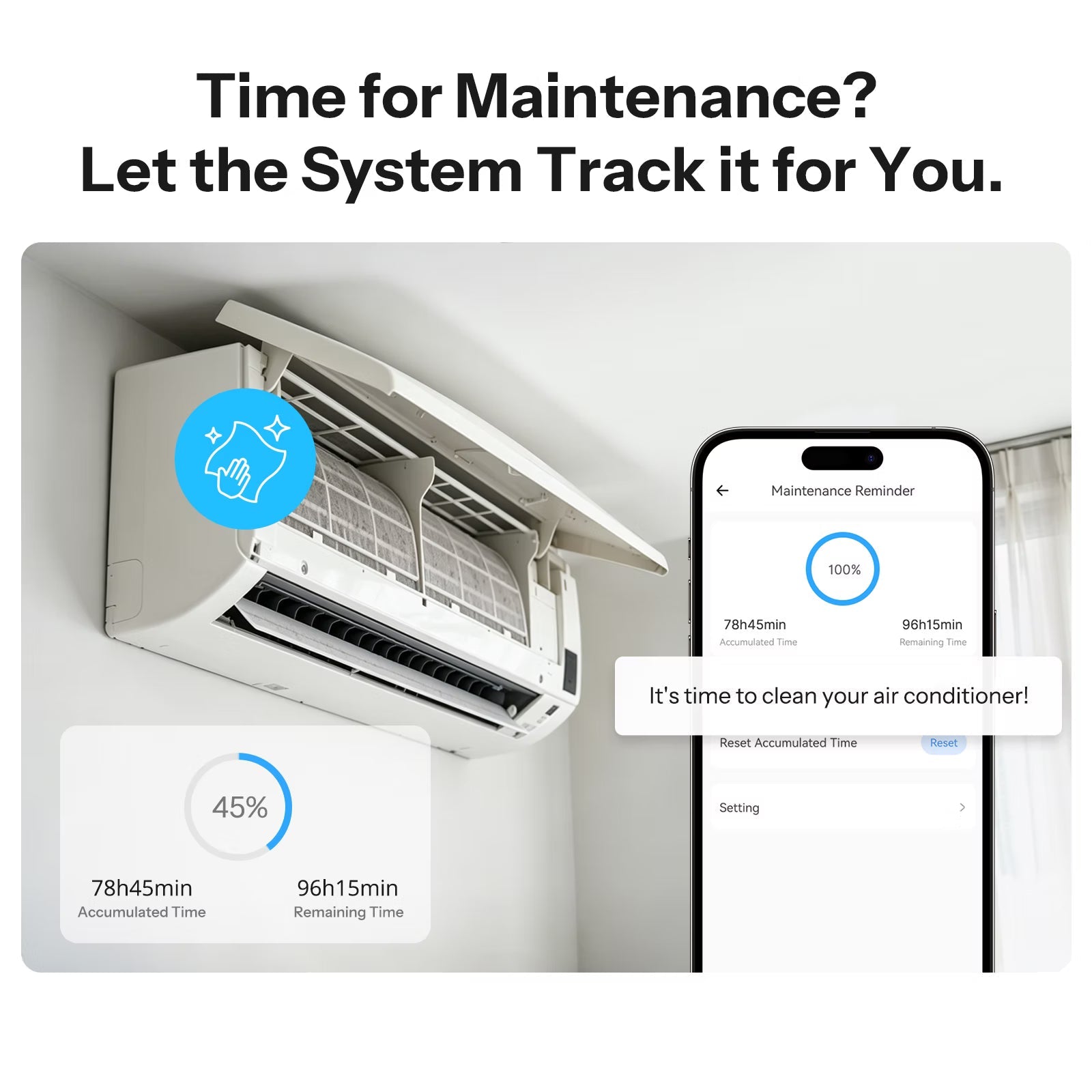

- Maintenance reminders based on accumulated runtime above a set power level
- SONOFF "OpenEdge" local web console – no app or cloud required
- Open API: JSON-RPC 2.0 over HTTP, WebSocket and MQTT
- Adds to Home Assistant via MQTT or Matter
- Monitors loads up to 16A
- Tiny 32 × 29 × 15.9 mm body, only 14 g
Works With
-
eWeLink app: connects directly over 2.4 GHz Wi-Fi – no gateway needed
-
Home Assistant: via MQTT or Matter; also openHAB, ioBroker and Node-RED through the open API
-
Local web console: any browser on your local network
Technical Specifications
| Specification |
Details |
| Model |
MINI-1GP |
| Product Name |
MINI PM (Matter Over WiFi Power Meter) |
| Product Series |
MINI Extreme Series Gen5 |
| Function |
Energy monitoring only (non-switch) |

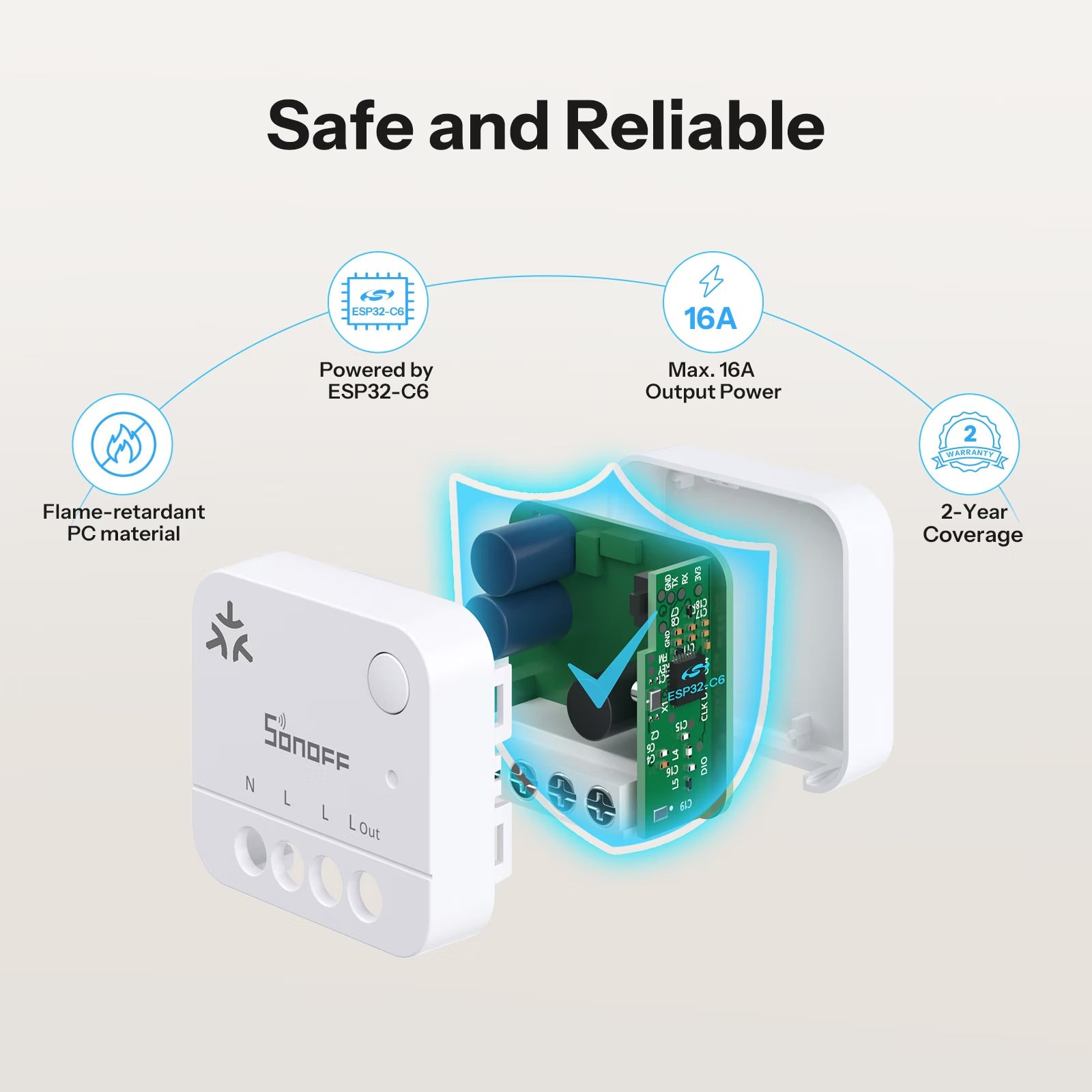

| MCU |
ESP32C6 |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter |
| Rating |
100–240V~ 50/60Hz 16A |

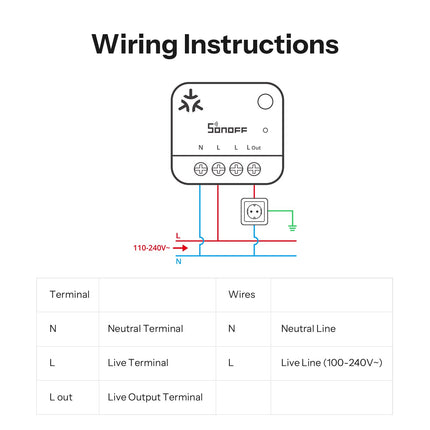

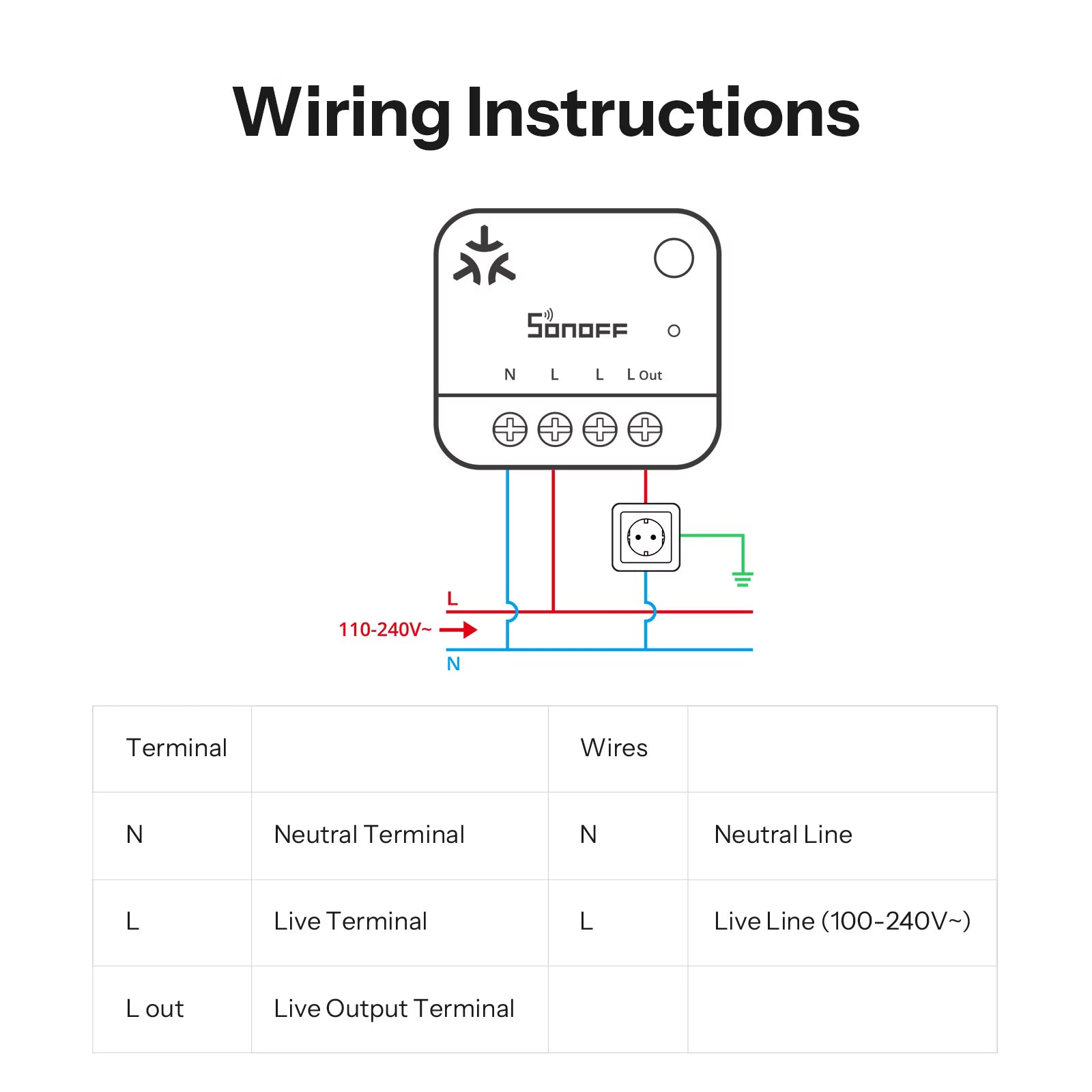

| Neutral Wire |
Required |
| Local Control & API |
Local web console; HTTP (JSON-RPC 2.0), WebSocket, MQTT |
| Recommended Wire Gauge |
18–14 AWG (0.75–2.5 mm²), solid or stranded copper conductor only |

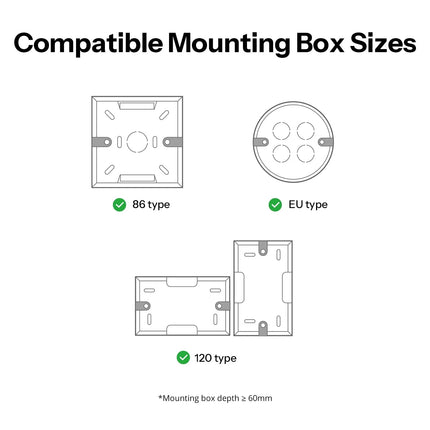

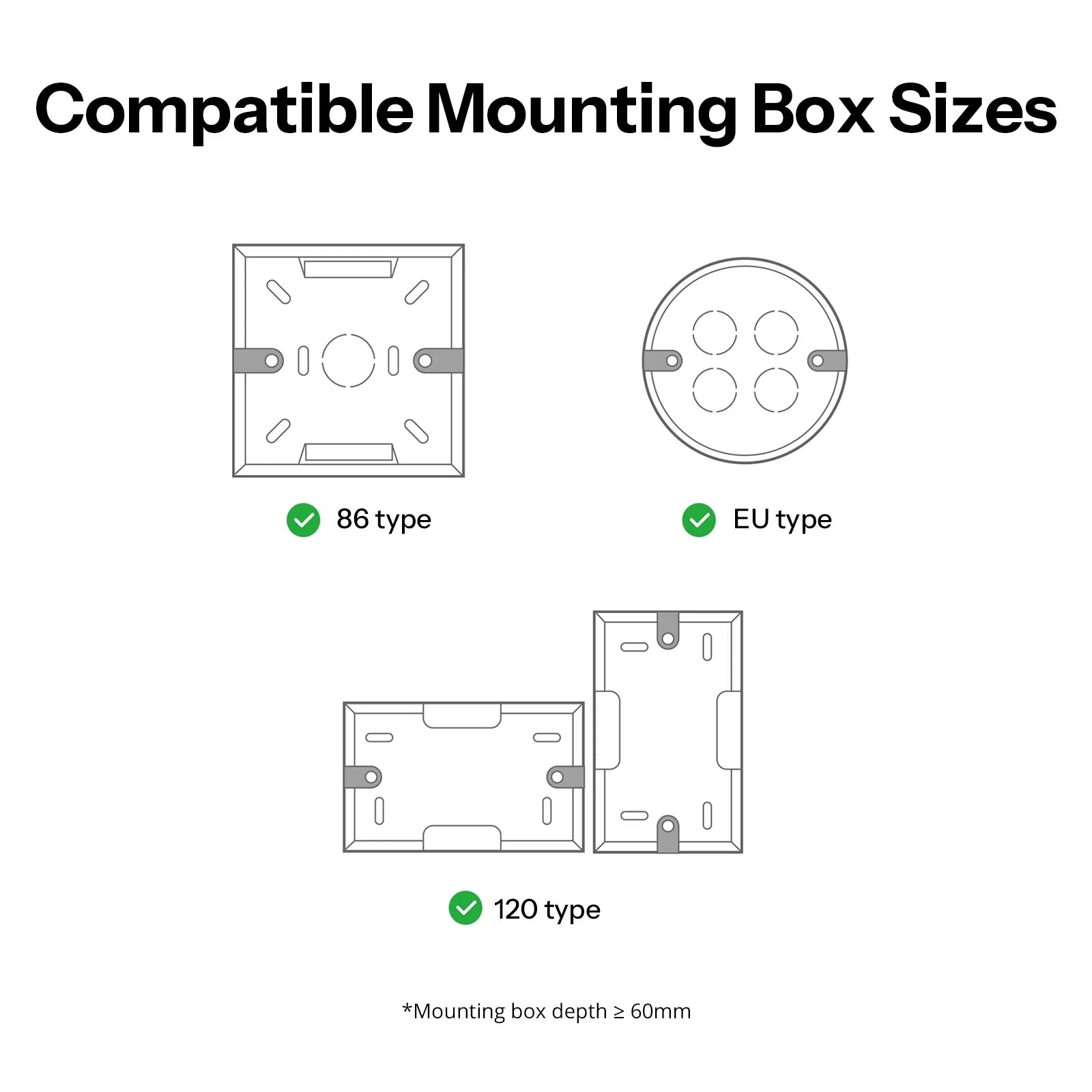

| Mounting Box Depth |
60 mm or more recommended |
| Installation |
Indoor flush mounting |
| Housing Material |
PC |
| Color |
White |
| Dimensions |
32 × 29 × 15.9 mm |
| Net Weight |
14 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
10% ~ 90% RH, non-condensing |
| FCC ID |
2APN5-MINI1GP |
| Certifications |
CE, RoHS, FCC |
Why Choose the SONOFF MINI-1GP?
- See exactly how much energy your appliances use and how much your solar panels produce
- Local web console and open API for privacy and custom automation
- Small enough to fit behind a socket in a standard wall box
- Notifications when appliances finish or are due for maintenance
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
