Description

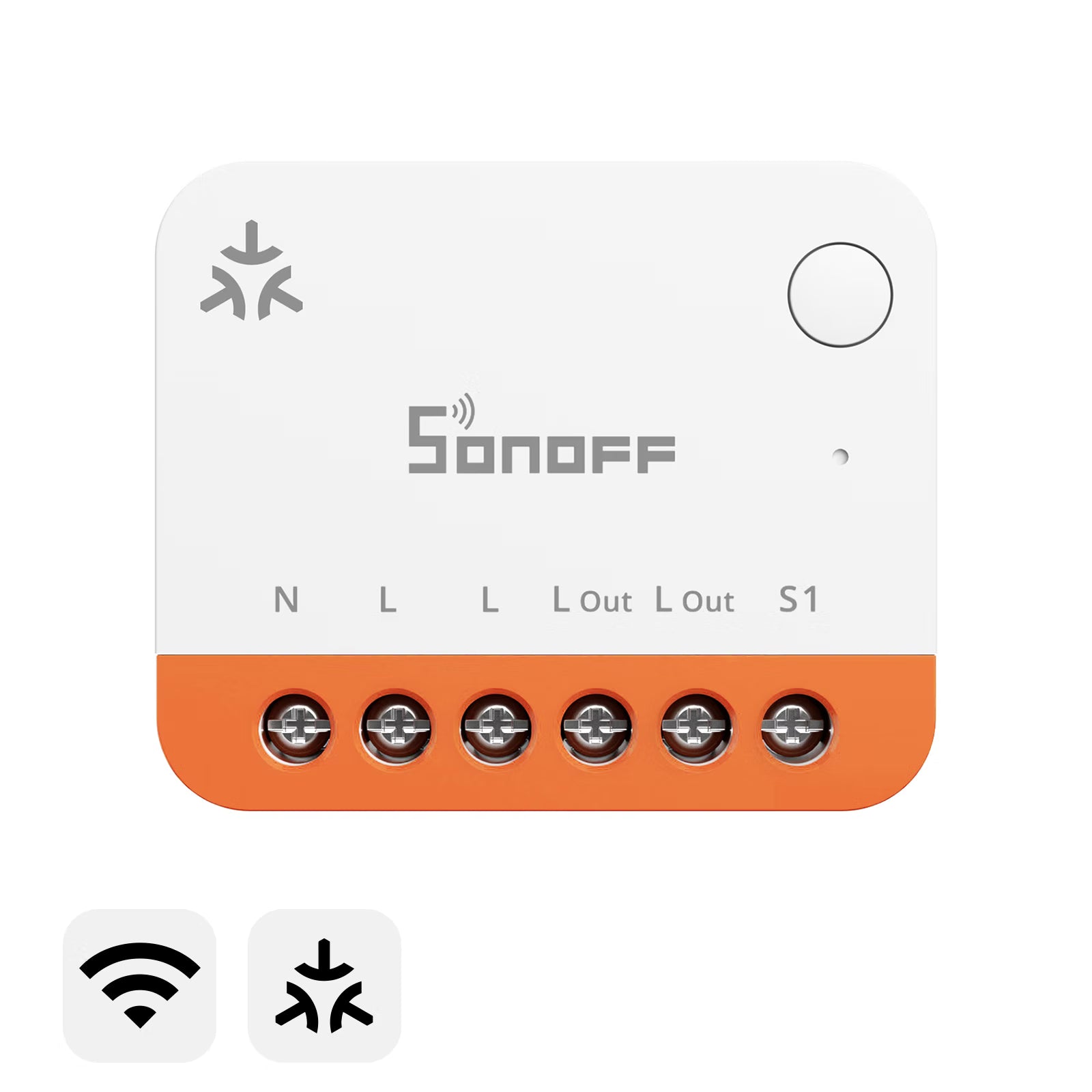

The SONOFF MINI ONE (MINI-1GS) is a compact Matter over Wi-Fi smart switch from the SONOFF MINI Extreme Series Gen5. Rated at 16A with a 3840W maximum resistive load, it can handle high-power loads such as storage water heaters and electric underfloor heating.
It works with Matter ecosystems including Apple Home, Amazon Alexa, Google Home, SmartThings and Home Assistant. You can also control it from a local web page in your browser with no app or cloud connection, or integrate it through its open API over HTTP (JSON-RPC 2.0), WebSocket and MQTT. It installs behind your existing wall switch, so you keep both manual and smart control.
Note: a neutral wire is required. Installation in a wall box with 60 mm depth is recommended.
Key Features

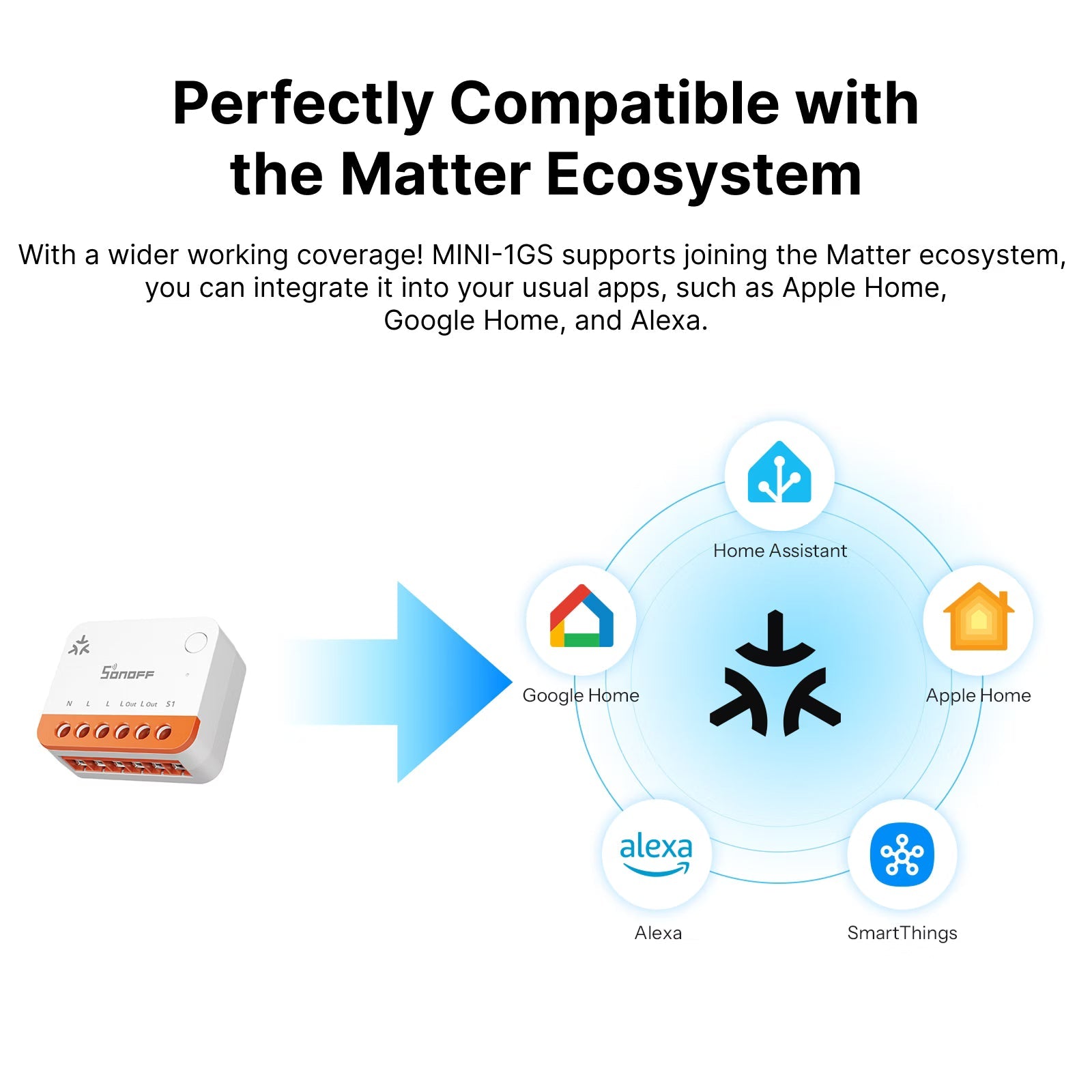

- Matter over Wi-Fi: works with Apple Home, Amazon Alexa, Google Home, SmartThings and Home Assistant
- 16A / 3840W maximum resistive load for water heaters and underfloor heating

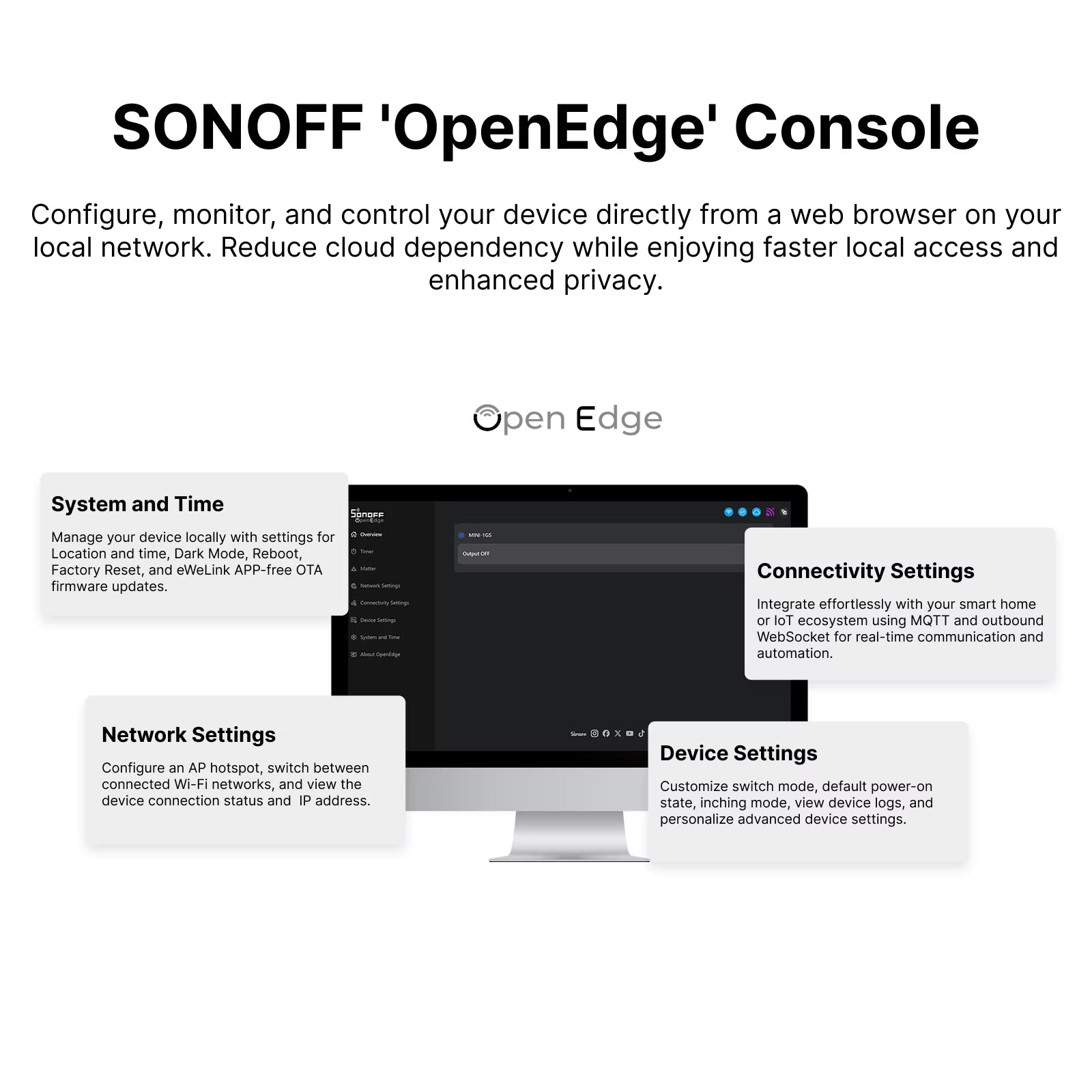

- Local web control from any browser on your network, with no app or cloud required

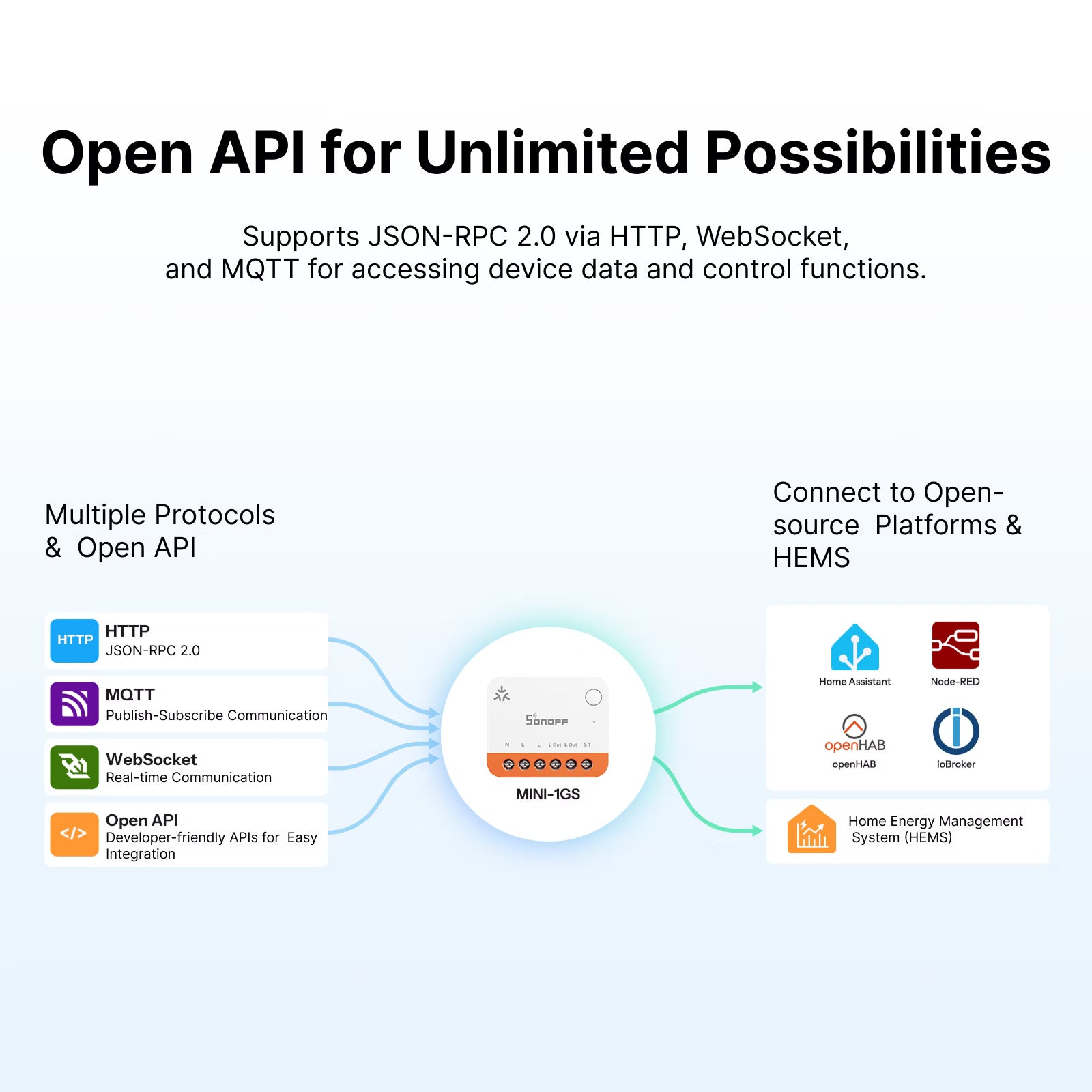

- Open API over HTTP (JSON-RPC 2.0), WebSocket and MQTT, with Home Assistant MQTT Discovery and OpenHAB integration
- Built-in overheat protection that cuts power when the temperature gets too high
- Keeps your existing wall switch, supporting toggle and momentary switches
- Detach relay mode keeps smart lights powered even when the wall switch is turned off
- Delayed power-on to limit high inrush current after a power outage
- Voice control, timers, schedules and scenes
- Compact 39.5 × 33 × 16.8 mm body fits EU round boxes and 86/120-type wall boxes
Technical Specifications
| Specification |
Details |
| Model |
MINI-1GS |
| Product Name |
MINI ONE (Matter over Wi-Fi version) |
| Product Series |
MINI Extreme Series Gen5 |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter |
| Rating |
16A 100–240V~ 50/60Hz (max. resistive load) |
| Max. Load |
3840W |
| Max. Current |
16A |
| Output |
1 relay channel (two parallel L Out terminals) |
| Neutral Wire |
Required |
| External Switch Types |
Toggle and momentary |
| Local Control & API |
Local web console; HTTP (JSON-RPC 2.0), WebSocket, MQTT |
| Recommended Wire Gauge |
18–14 AWG (0.75–2.5 mm²), solid or stranded copper conductor only |
| Installation |
Indoor concealed installation |
| Housing Material |
PC |
| Color |
White + Orange |
| Dimensions |
39.5 × 33 × 16.8 mm |
| Net Weight |
27.5 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
10% ~ 90% RH, non-condensing |
| FCC ID |
2APN5-MINI1GSP |
| Certifications |
CE, RoHS, FCC |
Why Choose the SONOFF MINI-1GS?
- Handles demanding 16A loads such as water heaters and underfloor heating
- Matter support for cross-platform control in Apple Home, Alexa, Google Home, SmartThings and Home Assistant
- Local web control and an open API for privacy and custom automation
- Fits behind existing switches without replacing them
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
