Description

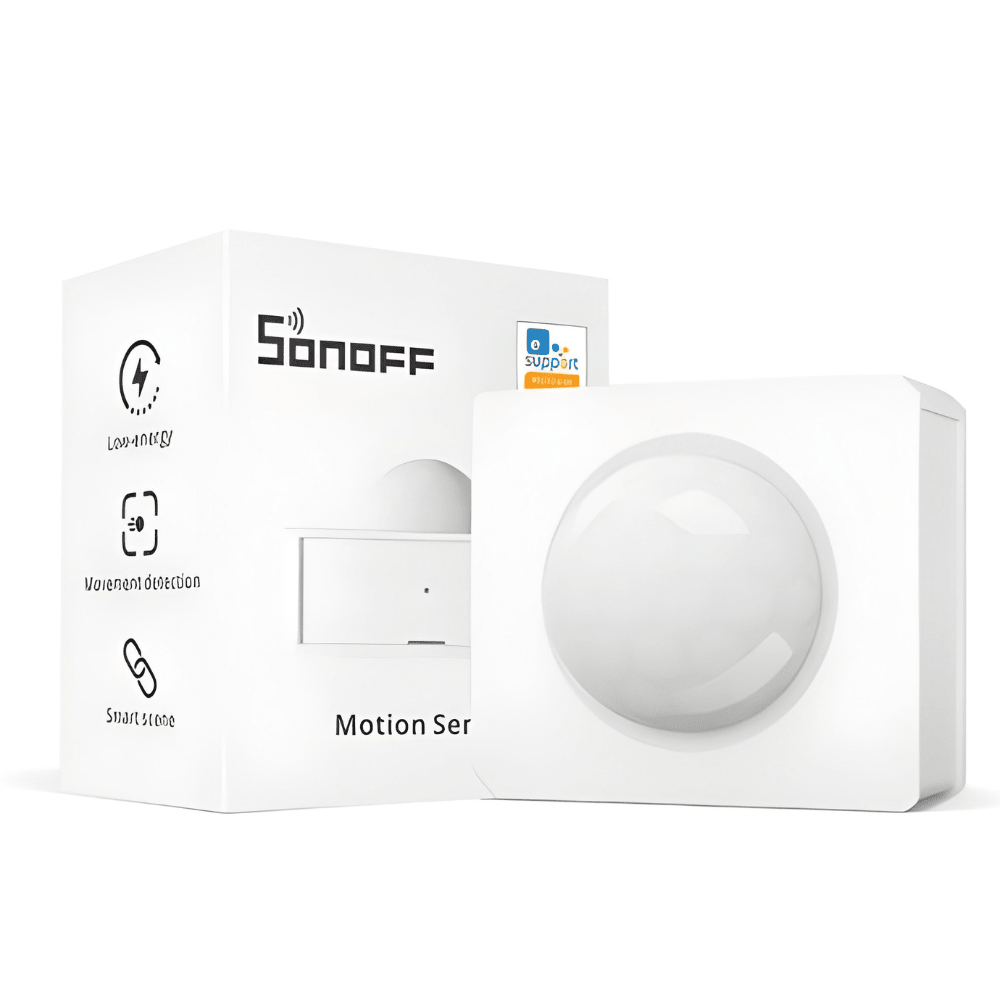

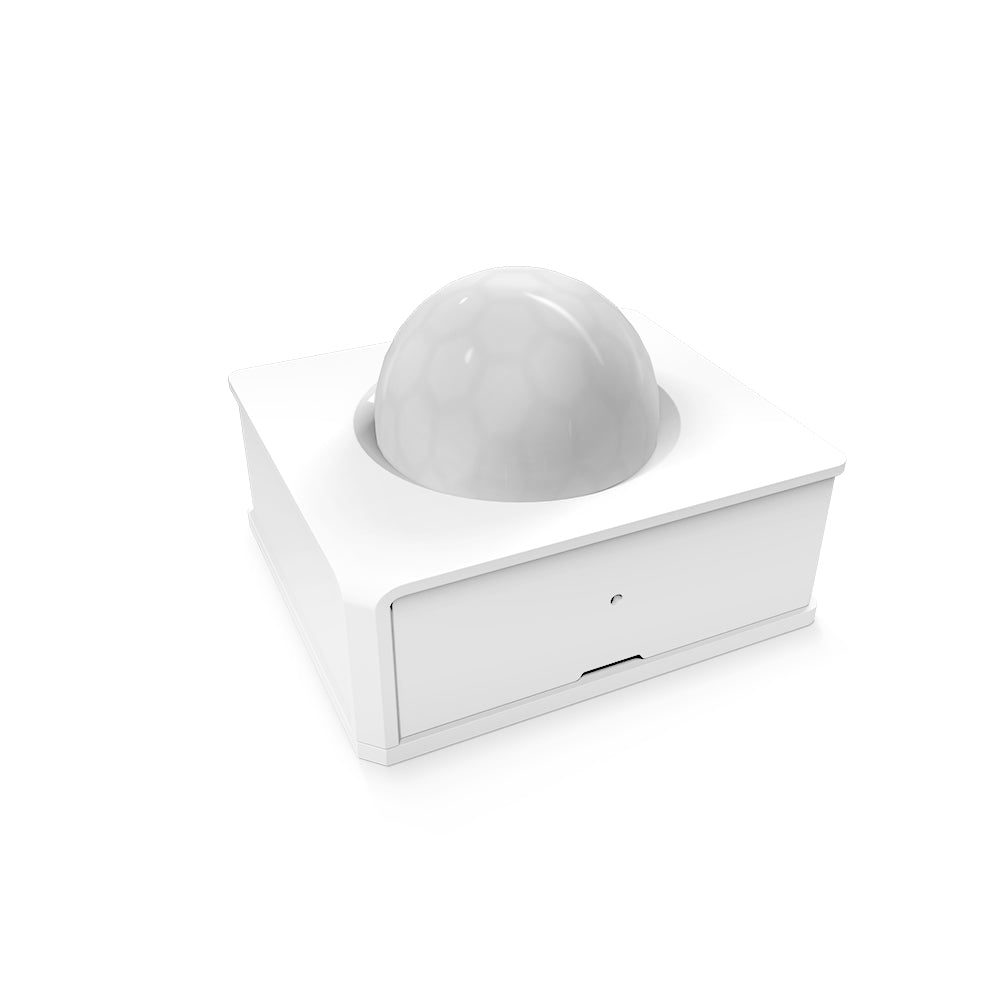

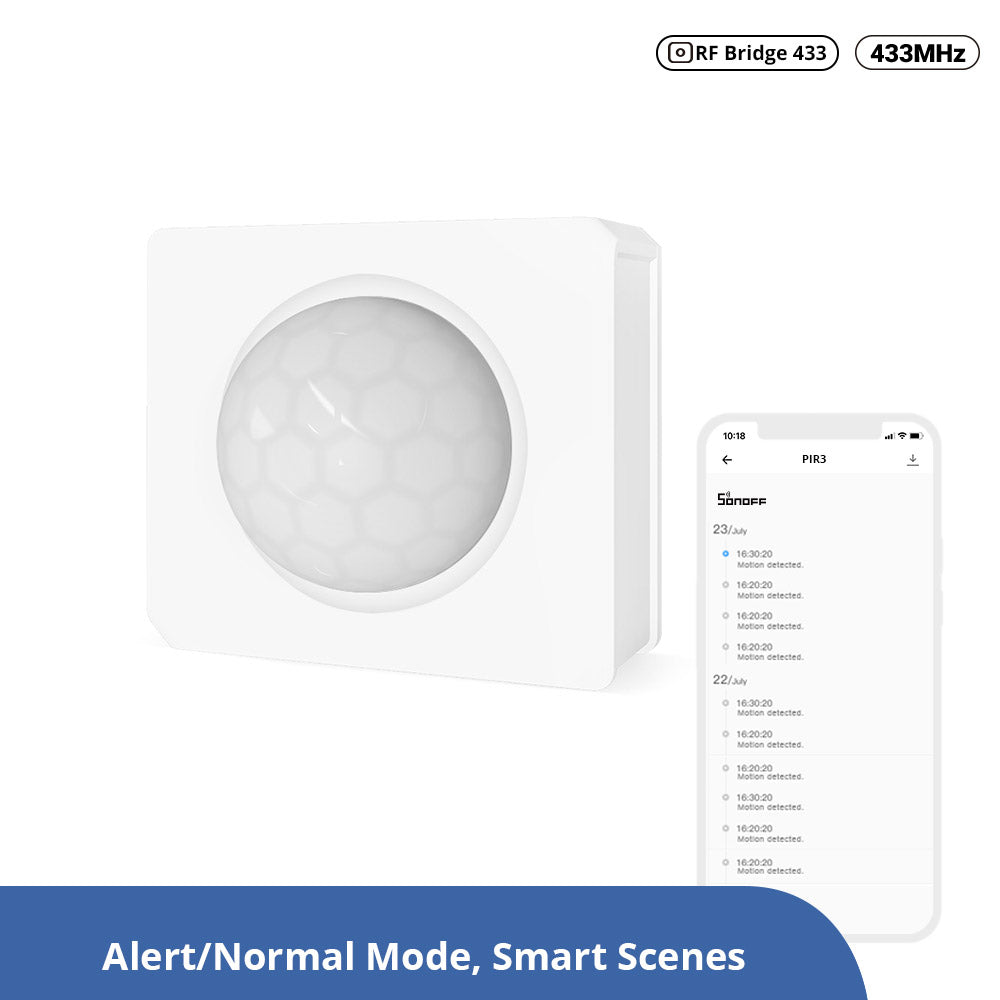

The SONOFF PIR3-RF is a battery-powered wireless PIR motion sensor that communicates on 433MHz RF. When it detects movement, it can trigger compatible SONOFF RF devices for smart lighting, alarms, security notifications and automation scenes.
With no wiring needed, you can place it in hallways, entrances, rooms, offices and garages. It detects motion up to 8 m away with a 100° detection angle, and works with SONOFF RF gateways to bring alerts and scenes into the eWeLink app. It is available on its own or together with the SONOFF PIR-BASE adjustable mounting bracket.
Note: to receive alerts and create scenes in the eWeLink app, you need a SONOFF 433MHz RF Bridge (see "Works With" below).

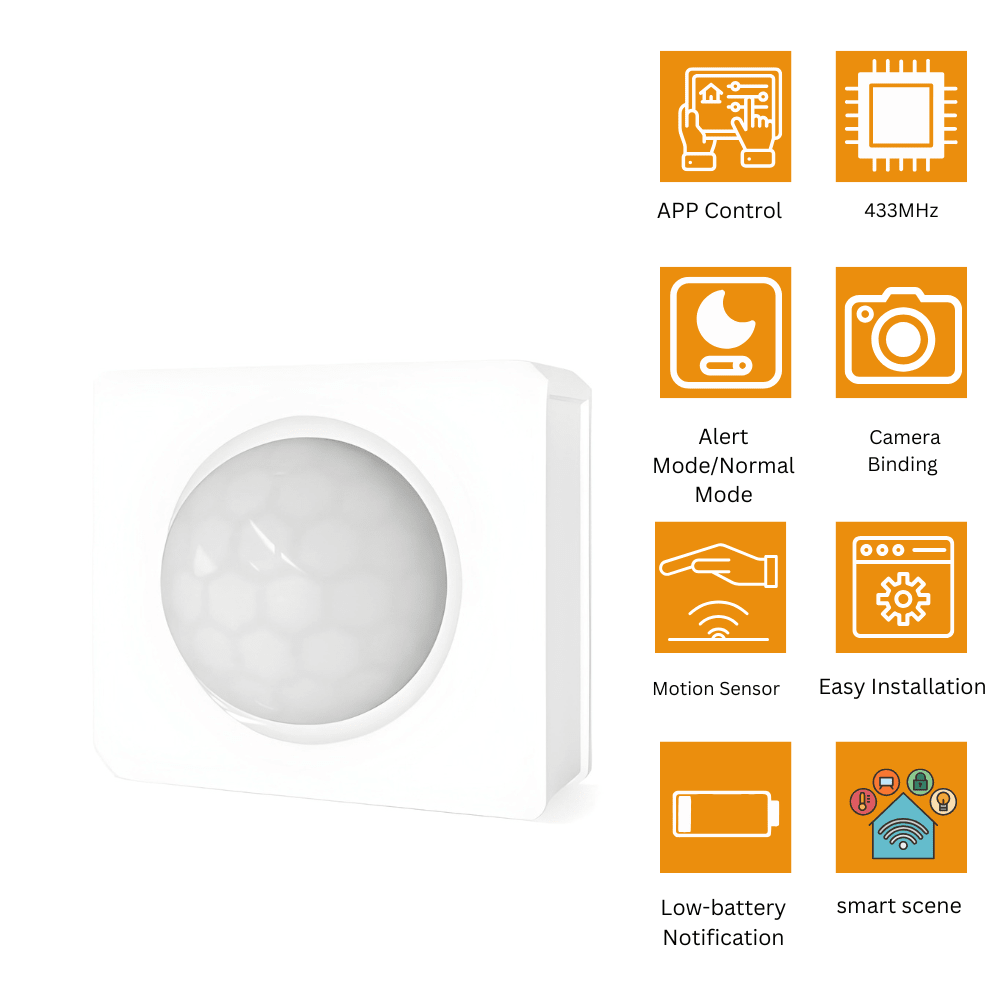

Key Features
- PIR motion detection up to 8 m with a 100° detection angle
- 433MHz RF wireless communication
- Battery-powered (CR2450 battery included), no wiring required
- Triggers compatible SONOFF RF devices for lights, alarms and scenes

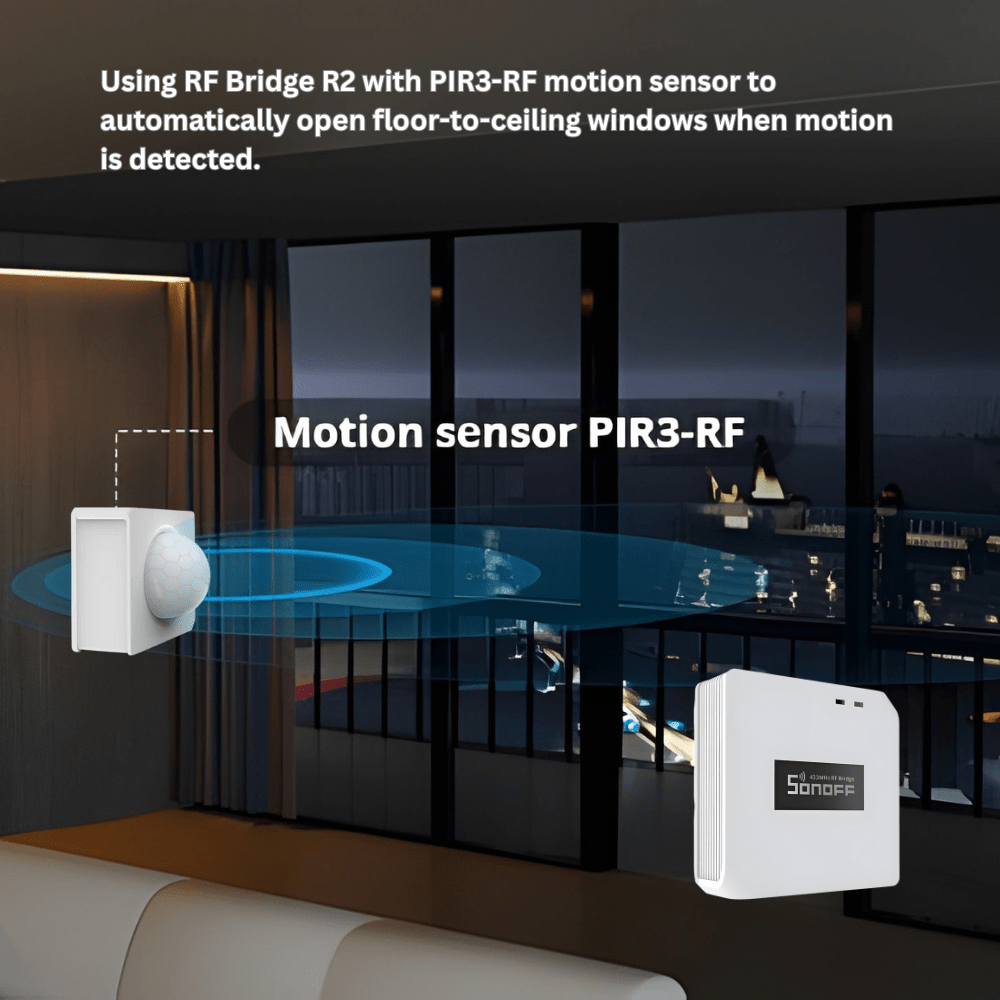

- Works with the SONOFF RF Bridge for eWeLink app alerts and automations
- Compact wall-mount design for hallways, entrances, rooms, offices and garages
- Energy-efficient, low-power operation

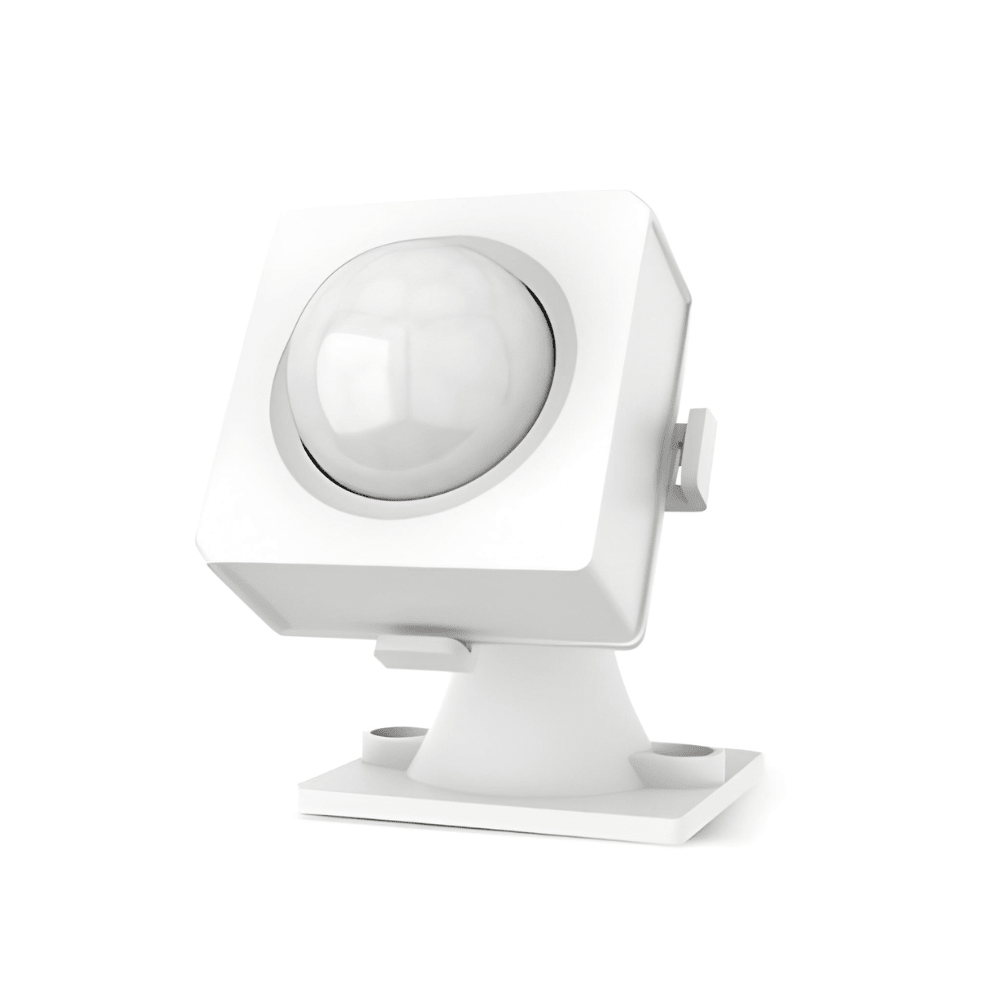

- Optional PIR-BASE bracket for flexible angle adjustment
Works With
-
SONOFF RF Bridge: RF BridgeR2 (connects the sensor to the eWeLink app)
-
SONOFF 433MHz RF devices: compatible SONOFF RF receivers and smart switches
-

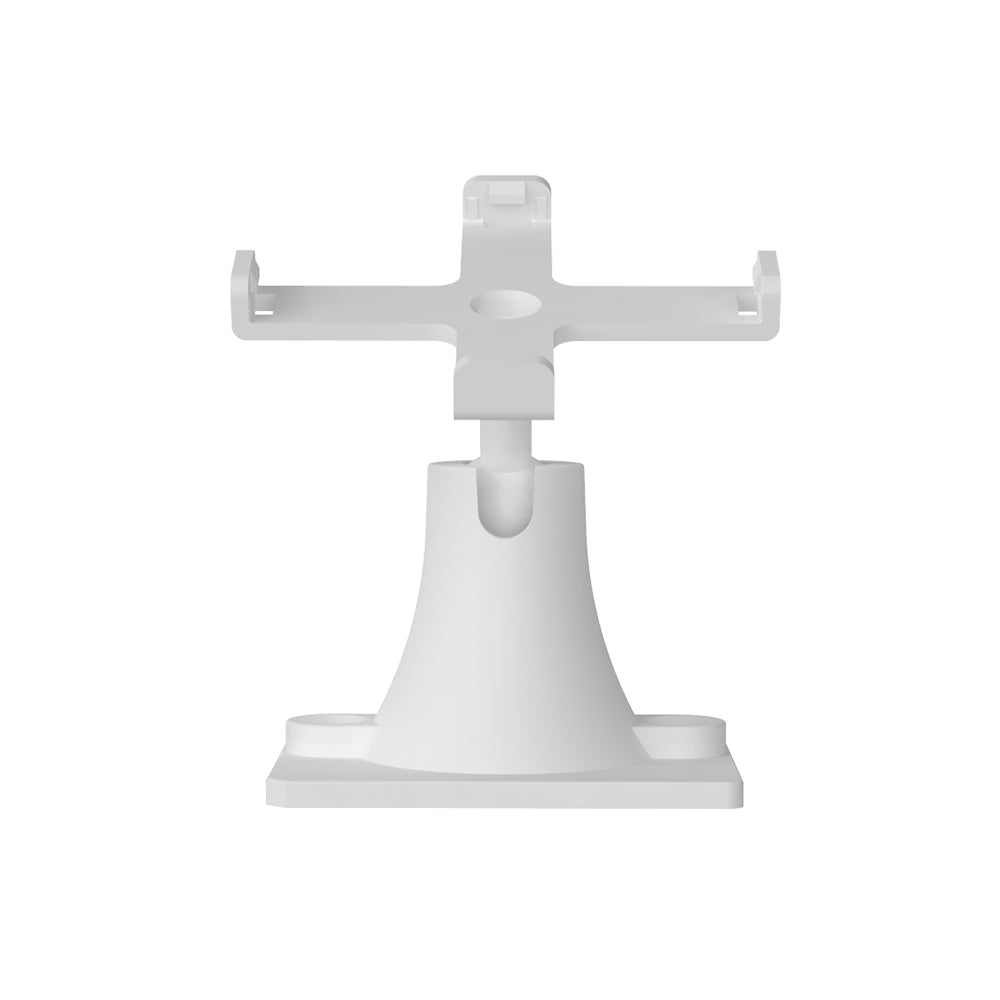

Mounting accessory: PIR-BASE adjustable mounting bracket
Technical Specifications
| Specification |
Details |
| Model |
PIR3-RF |
| Sensor Type |
PIR motion detection |
| Wireless Frequency |
433MHz RF |
| Detection Distance |
Up to 8 m |
| Detection Angle |
100° |
| Power Supply |
Battery-powered (CR2450, included) |
| Working Temperature |
-10°C ~ 40°C |
| Working Humidity |
10–90% RH, non-condensing |
| Installation |
Wall mount |
| Casing Material |
PC V0 |
| Color |
White |
| Variants |
PIR3-RF only / PIR3-RF with PIR-BASE bracket |
Why Choose the SONOFF PIR3-RF?
- Wire-free motion detection that installs in minutes
- Triggers lights, alarms and scenes through SONOFF RF devices
- Low-power design for long battery life
- Connects to the eWeLink app through the RF Bridge
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
