Description

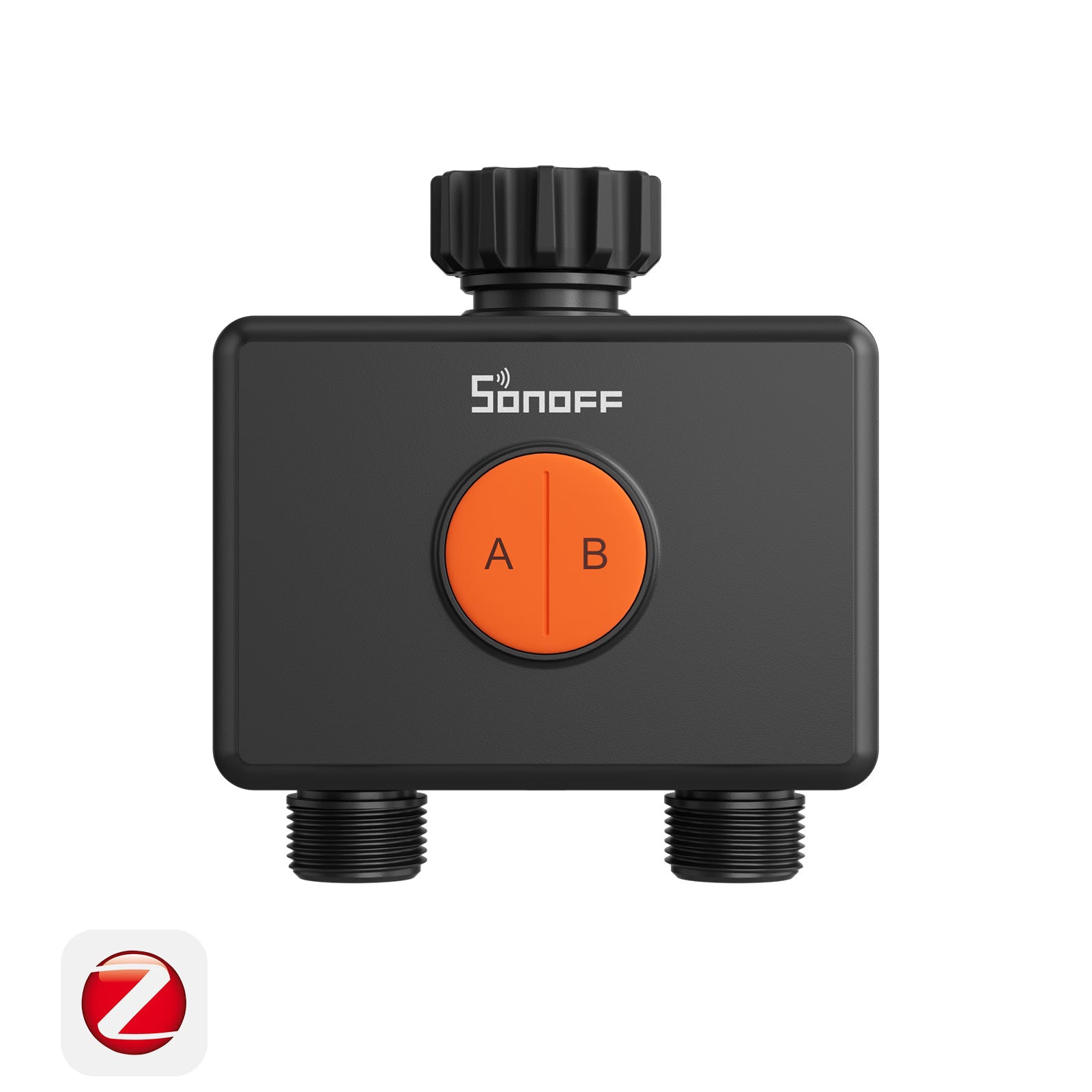

The SONOFF Hydro DUO (SWV-ZF2E) is a dual-channel Zigbee smart water valve with a built-in flow meter that manages two irrigation zones independently from a single tap. Each channel runs its own watering plan, with up to 6 schedules per channel and timed or volume-based watering.

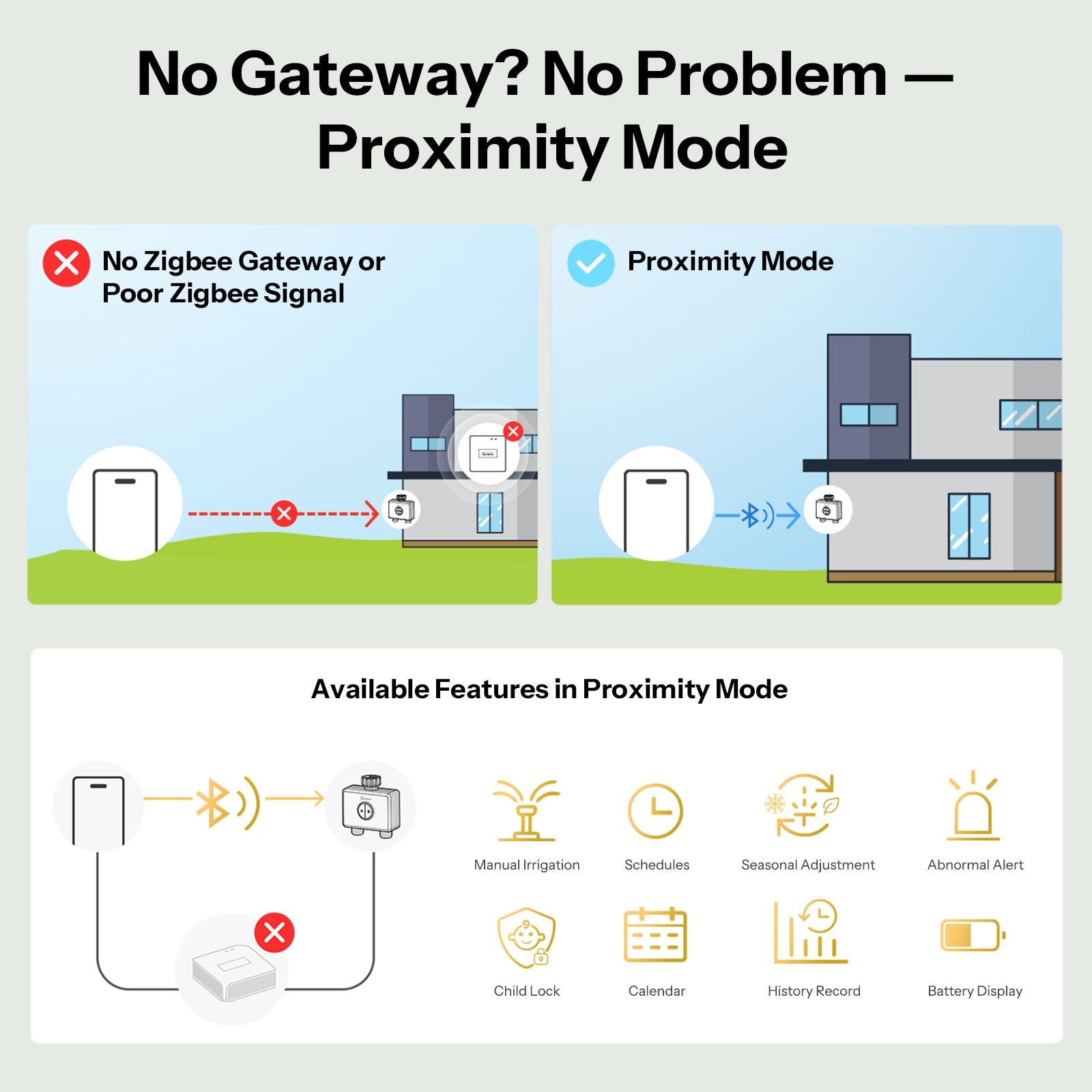

It connects over Zigbee 3.0 and Bluetooth Low Energy (BLE), so schedules and manual control remain available through a proximity connection even without a gateway. Weather-based and seasonal adjustments save water, app alerts warn of low battery, frost, water shortage or leakage, and the IP65 housing with a brass inlet is built for outdoor use. This listing is the EU version (SWV-ZF2E).
Note: a Zigbee gateway is required for remote control and smart home integration (see "Works With" below). The EU and US versions have different inlet/outlet thread specifications and are not interchangeable.

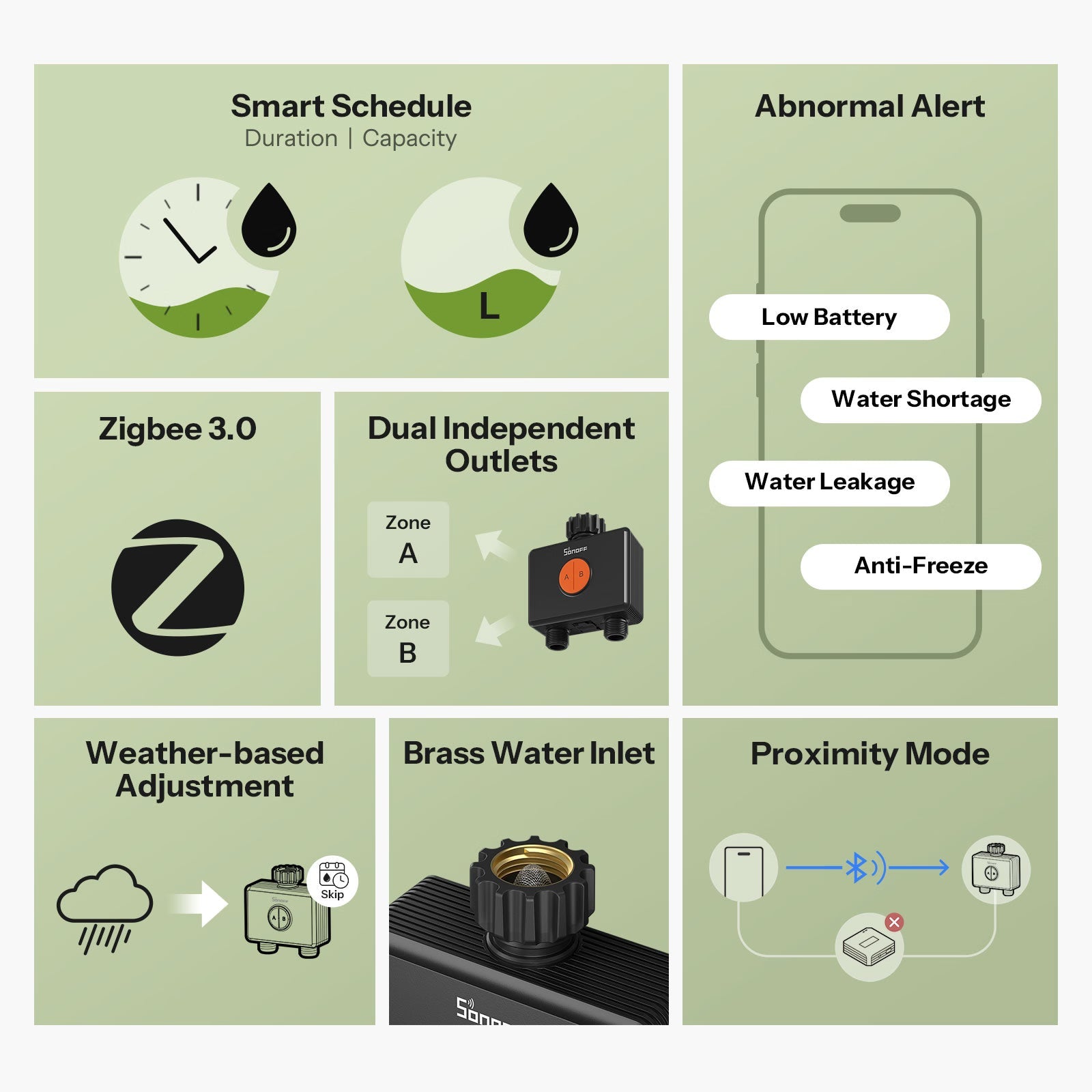

Key Features
- Two independent channels for dual-zone watering with separate plans
- Up to 6 schedules per channel (12 in total), timed or volume-based
- Built-in flow meter (2–45 L/min) with up to 6 months of water usage data per zone
- Weather-based watering: schedules in the next 24 hours pause when severe weather is expected
- Seasonal adjustment with a monthly watering multiplier for each zone
- Real-time alerts for low battery, frost risk, water shortage or leakage
- Built-in child lock against accidental operation
- Zigbee 3.0 plus BLE proximity control without a gateway
- Upgraded brass inlet with anti-slip textured surface and IP65 rating
- Runs on 4 × AA batteries or USB Type-C (5V 1A); about 1 year of battery life (2 uses per day, 30 minutes each)

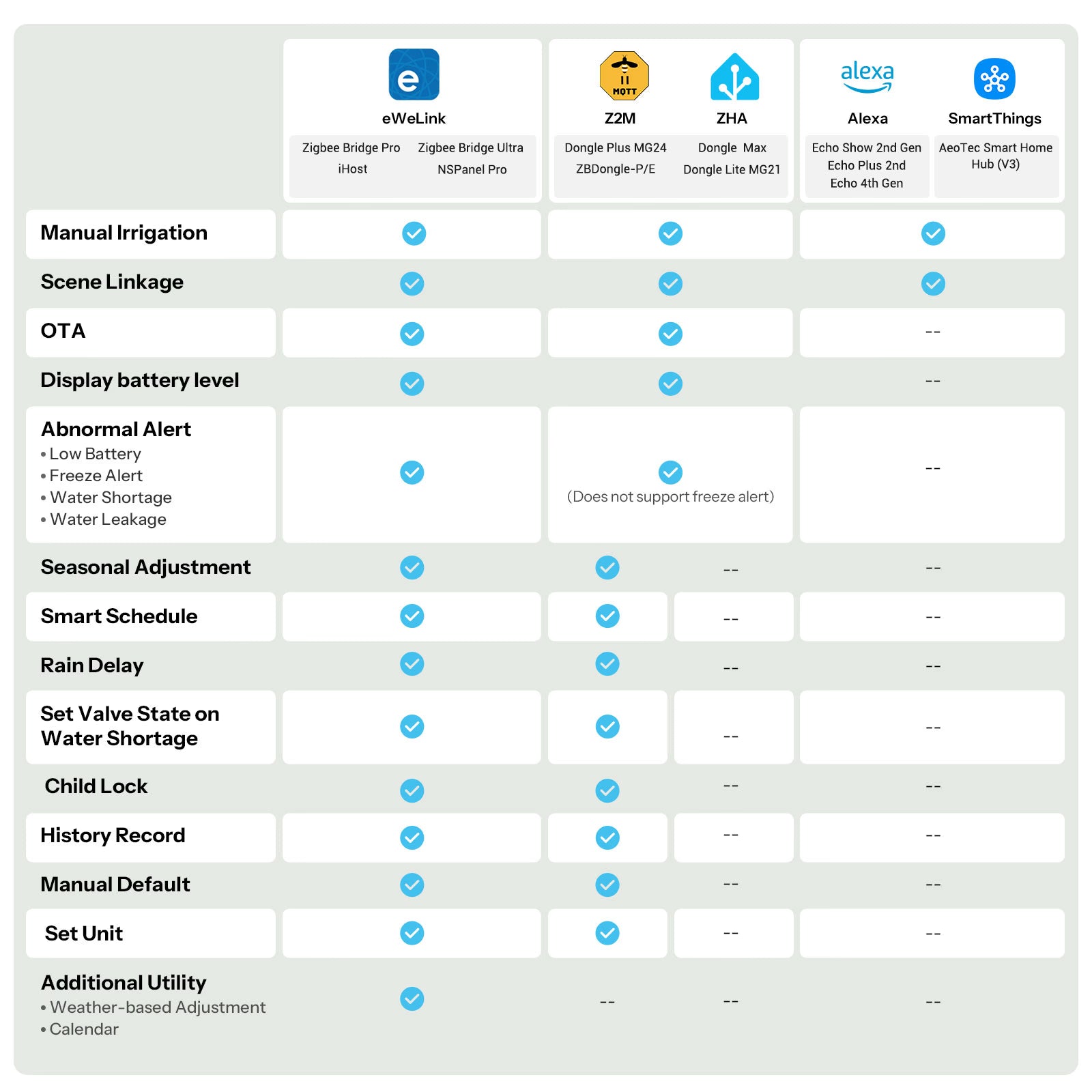

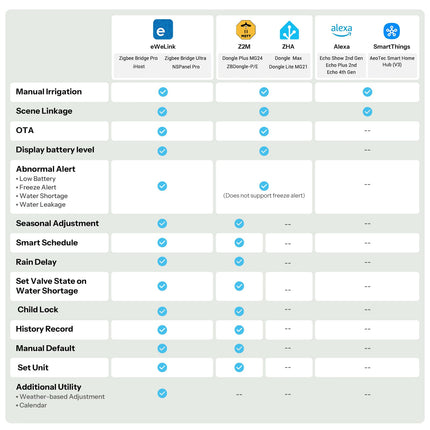

Works With
-
SONOFF Zigbee gateways: such as ZBBridge-U
-

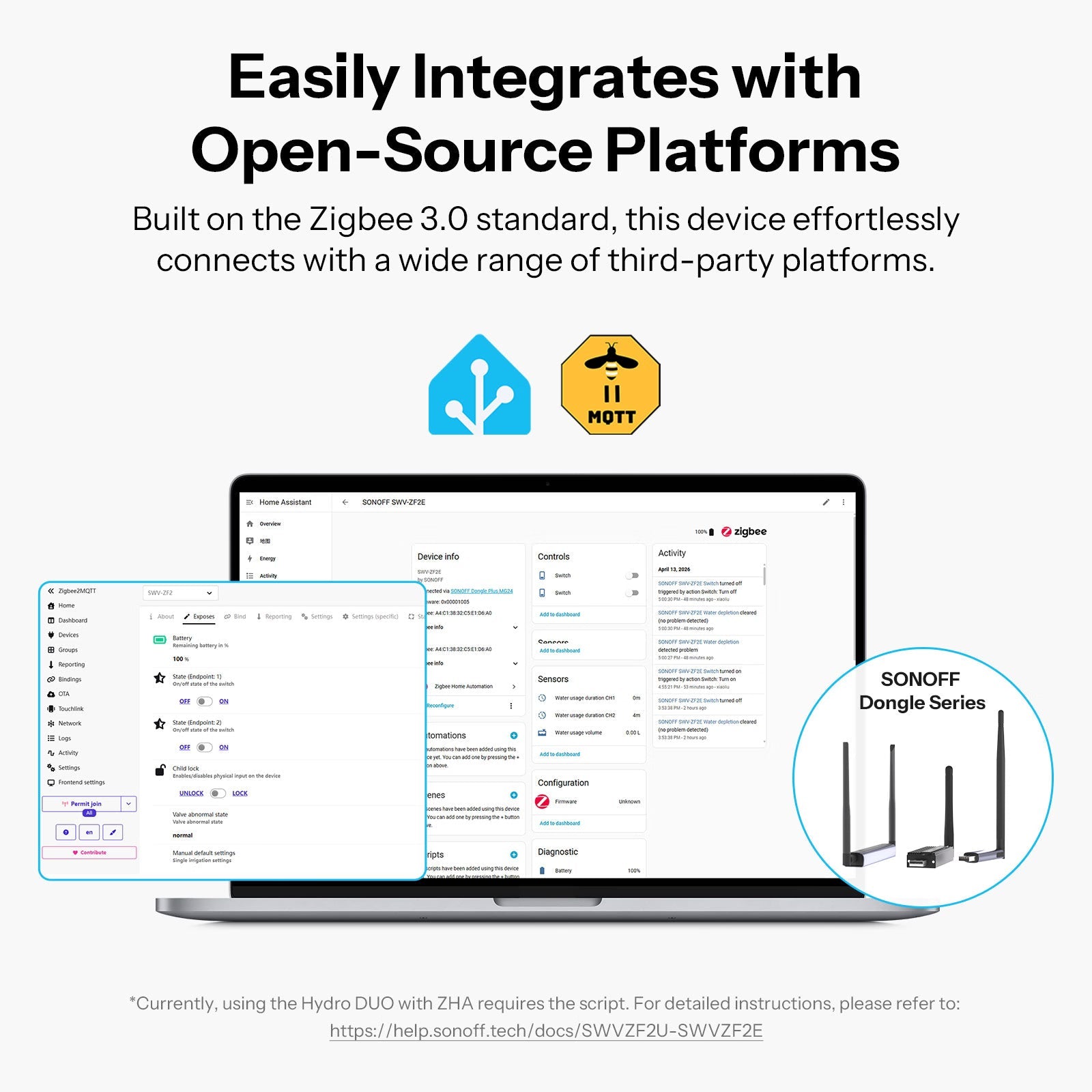

Home Assistant: through a SONOFF Zigbee dongle such as ZBDongle-P or ZBDongle-E
-
Apple Home: through a Matter bridge such as ZBBridge-U, iHost or CUBE OS with a SONOFF Zigbee dongle
-
Google Home, Alexa and SmartThings: through a gateway

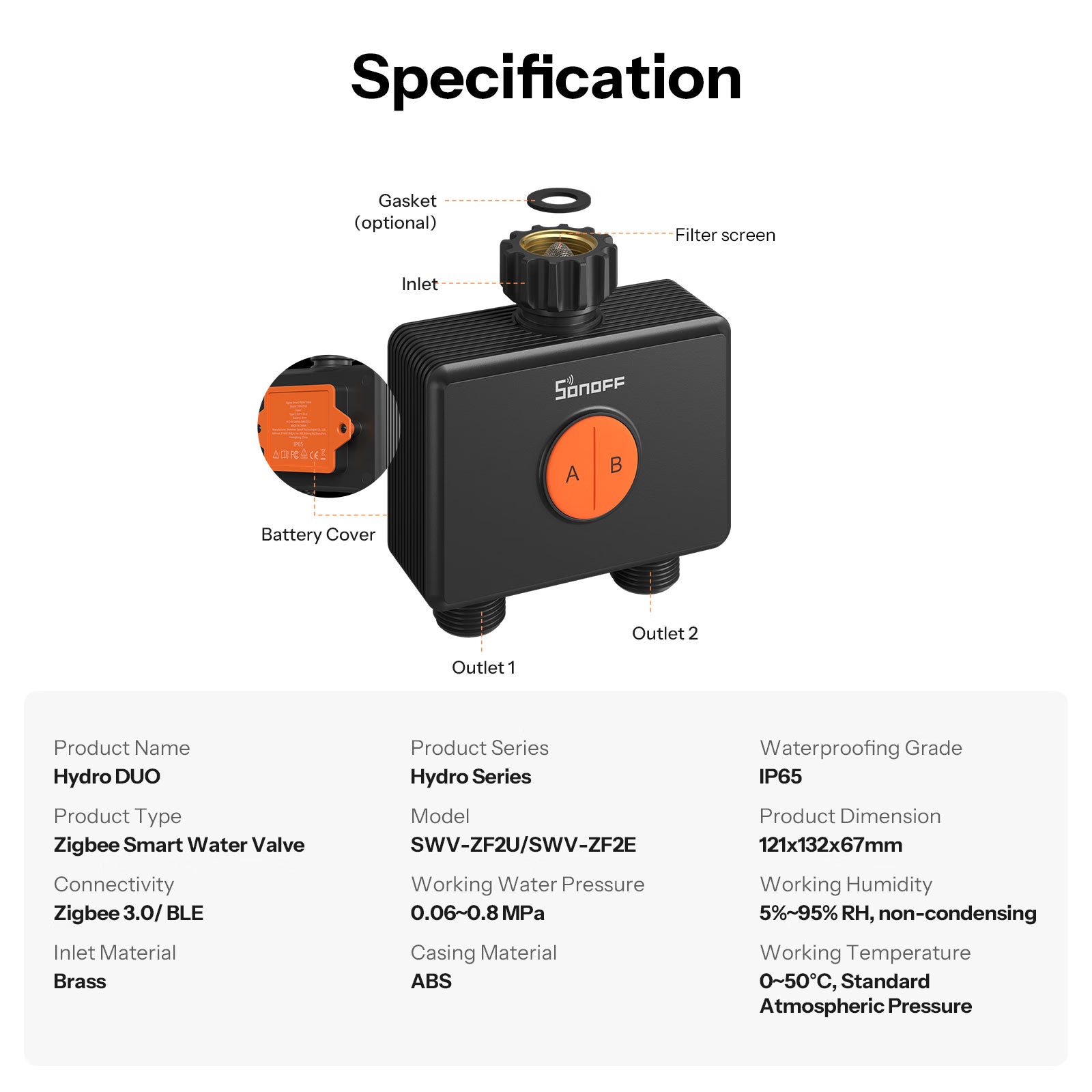

Technical Specifications
| Specification |
Details |
| Model |
SWV-ZF2E (EU version) |
| Product Name |
Hydro DUO |
| Product Series |
Hydro Series |
| Channels |
2 (independent zones) |
| MCU |
TLSR8258F1KAT32 |
| Wireless Protocol |
Zigbee 3.0 / BLE (Bluetooth Low Energy) |
| Power Input |
3V ⎓ (4 × 1.5V AA batteries, 2S2P) / USB Type-C 5V 1A |
| Battery Life |
About 1 year (2 uses per day, 30 minutes each) |
| Flow Meter Range |
2–45 L/min |
| Working Water Pressure |
0.06–0.8 MPa |
| Thread |
BSP G3/4-14 (3/4" nominal size) |
| Port Diameter |
Inner 18 mm / Outer 26 mm |
| Waterproof Rating |
IP65 |
| Dimensions |
121 × 132 × 67 mm |
| Casing Material |
ABS |
| Color |
Black + Orange |
| Working Temperature |
0°C ~ 50°C |
| Working Water Temperature |
5°C ~ 40°C |
| Working Humidity |
5% ~ 95% RH, non-condensing |
| Working Altitude |
Below 2,000 m |
| Certifications |
CE, FCC, RoHS |
Why Choose the SONOFF Hydro DUO?

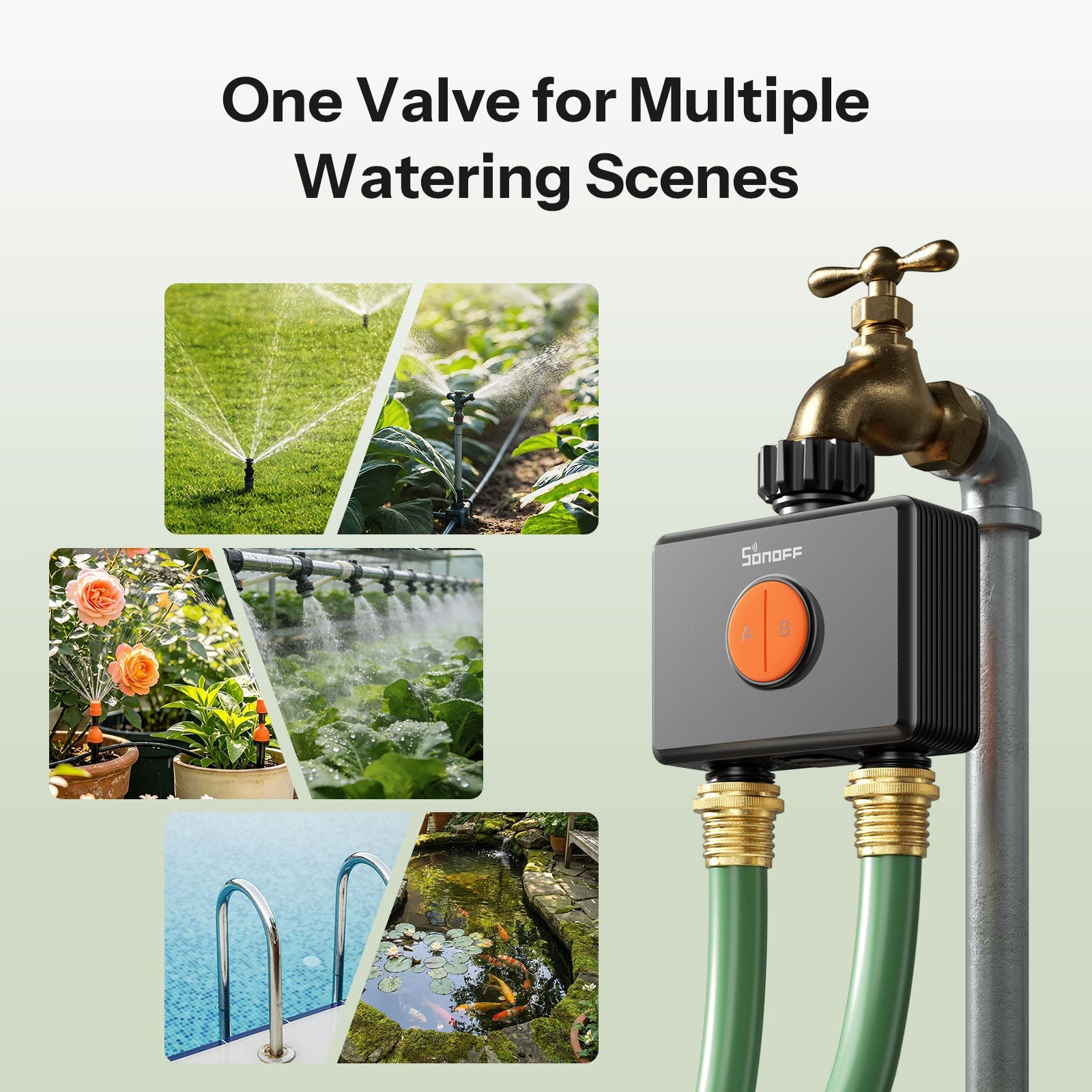

- Water two garden zones independently from one tap
- Accurate flow measurement and usage data help you save water
- Weather-aware and seasonal schedules protect your plants
- Leak, frost and water-shortage alerts with child lock for peace of mind
- Keeps working through BLE proximity control even without a gateway
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
