Description

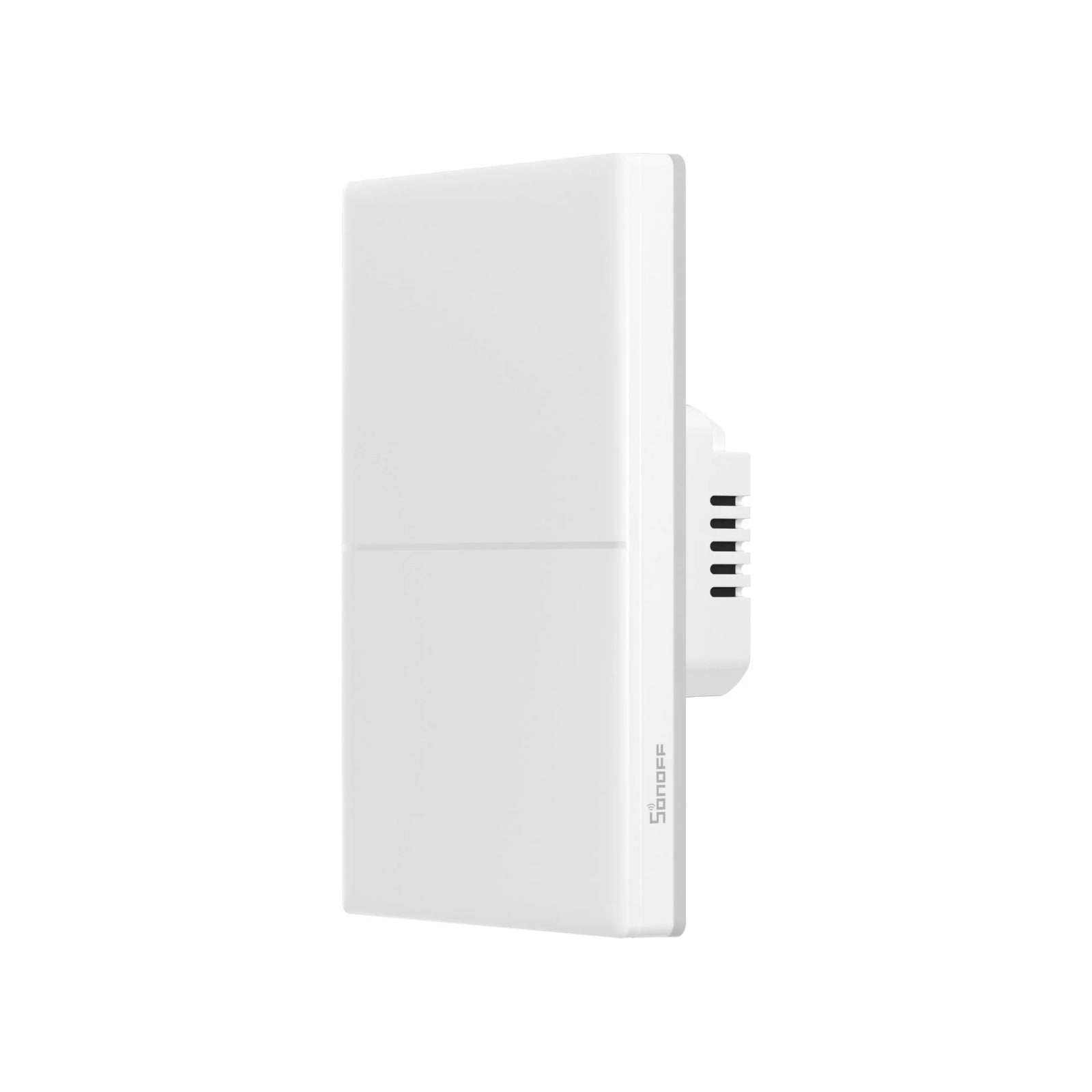

The SONOFF TX Ultimate Smart Touch Wall Switch 2 Gang (T5-2C-120) is a Wi-Fi full-touch wall switch for 120-type wall boxes (120 × 74 × 39 mm) with 2 touch channels. Its LED edge lights show the switch status and offer customisable RGB effects, and every touch gives light, sound and vibration feedback.
Besides switching lights, it can control smart curtains with adjustable open/close percentages. With the eWeLink app you can control it from anywhere, set timers and schedules, share it with family and link it into smart scenes, or use your voice with Amazon Alexa and Google Assistant.
Note: connects to 2.4GHz Wi-Fi and is set up with the eWeLink app. Also available in 1 Gang, 3 Gang and 4 Gang versions.
Installation requirement: a neutral wire (N) is required. This switch needs both live (L) and neutral (N) wires in the wall box; please check your wiring or ask an electrician before ordering.
Key Features

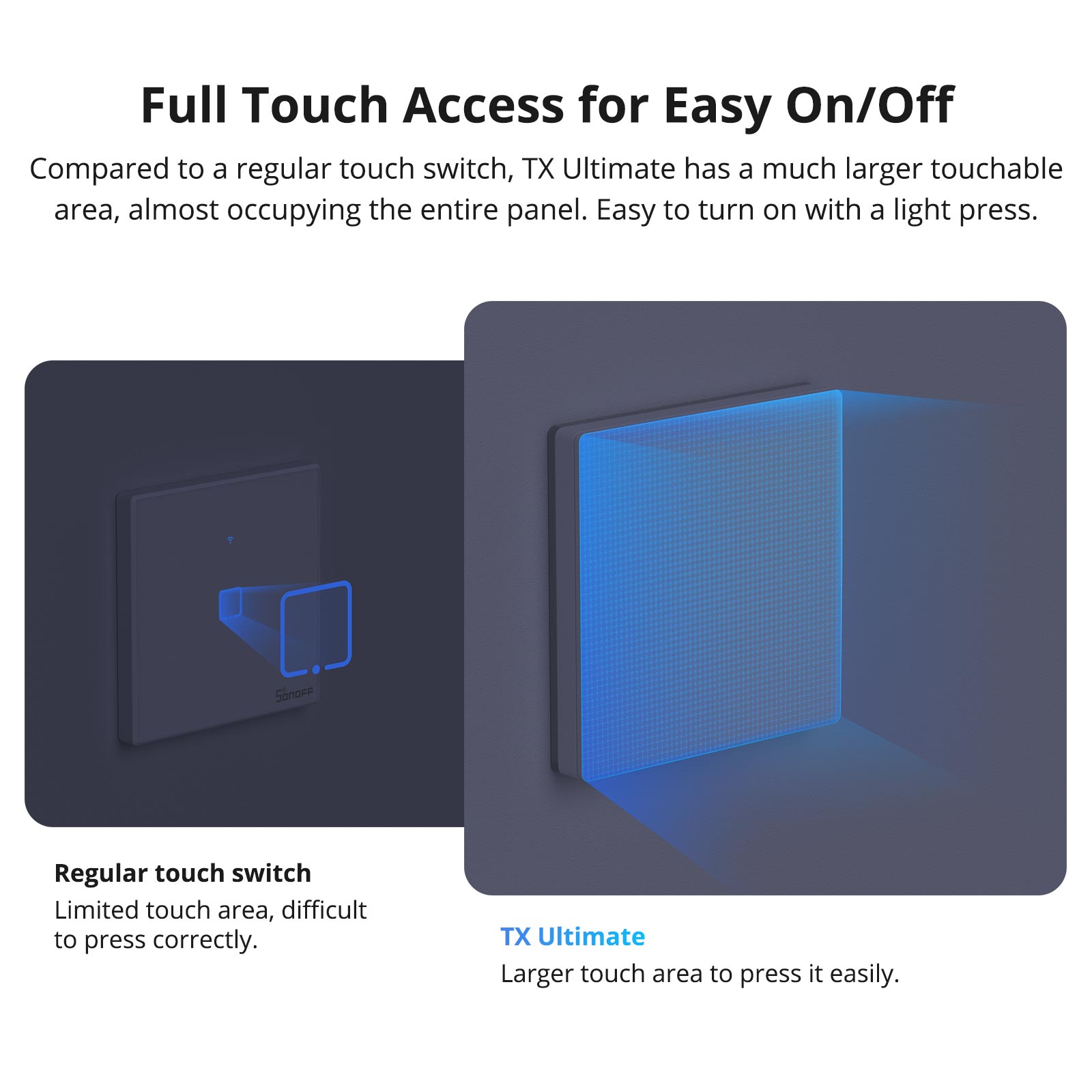

- 2-gang full-touch control
- Dual working modes: light switch or smart-curtain control with adjustable open/close percentages
- LED edge lights that show the switch status, with customisable effects and colours
- 8 RGB ambient light modes that can also serve as a night light
- Multi-sensory feedback with light, sound and vibration
- Timers, schedules and countdowns in the eWeLink app
- Smart scenes and device sharing with family or friends
- Voice control with Amazon Alexa and Google Assistant
- Up to 5A per gang, 10A total
Technical Specifications
| Specification |
Details |
| Model |
T5-2C-120 |
| Product Name |
TX Ultimate Smart Touch Wall Switch |
| Gangs |
2 |
| Size Type |
120 Type |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| Power Input |
100–240V~ 50/60Hz |
| Max Load |
5A per gang, 10A total |
| Working Modes |
Light switch / curtain control |
| Ambient Light |
LED edge lights, 8 RGB modes |
| Feedback |
Light, sound and vibration |
| Casing Material |
PC + CRS |
| Color |
White |
| Dimensions |
120 × 74 × 39 mm |
| Wiring |
Live (L) + Neutral (N) required |
Why Choose the SONOFF T5-2C-120?
- One switch for both lighting and curtains
- Status and ambient lighting that doubles as a night light
- Satisfying full-touch operation with light, sound and vibration feedback
- Timers, scenes, sharing and voice control through eWeLink
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
