Description

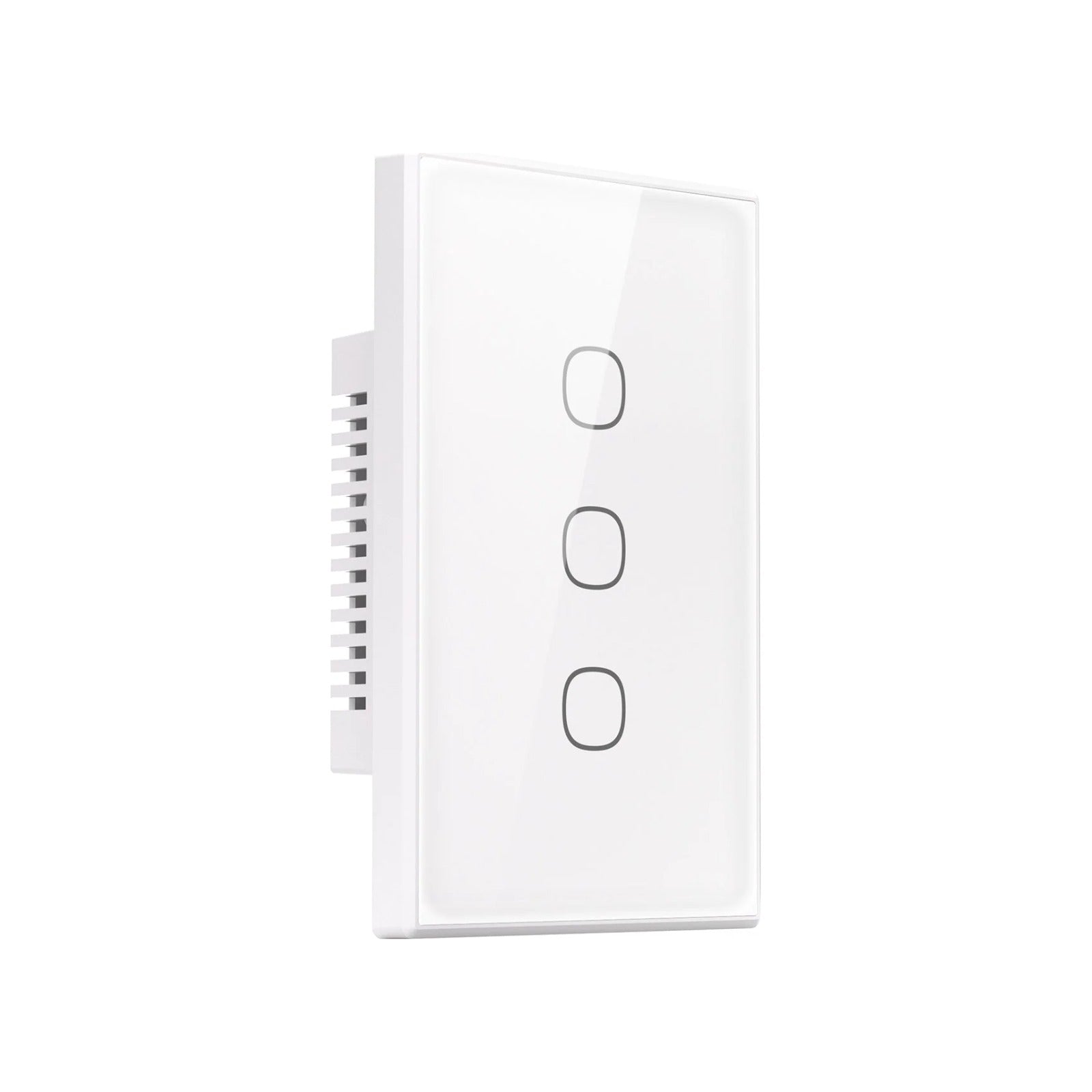

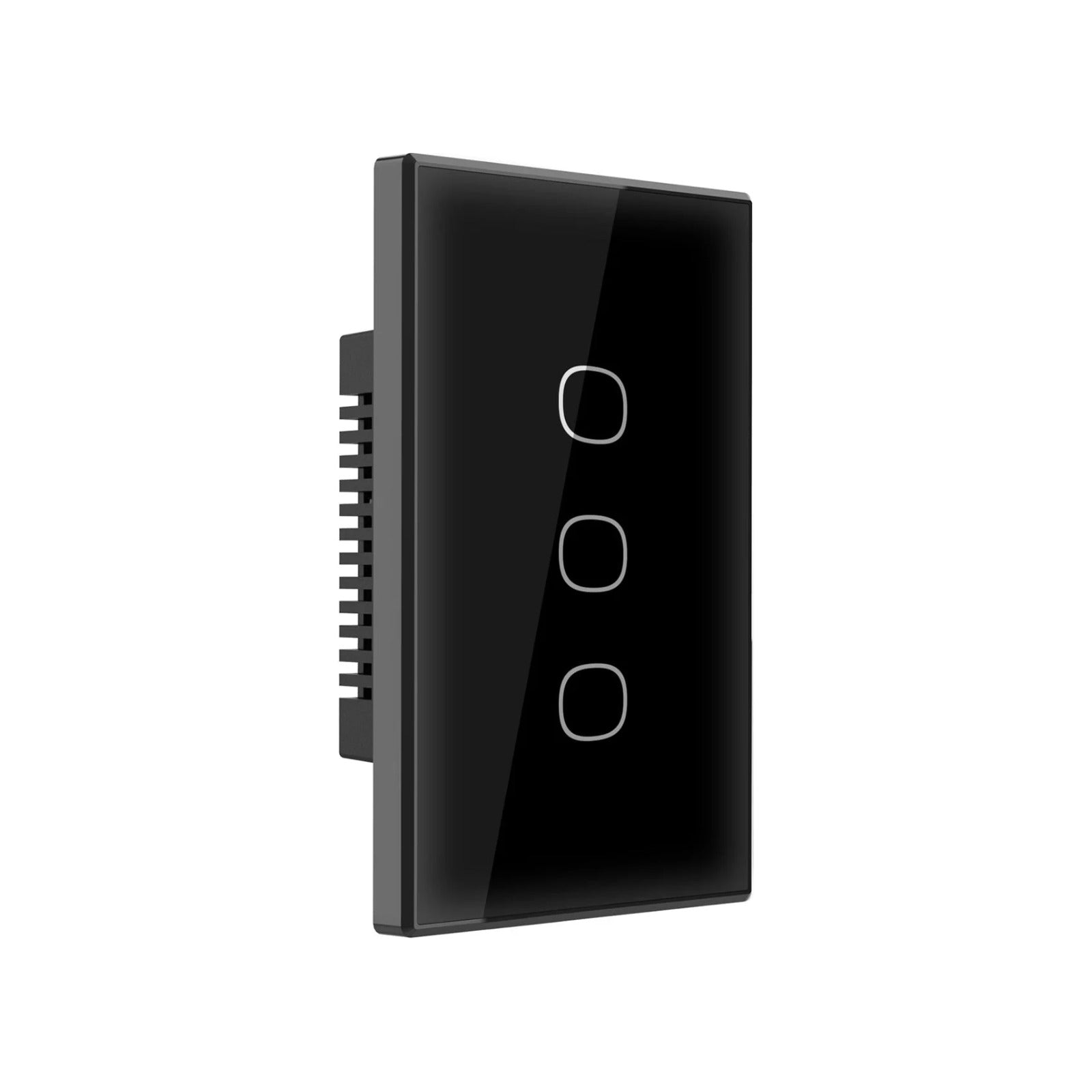

The SONOFF TX Gen2 Smart Touch Wall Switch 3 Gang is a Matter-compatible Wi-Fi touch switch with a glass panel for 120-type wall boxes, with 3 touch buttons. Choose your colour: White (T6-3C-120M) or Black (T6-3C-120MB).
Through Matter it works with Apple Home, Google Home, Amazon Alexa and other Matter platforms, including Siri, iPhone, iPad and Apple Watch. Each gang switches up to 10A, with 16A total (resistive load). Detach Relay Mode keeps smart bulbs online, and the adjustable LED night locator makes the switch easy to find in the dark.

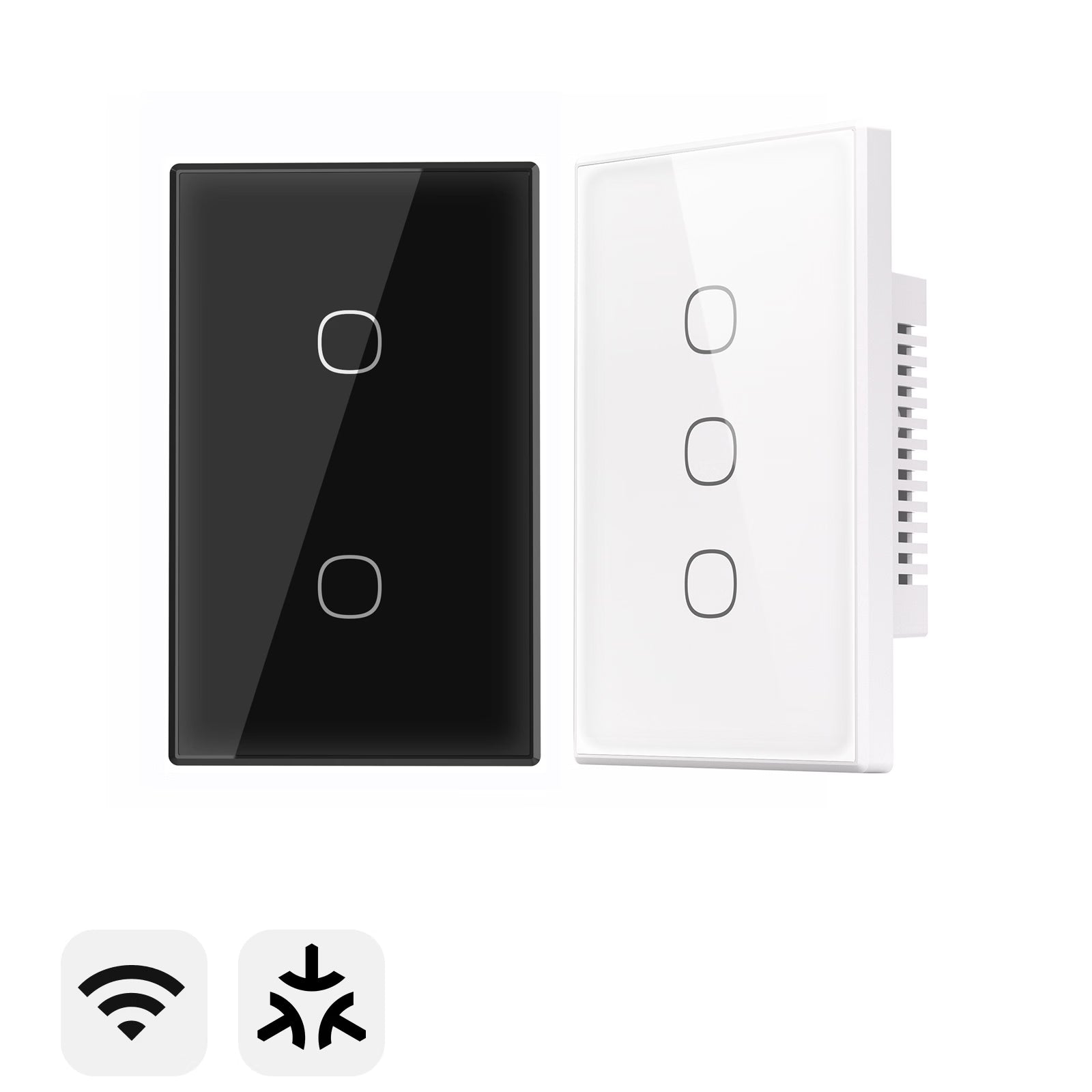

Note: a neutral wire and a 2.4GHz Wi-Fi network are required. Also available in 1 Gang and 2 Gang versions.
Key Features
- Matter over Wi-Fi: works with Apple Home, Google Home, Amazon Alexa and other Matter platforms
- Apple ecosystem control with Siri, iPhone, iPad and Apple Watch
- 3-gang glass touch panel for 120-type wall boxes, in White or Black
- Each gang switches up to 10A, with 16A total (resistive load)
- Detach Relay Mode: the buttons are separated from the relay, so smart lights stay online and controllable
- Night switch locator: LED indicator with adjustable brightness
- Smart scenes across the SONOFF and Matter ecosystems
- Remote control, timers and schedules in the eWeLink app
Technical Specifications
| Specification |
Details |
| Model |
T6-3C-120M (White), T6-3C-120MB (Black) |
| Product Name |
TX Gen2 Smart Touch Wall Switch |
| Product Series |
TX Series |
| Gangs |
3 |
| Wall Box Type |
120 Type |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter |
| MCU |
BK7238 |
| Rating |
100-240V~ 50/60Hz, 10A max per gang, 16A total (resistive load) |
| LED Load |
150W@100V / 300W@240V per gang; total 450W@100V / 900W@240V |
| Neutral Wire |
Required |
| Recommended Wiring |
16AWG to 11AWG solid/stranded copper conductor only |
| Casing Material |
PC + Glass |
| Color |
White / Black |
| Dimensions |
120 × 74 × 37.7 mm |
| Net Weight |
149.5 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
Why Choose the SONOFF T6-3C-120M?
- Cross-platform control through Matter
- Detach Relay Mode for smart bulbs
- Elegant glass panel in White or Black with an adjustable night locator
- Same price for both colours
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
