Description

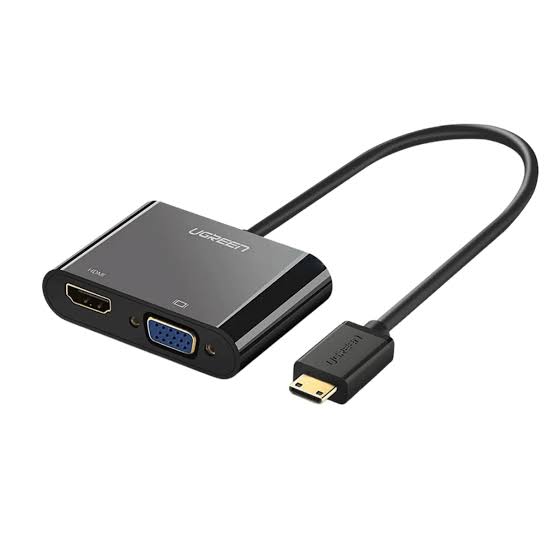

The UGREEN CM101 is a 4-in-1 HDMI converter designed to connect an HDMI source device to an external display through either HDMI or VGA. It provides flexible video connectivity while also offering a 3.5mm audio output and a Micro-USB power port for low-power HDMI source devices.
The HDMI output supports up to 4K@30Hz, while the VGA output supports up to 1920 × 1200 or 1080P@60Hz. The compact design makes it suitable for connecting laptops, desktops, media players, and other HDMI-equipped devices to different types of displays.
Key Features
-
4-in-1 Connectivity: Converts one HDMI source into HDMI, VGA, 3.5mm audio, and optional Micro-USB power connections.
-
HDMI Output: Supports up to 4K@30Hz, 3D, and HDMI 1.4.
-
VGA Output: Supports resolutions up to 1920 × 1200 / 1080P@60Hz.
-

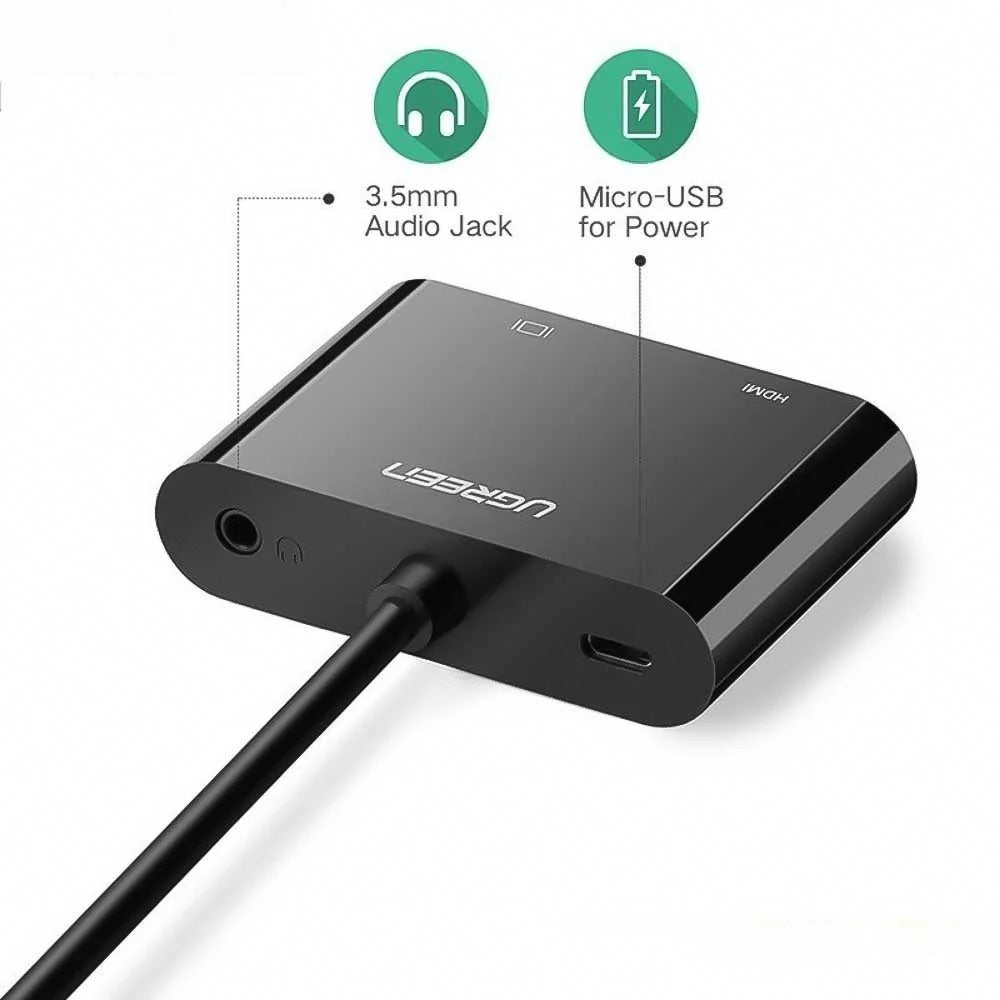

Audio Output: Dedicated 3.5mm audio jack for separate sound transmission.
-
Optional Power: Micro-USB port provides additional 5V power for low-power HDMI source devices.
-
Attached HDMI Cable: Features a built-in 30cm HDMI male cable for convenient connection.
-
Compact Design: Measures only 65 × 45 × 16mm, making it easy to carry and install.
-
Important Note: HDMI and VGA outputs generally cannot display video simultaneously.
Key Features — Short Summary
- HDMI male input with 30cm attached cable
- HDMI female output up to 4K@30Hz
- VGA female output up to 1080P@60Hz
- 3.5mm audio output
- Micro-USB 5V auxiliary power
- Supports HDMI 1.4 and 3D
- Compact 65 × 45 × 16mm design
- HDMI and VGA outputs are not generally simultaneous
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM101 |
| Product Number |
40744 |
| Input |
HDMI Male |
| HDMI Output |
HDMI Female, up to 4K@30Hz |
| VGA Output |
VGA Female, up to 1920 × 1200 / 1080P@60Hz |
| Audio Output |
3.5mm |
| Power Port |
Micro-USB, 5V |
| HDMI Standard |
HDMI 1.4 |
| Cable Length |
30cm attached HDMI cable |
| Dimensions |
65 × 45 × 16mm |
| Simultaneous HDMI/VGA |
Not generally supported |
