Description

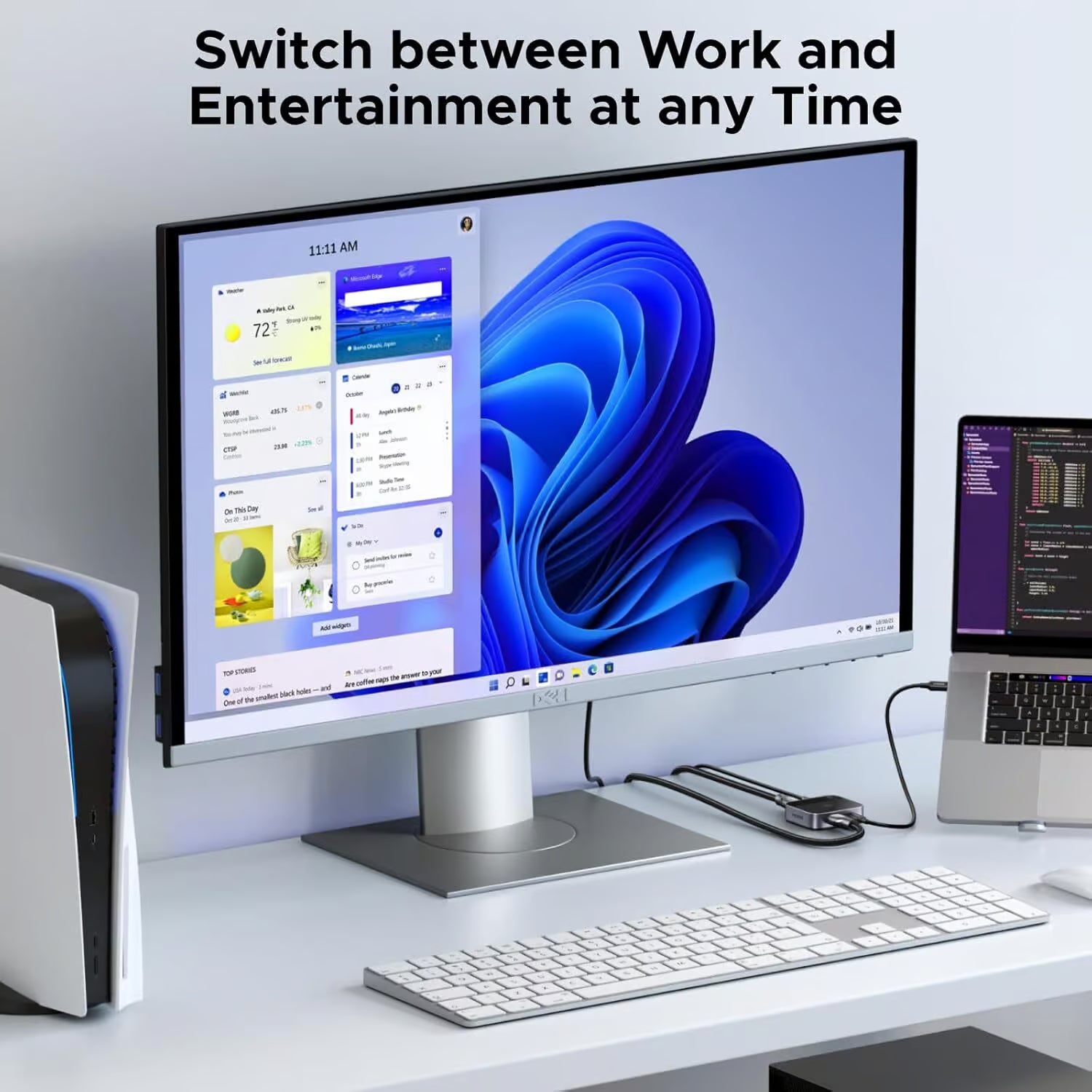

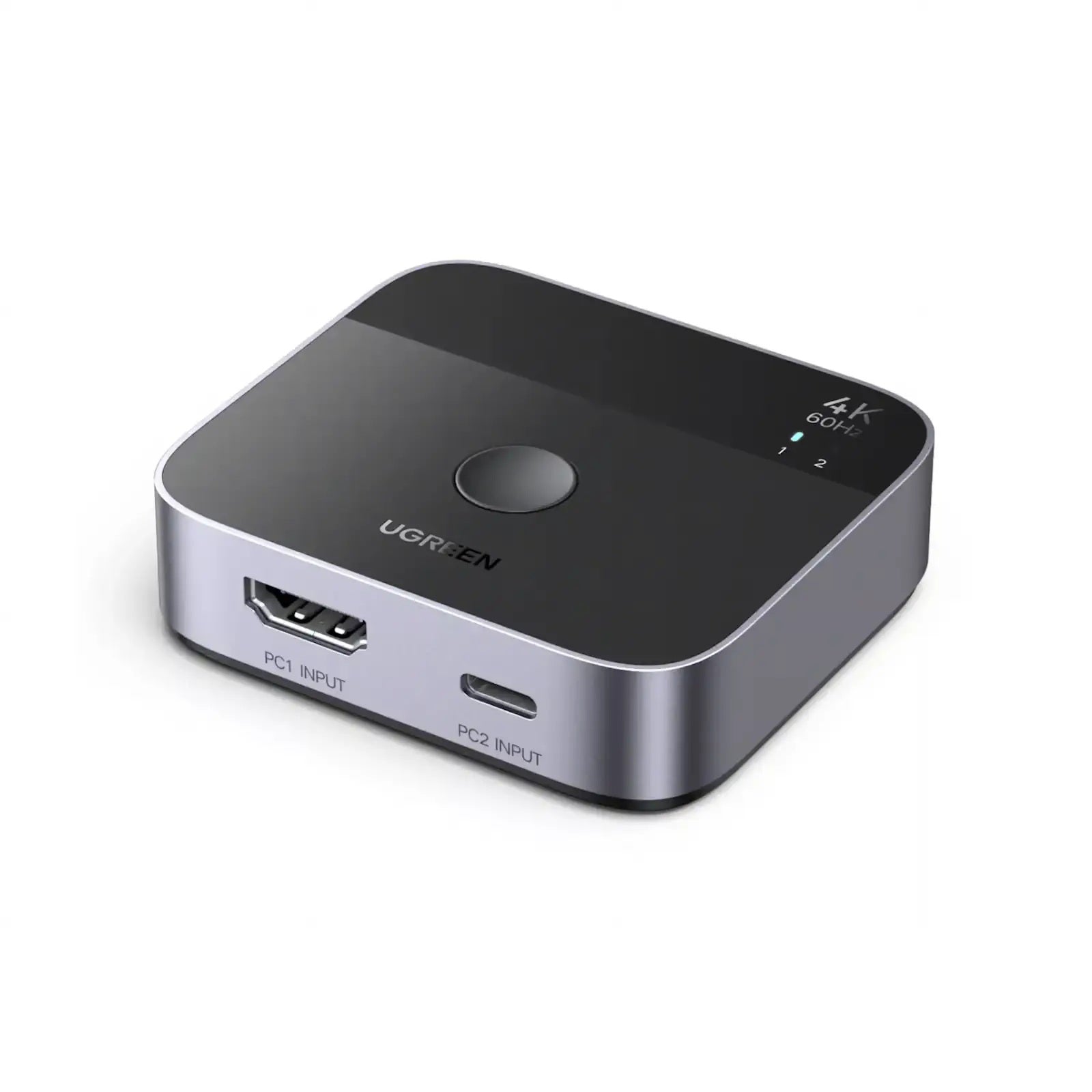

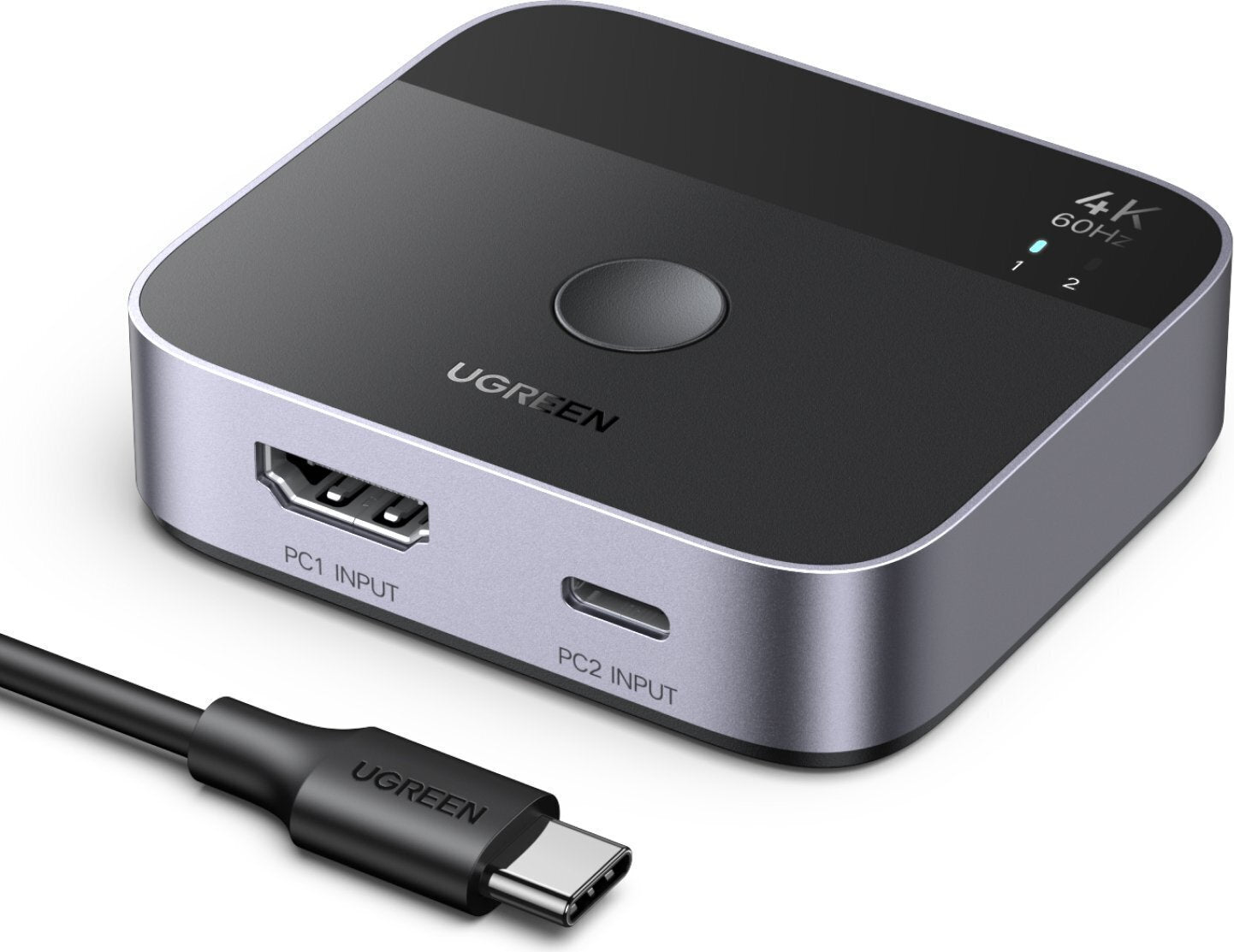

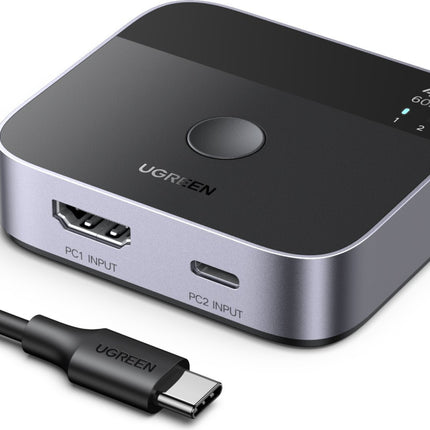

The UGREEN AW503 is a 2-in-1 USB-C and HDMI manual switcher designed to let two different source devices share a single HDMI display. It provides one USB-C input with DisplayPort Alternate Mode support and one HDMI 2.0 input, allowing you to quickly switch between devices such as a work laptop, MacBook, or gaming console at the press of a button.
Supporting up to 4K@60Hz with 18Gbps bandwidth, the AW503 delivers sharp, smooth video with low latency. It also supports HDR10, Dolby Vision, HDCP 2.2, and Dolby Atmos, making it suitable for both professional and entertainment setups.
Key Features
-
Dual-Input Flexibility: Includes 1 × USB-C input with DisplayPort Alternate Mode and 1 × HDMI 2.0 input, sharing a single HDMI display.
-
4K@60Hz Ultra HD: Supports resolutions up to 4K@60Hz with 18Gbps bandwidth for smooth, high-quality video.
-
HDR & Audio Support: Compatible with HDR10, Dolby Vision, HDCP 2.2, and Dolby Atmos for an enhanced audiovisual experience.
-
Manual One-Button Switching: Quickly switch between two connected source devices without repeatedly disconnecting cables.
-
Aluminum Alloy Construction: Features a compact aluminum alloy housing for improved heat dissipation and stable signal transmission.
-
Plug and Play: Driver-free operation with Windows, macOS, and Linux.
-
External Power: Requires 5V/1A USB-C power for operation; a USB-A to USB-C power cable is included.
-
Compact Design: Measures only 64 × 57 × 17mm, making it suitable for space-limited desktop setups.
Key Features — Short Summary
- 2-in-1 USB-C + HDMI switch
- 1 × USB-C DisplayPort Alt Mode input
- 1 × HDMI 2.0 input
- 1 × HDMI 2.0 output
- Supports up to 4K@60Hz
- 18Gbps bandwidth
- HDR10 and Dolby Vision support
- HDCP 2.2 support
- Dolby Atmos support
- One-button manual switching
- Aluminum alloy housing
- Requires 5V/1A USB-C power
- Windows, macOS and Linux compatible
- Compact 64 × 57 × 17mm design
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
AW503 |
| SKU |
55452 |
| Type |
USB-C & HDMI Manual Switcher |
| Configuration |
2-in-1-out |
| USB-C Input |
DisplayPort Alternate Mode |
| HDMI Input |
HDMI 2.0 |
| HDMI Output |
HDMI 2.0 |
| Maximum Resolution |
4K@60Hz |
| Bandwidth |
18Gbps |
| HDR |
HDR10, Dolby Vision |
| HDCP |
HDCP 2.2 |
| Audio |
Dolby Atmos |
| Power |
5V/1A USB-C |
| Included Power Cable |
USB-A to USB-C |
| Dimensions |
64 × 57 × 17mm |
| Housing |
Aluminum Alloy |
| Operating Systems |
Windows, macOS, Linux |
Important Considerations
- The AW503 is strictly a 2-input-to-1-output switch. It cannot split one source to two monitors.
- The USB-C source device must support DisplayPort Alternate Mode.
- The package includes a USB power cable, but HDMI and USB-C video cables are not included.
- For optimal 4K@60Hz performance, use high-quality compatible video cables.
