Description

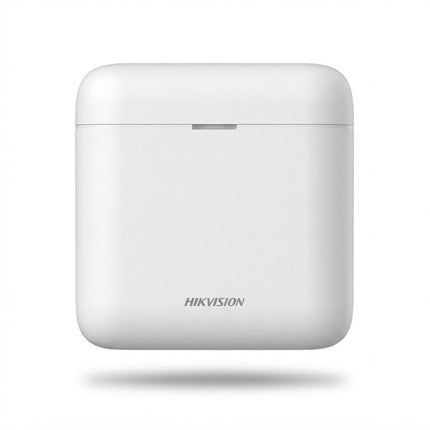

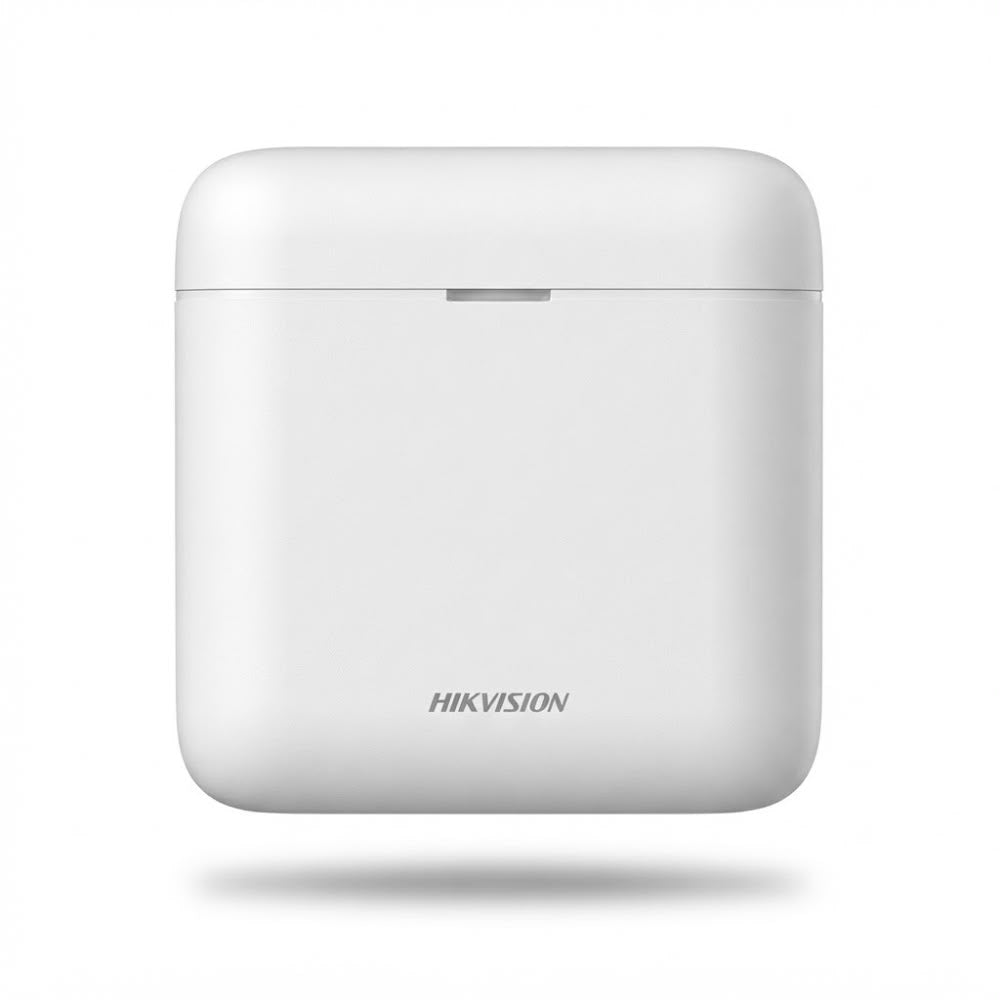

The Hikvision AX PRO Wireless Repeater (DS-PR1-WB) extends the wireless range of an AX PRO 433 MHz alarm system in larger homes, villas, offices and multi-floor buildings. It relays two-way 433 MHz communication between the control panel and distant detectors, with up to 800 m range in open area.
Smart auto-pairing finds and connects up to 8 PIRCAM or smoke detectors automatically, and LED indicators show registration, signal strength, power and faults. It runs on 100–240 VAC mains power with a built-in Li backup battery that keeps it working during a power cut.
Note: this is a 433 MHz (-WB) device. It needs a Hikvision AX PRO 433 MHz control panel and does not pair with 868 MHz (-WE) systems (see "Works With" below).
Key Features
- Extends AX PRO 433 MHz wireless coverage, up to 800 m in open area
- Stable and secure two-way communication
- Smart auto-pairing: finds and connects up to 8 PIRCAM or smoke detectors automatically
- LED status: register/signal (green/red), power (green), fault (amber)
- Built-in Li backup battery keeps it working after mains power is lost
- Front and back tamper protection
- 100–240 VAC power supply and wall mounting with an easy-install structure
Works With
-
Hikvision AX PRO 433 MHz alarm kits: DS-PWA96-KIT-WB and DS-PWA64-KIT-WB (up to 4 and 2 repeaters respectively)
-
AX PRO 433 MHz devices: detectors, PIRCAMs, smoke detectors and sirens such as DS-PDP15P-EG2-WB and DS-PS1-E-WB
-
Not supported through the repeater: LCD keypads
-
Not compatible with: 868 MHz (-WE) panels and devices
Technical Specifications
| Specification |
Details |
| Model |
DS-PR1-WB |
| Product Name |
Wireless Repeater |
| RF Frequency |
433 MHz |
| RF Method |
Two-way communication |
| RF Modulation |
2GFSK |
| RF Distance |
800 m (open area) |
| Wireless Security |
Supported |
| Auto Pairing |
Supported (up to 8 PIRCAM or smoke detectors) |
| Keypad |
LCD keypad not supported |
| Tamper Protection |
1, front and back |
| LED Status |
Register/signal (green/red), power (green), fault (amber) |
| Serial Port |
2 (for debugging) |
| Power Supply |
100–240 VAC |
| Backup Battery |
Built-in Li battery, up to 24 hours at normal temperature (shorter at low temperatures) |
| Operating Temperature |
-10 °C to +55 °C (battery does not charge below 10 °C; keep the adapter connected) |
| Operating Humidity |
10% to 90% |
| Installation |
Wall mounting |
| Dimensions (W × H × D) |
150 × 150 × 25 mm |
| Weight |
372 g |
| Housing / Color |
Plastic / white |
Why Choose the Hikvision DS-PR1-WB?
- Closes coverage gaps in large or multi-floor properties
- Auto-pairing makes adding PIRCAM and smoke detectors easy
- Keeps relaying during power cuts thanks to its backup battery
- Clear LED feedback for installation and maintenance
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
