Description

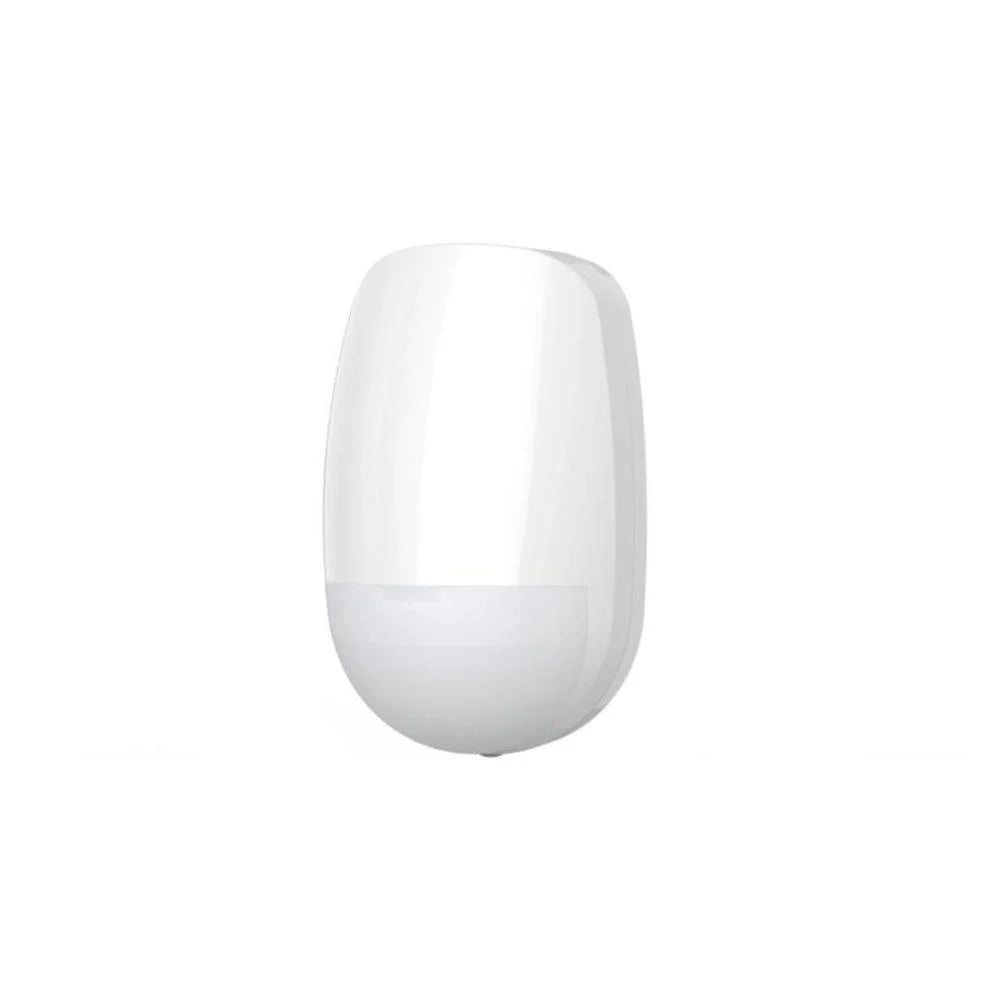

The Hikvision AX PRO Wireless PIR Detector (DS-PDP15P-EG2-WB) is an indoor passive infrared motion detector for the AX PRO 433 MHz alarm system. It covers up to 15 m with an 85.9° angle and 52 detection zones, and its pet immunity up to 30 kg helps avoid false alarms caused by pets.
It talks to the control panel over Tri-X two-way wireless at 433 MHz with AES-128 encryption, frequency hopping and up to 1.2 km range in open space. One CR123A battery lasts up to 5 years in standby, and every setting can be changed remotely through the app.
Note: this is a 433 MHz (-WB) device. It needs a Hikvision AX PRO 433 MHz control panel and does not pair with 868 MHz (-WE) systems (see "Works With" below).
Key Features
- 15 m detection range, 85.9° angle and 52 detection zones
- Pet immunity up to 30 kg; sensitivity modes High, Auto and Pet
- SEC (Smart Environmental Control): advanced digital signal processing and 3D optics
- Digital temperature compensation, creep zone protection, sealed optics and 6500 lux white-light filter
- Tri-X two-way wireless at 433 MHz, up to 1.2 km in open space, AES-128 encryption
- Frequency hopping against jamming for reliable transmission
- Front and rear tamper protection; signal strength and environment temperature indicators
- Fully remote configurable through the app; enrolment by power-up, remote ID or QR code
- Easily replaceable CR123A battery with protected PCB, up to 5 years of standby
Works With
-
Hikvision AX PRO 433 MHz alarm kits: DS-PWA96-KIT-WB and DS-PWA64-KIT-WB (this detector is included in both kits)
-
AX Hybrid PRO panels: through the DS-PM1-RT-HWB 433 MHz Tri-X wireless receiver (this model is on its official compatibility list)
-
Longer distances: DS-PR1-WB 433 MHz wireless repeater
-
Not compatible with: 868 MHz (-WE) panels and devices
Technical Specifications
| Specification |
Details |
| Model |
DS-PDP15P-EG2-WB |
| Product Name |
Wireless PIR Detector |
| Detection Method |
Passive infrared (PIR) |
| Detection Range / Angle |
15 m / 85.9° |
| Detection Zones |
52 |
| Detectable Speed |
0.3–2 m/s |
| Sensitivity |
High, Auto, Pet |
| Pet Immunity |
Up to 30 kg |
| White Light Filter |
6500 lux |
| Tamper Protection |
Front and rear |
| LED Indicator |
Blue (alarm) |
| Transmission Technology |
Tri-X wireless, two-way RF |
| Transmission Frequency |
433 MHz |
| Transmission Range (Free Space) |
1.2 km |
| Transmission Security |
AES-128 encryption |
| Frequency Hopping |
Supported |
| Enrolling Method |
Power-up, remote ID, QR code |
| Battery |
1 × CR123A, 3 V |
| Battery Life |
Up to 5 years (standby) |
| Operating Temperature |
-10 °C to 55 °C |
| Operating Humidity |
10% to 90% |
| Mounting |
Wall, 1.8–2.4 m high (optional wall and ceiling bracket) |
| Dimensions (W × H × D) |
65.5 × 103 × 48.5 mm |
| Weight |
128 g |
| Application |
Indoor |
Why Choose the Hikvision DS-PDP15P-EG2-WB?
- Pet immunity up to 30 kg keeps the alarm reliable in homes with pets
- Smart environmental control and temperature compensation help prevent false alarms
- Long-range, anti-jamming Tri-X wireless and up to 5 years of battery life
- The same detector supplied in the AX PRO 433 MHz kits
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
