Description
The Hikvision AX PRO Kit (DS-PWA96-KIT-WB) is a complete 433 MHz wireless intrusion alarm kit built around the AX PRO DS-PWA96-M-WB control panel. The panel handles up to 96 wireless zones (including up to 48 PIRCAMs) in 32 areas and connects through wired LAN, Wi-Fi and built-in 3G/4G with dual SIM slots.
The box contains the control panel, a wireless PIR detector with pet immunity, a wireless door/window magnetic contact and a keyfob. Arm, disarm and check the system from the Hik-Connect app, receive alarm notifications on your phone, and add more AX PRO detectors, keypads, sirens and repeaters as your property grows.
Note: this is a 433 MHz (-WB) system. Expand it only with 433 MHz (-WB) AX PRO devices; 868 MHz (-WE) devices do not pair with it (see "Works With" below).

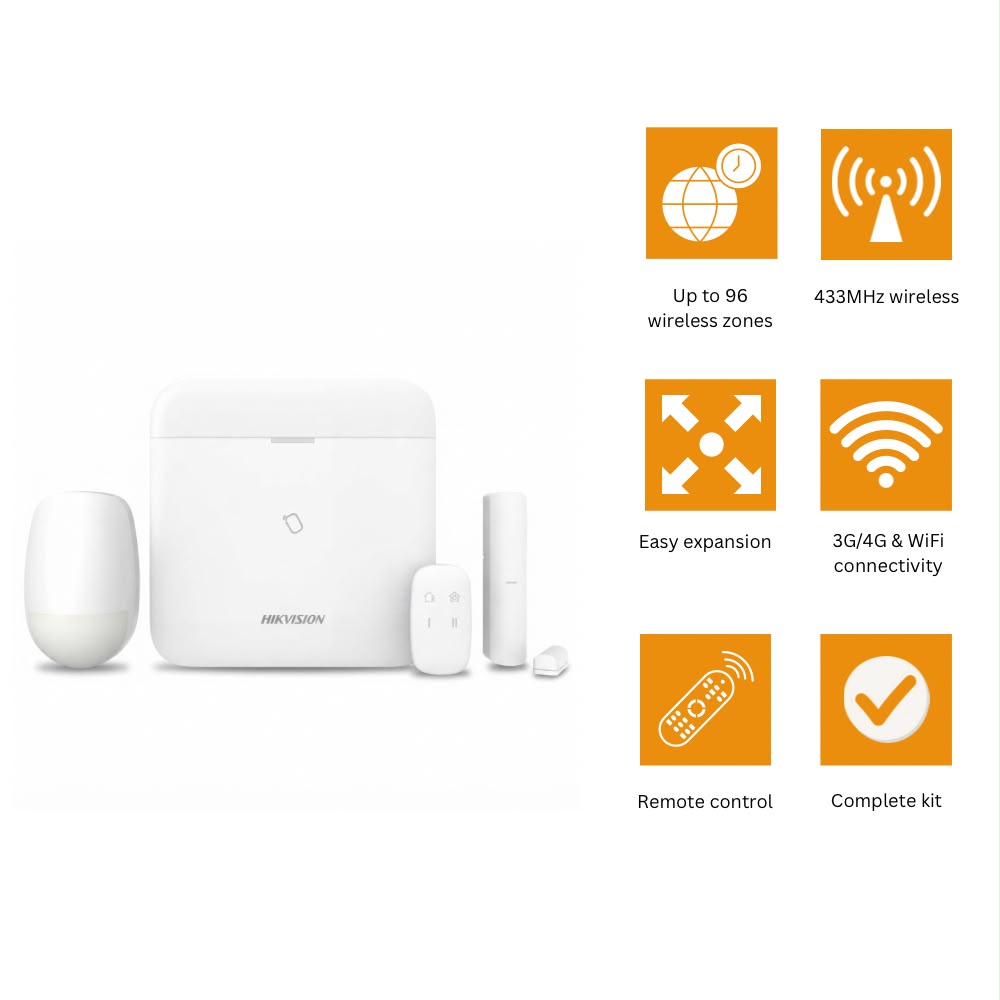

Key Features
- Up to 96 wireless zones (up to 48 PIRCAMs) and 32 areas
- Wired LAN, Wi-Fi and built-in 3G/4G with dual SIM slots
- 433 MHz two-way wireless with frequency hopping and AES-128 encryption
- Hik-Connect app for remote arming, disarming, alarm notifications and diagnostics
- Away and Stay arming, automatic arm/disarm timers and forced arming with open zones
- Supports up to 48 keyfobs, 8 keypads, 6 wireless sounders (3 internal + 3 external) and 4 repeaters
- Built-in loudspeaker with voice prompts and built-in tag reader
- 5,000-event memory log and alarm receiving centre support (SIA DC-09, Contact ID)
- Built-in Li backup battery, up to 12 hours at normal temperature
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-PWA96-KIT-WB (control panel DS-PWA96-M-WB) |
| Product Name |
AX PRO Kit (433 MHz) |
| Wireless Zones |
96 (up to 48 PIRCAMs) |
| Areas |
32 |
| Users |
1 admin, 1 installer, 46 users |
| Tags |
48 |
| Keyfobs / Keypads |
48 / 8 (including tag reader keypads) |
| Wireless Sounders |
6 (3 internal + 3 external) |
| Wireless Repeaters |
4 |
| Memory Log |
5,000 events |
| RF Frequency |
433 MHz, two-way |
| Wireless Security |
Frequency hopping, AES-128 encryption |
| Network |
Wired LAN, Wi-Fi |
| Cellular |
3G/4G on board, dual SIM |
| Programming Tools |
Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200, Convergence Cloud |
| ARC Protocols |
SIA DC-09 (SIA level 2, Contact ID), ISUP, ISAPI |
| LED Status |
Arm/disarm, alarm, tamper, fault, cloud, power |
| Power Supply |
Built-in power supply |
| Backup Battery |
Built-in Li battery, up to 12 hours at normal temperature |
| Operating Temperature |
-10 °C to +55 °C |
| Panel Dimensions (W × H × D) |
170 × 170 × 38.6 mm |
| Panel Weight |
557.5 g |
| Housing / Color |
Plastic / white |

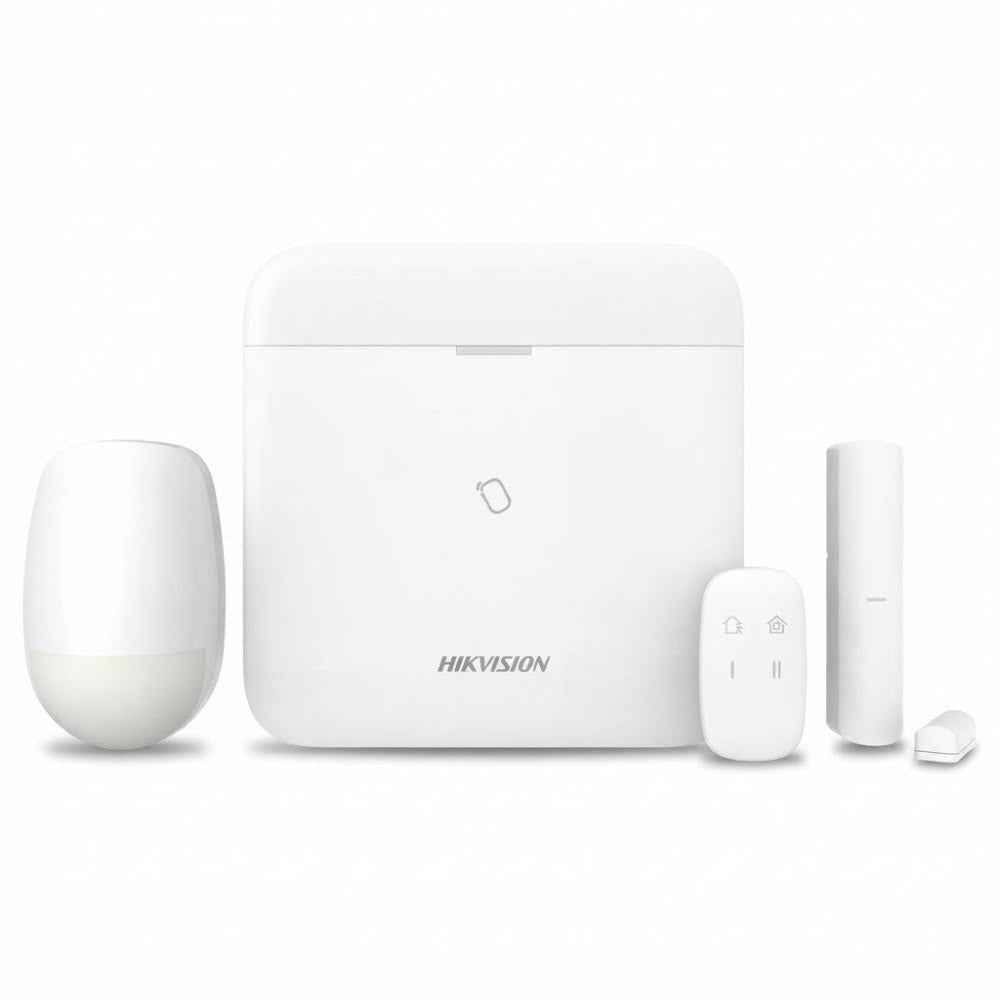

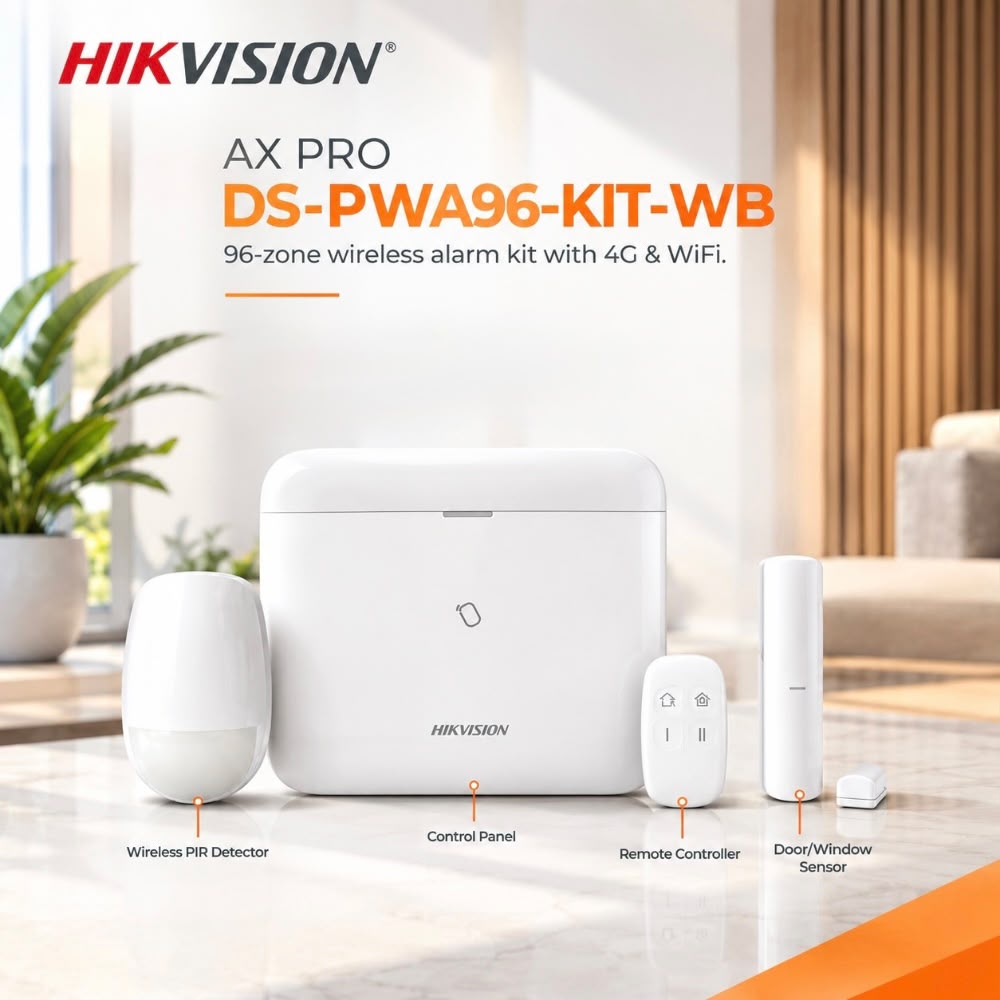

What's in the Box
- 1 × DS-PWA96-M-WB AX PRO control panel
- 1 × DS-PDP15P-EG2-WB wireless PIR detector
- 1 × DS-PDMC-EG2-WB wireless magnetic contact
- 1 × DS-PKF1-WB wireless keyfob
Why Choose the Hikvision DS-PWA96-KIT-WB?
- A complete starter kit: panel, motion detector, door/window contact and keyfob in one box
- Three ways to connect: wired LAN, Wi-Fi and 4G with dual SIM
- Scales to 96 zones and 32 areas for villas, shops and offices
- No alarm cabling, with setup and maintenance through the app
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
