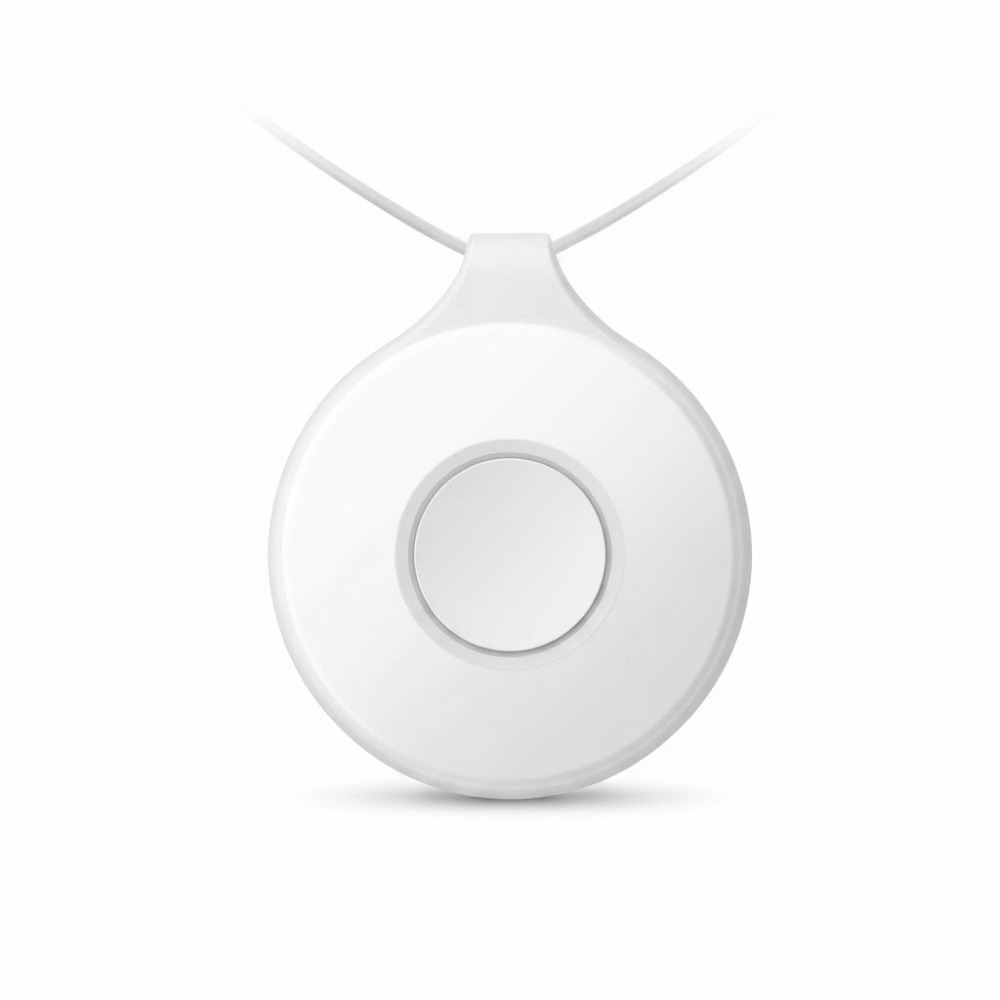

Description The Hikvision AX PRO Wireless Portable Emergency Button (DS-PDEBP1-EG2-WB) is a small single-button panic button that stays with the user, on a lanyard, a wristband or in a pocket, and sends an emergency alarm to the AX PRO 433 MHz panel from anywhere within wireless range. Accidental press protection helps avoid false alarms.
It measures just Ø38 × 12 mm and 13.5 g , has IP66 protection for daily use, and connects over Tri-X two-way wireless at 433 MHz with AES-128 encryption, frequency hopping and up to 800 m range in free space. One CR2032 battery lasts up to 3 years in standby; a lanyard and wristband are available as optional accessories.
Note: this is a 433 MHz (-WB) device. It needs a Hikvision AX PRO 433 MHz control panel and does not pair with 868 MHz (-WE) systems (see "Works With" below).

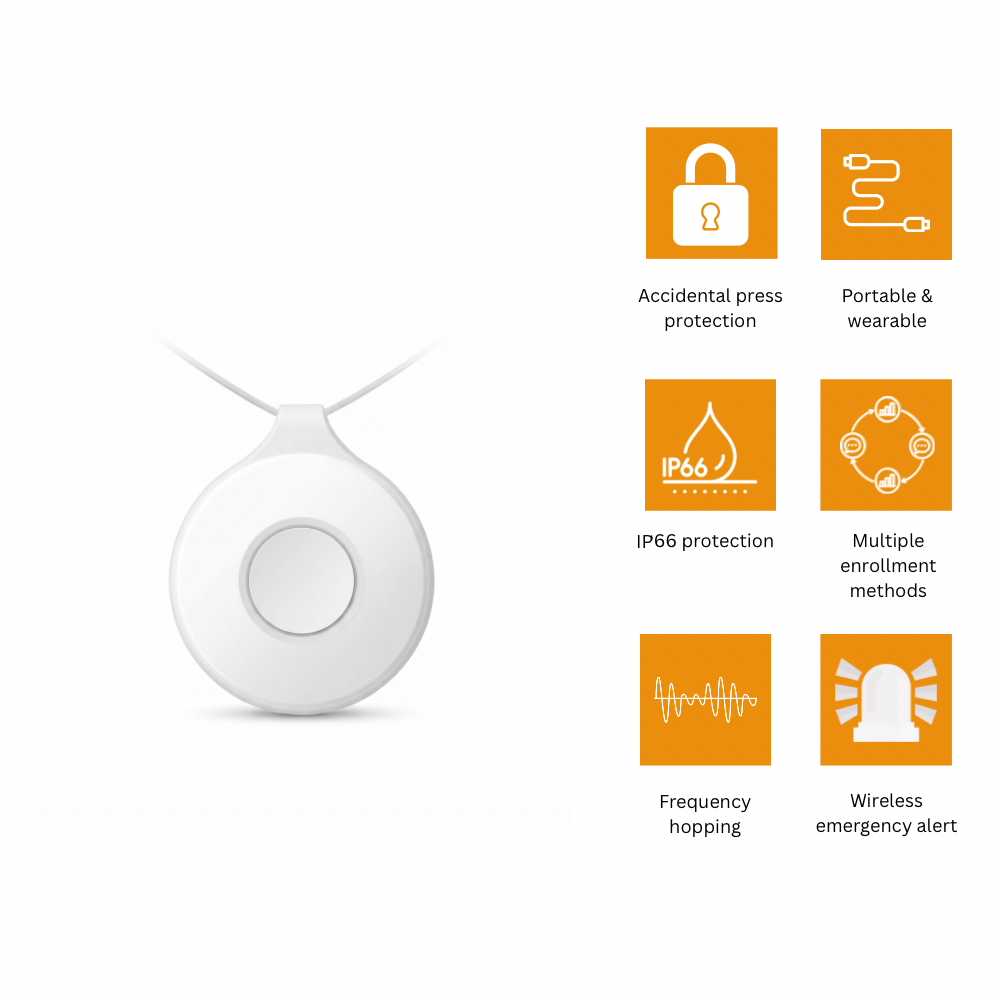

Key Features
Portable single-button emergency button
Accidental press protection
IP66 protection for daily use
Tri-X two-way wireless at 433 MHz, up to 800 m in free space, AES-128 encryption
Frequency hopping against jamming for reliable transmission
Red / green LED indicator and signal strength indicator
Fully remote configurable through the app; enrolment by power-up, remote ID or QR code
1 × CR2032 battery, up to 3 years of standby
Optional lanyard and wristband accessories
Works With
Hikvision AX PRO 433 MHz alarm kits: DS-PWA96-KIT-WB and DS-PWA64-KIT-WB
AX Hybrid PRO panels: through the DS-PM1-RT-HWB 433 MHz Tri-X wireless receiver (this model is on its official compatibility list)
Longer distances: DS-PR1-WB 433 MHz wireless repeater
Not compatible with: 868 MHz (-WE) panels and devices
Technical Specifications
Specification
Details
Model
DS-PDEBP1-EG2-WB
Product Name
Wireless Portable Emergency Button
Buttons
1
Tamper Protection
None
LED Indicator
Red / green
Transmission Technology
Tri-X wireless, two-way RF
Transmission Frequency
433 MHz
Transmission Range (Free Space)
800 m
Transmission Security
AES-128 encryption
Frequency Hopping
Supported
Enrolling Method
Power-up, remote ID, QR code
Battery
1 × CR2032, 3 V
Battery Life
Up to 3 years (standby)
Operating Temperature
-10 °C to 55 °C
Operating Humidity
10% to 90%
Ingress Protection
IP66
Dimensions
Ø38 × 12 mm
Weight
13.5 g
Application
Portable
Why Choose the Hikvision DS-PDEBP1-EG2-WB?
Help is one press away wherever the user is, ideal for elderly people, patients and staff
Tiny and light, with IP66 protection for everyday wear
Accidental press protection reduces false alarms
Encrypted, long-range Tri-X wireless and up to 3 years of battery life
Downloads
⬇ Download Datasheet (PDF) ⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
