Description

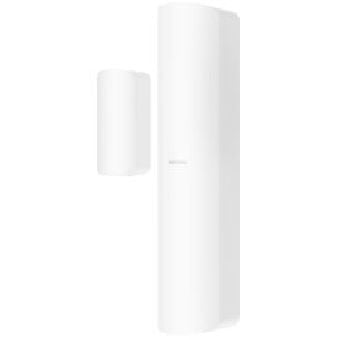

The Hikvision DS-PDMCK-EG2-WB(B) is an advanced wireless opening detector designed for indoor doors and windows as part of the AX PRO Wireless Alarm System. It combines a magnetic contact with built-in shock and tilt detection, providing multiple layers of protection against unauthorized entry.
The detector can identify door or window opening, detect shocks or impacts, and monitor changes in tilt angle. It also supports 2 wired input extensions, allowing additional wired detectors to be integrated into the wireless AX PRO system.
Using Hikvision Tri-X two-way wireless technology, it provides reliable communication with a transmission range of up to 1 km in open space, along with frequency hopping technology for improved resistance against wireless interference and jamming.
Key Features
- Magnetic contact for door and window opening detection
-
Built-in shock detection with 8 sensitivity levels
-
Tilt detection up to 25°
-
Maximum detection gap up to 43 mm
-
Supports 2 wired input extensions
- Tri-X two-way wireless communication
-
Wireless transmission range up to 1 km in open space
- Frequency hopping for enhanced anti-jamming reliability
- Front and rear tamper protection
- Remote configuration through the Hikvision app
- Multiple enrollment methods including Power Up, Remote ID, and QR Code
-
Battery life up to 3 years
-
Designed for indoor applications
Technical Specifications
| Specification |
Details |
| Detection Type |
Opening Contact, Shock & Tilt Detection |
| Maximum Detection Gap |
43 mm |
| Shock Sensitivity |
8 Levels |
| Tilt Detection |
Up to 25° |
| Alarm Input |
NC / NO / Impulse Count |
| Wired Input Extension |
2 Inputs |
| Wireless Technology |
Tri-X Wireless |
| Communication |
Two-Way RF |
| Frequency |
433 MHz |
| Wireless Range |
Up to 1 km in Open Space |
| Frequency Hopping |
Supported |
| Tamper Protection |
Front & Rear |
| Battery |
1 × CR123A |
| Typical Voltage |
3 V |
| Battery Life |
Up to 3 Years |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10%–90% |
| Main Unit Dimensions |
24 × 104 × 24.4 mm |
| Magnet Dimensions |
13 × 34.4 × 11.4 mm |
| Weight |
60 g |
| Application |
Indoor |
| Model |
DS-PDMCK-EG2-WB(B) |
Why Choose Hikvision DS-PDMCK-EG2-WB(B)?
The DS-PDMCK-EG2-WB(B) provides more comprehensive protection than a standard magnetic contact by combining opening, shock, and tilt detection in one wireless device. It is ideal for securing doors and windows where early detection of forced-entry attempts is important. Its long wireless range, wired input expansion, configurable sensitivity, and AX PRO integration make it suitable for residential and commercial security systems.
