Description

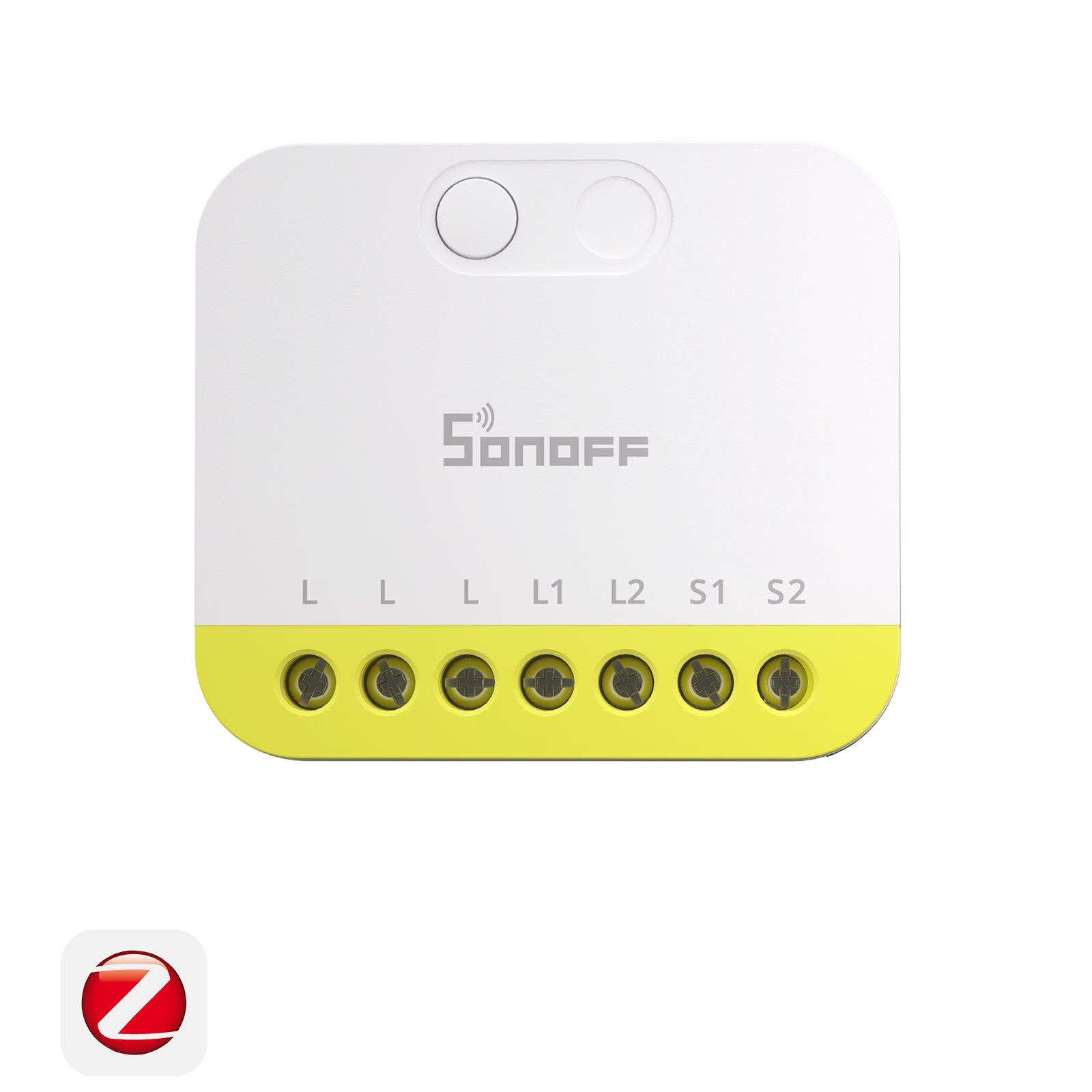

The SONOFF MINI DUO-L (MINI-ZB2GS-L) is a compact 2-gang Zigbee 3.0 smart switch from the SONOFF MINI Extreme series that needs no neutral wire. It suits single-wire setups in older apartments and installs without circuit modifications, controlling two independent channels at 8A each, up to 12A in total (resistive load).
Its space-saving design fits tight wall junction boxes, including the European-standard 60 box, and keeps your existing wall switches for manual and two-way control. Control the lights from the app or by voice, set timers, or integrate the switch with open-source platforms such as Home Assistant (ZHA / Zigbee2MQTT).
Note: a Zigbee gateway is required (see "Works With" below). Minimum load: 3W.
Key Features

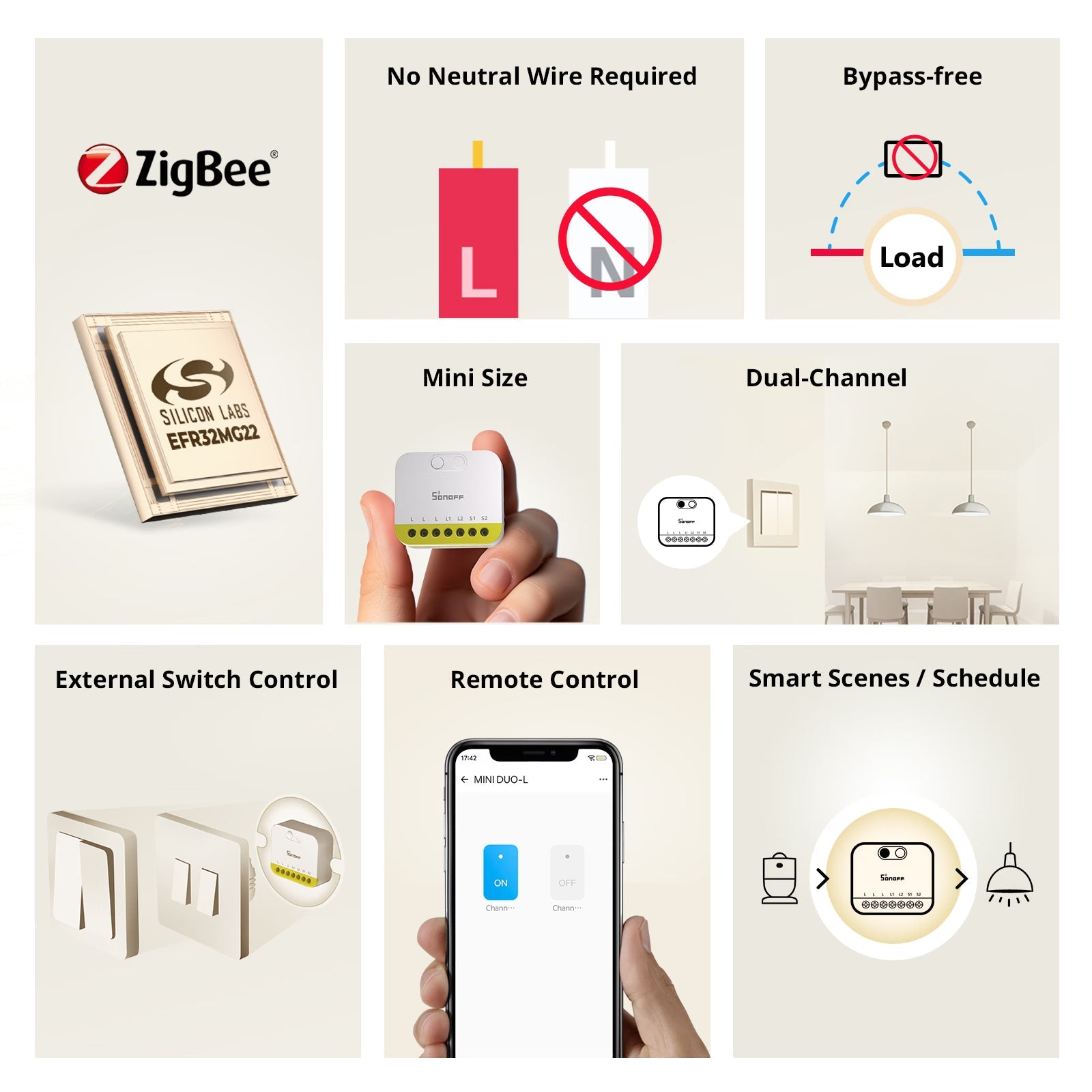

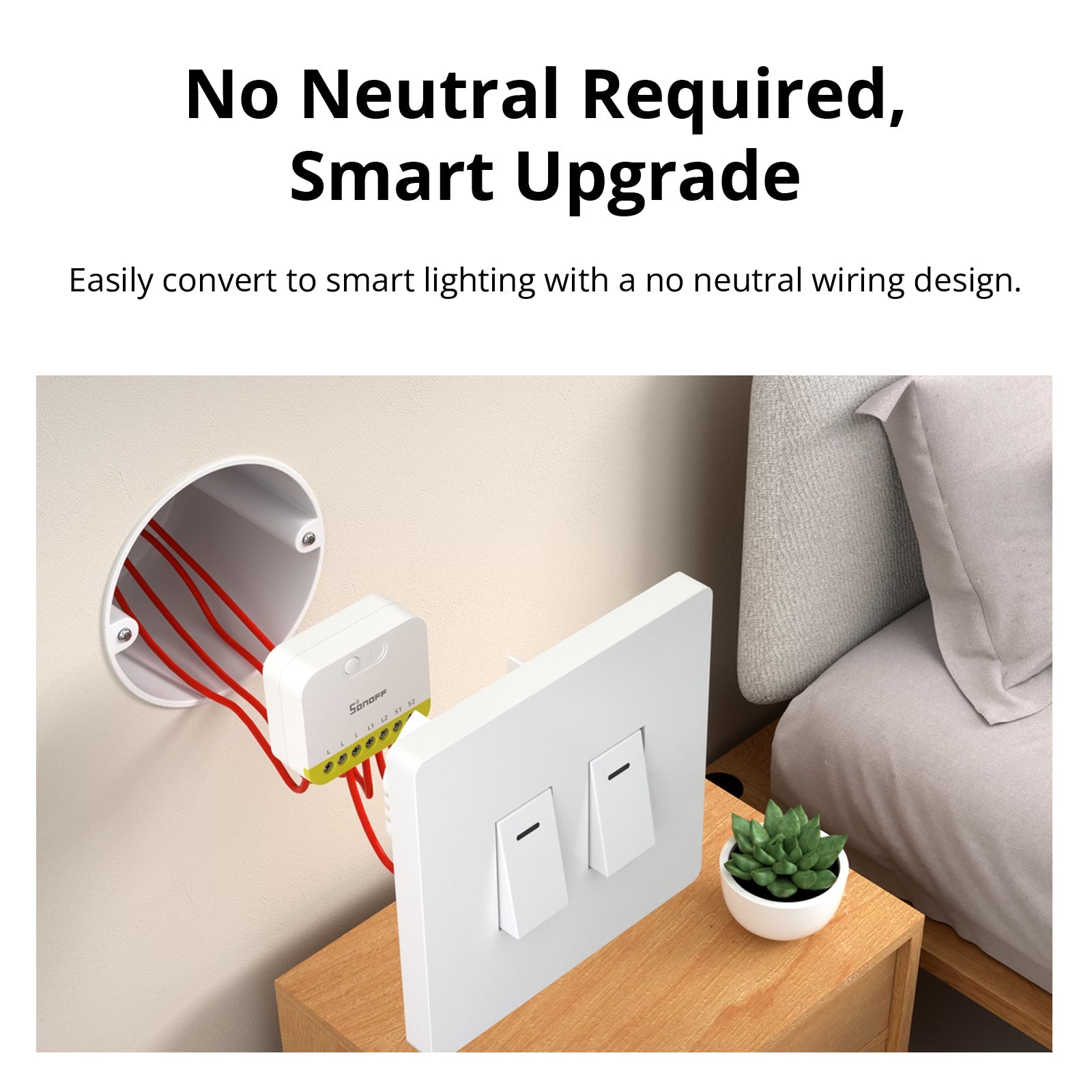

- No neutral wire required: ideal for single-wire setups in older buildings
- 2-gang Zigbee 3.0 smart switch with two independent channels
- 8A per gang, up to 12A in total (resistive load)
- LED loads: 300W @ 240V per gang (600W total), 150W @ 100V per gang (300W total)

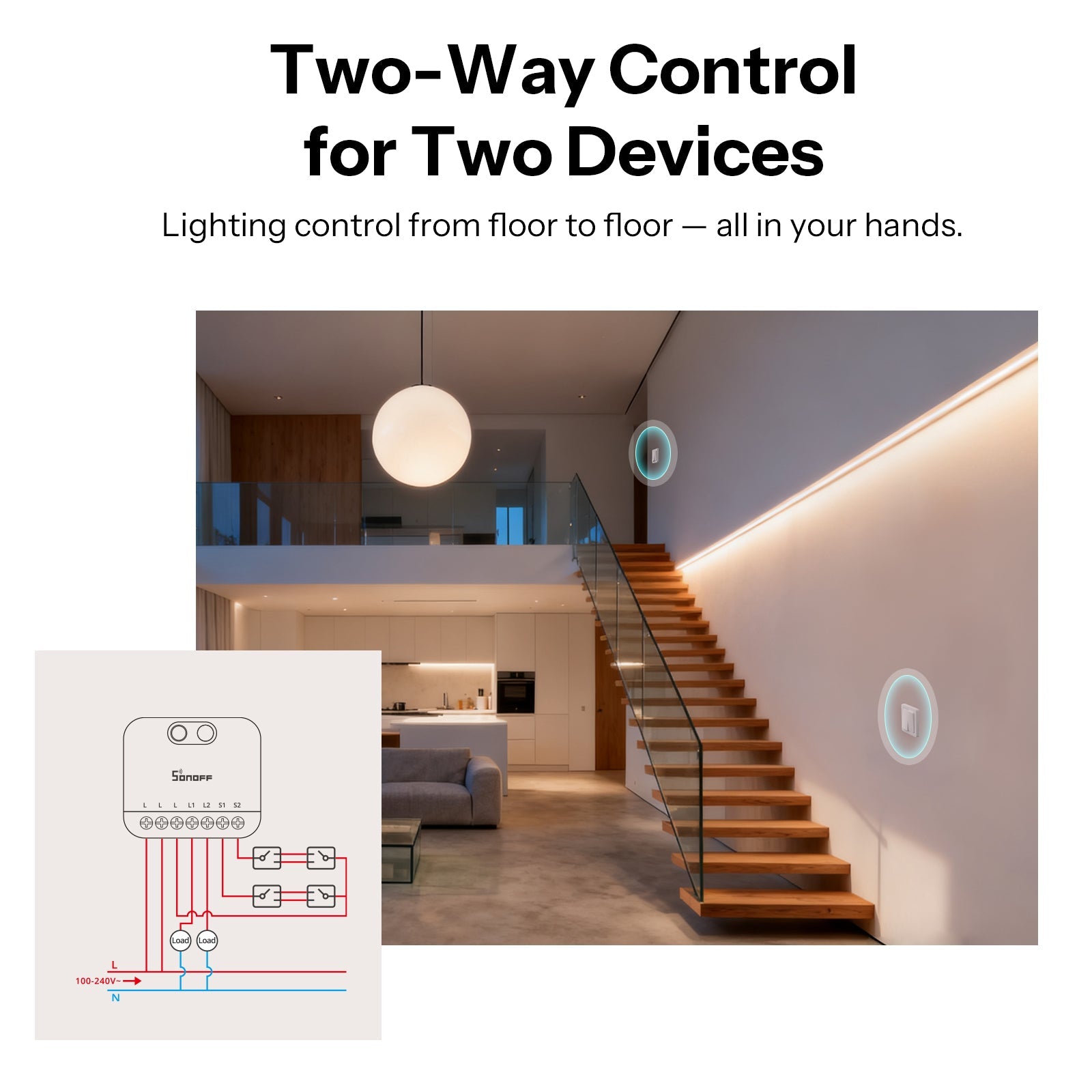

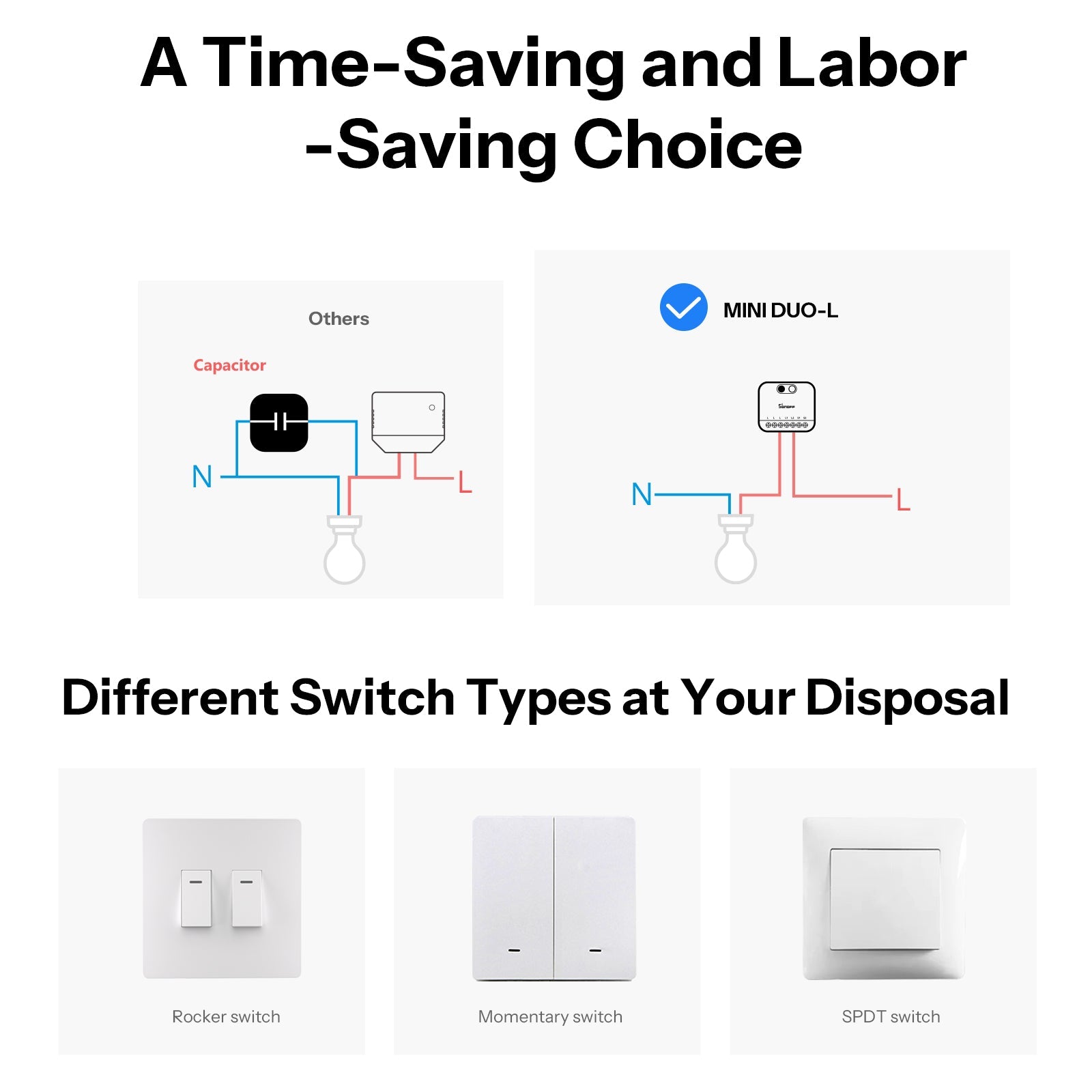

- Works with your existing wall switches for two-way control of two lights
- App and voice control with Amazon Alexa and Google Home, plus timers and scenes
- Integrates with open-source platforms such as Home Assistant and Zigbee2MQTT

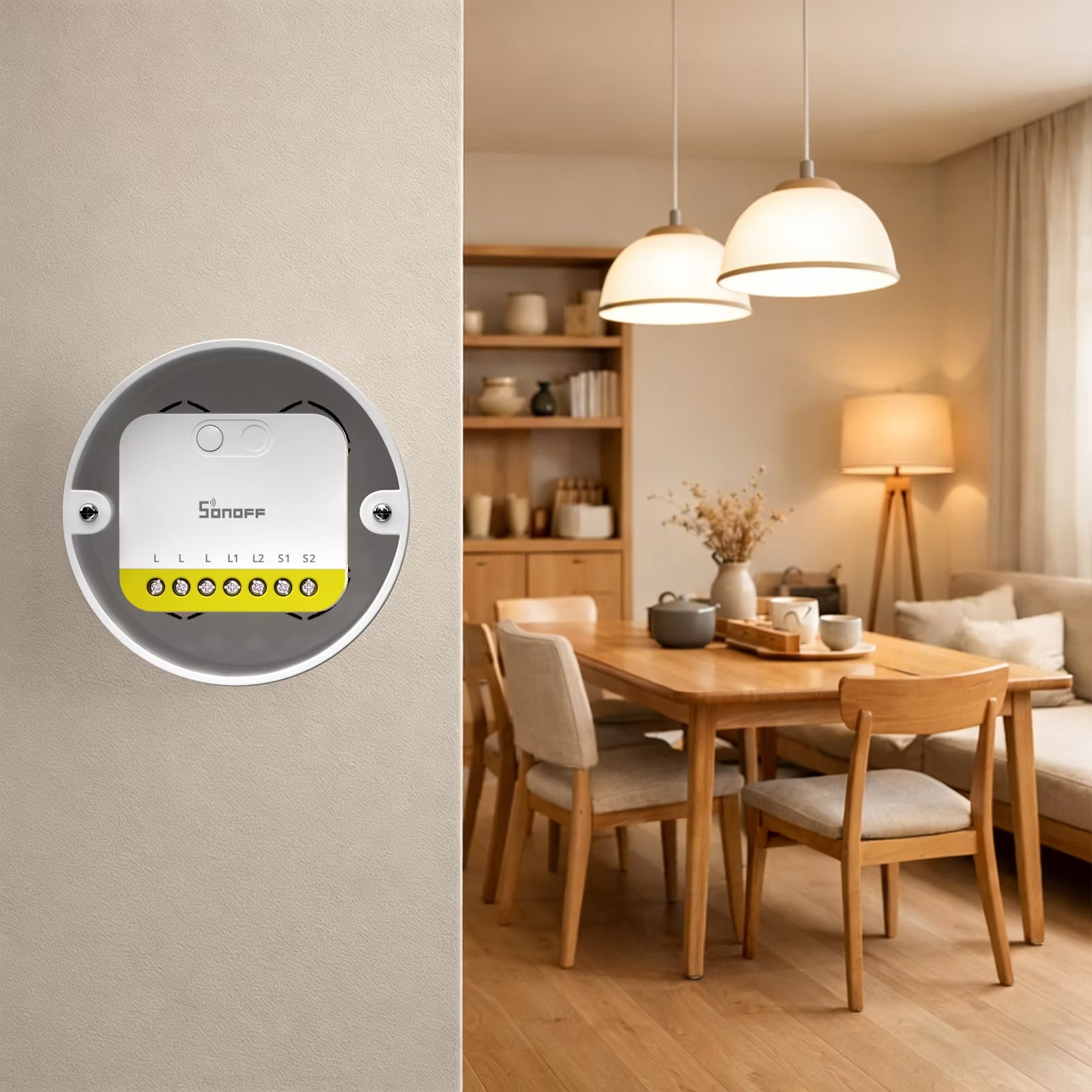

- Compact 45 × 39.4 × 16.8 mm body fits tight wall boxes, including the European-standard 60 box
Works With

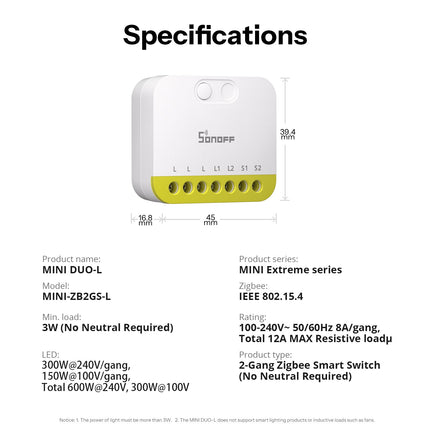

Technical Specifications
| Specification |
Details |
| Model |
MINI-ZB2GS-L |
| Product Name |
MINI DUO-L |
| Product Series |
MINI Extreme series |
| MCU |
EFR32MG22 |
| Wireless Protocol |
Zigbee 3.0 (IEEE 802.15.4) |
| Channels |
2 |
| Rated Specifications |
100–240V~ 50/60Hz, 8A/gang, 12A total max. (resistive load) |
| LED Load |
300W @ 240V / 150W @ 100V per gang; 600W @ 240V / 300W @ 100V total |
| Minimum Load |
3W |
| Neutral Wire |
Not required |
| Casing Material |
PC |
| Dimensions |
45 × 39.4 × 16.8 mm |
| Net Weight |
33 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| FCC ID |
2APN5-MINIZB2GSL |
| Certifications |
CE, FCC, RoHS |
Why Choose the SONOFF MINI-ZB2GS-L?
- Smart control for two lighting circuits where no neutral wire is available
- No rewiring: installs behind your existing wall switches
- Works with SONOFF gateways and open-source platforms like Home Assistant
- Compact enough for tight European 60 wall boxes
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
