Description

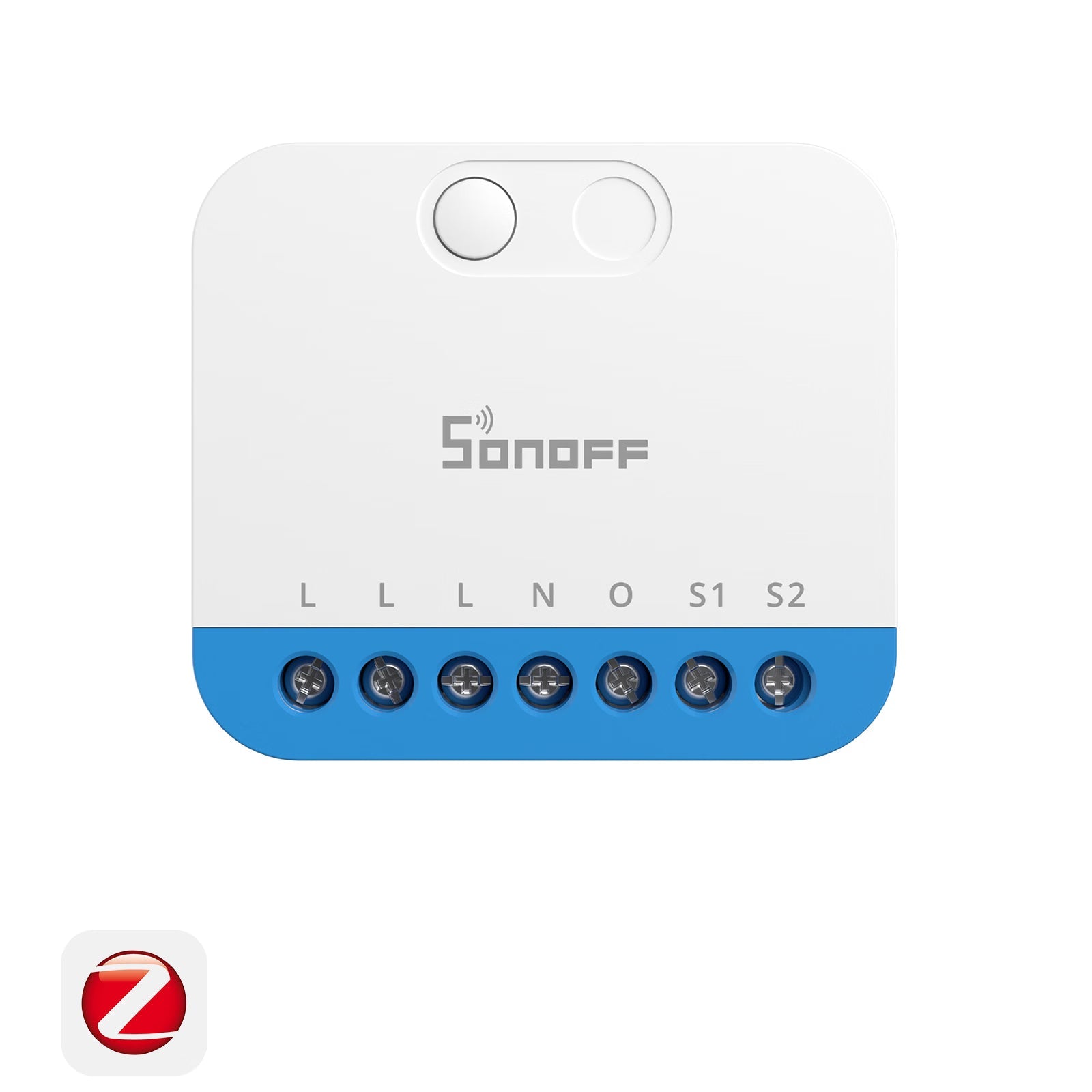

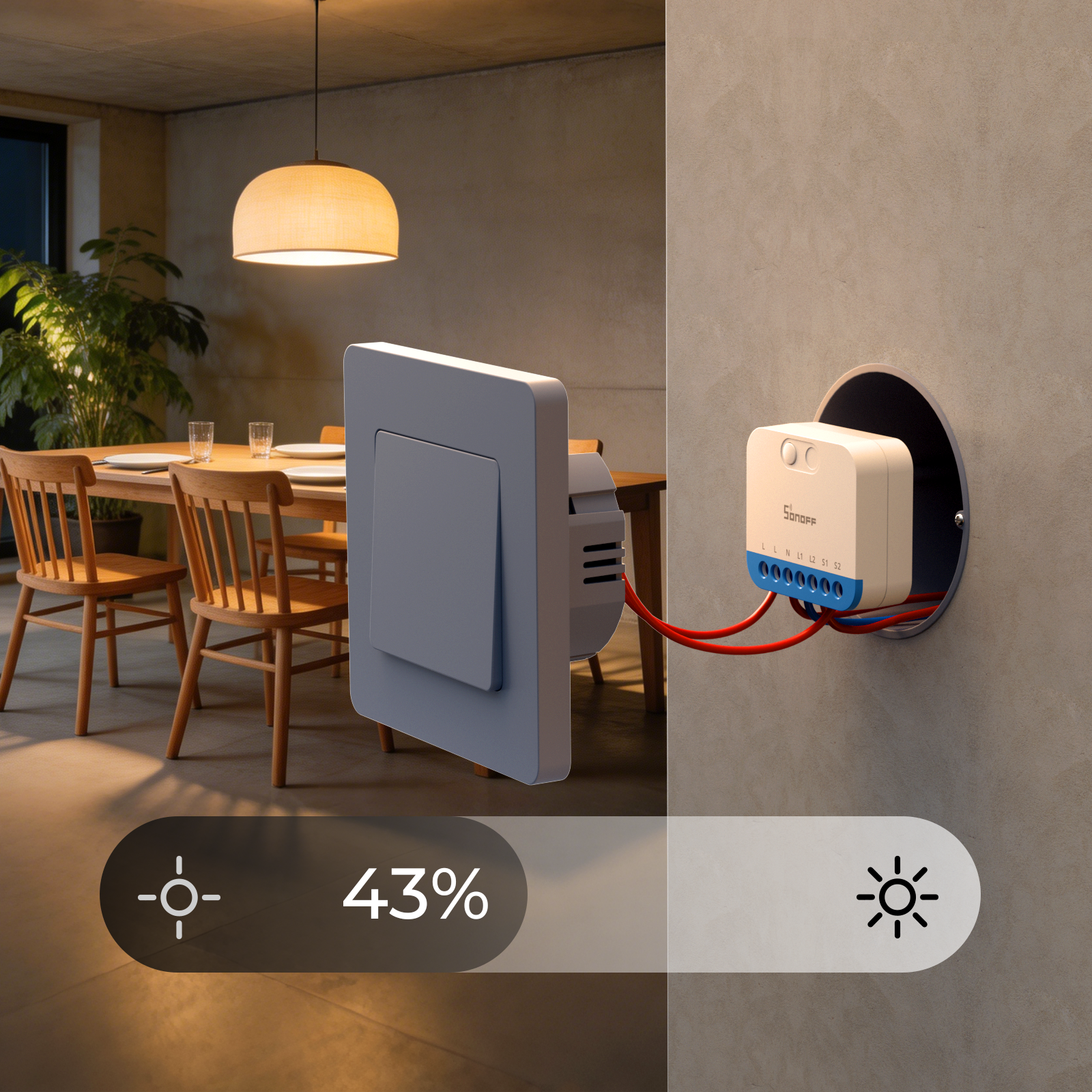

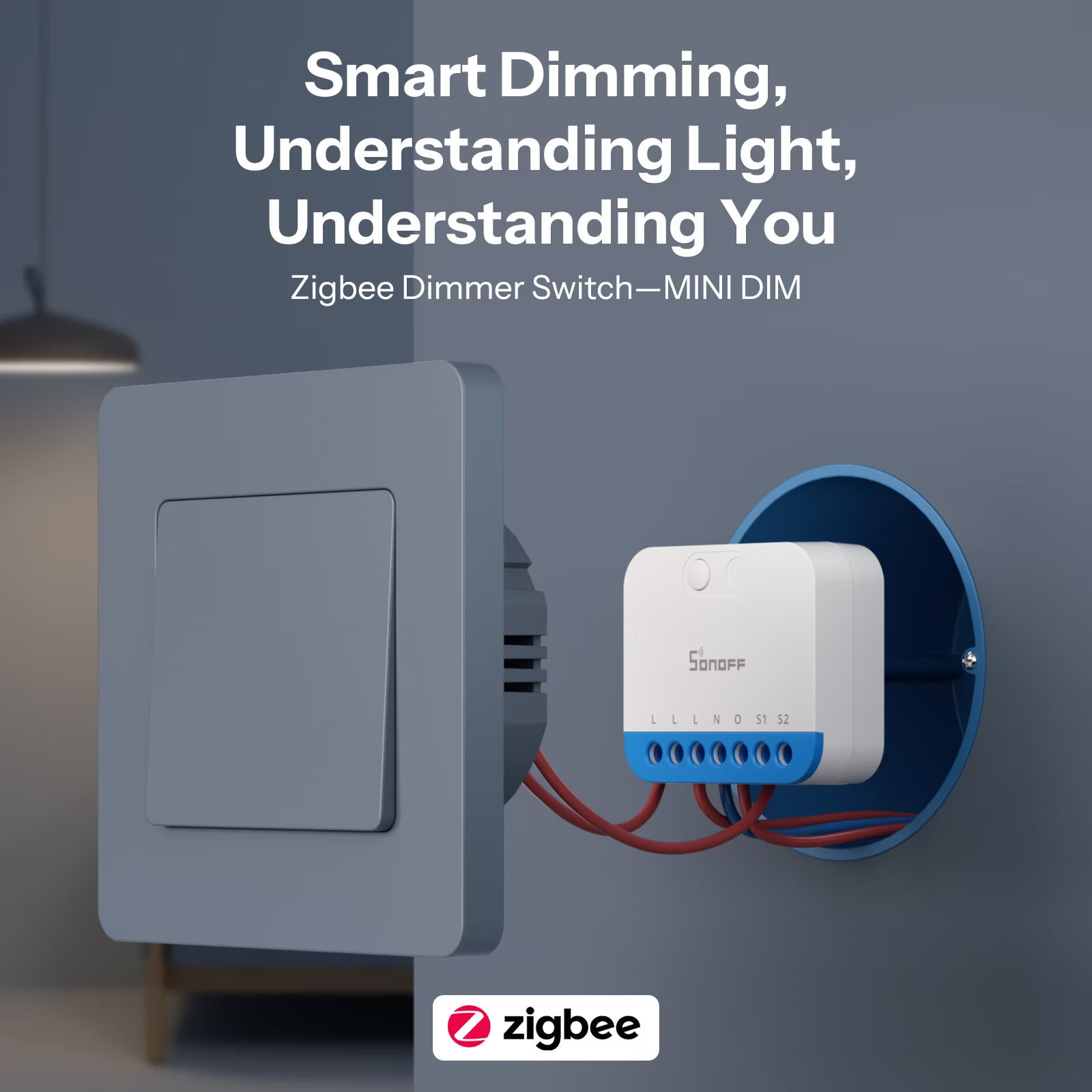

The SONOFF MINI-ZBDIM is a Zigbee 3.0 smart dimmer switch from the SONOFF MINI Extreme series. It installs behind your existing wall switch and turns compatible lighting into smart dimmable lighting, with smooth, flicker-free dimming across the full brightness range.
It drives dimmable LED lamps up to 200VA, incandescent and halogen bulbs up to 400W and dimmable electronic transformers up to 200W. Real-time power monitoring, automatic or manual calibration and built-in overheat protection keep your lighting stable and safe, while schedules, scenes and voice control make everyday use easy.
Note: a Zigbee gateway is required (see "Works With" below). For 220–240V installations only, and a neutral wire is required.

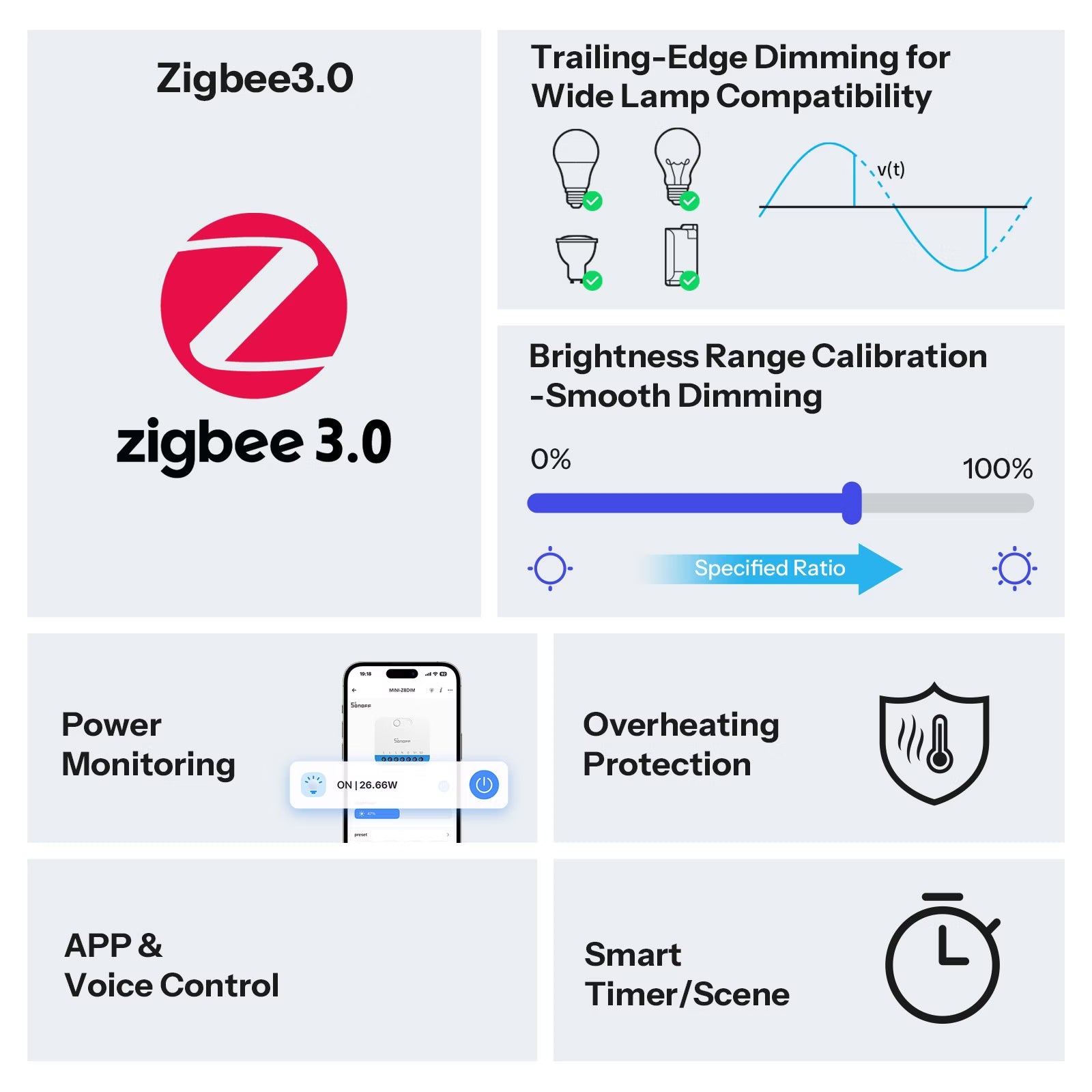

Key Features
- Smooth, flicker-free dimming across the full brightness range
- Broad lamp compatibility: up to 200VA dimmable LED, 400W incandescent/halogen and 200W dimmable electronic transformers
- Automatic or manual calibration to adapt to your light fixtures

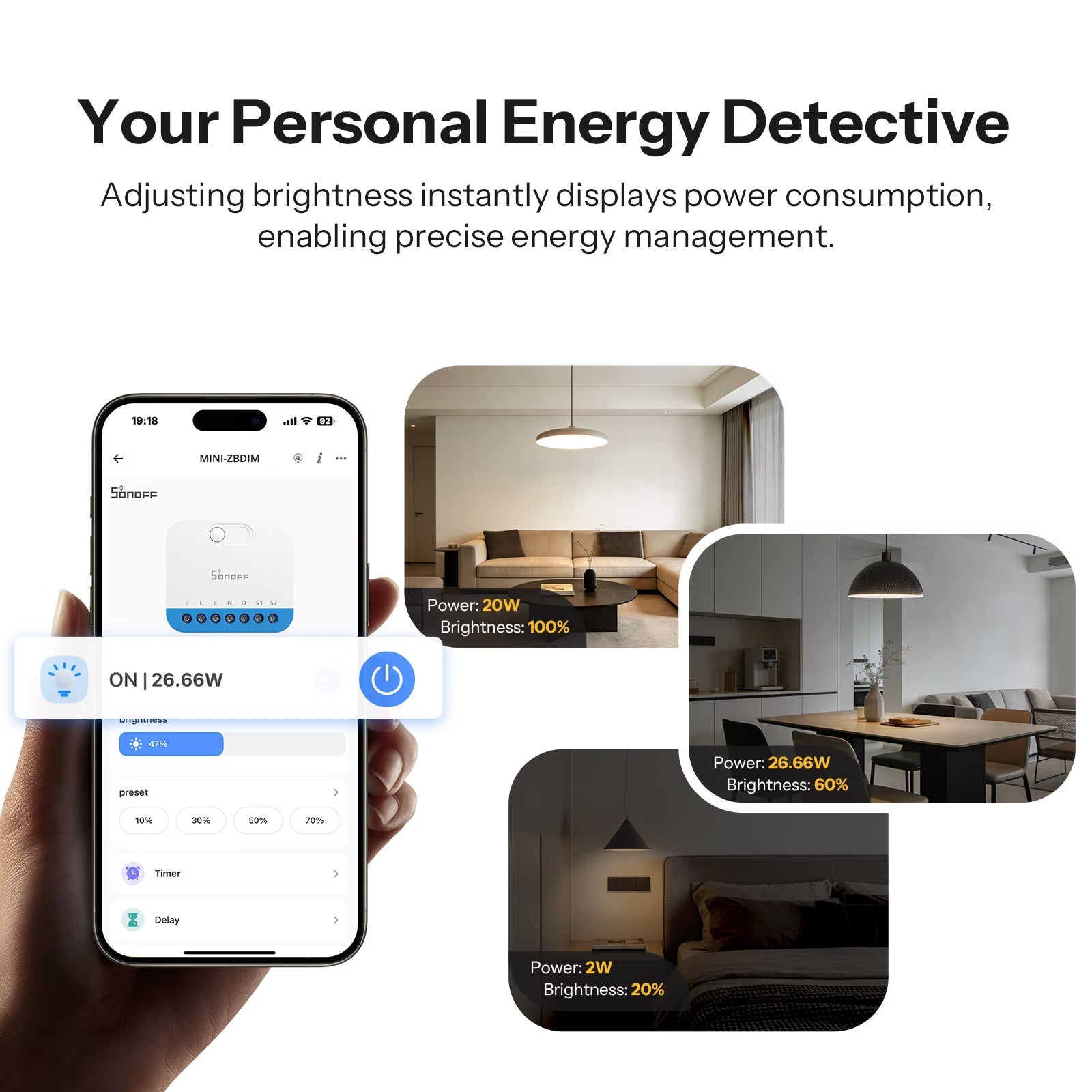

- Real-time power monitoring of the connected lighting circuit

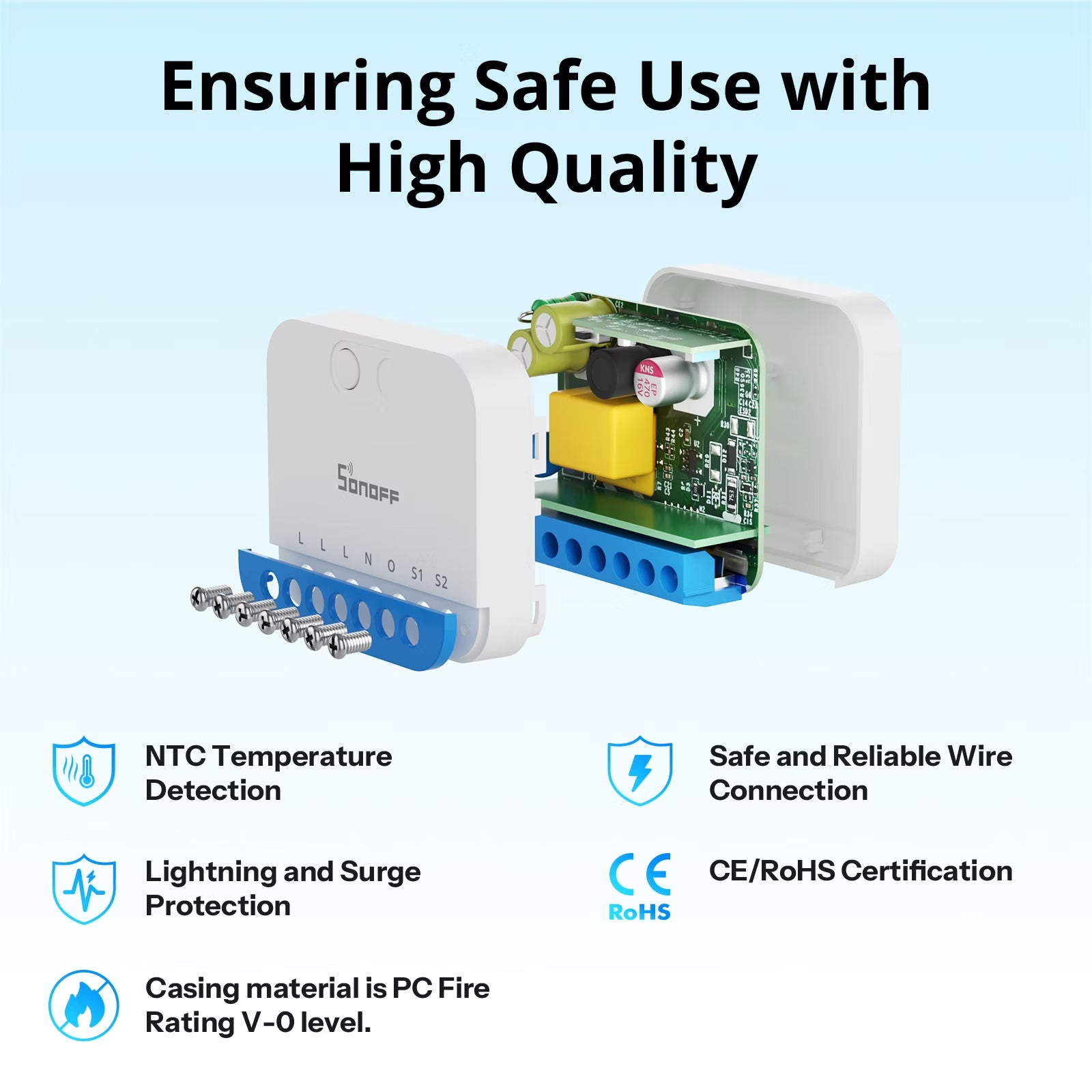

- Overheat protection: built-in temperature sensing alerts you and safely cuts the output
- Zigbee 3.0, with local automation in Home Assistant through ZHA or Zigbee2MQTT
- Voice control with Alexa and Google Assistant, plus IFTTT support
- Acts as a Zigbee router to strengthen your Zigbee mesh network
- Keeps your existing wall switch working for manual control
- Compact 45 × 39.4 × 16.8 mm module that fits behind the wall switch
Works With

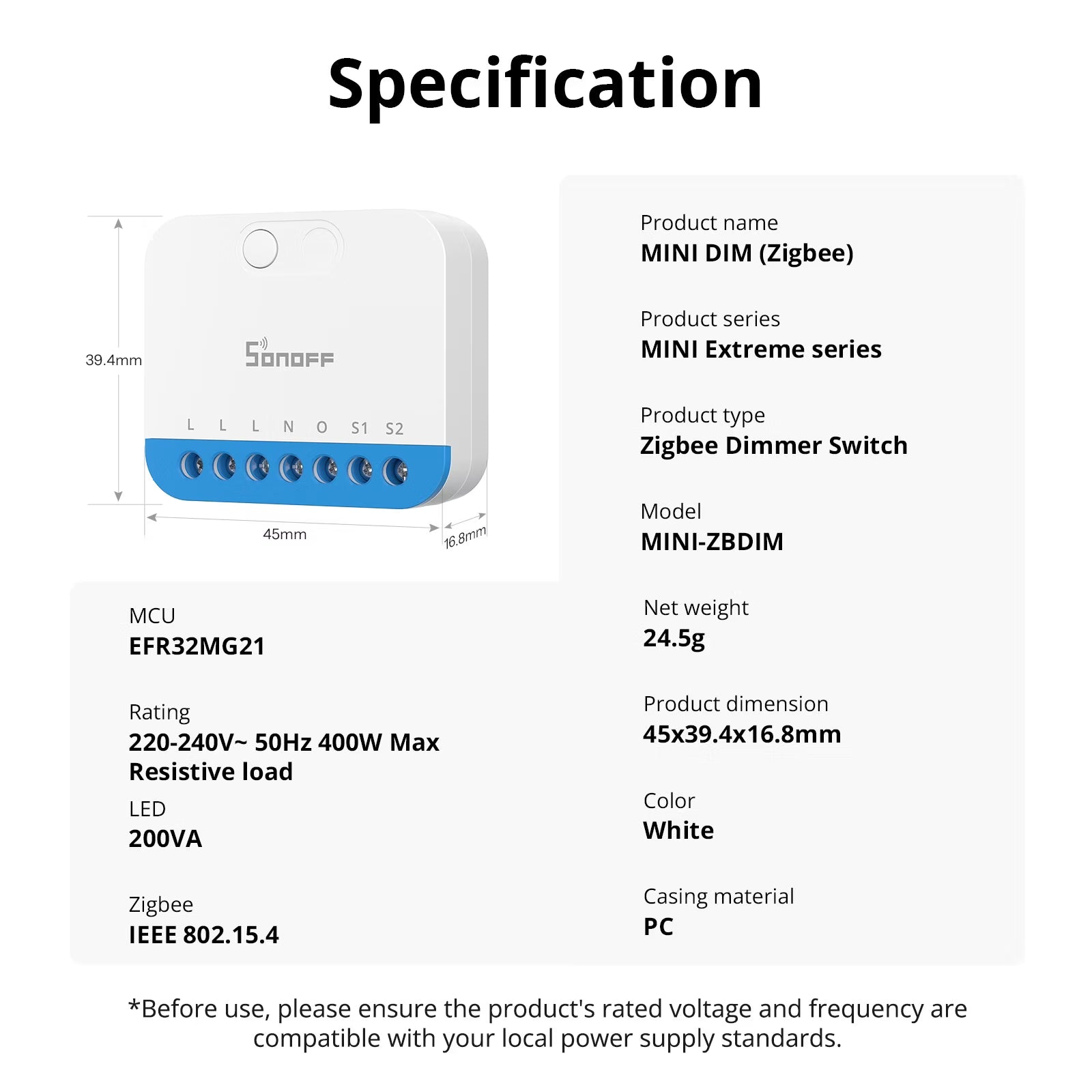

Technical Specifications
| Specification |
Details |
| Model |
MINI-ZBDIM |
| Product Series |
MINI Extreme series |
| Wireless Protocol |
Zigbee 3.0 |
| Rated Voltage |
220–240V~, 50Hz |
| Max. Load |
2A |
| Supported Lamps |
Dimmable LED up to 200VA; incandescent / halogen up to 400W; dimmable electronic transformers up to 200W |
| Neutral Wire |
Required |
| Casing Material |
PC |
| Working Temperature |
-10°C ~ 40°C |
| Dimensions |
45 × 39.4 × 16.8 mm |
| Net Weight |
24.5 g |
Why Choose the SONOFF MINI-ZBDIM?
- Brings smooth, flicker-free dimming to your existing lights without changing the wall switches
- Broad lamp compatibility for most home lighting setups
- Power monitoring and overheat protection for safer, more efficient lighting
- Local Zigbee automation with Home Assistant and SONOFF Zigbee gateways
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
