Description

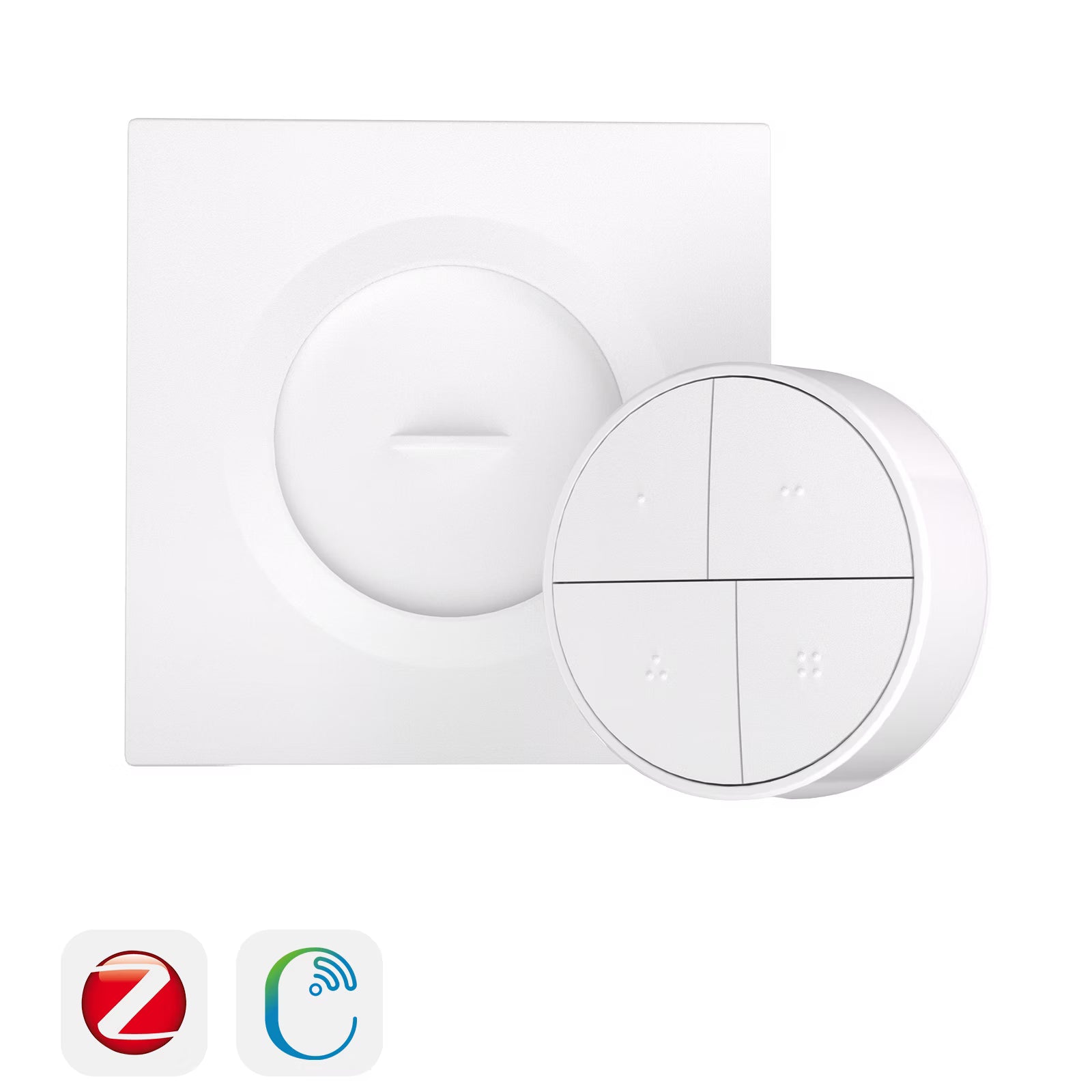

The SONOFF Orb 4-In-1 (SNZB-01M) is a Zigbee smart scene button from the SONOFF Fusion Series. Its 4 buttons each support single, double, triple and long press, so you can set up to 16 smart scenes such as Movie Night, Sleep or Away Mode and activate them instantly.
It switches between Zigbee and eWeLink-Remote modes for both automations and stable local control, and supports TouchLink and Home Assistant bindings for direct device-to-device control. Magnetic, adhesive and screw mounting let you place it on walls, metal surfaces or desks without wiring.
Note: Zigbee mode requires a Zigbee gateway (see "Works With" below).
Key Features
- 4 buttons with single, double, triple and long press for up to 16 smart scenes

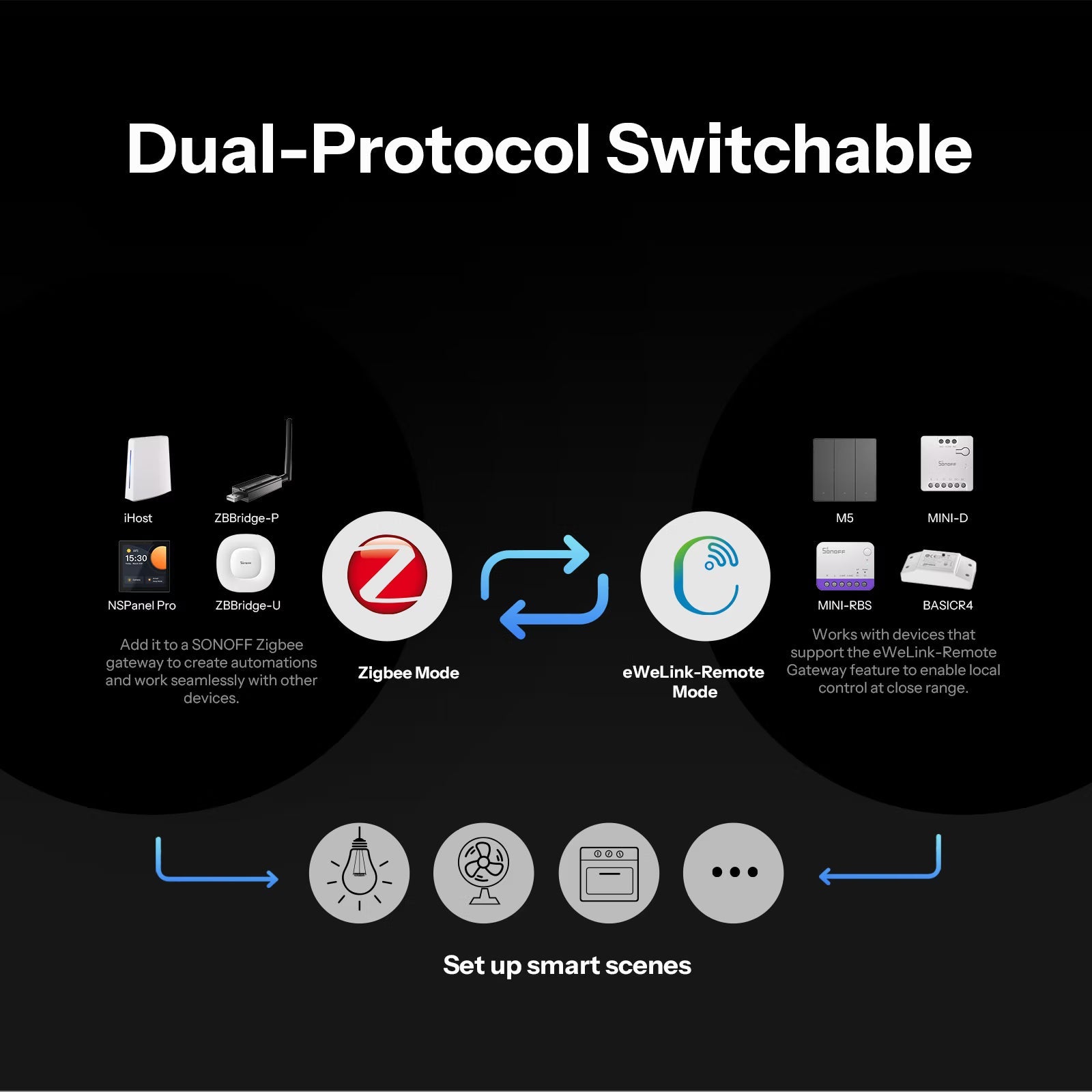

- Dual protocol: switch between Zigbee and eWeLink-Remote modes
- Faster local control with TouchLink and Home Assistant bindings

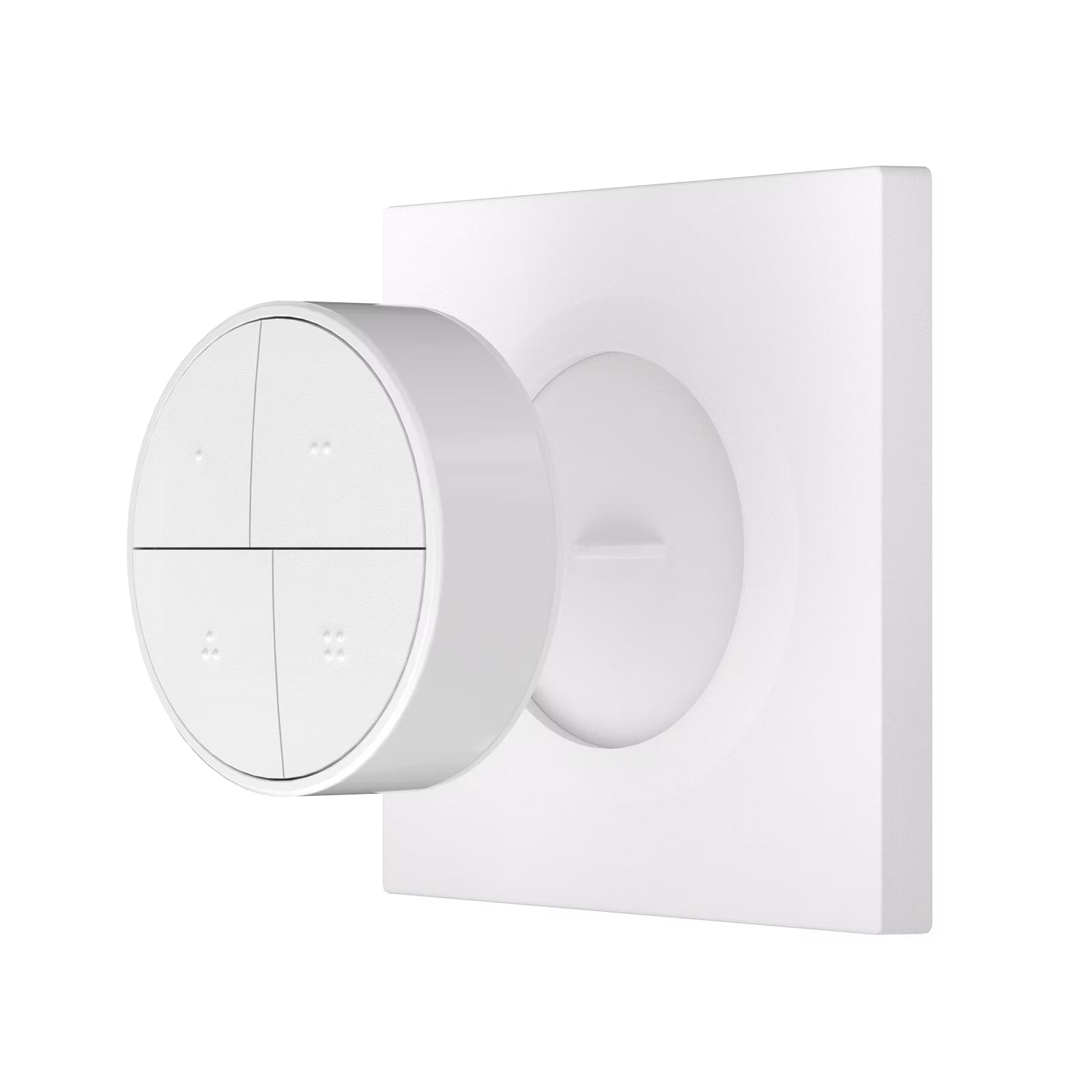

- Wire-free installation with magnetic, adhesive or screw mounting

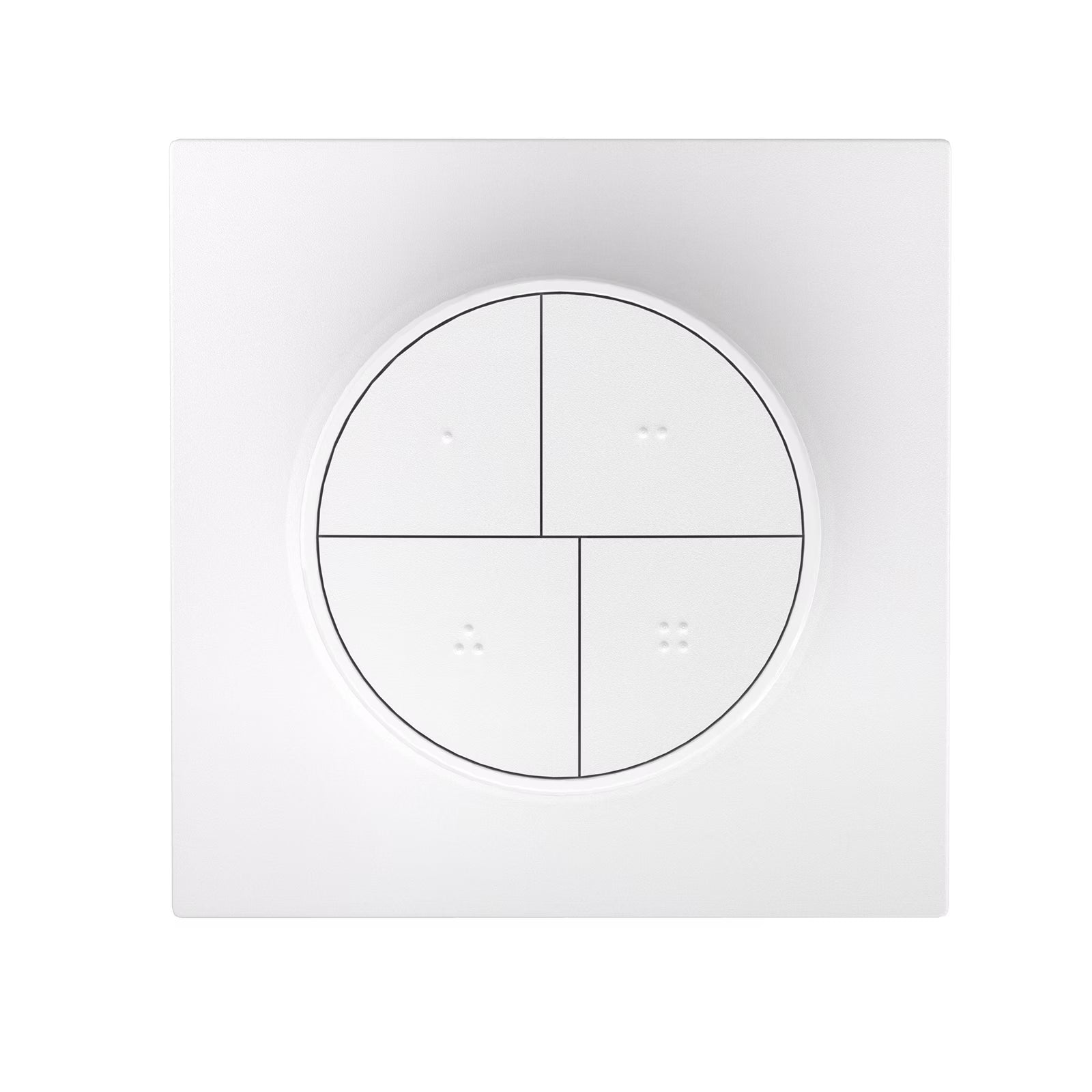

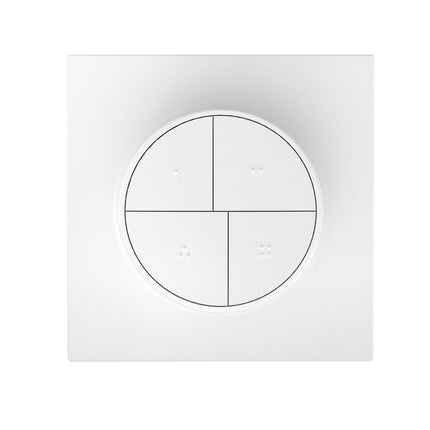

- Fusion Series design in pure white with a square base
- Powered by a CR2477 battery
- Compact φ50 × 22.5 mm body, 53 g including battery

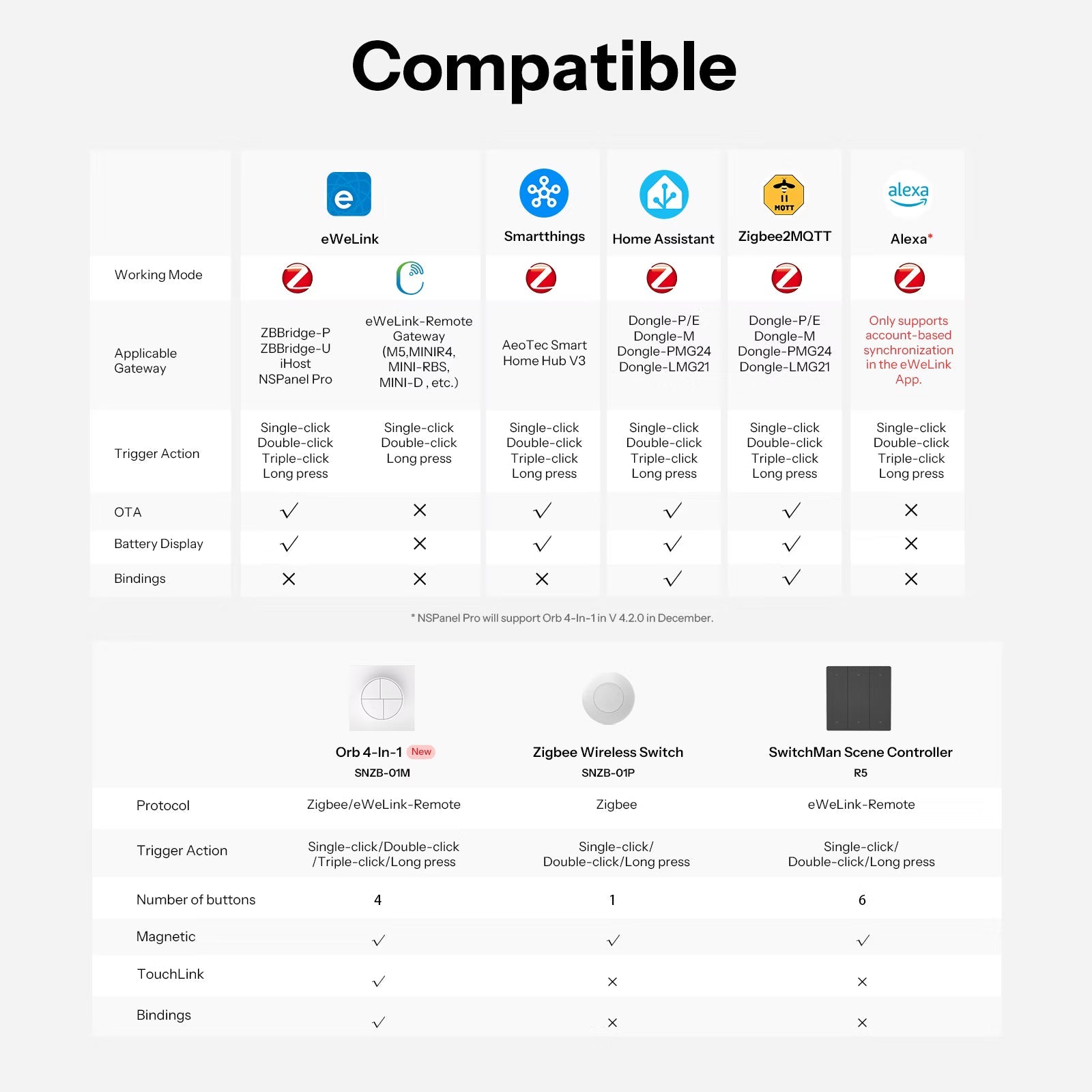

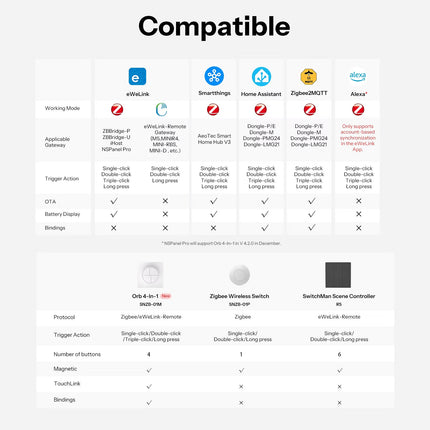

Works With

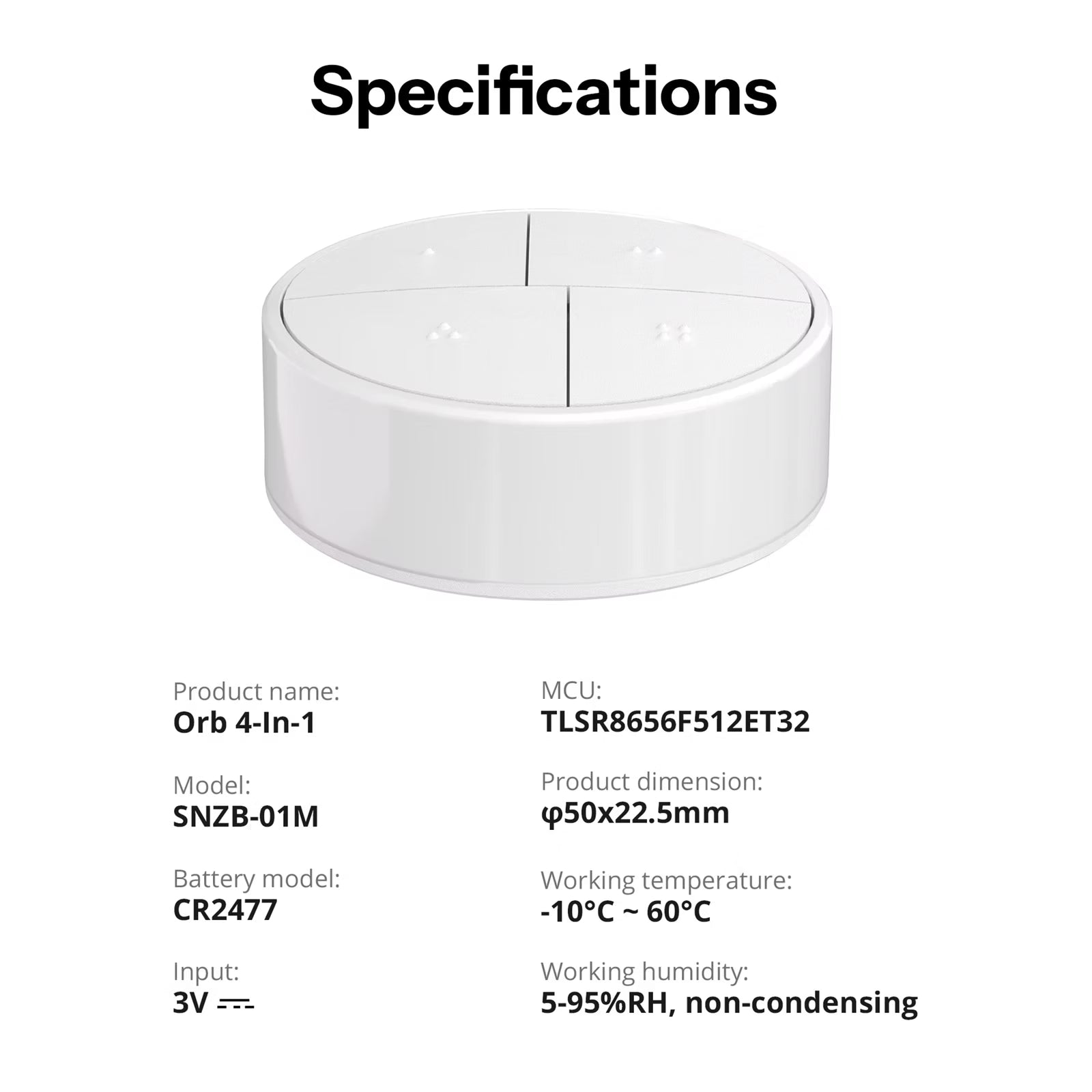

Technical Specifications
| Specification |
Details |
| Model |
SNZB-01M |
| Product Name |
Orb 4-In-1 |
| Product Series |
Fusion Series |
| Product Type |
Zigbee & eWeLink-Remote smart scene button |
| Wireless Connectivity |
Zigbee (IEEE 802.15.4), eWeLink-Remote |
| MCU |
TLSR8656F512ET32 |
| Input |
3V (CR2477 battery) |
| Button Actions |
Single, double, triple and long press (up to 16 scenes) |
| Installation |
Magnetic, adhesive or screw mounting |
| Working Temperature |
-10°C ~ 60°C |
| Working Humidity |
5% ~ 95% RH |
| Casing Material |
PC |
| Color |
White |
| Dimensions |
φ50 × 22.5 mm |
| Net Weight |
53 g (including battery) |
| Certifications |
CE, FCC, RoHS |
Why Choose the SONOFF SNZB-01M?
- Sixteen scenes from one small button
- Choose Zigbee automations or eWeLink-Remote local control
- Direct device-to-device control with TouchLink and Home Assistant bindings
- Clean Fusion Series look that blends into any décor
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
