Description

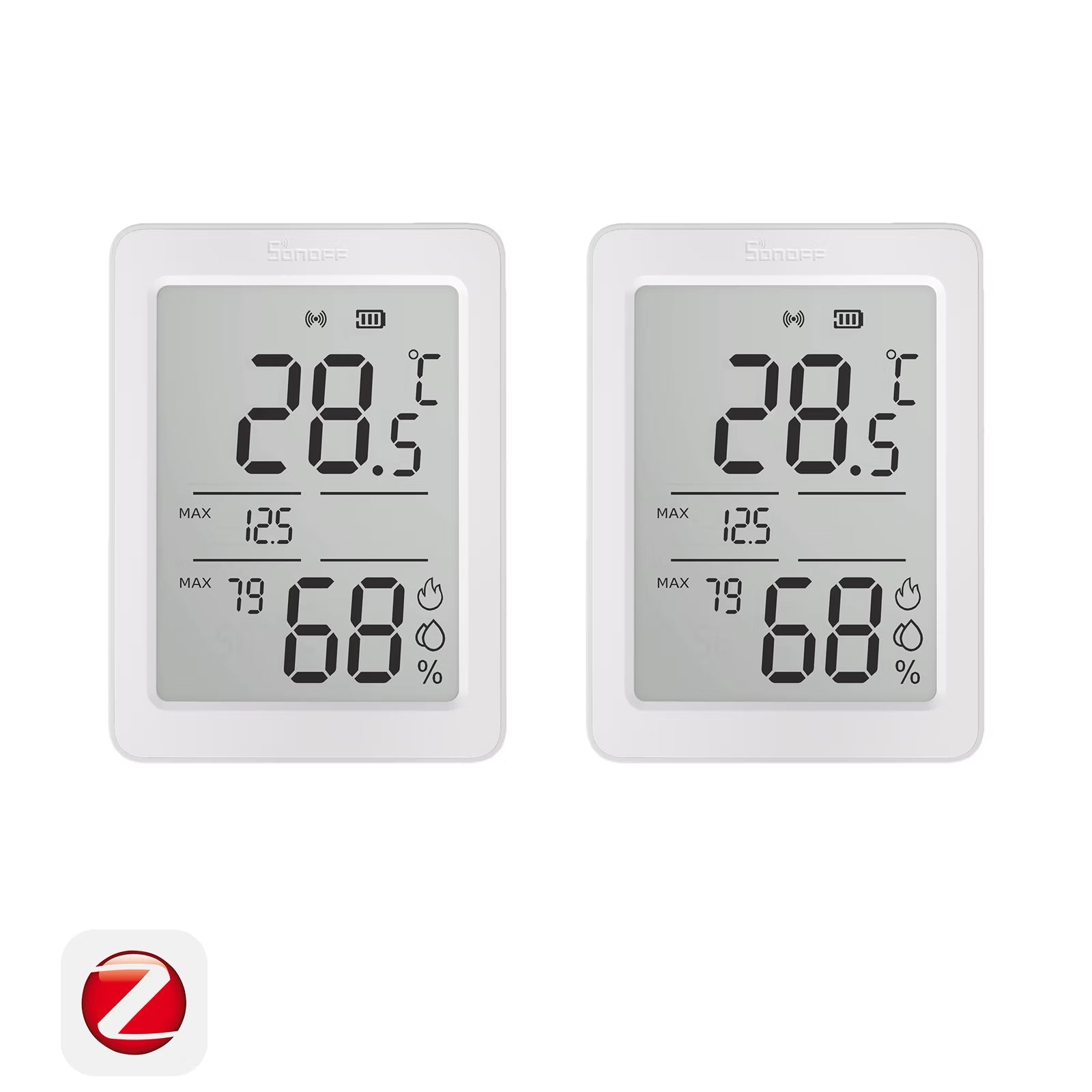

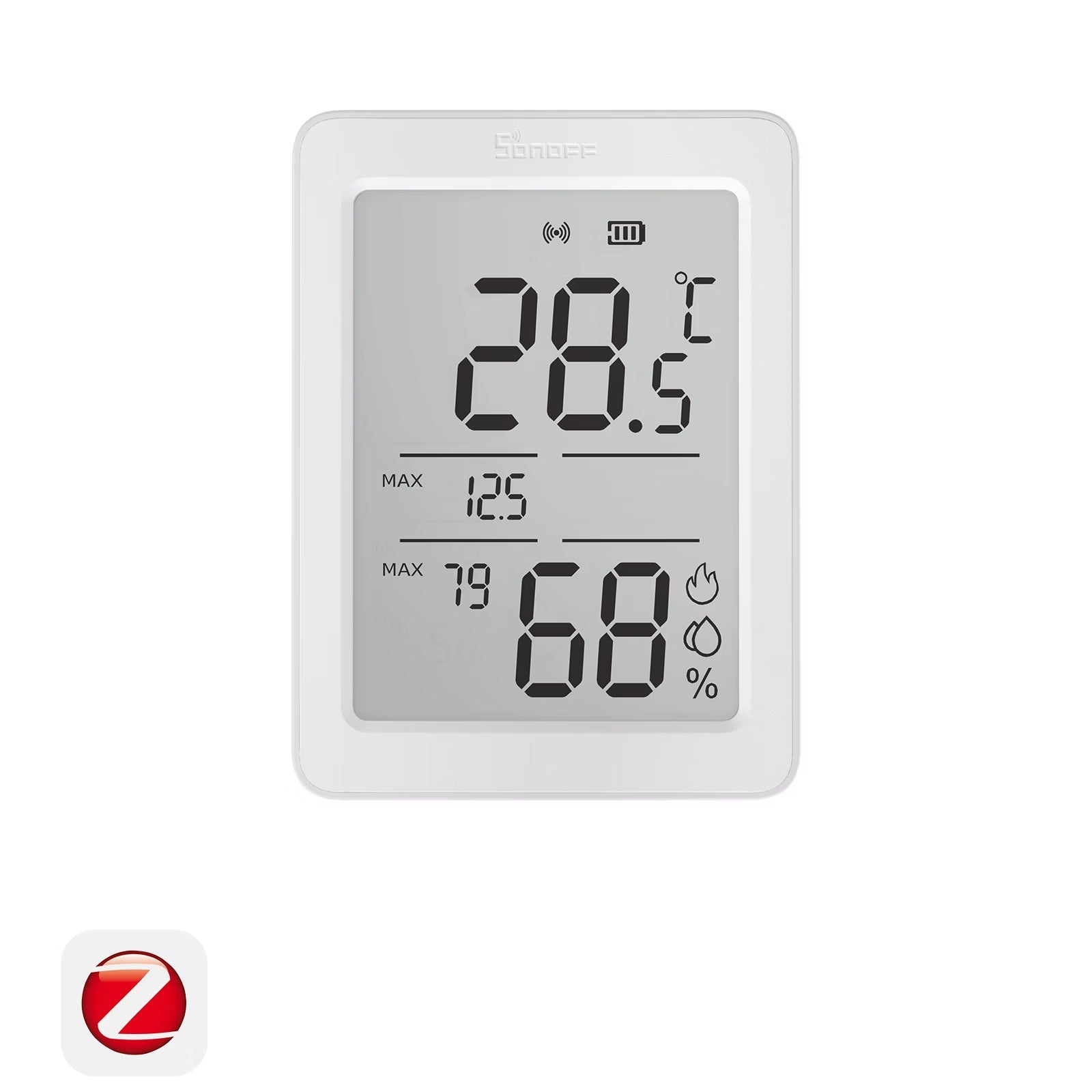

The SONOFF AirGuard TH (SNZB-02DR2) is a Zigbee temperature and humidity sensor with a large 3.6-inch LCD screen. At a glance it shows real-time temperature and humidity, the 24-hour highs and lows, and readings from other SONOFF temperature sensors in your home.
Through a Zigbee gateway, the eWeLink app keeps up to 6 months of records with maximum, minimum and average curves, plus dew point and VPD analysis. Reporting intervals are adjustable, and smart scenes can run humidifiers, air conditioners and other devices to keep every room comfortable.
Note: a Zigbee gateway is required for app monitoring, remote readings and automations (see "Works With" below).

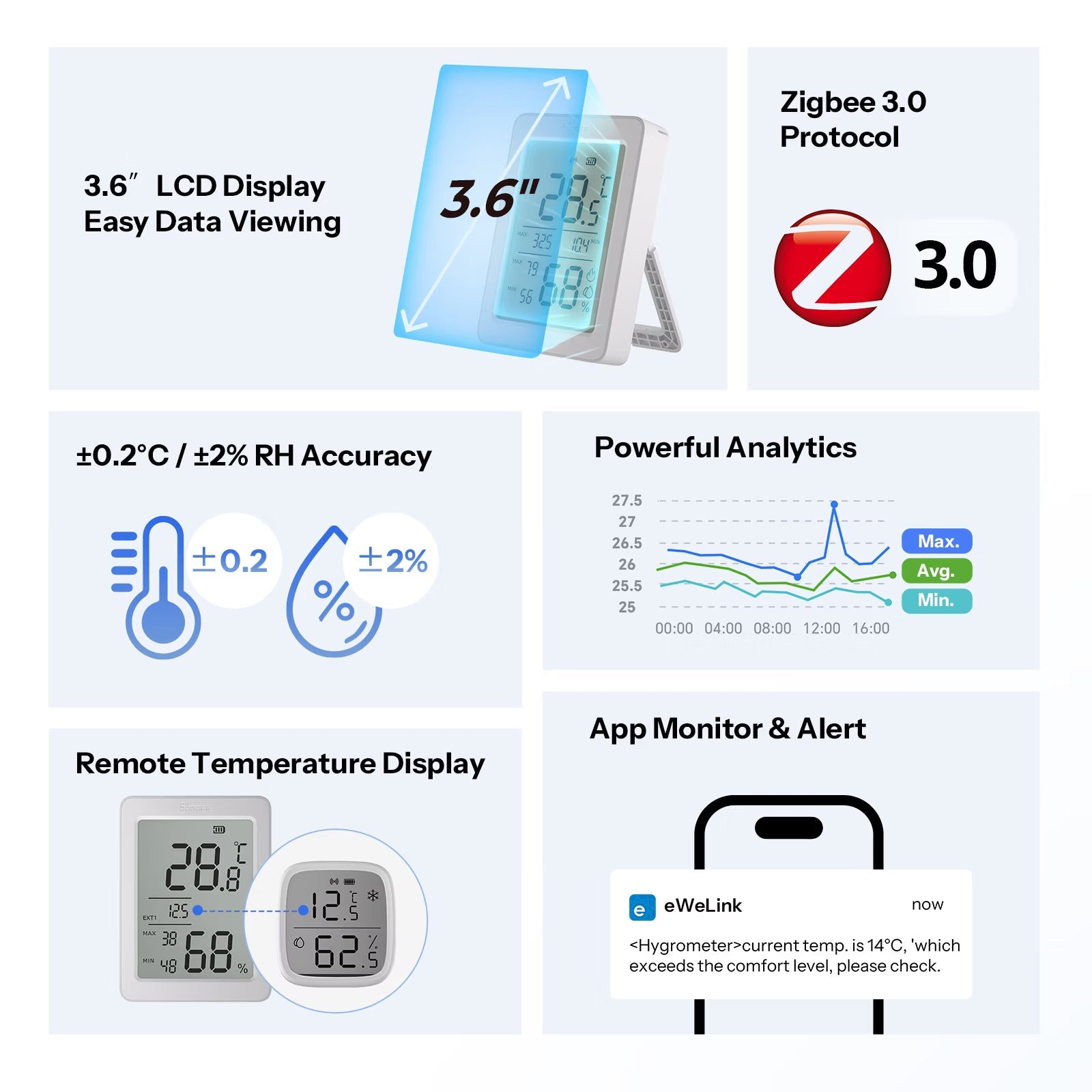

Key Features
- 3.6" LCD screen with real-time temperature and humidity
- 24-hour highest and lowest readings shown on the display
- Remote temperature comparison: shows readings from SNZB-02, SNZB-02P, SNZB-02WD, SNZB-02D and SNZB-02LD sensors on the same gateway

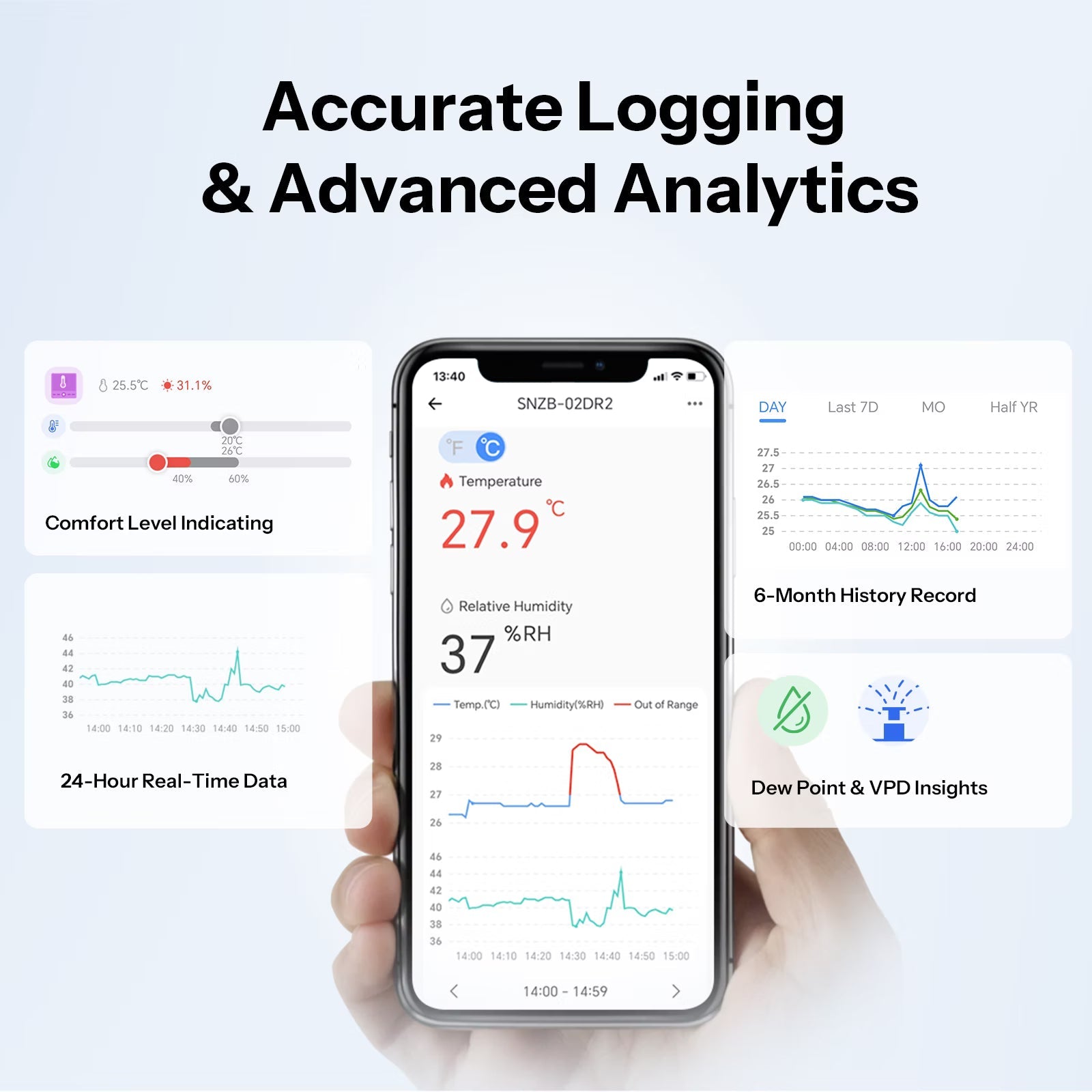

- Up to 6 months of records in the eWeLink app with max, min and average curves
- Dew point and VPD analysis for clear air-quality insights
- Adjustable reporting frequency based on thresholds or time cycles

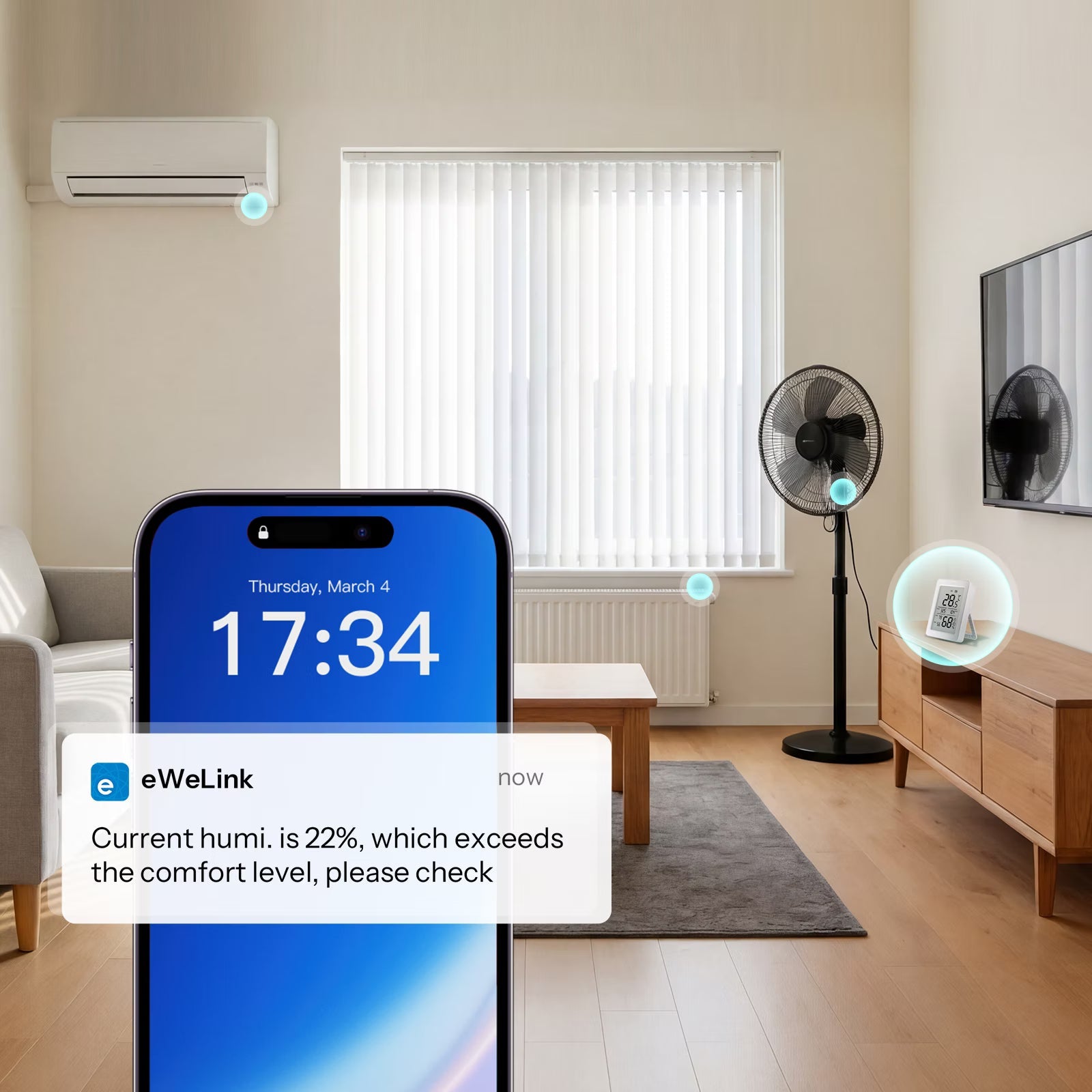

- Smart scenes with humidifiers, air conditioners and other smart devices
- Wall mounting, desktop placement or magnetic installation
- Works with Home Assistant and Alexa
Works With

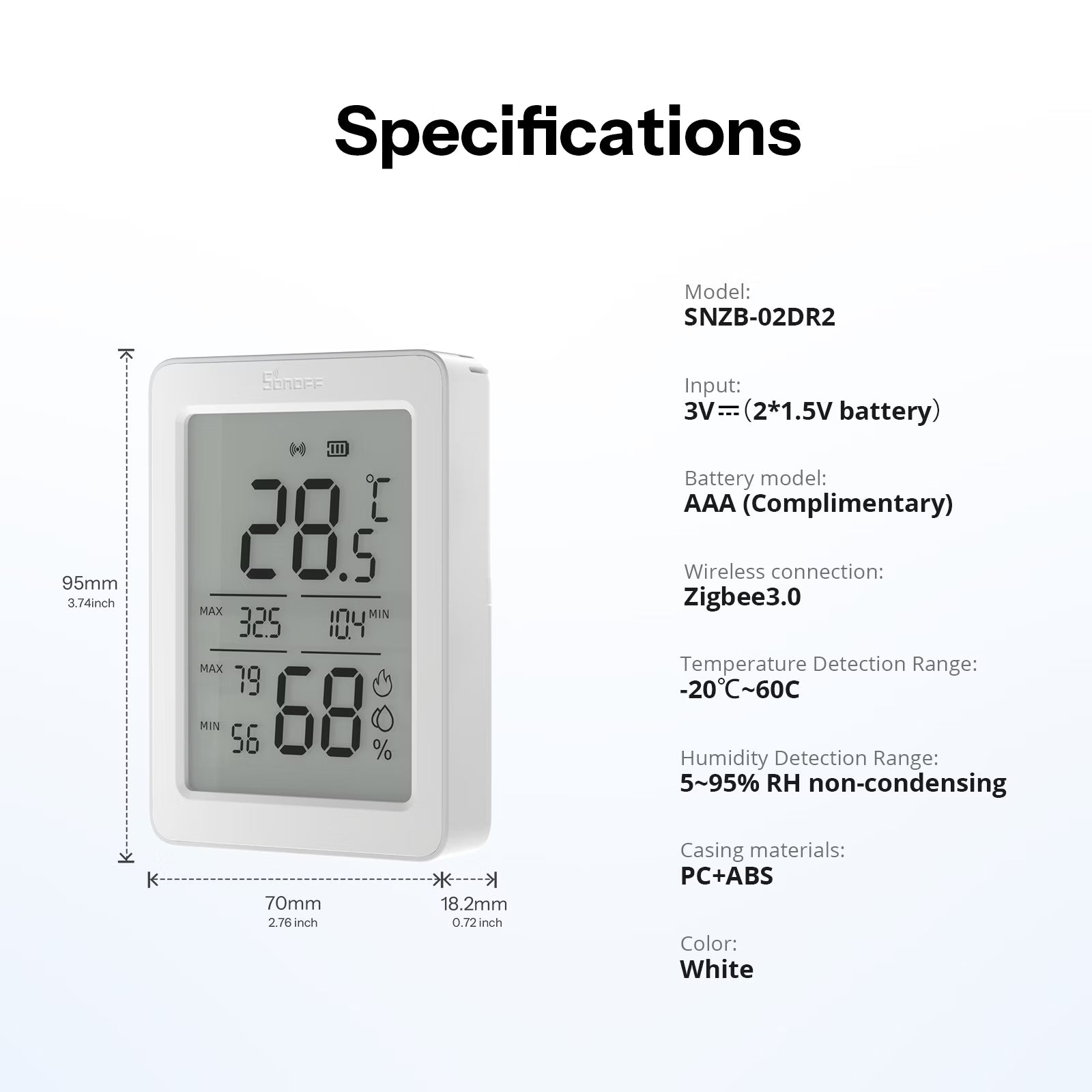

Technical Specifications
| Specification |
Details |
| Model |
SNZB-02DR2 |
| Product Name |
AirGuard TH 3.6'' LCD |
| Wireless Protocol |
Zigbee (IEEE 802.15.4) |
| MCU |
TLSR8656F512ET32 |
| Display |
3.6" LCD |
| Power |
Battery (included) |
| Working Temperature |
-20°C ~ 60°C |
| Working Humidity |
5% ~ 95% RH, non-condensing |
| Casing Material |
PC + ABS |
| Dimensions |
95 × 70 × 18.2 mm |
| Net Weight |
99.3 g (battery included) |
| Certifications |
CE, FCC, RoHS |
| FCC ID |
2APN5-SNZB02DR2 |
Why Choose the SONOFF SNZB-02DR2?
- A big, clear screen with 24-hour extremes, no phone needed
- Compare the temperature of other rooms without walking there
- 6 months of history with dew point and VPD analysis
- Automations that keep temperature and humidity comfortable on their own
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
