Description

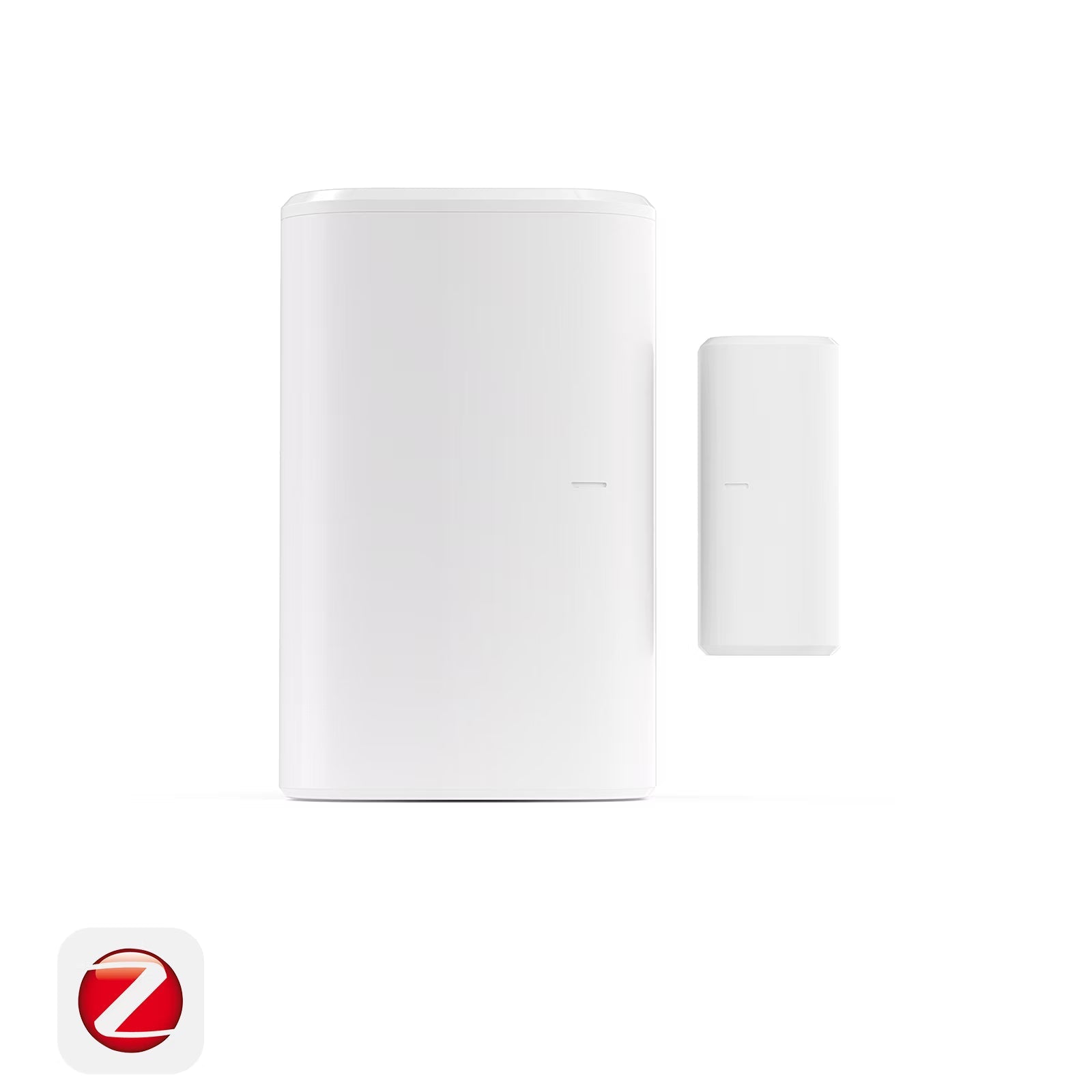

The SONOFF SNZB-04P is a Zigbee 3.0 door and window sensor that reports the open/closed status of doors, windows, drawers and cabinets in real time. It sends instant app notifications through eWeLink, can turn on lights automatically when a door or window is opened, and can trigger audible and visual alarms for unauthorized entries.
Built-in tamper protection notifies you immediately if the sensor is tampered with, and the CR2477 battery provides more than 5 years of use. Scenes between the SNZB-04P and other Zigbee devices keep working locally even if the network is disconnected, as long as the devices are powered on.
Note: a Zigbee gateway is required (see "Works With" below). The model number on the packaging and printed materials (including the manual) may differ due to a labeling update; the product appearance and functionality remain unchanged.
Key Features
- Real-time open/close detection for doors, windows, drawers and cabinets
- Instant app notifications through eWeLink

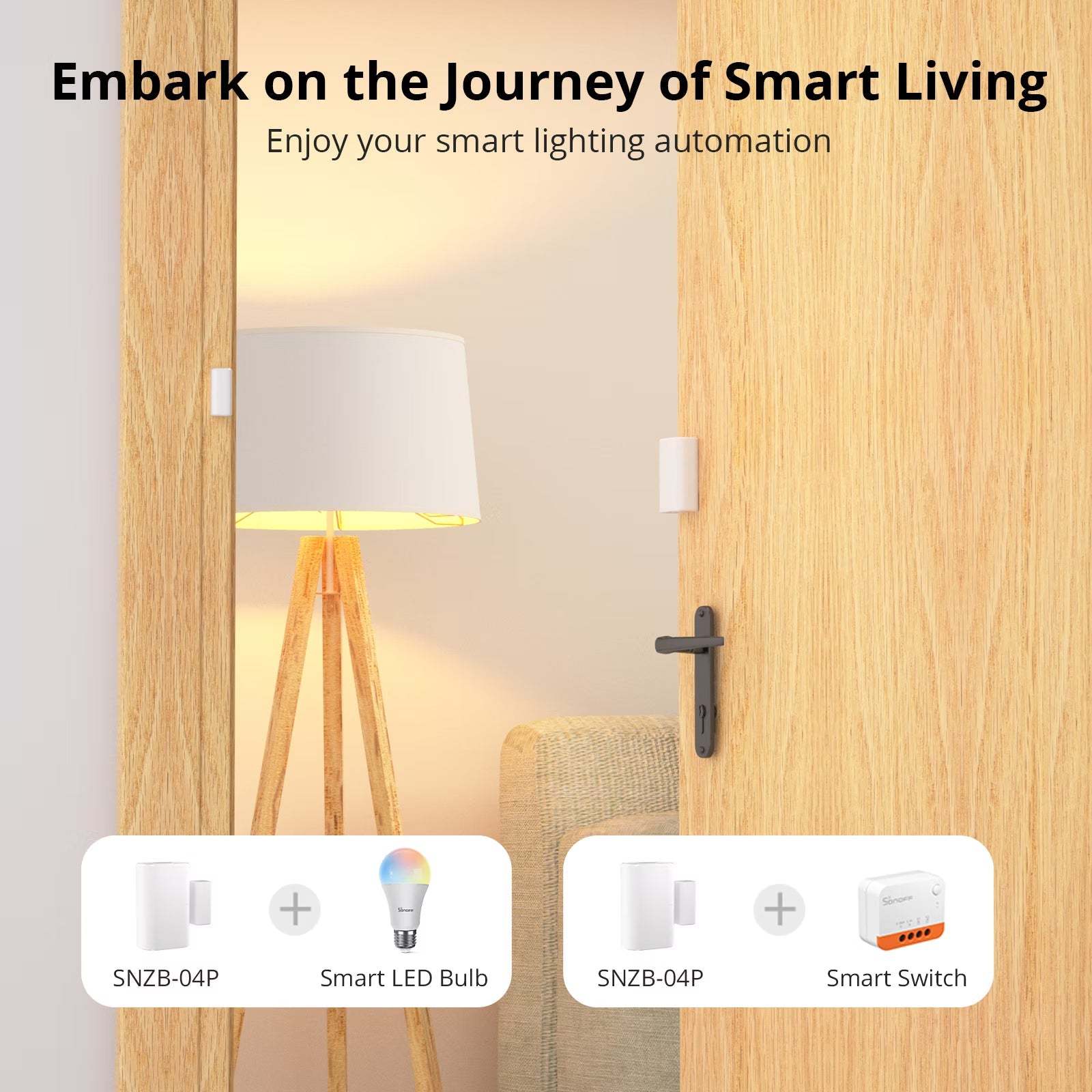

- Turns on lights automatically when a door or window is opened
- Triggers audible and visual alarms for unauthorized entries
- Built-in tamper alert sent to the app if the sensor is tampered with
- More than 5 years of battery life (CR2477 battery)

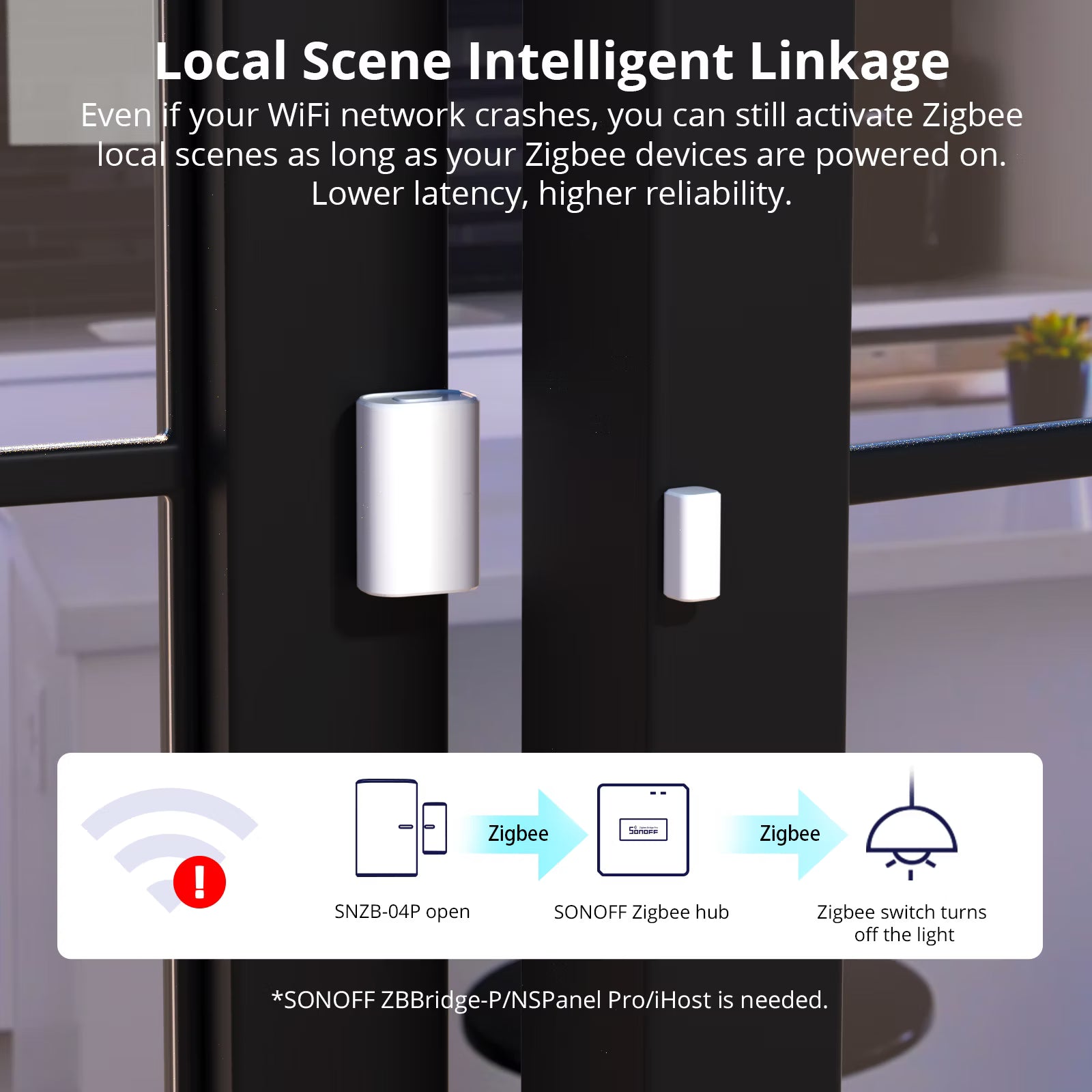

- Local Zigbee scenes keep working even when the network is disconnected
- Installation distance up to 20 mm between sensor and magnet

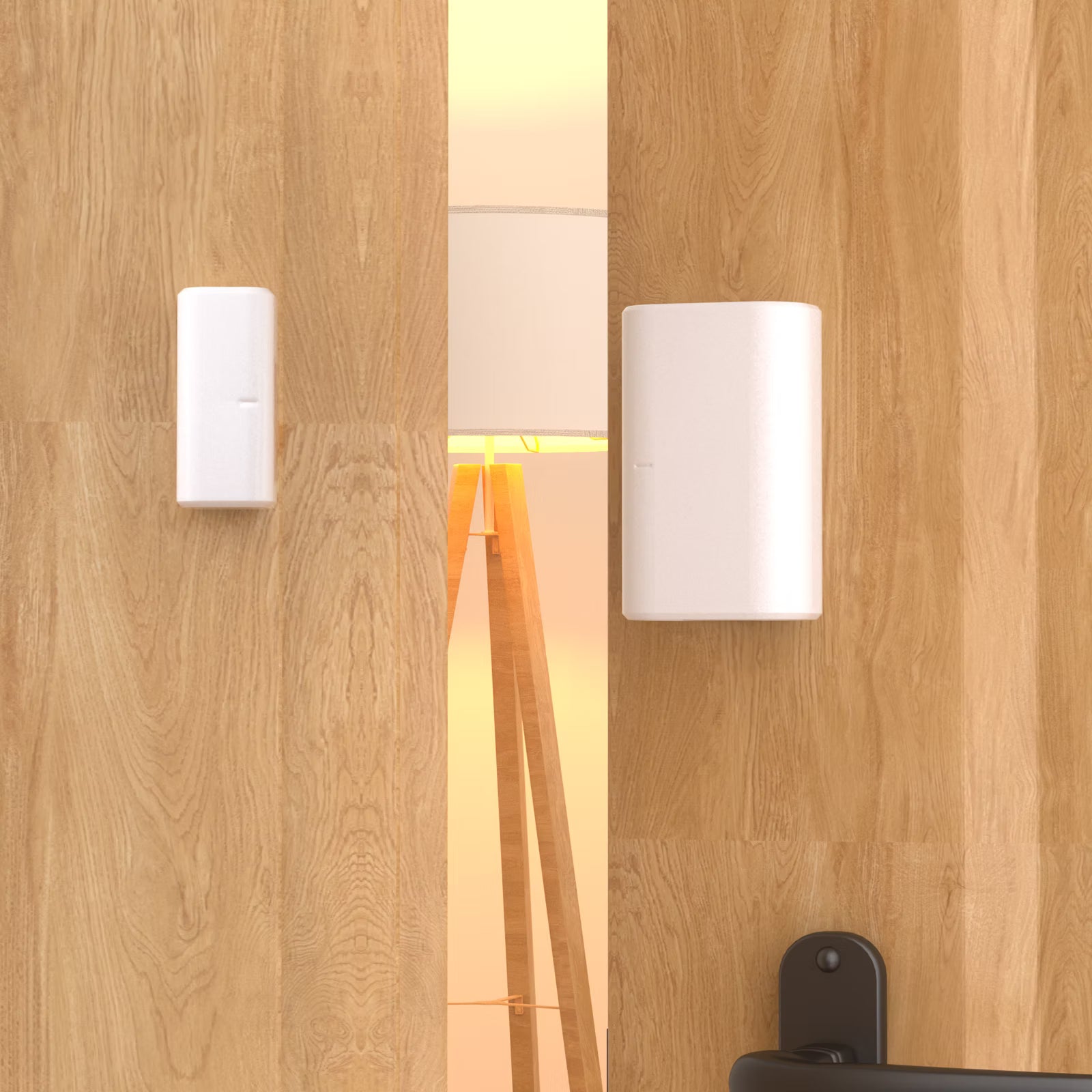

- Compact wireless design with adhesive mounting, no wiring needed
Works With
Technical Specifications
| Specification |
Details |
| Model |
SNZB-04P |
| Product Name |
Zigbee Door/Window Sensor |
| Wireless Protocol |
Zigbee 3.0 |
| Battery |
CR2477 (3V), included |
| Battery Life |
More than 5 years |
| Installation Distance |
≤ 20 mm |
| Operating Temperature |
-10°C ~ 60°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| Casing Material |
PC |
| Color |
White |
| Dimensions |
Sensor: 50.5 × 32 × 21.9 mm; Magnet: 27 × 12 × 12.4 mm |
| Net Weight |
33 g |
| App |
eWeLink |
Why Choose the SONOFF SNZB-04P?
- Tamper alerts and instant notifications for added security
- More than 5 years of battery life means almost no maintenance
- Local Zigbee scenes keep working without an internet connection
- Compact size fits doors, windows, cabinets and drawers
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
