Description

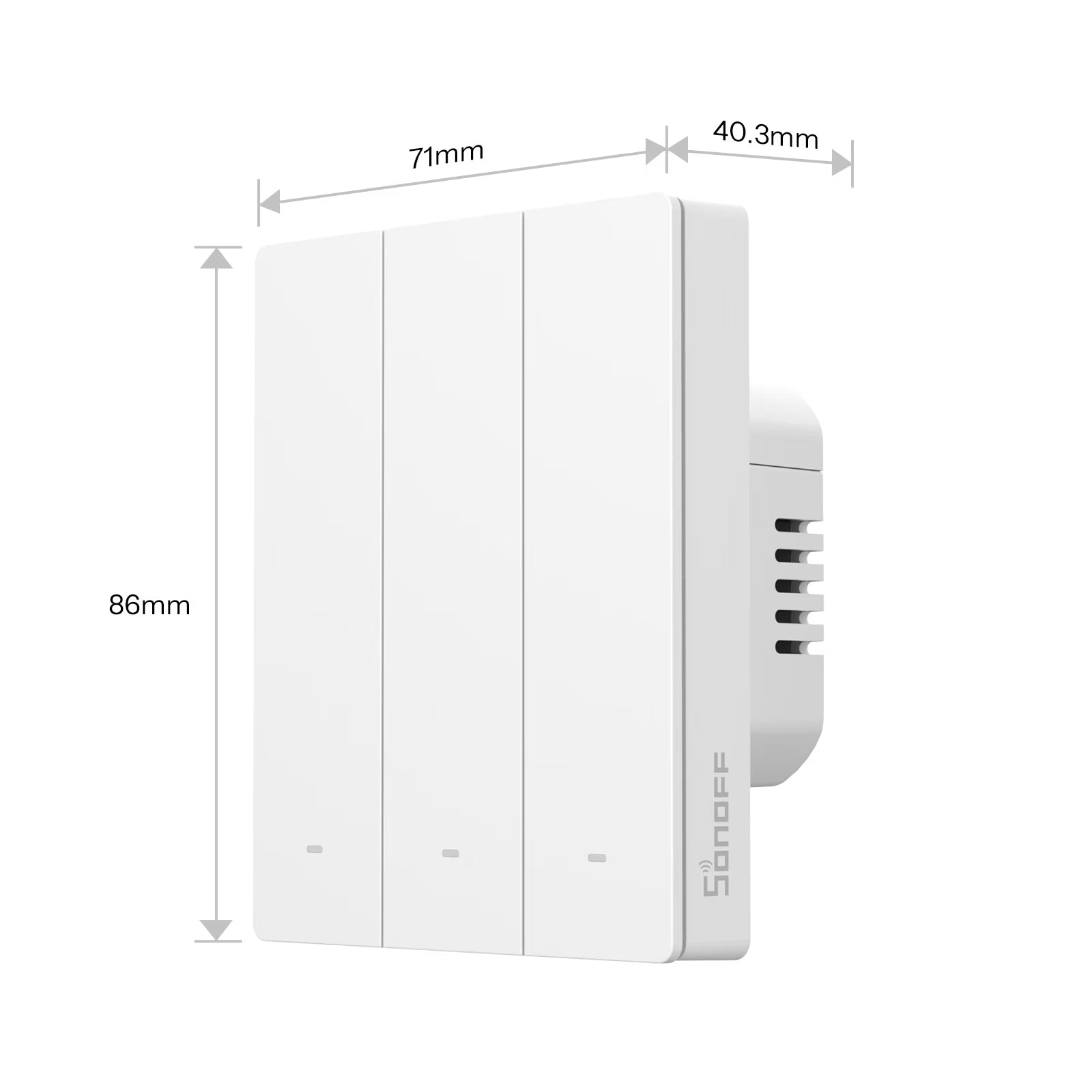

The SONOFF SwitchMan ZBM5 Zigbee Smart Wall Switch (80 Type) is a Zigbee 3.0 wall switch with physical push buttons for 80-type wall boxes (86 × 71 × 40.3 mm), available in 1 and 3 gang versions (ZBM5-1C-80W and ZBM5-3C-80W). It works with or without a neutral wire, so it fits most existing lighting circuits.
Pair it with a SONOFF Zigbee gateway for remote control, timers, schedules, smart scenes and voice control with Amazon Alexa and Google Assistant in the eWeLink app, or add it to Home Assistant with a SONOFF ZBDongle for fast local control. In neutral-wire mode the ZBM5 also works as a Zigbee router that strengthens your Zigbee mesh, and Detach Relay Mode keeps smart lights controllable through smart scenes even when the physical switch is turned off.
Note: a Zigbee gateway is required (see "Works With" below). 80-type and 86-type wall boxes need different switch sizes, so please confirm your wall box type before ordering.

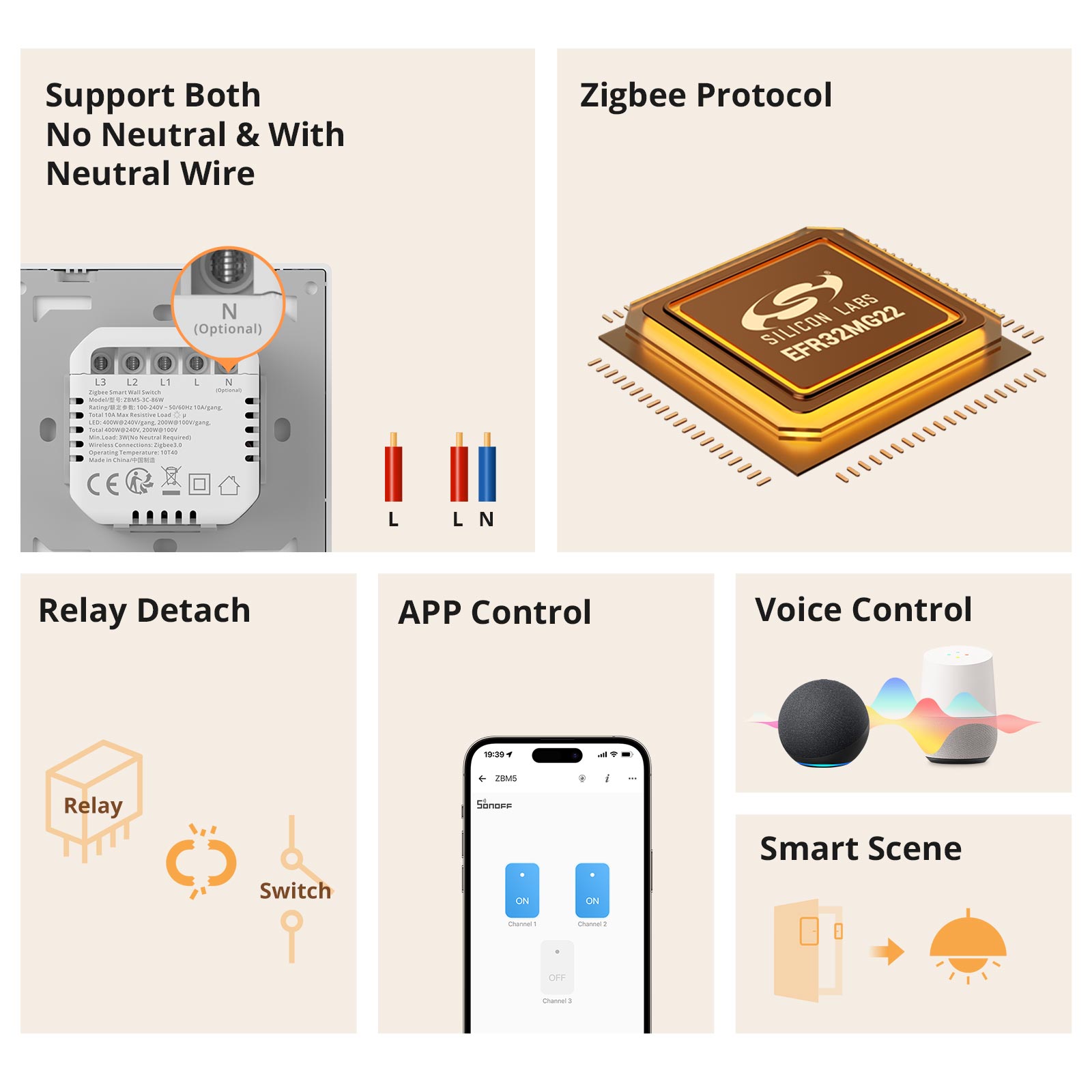

Key Features

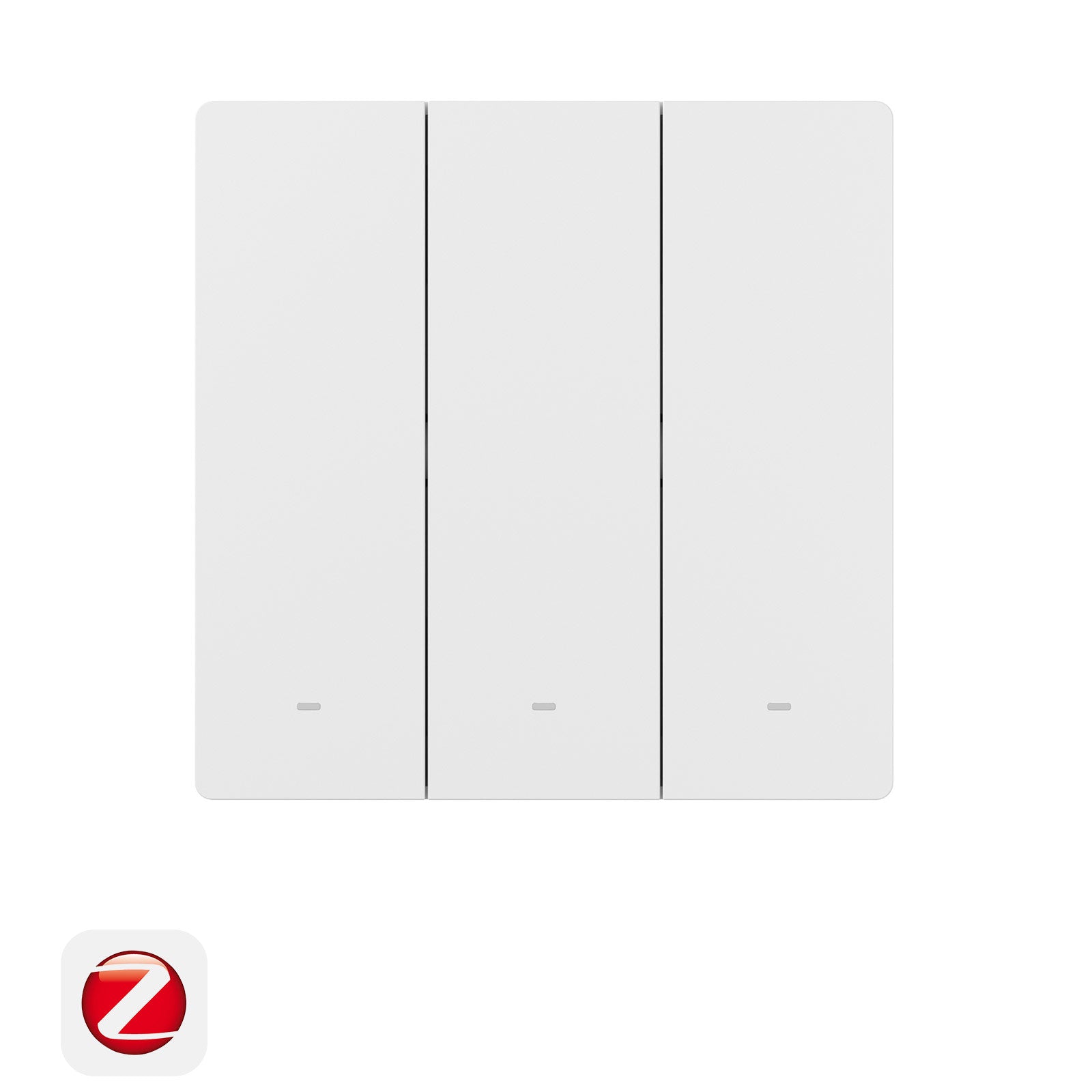

- Physical push buttons in 1 and 3 gang versions

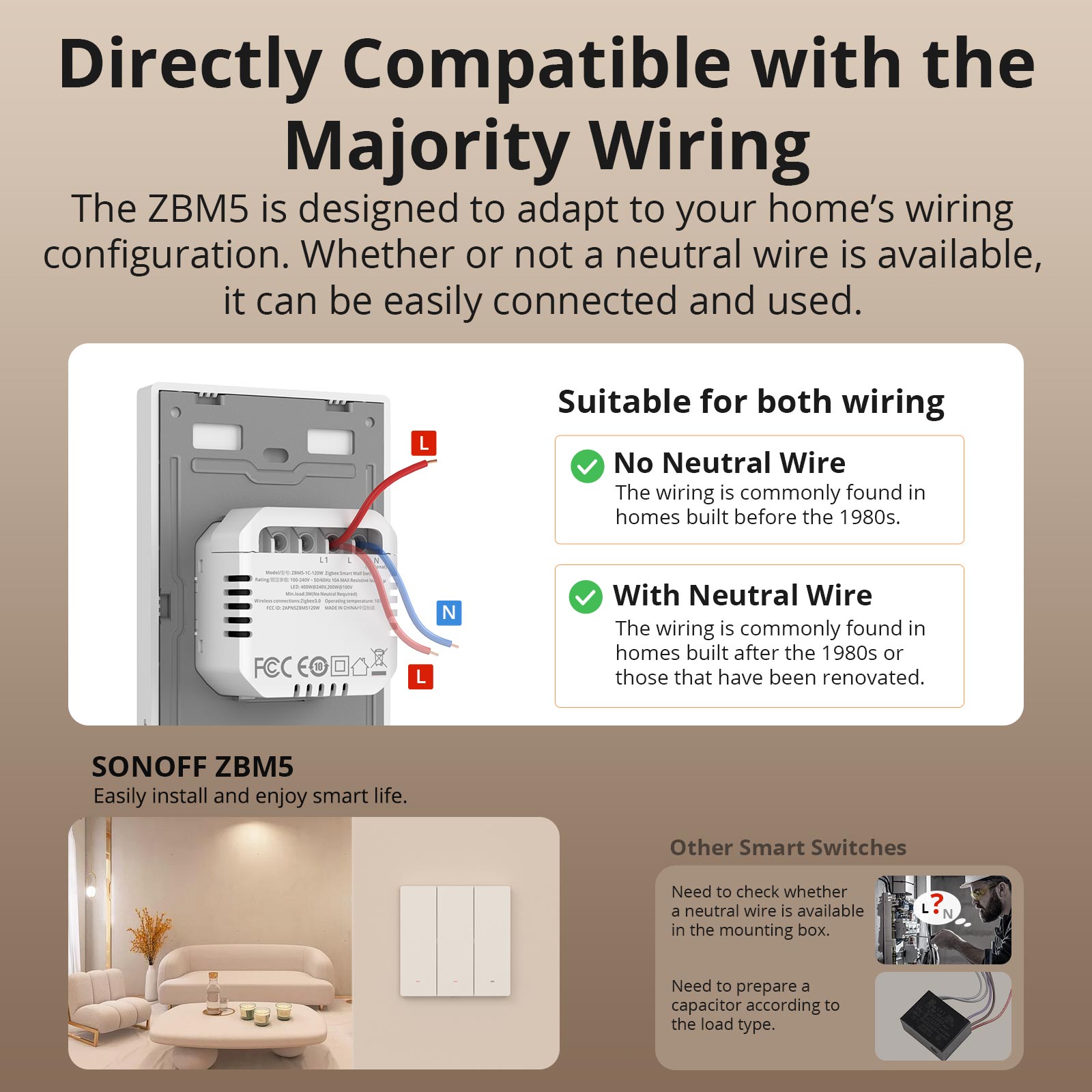

- Works with or without a neutral wire (3W minimum load in no-neutral mode)
- Zigbee 3.0 for stable, low-latency local control
- Acts as a Zigbee router in neutral-wire mode, extending your Zigbee mesh
- Detach Relay Mode for smart lights (in neutral-wire mode): control them through smart scenes even when the switch is off
- Up to 10A resistive load; LED loads up to 400W at 240V

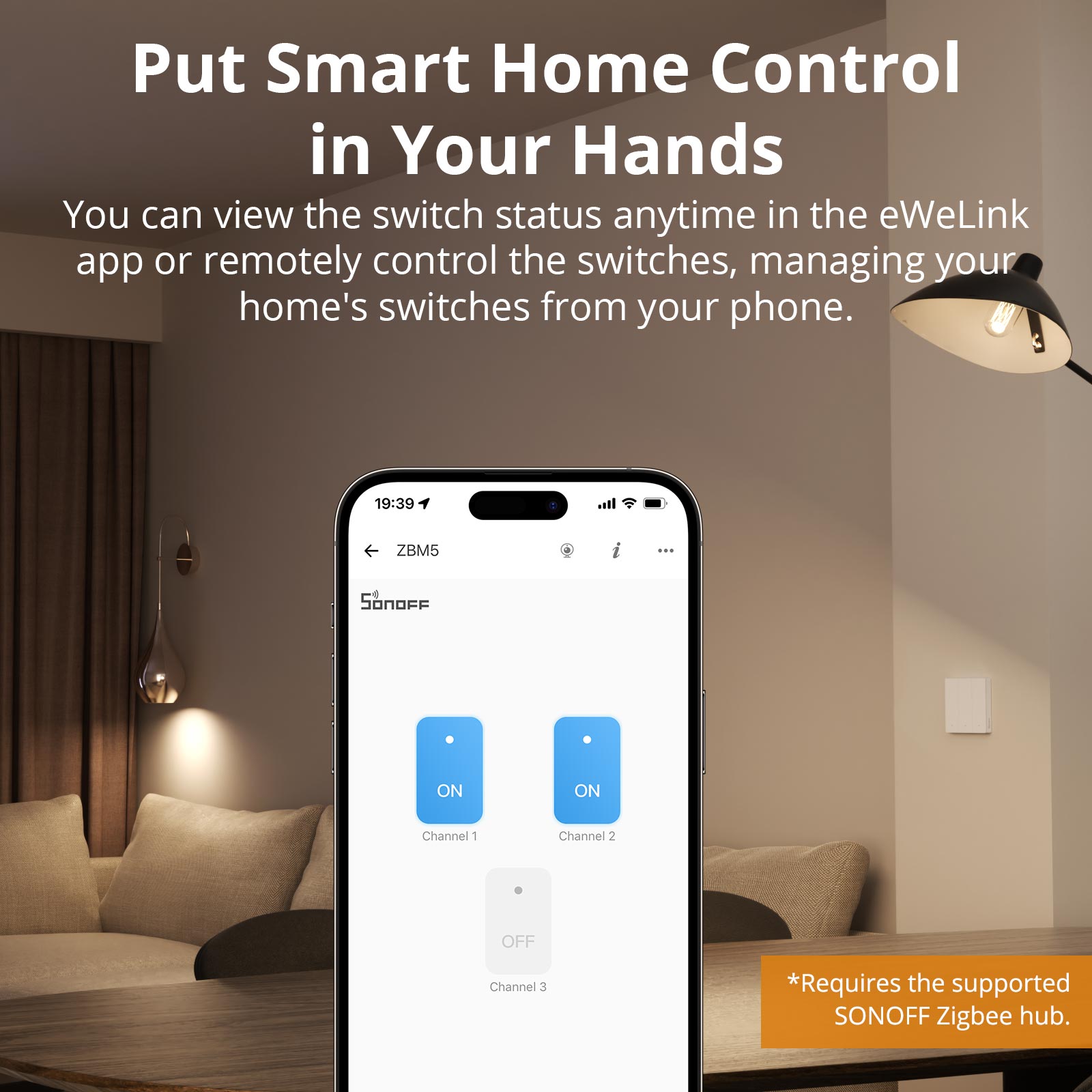

- Timers, schedules and smart scenes in the eWeLink app
- Voice control with Amazon Alexa and Google Assistant
- Works with SONOFF Zigbee gateways and with Home Assistant (ZHA / Zigbee2MQTT) via ZBDongle
Works With

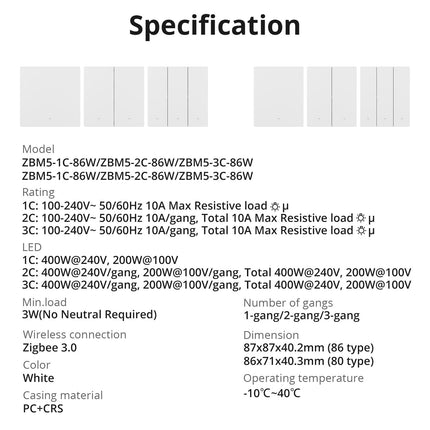

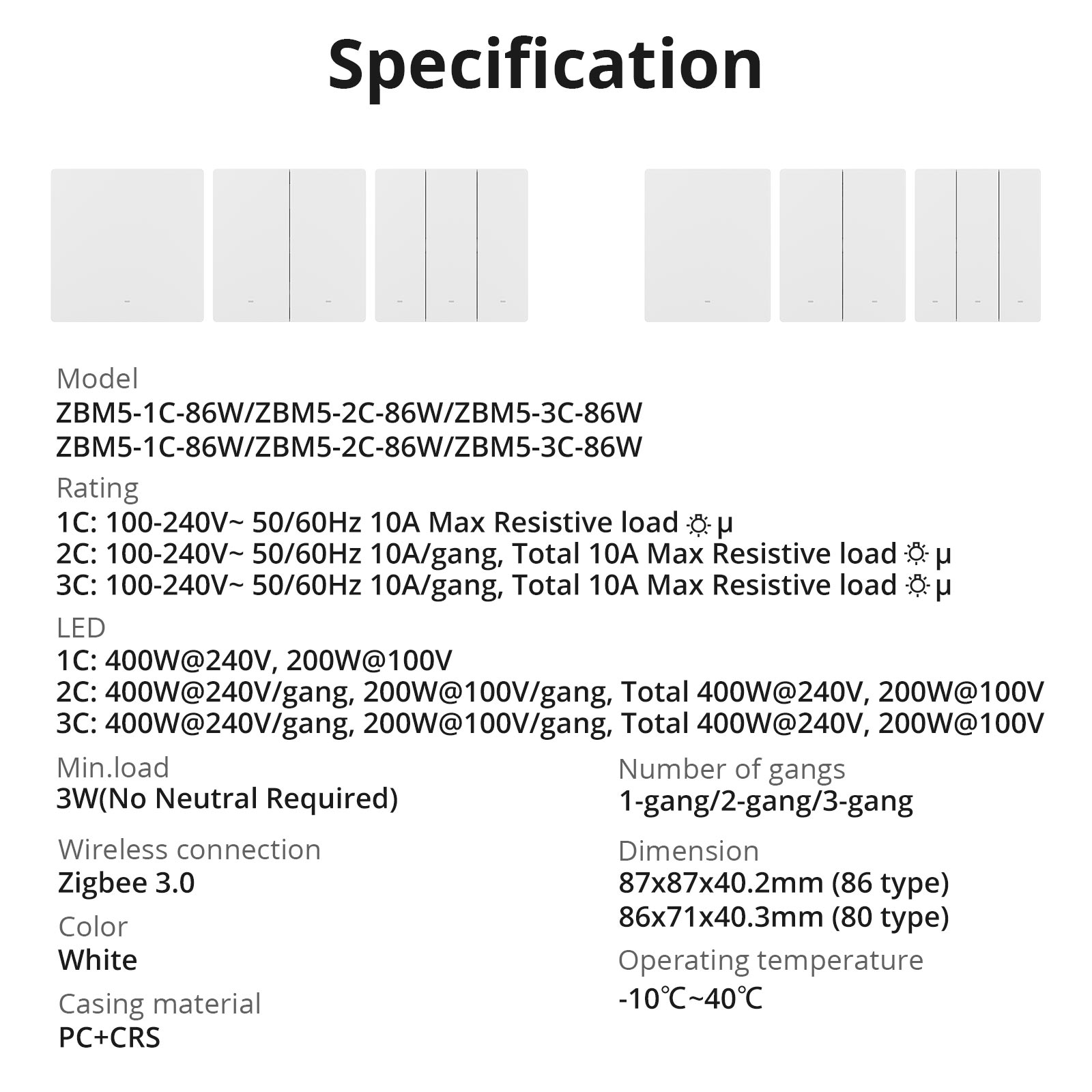

Technical Specifications
| Specification |
Details |
| Model |
ZBM5-1C-80W, ZBM5-3C-80W |
| Product Name |
SwitchMan Zigbee Smart Wall Switch ZBM5 |
| Wall Box Type |
80 Type |
| Wireless Protocol |
Zigbee 3.0 |
| Power Input |
100-240V~ 50/60Hz |
| Rating |
1-Gang: 10A max; 3-Gang: 10A/gang, 10A total max (resistive load) |
| LED Load |
1-Gang: 400W@240V, 200W@100V; 3-Gang: 400W@240V / 200W@100V per gang, 400W@240V / 200W@100V total |
| Min. Load |
3W (no-neutral mode) |
| Wiring |
With or without neutral wire |
| Casing Material |
PC + CRS |
| Color |
White |

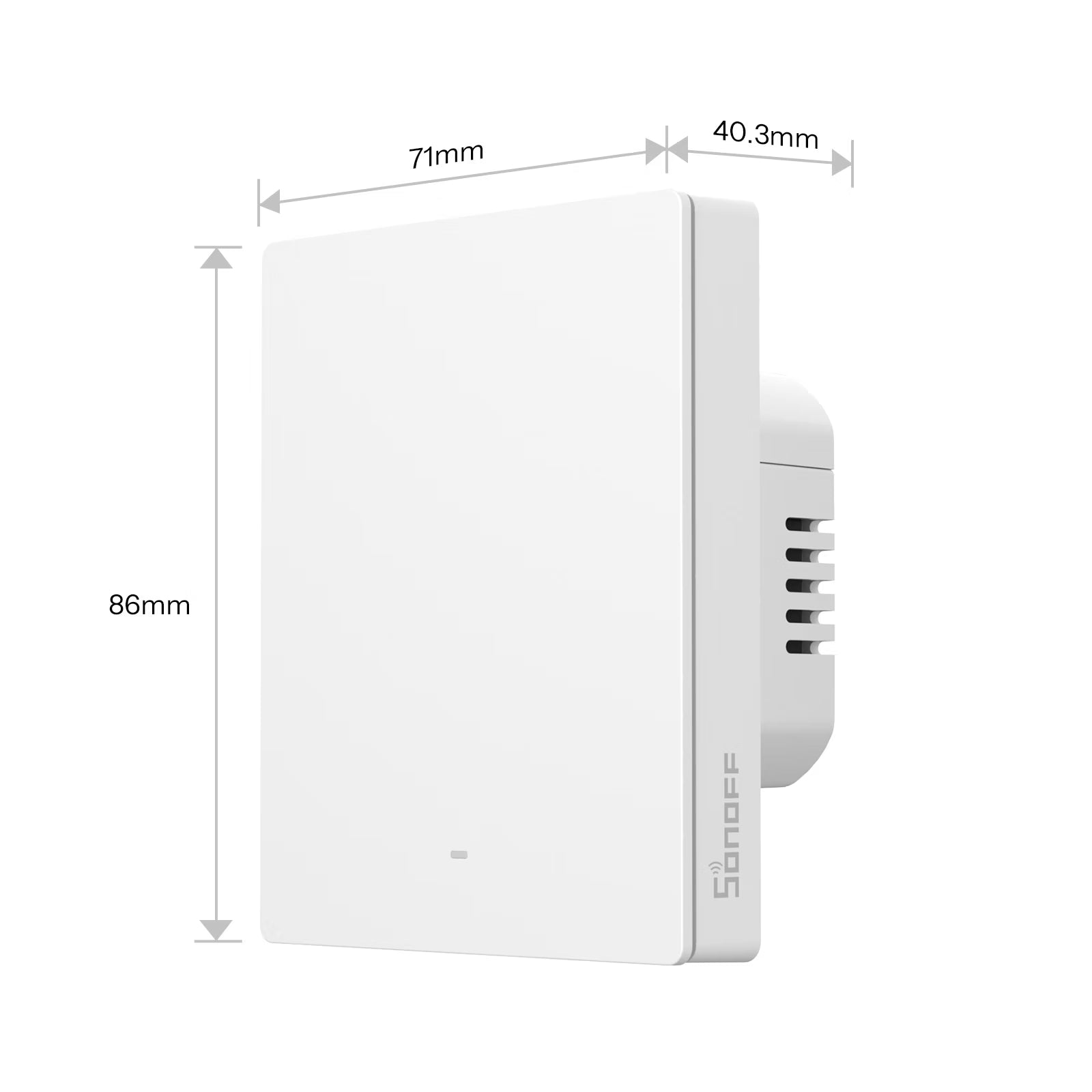

| Dimensions |
86 × 71 × 40.3 mm |
| Net Weight |
1-Gang: 132.8 g; 3-Gang: 150.3 g |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
5% ~ 95% RH, non-condensing |
| Certifications |
CE, RoHS |
| Gateway |
SONOFF Zigbee gateway or Zigbee dongle required |
Why Choose the SONOFF ZBM5-80W?
- Physical push buttons with full Zigbee smart control
- Works with or without a neutral wire, ideal for older wiring
- Strengthens your Zigbee network as a router in neutral-wire mode
- Local control with SONOFF gateways or Home Assistant
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
