Description

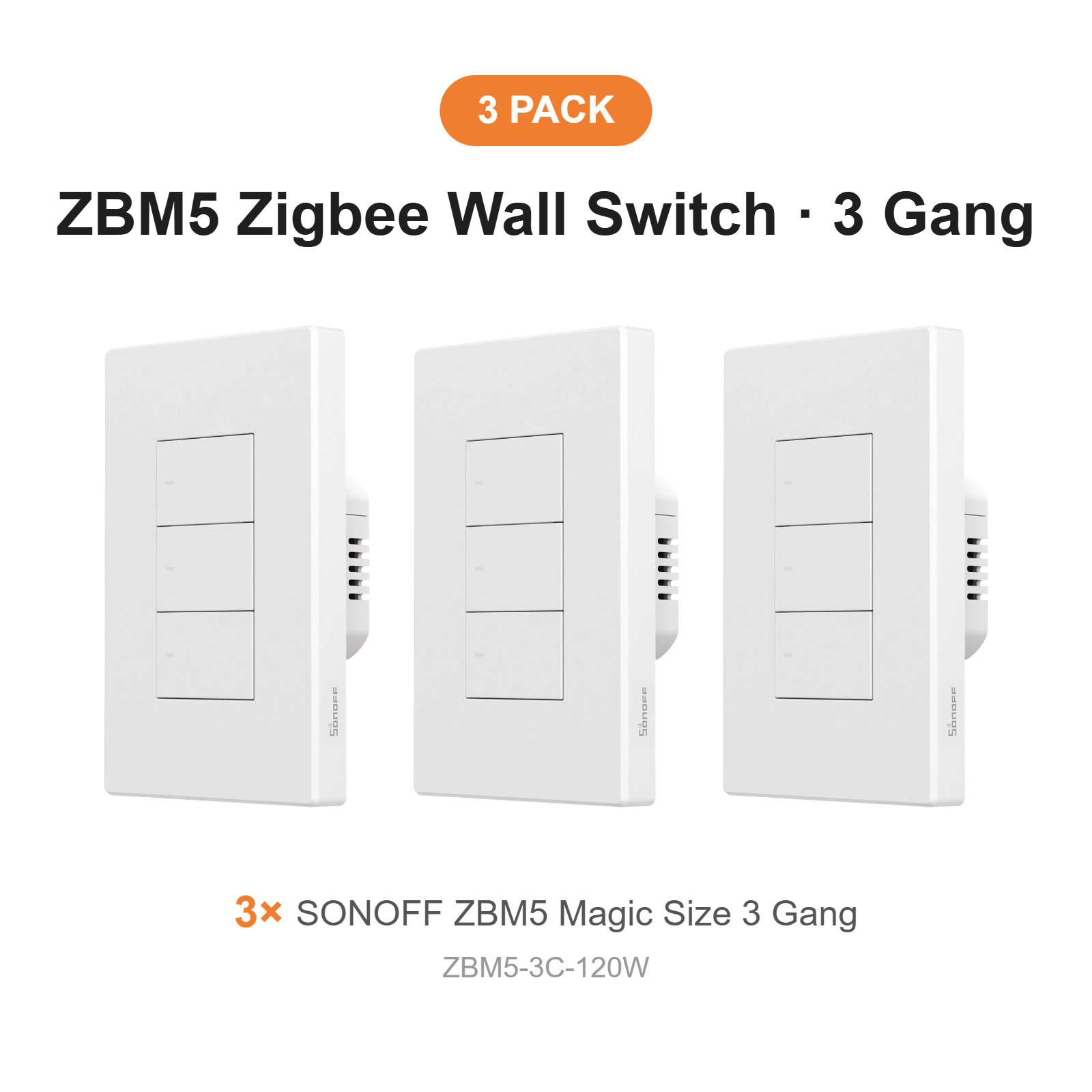

The SONOFF SwitchMan ZBM5 Zigbee Smart Wall Switch (120 Type) 3-pack is a set of 3 × 3-gang Zigbee 3.0 wall switches with physical push buttons for 120-type wall boxes. This pack contains 3 × ZBM5-3C-120W (3 gang). Each switch works with or without a neutral wire, so it fits most existing lighting circuits.
Pair each switch with a SONOFF Zigbee gateway for remote control, timers, schedules, smart scenes and voice control with Amazon Alexa and Google Assistant in the eWeLink app, or add it to Home Assistant with a SONOFF ZBDongle for fast local control. In neutral-wire mode the ZBM5 also works as a Zigbee router that strengthens your Zigbee mesh, and Detach Relay Mode keeps smart lights controllable through smart scenes even when the physical switch is turned off.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
- 3-gang physical push buttons (3 switches in the pack)
- Works with or without a neutral wire (3W minimum load in no-neutral mode)
- Zigbee 3.0 for stable, low-latency local control
- Acts as a Zigbee router in neutral-wire mode, extending your Zigbee mesh
- Detach Relay Mode: control smart lights through smart scenes even when the switch is off; if the device goes offline, the physical button resumes full control
- Up to 10A resistive load; LED loads up to 400W at 240V
- Timers, schedules and smart scenes in the eWeLink app
- Voice control with Amazon Alexa and Google Assistant
- Works with SONOFF Zigbee gateways and with Home Assistant (ZHA / Zigbee2MQTT) via ZBDongle
Works With
Technical Specifications
| Specification |
Details |
| Model |
ZBM5-3C-120W |
| Product Name |
SwitchMan Zigbee Smart Wall Switch ZBM5 |
| Wall Box Type |
120 Type |
| Wireless Protocol |
Zigbee 3.0 |
| Power Input |
100-240V~ 50/60Hz |
| Rating |
10A/gang, 10A total max (resistive load) |
| LED Load |
400W@240V / 200W@100V per gang, 400W@240V / 200W@100V total |
| Min. Load |
3W (no-neutral mode) |
| Wiring |
With or without neutral wire |
| Casing Material |
PC + CRS |
| Color |
White |
| Dimensions |
120 × 74 × 39.4 mm |
| Gateway |
SONOFF Zigbee gateway or Zigbee dongle required |
What's in the Box
Why Choose the SONOFF ZBM5-120W?
- Physical push buttons with full Zigbee smart control
- Works with or without a neutral wire, ideal for older wiring
- Strengthens your Zigbee network as a router in neutral-wire mode
- Local control with SONOFF gateways or Home Assistant
- A convenient 3-pack for fitting out several rooms
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
