Description

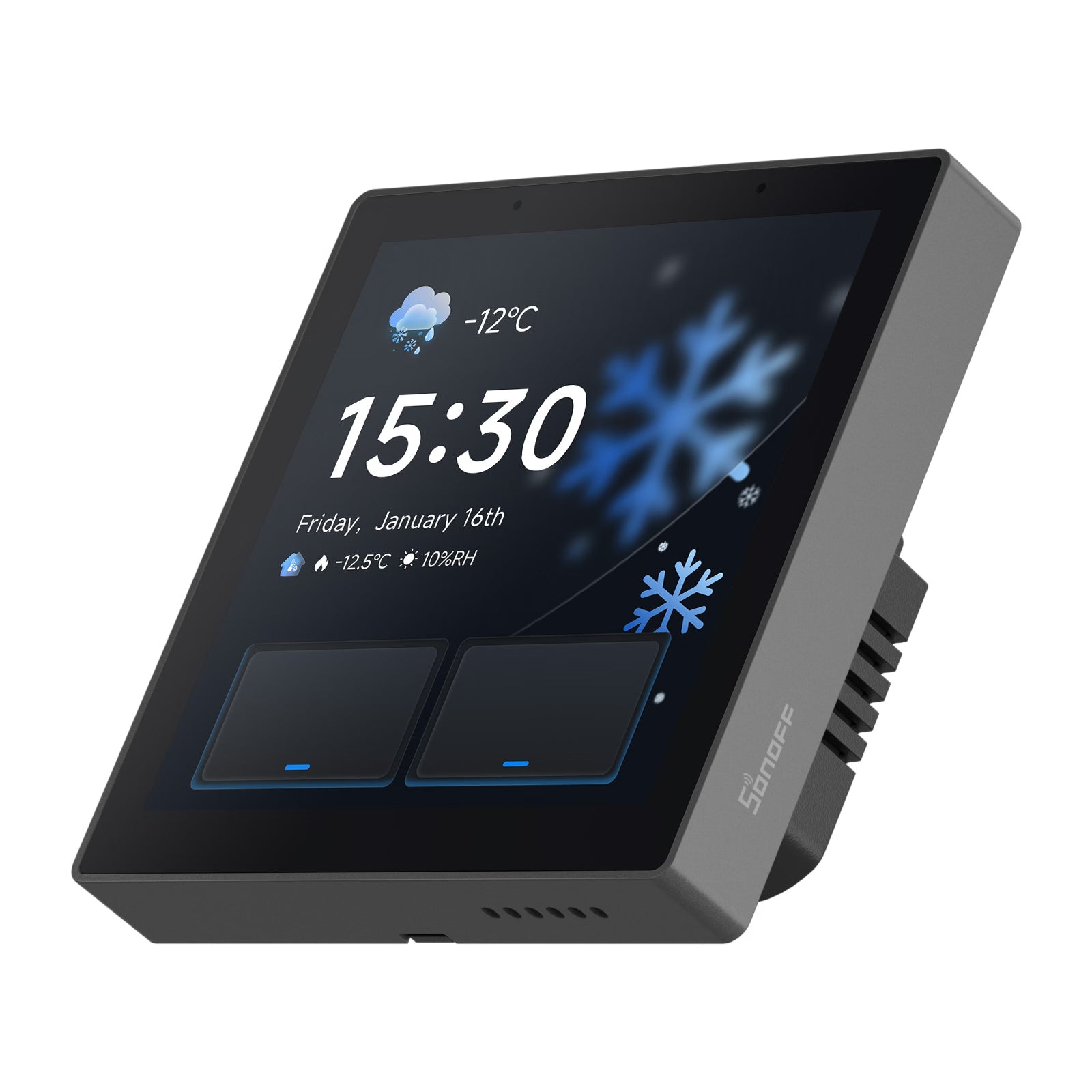

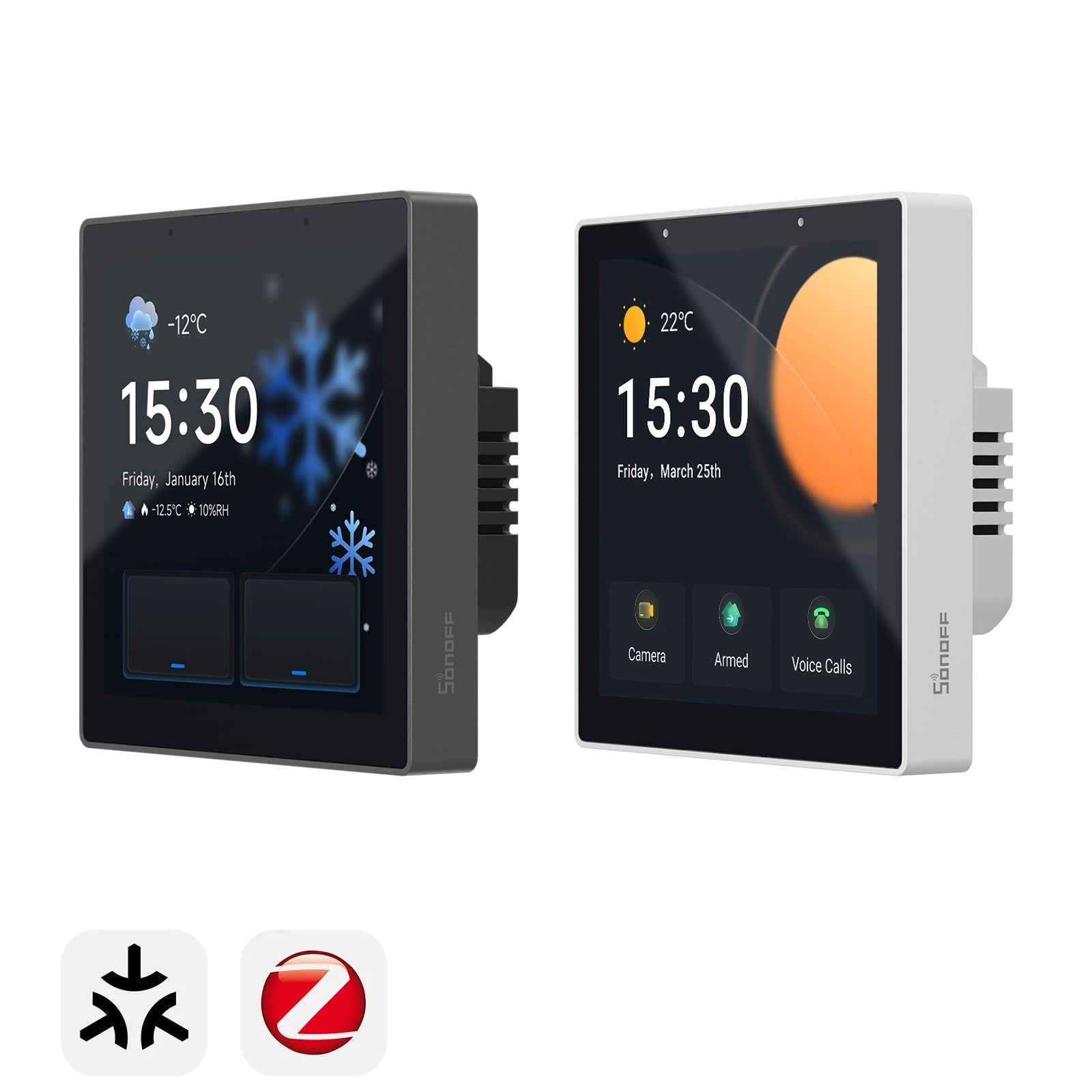

The SONOFF NSPanel Pro Gen2 (NSPanel86PB-Relay) is an 86-type in-wall smart home control panel in Dim Gray that combines a 3.95" touchscreen with an integrated 2-channel relay. It replaces a traditional 2-gang wall switch, fits standard back boxes and works with your existing wiring, so there is no rewiring cost.

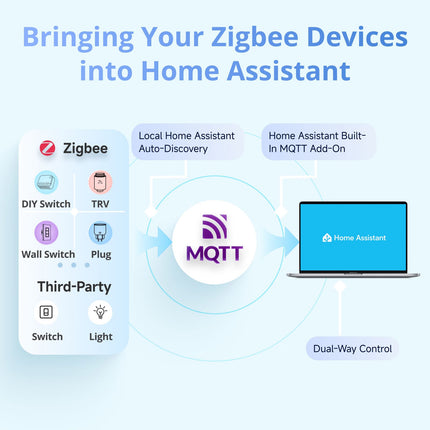

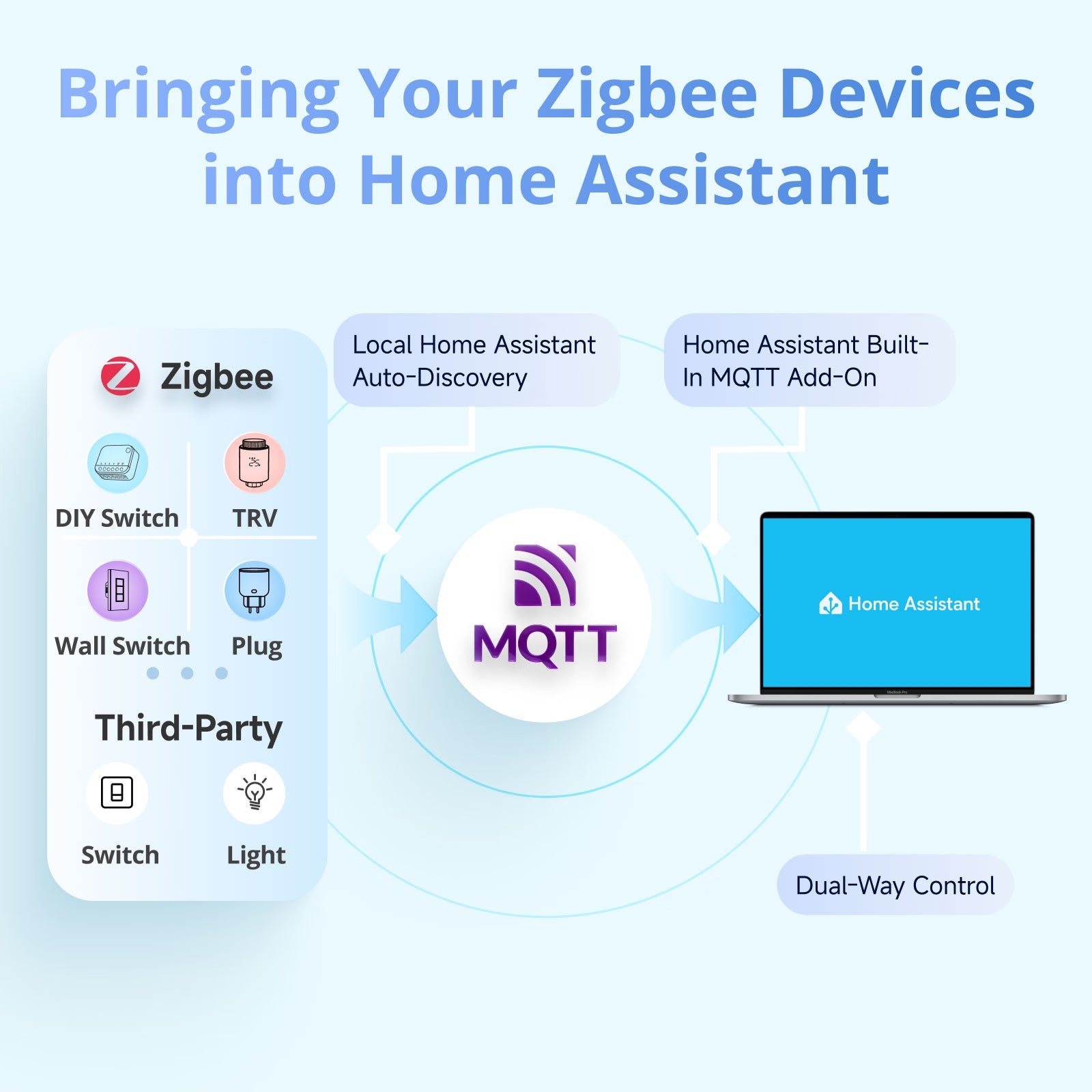

A quad-core ARM Cortex-A35 processor with 2GB RAM and 32GB storage runs third-party apps smoothly, including the Home Assistant app installed via F-Droid without root. The built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24) and Matter bridge bring Zigbee and Wi-Fi devices to Apple Home, Google Home, Amazon Alexa and Home Assistant.

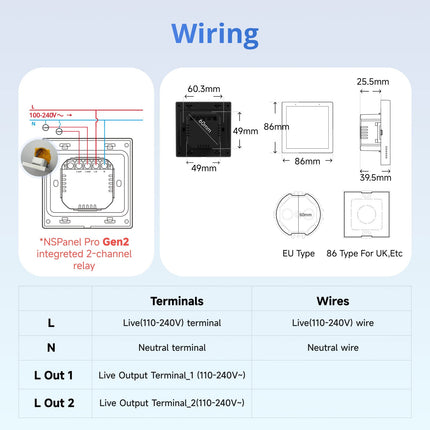

Note: for indoor installation in a standard wall back box by a qualified electrician, with a 10A MCB or RCBO upstream.
Key Features
- Integrated 2-channel relay replaces a traditional 2-gang wall switch (max 5A per gang, 10A total)

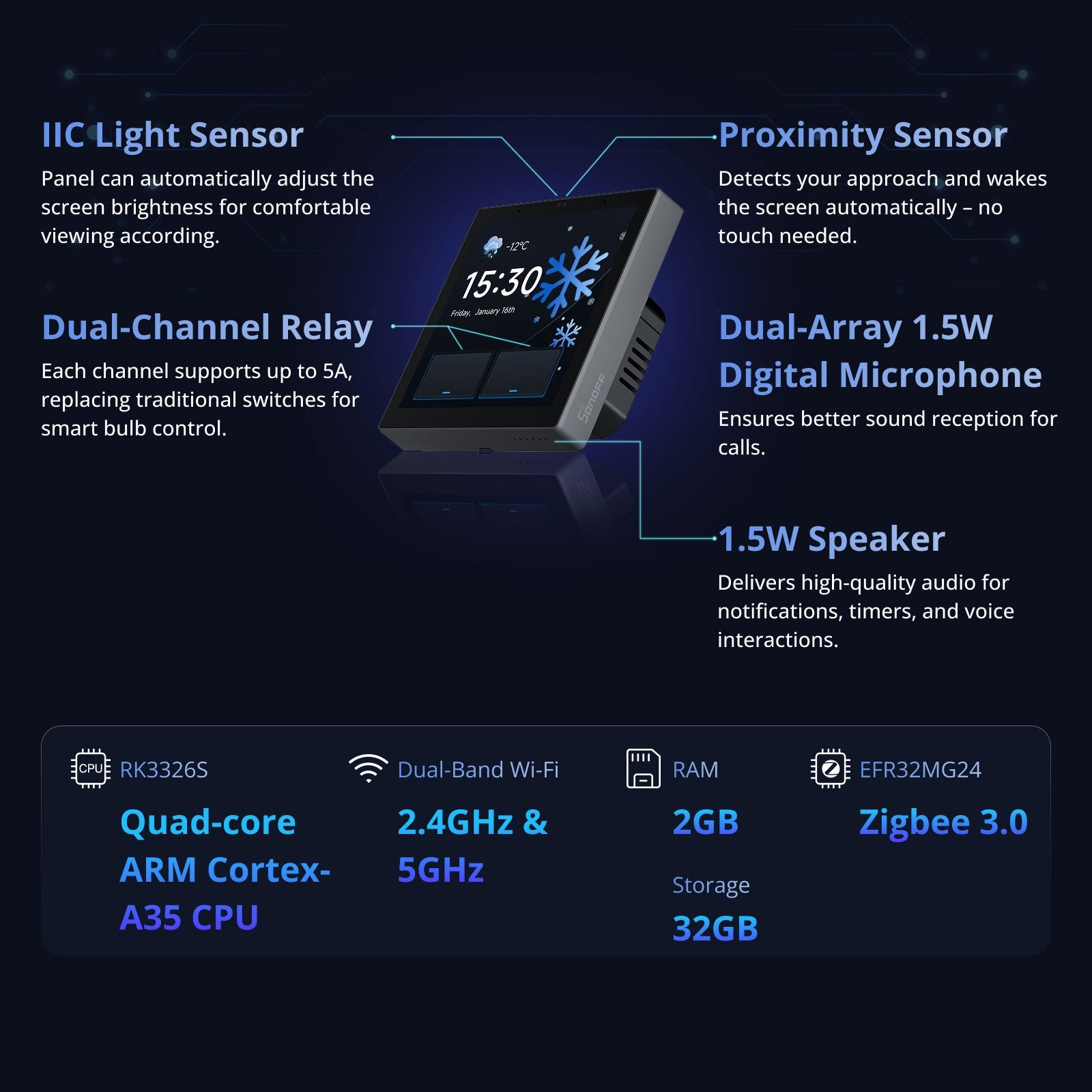

- 3.95" 480 × 480 capacitive multi-touch screen with automatic brightness from the ambient light sensor
- Built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24) connects sensors, switches and lights without extra hubs

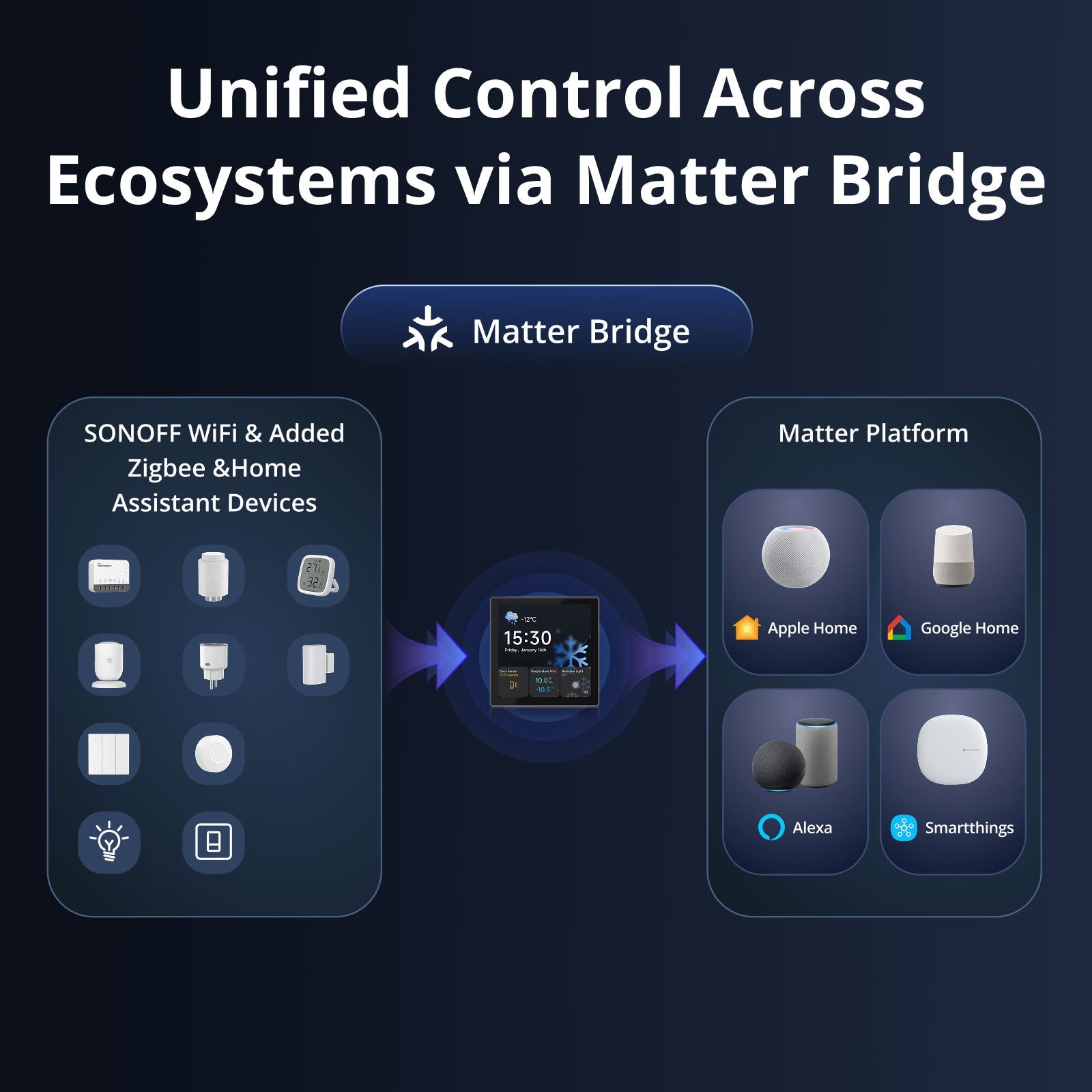

- Matter bridge brings Zigbee and Wi-Fi devices to Apple Home, Google Home, Amazon Alexa and Home Assistant
- 2GB RAM and 32GB storage run third-party apps, including the Home Assistant app via F-Droid, no root required
- Voice control via Siri, Alexa or Google Home, with a 1.5W speaker and dual-array microphone
- Dual-band Wi-Fi (2.4GHz & 5GHz) and a proximity sensor that wakes the screen as you approach
- Smart thermostat and energy monitoring functions from one screen
- Home security with 3 customizable arming modes, panel alarm and phone notifications
- Supports SONOFF cameras, RTSP/ESP32 cameras and eWeLink cameras
Works With
-
Ecosystems: Apple Home, Google Home, Amazon Alexa and Home Assistant through the built-in Matter bridge; voice control with Siri, Alexa or Google Home
-
SONOFF Zigbee devices: sensors such as SNZB-02P, SNZB-03P, SNZB-04P and SNZB-06P, plus ZBMINIR2 switches
-
Cameras: SONOFF cameras, RTSP/ESP32 cameras and eWeLink cameras
Technical Specifications
| Specification |
Details |
| Model |
NSPanel86PB-Relay |
| Color |
Dim Gray |
| Product Series |
NSPanel Pro Series |
| Screen |
3.95" capacitive touch panel, 480 × 480, multi-touch |
| Processor |
Quad-core ARM Cortex-A35 CPU, Mali G31-2EE GPU (RK3326-S SoC) |
| Memory |
2GB RAM, 32GB storage |
| Wireless Protocol |
Wi-Fi IEEE 802.11 b/g/n/ac/ax 2.4GHz & 5GHz, Zigbee 3.0 |
| Rating |
100–240V~ 50/60Hz, max 5A/gang, 10A total (resistive load) |
| LED Load |
150W@240V/gang, 75W@100V/gang |
| Relay Channels |
2 |
| Audio |
8Ω 1.5W speaker, dual-channel digital silicon microphones |
| Light Sensor |
Automatic brightness adjustment based on ambient light |

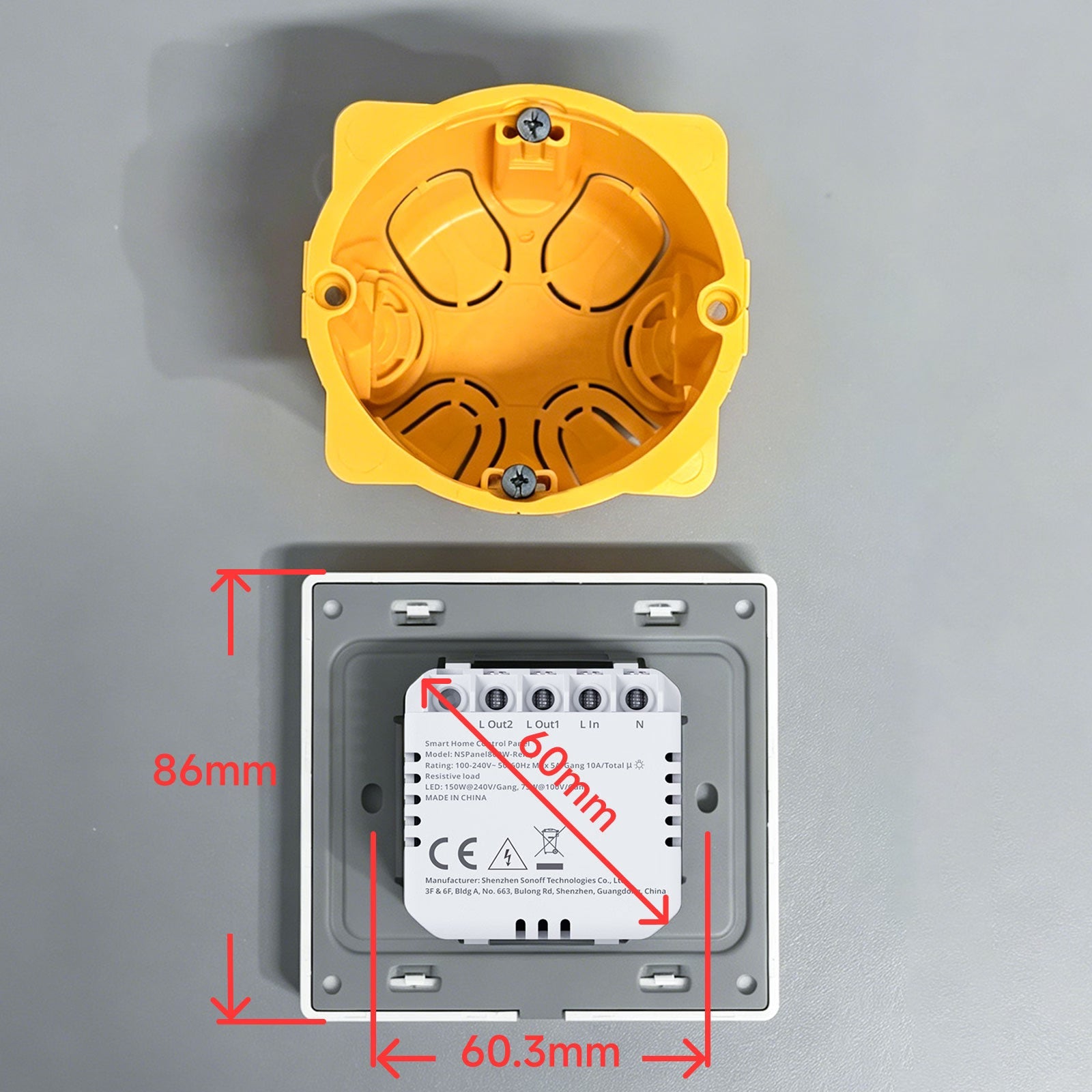

| Dimensions |
86 × 86 × 39.5 mm |
| Net Weight |
190 g |
| Casing Material |
PC+CRS |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
10% ~ 80% RH, non-condensing |

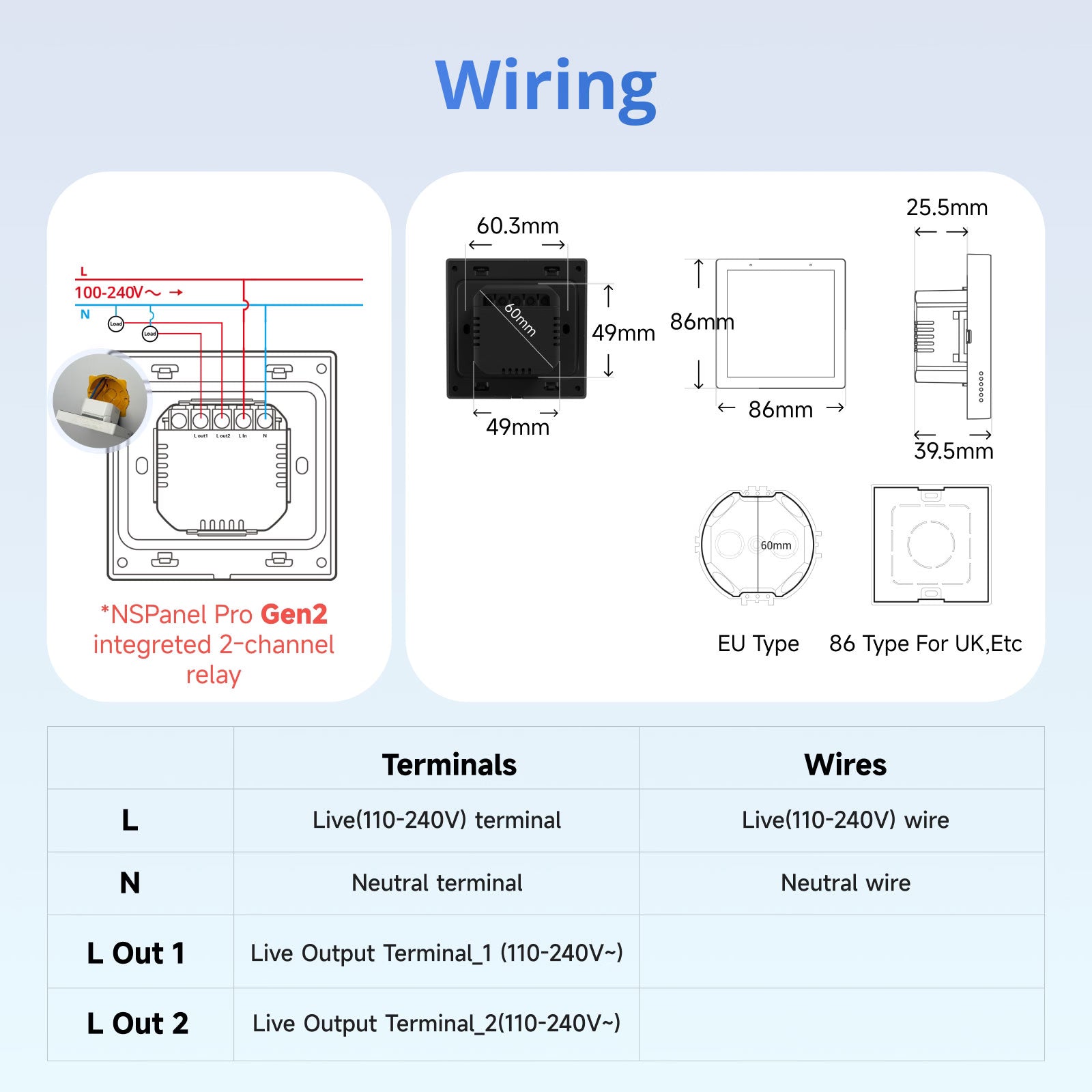

| Installation |
Indoor, standard wall back box; by a qualified electrician with a 10A MCB or RCBO upstream |
| Certifications |
CE, RoHS |
Why Choose the SONOFF NSPanel Pro Gen2?
- Replaces a 2-gang wall switch with a full smart home touchscreen – no rewiring
- Zigbee gateway and Matter bridge built in – no extra hubs
- 32GB storage for Home Assistant and other third-party apps
- Climate, energy, security and cameras on one screen
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
