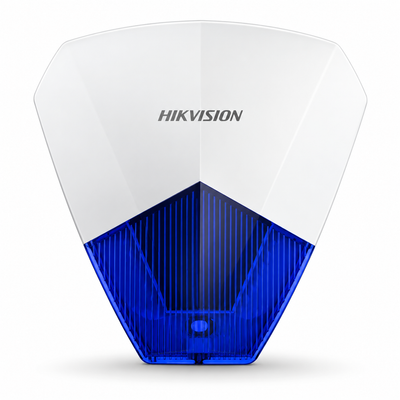

The Hikvision DS-PS1-B is a wired alarm sounder designed for connection to compatible wired intrusion alarm control panels.
Powered directly from the alarm panel, the sounder delivers a powerful audible warning of up to 105 dB at 30 cm. It also features an integrated LED flash indicator, providing both audible and visual notification during alarm events.
The sounder and LED flash indications can be configured separately, providing greater flexibility according to the installation requirements. With an IP54-rated enclosure and an operating temperature range from -20°C to 60°C, the DS-PS1-B can be used for both indoor and outdoor applications.
Key Features
Wired alarm sounder
Powerful 105 dB sound pressure at 30 cm
Integrated LED flash indication
Sound and LED flash can be configured separately
Designed for wired alarm control panels
Powered from the control panel
8–16V DC power supply
IP54 protection rating
Suitable for indoor and outdoor use
Operating temperature from -20°C to 60°C
Compact and easy-to-install design
Technical Specifications
Specification
Details
Product Type
Wired Alarm Sounder
Sound Pressure
105 dB @ 30 cm
Visual Indication
LED Flash
Sound / LED Control
Separately Configurable
Power Supply
8–16V DC
Maximum Current
0.22A
Quiescent Power Consumption
0.96W
Protection Rating
IP54
Operating Temperature
-20°C to 60°C
Operating Humidity
10%–90%
Housing Material
PC + ABS
Color
Blue
Dimensions
140 × 134 × 33 mm
Weight
185 g
Model
DS-PS1-B
Why Choose Hikvision DS-PS1-B?
The DS-PS1-B provides a simple and reliable way to add audible and visual alarm indication to a wired intrusion alarm system.
Its 105 dB siren, separate LED flash indication, IP54 protection and wide operating temperature range make it suitable for homes, villas, offices, shops, warehouses and other security installations. Hikvision also lists the DS-PS1-B as a wired sounder within its AX Hybrid PRO product lineup.

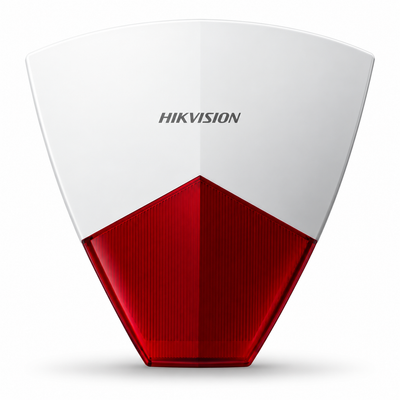

The Hikvision DS-PS102X/RED is a wired external alarm sounder designed to provide powerful audible and visual alarm notification for wired intrusion alarm systems.
It combines a high-output siren with a red strobe light, delivering a maximum sound pressure of 110 dB at 1 meter for clear alarm indication.
The sounder provides different tones for fire, medical emergency, and intrusion alarms, helping users distinguish between different types of alarm events.
Key Features
Wired external alarm sounder
Red strobe light
Sound pressure up to 110 dB @ 1 m
Audible and visual alarm indication
Different alarm tones for different events
Dedicated Fire alarm tone
Dedicated Medical alarm tone
Dedicated Intrusion alarm tone
Suitable for wired intrusion alarm systems
Designed for professional residential and commercial security installations
Technical Specifications
Specification
Details
Product Type
Wired External Sounder
Alarm Indication
Audio + Strobe Light
Strobe Color
Red
Sound Pressure
Up to 110 dB @ 1 m
Fire Alarm Tone
Supported
Medical Alarm Tone
Supported
Intrusion Alarm Tone
Supported
Installation
Wall Mounted
Application
Wired Intrusion Alarm Systems
Model
DS-PS102X/RED
Why Choose Hikvision DS-PS102X/RED?
The DS-PS102X/RED provides both a powerful audible warning and a highly visible red strobe indication, making alarm events easier to identify.
With a sound level of up to 110 dB at 1 meter and separate tones for fire, medical and intrusion events, it is suitable for villas, shops, offices, warehouses and commercial security installations.

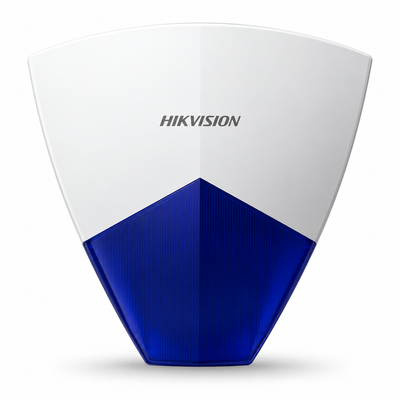

The Hikvision DS-PS102X/BLUE is a wired external alarm sounder designed to provide powerful audible and visual alarm indication for wired intrusion alarm systems.
It combines a high-output siren with a blue LED strobe light, delivering a maximum sound pressure of 110 dB at 1 meter. The sound and LED strobe can be controlled separately, providing flexible alarm notification for different security applications.
The sounder supports three selectable alarm tones for fire, medical emergency, and intrusion alarm events. It can be controlled through the alarm panel's PGM/BELL output and supports both positive and negative triggering.
With an IP55-rated enclosure, front-cover and wall tamper protection, and an operating temperature range from -20°C to 60°C, the DS-PS102X/BLUE is suitable for demanding indoor and outdoor security installations.
Key Features
Wired external alarm sounder
Blue LED strobe light
Maximum sound pressure: 110 dB at 1 m
Separate sound and LED strobe indication
3 selectable alarm tones
Fire alarm tone
Medical emergency alarm tone
Intrusion alarm tone
Controlled via PGM/BELL output
Supports positive and negative triggering
Front-cover tamper protection
Wall tamper protection
Tamper and cut-wire alarm support
IP55 protection
Suitable for indoor and outdoor installation
Wide 9–16V DC power input
Technical Specifications
Specification
Details
Product Type
Wired External Sounder
Alarm Indication
Sound + Blue LED Strobe
Sound Pressure
110 dB @ 1 m Max.
Alarm Tones
Fire / Medical / Intrusion
Control
PGM / BELL
Trigger
Positive / Negative
Tamper Protection
Front Cover + Wall
Power Supply
9–16V DC
Typical Voltage
12V DC
Maximum Current
180mA @ 12V DC
Protection Rating
IP55
Operating Temperature
-20°C to 60°C
Operating Humidity
10%–90%
Housing Material
PC + ABS
Dimensions
221 × 215 × 51 mm
Weight
475 g
Strobe Color
Blue
Model
DS-PS102X/BLUE
Why Choose Hikvision DS-PS102X/BLUE?
The DS-PS102X/BLUE provides both audible and visual alarm notification, making it ideal for locations where a strong siren alone may not be enough.
Its 110 dB siren, blue strobe light, three alarm tones and IP55 protection make it suitable for homes, villas, shops, offices, warehouses and commercial security installations. Front-cover and wall tamper protection also helps detect attempts to interfere with or remove the sounder.
The Hikvision DS-PM1-RT-HWE is an 868MHz Tri-X wireless receiver designed to expand the wireless capabilities of the Hikvision AX Hybrid PRO intrusion alarm system.
It allows compatible Hikvision Tri-X wireless detectors and sounders to be integrated with the AX Hybrid PRO control panel, combining the reliability of a wired alarm system with the flexibility of wireless devices.
The receiver supports up to 32 wireless detectors, 8 wireless indoor sounders, and 4 wireless outdoor sounders, with a wireless transmission distance of up to 1,700 meters in open space. Connection to the AX Hybrid PRO panel is provided through the Speed-X Bus.
Key Features
868MHz Tri-X wireless receiver
Designed for Hikvision AX Hybrid PRO
Adds Tri-X wireless capability to the alarm system
Supports up to 32 wireless detectors
Supports up to 8 wireless indoor sounders
Supports up to 4 wireless outdoor sounders
Wireless transmission distance up to 1,700 m in open space
868MHz RF frequency
128-bit AES encryption
Frequency hopping technology
Connection via Speed-X Bus
Power and status LED indicators
Ideal for combining wired and wireless alarm devices
Technical Specifications
Specification
Details
Product Type
Tri-X Wireless Receiver
Compatible System
Hikvision AX Hybrid PRO
RF Frequency
868 MHz
Wireless Technology
Tri-X
Wireless Range
Up to 1,700 m in open space
Wireless Detectors
Up to 32
Wireless Indoor Sounders
Up to 8
Wireless Outdoor Sounders
Up to 4
Wireless Security
128-bit AES Encryption
Frequency Hopping
Supported
Panel Communication
Speed-X Bus
Speed-X Bus
1
Power Supply
9–28V DC, 1A
Maximum Current
100mA @ 12V DC
Quiescent Current
40mA @ 12V DC
LED Indicators
Green: Power/Find Me; Orange: Alarm/Fault
Operating Temperature
-10°C to 40°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
110 × 155 × 32 mm
Weight
225 g
Model
DS-PM1-RT-HWE
Why Choose Hikvision DS-PM1-RT-HWE?
The DS-PM1-RT-HWE is ideal for expanding an AX Hybrid PRO installation with Hikvision Tri-X wireless devices without running additional cables to every detector.
With support for up to 32 wireless detectors, multiple wireless sounders, and a transmission range of up to 1,700 meters in open space, it provides excellent flexibility for villas, offices, warehouses and larger commercial security installations.

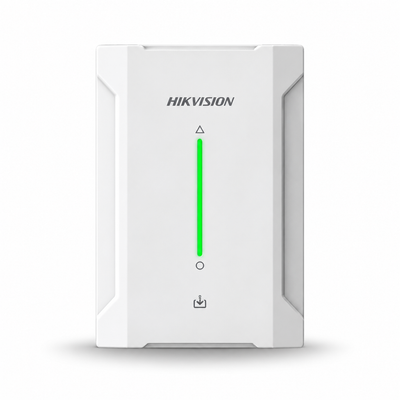

The Hikvision DS-PM1-RT-HWB is a 433MHz Tri-X wireless receiver designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It expands the wireless capability of the AX Hybrid PRO control panel, allowing compatible Hikvision Tri-X wireless detectors and sounders to be integrated into the hybrid alarm system.
The receiver supports up to 32 wireless detectors, 4 wireless indoor sounders, and 8 wireless outdoor sounders, with a wireless transmission distance of up to 1,300 meters in open space. It connects to the AX Hybrid PRO control panel through the Speed-X Bus.
Key Features
433MHz Tri-X wireless receiver
Designed for Hikvision AX Hybrid PRO
Expands the panel's wireless device capability
Supports up to 32 wireless detectors
Supports up to 4 wireless indoor sounders
Supports up to 8 wireless outdoor sounders
Wireless transmission distance up to 1,300 m in open space
433MHz RF frequency
128-bit AES encryption
Frequency hopping technology
Connects to the panel through Speed-X Bus
Address range from 0 to 63
LED indicators for power, alarm and fault status
Suitable for expanding wired AX Hybrid PRO systems with Tri-X wireless devices
Technical Specifications
Specification
Details
Product Type
Tri-X Wireless Receiver
Compatible System
Hikvision AX Hybrid PRO
RF Frequency
433 MHz
Wireless Technology
Tri-X
Wireless Range
Up to 1,300 m in open space
Wireless Detectors
Up to 32
Wireless Indoor Sounders
Up to 4
Wireless Outdoor Sounders
Up to 8
Wireless Security
128-bit AES Encryption
Frequency Hopping
Supported
Panel Communication
Speed-X Bus
Speed-X Bus
1
Address Range
0–63
Power Supply
9–28V DC, 1A
Maximum Current
100mA @ 12V DC
Quiescent Current
40mA @ 12V DC
LED Indicators
Green: Power/Find Me; Orange: Alarm/Fault
Operating Temperature
-10°C to 40°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
110 × 155 × 32 mm
Weight
233 g
Model
DS-PM1-RT-HWB
Why Choose Hikvision DS-PM1-RT-HWB?
The DS-PM1-RT-HWB is ideal when you want to combine the reliability of a wired AX Hybrid PRO system with the flexibility of Hikvision Tri-X wireless devices.
Instead of running cables to every new detector, the receiver allows compatible 433MHz wireless detectors and sounders to be added to the system. With support for up to 32 wireless detectors and a transmission range of up to 1,300 meters in open space, it is particularly useful for villas, offices, shops and larger security installations.
The Hikvision DS-PM1-O4H-H is a wired 4-way high-power relay expander designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It provides 4 onboard power relay outputs, allowing the AX Hybrid PRO system to control higher-power electrical loads and external devices. Each relay can handle current of up to 16A, making this model suitable for applications that require significantly higher switching capacity than a standard low-current relay expander.
The module communicates with the AX Hybrid PRO control panel through Speed-X Bus and includes both an uplink and downlink Speed-X connection, allowing compatible expanders to be connected in cascade for larger installations.
Key Features
Wired power relay expander for Hikvision AX Hybrid PRO
4 onboard high-power relay outputs
Maximum current up to 16A per relay
Suitable for controlling higher-power electrical loads
Relay terminals: NO / NC / COM
2 × Speed-X Bus
Uplink Speed-X connection to the control panel
Downlink Speed-X connection for additional expanders
Supports Cascade connection
Up to 15 relay expanders in cascade
1 × TTL serial port
Front and rear tamper protection
Power and fault LED indicators
Address configuration from 0–63
Compact wall-mounted design
Technical Specifications
Specification
Details
Product Type
Wired High-Power Relay Expander
Compatible System
Hikvision AX Hybrid PRO
Relay Outputs
4
Relay Type
High-Power Relay
Maximum Current
Up to 16A per Relay
Relay Contacts
NO / NC / COM
Communication
Speed-X Bus
Speed-X Ports
2
Uplink
Speed-X to Control Panel
Downlink
Speed-X for Next Expander
Cascade Support
Yes
Maximum Cascade
Up to 15 Relay Expanders
Serial Port
1 × TTL
Address Range
0–63
Tamper Protection
Front & Rear
Power Supply
9–24V DC, 1A
Maximum Current
210mA @ 12V DC
Quiescent Current
65mA @ 12V DC
LED Indicators
Power + Fault
Operating Temperature
-10°C to 40°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
110 × 155 × 32.5 mm
Weight
333.1 g
Model
DS-PM1-O4H-H
Why Choose Hikvision DS-PM1-O4H-H?
The DS-PM1-O4H-H is designed for AX Hybrid PRO installations that require the alarm system to control higher-power electrical devices.
With 4 independent power relays rated up to 16A each, it offers significantly greater switching capacity than the low-current DS-PM1-O4L-H. Speed-X connectivity and cascade support also make it suitable for larger residential and commercial automation and security installations.
The Hikvision DS-PM1-O4L-H is a wired 4-way low-current relay expander designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It provides 4 onboard relay outputs, allowing the AX Hybrid PRO control panel to control external low-voltage devices and circuits. Each relay supports 6–30V and can handle current of up to 5A.
The module communicates with the AX Hybrid PRO control panel using Speed-X technology and features both an uplink and downlink Speed-X port, allowing additional compatible expanders to be connected in cascade.
It also provides a dedicated power output of up to 500mA, while front and rear tamper protection helps protect the module against unauthorized access or removal.
Key Features
Wired relay expander for Hikvision AX Hybrid PRO
4 onboard low-current relay outputs
Each relay supports 6–30V
Maximum relay current: 5A
Allows control of external devices and circuits
2 × Speed-X Bus ports
1 uplink Speed-X port for control panel connection
1 downlink Speed-X port for the next expander
Supports expander cascading
1 power output
Power output up to 500mA
Front and rear tamper protection
Power LED indicator
Fault LED indicator
Compact wall-mounted design
Technical Specifications
Specification
Details
Product Type
Wired Low Current Relay Expander
Compatible System
Hikvision AX Hybrid PRO
Relay Outputs
4
Relay Type
Low Current
Relay Voltage
6–30V
Maximum Relay Current
5A
Power Output
1
Maximum Power Output Current
500mA
Power Output Voltage
9–12V DC
Communication
Speed-X Bus
Speed-X Ports
2
Cascade Support
Yes
Serial Port
1 × TTL
Tamper Protection
Front & Rear
Power Supply
11–24V DC, 1A
Maximum Current
153mA @ 12V DC
Quiescent Current
70mA @ 12V DC
LED Indicators
Power + Fault
Operating Temperature
-10°C to 40°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
110 × 155 × 32.5 mm
Weight
285 g
Model
DS-PM1-O4L-H
Why Choose Hikvision DS-PM1-O4L-H?
The DS-PM1-O4L-H is ideal when an AX Hybrid PRO installation requires additional programmable relay outputs for controlling external equipment.
With 4 independent relay outputs rated up to 5A, the module can be integrated into alarm automation scenarios involving compatible low-voltage external devices. Speed-X connectivity and cascade support also make it easy to expand larger alarm installations. Hikvision
The Hikvision DS-PM1-I8O2-H is a wired input expansion module designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It expands the alarm system by providing 8 additional onboard wired alarm zones and 2 onboard collector outputs, making it ideal for installations that require additional wired detectors beyond the inputs available on the main control panel.
The module communicates with the AX Hybrid PRO control panel through the high-speed Speed-X Bus, supporting a cable distance of up to 900 meters between the control panel and the expander.
It also features a second Speed-X Bus connection for cascade installation, allowing another compatible expander to be connected with an additional cable distance of up to 900 meters.
Key Features
Wired input expander for Hikvision AX Hybrid PRO
8 onboard wired alarm zones
2 onboard collector outputs
Supports 3EOL connection
3EOL values: Alarm 1kΩ / Tamper 1kΩ / Fault 2.2kΩ
Supports Alarm detection
Supports Tamper detection
Supports Masking detection
Supports Fault detection
Supports Short detection
1 power output for wired detectors
2 × Speed-X Bus
One Speed-X input for connection to the control panel
One Speed-X output for expander cascading
Up to 900 m between control panel and expander
Additional 900 m possible to the next cascaded expander
Front and rear tamper protection
Power and fault LED indicators
Suitable for villas, shops, offices, hotels and commercial installations
Technical Specifications
Specification
Details
Product Type
Wired Input Expander
Compatible System
Hikvision AX Hybrid PRO
Alarm Inputs
8
IO Outputs
2 Collector Outputs
Zone Connection
3EOL
Alarm Resistance
1kΩ
Tamper Resistance
1kΩ
Fault Resistance
2.2kΩ
Detector Power Output
1
Bus
2 × Speed-X
Maximum Bus Distance
Up to 900 m
Cascade Support
Yes
Tamper Protection
Front & Rear
Power Supply
11–24V DC
Typical Voltage
12V DC
Maximum Current
119mA @ 12V DC
Quiescent Current
45mA @ 12V DC
Output Voltage
9–12V DC
Maximum Output Current
500mA
LED Indicators
Power + Fault
Operating Temperature
-10°C to 40°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
110 × 155 × 32 mm
Weight
252.5 g
Model
DS-PM1-I8O2-H
Why Choose Hikvision DS-PM1-I8O2-H?
The DS-PM1-I8O2-H is ideal when an AX Hybrid PRO installation needs additional wired alarm zones without replacing the main control panel.
Each module adds 8 wired zones, while Speed-X communication allows the expander to be installed up to 900 meters from the control panel. Cascade support also makes it possible to extend the wired alarm architecture further for larger buildings and projects.

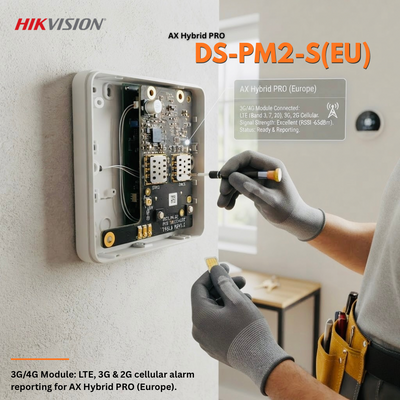

The Hikvision DS-PM2-S(EU) is a 3G/4G cellular communication module designed for compatible Hikvision AX Hybrid PRO intrusion alarm control panels.
It adds cellular connectivity to the alarm system, enabling communication through 4G LTE, 3G, and GSM/GPRS/EDGE mobile networks. This provides an additional communication path for alarm transmission alongside other AX Hybrid PRO communication methods such as LAN, Wi-Fi and PSTN.
The European version supports FDD-LTE bands B1/B3/B7/B8/B20, UMTS/HSDPA/HSPA+ bands B1/B8, and GSM/GPRS/EDGE 900/1800MHz, making it specifically configured for compatible European-region cellular networks.
Key Features
3G/4G LTE cellular communication module
Designed for Hikvision AX Hybrid PRO
European EU version
Supports 4G FDD-LTE
LTE bands: B1 / B3 / B7 / B8 / B20
Supports 3G UMTS / HSDPA / HSPA+
3G bands: B1 / B8
Supports GSM / GPRS / EDGE
GSM frequencies: 900 / 1800MHz
Adds cellular connectivity to compatible alarm panels
Provides an additional communication path for the alarm system
Suitable for residential and commercial security systems
Technical Specifications
Specification
Details
Product Type
Cellular Communication Module
Compatible System
Hikvision AX Hybrid PRO
Version
EU
Cellular Networks
2G / 3G / 4G
4G Technology
FDD-LTE
LTE Bands
B1 / B3 / B7 / B8 / B20
3G Technology
UMTS / HSDPA / HSPA+
3G Bands
B1 / B8
2G Technology
GSM / GPRS / EDGE
GSM Frequencies
900 / 1800MHz
Application
Alarm System Communication
Product Category
Communication Module
Model
DS-PM2-S(EU)
Why Choose Hikvision DS-PM2-S(EU)?
The DS-PM2-S(EU) is designed for AX Hybrid PRO installations requiring cellular backup or primary communication through 2G, 3G or 4G networks.
Its multi-generation cellular support provides greater flexibility than a GPRS-only module, while the EU frequency configuration makes it suitable for networks operating on its supported European bands. AX Hybrid PRO itself supports multiple communication methods, including LAN, Wi-Fi, PSTN, GPRS and 3G/4G.

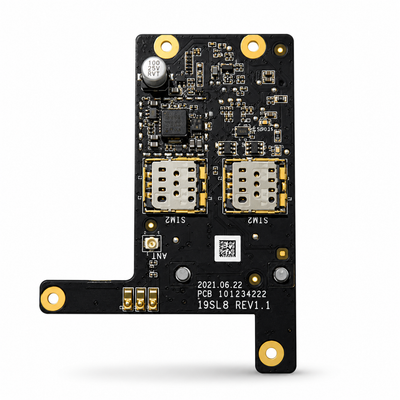

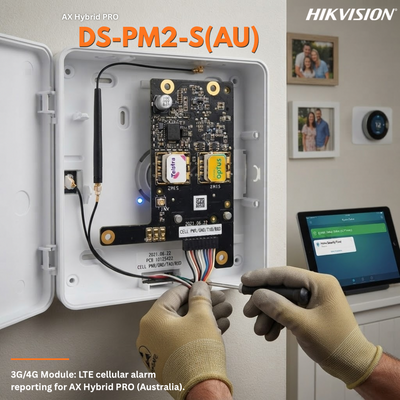

The Hikvision DS-PM2-S(AU) is a 3G/4G cellular communication module designed for compatible Hikvision AX Hybrid PRO intrusion alarm control panels.
It adds cellular network connectivity to the alarm system, allowing compatible AX Hybrid PRO panels to communicate through 3G and 4G mobile networks. This provides an additional communication path alongside other connectivity methods such as LAN, Wi-Fi and PSTN.
The module supports FDD-LTE bands B1/B3/B5/B7/B8/B28 as well as UMTS/HSDPA/HSPA+ bands B1/B5, providing cellular connectivity for compatible installations.
Key Features
3G/4G cellular communication module
Designed for Hikvision AX Hybrid PRO
Adds cellular connectivity to compatible alarm panels
Supports 4G FDD-LTE
Supports 3G UMTS / HSDPA / HSPA+
FDD-LTE bands: B1 / B3 / B5 / B7 / B8 / B28
3G bands: B1 / B5
Provides an additional communication path for the alarm system
Suitable for professional residential and commercial alarm installations
Can complement LAN, Wi-Fi and PSTN communication options
Technical Specifications
Specification
Details
Product Type
Cellular Communication Module
Compatible System
Hikvision AX Hybrid PRO
Cellular Network
3G / 4G
4G Technology
FDD-LTE
LTE Bands
B1 / B3 / B5 / B7 / B8 / B28
3G Technology
UMTS / HSDPA / HSPA+
3G Bands
B1 / B5
Application
Alarm System Communication
Product Category
Communication Module
Model
DS-PM2-S(AU)
Why Choose Hikvision DS-PM2-S(AU)?
The DS-PM2-S(AU) is ideal when an AX Hybrid PRO system requires cellular communication through 3G or 4G networks.
Compared with a GPRS-only communication module, it provides support for newer 3G/4G cellular networks and can be used as an additional communication method alongside LAN, Wi-Fi or PSTN. Hikvision's AX Hybrid PRO platform is designed to support multiple communication paths for improved system reliability.

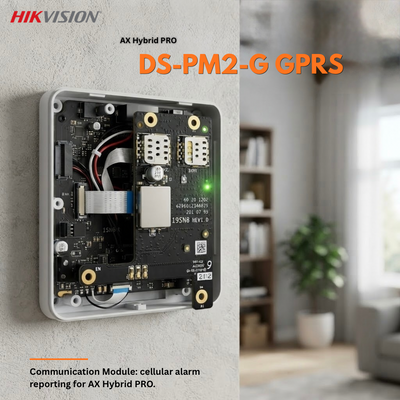

The Hikvision DS-PM2-G is a GPRS communication module designed for compatible Hikvision AX Hybrid PRO intrusion alarm control panels.
It adds cellular GPRS communication to the alarm system, providing an additional communication path when a wired network connection is unavailable or when cellular communication is required as part of the alarm system infrastructure.
The AX Hybrid PRO platform supports multiple communication methods, including LAN, Wi-Fi, PSTN and cellular networks, helping provide flexible and reliable alarm transmission for residential and commercial security installations.
Key Features
GPRS communication module
Designed for Hikvision AX Hybrid PRO
Adds cellular communication to compatible alarm panels
Provides alarm communication through the GPRS mobile network
Internal module design
Integrates directly with compatible AX Hybrid PRO control panels
Provides an additional communication path for the alarm system
Suitable for residential and commercial alarm installations
Useful as an alternative or additional path to LAN / Wi-Fi / PSTN communication
Technical Specifications
Specification
Details
Product Type
GPRS Communication Module
Communication Type
Cellular
Cellular Technology
GPRS
Compatible Platform
Hikvision AX Hybrid PRO
Installation Type
Internal Module
Application
Alarm Communication
Product Category
Communication Module
Model
DS-PM2-G
Why Choose Hikvision DS-PM2-G?
The DS-PM2-G is useful when an AX Hybrid PRO alarm installation requires cellular communication through a GPRS network.
It provides an additional communication method for the alarm panel and can be particularly useful when the site requires an alternative to the primary network connection or where a fixed Internet connection is not available.

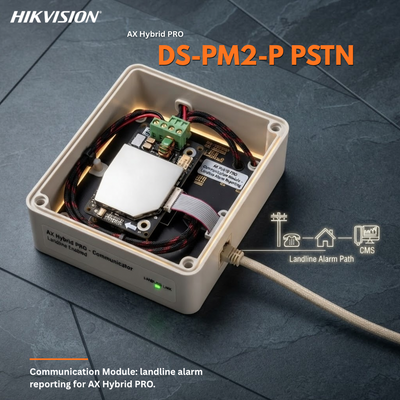

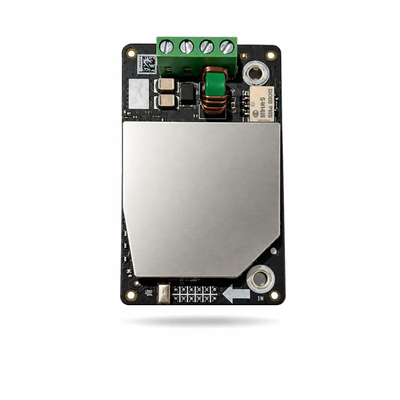

The Hikvision DS-PM2-P is a PSTN communication module designed for compatible Hikvision AX Hybrid PRO intrusion alarm control panels.
The module adds PSTN landline communication capability to the alarm system, providing an additional communication path for transmitting alarm information through a traditional telephone network.
It is designed as an internal communication accessory for AX Hybrid PRO installations and can be used in projects where PSTN communication is required as part of the alarm reporting infrastructure. Hikvision lists the DS-PM2-P alongside cellular communication modules as a dedicated communication option for the AX Hybrid PRO platform.
Key Features
PSTN communication module
Designed for Hikvision AX Hybrid PRO
Adds landline telephone communication to the alarm system
Enables alarm communication through a PSTN telephone network
Internal module design
Integrates directly with compatible alarm control panels
Provides an additional communication option for professional alarm installations
Suitable for residential and commercial intrusion alarm systems
Technical Specifications
Specification
Details
Product Type
PSTN Communication Module
Communication Type
PSTN
Network Type
Public Switched Telephone Network
Compatible Platform
Hikvision AX Hybrid PRO
Installation Type
Internal Module
Application
Alarm Communication
Product Category
Communication Module
Model
DS-PM2-P
Why Choose Hikvision DS-PM2-P?
The DS-PM2-P is useful when an AX Hybrid PRO installation requires alarm communication through a traditional telephone landline.
It adds another communication option to the alarm system and is particularly useful for projects where PSTN infrastructure is already available or where a landline communication path is required alongside the system's other communication methods.

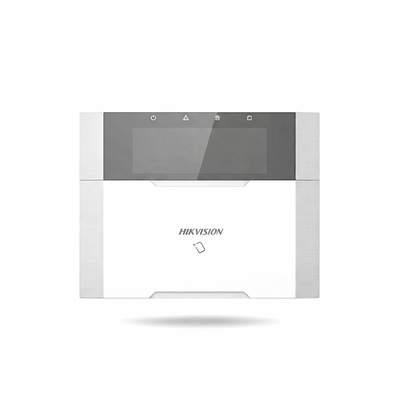

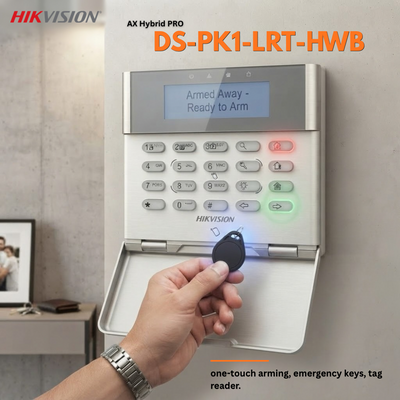

The Hikvision DS-PK1-LRT-HWB is a wired LCD keypad designed for convenient control and management of Hikvision AX Hybrid PRO intrusion alarm systems, including compatible DS-PHA48-EP and DS-PHA64-LP control panels.
It features a clear LCD display, illuminated keypad, built-in Tag Reader, and wireless transceiver, allowing users to arm and disarm the security system using the keypad, compatible tags, or wireless keyfobs.
The keypad supports Away Arm, Stay Arm, Disarm, system query and alarm output control, while dedicated emergency functions provide quick access to Fire, Panic and Medical alarms.
For additional installation flexibility, the keypad includes 2 onboard alarm inputs and 1 onboard alarm output, allowing additional alarm devices to be connected directly to the keypad.
Key Features
Wired LCD keypad for Hikvision AX Hybrid PRO
Built-in LCD display
Built-in Tag Reader
Built-in wireless transceiver
Supports compatible wireless Keyfobs
Supports up to 64 Keyfobs
One-touch arming without password
Away Arm / Stay Arm / Disarm
System status query
Alarm output control
Dedicated Fire / Panic / Medical emergency functions
2 onboard alarm inputs
1 onboard alarm output
8 dedicated function keys
Numeric keypad: 0–9, * and #
Built-in Buzzer
Back-cover tamper protection
Speed-X Bus communication
433MHz wireless frequency
4 status indicators + keypad backlight
Powered directly by the AX Hybrid PRO control panel
Compact wall-mounted design
Technical Specifications
Specification
Details
Product Type
Wired LCD Keypad
Compatible System
Hikvision AX Hybrid PRO
Display
LCD
Tag Reader
Built-in
Wireless Transceiver
Built-in
RF Frequency
433MHz
Supported Keyfobs
Up to 64
Numeric Keys
0–9, *, #
Function Keys
8
Emergency Functions
Fire / Panic / Medical
Alarm Inputs
2 Onboard
Alarm Output
1 Onboard
Communication Bus
Speed-X
Buzzer
Built-in
Tamper Protection
Back Cover
Status Indicators
4 Indicators + Backlight
Power Supply
12V DC
Quiescent Consumption
0.972W / 81mA @ 12V DC
Maximum Consumption
1.33W / 111mA @ 12V DC
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
150 × 115 × 28 mm
Color
White
Model
DS-PK1-LRT-HWB
Why Choose Hikvision DS-PK1-LRT-HWB?
The DS-PK1-LRT-HWB provides a complete physical control interface for an AX Hybrid PRO alarm system. Users can operate the alarm from the keypad, use a Tag for convenient arming/disarming, or use compatible wireless Keyfobs.
The addition of 2 alarm inputs and 1 alarm output directly on the keypad also provides greater installation flexibility, making it suitable for villas, offices, shops, warehouses and professional commercial alarm installations.

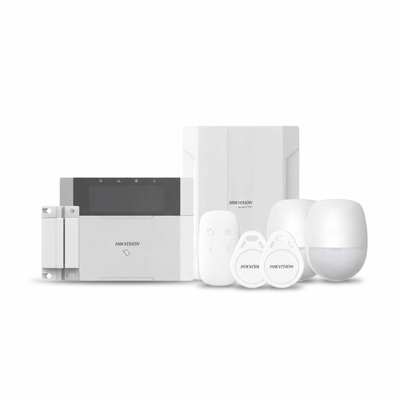

The Hikvision DS-PHA64-KIT-WB(B) is a complete AX Hybrid PRO intrusion alarm kit designed to combine the reliability of a wired alarm system with the flexibility of wireless security devices.

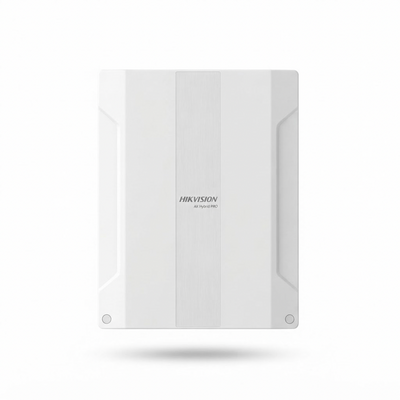

At the heart of the kit is the DS-PHA64-LP AX Hybrid PRO Control Panel, supporting up to 64 alarm zones, including 8 onboard zones with expansion for additional wired and wireless devices. The system also supports up to 64 outputs and provides advanced alarm management for residential and commercial installations.
Unlike purchasing the control panel alone, this kit includes essential components to start building the alarm system, including an LCD keypad, magnetic contact, two PIR motion detectors, wireless keyfob and two tags.
Kit Includes
1 × DS-PHA64-LP – AX Hybrid PRO Control Panel
1 × DS-PK1-LRT-HWB – LCD Keypad
1 × DS-PD1-MC-WS – Magnetic Contact
2 × DS-PDP18-EG2 – PIR Motion Detectors
1 × DS-PKF1-WB – Wireless Keyfob
2 × DS-PT-M1 – Tags
Key Features
Complete AX Hybrid PRO alarm kit
433MHz wireless version
Hybrid wired and wireless alarm architecture
Supports up to 64 zones
8 onboard zones + 56 expandable wired/wireless zones
Supports up to 64 outputs
4 onboard outputs + 60 expandable outputs
Speed-X Bus technology
Supports PIR-CAM visual verification
Up to 4-channel IP camera video verification
Wi-Fi and Ethernet network connectivity
Optional GPRS / 3G / 4G communication
Dual-path alarm communication
Supports Hik-Connect
Mobile alarm notifications
Arm/disarm via keypad, keyfob, mobile app, SMS or Tag
Backup battery support
Suitable for homes, villas, offices, shops and commercial projects
The AX Hybrid PRO platform is specifically designed to combine wired reliability with wireless peripheral integration and supports visual alarm verification through Speed-X technology.
Technical Specifications
Specification
Details
Product Type
Complete Hybrid Alarm Kit
System
Hikvision AX Hybrid PRO
Wireless Frequency
433MHz
Maximum Zones
64
Onboard Zones
8
Expandable Zones
56 Wired / Wireless
Maximum Outputs
64
Onboard Outputs
4
Expandable Outputs
60
Speed-X Bus
Supported
IP Camera Verification
Up to 4 Channels
Wi-Fi
Supported
Ethernet
Supported
Cellular Communication
Optional GPRS / 3G / 4G
Mobile Management
Hik-Connect
PIR Detectors Included
2
Magnetic Contact Included
1
LCD Keypad Included
1
Wireless Keyfob Included
1
Tags Included
2
Model
DS-PHA64-KIT-WB(B)
Why Choose Hikvision DS-PHA64-KIT-WB(B)?
The main advantage of this model is that it provides a ready-to-start AX Hybrid PRO package instead of purchasing the control panel and basic accessories separately.
With the control panel, LCD keypad, magnetic contact, two PIR detectors, keyfob and two tags already included, it provides an excellent foundation for building a professional security system while still allowing further wired and wireless expansion.
The Hikvision DS-PHA64-LP(B) is an advanced hybrid intrusion alarm control panel designed for professional residential and commercial security systems.
It combines the reliability of a wired alarm system with the flexibility to expand using compatible wired and wireless devices. The system supports up to 64 alarm zones, including 8 onboard wired zones, and up to 64 alarm outputs, making it suitable for larger and more complex installations.
The panel supports up to 32 independent areas, allowing different sections of a building to be armed, disarmed, and managed separately.
Its Speed-X Bus provides high-speed wired communication and supports compatible PIR-CAM detectors for visual alarm verification. The panel also supports 4-channel onboard IP camera video verification, allowing users or monitoring centers to visually verify alarm events.
Key Features
Hybrid wired and wireless intrusion alarm control panel
Supports up to 64 alarm zones
8 onboard wired zones
Supports up to 8 wired PIR-CAM detectors
Supports up to 64 alarm outputs
4 onboard outputs: 2 Relay + 2 I/O
Supports up to 32 independent areas
1 × Speed-X Bus
Up to 4-channel IP Camera video verification
Supports alarm video clips
Built-in 2.4 GHz Wi-Fi
RJ45 Ethernet connectivity
Optional GPRS / 3G / 4G communication
Dual-path alarm communication
Supports customized voice library
Arming/disarming via keypad, keyfob, mobile app, SMS or tag
Hik-Connect integration
Push alarm notifications
Front-cover and removal tamper protection
Backup battery support
Backup operation up to 36 hours
Technical Specifications
Specification
Details
System Type
Hybrid Wired / Wireless Alarm System
Alarm Zones
Up to 64
Onboard Zones
8
Wired PIR-CAM Support
Up to 8
Alarm Outputs
Up to 64
Onboard Outputs
2 Relay + 2 I/O
Areas
32
Users
64
Speed-X Bus
1
IP Camera Verification
4 Channels
Onboard Video Clips
4
Wired Sounder Output
1
Wi-Fi
802.11 b/g/n, 2.4 GHz
Network Interface
RJ45 10/100 Mbps Ethernet
Cellular Communication
Optional GPRS / 3G / 4G
SMS Notification
Supported with Cellular Module
EOL Resistance
1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K
Bell Output
Maximum 12V / 1.2A
AUX Output
Maximum 12V / 1.5A
Bell + AUX
Maximum 12V / 2.1A
Power Input
100–240VAC
Backup Battery
12V / 7Ah Lead-Acid
Battery Included
No
Backup Battery Life
Up to 36 Hours
Tamper Protection
Front Cover + Removal Detection
Model
DS-PHA64-LP(B)
Why Choose Hikvision DS-PHA64-LP(B)?
The DS-PHA64-LP(B) is designed for larger alarm installations that require more zones, more areas, and advanced visual alarm verification.
With support for 64 zones, 64 outputs, 32 areas, 8 wired PIR-CAM detectors and 4 IP cameras for video verification, it provides a scalable security solution for villas, offices, warehouses, supermarkets, hotels and other commercial properties.

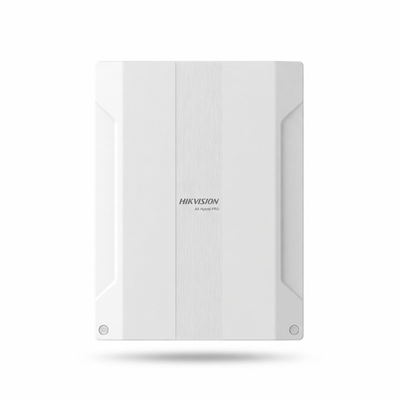

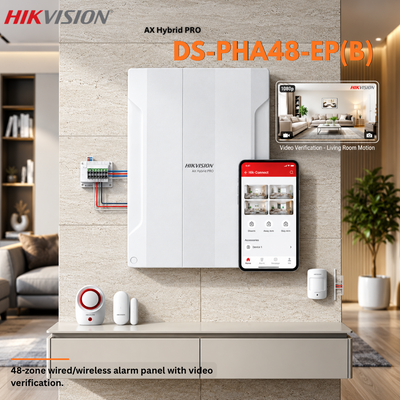

The Hikvision DS-PHA48-EP(B) is an advanced hybrid intrusion alarm control panel designed to combine the reliability of wired security devices with the flexibility of compatible wireless detectors and peripherals.
The system supports up to 48 alarm zones, including 8 onboard wired zones, as well as up to 48 alarm outputs. It also supports 16 independent areas, making it suitable for larger residential and commercial security installations.
One of its key technologies is the Speed-X Bus, which enables high-speed wired communication and supports image/video transmission from compatible PIR-Camera detectors for alarm verification. The panel also supports 2-channel onboard IP camera video verification, allowing alarm events to be verified visually.
The system can be controlled through keypads, keyfobs, tags, SMS and mobile applications, and supports network connectivity through Ethernet with optional cellular communication modules.
Key Features
Hybrid wired and wireless intrusion alarm control panel
Supports up to 48 alarm zones
8 onboard wired zones
Supports up to 48 alarm outputs
4 onboard outputs: 2 relay + 2 I/O
Supports up to 16 independent areas
Supports up to 4 wired PIR-CAM detectors
1 × Speed-X Bus
Supports video/image alarm verification
2-channel IP camera video verification
Supports alarm video clips
Ethernet network connection
Optional GPRS / 3G / 4G communication
Dual-path alarm communication
Supports Hik-Connect and Hik-ProConnect
Arming/disarming via keypad, keyfob, mobile client, SMS or tag
Push alarm notifications
Front-cover and rear tamper protection
Supports backup battery operation
Suitable for homes, villas, offices, shops, warehouses and commercial projects
Technical Specifications
Specification
Details
System Type
Hybrid Wired / Wireless Alarm System
Alarm Zones
Up to 48
Onboard Zones
8
Wired PIR-CAM Support
Up to 4
Alarm Outputs
Up to 48
Onboard Outputs
2 Relay + 2 I/O
Areas
16
Users
48 Total
Speed-X Bus
1
IP Camera Verification
2 Channels
Wired Sounder Output
1
Network Interface
RJ45 10/100 Mbps Ethernet
Cellular Communication
Optional GPRS / 3G / 4G
SMS Notification
Supported with Cellular Module
End-of-Line Resistance
1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K
Bell Output
Maximum 12V / 1.2A
AUX Output
Maximum 12V / 1.5A
Bell + AUX
Maximum 12V / 2.1A
Power Input
100–240VAC
Backup Battery
12V / 7Ah Lead-Acid
Battery Included
No
Backup Battery Life
Up to 36 Hours
Tamper Protection
Front Cover + Removal Detection
Model
DS-PHA48-EP(B)
Why Choose Hikvision DS-PHA48-EP(B)?
The DS-PHA48-EP(B) is designed for projects where the reliability of a wired alarm system is required without losing the flexibility of wireless devices.
With support for 48 zones, 48 outputs, 16 areas, Speed-X Bus, PIR-Camera detectors and IP-camera alarm verification, it provides a scalable security platform for villas, offices, shops, warehouses, hotels and other commercial installations. Hikvision specifically positions AX Hybrid PRO for scenarios requiring both wired reliability and wireless flexibility.

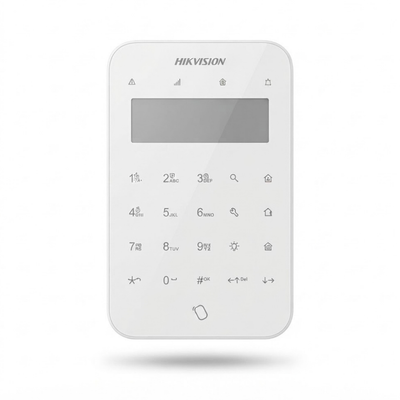

The Hikvision DS-PK1-LT-WB is a wireless LCD keypad designed for convenient control and management of the Hikvision AX PRO Wireless Alarm System.
It features an LCD screen with LED status indicators, allowing users to view system information and perform essential functions directly from the keypad. Users can Away Arm, Stay Arm, Disarm, control outputs, and check system status, while the LCD interface also supports system configuration directly from the keypad.
A built-in Tag Reader provides an additional convenient method for operating the alarm system using compatible tags. The keypad also supports dedicated Fire, Panic, and Medical emergency functions, as well as silent alarm operation.
Using Hikvision Tri-X two-way wireless technology, the DS-PK1-LT-WB communicates at 433 MHz with a wireless range of up to 800 meters in open space.
Key Features
Wireless LCD keypad for Hikvision AX PRO
Built-in LCD display
Built-in Tag Reader
LED indicators for system status
Numeric keys from 0–9
Away Arm and Stay Arm
System Disarm
System status query
Output control
System configuration through the LCD interface
One-touch Fire alarm
One-touch Panic alarm
One-touch Medical alarm
Silent alarm support
Built-in buzzer
LED-backlit keys
Front and rear tamper protection
Tri-X two-way wireless communication
433 MHz RF frequency
Wireless range up to 800 m in open space
Remote configuration through the App
Battery life up to 2 years
Wall-mounted design
Technical Specifications
Specification
Details
Product Type
Wireless LCD Keypad
System Compatibility
Hikvision AX PRO
Display
LCD
Tag Reader
Built-in
Numeric Keys
0–9
Function Keys
*, #, Query, Away Arm, Stay Arm, Disarm, Output, Project, Right, Left
LED Indicators
Fault / Enrollment & Signal / Arm / Disarm / Alarm
Buzzer
Supported
Tamper Protection
Front & Rear
Wireless Technology
Tri-X
Communication
Two-Way Wireless
RF Frequency
433 MHz
RF Modulation
2GFSK
Wireless Range
Up to 800 m in Open Space
Battery
4 × CR123
Voltage
3 V
Standby Battery Life
Up to 2 Years
Quiescent Current
80 μA
Maximum Current
300 mA
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
174.63 × 109.62 × 25.25 mm
Weight with Batteries
348 g
Weight without Batteries
282 g
Installation
Wall Mount
Color
White
Model
DS-PK1-LT-WB
Why Choose Hikvision DS-PK1-LT-WB?
The DS-PK1-LT-WB provides a more complete physical interface for the AX PRO alarm system. Unlike a basic keypad, it includes an LCD display and built-in Tag Reader, allowing users to view system information and operate the alarm system more conveniently.
It is particularly suitable for villas, homes, offices, shops, and commercial buildings where multiple users may need an easy physical method to arm or disarm the security system without relying only on a smartphone.

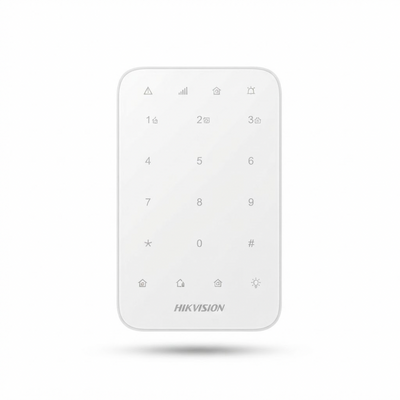

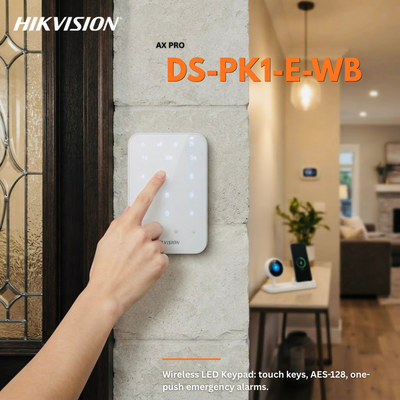

The Hikvision DS-PK1-E-WB is a wireless LED touch keypad designed for convenient control and operation of the Hikvision AX PRO Wireless Alarm System.
It allows users to perform essential alarm functions directly from the keypad, including Stay Arming, Away Arming, Disarming, and Alarm Clearing for selected areas or all areas. LED indicators provide clear status information for programmed areas, while the integrated buzzer provides audible notifications.
The keypad also supports one-push emergency functions for Fire, Panic, and Medical alarms, with selectable silent or audible alarm operation. Its full-touch keypad design with LED backlighting provides easy operation, even in low-light environments.
Using 433 MHz two-way wireless communication, AES-128 encryption, and frequency hopping technology, the keypad provides secure and reliable integration with the AX PRO system.
Key Features
Wireless keypad for Hikvision AX PRO
Full-touch key design
LED backlight for convenient nighttime operation
Stay arming and Away arming
System disarming
Alarm clearing
Control of specified areas or all areas
LED indication for programmed areas
Built-in buzzer for alarm notifications
One-push Fire alarm
One-push Panic alarm
One-push Medical alarm
Selectable silent or audible emergency alarm
Output control support
433 MHz two-way wireless communication
AES-128 encryption
Frequency hopping against wireless jamming
Fully remotely configurable through the App
Multiple enrollment methods
Easy installation
Easily replaceable batteries
Technical Specifications
Specification
Details
Product Type
Wireless LED Keypad
System Compatibility
Hikvision AX PRO
Keypad Type
Full-Touch Keys
Backlight
LED
Arming
Stay / Away
Disarming
Supported
Alarm Clearing
Supported
Area Control
Specified Area / All Areas
Emergency Functions
Fire / Panic / Medical
Emergency Mode
Silent / Audible Selectable
Output Control
Supported
Status Indication
LED
Audible Indication
Built-in Buzzer
Wireless Communication
Two-Way RF
Wireless Frequency
433 MHz
Encryption
AES-128
Frequency Hopping
Supported
Remote Configuration
Supported via App
Model
DS-PK1-E-WB
Hikvision identifies the DS-PK1-E-WB specifically as the 433 MHz version of this wireless keypad.
Why Choose Hikvision DS-PK1-E-WB?
The DS-PK1-E-WB provides a convenient physical control point for the AX PRO alarm system, allowing users to arm or disarm the system without relying solely on a smartphone.
Its touch-sensitive illuminated keypad, area control, built-in buzzer, and dedicated Fire, Panic, and Medical emergency functions make it suitable for homes, villas, offices, shops, and other locations using Hikvision AX PRO.

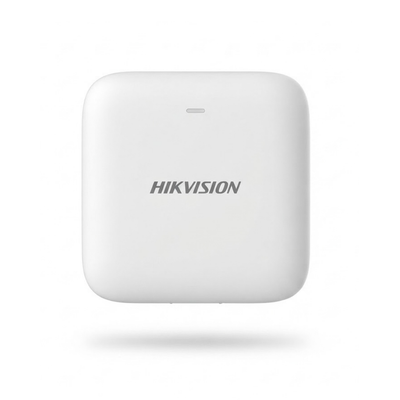

The Hikvision DS-PDWL-E-WB is a wireless water leak detector designed to provide early warning of water leakage as part of the Hikvision AX PRO Wireless Alarm System.
The detector comes with an external water detection probe, allowing it to monitor areas where leaks are likely to occur while the main detector can be mounted in a convenient position.
Its IP66 water-resistant design makes it suitable for demanding environments, while Hikvision Tri-X two-way wireless communication provides a transmission range of up to 1 km in open space. It also supports AES-128 encryption and frequency hopping for secure and reliable communication.
Key Features
Wireless water leak detection
External water detection probe included
Early warning of water leakage
Water-resistant IP66 design
Digital signal processing
Front and rear tamper protection
Environmental temperature indicator
Signal strength indicator
Tri-X two-way wireless communication
AES-128 encryption
Wireless transmission range up to 1 km in open space
Frequency hopping against wireless interference
Multiple enrollment methods
Remote configuration through the AX PRO system
Powered by a single CR2450 battery
Battery life up to 3 years
Compact and easy-to-install design
Technical Specifications
Specification
Details
Detector Type
Wireless Water Leak Detector
Detection Method
External Water Probe
External Probe
Included
Digital Processing
Supported
Tamper Protection
Front & Rear
Temperature Indicator
Supported
Signal Strength Indicator
Supported
LED Indicator
Blue – Alarm
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Power Supply
Battery Powered
Battery
1 × CR2450
Typical Voltage
3 V
Battery Life
Up to 3 Years
Operating Temperature
-10°C to 55°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10%–90%
Protection Rating
IP66
Dimensions
62.4 × 62.4 × 14.6 mm
Weight
85.5 g
Mounting
Wall / Surface
Model
DS-PDWL-E-WB
Why Choose Hikvision DS-PDWL-E-WB?
The DS-PDWL-E-WB provides an effective way to detect water leaks before they cause significant damage. The external probe can be positioned close to potential leak points, making it particularly useful around kitchens, bathrooms, water tanks, pumps, pipes, equipment rooms, and other water-sensitive areas.
Its wireless design makes installation simple, while IP66 protection, Tri-X communication, and up to 3-year battery life provide reliable integration with the Hikvision AX PRO alarm system.
The Hikvision DS-PDTPH-E-WB is a wireless temperature detector designed for continuous indoor temperature monitoring as part of the Hikvision AX PRO Wireless Alarm System.
The detector can measure temperatures from -10°C to 55°C using its built-in sensor. For applications requiring a wider measurement range, the included external temperature probe extends the detection range from -35°C to 99°C.
A built-in 2.7-inch display provides convenient on-device temperature information, while Tri-X two-way wireless communication enables reliable integration with the AX PRO system. The detector also supports AES-128 encryption, frequency hopping, tamper protection, signal-strength indication, and remote system monitoring.
Key Features
Wireless temperature monitoring detector
Built-in temperature sensor
Included external temperature probe
Built-in measurement range: -10°C to 55°C
External probe measurement range: -35°C to 99°C
2.7-inch display
On-screen temperature display
Digital signal processing
Front and rear tamper protection
Environmental temperature indication
Signal-strength indicator
Tri-X two-way wireless communication
AES-128 encryption
Wireless transmission range up to 800 m in open space
Frequency hopping for improved communication reliability
Power Up / Remote ID / QR Code enrollment
Powered by 2 × AAA batteries
Battery life up to 2 years
Designed for indoor applications
Technical Specifications
Specification
Details
Detection Method
Temperature Sensor
Temperature Range – Built-in Sensor
-10°C to 55°C
Temperature Range – External Probe
-35°C to 99°C
External Probe
Included
Display Size
2.7 inch
LED / Display Indicator
On-Screen Display
Digital Processing
Supported
Tamper Protection
Front & Rear
Temperature Indicator
Supported
Signal Strength Indicator
Supported
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 800 m in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Power Supply
Battery Powered
Battery
2 × AAA
Typical Voltage
3 V
Battery Life
Up to 2 Years
Operating Temperature
-10°C to 55°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10%–90%
Dimensions
62.6 × 62.6 × 18 mm
Weight
73.5 g
Mounting
Wall
Application
Indoor
Model
DS-PDTPH-E-WB
Why Choose Hikvision DS-PDTPH-E-WB?
The DS-PDTPH-E-WB is ideal for locations where temperature needs to be continuously monitored as part of the security system.
The included external probe expands the monitoring range up to -35°C to 99°C, making the detector useful for applications such as server rooms, equipment rooms, storage areas, refrigerators, freezers, and other temperature-sensitive locations.
Its built-in display allows quick local temperature checking, while AX PRO integration enables temperature-related events and alerts to be managed through the alarm system.

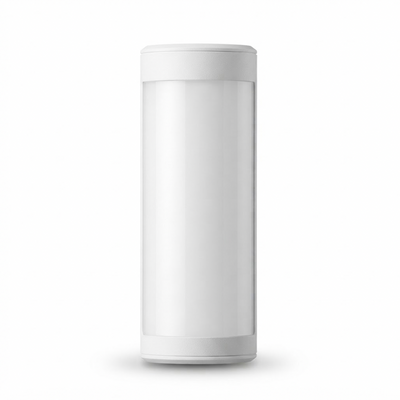

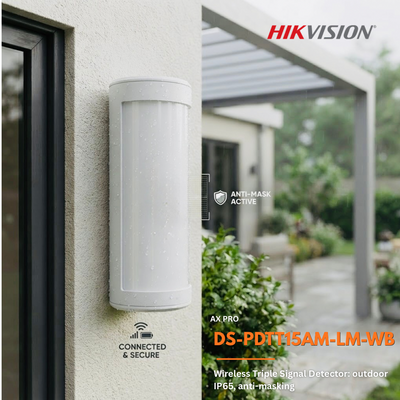

The Hikvision DS-PDTT15AM-LM-WB is an advanced wireless outdoor intrusion detector designed for perimeter protection within the Hikvision AX PRO Wireless Alarm System.
It uses Triple-Signal detection logic, combining two PIR sensors with 24 GHz Microwave technology to provide highly reliable intrusion detection while reducing false alarms in challenging outdoor environments.
The detector provides a detection range of up to 15 meters with 90° coverage adjustable through 180°, allowing flexible protection of gardens, villa entrances, walls, driveways, and other outdoor areas.
It also features Active IR Anti-Masking, pet immunity up to 40 kg, Anti-Sway Analytics, digital temperature compensation, and an IP65 weather-resistant enclosure. Tri-X two-way wireless communication provides secure integration with AX PRO without the need for alarm cabling.
Key Features
Advanced Triple-Signal outdoor detection
Combines 2 PIR sensors + 24 GHz Microwave
Detection range up to 15 m
90° detection coverage with 180° adjustment
92 detection zones
Active IR Anti-Masking
Pet immunity up to 40 kg
Anti-Sway Analytics to help reduce false alarms from moving vegetation and similar outdoor interference
Adjustable coverage with included pattern mask
Digital temperature compensation
Tri-Signal digital processing
Sealed optics design
Front and rear tamper protection
White light filter up to 10,000 lux
IP65 weather resistance
Tri-X two-way wireless communication
AES-128 encryption
Wireless range up to 1 km in open space
Frequency hopping against wireless interference
Battery life up to 5 years
Designed specifically for outdoor applications
Technical Specifications
Specification
Details
Detection Technology
Dual PIR + Microwave
Detection Logic
Triple-Signal
Detection Range
Up to 15 m
Detection Coverage
90° @ 180° Adjustable
Detection Zones
92
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / Low
Pet Immunity
Up to 40 kg
Microwave Frequency
24.15–24.25 GHz
White Light Filter
10,000 lux
Anti-Masking
Supported
Anti-Sway Analytics
Supported
Adaptable Coverage
Supported
Pattern Mask
Included
Digital Temperature Compensation
Supported
Sealed Optics
Supported
Tamper Protection
Front & Rear
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
5 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-25°C to 60°C
Operating Humidity
10%–90%
Protection Rating
IP65
Dimensions
75 × 202 × 73 mm
Weight
600 g
Mounting Height
0.8–1.2 m
Mounting Method
Wall
Application
Outdoor
Model
DS-PDTT15AM-LM-WB
Why Choose Hikvision DS-PDTT15AM-LM-WB?
The DS-PDTT15AM-LM-WB is designed for high-security outdoor perimeter protection where a standard PIR detector may be more susceptible to environmental false alarms.
Its Triple-Signal technology combining two PIR sensors and Microwave, along with Anti-Masking, Anti-Sway Analytics, 40 kg pet immunity, and IP65 weather protection, makes it ideal for villas, gardens, entrances, walls, driveways, warehouses, and commercial outdoor areas.

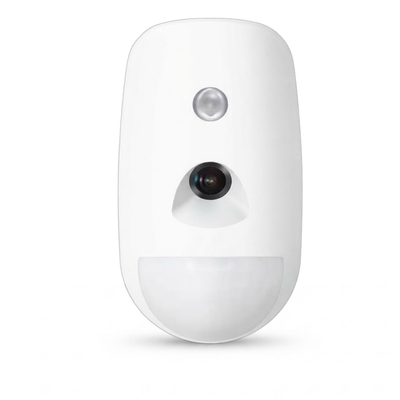

The Hikvision DS-PDPC12P-EG2 is a wired PIR motion detector with integrated video verification, designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It provides PIR motion detection up to 12 meters with an 85.9° detection angle and 52 detection zones. When an alarm is triggered, the integrated camera provides visual verification, helping users and security personnel quickly determine what caused the alarm.
The built-in camera supports images up to 1920 × 1080 resolution and features infrared illumination with a range of up to 12 meters, allowing visual verification during both day and night.
The detector also provides pet immunity up to 30 kg, digital temperature compensation, creep-zone protection, sealed optics, and communicates with the alarm system through the wired Speed-X Bus.
Key Features
Wired PIR motion detector with integrated camera
Visual verification of intrusion alarms
PIR detection range up to 12 m
Wide 85.9° detection angle
52 detection zones
Pet immunity up to 30 kg
Sensitivity modes: Auto / High / Pet
Integrated camera for alarm verification
Image resolution up to 1920 × 1080
Infrared illumination for night verification
IR illumination range up to 12 m
Color / Black & White day/night operation
Digital temperature compensation
Creep-zone protection
Digital signal processing
Sealed optics design
Front and rear tamper protection
Speed-X Bus wired communication
AES-128 encryption
Bus transmission distance up to 1 km
Designed for indoor security applications
Technical Specifications
Specification
Details
Detection Method
Passive Infrared (PIR) + Video Verification
Detection Range
Up to 12 m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / High / Pet
Pet Immunity
Up to 30 kg
White Light Filter
6500 lux
Digital Temperature Compensation
Supported
Creep Zone Protection
Supported
Digital Processing
Supported
Sealed Optics
Supported
Tamper Protection
Front & Rear
Camera Field of View
109° H / 60° V
Image Type
JPEG
Image Resolution
1920×1080 / 1280×720 / 640×480
Fill Light
Infrared
IR Range
Up to 12 m
Day / Night
Color / Black & White
Communication Technology
Speed-X Bus
Transmission Method
Wired
Transmission Security
AES-128
Transmission Range
Up to 1 km
Power Supply
9–16 VDC
Typical Voltage
12 VDC
Max. Power Consumption
100 mA
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
73 × 130.5 × 56.7 mm
Application
Indoor
Model
DS-PDPC12P-EG2
Why Choose Hikvision DS-PDPC12P-EG2?
The DS-PDPC12P-EG2 combines intrusion detection and visual verification in one wired detector. Instead of receiving only a motion alarm, the integrated camera provides images that help verify what actually triggered the detector.
Its 12 m PIR coverage, Full HD image capability, infrared illumination, 30 kg pet immunity, and Speed-X Bus connection make it ideal for villas, offices, shops, warehouses, and other indoor areas using the Hikvision AX Hybrid PRO alarm system.

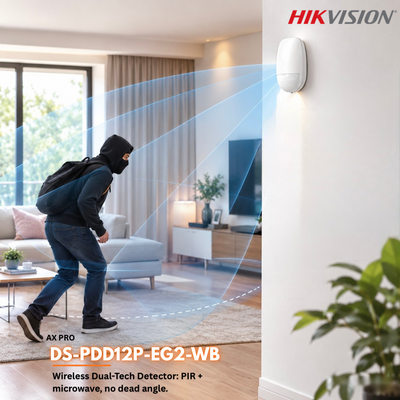

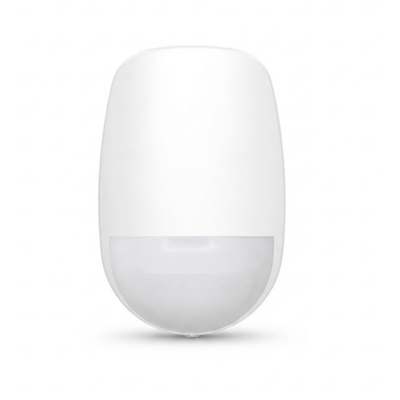

The Hikvision DS-PDD12P-EG2-WB is a wireless dual-technology motion detector designed for reliable indoor intrusion detection within the Hikvision AX PRO Wireless Alarm System.
It combines Passive Infrared (PIR) and 24 GHz Microwave detection, helping improve detection accuracy and reduce false alarms. The detector provides a range of up to 12 meters, an 85.9° detection angle, and 52 detection zones for comprehensive indoor coverage.
With pet immunity up to 30 kg, 3D optics, creep-zone protection, digital temperature compensation, and sealed optics, the detector is designed to distinguish human movement reliably while minimizing unwanted alarms. It communicates using Tri-X two-way wireless technology with AES-128 encryption and a transmission range of up to 1.2 km in open space.
Key Features
Dual-technology PIR + Microwave motion detection
24 GHz Microwave technology
Detection range up to 12 m
Wide 85.9° detection angle
52 detection zones
Pet immunity up to 30 kg
Sensitivity settings: Auto / High / Pet
3D optics for comprehensive coverage
Creep-zone protection
Digital temperature compensation
Sealed optics design
Front and rear tamper protection
Environmental temperature indicator
Signal strength indicator
Tri-X two-way wireless communication
AES-128 encryption
Wireless range up to 1.2 km in open space
Frequency hopping against jamming
Remote configuration through the App
Battery life up to 5 years
Technical Specifications
Specification
Details
Detection Technology
PIR + Microwave
Detection Range
Up to 12 m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / High / Pet
Pet Immunity
Up to 30 kg
Microwave Frequency
24 GHz (24.15–24.25 GHz)
White Light Filter
6500 lux
Digital Temperature Compensation
Supported
Creep Zone Protection
Supported
Digital Processing
Supported
Sealed Optics
Supported
Tamper Protection
Front & Rear
Temperature Indicator
Supported
Signal Strength Indicator
Supported
LED Indicator
Green PIR / Red Microwave / Blue Alarm
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1.2 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
2 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
65.5 × 103 × 48.5 mm
Weight
141 g
Application
Indoor
Model
DS-PDD12P-EG2-WB
Why Choose Hikvision DS-PDD12P-EG2-WB?
The DS-PDD12P-EG2-WB combines PIR and Microwave detection technologies to provide more reliable motion detection than a conventional PIR-only detector.
Its 12 m detection range, 30 kg pet immunity, 24 GHz microwave technology, digital temperature compensation, and creep-zone protection make it ideal for homes, villas, offices, shops, and other indoor areas where reliable detection with fewer false alarms is required.

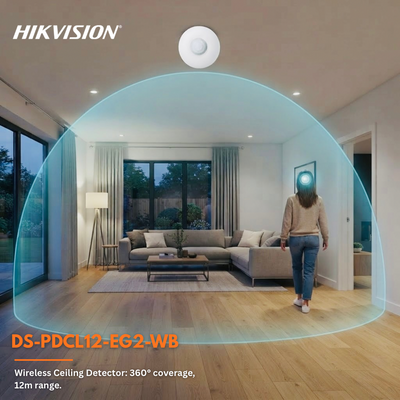

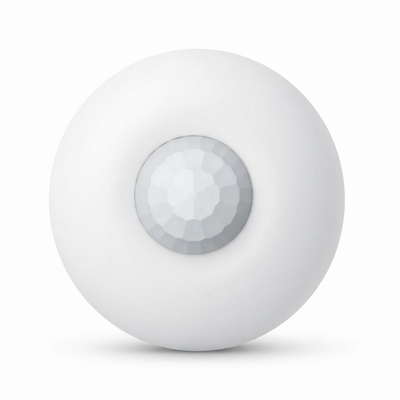

The Hikvision DS-PDCL12-EG2-WB is a wireless ceiling-mounted PIR motion detector designed to provide 360° indoor motion detection as part of the Hikvision AX PRO Wireless Alarm System.
With a detection range of up to 12 meters, a full 360° detection angle, and 172 detection zones, it provides wide-area coverage from a single centrally mounted detector, making it ideal for halls, offices, shops, reception areas, and other open indoor spaces.
The detector features SEC (Smart Environmental Control) with advanced digital signal processing and 3D optics, digital temperature compensation, creep-zone protection, and sealed optics. It communicates through Tri-X two-way wireless technology with AES-128 encryption and a transmission range of up to 1 km in open space.
Key Features
Wireless ceiling-mounted PIR motion detector
Detection range up to 12 m
Full 360° detection coverage
172 detection zones
SEC (Smart Environmental Control)
Advanced digital signal processing
3D optics technology
Digital temperature compensation
Creep-zone protection
Sealed optics design
Sensitivity settings: Auto / Low
Front and rear tamper protection
Environmental temperature indicator
Signal strength indicator
Tri-X two-way wireless communication
AES-128 encryption
Wireless range up to 1 km in open space
Frequency hopping against wireless interference
Remote configuration through the App
Battery life up to 5 years
Ceiling mounting height from 2.4 to 4 m
Technical Specifications
Specification
Details
Detection Method
Passive Infrared (PIR)
Detection Range
Up to 12 m
Detection Angle
360°
Detection Zones
172
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / Low
White Light Filter
6500 lux
Digital Temperature Compensation
Supported
Creep Zone Protection
Supported
Digital Processing
Supported
Sealed Optics
Supported
Tamper Protection
Front & Rear
Temperature Indicator
Supported
Signal Strength Indicator
Supported
LED Indicator
Blue – Alarm
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
1 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
Ø101.2 × 32.9 mm
Weight
109.5 g
Mounting Height
2.4–4 m
Mounting Method
Ceiling
Application
Indoor
Model
DS-PDCL12-EG2-WB
Why Choose Hikvision DS-PDCL12-EG2-WB?
The DS-PDCL12-EG2-WB is ideal when you need to monitor a large indoor area from a central ceiling position. Its 360° coverage, 12-meter detection range, and 172 detection zones allow one detector to cover an open space efficiently.
It is particularly suitable for offices, shops, halls, reception areas, showrooms, and other open indoor spaces, while Tri-X wireless communication eliminates the need for alarm cabling and provides seamless integration with the Hikvision AX PRO system.
