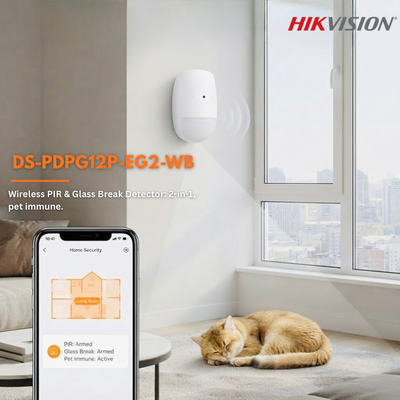

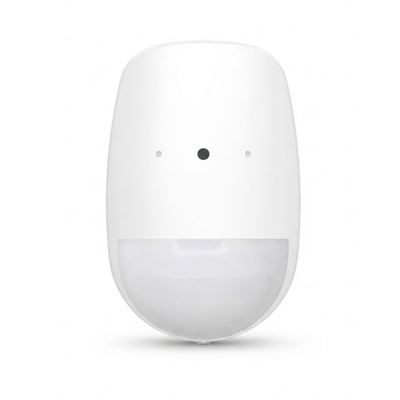

The Hikvision DS-PDPG12P-EG2-WB is a 2-in-1 wireless security detector combining PIR motion detection and acoustic glass break detection in a single device for the Hikvision AX PRO Wireless Alarm System.
The PIR sensor provides a detection range of up to 12 meters with an 85.9° detection angle, while the built-in acoustic sensor detects breaking glass from up to 8 meters. It supports multiple glass types and adjustable glass-break sensitivity for different installation distances.
With pet immunity up to 30 kg, digital temperature compensation, creep-zone protection, sealed optics, and Tri-X two-way wireless communication, it provides comprehensive indoor protection while reducing the need to install separate motion and glass-break detectors.
Key Features
2-in-1 PIR + Glass Break Detector
PIR detection range up to 12 m
PIR detection angle 85.9°
52 detection zones
Acoustic glass-break detection up to 8 m
Glass-break sensitivity: 2 / 4 / 6 / 8 m
Supports multiple glass types
Pet immunity up to 30 kg
PIR sensitivity: Auto / High / Pet
Digital temperature compensation
Creep-zone protection
Sealed optics design
Front and rear tamper protection
Tri-X two-way wireless communication
Wireless range up to 1 km in open space
Frequency hopping technology
Remote configuration through the App
Battery life up to 4 years
Designed for indoor applications
Technical Specifications
Specification
Details
Detection Method
Passive Infrared (PIR) + Acoustic Sensor
PIR Detection Range
Up to 12 m
PIR Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3–2 m/s
PIR Sensitivity
Auto / High / Pet
Pet Immunity
Up to 30 kg
White Light Filter
6500 lux
Glass Break Range
Up to 8 m
Glass Break Sensitivity
2 / 4 / 6 / 8 m
Glass Thickness
2.4–6.4 mm
Glass Size
0.3 × 0.3 m to 3 × 3 m
Creep Zone Protection
Supported
Digital Temperature Compensation
Supported
Sealed Optics
Supported
Tamper Protection
Front & Rear
LED Indicator
Green (PIR) / Red (Glass Break) / Blue (Alarm)
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Frequency
433 MHz
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
2 × CR123A
Battery Life
Up to 4 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
65.5 × 103 × 48.5 mm
Weight
134 g
Mounting Height
1.8–2.4 m
Mounting
Wall
Application
Indoor
Model
DS-PDPG12P-EG2-WB
Why Choose Hikvision DS-PDPG12P-EG2-WB?
The DS-PDPG12P-EG2-WB combines two important security functions in one detector: motion detection and glass-break detection. This makes it ideal for rooms with windows, glass doors, storefronts, offices, villas, and other indoor areas where both intrusion through movement and forced entry through glass need to be monitored.
Its 12 m PIR range, 8 m glass-break detection, and 30 kg pet immunity provide comprehensive protection while reducing the number of separate detectors required.

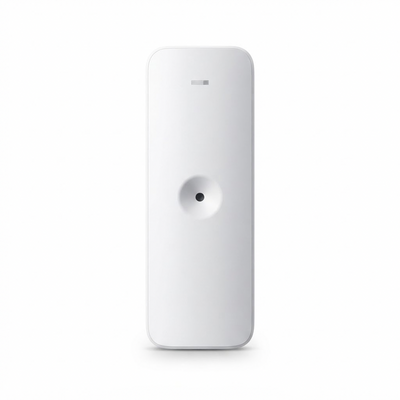

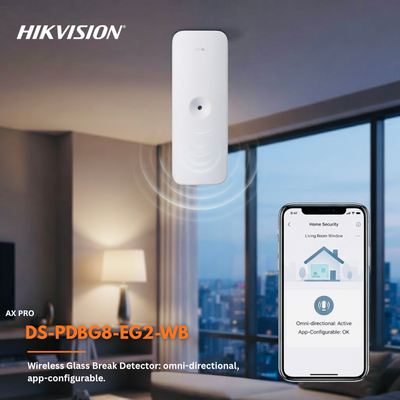

The Hikvision DS-PDBG8-EG2-WB is an omni-directional wireless glass break detector designed to provide reliable protection for windows, glass doors, and other glazed areas as part of the Hikvision AX PRO Wireless Alarm System.
Equipped with a high-quality acoustic microphone sensor, the detector recognizes the sound pattern generated when glass is broken. It provides a detection range of up to 8 meters with a wide 120° detection angle, allowing one detector to protect a large glass area.
The detector supports multiple types of glass, including float, plate, tempered, wired, laminated, leaded, and double glazing. It also uses Tri-X two-way wireless communication, offering a transmission range of up to 1 km in open space with frequency hopping for reliable communication.
Key Features
Wireless acoustic glass break detector
High-quality omni-directional microphone sensor
Detection range up to 8 m
Wide 120° detection angle
Adjustable sensitivity: 2 m / 4 m / 6 m / 8 m
Supports multiple glass types
Supports glass thickness from 2.4 to 6.4 mm
Supports glass sizes from 0.3 × 0.3 m to 3 × 3 m
Digital signal processing
Front and rear tamper protection
Tri-X two-way wireless communication
Wireless range up to 1 km in open space
Frequency hopping against wireless interference
Remote configuration through the App
Wall or ceiling mounting
Battery life up to 5 years
Designed for indoor applications
Technical Specifications
Specification
Details
Detection Method
Acoustic Sensor
Detection Range
Up to 8 m
Detection Angle
120°
Sensitivity
2 m / 4 m / 6 m / 8 m
Glass Types
Float, Plate, Tempered, Wired, Laminated, Leaded, Double Glazing
Glass Thickness
2.4–6.4 mm
Glass Size
0.3 × 0.3 m to 3 × 3 m
Digital Processing
Supported
Tamper Protection
Front & Rear
Alarm Input
NC / NO / Impulse Count
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Wireless Frequency
433 MHz
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Battery
2 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Dimensions
38.8 × 107 × 24.5 mm
Weight
83 g
Mounting
Wall / Ceiling
Application
Indoor
Model
DS-PDBG8-EG2-WB
Why Choose Hikvision DS-PDBG8-EG2-WB?
The DS-PDBG8-EG2-WB provides an effective way to protect windows, glass doors, storefronts, offices, and other glazed areas by detecting the acoustic signature of breaking glass.
Its 8-meter detection range and 120° coverage allow a single detector to monitor a wide area, while adjustable sensitivity and support for multiple glass types provide flexibility for different installations. Tri-X wireless technology also enables easy integration with the Hikvision AX PRO system without additional cabling.

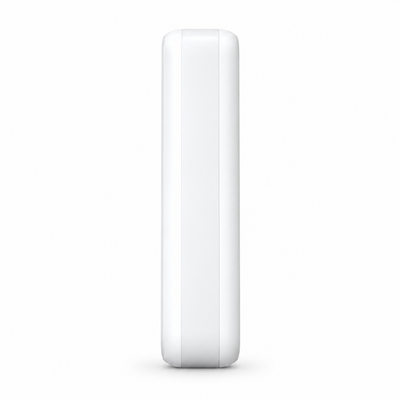

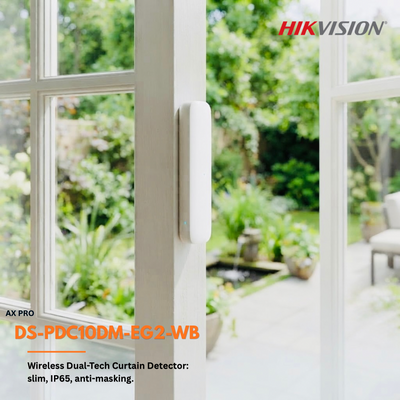

The Hikvision DS-PDC10DM-EG2-WB is a wireless dual-technology curtain detector designed for precise perimeter protection of windows, doors, balconies, corridors, and narrow areas within the Hikvision AX PRO alarm system.
It combines Passive Infrared (PIR) and 24 GHz Microwave detection, providing more reliable motion detection while helping reduce false alarms. Its narrow 5° curtain detection angle provides a detection range of up to 10 meters when wall-mounted or 5 meters when ceiling-mounted.
The detector also features Active IR Anti-Masking, directional detection, pet immunity up to 12 kg when wall-mounted, and an IP65 weather-resistant enclosure, making it suitable for indoor and outdoor applications.
Key Features
Dual-technology PIR + Microwave detection
24 GHz microwave technology
Narrow 5° curtain detection angle
Detection range up to 10 m wall-mounted
Detection range up to 5 m ceiling-mounted
Active IR Anti-Masking
Directional detection support
Pet immunity up to 12 kg when wall-mounted
32 detection zones
Creep zone protection
Digital temperature compensation
Sealed optics design
IP65 weather resistance
Front and rear tamper protection
Tri-X two-way wireless communication
AES-128 encryption
Wireless transmission range up to 1 km in open space
Frequency hopping against jamming
Battery life up to 5 years
Technical Specifications
Specification
Details
Detection Technology
PIR + Microwave
Microwave Frequency
24 GHz (24.15–24.25 GHz)
Wall Mount Detection Range
Up to 10 m
Ceiling Mount Detection Range
Up to 5 m
Detection Angle
5°
Detection Zones
32
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / Pet
Pet Immunity
Up to 12 kg – Wall Mount
White Light Filter
6500 lux
Anti-Masking
Supported
Directional Detection
Supported
Creep Zone Protection
Supported
Digital Temperature Compensation
Supported
Tamper Protection
Front & Rear
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Battery
2 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-25°C to 60°C
Protection Rating
IP65
Model
DS-PDC10DM-EG2-WB
Why Choose Hikvision DS-PDC10DM-EG2-WB?
The DS-PDC10DM-EG2-WB is ideal for protecting windows, doors, balconies, corridors, and narrow perimeter areas where accurate detection is required. By combining PIR and Microwave technologies, the detector provides more reliable intrusion detection and helps minimize false alarms.
With Anti-Masking, directional detection, pet immunity, IP65 weather resistance, and long-range Tri-X wireless communication, it provides a robust solution for indoor and outdoor perimeter protection.

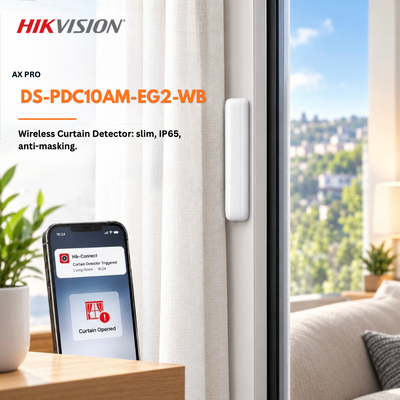

The Hikvision DS-PDC10AM-EG2-WB is a wireless PIR curtain detector designed for perimeter protection of windows, doors, balconies, and narrow areas within the Hikvision AX PRO Wireless Alarm System.
Its narrow 5° curtain detection angle provides focused protection with a detection range of up to 10 meters when wall-mounted or 5 meters when ceiling-mounted. The detector also features Active IR Anti-Masking technology, helping detect attempts to block or cover the sensor.
With an IP65 weather-resistant design, pet immunity up to 12 kg when wall-mounted, directional detection, and Tri-X two-way wireless communication with a range of up to 1 km in open space, it is suitable for both indoor and outdoor perimeter security applications.
Key Features
Wireless PIR curtain motion detector
Narrow 5° curtain detection angle
Detection range up to 10 m wall-mounted
Detection range up to 5 m ceiling-mounted
Active IR Anti-Masking protection
Directional detection support
Pet immunity up to 12 kg when wall-mounted
32 detection zones
Creep zone protection
Digital temperature compensation
Sealed optics design
IP65 weather resistance
Front and rear tamper protection
Tri-X two-way wireless communication
AES-128 encryption
Wireless range up to 1 km in open space
Frequency hopping against wireless interference
Battery life up to 5 years
Suitable for indoor and outdoor applications
Technical Specifications
Specification
Details
Detection Method
Passive Infrared (PIR)
Detection Range – Wall Mount
Up to 10 m
Detection Range – Ceiling Mount
Up to 5 m
Detection Angle
5°
Detection Zones
32
Detectable Speed
0.3–2 m/s
Sensitivity
Auto / Pet
Pet Immunity
Up to 12 kg – Wall Mount
White Light Filter
6500 lux
Anti-Masking
Active IR
Directional Detection
Supported
Creep Zone Protection
Supported
Digital Temperature Compensation
Supported
Tamper Protection
Front & Rear
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Frequency
433 MHz
Encryption
AES-128
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Battery
2 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-25°C to 60°C
Weather Protection
IP65
Model
DS-PDC10AM-EG2-WB
Why Choose Hikvision DS-PDC10AM-EG2-WB?
The DS-PDC10AM-EG2-WB is ideal for protecting windows, doors, balconies, corridors, and narrow perimeter areas without covering an unnecessarily wide space. Its focused curtain detection, Active IR Anti-Masking, directional detection, IP65 protection, and long-range Tri-X wireless communication make it a strong choice for perimeter security within the AX PRO system.

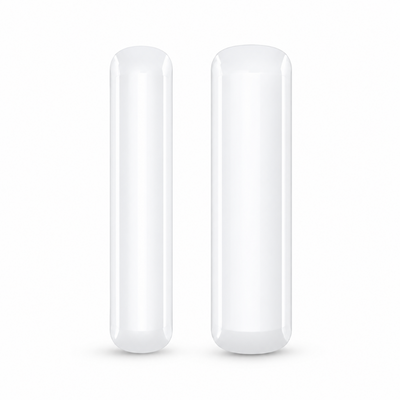

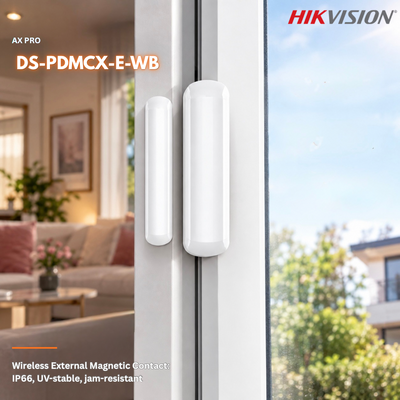

The Hikvision DS-PDMCX-E-WB is a wireless external magnetic contact designed for monitoring the opening and closing of outdoor doors, gates, and other access points as part of the Hikvision AX PRO Wireless Alarm System.
Built for outdoor environments with an IP66 weather-resistant design, it supports a maximum detection gap of 76 mm, making it suitable for applications where a larger gap between the sensor and magnet is required.
The detector uses Tri-X two-way wireless technology with AES-128 encryption, frequency hopping, and a transmission range of up to 1 km in open space. It also includes an alarm input supporting NC, NO, and impulse-count configurations for additional installation flexibility.
Key Features
Wireless external magnetic opening detector
Designed for outdoor doors and gates
Maximum detection gap up to 76 mm
IP66 weather-resistant design
Tri-X two-way wireless communication
Wireless transmission range up to 1 km in open space
AES-128 encryption
Frequency hopping for improved anti-interference performance
Supports NC, NO, and impulse-count alarm input
Front and rear tamper protection
Signal strength indicator
Environmental temperature indicator
Multiple enrollment methods: Power Up, Remote ID, and QR Code
Battery life up to 5 years
Wide operating temperature from -20°C to 60°C
Technical Specifications
Specification
Details
Detection Method
Opening Contact
Maximum Detection Gap
76 mm
Digital Processing
Supported
Tamper Protection
Front & Rear
Temperature Indicator
Supported
Signal Strength Indicator
Supported
Alarm Input
NC / NO / Impulse Count
LED Indicator
Blue – Alarm
Wireless Technology
Tri-X Wireless
Communication
Two-Way RF Wireless
Frequency
433 MHz
Wireless Security
AES-128 Encryption
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
1 × CR123A
Typical Voltage
3 V
Battery Life
Up to 5 Years
Operating Temperature
-20°C to 60°C
Operating Humidity
10%–90%
Sensor Dimensions
40.5 × 146 × 40.9 mm
Magnetic Stick Dimensions
30.5 × 146 × 40.9 mm
Weight
247 g
Protection Rating
IP66
Application
Outdoor
Model
DS-PDMCX-E-WB
Why Choose Hikvision DS-PDMCX-E-WB?
The DS-PDMCX-E-WB is an excellent choice for securing outdoor doors, gates, and access points where a standard indoor magnetic contact may not be suitable. Its IP66 protection, wide 76 mm detection gap, long wireless range, encrypted Tri-X communication, and up to 5-year battery life provide a reliable solution for outdoor perimeter protection within the Hikvision AX PRO system.

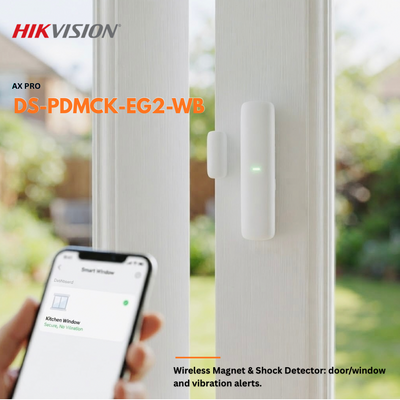

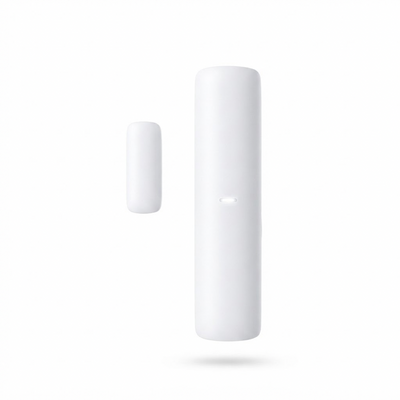

The Hikvision DS-PDMCK-EG2-WB(B) is an advanced wireless opening detector designed for indoor doors and windows as part of the AX PRO Wireless Alarm System. It combines a magnetic contact with built-in shock and tilt detection, providing multiple layers of protection against unauthorized entry.
The detector can identify door or window opening, detect shocks or impacts, and monitor changes in tilt angle. It also supports 2 wired input extensions, allowing additional wired detectors to be integrated into the wireless AX PRO system.
Using Hikvision Tri-X two-way wireless technology, it provides reliable communication with a transmission range of up to 1 km in open space, along with frequency hopping technology for improved resistance against wireless interference and jamming.
Key Features
Magnetic contact for door and window opening detection
Built-in shock detection with 8 sensitivity levels
Tilt detection up to 25°
Maximum detection gap up to 43 mm
Supports 2 wired input extensions
Tri-X two-way wireless communication
Wireless transmission range up to 1 km in open space
Frequency hopping for enhanced anti-jamming reliability
Front and rear tamper protection
Remote configuration through the Hikvision app
Multiple enrollment methods including Power Up, Remote ID, and QR Code
Battery life up to 3 years
Designed for indoor applications
Technical Specifications
Specification
Details
Detection Type
Opening Contact, Shock & Tilt Detection
Maximum Detection Gap
43 mm
Shock Sensitivity
8 Levels
Tilt Detection
Up to 25°
Alarm Input
NC / NO / Impulse Count
Wired Input Extension
2 Inputs
Wireless Technology
Tri-X Wireless
Communication
Two-Way RF
Frequency
433 MHz
Wireless Range
Up to 1 km in Open Space
Frequency Hopping
Supported
Tamper Protection
Front & Rear
Battery
1 × CR123A
Typical Voltage
3 V
Battery Life
Up to 3 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Main Unit Dimensions
24 × 104 × 24.4 mm
Magnet Dimensions
13 × 34.4 × 11.4 mm
Weight
60 g
Application
Indoor
Model
DS-PDMCK-EG2-WB(B)
Why Choose Hikvision DS-PDMCK-EG2-WB(B)?
The DS-PDMCK-EG2-WB(B) provides more comprehensive protection than a standard magnetic contact by combining opening, shock, and tilt detection in one wireless device. It is ideal for securing doors and windows where early detection of forced-entry attempts is important. Its long wireless range, wired input expansion, configurable sensitivity, and AX PRO integration make it suitable for residential and commercial security systems.

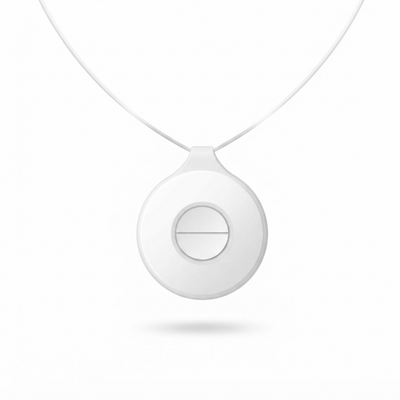

The Hikvision DS-PDEBP2-EG2-WB is a compact portable wireless emergency button designed for Hikvision AX PRO alarm systems, providing quick access to an emergency alarm while helping reduce accidental activations.
The device features two buttons and accidental press protection, making it suitable for personal emergency and panic applications where reliable activation is important.
It uses Hikvision Tri-X two-way wireless communication at 433MHz, with a transmission range of up to 800 meters in open space. AES-128 encryption and frequency hopping help provide secure and reliable wireless communication.
Its compact Ø38 mm design weighs only 13.5 g and can be used as a portable emergency device. An optional wristband and lanyard are also available, making it suitable for elderly users, patients, security staff, reception personnel, and other personal emergency applications.
Key Features
Portable wireless emergency button
Dual-button design
Accidental press protection
Hikvision Tri-X Wireless
Two-way RF wireless communication
433MHz wireless frequency
Up to 800m range in open space
AES-128 encryption
Frequency hopping against interference
Signal strength indication
Red / Green LED indicator
Fully configurable remotely through the app
Multiple enrollment methods
Battery powered
Up to 3 years battery life
IP66 protection
Optional wristband accessory
Optional lanyard
Ultra-compact and lightweight design
Technical Data
Specification
Details
Product Type
Portable Wireless Emergency Button
System
Hikvision AX PRO
Number of Buttons
2
Wireless Technology
Tri-X Wireless
Communication
Two-Way RF Wireless
Frequency
433MHz
Wireless Range
Up to 800m in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Signal Strength Indicator
Supported
LED Indicator
Red / Green
Tamper Protection
None
Power Supply
Battery Powered
Battery
CR2035 × 1
Typical Voltage
3V
Battery Life
Up to 3 Years
Protection Rating
IP66
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Dimensions
Ø38 × 12 mm
Weight
13.5 g
Application
Portable
Optional Accessory
DS-PDB-IN Wristband
Model
DS-PDEBP2-EG2-WB
Why Choose This Product?
The DS-PDEBP2-EG2-WB combines portability with a dual-button design and accidental press protection, making it suitable when an emergency button needs to remain with the user rather than being installed permanently on a wall.
Its compact 13.5 g design, IP66 protection, 800m open-space wireless range, encrypted Tri-X communication, and optional wristband make it particularly practical for personal emergency applications.

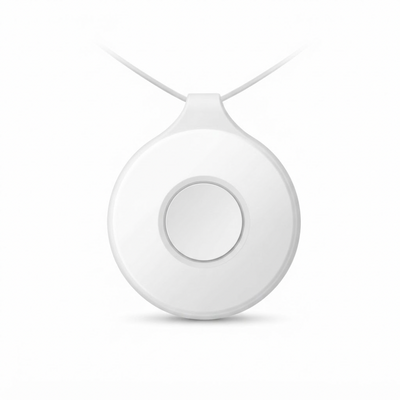

The Hikvision DS-PDEBP1-EG2-WB is a compact portable wireless emergency button designed for Hikvision AX PRO alarm systems, providing quick access to an emergency alarm wherever the user moves.
With its single-button operation, the device can be configured through the AX PRO control panel for Panic or Medical emergency applications. Its portable design makes it particularly suitable for elderly users, patients, security personnel, reception staff, and anyone who may need immediate access to an emergency button.
The device uses Hikvision Tri-X two-way wireless communication at 433MHz, providing a transmission range of up to 800 meters in open space. It also features AES-128 encryption and frequency hopping for secure and reliable communication.
With IP66 protection, accidental-press protection, remote configuration through the app, and optional wristband and lanyard accessories, it is designed for convenient everyday use.
Key Features
Portable wireless emergency button
Single-button activation
Supports Panic / Medical emergency applications
Accidental press protection
Hikvision Tri-X Wireless
Two-way RF wireless communication
433MHz frequency
Up to 800m wireless range in open space
AES-128 encryption
Frequency hopping against interference
Signal strength indication
Remote configuration through the app
Multiple enrollment methods
Battery powered
Up to 3 years battery life
IP66 protection
Optional wristband accessory
Optional lanyard
Compact and lightweight portable design
Technical Data
Specification
Details
Product Type
Portable Wireless Emergency Button
System
Hikvision AX PRO
Number of Buttons
1
Application
Panic / Medical Emergency
Wireless Technology
Tri-X
Communication
Two-Way RF Wireless
Frequency
433MHz
Wireless Range
Up to 800m in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Signal Strength Indicator
Supported
LED Indicator
Red / Green
Power Supply
Battery Powered
Battery
1 × CR2032
Battery Life
Up to 3 Years
Protection Rating
IP66
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Dimensions
Ø38 × 12 mm
Weight
13.5 g
Installation / Use
Portable
Model
DS-PDEBP1-EG2-WB
Hikvision's product guide specifies the WB version as 433MHz with an 800m free-space transmission range.
Why Choose This Product?
The DS-PDEBP1-EG2-WB differs from the wall-mounted emergency button by being designed specifically for portable use. Its small size allows the emergency button to stay with the user instead of being fixed in one location.
With one-button emergency activation, IP66 protection, long wireless range, encrypted Tri-X communication, and optional wristband or lanyard accessories, it is especially practical for elderly care, medical applications, security staff, and personal emergency alert applications

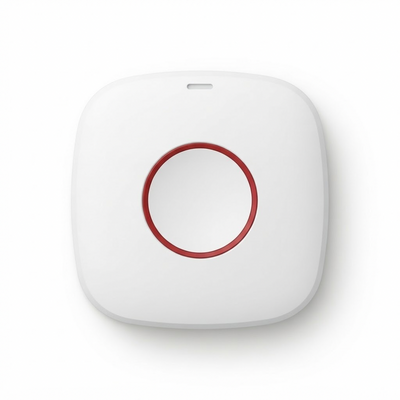

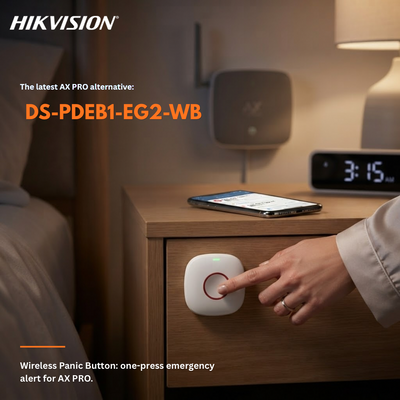

The Hikvision DS-PDEB1-EG2-WB is a wireless single emergency button designed for Hikvision AX PRO alarm systems, providing a fast and simple way to trigger an emergency alarm with one button press.
The device can be configured as a Panic Alarm or Medical Alarm, making it suitable for homes, offices, shops, reception areas, clinics, and other locations where immediate emergency notification may be required.
It uses Hikvision Tri-X two-way wireless technology at 433MHz, with a transmission range of up to 800 meters in open space. AES-128 encryption and frequency hopping help provide secure and reliable wireless communication.
The unit also includes front and rear tamper protection, signal-strength indication, remote configuration, and a CR2450 battery with a rated life of up to 3 years under the specified operating conditions.
Key Features
Single-button emergency activation
Panic Alarm functionality
Can be configured as a Medical Alarm
Hikvision Tri-X Wireless
Two-way RF communication
433MHz wireless frequency
Up to 800m range in open space
AES-128 encryption
Frequency hopping
Front and rear tamper protection
Signal-strength indicator
Environmental temperature indication
LED alarm indication
Remote configuration
Multiple enrollment methods
CR2450 battery
Battery life up to 3 years
IP66 protection
Wall-mount installation
Technical Data
Specification
Details
Product Type
Wireless Emergency / Panic Button
System
Hikvision AX PRO
Number of Buttons
1
Alarm Function
Panic / Medical Emergency
Wireless Technology
Tri-X
Communication
Two-Way RF
Frequency
433MHz
Wireless Range
Up to 800m in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Tamper Protection
Front & Rear
Signal Strength Indicator
Supported
Temperature Indicator
Supported
Enrollment
Power Up / Remote ID / QR Code
Battery
1 × CR2450, 620mAh
Battery Life
Up to 3 Years
Protection
IP66
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Dimensions
63.8 × 63.8 × 18.4 mm
Weight
57.5g
Installation
Wall Mount
Model
DS-PDEB1-EG2-WB
Why Choose This Product?
The Hikvision DS-PDEB1-EG2-WB provides a simple way to trigger an emergency alarm with a single button press through the AX PRO system.
Its Panic/Medical alarm configuration, 800m open-space wireless range, encrypted Tri-X communication, tamper protection, IP66 rating, and long battery life make it suitable for locations requiring quick access to an emergency alarm.

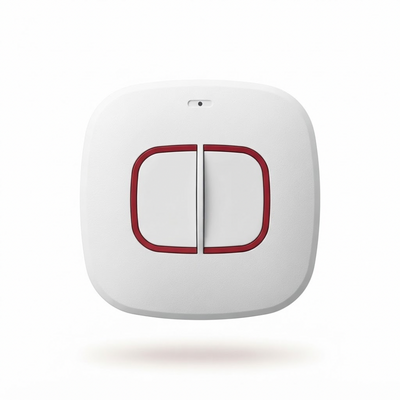

The Hikvision DS-PDEB2-EG2-WB is a wireless dual emergency button designed for Hikvision AX PRO alarm systems, providing a quick and reliable way to trigger an emergency or panic alarm.
The device features two emergency buttons that are pressed simultaneously to trigger an alarm, helping reduce accidental activations. It can also be configured as a medical emergency button through the AX PRO system. Hikvision
Using Hikvision Tri-X two-way wireless technology at 433MHz, the emergency button provides a transmission range of up to 800 meters in open space, with AES-128 encryption and frequency hopping for secure and reliable communication.
Its IP66 protection, compact wall-mounted design, tamper protection, and battery life of up to 3 years make it suitable for homes, offices, shops, reception areas, clinics, and other locations requiring quick emergency notification. Hikvision
Key Features
Wireless dual emergency / panic button
2-button activation to help prevent accidental alarms
Can be configured for Panic or Medical Alarm
Hikvision Tri-X Wireless
Two-way RF wireless communication
433MHz frequency
Wireless range up to 800 m in open space
AES-128 encryption
Frequency hopping against interference
Front and rear tamper protection
Signal strength indicator
Blue alarm LED indicator
Remote configuration through the system
Multiple enrollment methods
CR2450 battery powered
Battery life up to 3 years
IP66 protection
Wall-mount installation Hikvision
Technical Data
Specification
Details
Product Type
Wireless Dual Emergency Button
System
Hikvision AX PRO
Buttons
2
Alarm Function
Panic / Medical Emergency
Wireless Technology
Tri-X
Communication
Two-Way RF
Frequency
433MHz
Wireless Range
Up to 800 m in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Tamper Protection
Front & Rear
LED Indicator
Blue
Battery
1 × CR2450
Battery Life
Up to 3 Years
Protection
IP66
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Dimensions
63.8 × 63.8 × 19 mm
Weight
58.5 g
Installation
Wall Mount
Model
DS-PDEB2-EG2-WB
Why Choose This Product?
The Hikvision DS-PDEB2-EG2-WB provides a simple way to send an immediate emergency signal through an AX PRO alarm system.
Its dual-button activation helps reduce accidental alarms, while Tri-X two-way communication, 800-meter open-space range, tamper protection, IP66 rating, and up to 3-year battery life make it suitable for emergency and panic applications.

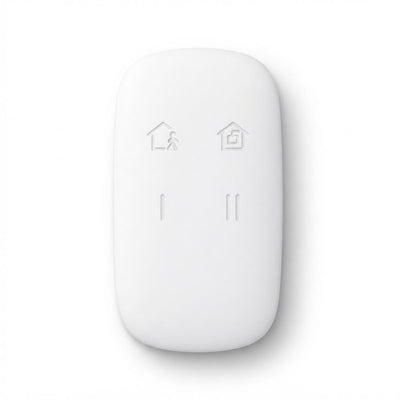

The Hikvision DS-PKF1-WB is a compact wireless keyfob designed for Hikvision AX PRO alarm systems, allowing users to quickly control the security system without opening the mobile application or using a keypad.
It provides convenient Away Arm, Stay Arm, and Disarm operation directly from the remote control. The keyfob also supports a lock/unlock function to help prevent accidental button operation.
Operating at 433MHz, the DS-PKF1-WB provides a wireless transmission range of up to 500 meters in open space. Frequency hopping technology helps maintain reliable wireless communication in environments with interference.
Key Features
Wireless remote control for Hikvision AX PRO
Away Arm operation
Stay Arm operation
Disarm operation
Keyfob lock and unlock function
433MHz wireless frequency
Wireless range up to 500 m in open space
2GFSK RF modulation
Frequency hopping against interference and jamming
Remote configuration through the app
Multiple enrollment methods
Easy battery replacement
Battery PCB protection
Battery life up to 3 years
Compact and lightweight design
Suitable for home and business AX PRO systems
Technical Data
Specification
Details
Product Type
Wireless Alarm Keyfob
Alarm System
Hikvision AX PRO
Functions
Away Arm / Stay Arm / Disarm
Key Lock
Supported
RF Frequency
433MHz
RF Modulation
2GFSK
Wireless Range
Up to 500 m in Open Space
Frequency Hopping
Supported
Remote Configuration
Supported
Battery Life
Up to 3 Years
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Housing
Plastic + Rubber
Weight
16 g
Color
White
Model
DS-PKF1-WB
Why Choose This Product?
The Hikvision DS-PKF1-WB provides a simple and convenient way to control an AX PRO alarm system without using a smartphone or keypad.
Its compact design allows users to carry it with their keys and quickly switch between Away Arm, Stay Arm, and Disarm modes. With 433MHz wireless communication, up to 500 meters open-space range, and up to 3 years of battery life, it is a practical everyday accessory for AX PRO systems.
The Hikvision DS-PR1-WB is a wireless signal repeater designed for Hikvision AX PRO alarm systems. It extends the wireless communication range between the AX PRO control panel and compatible wireless detectors and accessories, making it ideal for larger homes, villas, offices, warehouses, and commercial properties.
The repeater operates at 433MHz and supports Hikvision Tri-X and Cam-X wireless protocols, providing stable two-way wireless communication.
It can automatically find and pair with up to 8 PIRCAM or smoke detectors, simplifying system expansion and installation. Built-in LED indicators provide clear feedback for signal strength, power, registration, and fault status.
The DS-PR1-WB also features a built-in lithium backup battery providing up to 35 hours of operation if mains power is lost.
Key Features
Wireless signal repeater for Hikvision AX PRO
Extends the wireless range of the alarm system
433MHz wireless frequency
Supports Tri-X and Cam-X
Two-way wireless communication
Auto-pairing function
Automatically connects up to 8 PIRCAM or smoke detectors
LED signal strength indication
Power and fault status indicators
Front and rear tamper protection
Built-in lithium backup battery
Up to 35 hours backup operation
100–240V AC power supply
Designed for wall mounting
Suitable for expanding AX PRO coverage in larger installations
Technical Data
Specification
Details
Product Type
Wireless Repeater
Alarm System
Hikvision AX PRO
RF Frequency
433MHz
Wireless Protocol
Tri-X / Cam-X
Communication
Two-Way Wireless
Auto Pairing
Supported
Auto-Paired Devices
Up to 8 PIRCAM / Smoke Detectors
Tamper Protection
Front & Rear
Indicators
Registration / Signal / Power / Fault
Power Supply
100–240V AC
Backup Battery
Built-in Lithium Battery
Backup Time
Up to 35 Hours
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–90%
Housing Material
Plastic
Dimensions
150 × 150 × 25 mm
Weight
372 g
Installation
Wall Mount
Color
White
Model
DS-PR1-WB
Hikvision's current quick-start documentation lists the DS-PR1-WB with 433MHz two-way communication and up to 35 hours of battery backup.
Why Choose This Product?
The Hikvision DS-PR1-WB is designed to solve wireless coverage limitations in larger AX PRO installations. By extending communication between the control panel and compatible wireless devices, it helps maintain reliable connectivity in villas, multi-floor buildings, offices, warehouses, and other larger properties.
Its 433MHz two-way communication, Tri-X/Cam-X support, automatic pairing, LED indicators, and built-in backup battery make it a practical solution for expanding an AX PRO alarm system.
The Hikvision DS-PS1-E-WB is a wireless outdoor siren designed for Hikvision AX PRO alarm systems, providing powerful audible and visual alerts when an alarm is triggered.
The siren produces an alarm sound of up to 110 dB and features a built-in strobe light for visual alarm indication. It supports three different alarm sounds for intrusion, fire, and panic alarms, helping users identify different alarm events.
Using Hikvision's two-way wireless communication at 433MHz, the siren provides a transmission range of up to 900 meters in open space. AES-128 encryption and frequency hopping help maintain secure and reliable communication with the AX PRO control panel.
With IP65 weather protection, front and rear tamper protection, and battery life of up to 3 years, it is designed for reliable outdoor security applications.
Key Features
Wireless external alarm siren
Powerful 110 dB alarm sound
Built-in strobe light
3 alarm sounds: Intrusion, Fire and Panic
433MHz wireless communication
Two-way wireless communication
Wireless range up to 900 m in open space
AES-128 encryption
Frequency hopping against interference and jamming
Front and rear tamper protection
Remote configuration through the app
Multiple enrollment methods
Battery powered by default
Optional 12V DC power
Battery life up to 3 years
IP65 weather protection
Wall-mount installation
Technical Data
Specification
Details
Product Type
Wireless External Sounder
Alarm Sound Level
110 dB
Alarm Types
Intrusion / Fire / Panic
Visual Indication
Strobe Light
RF Frequency
433MHz
RF Modulation
2GFSK
Communication
Two-Way Wireless
Wireless Range
Up to 900 m in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Tamper Protection
Front & Rear
Power Supply
Battery / 12V DC
Battery Life
Up to 3 Years
Protection Rating
IP65
Operating Temperature
-20°C to +60°C
Operating Humidity
10%–90%
Housing Material
PC + ABS
Dimensions
190 × 200 × 47.3 mm
Weight
606.5 g
Installation
Wall Mount
Application
Outdoor
Model
DS-PS1-E-WB
Why Choose This Product?
The Hikvision DS-PS1-E-WB provides a powerful outdoor alarm warning for AX PRO security systems, combining a 110 dB siren with visual strobe indication.
Its long-range 433MHz two-way communication, AES-128 encryption, tamper protection, battery or 12V DC power options, and IP65 weather resistance make it suitable for villas, homes, shops, offices, warehouses, and other properties using Hikvision AX PRO. Hikvision
The Hikvision DS-PDMC-EG2-WE(B) is a slim wireless magnetic contact designed for Hikvision AX PRO alarm systems. It detects the opening of doors and windows, providing an immediate alarm signal when a protected entrance is opened.
The detector uses Tri-X two-way wireless technology at 868MHz, with AES-128 encryption and frequency hopping for reliable and secure communication. Its wireless transmission range reaches up to 1.6 km in open space.
It also includes an onboard alarm input, allowing additional wired sensors to be connected for more flexible security applications. Powered by a single CR123A battery, the detector offers a standby battery life of up to 5 years.
Key Features
Wireless door and window opening detection
Maximum detection gap: 43 mm
Slim and discreet design
Suitable for different door types, including metal-base doors
Tri-X Wireless technology
Two-way RF communication
868MHz wireless frequency
Transmission range up to 1.6 km in open space
AES-128 encryption
Frequency hopping against interference and jamming
Front and rear tamper protection
Signal strength indicator
Environmental temperature indicator
Additional onboard alarm input
Supports NC / NO / impulse count input
Remote configuration through the app
Multiple enrollment methods
CR123A battery powered
Battery life up to 5 years
Designed for indoor use
Technical Data
Specification
Details
Product Type
Wireless Magnetic Contact
Detection Method
Opening Contact
Maximum Detection Gap
43 mm
Wireless Technology
Tri-X
Communication
Two-Way RF
Frequency
868MHz
Transmission Range
Up to 1.6 km in Open Space
Encryption
AES-128
Frequency Hopping
Supported
Tamper Protection
Front & Rear
Alarm Input
NC / NO / Impulse Count
LED Indicator
Blue
Enrollment
Power Up / Remote ID / QR Code
Battery
1 × CR123A
Battery Voltage
3V
Battery Life
Up to 5 Years
Operating Temperature
-10°C to 55°C
Operating Humidity
10%–90%
Main Unit Dimensions
24 × 104 × 24.4 mm
Magnet Dimensions
13 × 34.4 × 11.4 mm
Weight
59 g
Application
Indoor
Model
DS-PDMC-EG2-WE(B)
Why Choose This Product?
The Hikvision DS-PDMC-EG2-WE(B) provides reliable wireless protection for doors and windows without requiring alarm cabling.
Its long 1.6 km open-space wireless range, encrypted two-way Tri-X communication, tamper protection, additional wired alarm input, and battery life of up to 5 years make it a practical addition to Hikvision AX PRO security systems.
The Hikvision DS-KH6000-E1 is a cost-effective IP intercom indoor station designed for apartments, residential buildings, offices, and other installations where a traditional display is not required.
Instead of a screen, the unit features 9 touch buttons for convenient intercom operation, including 4 customizable touch buttons that can be configured according to the user's requirements.
It features a built-in microphone and loudspeaker for two-way voice communication, with noise suppression and echo cancellation for clearer conversations.
The DS-KH6000-E1 connects through a wired Ethernet network and supports Standard PoE, allowing power and network communication through a single Ethernet cable.
Key Features
Cost-effective IP indoor intercom station
Screen-free design
9 touch buttons
4 customizable touch buttons
Built-in omnidirectional microphone
Built-in loudspeaker
Two-way audio communication
Noise suppression
Echo cancellation
Adjustable volume
Supports up to 16 linked indoor extensions
Wired Ethernet connection
RJ-45 100Mbps network interface
TCP/IP, SIP and RTSP protocols
Standard PoE
Alternative 12V DC power
4 alarm inputs
Linux operating system
Compact design
Designed for indoor installation
Technical Data
Specification
Details
Product Type
IP Intercom Indoor Station
Display
No Screen
Operation
9 Touch Buttons
Custom Buttons
4 Customizable Touch Buttons
Operating System
Linux
RAM
64 MB
ROM
8 MB
Audio Input
Built-in Omnidirectional Microphone
Audio Output
Built-in Loudspeaker
Audio Compression
G.711 U / G.711 A
Audio Processing
Noise Suppression & Echo Cancellation
Volume
Adjustable
Indoor Extensions
Up to 16
Network
Wired Ethernet
Network Interface
RJ-45 100Mbps
Protocols
TCP/IP / SIP / RTSP
Wi-Fi
No
Alarm Inputs
4
Power
IEEE 802.3af Standard PoE / 12V DC
Power Consumption
≤4W
Dimensions
120 × 120 × 21 mm
Operating Temperature
-10°C to 50°C
Application
Indoor
Model
DS-KH6000-E1
Why Choose This Product?
The Hikvision DS-KH6000-E1 is a practical solution for projects that require IP intercom communication without the additional cost of a display.
Its touch controls, customizable buttons, built-in microphone and speaker, Standard PoE, and compact design make it particularly suitable for apartment and residential projects requiring a simple and cost-effective indoor intercom station.
The Hikvision DS-KV6124-WBE1 is a smart IP video intercom door station designed for villas, homes, offices, and modern entrances.
It features a 4MP high-resolution camera with an ultra-wide 150° viewing angle, providing clear visitor monitoring at the entrance. Multiple access methods are supported, including PIN code, M1 card, Bluetooth, Hik-Connect, and compatible indoor stations.
The door station supports Wi-Fi 6, Ethernet, PoE, two-way audio, video recording, and dual-lock control, combining video intercom and access control in one compact outdoor unit. Its IP65-rated enclosure makes it suitable for outdoor installation.
Key Features
4MP high-resolution camera
Up to 2688 × 1520 resolution
Ultra-wide 150° viewing angle
PIN Code unlocking
M1 card / key fob access
Bluetooth unlocking
Remote unlocking through Hik-Connect
Two-way audio
Wi-Fi 6 – 2.4GHz
Ethernet connectivity
PoE support
Controls up to 2 locks
IR night illumination
WDR for challenging lighting
Motion detection
Local TF card storage support
Video recording and playback
H.265 video compression
ONVIF support
IP65 outdoor protection
Surface-mount design
Technical Data
Specification
Details
Product Type
IP Video Intercom Door Station
Camera Resolution
4MP
Max. Resolution
2688 × 1520
Horizontal FOV
150°
Wi-Fi
Wi-Fi 6 – 2.4GHz
Bluetooth
Supported
PIN Code
Supported
Card Access
M1 – 13.56MHz
Mobile App
Hik-Connect
Two-Way Audio
Supported
Lock Control
Up to 2 Locks
Ethernet
RJ-45
PoE
Supported
Local Storage
TF Card Support
Video Compression
H.264 / H.265 / MJPEG
ONVIF
Supported
Outdoor Protection
IP65
Installation
Surface Mount
Model
DS-KV6124-WBE1
Why Choose This Product?
The Hikvision DS-KV6124-WBE1 combines a 4MP video intercom and smart access control in one device. With PIN code, card, Bluetooth, Hik-Connect, Wi-Fi and PoE, users have multiple convenient ways to communicate with visitors and manage entrance access.
Its wide-angle camera, dual-lock control and IP65 outdoor protection make it ideal for villas, homes, offices and modern entrances.
The Hikvision DS-KV6133-WME1 is a smart IP video intercom door station designed for villas, homes, offices, and residential entrances.
It features a 2MP Full HD camera with a wide 129° horizontal viewing angle, 120 dB WDR, and infrared illumination up to 2.5 meters, providing clear visitor monitoring in different lighting conditions.
A major advantage of the DS-KV6133-WME1 is its ability to call the Hik-Connect mobile app directly without requiring an indoor station, allowing users to answer visitors and manage door access remotely from their smartphones.
The unit also features a built-in card reader, 2.4GHz Wi-Fi, Ethernet connectivity, Standard PoE, and an aluminum-alloy housing with IP65 weather protection for outdoor installation.
Key Features
2MP Full HD camera
Maximum resolution 1920 × 1080
Wide 129° horizontal / 75° vertical viewing angle
120 dB WDR
IR illumination up to 2.5 meters
One-button calling design
Direct calling to Hik-Connect app
Works with Hik-Connect without an indoor station
Built-in card reader
Supports up to 10,000 cards
Supports up to 2,000 users
Two-way audio
Built-in microphone and loudspeaker
Noise suppression and echo cancellation
2.4GHz Wi-Fi
Ethernet network connection
Standard PoE
H.264 / H.265 / MJPEG video compression
ONVIF support
RS-485 interface
Tamper protection
Aluminum-alloy housing
IP65 weather protection
Technical Data
Specification
Details
Product Type
IP Villa Door Station
Camera
2MP
Main Stream Resolution
Up to 1920 × 1080
Horizontal FOV
129°
Vertical FOV
75°
WDR
120 dB
Night Illumination
IR up to 2.5 m
Call Button
1
Mobile Application
Hik-Connect
Direct App Calling
Supported
Indoor Station Required
No, for direct Hik-Connect calling
Card Reader
Built-in
Card Capacity
Up to 10,000
User Capacity
Up to 2,000
Wi-Fi
2.4GHz, IEEE 802.11 b/g/n
Ethernet
RJ-45 10/100Mbps
Video Compression
H.264 / H.265 / MJPEG
ONVIF
Supported
Alarm Inputs
4
Exit Button
1
RS-485
1
Tamper Protection
Supported
Power
Standard PoE
Housing
Aluminum Alloy
Protection
IP65
Model
DS-KV6133-WME1
Why Choose This Product?
The Hikvision DS-KV6133-WME1 is an excellent solution when you want a smart video door station without necessarily installing an indoor monitor.
Its ability to call Hik-Connect directly, combined with a 2MP camera, card access, Wi-Fi, PoE, two-way audio, and IP65 outdoor protection, makes it suitable for villas, homes, offices, and other single-entrance applications.
The Hikvision DS-KV8213-WME1(B) is a professional IP video intercom villa door station featuring two physical call buttons, making it suitable for villas, duplexes, offices, and entrances serving two separate indoor stations.
It features a 2MP Full HD camera with a wide 129° horizontal viewing angle, True WDR, and infrared night illumination up to 3 meters for clear visitor monitoring in different lighting conditions.
The built-in Mifare card reader provides convenient access control, while users can also unlock doors through compatible indoor stations, Hikvision client software, or the mobile app. With 2.4GHz Wi-Fi, Ethernet, Standard PoE, and control for two doors, the unit provides flexible installation and access management.
Key Features
2MP Full HD camera
Maximum resolution 1920 × 1080
2 physical call buttons
Wide 129° horizontal / 75° vertical viewing angle
True WDR
IR night illumination up to 3 meters
Two-way audio communication
Built-in microphone and loudspeaker
Noise suppression and echo cancellation
Built-in Mifare card reader
13.56MHz card frequency
Supports up to 10,000 cards
Supports up to 2,000 users
Unlock via card
Remote unlocking through app / client software
2.4GHz Wi-Fi
10/100Mbps Ethernet
Standard PoE
Controls 2 doors
Motion detection
RS-485
Tamper protection
IP65 weather protection
IK08 impact resistance
Surface or flush mounting
Technical Data
Specification
Details
Product Type
IP Video Intercom Villa Door Station
Camera
2MP HD
Resolution
1920 × 1080
Main Stream
1080p @ 30fps
Horizontal FOV
129°
Vertical FOV
75°
WDR
True WDR
Night Vision
IR up to 3m
Call Buttons
2
Audio
Two-Way
Card Type
Mifare
Card Frequency
13.56MHz
Card Capacity
Up to 10,000
User Capacity
Up to 2,000
Wi-Fi
2.4GHz
Ethernet
10/100Mbps
Door Control
2
Door Contact Inputs
2
Exit Button Inputs
2
RS-485
1
Video Compression
H.264
PoE
IEEE 802.3af Standard PoE
Alternative Power
12V DC
Protection
IP65 / IK08
Operating Temperature
-40°C to 53°C
Dimensions
174 × 91 × 29 mm
Installation
Surface / Flush Mount
Model
DS-KV8213-WME1(B)
Why Choose This Product?
The Hikvision DS-KV8213-WME1(B) is particularly suitable for entrances that need two separate call buttons while maintaining one integrated video intercom and access-control solution.
Its 2MP camera, Mifare card access, Wi-Fi, PoE, remote unlocking, dual-door control, and IP65/IK08 protection provide a flexible solution for villas, duplexes, offices, and small residential buildings.
The Hikvision DS-KV6124-WBE1 is an advanced IP video intercom door station designed for villas, homes, offices, and modern residential entrances.
It features a high-resolution 4MP camera with an ultra-wide 150° viewing angle, 120 dB WDR, and infrared illumination up to 3 meters for clear visitor monitoring during both day and night.
The integrated keypad provides PIN code access, while additional unlocking methods include M1 cards, Bluetooth, Hik-Connect, and compatible indoor stations. The unit can control two locks, making it suitable for entrances requiring flexible access control.
With 2.4GHz Wi-Fi 6, Standard PoE, ONVIF, H.265, local TF card storage, and video recording/playback, the DS-KV6124-WBE1 combines video intercom and access control in one compact outdoor unit.
Key Features
4MP high-resolution camera
Maximum resolution 2688 × 1520
Ultra-wide 150° horizontal viewing angle
75° vertical viewing angle
120 dB WDR
IR night illumination up to 3 meters
Built-in keypad for PIN code unlocking
M1 card access
Bluetooth unlocking
Hik-Connect remote unlocking
Unlocking from compatible indoor station
Controls up to 2 door locks
Supports up to 2,000 users
Supports up to 6,000 cards
2.4GHz Wi-Fi 6
RJ-45 Ethernet
Standard IEEE 802.3at PoE
H.264 / H.265 / MJPEG
ONVIF support
Motion detection
Video recording and playback
TF card support up to 128GB
Built-in microphone and loudspeaker
Noise suppression and echo cancellation
IP65 outdoor protection
Surface-mount installation
Technical Data
Specification
Details
Product Type
IP Video Intercom Door Station
Camera Resolution
4MP – 2688 × 1520
Horizontal FOV
150°
Vertical FOV
75°
WDR
120 dB
Night Vision
IR up to 3 m
Operating System
Linux
RAM
512 MB
ROM
4 GB
Wi-Fi
Wi-Fi 6 – 2.4GHz
Wi-Fi Standard
802.11 b/g/n/ax
Ethernet
RJ-45 10/100 Mbps
Bluetooth
Supported
PIN Code
Supported
Card Type
M1 – 13.56MHz
Card Capacity
Up to 6,000
User Capacity
Up to 2,000
Mobile App
Hik-Connect
Lock Control
2 Relays – Max. 30V DC / 2A
Alarm Inputs
4
RS-485
1
Storage
TF Card up to 128GB
Video Compression
H.264 / H.265 / MJPEG
ONVIF
Supported
PoE
IEEE 802.3at
Alternative Power
12V DC / 1.2A
Protection
IP65
Operating Temperature
-40°C to 60°C
Dimensions
164 × 69 × 24.7 mm
Installation
Surface Mount
Application
Outdoor
Model
DS-KV6124-WBE1
Why Choose This Product?
The Hikvision DS-KV6124-WBE1 combines video intercom and smart access control in a single outdoor door station. Its 4MP camera, ultra-wide 150° view, PIN keypad, card reader, Bluetooth, Hik-Connect, and dual-lock control provide multiple convenient ways to monitor and manage entrance access.
The Hikvision DS-KIS604-P(C) is a complete IP video intercom kit designed for villas, houses, and residential entrances. It combines a 2MP outdoor door station with a 7-inch touchscreen indoor station, providing clear video communication and convenient door access control.
The system supports Hik-Connect mobile control, allowing users to receive visitor calls and manage door access remotely from their smartphones. The indoor station also supports Wi-Fi connectivity, while Standard PoE provides flexible installation options.
The outdoor door station features a durable metal construction with IP65 weather protection and IK08 impact resistance, making it suitable for outdoor entrance installations. The kit also includes a 16GB TF card for storing messages and captured visitor images.
What's Included
1 × Door Station – DS-KV8113-WME1(C)
1 × 7-inch Indoor Station – DS-KH6320-WTE1
2 × Power Supply Units
1 × 16GB TF Card
Key Features
Complete IP video intercom kit
2MP outdoor door camera
1920 × 1080 video resolution
Wide 124° horizontal viewing angle
7-inch touchscreen indoor station
Wi-Fi 2.4GHz connectivity
Standard PoE support
Hik-Connect mobile app control
Remote visitor call answering
Remote door unlocking
Two-way audio communication
Single call button
Stores messages and captured pictures
16GB TF card included
Controls up to 2 locks
Metal outdoor door station
IP65 weather resistance
IK08 impact resistance
Suitable for villas and houses
Technical Data
Specification
Details
Product Type
IP Video Intercom Kit
Door Station
DS-KV8113-WME1(C)
Indoor Station
DS-KH6320-WTE1
Camera Resolution
2MP / 1920 × 1080
Horizontal FOV
124°
Vertical FOV
75°
Indoor Display
7-inch Touchscreen
Wi-Fi
2.4GHz
Mobile Application
Hik-Connect
PoE
Standard PoE
Two-Way Audio
Supported
Call Button
1
Lock Control
Up to 2
Storage
16GB TF Card Included
Door Station Material
Metal
Weather Protection
IP65
Impact Protection
IK08
Application
Villa / House
Model
DS-KIS604-P(C)
Why Choose This Product?
The Hikvision DS-KIS604-P(C) provides a complete IP intercom solution for villas and homes, combining a 2MP outdoor camera with a 7-inch touchscreen and Hik-Connect mobile control.
Its metal IP65 and IK08-rated outdoor station, Wi-Fi connectivity, PoE support, remote door unlocking, and included 16GB storage provide a reliable solution for modern residential entrances.
The Hikvision DS-KH6320-LE1(B) is a 7-inch IP video intercom indoor station designed for convenient visitor communication, live monitoring, and door access control.
It features a 7-inch TFT capacitive touchscreen with 1024 × 600 resolution and allows users to view live video from connected door stations and IP cameras directly from the indoor screen.
The station uses a wired Ethernet connection and supports Standard PoE, allowing network data and power to be delivered through a single Ethernet cable for easier installation. It is an ideal choice for villas, apartments, offices, and residential buildings requiring a reliable wired IP intercom solution.
Key Features
7-inch color TFT touchscreen
1024 × 600 resolution
Capacitive touch operation
Wired IP network connection
Standard PoE
Plug & Play support
Live view of connected door stations
Live view of linked IP cameras
Supports up to 16 linked IP cameras
Supports up to 17 IP doorphones
Built-in omnidirectional microphone
Built-in loudspeaker
Noise suppression and echo cancellation
Multiple language support
Linux operating system
RJ-45 10/100 Mbps network interface
Designed for indoor installation
No Wi-Fi
Technical Data
Specification
Details
Product Type
IP Video Intercom Indoor Station
Display
7-inch TFT LCD
Resolution
1024 × 600
Touch
Capacitive Touchscreen
Operating System
Linux
RAM
128 MB
ROM
32 MB
Network
Wired Ethernet
Network Interface
RJ-45 10/100 Mbps
Wi-Fi
No
Communication Protocol
TCP/IP, RTSP
Linked IP Cameras
Up to 16
Linked IP Doorphones
Up to 17
Microphone
Built-in Omnidirectional
Speaker
Built-in
Audio
Noise Suppression & Echo Cancellation
Power
Standard PoE
Installation
Indoor
Model
DS-KH6320-LE1(B)
Why Choose This Product?
The Hikvision DS-KH6320-LE1(B) is a practical choice for wired IP video intercom installations. Its 7-inch touchscreen, Standard PoE, live camera viewing, and support for multiple door stations and IP cameras provide the essential features needed for residential and commercial intercom systems while keeping installation simple through a wired network connection.
The Hikvision DS-KIS612-P is a complete IP video intercom and access control kit designed for villas, homes, offices, and modern residential entrances.
The system combines a 4MP outdoor door station with a wide 150° viewing angle and a 7-inch indoor station, providing clear video communication and convenient access management.
Multiple door unlocking methods are available, including PIN code, M1 card, Bluetooth, Hik-Connect, and the indoor station. The outdoor station can control two door locks, providing flexible access control for entrances with multiple doors or gates.
The system also supports video recording and playback, H.265 compression, ONVIF, Wi-Fi 6 at 2.4GHz, and Standard PoE for simplified network installation.
What's Included
1 × DS-KH6350-WTE1 Indoor Station
1 × DS-KV6124-WBE1 Door Station
1 × DS-KABV6114-RS Protective Shield
2 × Power Supply Units
1 × 32GB TF Card
1 × Administrator Card
5 × Key Fobs
Key Features
Complete IP video intercom kit
4MP high-resolution door camera
Wide 150° horizontal viewing angle
7-inch indoor display
PIN code door unlocking
M1 card / key fob unlocking
Bluetooth unlocking
Hik-Connect remote access
Unlocking from indoor station
Controls up to 2 locks
Wi-Fi 6, 2.4GHz
Standard PoE
Two-way audio communication
IR illumination up to 3 meters
Video recording and playback
Motion detection
H.264 / H.265 / MJPEG compression
ONVIF support
32GB TF card included
Up to 2,000 users
Up to 6,000 cards
Outdoor station rated IP65
Technical Data
Specification
Details
Product Type
IP Video Intercom Kit
Door Station
DS-KV6124-WBE1
Indoor Station
DS-KH6350-WTE1
Camera Resolution
4MP – 2688 × 1520
Horizontal FOV
150°
Vertical FOV
75°
Indoor Display
7-inch
Wi-Fi
2.4GHz Wi-Fi 6
Wi-Fi Standard
802.11 b/g/n/ax
Bluetooth
Supported
Mobile App
Hik-Connect
PIN Code Unlock
Supported
Card Type
M1, 13.56MHz
User Capacity
2,000
Card Capacity
6,000
Lock Control
2 Relays
Network
RJ-45 10/100Mbps
PoE
Standard PoE
IR Illumination
Up to 3m
Video Compression
H.264 / H.265 / MJPEG
ONVIF
Supported
Motion Detection
Supported
Recording & Playback
Supported
Storage Included
32GB TF Card
Outdoor Protection
IP65
Model
DS-KIS612-P
Why Choose This Product?
The Hikvision DS-KIS612-P combines video intercom and access control in one modern solution. Its 4MP camera and 150° field of view provide clear entrance monitoring, while PIN code, card, Bluetooth, Hik-Connect, and indoor-station unlocking give users multiple convenient ways to control access.
The Hikvision DS-KIS610-P is a complete IP video intercom kit designed for villas, homes, offices, and modern residential entrances.
The kit combines a 4MP outdoor door station with a wide 150° viewing angle and a 7-inch indoor touchscreen, providing clear video communication and convenient door access control.
Multiple unlocking methods are supported, including access cards, Bluetooth, Hik-Connect, and the indoor station. The system can control two door locks, making it suitable for entrances requiring flexible access management.
It also supports video recording and playback through the indoor or door station, while Standard PoE simplifies installation by carrying network data and power over Ethernet.
What's Included
1 × DS-KH6350-WTE1 Indoor Station
1 × DS-KV6114-WBE1 Door Station
1 × DS-KABV6114-RS Protective Shield
2 × Power Supply Units
1 × 32GB TF Card
1 × Administrator Card
5 × Key Fobs
Key Features
Complete IP video intercom kit
4MP high-resolution door camera
Wide 150° viewing angle
7-inch indoor display
Wi-Fi 2.4GHz connectivity
Standard PoE support
Hik-Connect mobile app support
Bluetooth door unlocking
Card/key fob unlocking
Unlocking from indoor station
Remote access through Hik-Connect
Supports control of 2 locks
Video recording and playback
32GB TF card included
H.265 video compression
ONVIF support
Two-way audio communication
Outdoor station with IP65 protection
Suitable for villas and residential entrances
Technical Data
Specification
Details
Product Type
IP Video Intercom Kit
Door Station
DS-KV6114-WBE1
Indoor Station
DS-KH6350-WTE1
Camera Resolution
4MP
Viewing Angle
150°
Indoor Display
7-inch
Wireless Network
2.4GHz Wi-Fi
Mobile Application
Hik-Connect
Bluetooth
Supported
Card Unlocking
Supported
Indoor Station Unlocking
Supported
Lock Control
2 Locks
Power
Standard PoE
Video Compression
H.265
ONVIF
Supported
Video Recording
Supported
Video Playback
Supported
Storage
32GB TF Card Included
Outdoor Protection
IP65
Communication
IP Network
Model
DS-KIS610-P
Why Choose This Product?
The Hikvision DS-KIS610-P provides a modern IP intercom solution with a high-resolution 4MP camera, wide 150° viewing angle, 7-inch indoor display, and multiple access methods.
With Bluetooth, card access, Hik-Connect remote control, two-lock management, video recording, and Standard PoE, it is an excellent solution for villas and modern residential entrances requiring both video intercom and flexible access control.
The Hikvision DS-KIS212 is a 4-wire HD video intercom kit designed to provide simple and reliable visitor communication and door access control for homes, villas, apartments, and offices.
The system features a 7-inch color TFT indoor monitor with 1024 × 600 resolution and a door station delivering 1280 × 720 HD TVI video at 60 fps. Its wide 130° horizontal viewing angle provides a clear view of visitors at the entrance.
With plug-and-play 4-wire connectivity, one-press calling and one-press door unlocking, the DS-KIS212 provides a straightforward video intercom solution without requiring an IP network or Wi-Fi connection.
Key Features
Complete 4-wire HD video intercom kit
7-inch color TFT indoor monitor
1024 × 600 display resolution
HD TVI video technology
Door station video resolution: 1280 × 720 @ 60 fps
Wide 130° horizontal / 70° vertical field of view
IR illumination up to 3 meters
Two-way audio communication
Built-in microphone and speaker
One-press visitor calling
One-press door unlocking
Plug-and-play installation
4-wire connection
Supports up to 2 door stations
Supports up to 3 indoor stations in one system
Supports 1 analog camera
Door lock relay output
12V DC power
Surface-mount installation
Technical Data
Specification
Details
Product Type
4-Wire HD Video Intercom Kit
Video Technology
HD TVI
Indoor Display
7-inch Color TFT
Display Resolution
1024 × 600
Operation
Physical Buttons
Door Camera Resolution
1280 × 720 @ 60 fps
Field of View
130° Horizontal / 70° Vertical
Night Illumination
IR up to 3 m
Audio
Two-Way
Indoor Extensions
Up to 2 additional units
Door Stations
Up to 2
Analog Camera
1
Connection
4-Wire
Lock Control
1 Relay, Max. 30V / 1A
Indoor Station Power
12V DC
Indoor Power Consumption
≤5W
Indoor Dimensions
178 × 132 × 19 mm
Door Station Dimensions
136 × 51 × 20 mm
Installation
Surface Mount
Model
DS-KIS212
Why Choose This Product?
The Hikvision DS-KIS212 offers a straightforward video intercom solution for installations where Wi-Fi or network connectivity is not required. Its 4-wire plug-and-play design, 7-inch display, 720p HD TVI door camera, wide viewing angle, night illumination, and door unlocking function make it suitable for residential and small commercial installations.
