Description
Looking for a compact Zigbee USB dongle in Jordan to run your smart home locally on Home Assistant or Zigbee2MQTT? The SONOFF Dongle Lite MG21 costs 25 JOD at Bestways, the exclusive SONOFF distributor in Jordan, with one unified price at every authorised dealer and a 12-month warranty from the official distributor. Requires a host computer running an open-source platform such as Home Assistant.

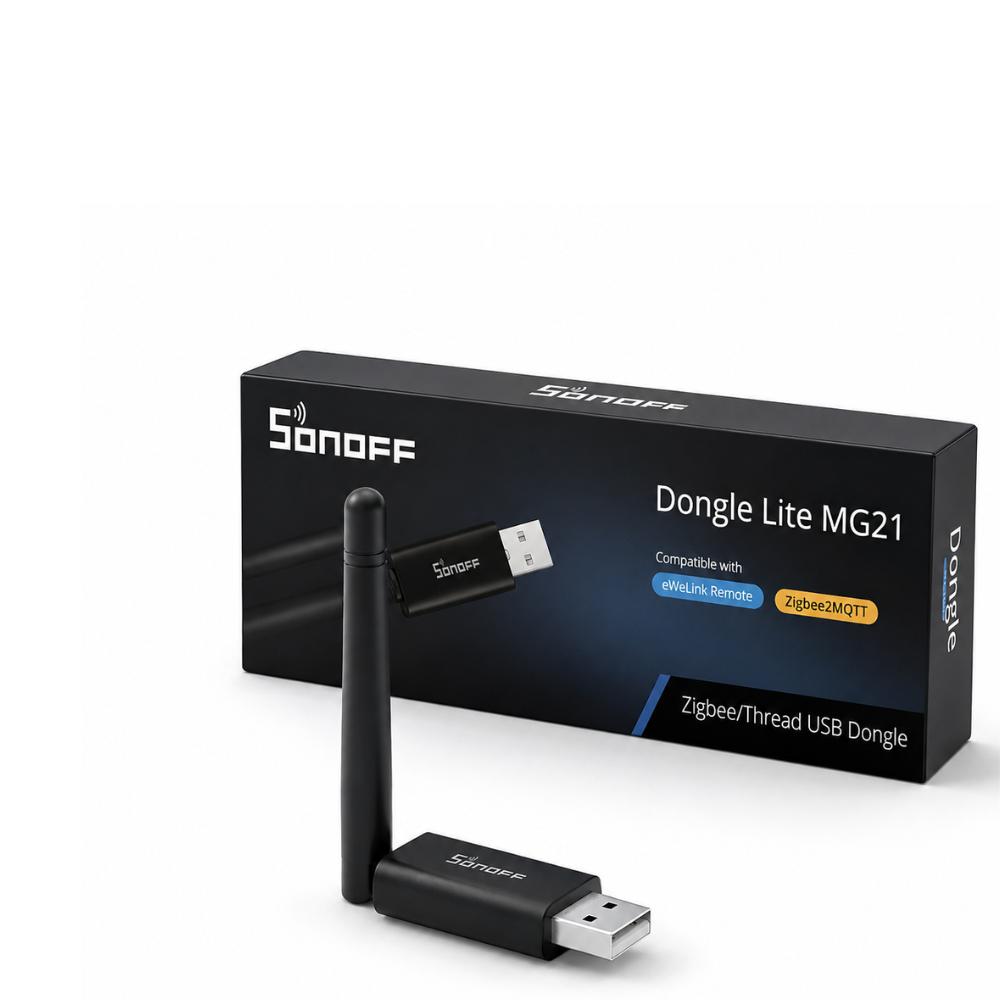

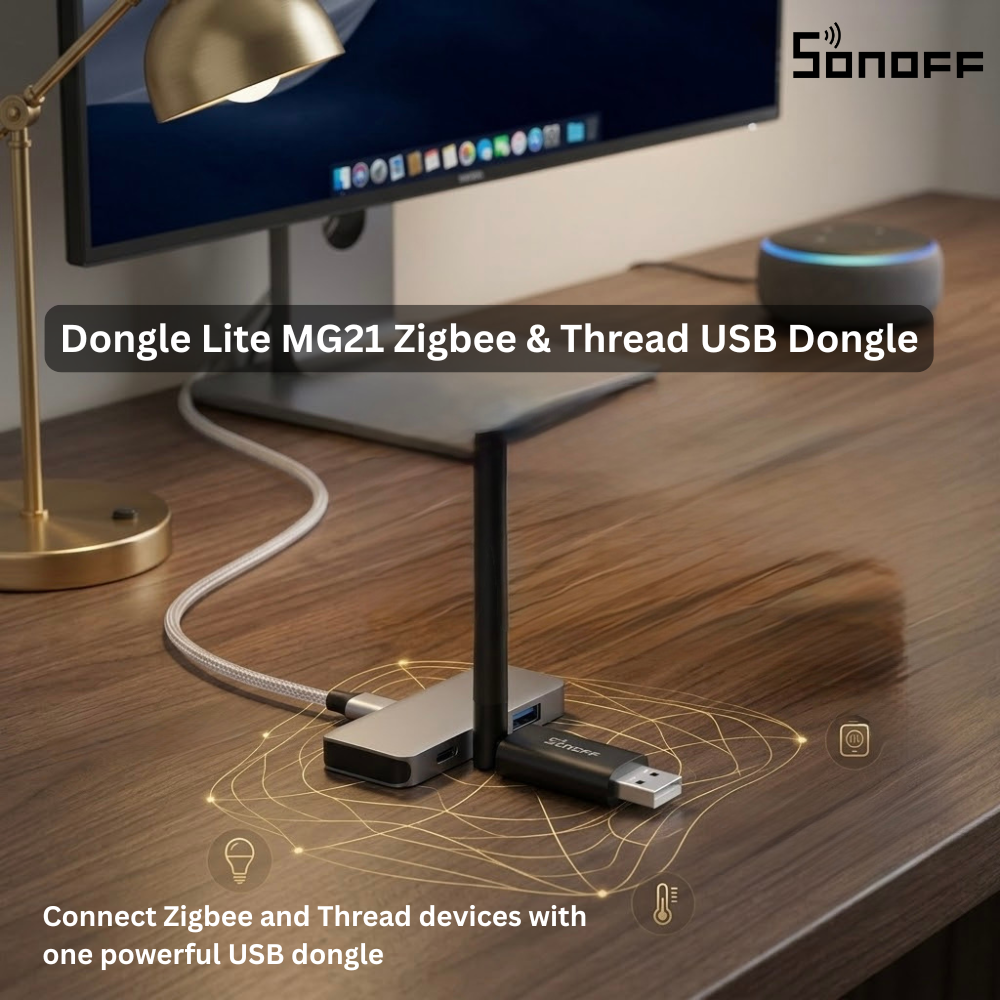

The SONOFF Dongle Lite MG21 (Dongle-LMG21) is a compact Zigbee/Thread USB dongle built on the proven EFR32MG21 chip, trusted by millions of users for reliable, stable performance. It works as a Zigbee coordinator for Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms, for local control of your Zigbee devices.
It is 65% smaller than the ZBDongle-E, so it fits more easily into different USB ports. The SONOFF Dongle Flasher tool lets you switch firmware to run it as a Zigbee router, OpenThread RCP or MultiPAN RCP, and the included USB extension cable lets you place it away from USB 3.0 interference.
Note: the dongle needs a host computer running an open-source platform such as Home Assistant, Zigbee2MQTT or openHAB.

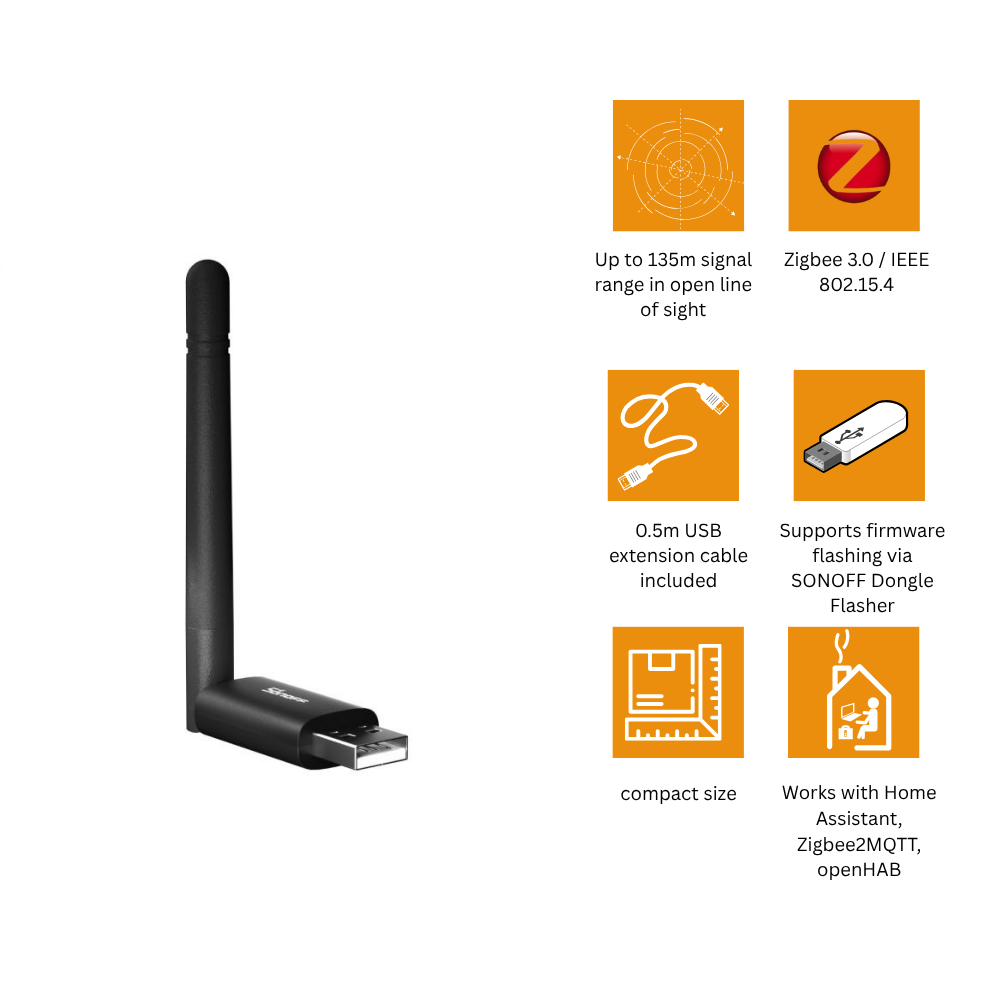

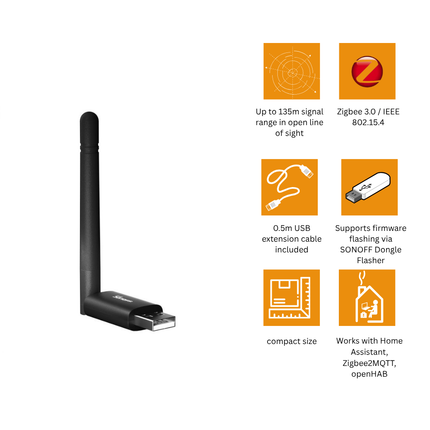

Key Features
- Proven EFR32MG21 Zigbee SoC, Zigbee 3.0 / IEEE 802.15.4
- 65% smaller than the ZBDongle-E for a better fit in crowded USB ports
- Works with Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms
- Easy firmware flashing with the SONOFF Dongle Flasher tool
- Runs as a Zigbee coordinator, Zigbee router, OpenThread RCP or MultiPAN RCP
- USB extension cable included for flexible placement and less interference from USB 3.0 ports
- Up to 135 m signal range in open line of sight
- CP2102(N) USB-serial chip; supports Windows, Ubuntu, Raspberry Pi OS and Docker
Works With
Technical Specifications
| Specification |
Details |
| Model |
Dongle-LMG21 |
| Zigbee SoC |
EFR32MG21 |
| Zigbee |
IEEE 802.15.4 (Zigbee 3.0) |
| USB-Serial Chip |
CP2102(N) |
| Input |
5V ⎓ 500mA |
| RF Frequency |
2.4GHz |
| Signal Strength |
Max 20dBi + 2dBi antenna gain |
| Signal Range |
Up to 135 m in open line of sight |
| Standby Power |
60 mW |
| Firmware Roles |
Zigbee Coordinator, Zigbee Router, OpenThread RCP, MultiPAN RCP |
| Supported OS |
Windows, Ubuntu, Raspberry Pi OS / Raspbian, Docker |
| Working Temperature |
-10°C ~ 60°C |
| Working Humidity |
5% ~ 95% RH |
| Casing Material |
Aluminum, PC+ABS |
| Color |
Dim gray |
| Dimensions |
18.6 × 10.1 × 133 mm |
What's in the Box
- 1 × Dongle-LMG21 USB dongle
- 1 × USB extension cable (0.5 m)
Why Choose the SONOFF Dongle-LMG21?
- A proven chip trusted by millions of users
- Very compact size that fits next to other USB devices
- Flexible firmware options for Zigbee and Thread
- Fully local Zigbee control with your own smart home server
Compare SONOFF Dongles
Not sure which dongle fits your setup? Compare all six models side by side. Zigbee and Z-Wave are different protocols: Zigbee dongles work only with Zigbee devices, and the Z-Wave dongle only with Z-Wave devices.
| Specification |
Dongle-M |
Dongle-PMG24 |
Dongle-LMG21 |
ZBDongle-P |
ZBDongle-E |
Dongle-PZG23 |
| Protocol |
Zigbee 3.0 / Thread |
Zigbee 3.0 / Thread |
Zigbee 3.0 / Thread |
Zigbee 3.0 |
Zigbee 3.0 |
Z-Wave 800 / Z-Wave Long Range |
| Chip |
EFR32MG24 + ESP32D0WDR2 |
EFR32MG24 |
EFR32MG21 |
TI CC2652P + CP2102(N) |
EFR32MG21 |
EFR32ZG23 |
| Connection |
Ethernet (PoE), Wi-Fi or USB-C |
USB |
USB |
USB |
USB |
USB |
| Antenna |
Dual adjustable 5dBi |
3dBi (optimized up to 4.5dBi) |
2dBi gain |
External SMA, +20dBm |
External, +20dBm |
2dBi external, adjustable angle |
| Signal range |
— |
Up to 200 m (line of sight) |
Up to 135 m (line of sight) |
— |
— |
— |
| Firmware roles |
Zigbee coordinator, router, Thread RCP |
Zigbee coordinator, router, OpenThread RCP, MultiPAN RCP |
Zigbee coordinator, router, OpenThread RCP, MultiPAN RCP |
Pre-flashed Z-Stack coordinator (re-flashable) |
Pre-flashed coordinator (re-flashable) |
Z-Wave controller |
| Power input |
5V 1A (USB-C) or 48V 0.25A (PoE) |
5V 500mA |
5V 500mA |
5V (100mA max) |
5V (100mA max) |
5V 500mA |
| USB extension cable |
— |
Included (1 m) |
Included (0.5 m) |
— |
— |
Included |
| Works with |
Home Assistant (ZHA), Zigbee2MQTT |
Home Assistant (ZHA), Zigbee2MQTT, openHAB |
Home Assistant (ZHA), Zigbee2MQTT, openHAB |
Home Assistant (ZHA), Zigbee2MQTT |
Home Assistant, Zigbee2MQTT, openHAB |
Home Assistant, openHAB |
| Best for |
Placing the coordinator anywhere on your network with one PoE cable |
Large Zigbee/Thread networks and the latest MG24 chip |
Compact size and a lower price for Zigbee/Thread |
Proven TI chip with strong +20dBm signal |
Ready-to-use Zigbee coordinator with Green Power support |
Z-Wave devices, including Z-Wave Long Range |
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
