Description

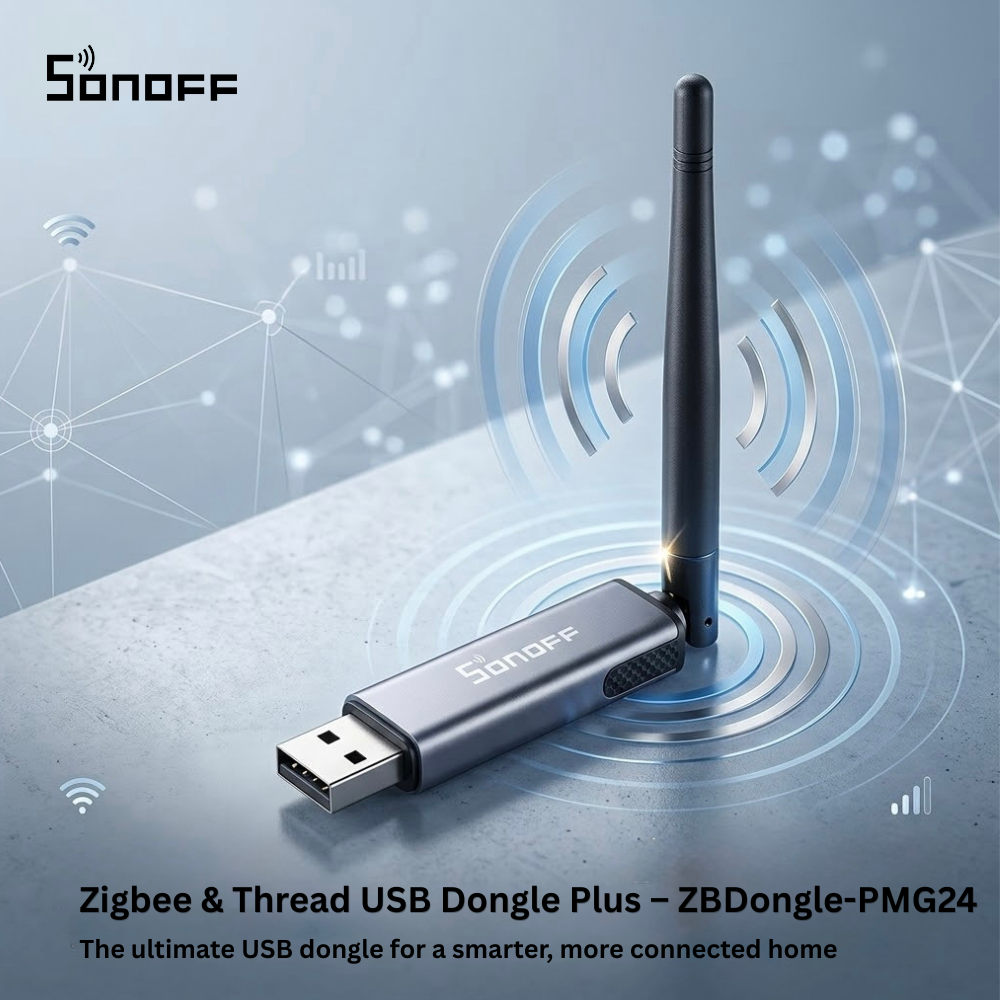

The SONOFF ZBDongle-PMG24 is a next-generation Zigbee and Thread USB coordinator powered by the advanced Silicon Labs EFR32MG24 chipset. Designed for Home Assistant, Zigbee2MQTT, openHAB, and other smart home platforms, it delivers outstanding stability, extended wireless coverage, and support for large Zigbee networks.
In addition to functioning as a Zigbee Coordinator, the dongle can also operate as a Zigbee Router, OpenThread RCP, or MultiPAN RCP, making it an ideal choice for Matter and Thread-based smart home deployments.

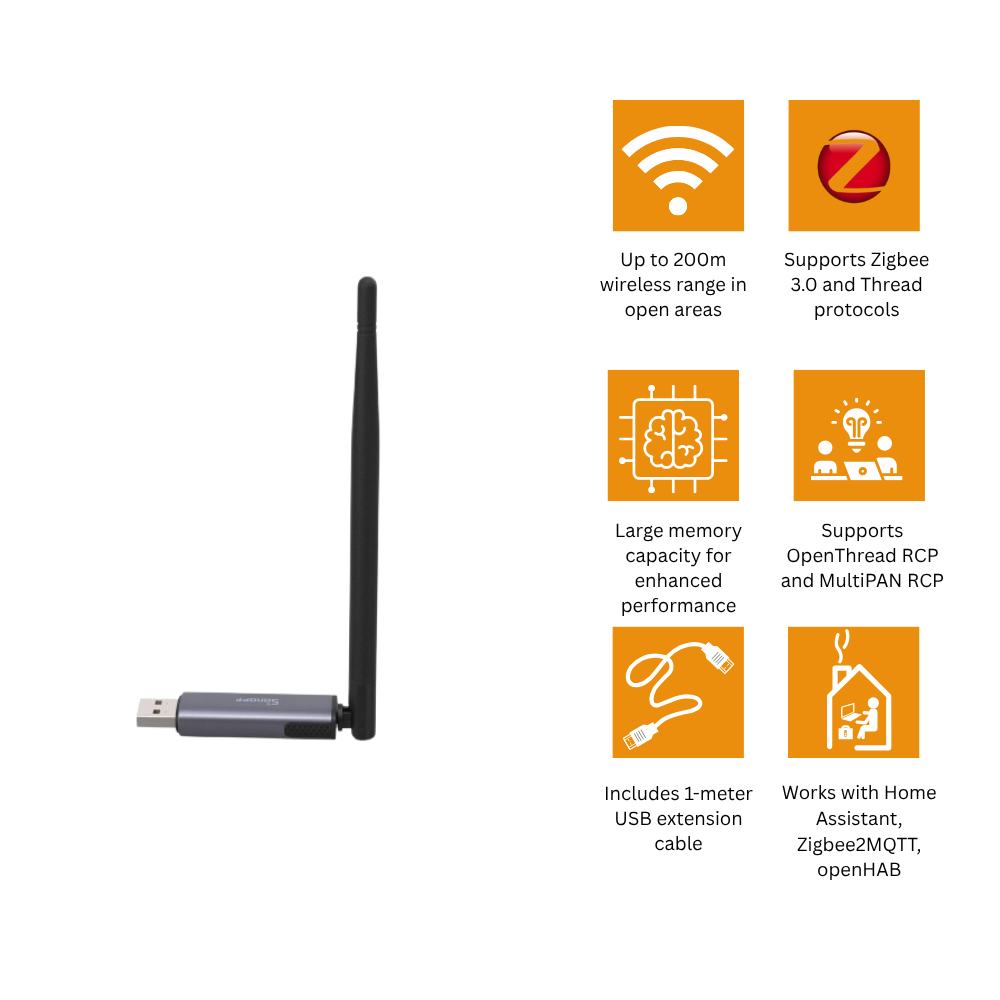

Key Features
- Powered by Silicon Labs EFR32MG24 chipset
- Supports Zigbee 3.0 and Thread protocols
- Compatible with Home Assistant, Zigbee2MQTT, and openHAB
- Can operate as Zigbee Coordinator or Zigbee Router
- Supports OpenThread RCP and MultiPAN RCP
- Large memory capacity for enhanced performance
- Up to 200m wireless range in open areas
- External high-gain antenna for better signal coverage

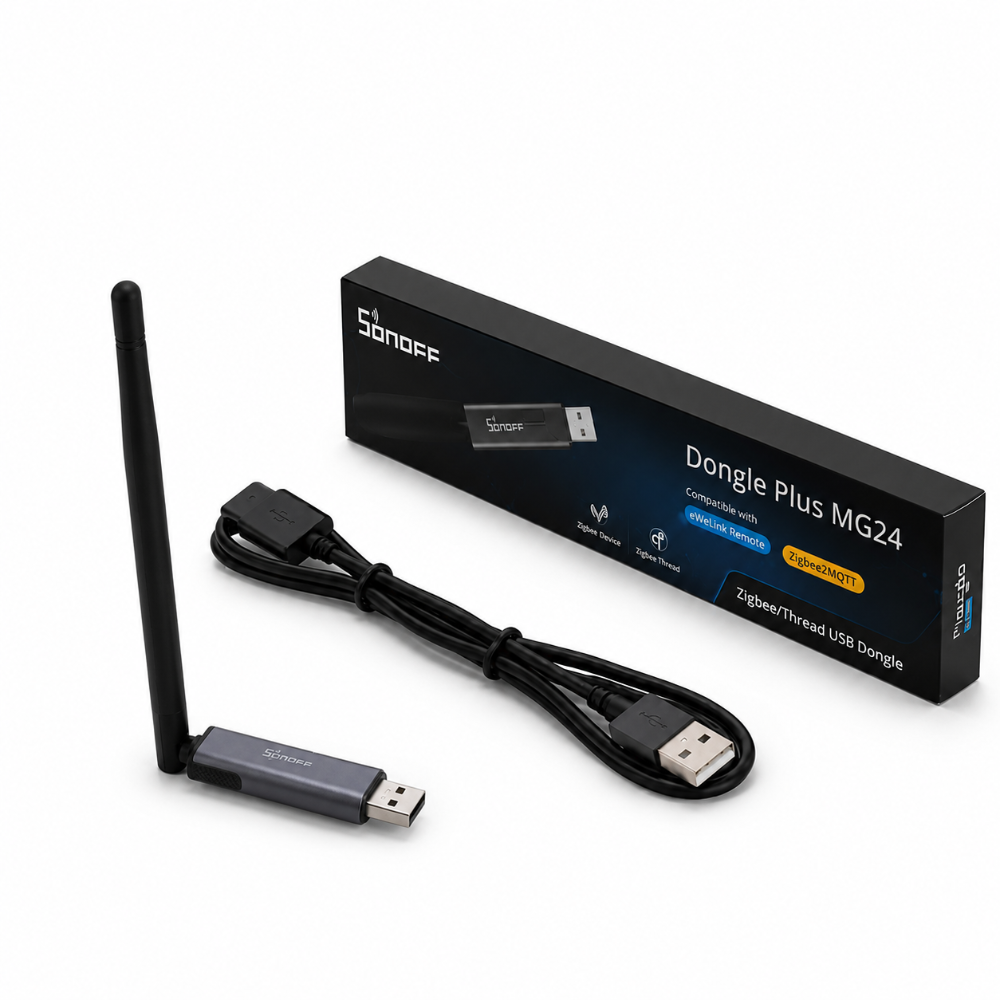

- Includes 1-meter USB extension cable
- Easy firmware flashing and updates
Specifications
| Specification |
Details |
| Model |
ZBDongle-PMG24 |
| Chipset |
Silicon Labs EFR32MG24 |
| Flash Memory |
1536KB |
| RAM |
256KB |
| USB Chip |
CP2102N |
| Input |
5V DC, 500mA |
| Wireless Frequency |
2.4GHz |
| Protocols |
Zigbee 3.0, Thread |
| Antenna Gain |
3dBi |
| Wireless Range |
Up to 200m (Open Space) |
| Operating Temperature |
-10°C to 40°C |
| Operating Humidity |
5% – 95% RH |
| Supported Systems |
Windows, Ubuntu, Raspberry Pi OS, Docker |
| Dimensions |
18 × 10.5 × 214 mm |
Why Choose SONOFF ZBDongle-PMG24?
- Latest-generation MG24 chipset for superior performance.
- Supports both Zigbee and Thread ecosystems.
- Ideal for large-scale Zigbee networks.
- Ready for Matter-compatible smart home deployments.
- Excellent stability with Home Assistant and Zigbee2MQTT.
- Enhanced wireless coverage with an external antenna.
- Perfect solution for professional smart home automation projects.
